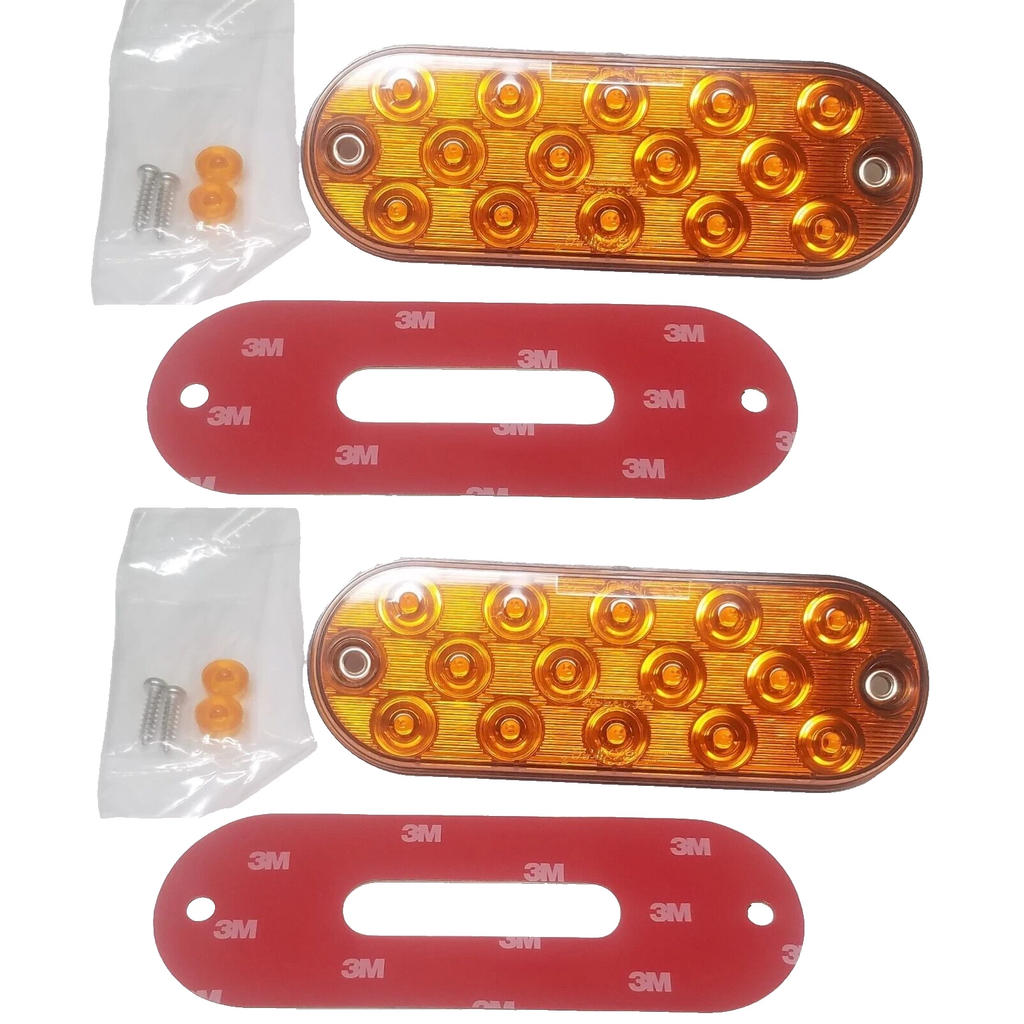

Two - Maxxima Low Profile AMBER LED 6" Oval Turn Tail Light Truck w/ Two Mounting Tape
Two Maxxima amber ultra-thin LED lights with mounting tape for trailer turn, tail, and side lighting applications where the size, wiring, and mounting style match.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | M63350Y + M63350-TAPE-LOTOF2 |
| Brand | Maxxima |
| Product Type | Amber LED turn / tail light pair with mounting tape |
| LED Count | 14 LEDs per light |
| Overall Size | 6.5" wide x 2.3" high x 0.4" deep |
| Voltage | 12.8 VDC |
| Amp Draw | 230 mA |
| Connector | 3-wire leads, 6" length |
| Quantity Included | 2 lights and 2 mounting tapes |
Fitment / Application
| Category | Details |
|---|---|
| Common Uses | Trailer turn, tail, side marker, utility trailer, service body, and similar 12V lighting applications |
| Mounting Style | Surface mount using included mounting tape and screws where the mounting surface is suitable |
| Orientation | Horizontal or vertical installation |
| Fitment Method | Verify light dimensions, wiring style, mounting surface, and DOT / SAE requirements before ordering |
| Important Note | This listing is for the amber light pair with tape. Grommets are not included in this kit. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Ultra-Thin 0.4" Profile | Low-profile design works well where a shallow light body is preferred. |
| Amber LED Output | Designed for amber trailer lighting functions such as turn, tail, and side applications. |
| Sealed Electronics | Helps protect the internal LED electronics in exterior trailer use. |
| Polycarbonate Lens & Housing | Durable lens and housing construction for trailer and utility applications. |
Overview
This listing includes two Maxxima M63350Y ultra-thin amber LED lights and two matching mounting tapes. Each light uses a 14-LED design, a low-profile 0.4" body, sealed electronics, and a polycarbonate lens and housing. Use these lights for compatible trailer lighting applications where the amber function, 3-wire lead configuration, and mounting dimensions match your trailer.
R&P Service Insight
Low-profile LED lights are useful when a standard-depth trailer light will not sit cleanly on the mounting surface. Before installation, confirm both the wiring function and the surface condition for adhesive mounting.
- Surface Prep: Clean and dry the mounting surface before applying tape.
- Wiring Check: Confirm the 3-wire lead configuration before connecting to the trailer harness.
- Mounting Choice: This kit includes tape and screws; grommets are not included.
R&P Knowledge Hub
Compatibility: Compatible with applications where a 6.5" x 2.3" amber LED light, 0.4" depth, and 3-wire lead configuration are required.
Vehicle / System Fit: Commonly used on trailers, utility trailers, service bodies, and similar 12V lighting systems.
Installation Notes: Verify the mounting surface, wiring layout, light function, and legal lighting position before installation.
Performance Insight: The ultra-thin profile helps reduce protrusion from the trailer body while still providing amber LED turn / tail light function.
Brand & Fitment Note
Selling Brand: Maxxima
Application Reference: Trailer and utility lighting references describe fitment by size, wiring, color, and mounting style only.
What This Means: This listing is for a Maxxima amber LED light pair with mounting tape, not a trailer-specific factory OEM part.
Before Ordering: Verify dimensions, mounting style, wiring style, lens color, lighting function, DOT / SAE requirements, and included components before installation.
R&P Repair Insight
When replacing trailer lights, the most common ordering problems are mismatched wire count, wrong lens color, wrong light function, or assuming a grommet is included. Match the existing light carefully before ordering.
- Check Light Color: This kit is amber, not red or clear.
- Check Wire Count: This light uses 3-wire leads with 6" length.
- Check Included Parts: This listing includes two lights and two mounting tapes; grommets are not included.
Features
Amber LED Turn / Tail Function
Designed for amber trailer lighting applications where turn and tail light functions are required.
Ultra-Thin Low Profile
The 0.4" depth keeps the light body close to the mounting surface for a clean, shallow installation.
Sealed Electronics
Sealed internal electronics help protect the LED assembly in trailer and utility lighting environments.
Flexible Mounting Orientation
Suitable for horizontal or vertical mounting where the light size and application match.
Specifications
| Specification | Detail |
|---|---|
| Part Number | M63350Y + M63350-TAPE-LOTOF2 |
| Light Color | Amber |
| LED Count | 14 LEDs per light |
| Width | 6.5" |
| Height | 2.3" |
| Depth | 0.4" |
| Voltage | 12.8 VDC |
| Amp Draw | 230 mA |
| Connector | 3-wire leads, 6" length |
| Housing / Lens | Polycarbonate lens and housing |
| Electronics | Sealed electronics |
| DOT / SAE | J1395, J1398, J585e |
| Legal Marking | I6S2T2 |
Included Components
| Quantity | Item |
|---|---|
| 2 | Maxxima M63350Y amber ultra-thin LED lights |
| 2 | M63350-TAPE adhesive mounting tapes |
| Included with lights | Mounting screws |
| Not Included | Mounting grommets |
