Match the part number, measurements and connection points that apply to your trailer.
| Opening | Measure the existing roof or wall opening. |
|---|---|
| Flange | Confirm overall and flange dimensions. |
| Operation | Confirm powered, manual or fixed operation. |
| Mount / Power | Verify mounting and electrical requirements. |
Submersible LED curb side trailer light for passenger-side stop, turn, and tail light applications. This J-72 light is a replacement-style option for J-70 box light applications where the side orientation, mounting slots, and dimensions match.
| Specification | Detail |
|---|---|
| Part Number / SKU | J-72 |
| Product Type | LED box stop / turn / tail trailer light |
| Side Orientation | Curb side only / right side / passenger side |

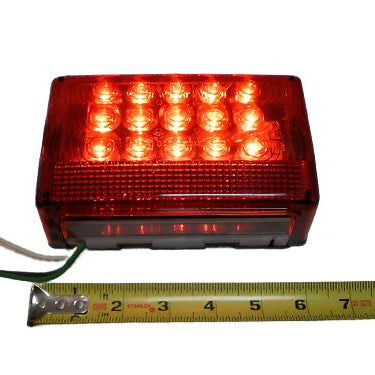

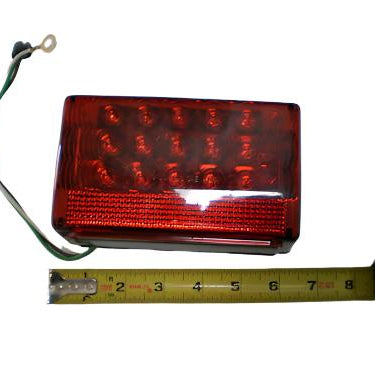

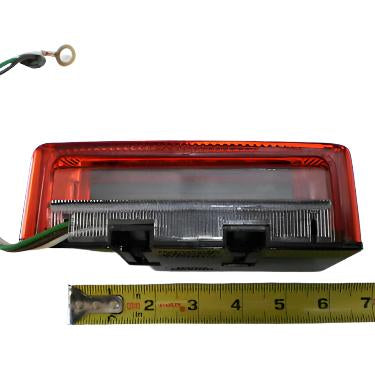

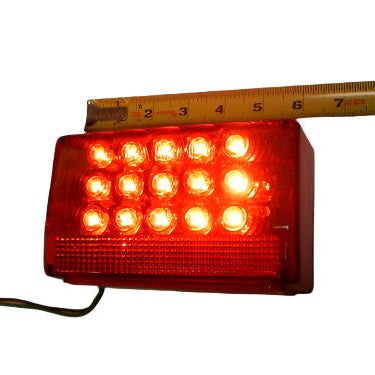

| Overall Size | 6-1/4" long x 3-3/4" high x 2-1/4" wide at base |
| Mounting Slot Spacing | Mounting slots are spaced 2" apart and 2" from each end |
| Lens Color | Red lens |
| Quantity Included | 1 curb side trailer light |
| Category | Details |
|---|---|
| Trailer Application | Common trailer stop, turn, and tail light replacement applications |
| Primary Fit | J-70 replacement-style applications where measurements and mounting slots match |
| Side-Specific Fit | This listing is for the curb side / passenger side light only |
| License Plate Light | No license plate light on this curb side version |
| Verification Method | Confirm side marking, lens style, light dimensions, mounting slot spacing, and wiring needs before ordering |
| Feature | Buyer Benefit |
|---|---|
| LED Design | Modern LED replacement for traditional J-70-style box trailer lights |
| Submersible Construction | Suitable for trailer applications exposed to wet conditions when installed correctly |
| Side-Specific Housing | Marked for curb side installation to help prevent left/right fitment mistakes |
| Mounting Hardware Included | Includes mounting hardware for installation |
The J-72 is a curb side LED box trailer light designed for stop, turn, and tail light service on compatible trailers. It is a replacement-style LED option for J-70 box light applications and is intended for the passenger side only. This curb side version does not include a license plate light.
Trailer tail lights are commonly confused by side orientation. This J-72 listing is for the curb side / passenger side light only. Match the side marking on the light and compare the mounting pattern before installation.
Compatibility: Designed for J-70 replacement-style trailer light applications where the housing size, mounting slot spacing, side orientation, and wiring requirements match.
Vehicle / System Fit: Used on trailers requiring a curb side red stop, turn, and tail light assembly.
Installation Notes: Confirm the light is installed on the curb side / passenger side. Side-specific lights may not interchange correctly with street side versions.
Performance Insight: LED trailer lights provide a replacement option for older box-style trailer lamps while retaining the familiar rectangular red lens format used on many utility, boat, and cargo trailer applications.
Selling Brand: Aftermarket trailer lighting replacement
Application Reference: J-70 is used as a replacement-style application reference only. Verify the current light’s size, mounting slots, and side orientation before ordering.
What This Means: This listing is for one J-72 LED curb side trailer light, not a pair and not a street side light.
Before Ordering: Verify side orientation, dimensions, mounting slot spacing, lens style, connector or wiring setup, and whether your trailer requires a license plate light.
When replacing trailer box lights, the most important fitment checks are side orientation, license plate light requirement, and mounting pattern. A curb side light is typically the right/passenger side light and usually does not include the plate light function.
Designed for the passenger side of the trailer. Lights are side-specific and marked street side or curb side.
LED replacement-style trailer light for J-70 box light applications where the mounting and size match.
Built for trailer environments where moisture exposure is common when properly mounted and sealed.
Covered with a red lens for rear trailer stop, turn, and tail light function.
| Quantity | Item |
|---|---|
| 1 | J-72 LED curb side box stop / turn / tail trailer light |
| Included | Mounting hardware |
| Not Included | Street side light / driver side light |
| Not Included | License plate light function on this curb side version |
