Weld-On Brake Backing Plate Mounting Brackets – Pair – For 7" & 10" Trailer Brakes
Part Number: 1536182-LOTOF2

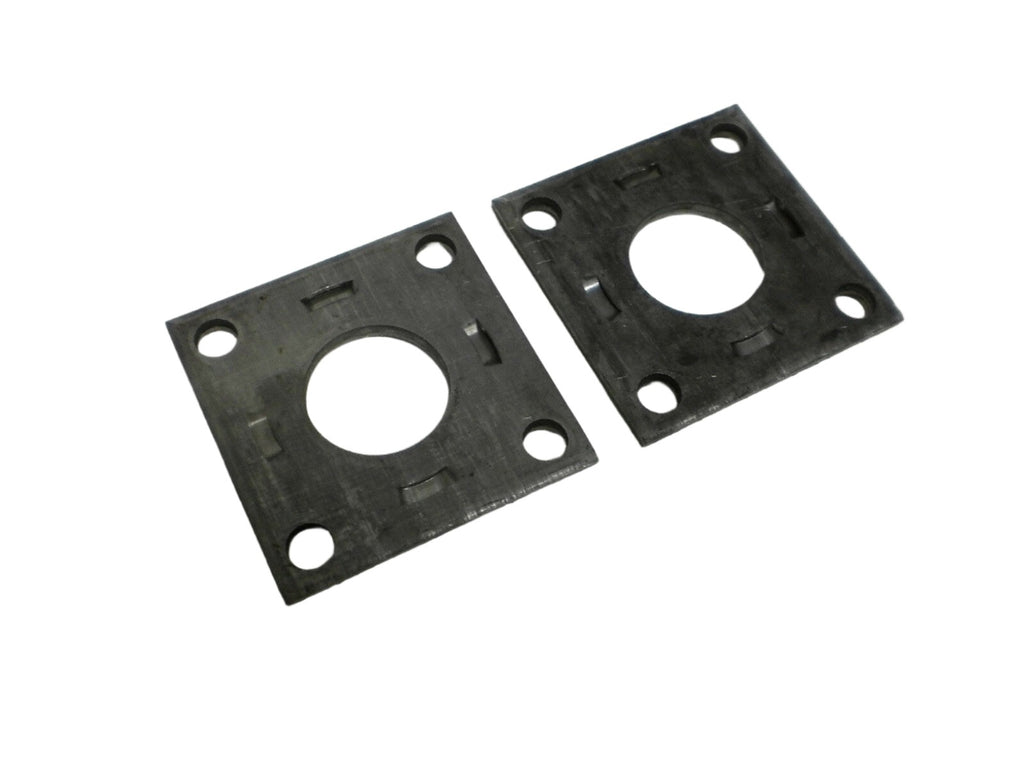

This listing includes two weld-on brake backing plate mounting brackets used to add electric drum brakes to a trailer axle that does not already have brake flanges installed. These brackets are welded directly to the axle tube and provide the standard four-bolt square mounting pattern used by most modern trailer brake assemblies.
The included flanges are commonly used for 7" and 10" electric trailer brakes. These brake sizes are typically found on 2,000 lb and 3,500 lb trailer axle applications.
Features
- Weld-on brake flange brackets
- Includes two brackets
- Compatible with most 7" and 10" electric trailer brakes
- Standard four-bolt square backing plate mounting pattern
- Backing plate mounts with four bolts
- Heavy steel construction
- Designed to weld directly to axle tube
R&P Knowledge Hub
Brake flanges are welded to a trailer axle to create the mounting surface required for electric drum brake backing plates. Most modern 7-inch and 10-inch trailer brake assemblies use a standardized four-bolt square flange pattern. When installing weld-on flanges, the brackets must be aligned square to the axle spindle to ensure the brake assembly aligns properly with the hub and drum. Proper positioning and welding help maintain correct braking performance and component life.
 |
 |
 | |

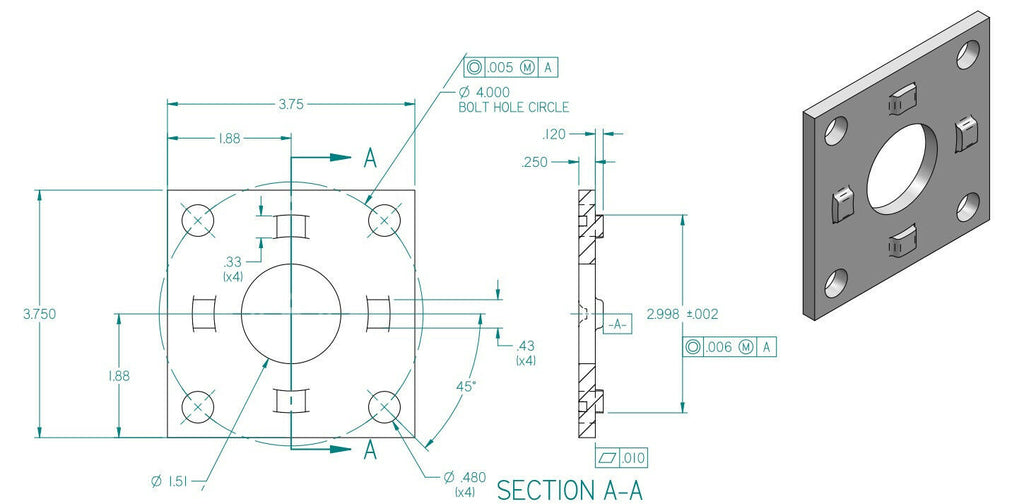

| Specification | Details |
| Part Number | 1536182-LOTOF2 |
| Product Type | Brake Backing Plate Mounting Bracket |
| Quantity | 2 Brackets |
| Brake Compatibility | 7" and 10" Electric Trailer Brakes |
| Mounting Pattern | 4 Bolt Square Brake Flange |
| Bracket Size | Approximately 3-3/4" × 3-3/4" |
| Hole Spacing | Approximately 2-7/8" On Center |

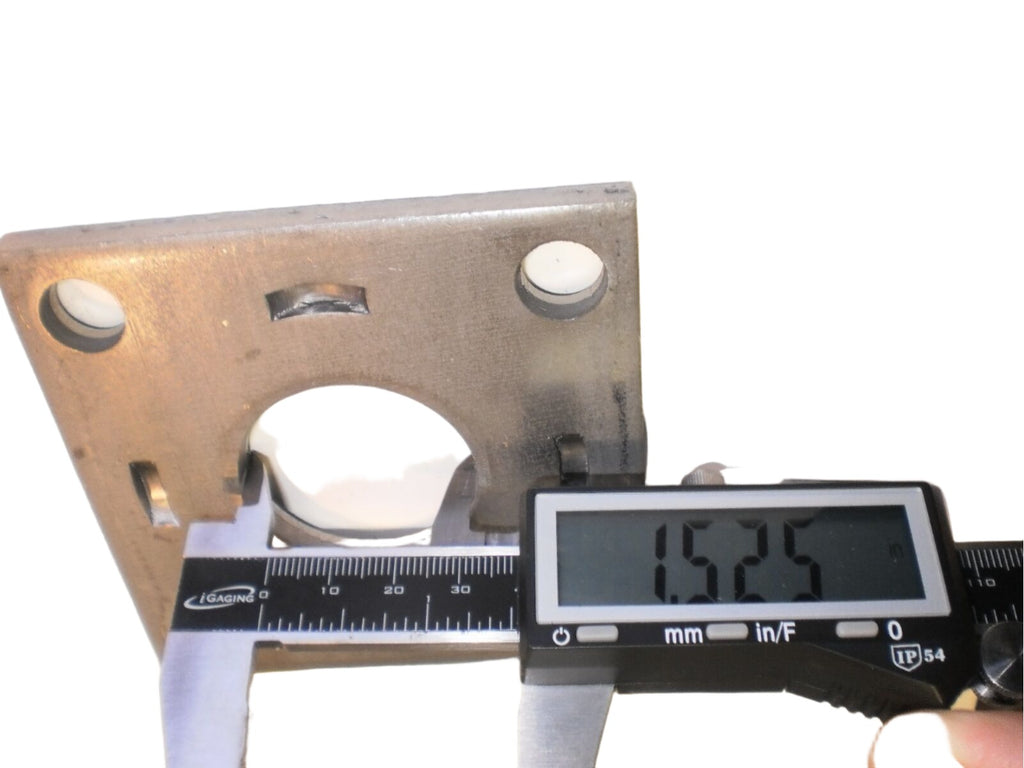

| Center Hole | Approximately 1-1/2" (punched opening) |
| Installation | Weld-On |
Verify specifications before installation.
