Brophy 1 " Weld-On D-Ring Lashing Anchor | 46,000 lb Rating | Forged 1045 Steel
A massive, forged 1045 steel lashing point designed for permanent weld-on installation on heavy equipment haulers, lowboys, and flatbed trailers.
Overview

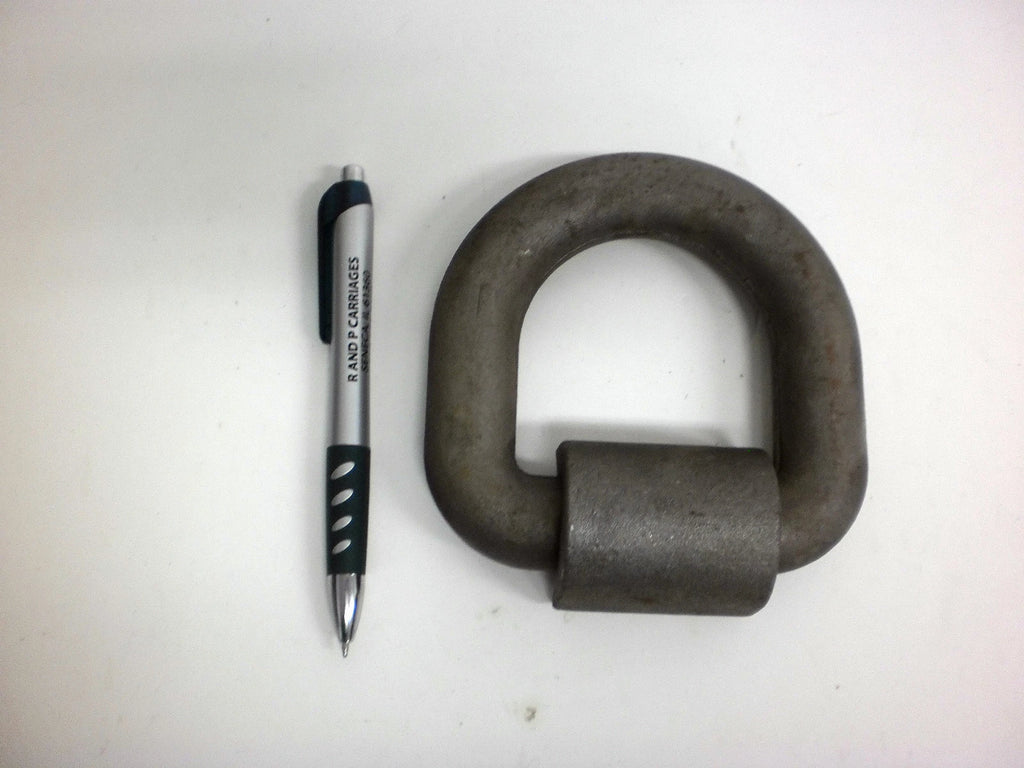

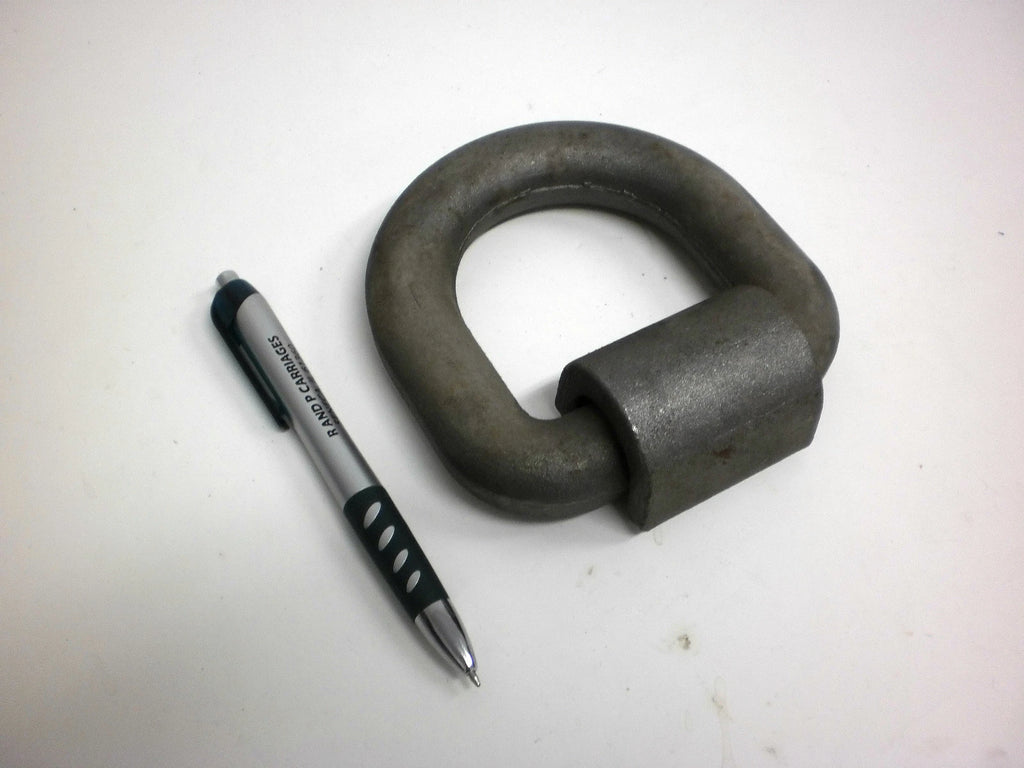

The Brophy LRW3 is a heavy-duty, forged lashing ring engineered for high-capacity cargo securement. Unlike bent or cast alternatives, this forged 1045 steel ring offers superior impact resistance and structural integrity under extreme tension. Its 1-inch thick ring and 5x5 footprint make it a staple for flatbed trailers and industrial trucks. This raw-finish, two-piece unit consists of the D-ring and a heavy-duty mounting bracket, ready for professional welding.
R&P Service Insight
This lashing ring is built for the most demanding transport environments where failure is not an option.
- Safety: Secure loads based on the 15,000 lb Working Load Limit (WLL), not the breaking strength.
- Installation: Weld-on only; ensure the mounting surface is ground clean before welding for maximum penetration.
- Finish: Arrives as raw steel; must be painted or coated after welding to prevent surface rust.
R&P Knowledge Hub

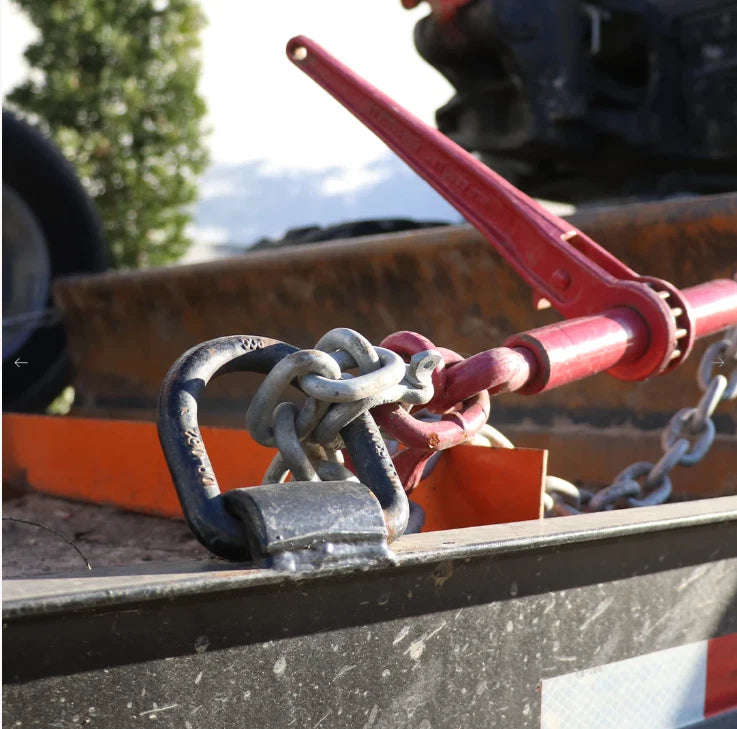

Compatibility: Engineered for use with heavy-duty Grade 70 or Grade 80 transport chains and industrial ratchet binders.
Vehicle / System Fit: Universal weld-on application for steel-frame trailers, lowboys, flatbeds, and heavy machinery decks.
Installation Notes: Must be installed by a professional welder to maintain the 46K rating. Not suitable for wood or aluminum frames without steel reinforcement plates.
Performance Insight: The 1045 Forged Steel construction provides necessary durability to resist warping or cracking when securing heavy machinery or steel coils.
Brand & Fitment Note
Selling Brand: Brophy / R&P Carriages
Application Reference: Application descriptions for trailers (Lowboy, Flatbed) refer to compatibility based on steel frame construction and mounting space.
What This Means: This is a genuine Brophy heavy-duty component, designed for universal industrial applications that support weld-on steel attachments.
Before Ordering: Verify you have a minimum 5" x 5" flat steel surface for the mounting footprint and that your frame can support a 15,000 lb WLL.
R&P Safety & Fitment Check
Crucial checks to perform before completing your purchase and installation:
- Not for Lifting: Rated for cargo lashing ONLY. Do not use for overhead lifting or recovery snatching/towing.
- Space Requirement: Ensure you have a clear 5" x 5" flat steel surface for the ring's footprint.
- Load Rating: Verify your total load requirements do not exceed the Working Load Limit (WLL) of 15,000 lbs per anchor.
Features
Forged Strength
Manufactured from forged ASTM 1045 steel for superior resistance to impact and deformation compared to cast rings.
Two-Piece Design

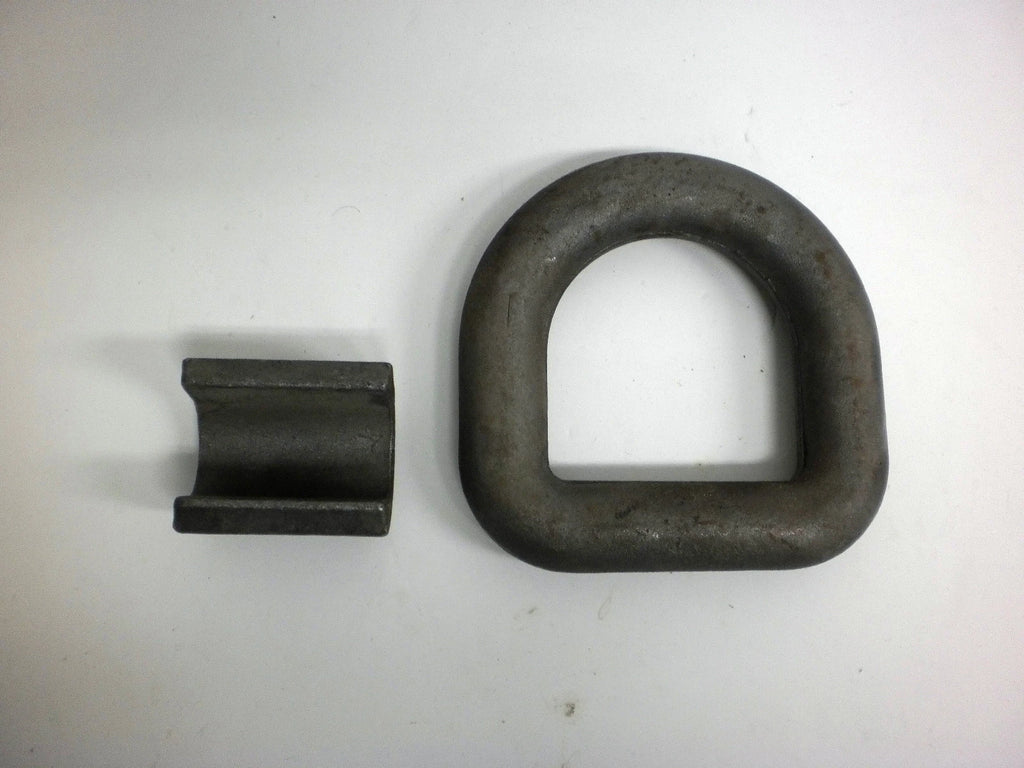

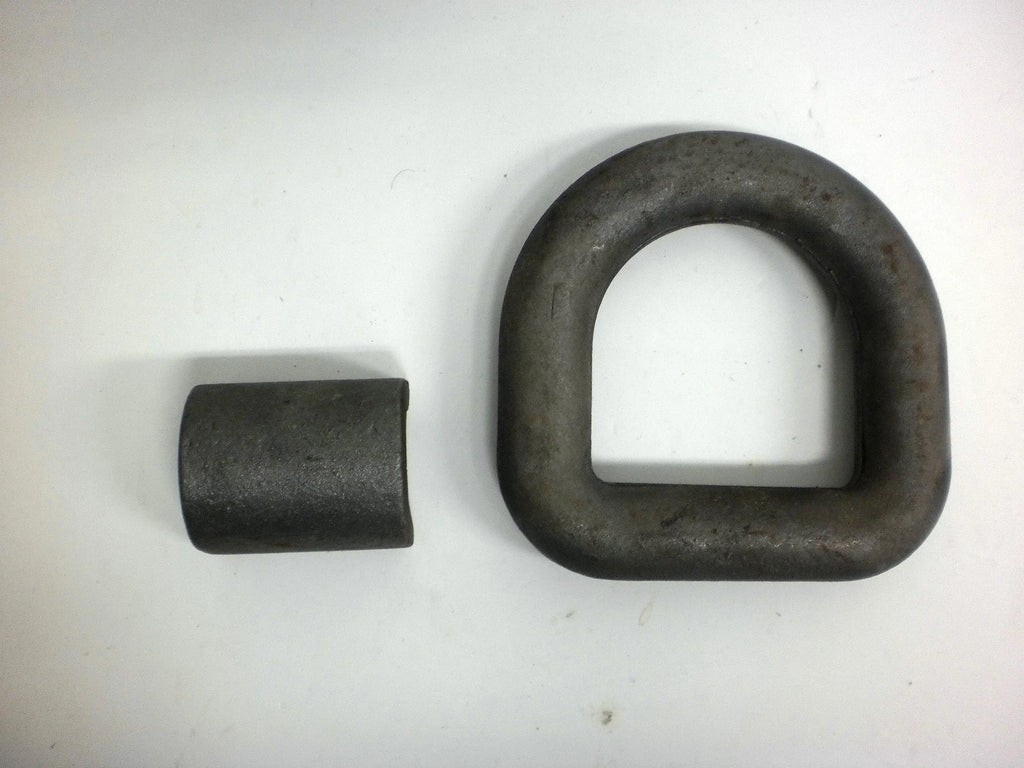

Includes a massive 1" diameter D-ring and a heavy-duty weld-on mounting bracket (clip) for a complete setup.
Compact Profile
The 5" x 5" footprint delivers massive load capacity without taking up excessive trailer rail space.
Industrial Ready
Perfectly suited for securing heavy machinery, vehicles, and steel coils on industrial haulers.
Specifications
| Specification | Detail |
|---|---|
| Part Number | LRW3 |
| Brand | Brophy |
| Product Type | Weld-On D-Ring |
| Rating (MBS) | 46,000 lbs |
| Working Load Limit | 15,000 lbs |
| Material / Finish | Forged 1045 Steel / Raw |

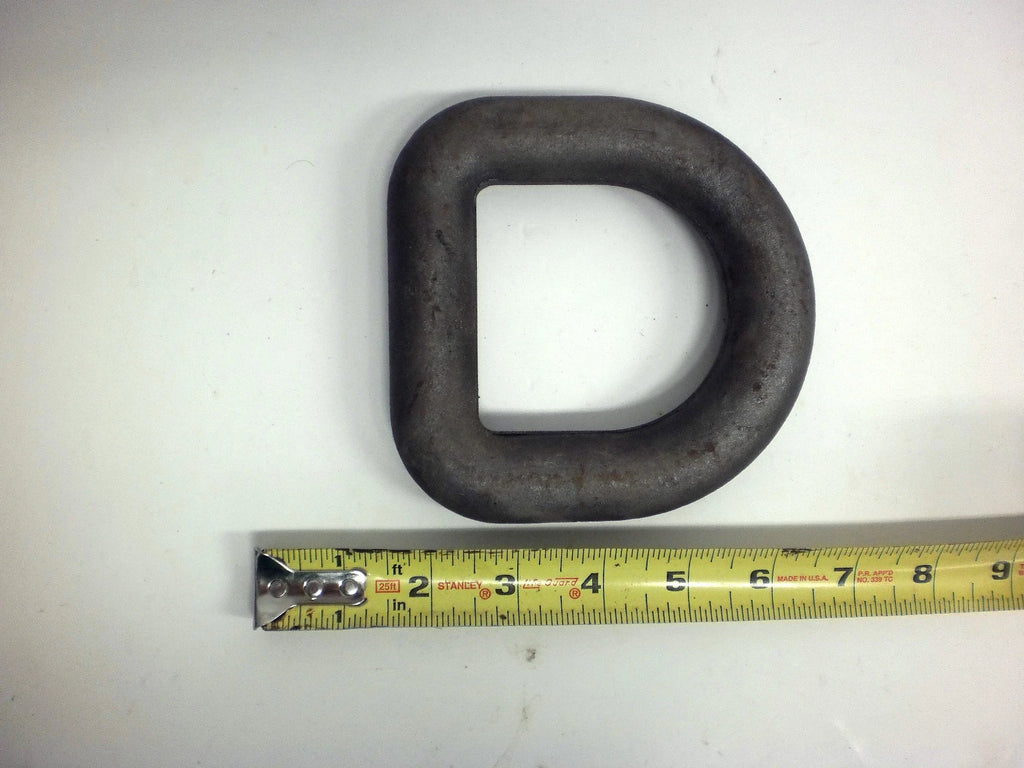

| Ring Diameter | 1 Inch |
| Total Weight | Approx. 4.4 lbs |

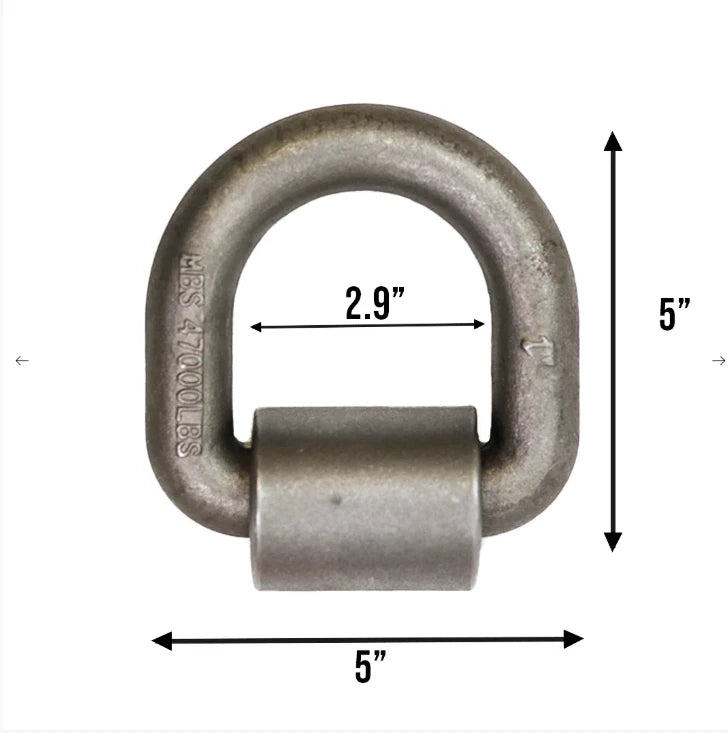

Dimensions
| Category | Details |
|---|---|
| Outer Footprint | 5" Height x 5" Width |
| Inner Clearance | 3" High x 3" Wide |
| Bracket Thickness | 0.5" Thick |
| Bracket Width | 2.25" Wide |
| Notes | Raw steel - Professional weld required for full capacity. |
Included Components
| Quantity | Item |
|---|---|
| 1 | 1" Diameter Forged Steel D-Ring |
| 1 | Heavy Duty Weld-on Mounting Bracket (Clip) |
