8-Pack Wheel Studs – 5/8"-13 x 3.12" Drive-In
Replaces Dexter 10K & 12K Hub Stud
Part Number: 7-115-LOTOF8

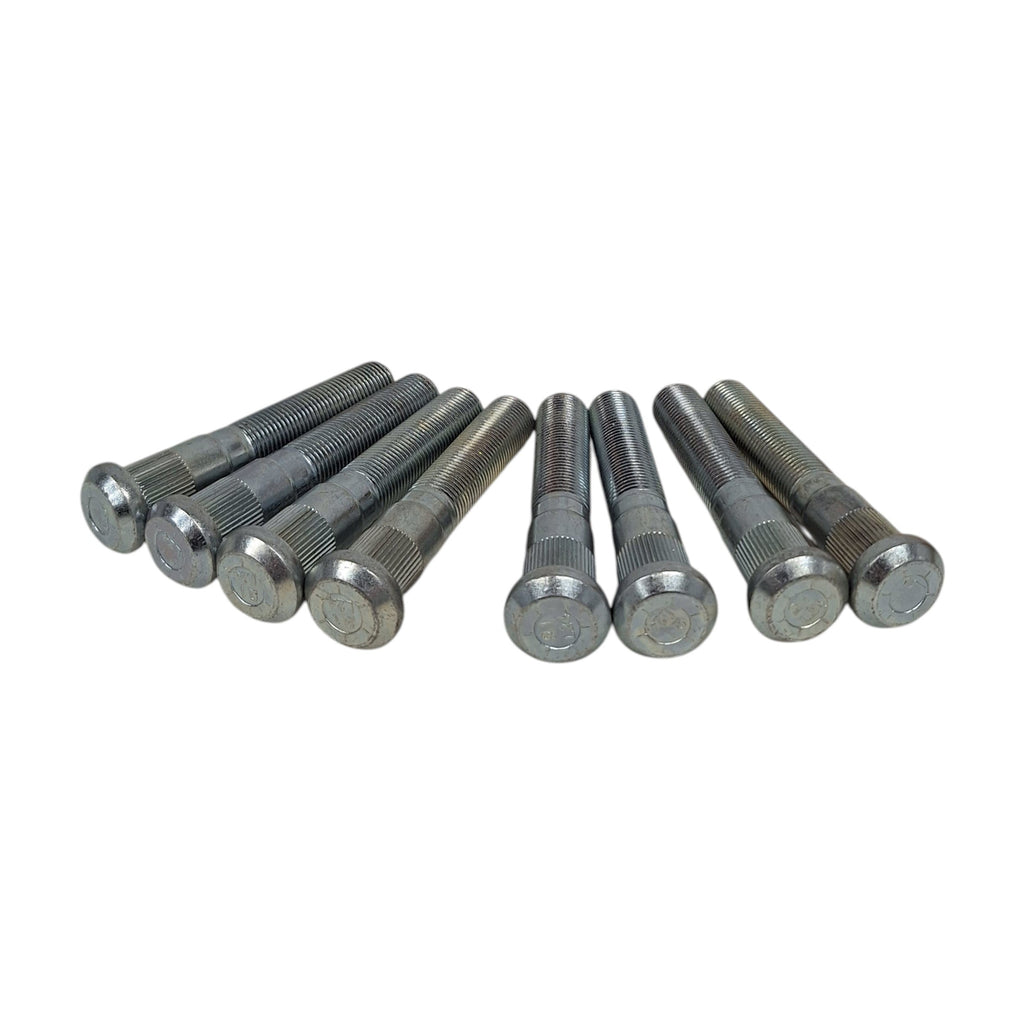

This set includes eight (8) heavy-duty drive-in (press-in) wheel studs commonly used on Dexter 10,000 lb and 12,000 lb trailer axles. Designed to replace damaged, worn, or corroded hub studs when dimensions match your existing hardware.
R&P Knowledge Hub
Drive-in wheel studs rely on an interference fit between the knurled spline and the hub bore. Correct spline (knurl) diameter is critical for proper retention.
Always confirm thread size, overall length, and spline diameter before installation. Improper fitment can result in stud rotation or hub damage.
Features
- Pack of 8 drive-in (press-in) wheel studs
- 5/8"-13 thread pitch
- 3.12" (3-1/8") overall length
- 0.69" spline (knurl) diameter
- Commonly used on Dexter 10K & 12K axle hubs

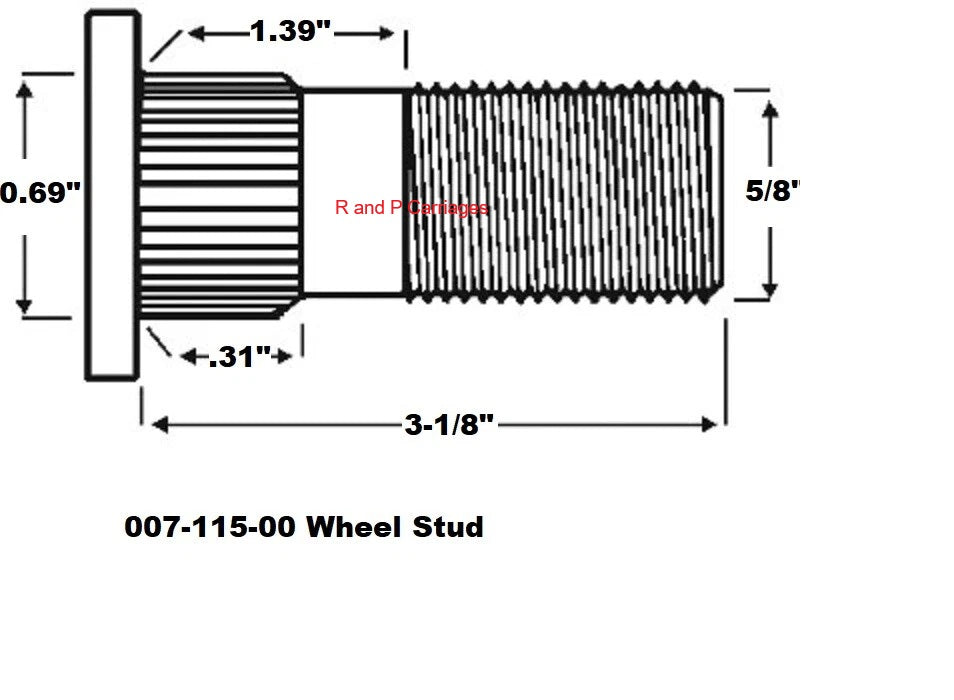

Dimensional Overview
Specifications
| Specification | Detail |
|---|---|
| Pack Quantity | 8 Wheel Studs |
| Stud Style | Drive-In (Press-In) |
| Thread Size | 5/8"-13 |
| Overall Length | 3.12" (3-1/8") |
| Spline (Knurl) Diameter | 0.69" |
| Knurl Length | 1.39" |
| Shoulder Length (Under Head) | 0.31" |
Common Applications
- Dexter Hub 008-430-03 / 9-123 (10K General Duty after 2009)
- Dexter Hub 008-288-03 / 9-44 (10K General Duty before 2009)
- Dexter Hub 008-214-05 / 9-27, 9-28 (10K Heavy Duty / 12K)
- Dexter Hub 008-422-03 (#14 Torflex)
Finish may be black oxide or zinc depending on current inventory.
Verify spline diameter and thread size before installation.
