At a Glance
- SKU: 023-529-00
PRODUCT INFORMATION
Product Details

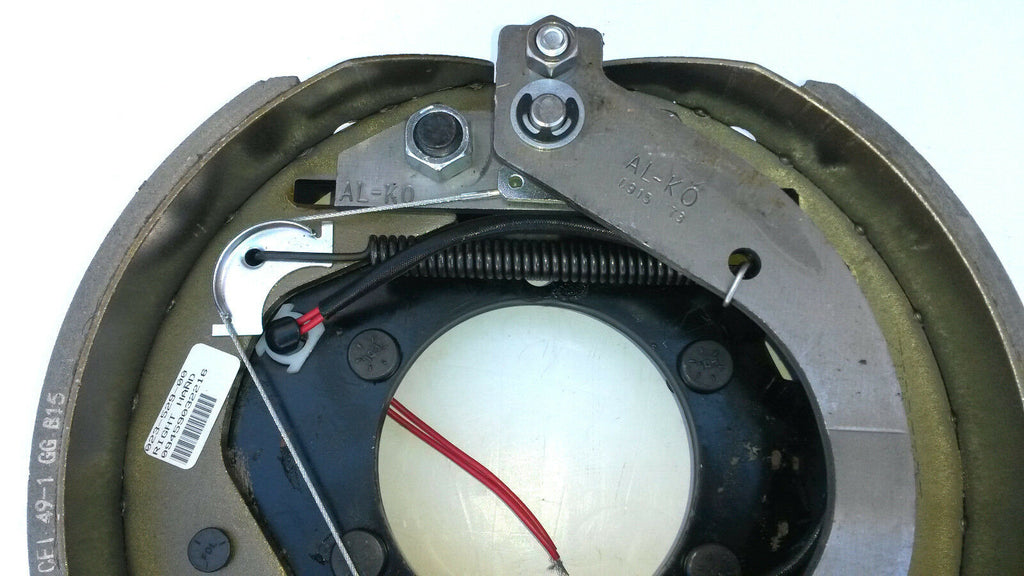

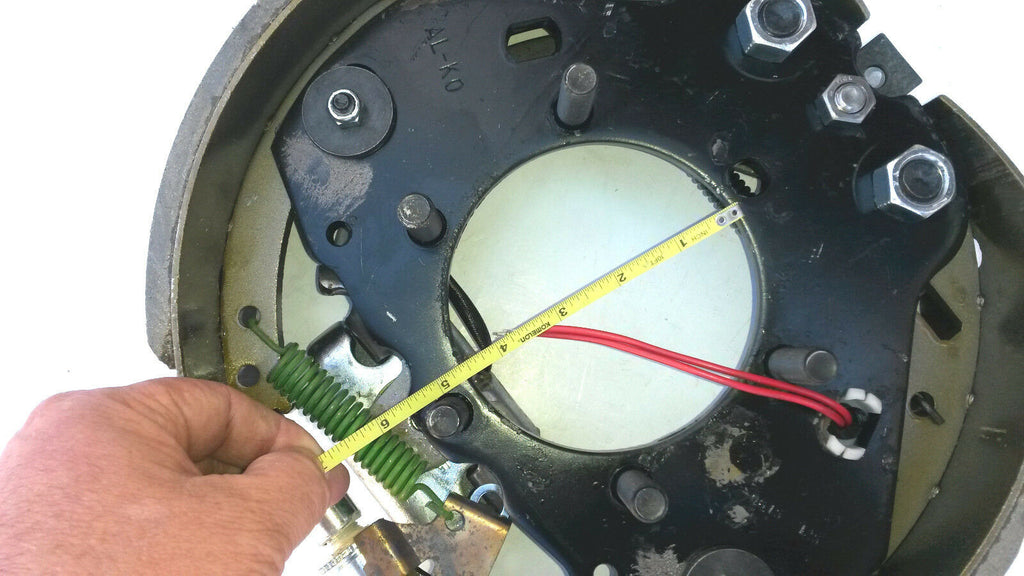

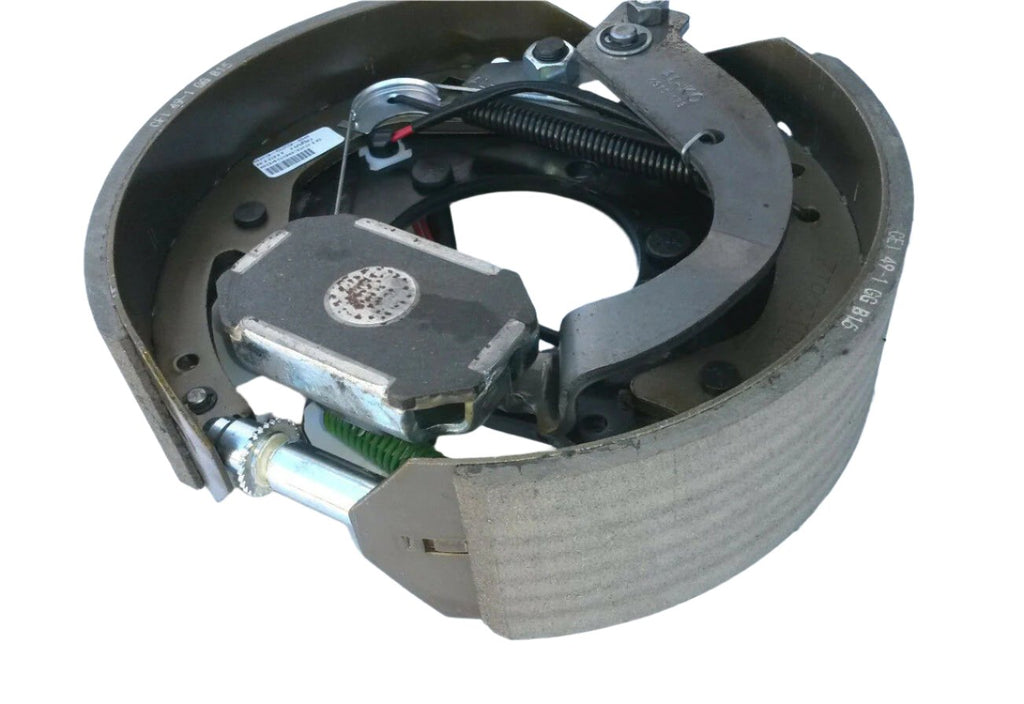

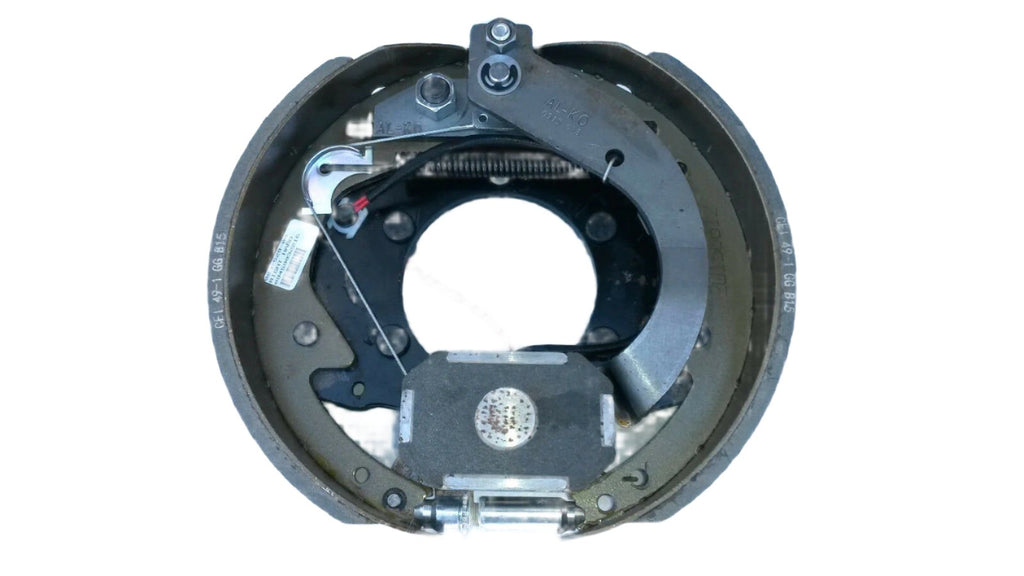

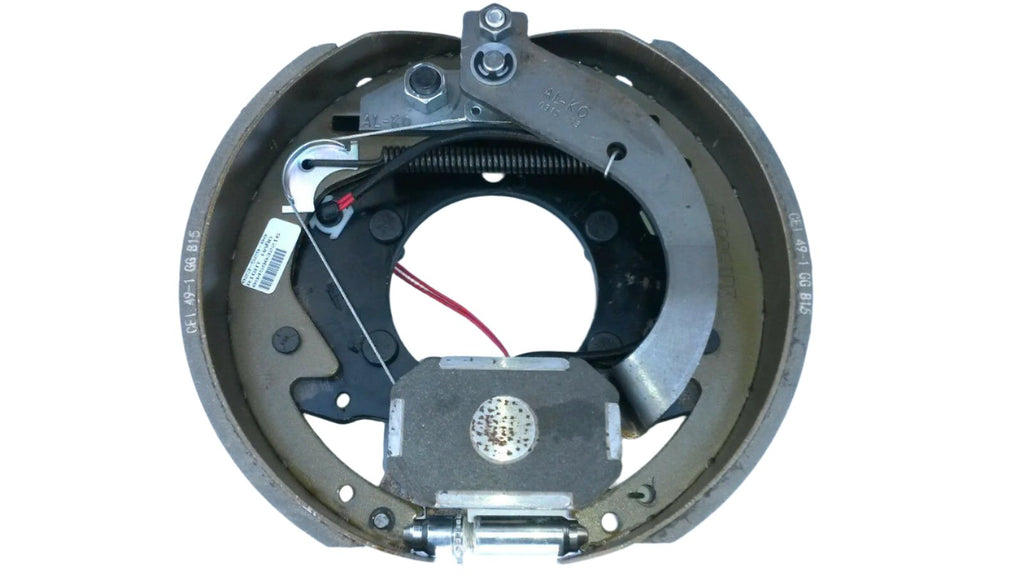

AL-KO 12.25" x 3.5" Electric Brake Assembly – 9K / 10K / 12K Axle – 5 Bolt – RSA – RIGHT
Part Number: 023-529-00
AL-KO 12.25" x 3.5" electric brake assembly designed for 9,000 lb, 10,000 lb,and 12,000 lb trailer axle applications. This is the RIGHT (passenger side)configuration and mounts to a 5-bolt brake flange.

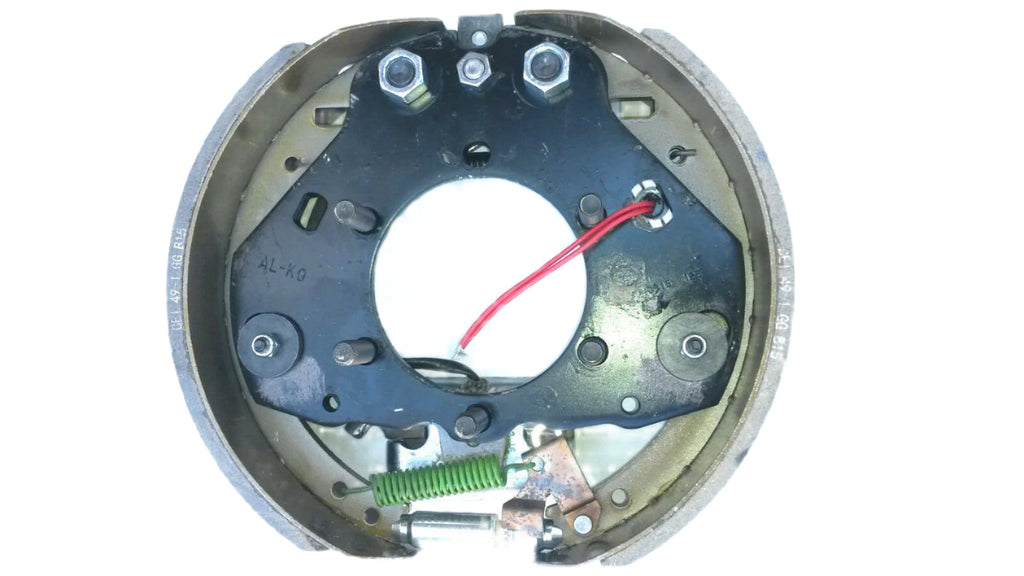

Brake assembly is fully pre-assembled on the backing plate and includesshoes, magnet, return springs, and RSA adjuster mechanism.Listing is for ONE complete brake assembly (one wheel).
R&P Knowledge Hub
These 12.25" x 3.5" assemblies are used on heavy-duty 9K–12K axlescommonly found under commercial and equipment trailers.Proper drum width and 5-bolt flange confirmation is critical.
RSA (Reverse Self-Adjusting) systems automatically maintain brakeclearance during operation, reducing service intervals and ensuringconsistent braking performance under heavy loads.Always verify correct side orientation before installation.
Features
- 12.25" diameter x 3.5" wide brake assembly
- 5-bolt mounting flange configuration
- RSA – Reverse Self-Adjusting mechanism
- Pre-assembled backing plate for direct replacement
- AL-KO heavy-duty electric drum brake system
Specifications
| Specification | Detail |
| Brake Type | Electric Drum |

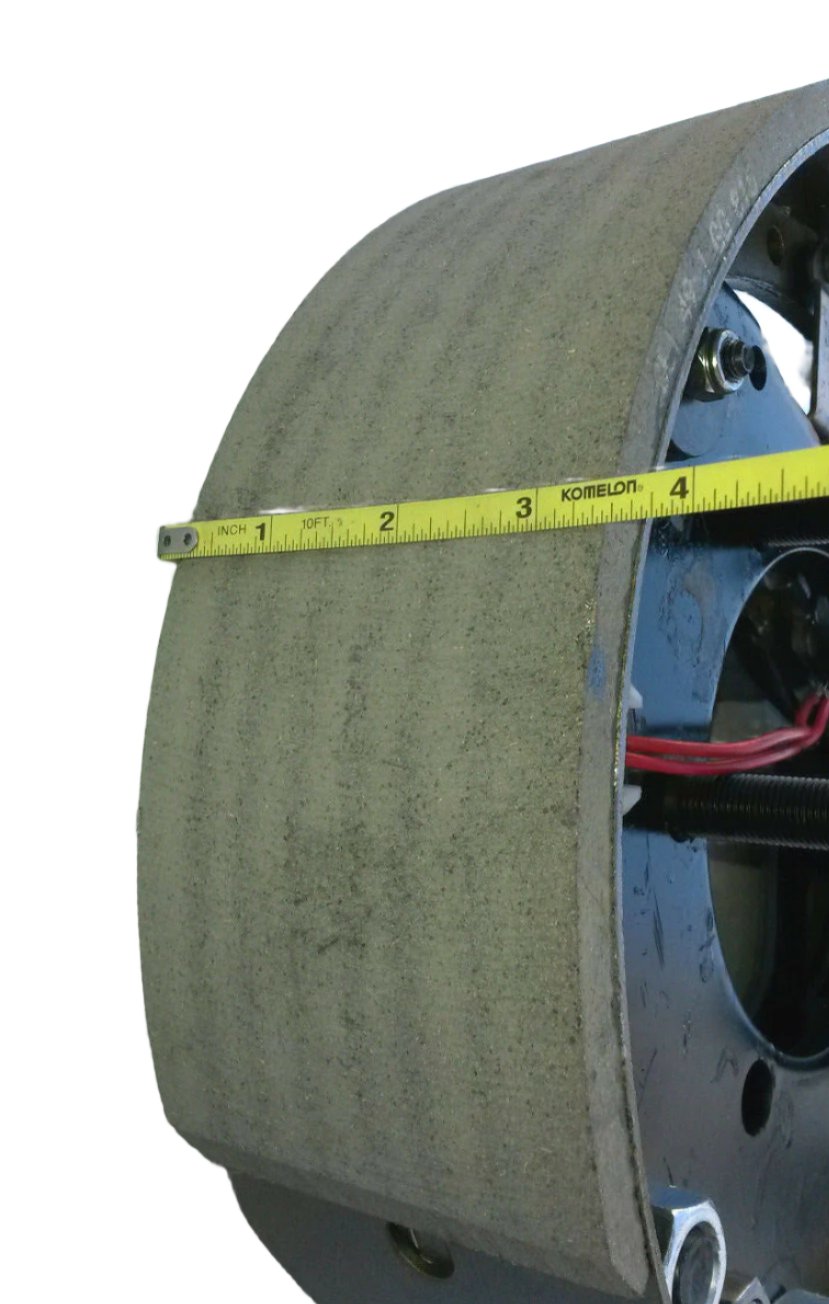

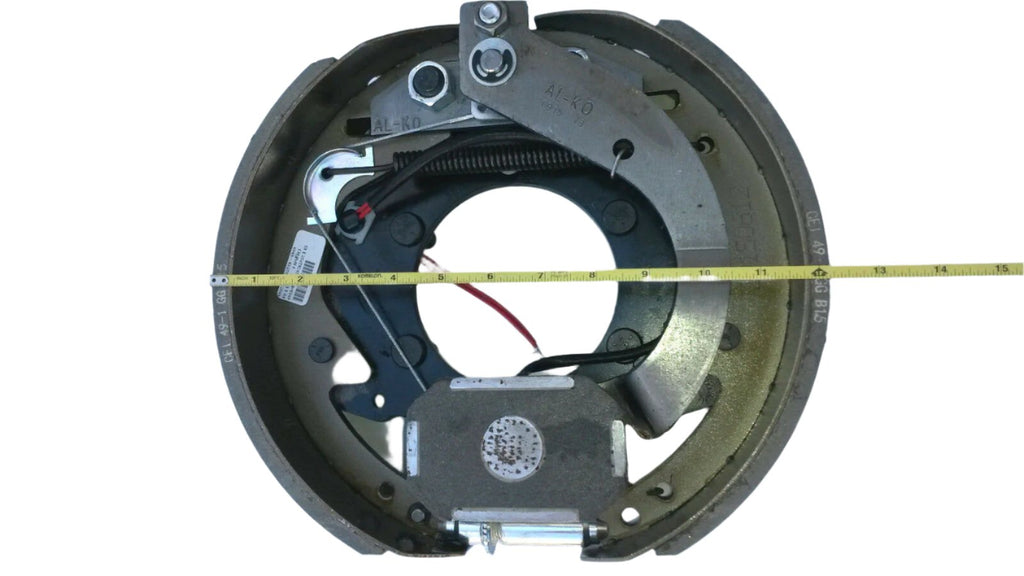

| Brake Size | 12.25" x 3.5" |
| Axle Rating | 9,000 lb / 10,000 lb / 12,000 lb |

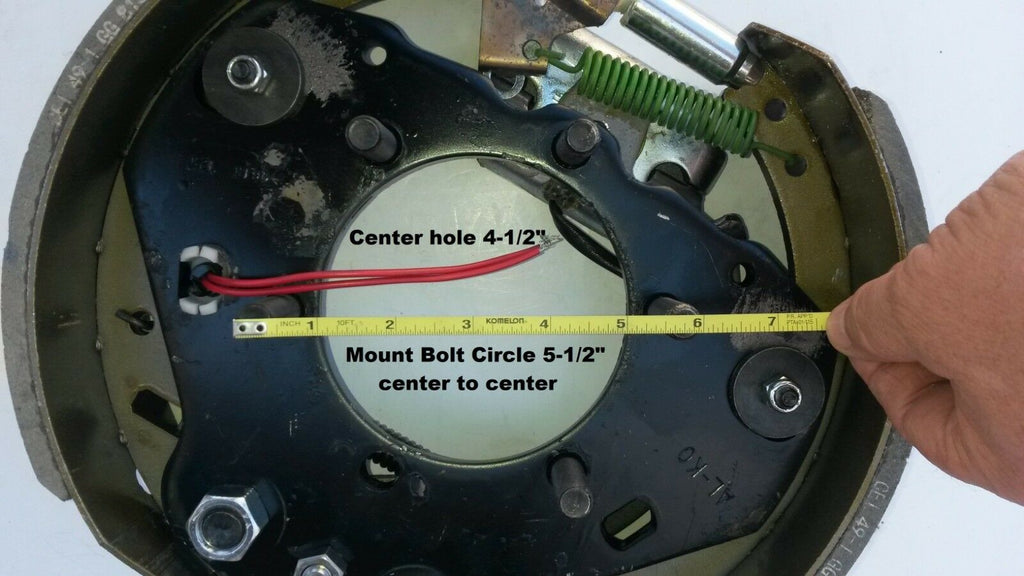

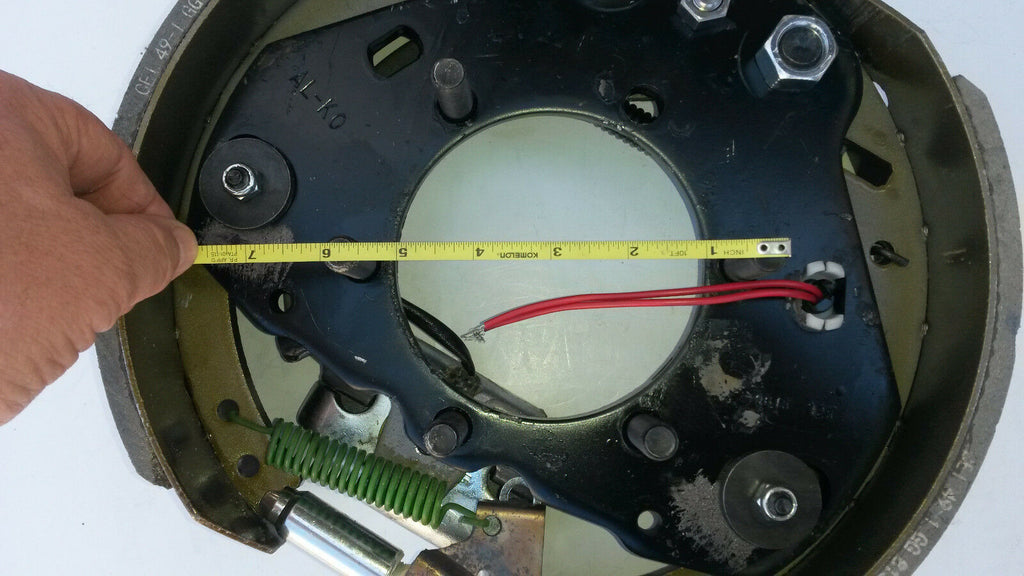

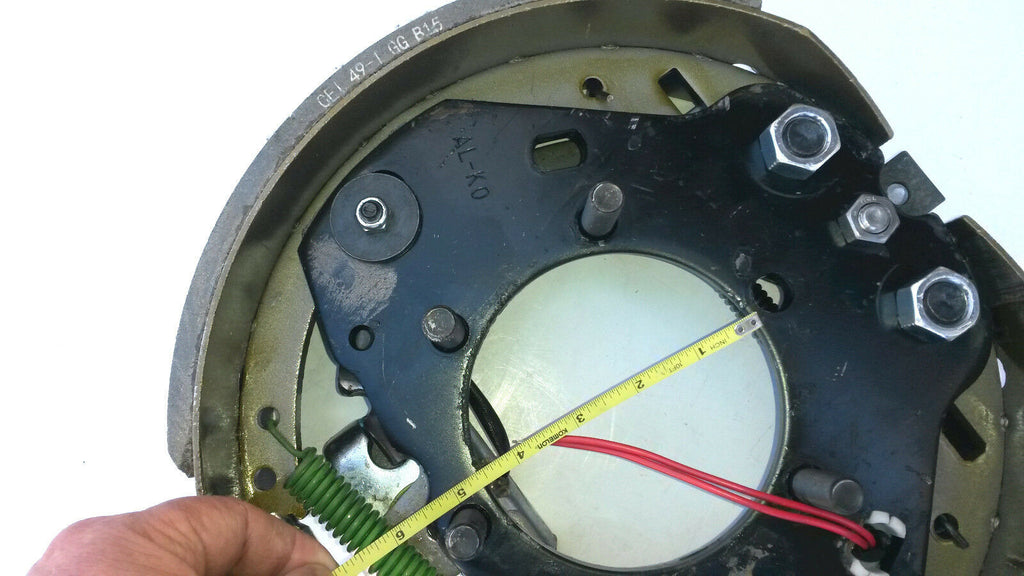

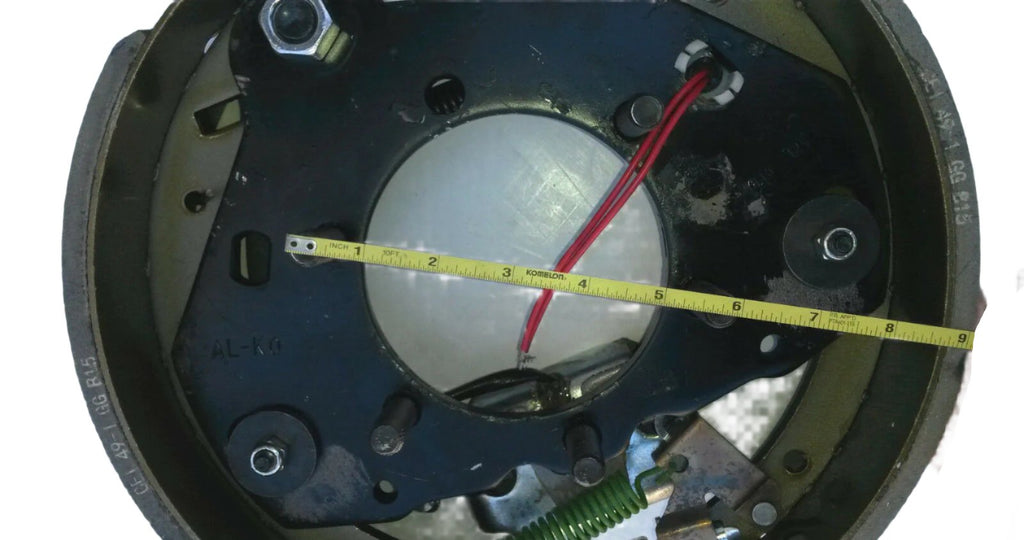

| Mounting Pattern | 5 Bolt Flange |
| Adjustment Type | Reverse Self-Adjusting (RSA) |
| Orientation | Right (Passenger Side) |
Verify specifications before installation.
Related Parts & Kits
Check fitment, measurements, and kit contents before ordering. Related parts may not be required for your repair.
Looking up part numbers in our catalog…
Your repair list1 item selected
Selected products are added together. Review the cart and verify kit contents to prevent duplicates. Prices and discounts are determined at checkout.
