At a Glance
- SKU: SCB-B4-BLK
PRODUCT INFORMATION
Product Details
Trailer Door Hardware / Cambar System / Swivel Bar Locking Hardware

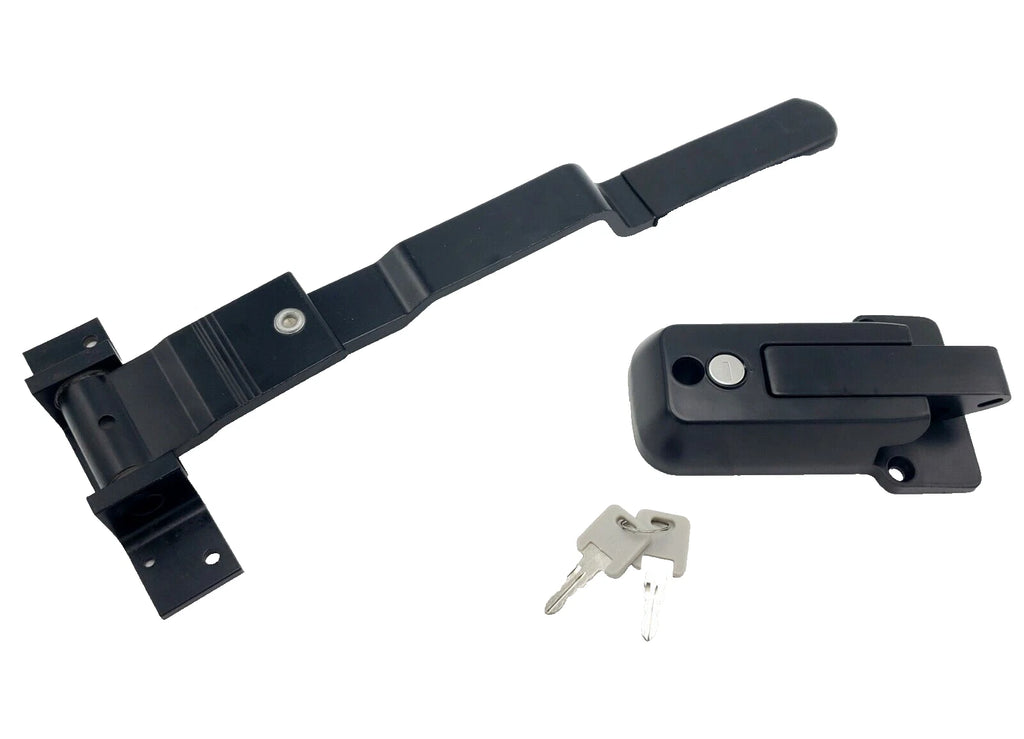

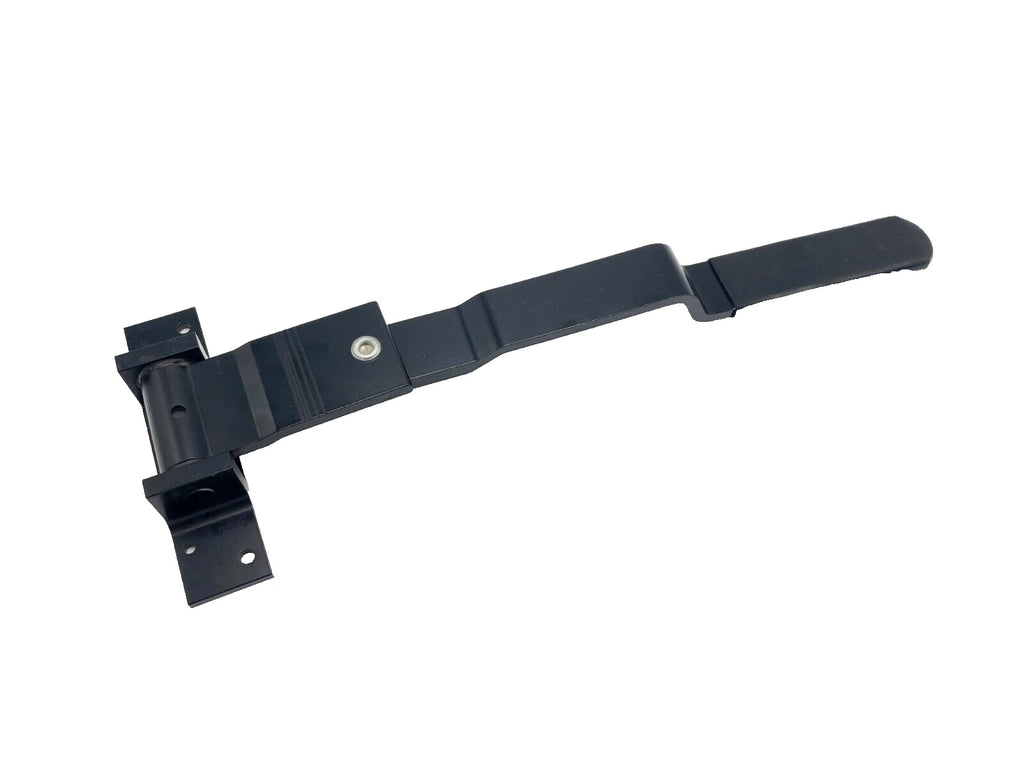

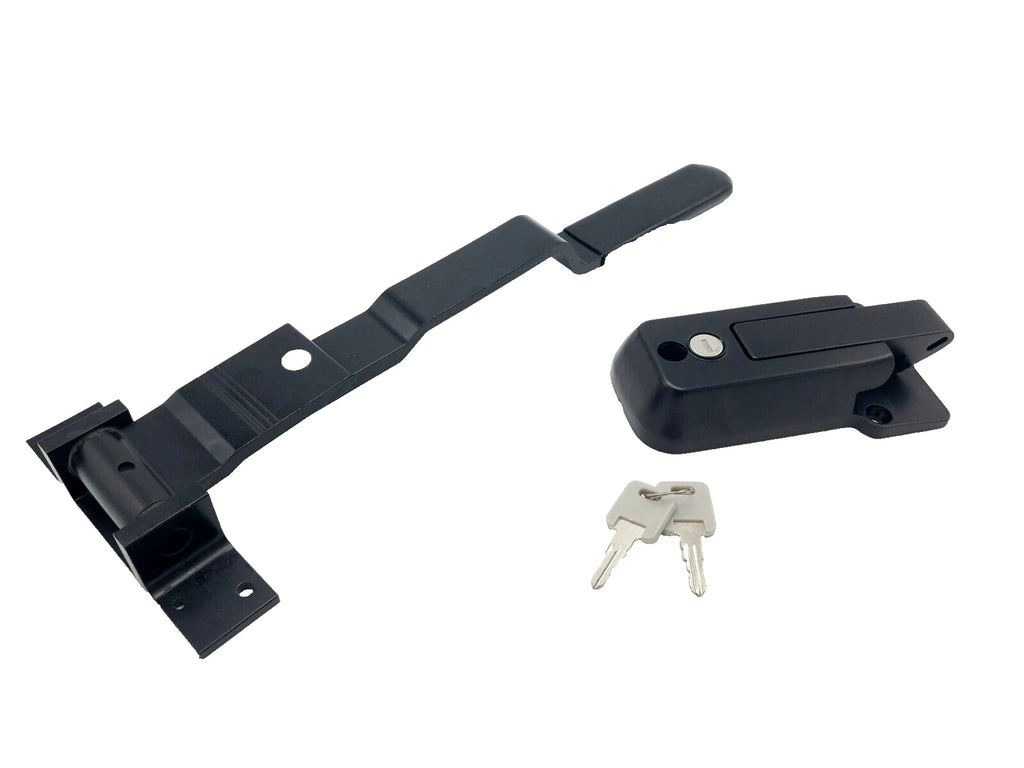

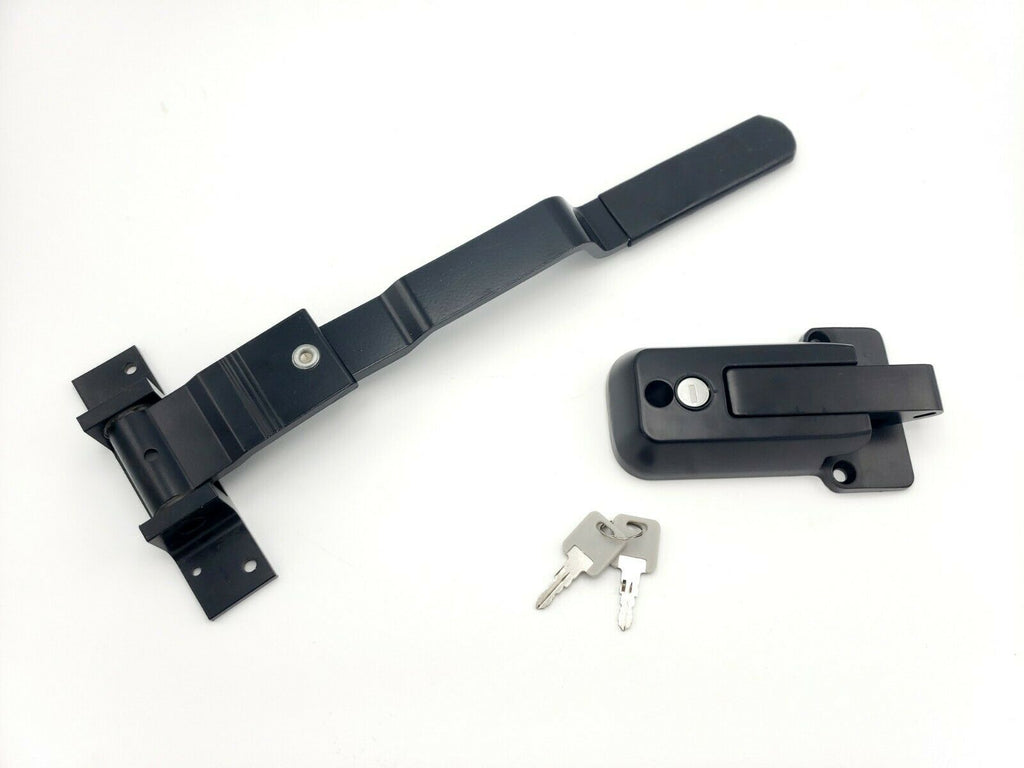

Black Powder Coated Aluminum Swivel Bar Cambar with Lock
Black powder coated aluminum swivel bar cambar with matching black cambar lock for cargo trailer, enclosed trailer, and utility trailer door applications.
Part Number: SCB-B4-BLK 180+ Degree Swivel / 4-Hole Bracket
Overview
This listing includes a black powder coated aluminum swivel bar cambar with a matching black cambar lock. Cambar assemblies like this are commonly used to secure cargo trailer, enclosed trailer, and utility trailer doors. The swivel bar design allows the handle to rotate over 180 degrees for convenient operation while maintaining a strong and reliable locking system for trailer doors and storage compartments.
R&P Service Insight
Trailer door hardware is one of those categories where the part can look right in a photo and still miss the trailer once you get to the mounting pattern. Matching the bracket and lock dimensions matters just as much as choosing the finish.
- Bracket Pattern: Confirm the mounting hole spacing on the bar bracket before ordering.
- Lock Placement: Verify the three-hole lock mounting pattern on the door or frame.
- Swing Clearance: Make sure the 180+ degree swivel range works with your door layout and surrounding hardware.
R&P Knowledge Hub
Compatibility: Commonly used for cargo trailer, enclosed trailer, and utility trailer door security applications.
Vehicle / System Fit: Trailer side doors, rear doors, and storage compartment doors using a cambar-style latching setup.
Installation Notes: Verify bracket size, hole spacing, lock mounting pattern, and door clearance before installation.
Performance Insight: The aluminum swivel bar construction helps keep the assembly lightweight, while the black powder coated finish supports corrosion resistance and a clean finished look.
R&P Repair Insight
Before replacing a cambar setup, check the existing bracket footprint and lock position carefully. Many trailer door hardware layouts are close, but not identical, and a small difference in mounting can create a frustrating install.
- Mounting Check: Confirm 3-7/8" on center for the smaller bracket holes and 4-7/8" on center for the larger holes.
- Lock Check: Verify the lock uses a three-hole mount with the top holes at 2-7/8" on center and the bottom hole 3-5/8" from the top holes.
- Door Check: Always confirm door compatibility and available swing space before ordering.
Features
Aluminum Swivel Bar Construction
Durable aluminum cambar assembly built for trailer door security applications.
Black Powder Coated Finish
Black finish helps provide corrosion resistance and a clean, finished appearance.
180+ Degree Swivel Range
Swivel bar design allows broad handle movement for convenient opening and closing.
Matching Lock Included
Includes a spring-assisted self-latching cambar lock with two keyed-alike keys.
 |  |
 |  |
Specifications
| Specification | Detail |
|---|---|
| Part Number | SCB-B4-BLK |
| Product Type | Swivel Bar Cambar with Lock |
| Application | Trailer door security / cambar latch setup |
| Material / Finish | Aluminum bar with black powder coated finish |
| Mounting Bracket Size | 5-3/4" x 1-3/8" |
| Cambar Arm Size | 16" overall length, 1-1/4" wide |
| Mounting Hole Spacing | 3-7/8" on center (smaller holes), 4-7/8" on center (larger holes) |
| Lock Dimensions | 6" x 3-9/16" |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Cargo trailer, enclosed trailer, and utility trailer door systems |
| Primary Fit | Doors using a cambar-style latch with a four-hole bracket and matching lock setup |
| Secondary Fit | Storage compartments or similar door applications where the mounting pattern and clearance match |
| Notes | Verify mounting dimensions, lock mounting pattern, and door compatibility prior to installation. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Black powder coated aluminum swivel bar cambar |
| 1 | Black cambar lock |
| 1 set | Two keys, keyed alike |
| 1 | Four-hole mounting bracket design on cambar assembly |
| Included | Spring-assisted self-latching lock assembly |
Verify mounting dimensions and door compatibility prior to installation. Always confirm measurements on your trailer door before ordering.
