Product Details
Wheel & Hub Bolt Pattern Tool
Dexter Wheel Pattern Measuring Tool Circle Template 5 Lug Bolt for Trailer Wheels and Hubs
Durable plastic bolt circle template designed to take the guesswork out of identifying the bolt pattern on a 5-lug wheel or hub.
Part Number: 8560047 Four Clearly Marked Patterns 1 Template Included
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 8560047 |
| Product Type | 5-lug bolt circle template |
| Material | Durable plastic |
| Pattern Quantity | 4 bolt patterns |
| Hole Markings | Each hole is clearly marked |
| Quantity Included | 1 bolt circle template |
Fitment / Application
| Category | Details |
|---|---|
| Application | 5-lug wheels and hubs |
| 5 x 4-1/2" | Included marked bolt pattern |
| 5 x 4-3/4" | Included marked bolt pattern |
| 5 x 5" | Included marked bolt pattern |
| 5 x 5-1/2" | Included marked bolt pattern |
| Identification Method | Set the template over the lug bolts and compare the clearly marked holes |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Four Bolt Patterns | Identifies four common 5-lug bolt circle patterns with one template |
| Clearly Marked Holes | Makes each supported bolt pattern easy to distinguish |
| Durable Plastic | Provides a durable template for bolt pattern identification |
| Simple Placement | Sets directly over the lug bolts to help remove guesswork |
Overview

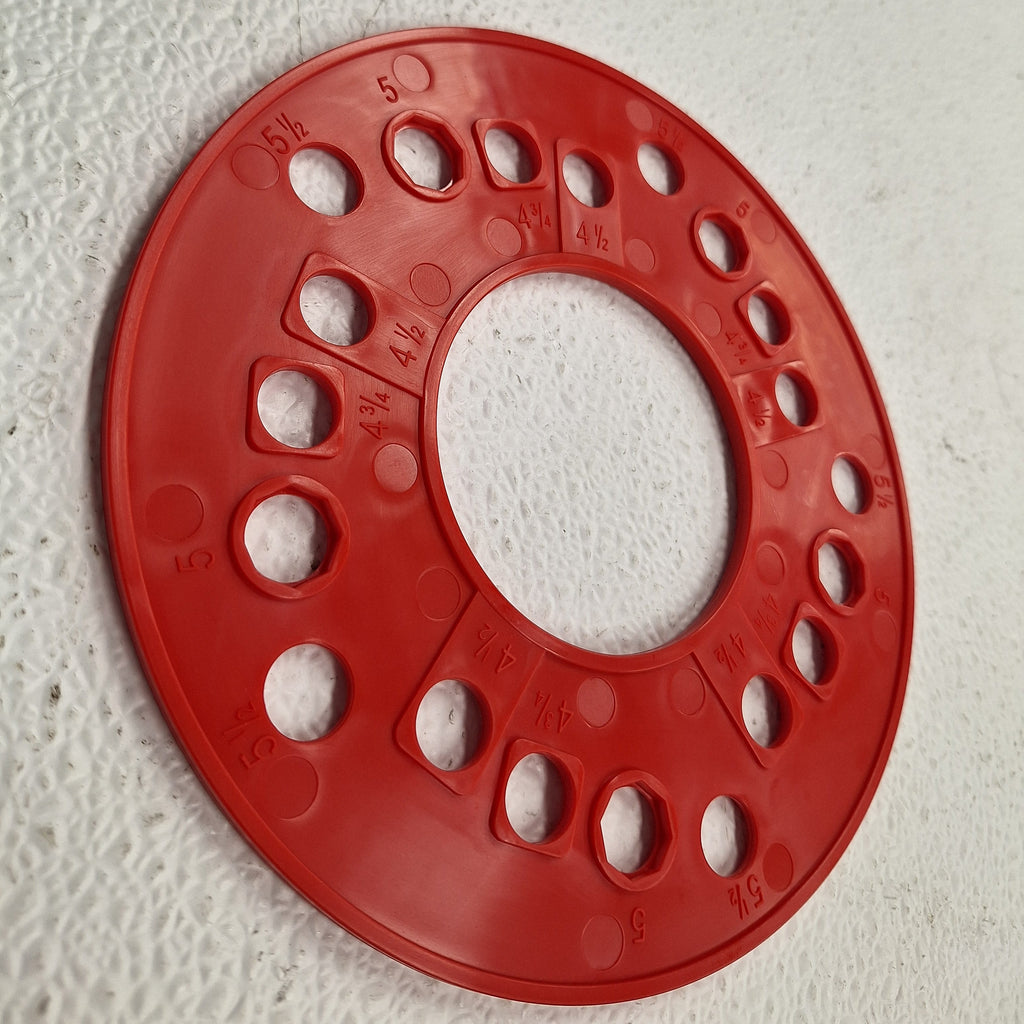

This durable plastic bolt circle template provides a simple way to identify the bolt pattern on a 5-lug wheel or hub. It includes clearly marked holes for 5 x 4-1/2", 5 x 4-3/4", 5 x 5", and 5 x 5-1/2" bolt patterns.
R&P Service Insight
The template is designed to help determine a 5-lug bolt pattern without relying on guesswork.
- Wheel or Hub: Use the template on a 5-lug wheel or hub.
- Placement: Set the template directly over the lug bolts.
- Pattern Identification: Match the lug bolts with the clearly marked holes.
R&P Knowledge Hub
Compatibility: Designed for identifying supported 5-lug wheel and hub bolt patterns.
Supported Patterns: 5 x 4-1/2", 5 x 4-3/4", 5 x 5", and 5 x 5-1/2".
Use: Set the template over the lug bolts and locate the clearly marked holes that match.
Identification Benefit: The marked template takes the guesswork out of determining which supported 5-lug bolt pattern is present.
Brand & Fitment Note
Selling Brand: Not specified.
Application: This template is intended for checking 5-lug wheels and hubs against the four marked bolt patterns.
What This Means: This listing is for one plastic bolt circle template.
Before Ordering: Confirm that the bolt pattern you need to identify is one of the four patterns included on the template.
R&P Repair Insight
Correct bolt pattern identification helps determine which of the supported 5-lug patterns matches the wheel or hub being checked.
- Confirm Lug Count: This template is designed for 5-lug wheels and hubs.
- Check the Markings: Each supported bolt pattern is clearly marked on the template.
- Compare the Holes: Set the template over the lug bolts and identify the matching pattern.
Features
Four Supported Bolt Patterns
Includes marked holes for 5 x 4-1/2", 5 x 4-3/4", 5 x 5", and 5 x 5-1/2" patterns.
Clearly Marked Holes
Each hole is clearly marked to make the supported patterns easier to identify.
Durable Plastic Construction
The template is made from durable plastic.
Simple Bolt Pattern Check
Simply set the template over the lug bolts to determine which marked pattern matches.
Included Components
| Quantity | Item |
|---|---|
| 1 | 5-lug bolt circle template |
Important Identification Note: Confirm that the wheel or hub has five lugs and compare the lug bolts with the clearly marked 5 x 4-1/2", 5 x 4-3/4", 5 x 5", or 5 x 5-1/2" holes on the template.
5 lug bolt circle template, 5 lug bolt pattern template, wheel bolt pattern template, hub bolt pattern template, 5 x 4-1/2 bolt pattern, 5 x 4-3/4 bolt pattern, 5 x 5 bolt pattern, 5 x 5-1/2 bolt pattern, plastic bolt circle gauge, wheel lug pattern tool
