Dexter 7,200 lb Hub & Drum Kit – 12-1/4" x 2-1/2" – 8 on 6.5 – 9/16"-18 Studs – 008-393-03-KIT
Part Number: 008-393-03-KIT
Complete hub and drum kit for most Dexter 7,200 lb axle applications using 12-1/4" diameter by 2-1/2" wide brake shoes. This 8-lug assembly features 9/16"-18 wheel studs and fits the standard 8 on 6.5" bolt pattern.
The drum is stamped 8-393 for identification. Bearings and races are pressed into place. Kit includes oil seal, oil cap, and lug nuts for one wheel position.
Kit Includes

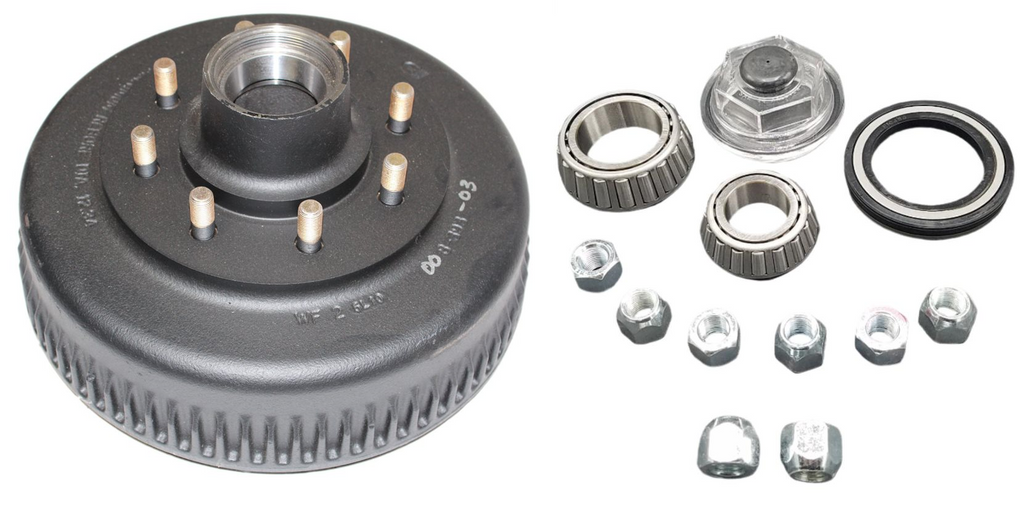

- 1 – 008-393-03 Hub & Drum (8-393 Stamped)
- 1 – 25580 Inner Bearing (1.75" I.D.) – Fits 25520 Race (Pressed In)
- 1 – 02475 Outer Bearing (1.25" I.D.) – Fits 02420 Race (Pressed In)
- 1 – 10-225-15 Oil Seal (2.25" x 3.38")
- 1 – OC-86580-26 Oil Cap (2-7/8"-12 Threads)
- 8 – 6-053 9/16"-18 Coned Lug Nuts
R&P Knowledge Hub
Dexter 7,200 lb axles commonly use the 8-393 hub and drum configuration
paired with 2-1/2" wide brake shoes. These hubs use tapered roller bearings
and can be configured for grease or oil bath systems depending on the seal
installed. When using grease, a grease seal is required. For oil bath setups,
the correct oil seal must be installed. Always confirm spindle dimensions,
bearing numbers, and lubrication type before installation.
Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Dexter Axle |
| Part Number | 008-393-03-KIT |
| Axle Rating | 7,200 lb |
| Brake Size | 12-1/4" x 2-1/2" |
| Bolt Pattern | 8 on 6.5" |
| Stud Size | 9/16"-18 |
| Inner Bearing | 25580 (Included) |
| Outer Bearing | 02475 (Included) |
| Seal Included | 10-225-15 Oil Seal |
| Oil Cap | OC-86580-26 (2-7/8"-12 Threads) |
| Configuration | Complete Hub & Drum Kit (One Wheel) |
Verify specifications before installation.
