At a Glance
- SKU: 32280U+32307U+2x32230U
PRODUCT INFORMATION
Product Details
Hydraulic Trailer Brake Hardware

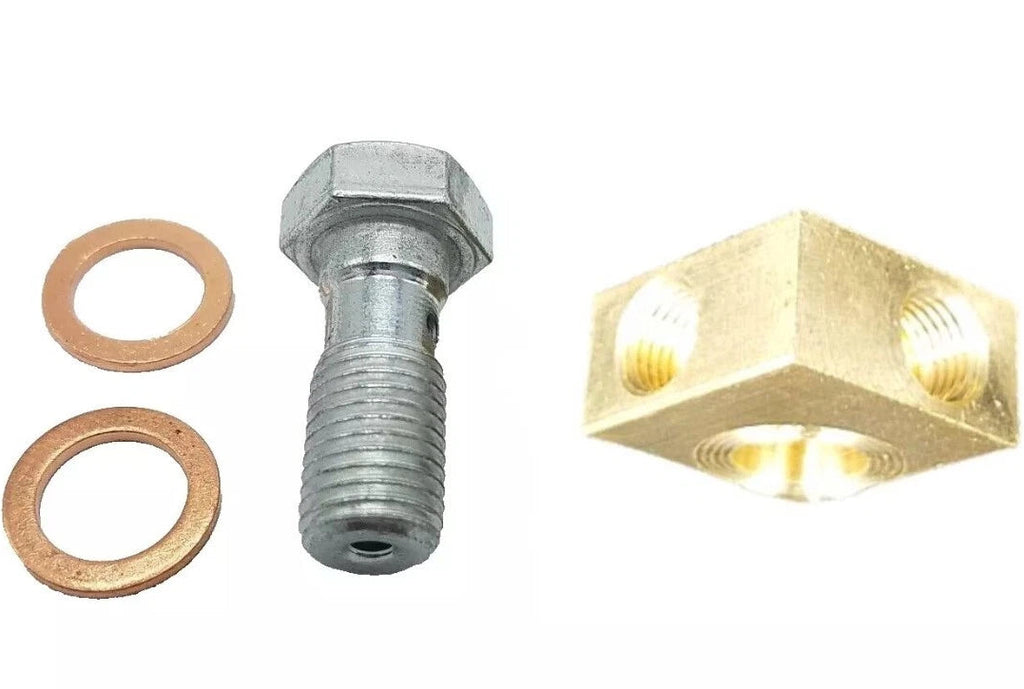

Banjo Bolt Brake Caliper Kit 7/16-20 with Brass Block
Complete hydraulic brake caliper banjo connection kit with banjo bolt, brass block fitting, and two copper sealing washers for compatible 7/16-20 caliper connections.
Part Number: 32275U+32307U+2x32230U 7/16-20 Thread Brass Block + Copper Washers
Overview
This R&P Carriages banjo bolt brake caliper kit includes the hardware needed for a common hydraulic disc brake caliper banjo-style connection. The kit includes one 7/16-20 banjo bolt, one brass banjo fitting block, and two copper sealing washers. This setup is commonly used where brake fluid is routed through a hollow bolt and sealed at the caliper using compression washers.
R&P Service Insight
Small brake hardware matters. A banjo connection depends on the correct bolt thread, clean sealing surfaces, and properly installed washers.
- Thread Check: Verify your caliper uses a 7/16-20 banjo bolt before ordering.
- Washer Placement: One copper washer is typically used on each side of the banjo fitting.
- Brake Safety: Always inspect for leaks and bleed the brake system after hydraulic line service.
R&P Knowledge Hub
Compatibility: Designed for brake caliper banjo connections using a 7/16-20 threaded banjo bolt.
Vehicle / System Fit: Commonly used on hydraulic trailer disc brake caliper setups where this thread size and fitting style match the original hardware.
Installation Notes: Install with clean mating surfaces and new copper washers to help create a sealed hydraulic connection.
Performance Insight: Banjo bolt systems route brake fluid through the hollow bolt and sealed fitting, creating a compact connection at the caliper.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: Hydraulic trailer brake caliper banjo connection hardware.
What This Listing Includes: One banjo bolt, one brass block fitting, and two copper washers.
Before Ordering: Match your original bolt thread, bolt length, fitting style, and brake hose/caliper connection before installation.
R&P Repair Insight
When servicing hydraulic brake calipers, old sealing washers should not be reused if they are crushed, grooved, contaminated, or leaking. A fresh banjo bolt hardware kit helps restore a clean hydraulic connection when the original parts are damaged, missing, or corroded.
- Check the Thread: Confirm 7/16-20 before replacing the bolt.
- Check the Washers: Copper washers seal by compression and should seat evenly.
- Check for Leaks: After installation, bleed the system and inspect the caliper connection under pressure.
Features
Complete Banjo Hardware Kit
Includes the banjo bolt, brass block fitting, and two copper washers needed for one caliper connection.
7/16-20 Brake Caliper Thread
Built around the 7/16-20 banjo bolt size used in compatible hydraulic brake caliper applications.
Brass Block Fitting
Includes a brass banjo fitting block for the brake line connection point at the caliper.
Copper Sealing Washers
Two copper washers are included to seal the banjo fitting connection when properly installed.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 32275U+32307U+2x32230U |
| Listing SKU | 32275U+32307U+2x32230U |
| Brand | R&P Carriages |
| Product Type | Brake Caliper Banjo Bolt Kit |
| Quantity Included | 4 total pieces |
| Application | Hydraulic brake caliper banjo connection |
| Material / Finish | Brass fitting block with copper washers |
| Key Measurement | 7/16-20 x 1" banjo bolt |
| Fitment | Compatible hydraulic trailer disc brake calipers using a matching 7/16-20 banjo connection |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Hydraulic trailer disc brake systems |
| Primary Fit | Brake calipers using 7/16-20 banjo bolt connections |
| Secondary Fit | Trailer brake hose-to-caliper hydraulic connection repairs |
| Notes | Verify thread size, bolt length, fitting style, hose connection, caliper compatibility, and washer placement before ordering or installing. |
Detailed Measurements
| Key Dimension | Measurement |
|---|---|
| Banjo Bolt Thread | 7/16-20 |
| Banjo Bolt Length | 1" |
| Washer Material | Copper |
| Fitting Block Material | Brass |
Included Components
| Quantity | Item |
|---|---|

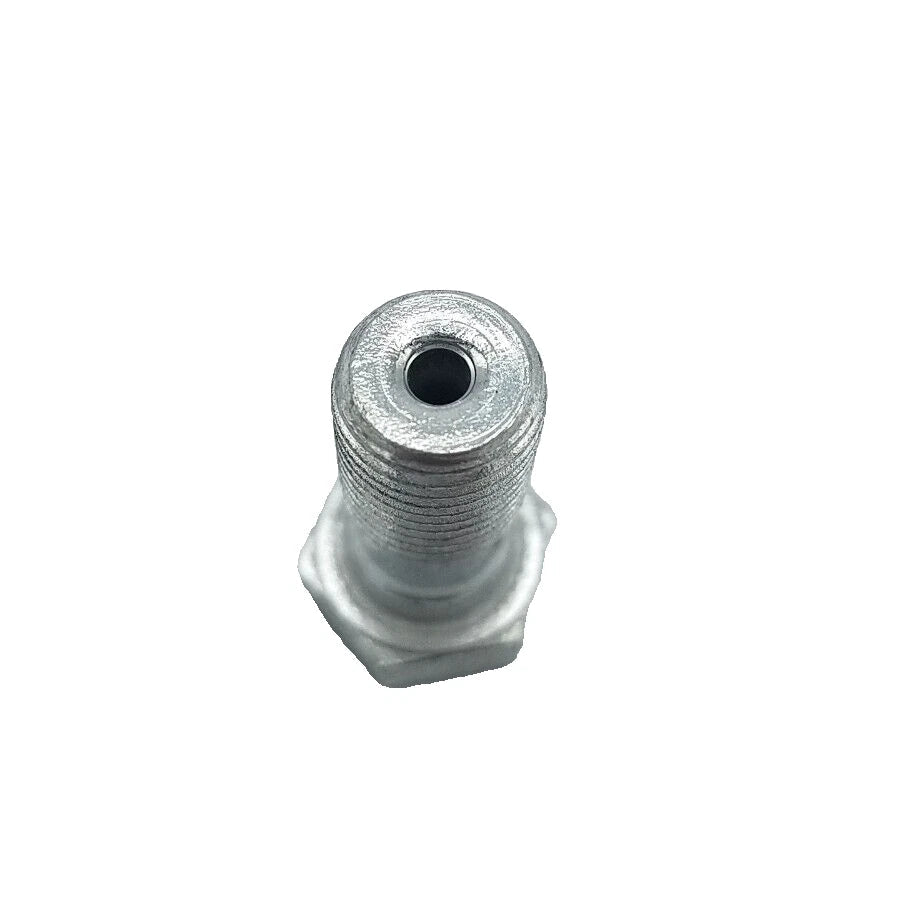

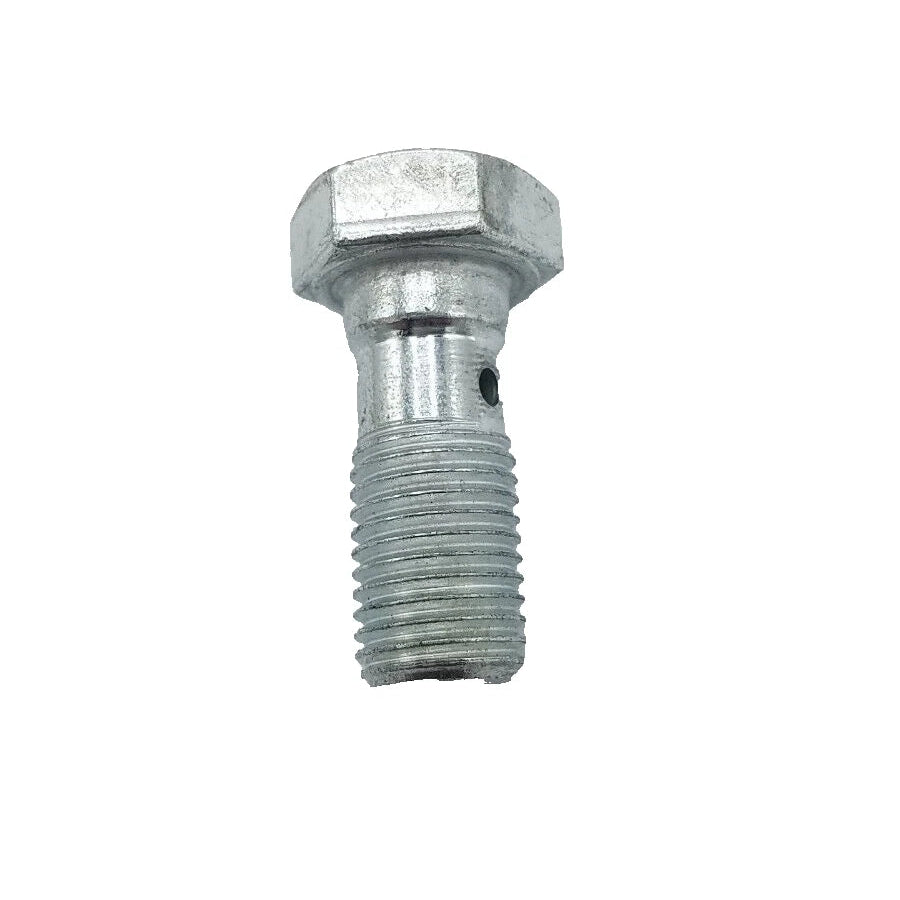

| 1 | 32307U Banjo Bolt — 7/16-20 x 1" |
| 2 | 32230U Copper Washers |

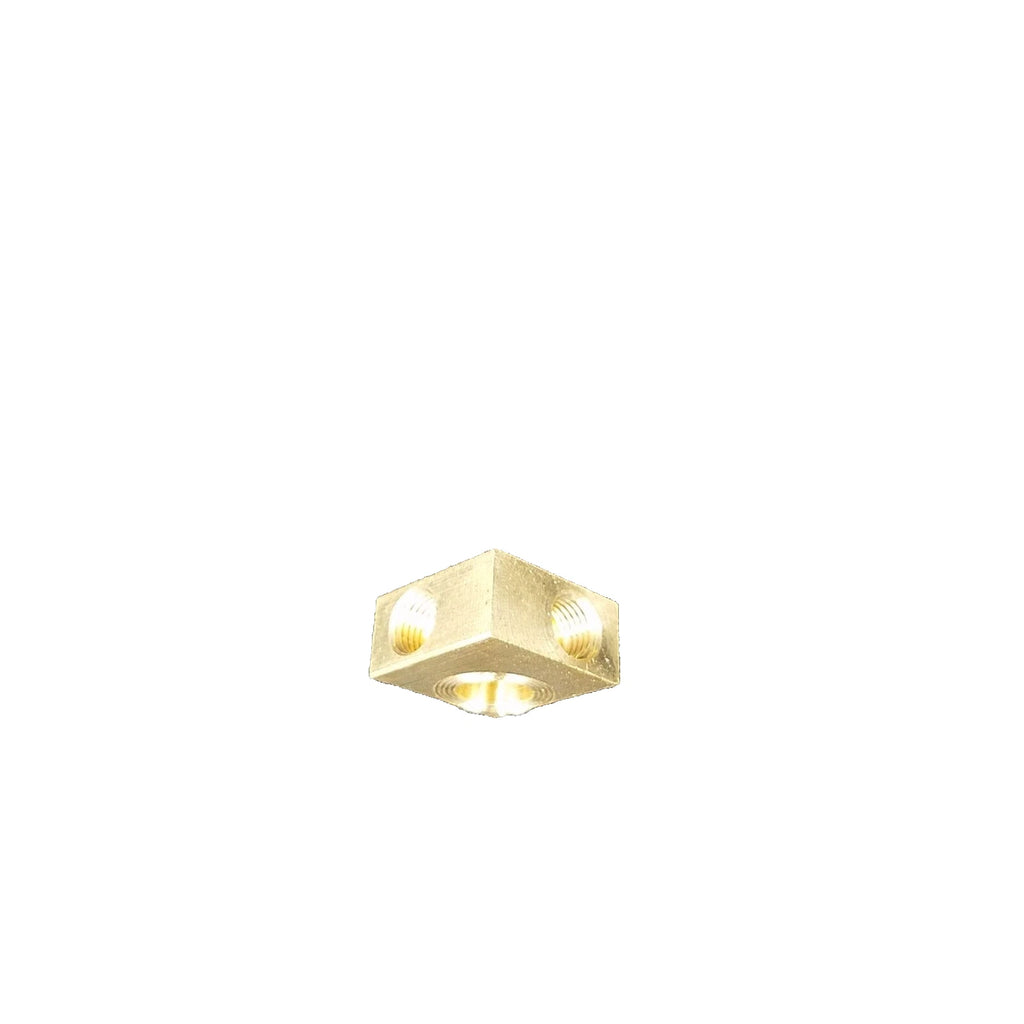

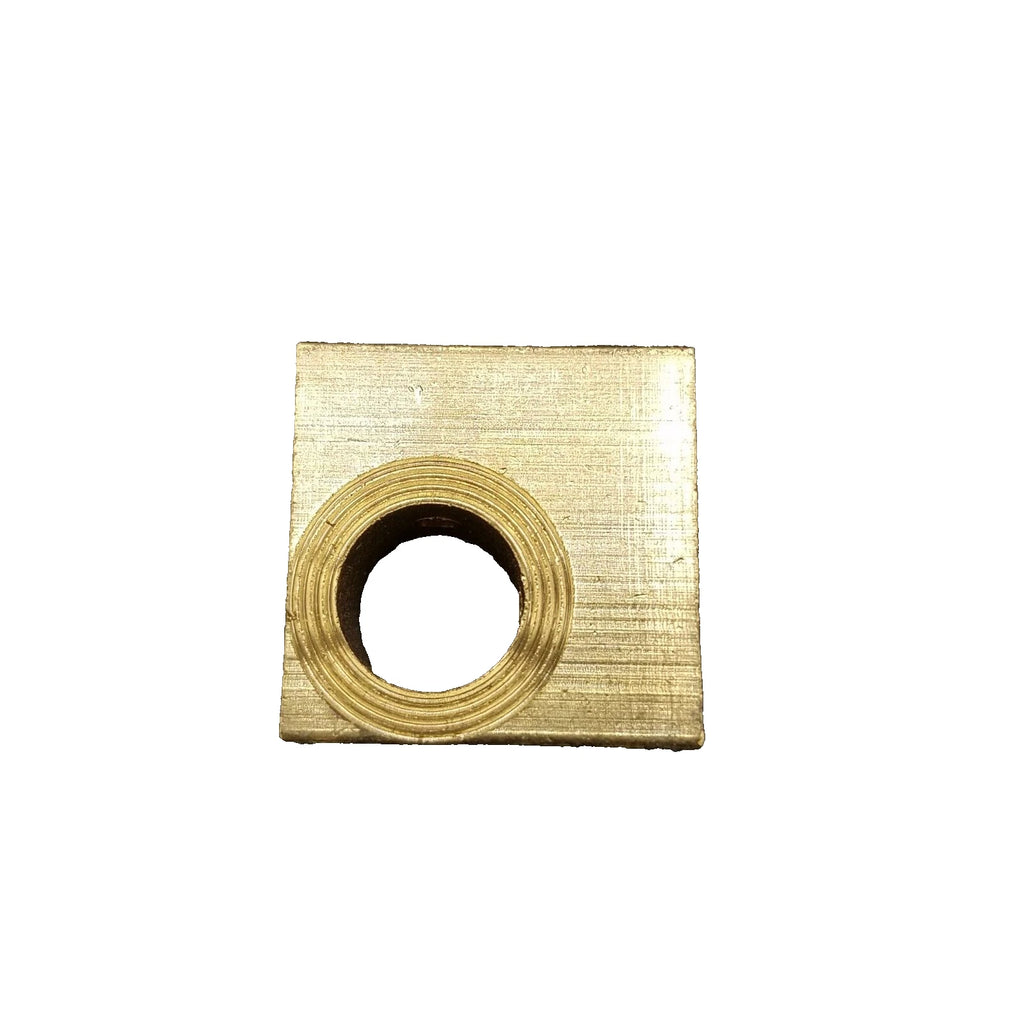

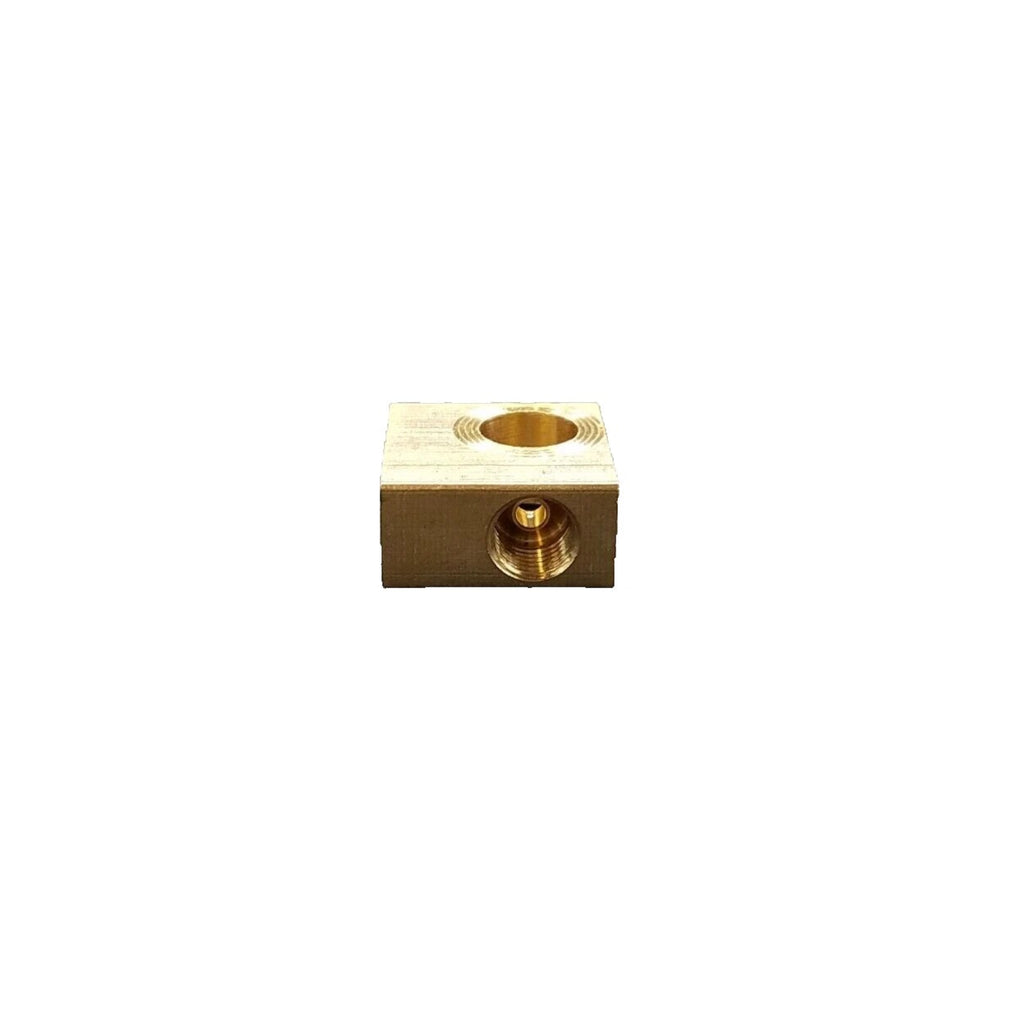

| 1 | 32275U Brass Banjo Fitting Block |
Important fitment note: Match your original brake caliper banjo bolt thread, bolt length, fitting block style, brake hose connection, and washer setup before installation. Hydraulic brake service should be checked carefully for leaks and the brake system should be properly bled after line or caliper connection work.
