Dexter Equalizer Kit for 10K–15K Trailer Axles – Fits 3" Slipper Springs
SKU: 013-108-03 Kit
This equalizer kit is designed for use on 10,000–15,000 lb trailer suspension systems equipped with 3" wide slipper springs. The equalizer connects adjacent springs within a tandem or triple axle configuration, allowing the suspension to distribute load between axles as the trailer travels over uneven surfaces. The equalizer is not side specific and may be installed on either the left or right side depending on suspension layout.
Features
- Designed for 10K–15K trailer axle suspension systems
- Compatible with 3" wide slipper springs
- Fits tandem or triple axle trailer applications
- Equalizer can be installed on either side
- Includes equalizer bolts and lock nuts
R&P Knowledge Hub
An equalizer is a central suspension component used in tandem and triple axle trailer systems to distribute weight between adjacent axles. When one axle moves upward over a bump, the equalizer pivots to transfer part of the load to the neighboring axle, helping maintain more consistent tire contact and load balance. Slipper spring equalizers are designed specifically for suspension systems where one end of the spring slides rather than using a shackle link. Installers should confirm spring width, equalizer hole diameters, and center-to-center hole spacing to ensure compatibility with the trailer's suspension geometry.
| Specification | Details |
|---|---|
| Equalizer Part Number | 013-108-03 |
| Spring Width Compatibility | 3" |
| Overall Length | 18.375" |
| Eye Diameter | 1" |
| Center Hole Diameter | 1.125" |
| Center Hole to Center Hole | 13.875" |
| Resulting Axle Spacing | 42.25" |
| Application | Tandem or triple axle |

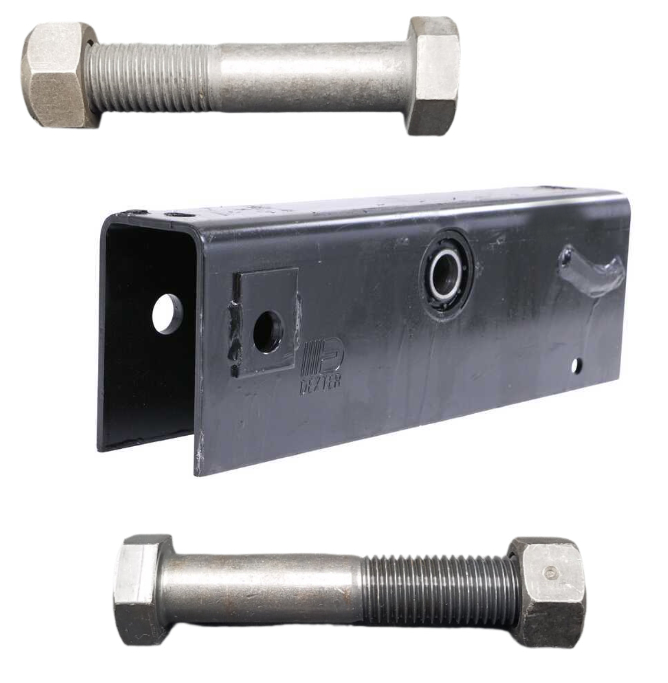

Kit Contents
| Quantity | Part Number | Description |
|---|---|---|
| 1 | 013-108-03 | Equalizer for 3" wide slipper springs |
| 1 | 007-169-00 | Hex head equalizer bolt, 1"-8 x 5.50" |
| 1 | 006-112-00 | Lock nut, 1"-8 |
| 1 | 007-170-00 | Hex head equalizer bolt, 1.13"-7 x 6" |
| 1 | 006-072-00 | Lock nut, 1.12"-7 |
Verify specifications before installation.
