At a Glance
- SKU: 008-214-06-KIT
PRODUCT INFORMATION
Product Details
10K Trailer Disc Brake Hub Kit
10K Disc Brake Trailer Hub Kit – 8 on 6.5" – 4.77" Pilot – Complete Wheel-End Service
Complete hub service kit for compatible 10,000 lb trailer disc brake axle applications using an 8 on 6.5" bolt pattern and 070-006 rotor-style disc brake setup.
Part Number: 008-214-06-KIT Hub Reference: 008-214-06 For One Wheel End
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 008-214-06-KIT |
| Hub Reference | 008-214-06 |
| Product Type | 10K disc brake hub service kit |
| Bolt Pattern | 8 on 6.5" |
| Pilot Diameter | 4.77" listing reference — verify against original hub before ordering |
| Stud Size | 5/8"-18 |
| Bearings | 395S inner bearing / 387A outer bearing |
| Quantity Included | One complete kit for one wheel end |
Fitment / Application
| Category | Details |
|---|---|
| Trailer System | Compatible 10,000 lb trailer disc brake axle systems |
| Primary Fit | 008-214-06 hub-style applications using matching 395S / 387A bearing set |
| Rotor Compatibility | Designed for use with 070-006 rotor-style disc brake applications where hub and rotor specifications match |
| Fitment Method | Match hub number, bearing numbers, seal size, pilot diameter, stud size, and rotor style before ordering |
| Important Note | Disc brake hub kit only. Rotor and full brake assembly are not included unless separately listed. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Complete Service Kit | Includes the hub and key wheel-end components needed for a matching 10K disc brake hub service job |
| 8-Lug Pattern | Built for 8 on 6.5" wheel applications using 5/8"-18 wheel studs |
| Oil-Bath Setup | Includes oil-bath sealing and cap components for compatible heavy-duty axle systems |
| Rotor-Style Hub | Intended for disc brake rotor applications, not drum-style hub assemblies |
Overview
This 008-214-06-KIT listing is for one complete 10K disc brake hub service kit for compatible heavy-duty trailer axle applications. It is built around the 008-214-06 hub reference and includes the matching bearing, seal, oil cap, O-ring, cap insert, and lug nut components listed below. Use this kit when servicing a matching 10,000 lb disc brake wheel end using an 8 on 6.5" bolt pattern and compatible 070-006 rotor-style setup.
R&P Service Insight
Heavy-duty disc brake hub fitment should be confirmed by the parts already on the trailer. Bearing numbers, seal dimensions, pilot diameter, and rotor style matter more than axle rating alone.
- Bearing Check: Confirm 395S inner bearing and 387A outer bearing before ordering.
- Seal Check: Verify the 10-56 oil seal size against the original seal or axle documentation.
- Rotor Check: Confirm the trailer uses the correct 070-006 rotor-style disc brake setup.
R&P Knowledge Hub
Compatibility: This kit is intended for compatible 10K disc brake axle systems using the 008-214-06 hub reference, 8 on 6.5" bolt pattern, 395S inner bearing, and 387A outer bearing.
Vehicle / System Fit: Designed for trailer wheel-end service on matching 10,000 lb disc brake hub applications. Verify before ordering if the trailer has been modified or if the original hub number is unknown.
Installation Notes: Disc brake hubs are not interchangeable with drum hubs. Always confirm the rotor, bearing set, oil seal, oil cap style, and pilot diameter before installation.
Performance Insight: A complete hub kit helps replace related wear and sealing components together instead of reusing old bearings, caps, or seals on a new hub service job.
Brand & Fitment Note
Selling Brand: R&P Carriages curated wheel-end service kit.
Application Reference: 008-214-06 and 070-006 are used as application and component fitment references for compatible 10K disc brake axle systems.
What This Means: This listing is for a complete service kit assembled for the listed hub application, not a guaranteed OEM-branded boxed kit unless specifically stated on the physical product packaging.
Before Ordering: Verify hub number, bearing numbers, seal dimensions, pilot diameter, stud size, oil cap style, rotor compatibility, and included components before installation.
R&P Repair Insight
When replacing a 10K disc brake hub, do not rely on the axle weight rating by itself. Several heavy-duty trailer axle systems use similar-looking hubs with different bearing, seal, cap, or rotor requirements.
- Confirm the Existing Hub: Look for a stamped or cast hub reference and compare it to 008-214-06.
- Match the Bearings: The correct application should use a 395S inner bearing and 387A outer bearing.
- Check the Brake Style: This is for disc brake rotor applications. It is not a drum hub replacement.
Features
Complete 10K Hub Kit
Includes the hub and key wheel-end service parts for one compatible 10,000 lb disc brake hub application.
8 on 6.5" Bolt Pattern
Configured for 8-lug trailer wheel applications using 5/8"-18 wheel studs.
395S / 387A Bearing Set
Includes the listed inner and outer bearing references commonly used with this 10K disc brake hub setup.
Oil-Bath Service Components
Includes oil seal, oil cap, O-ring, and cap insert components for compatible oil-bath wheel-end service.

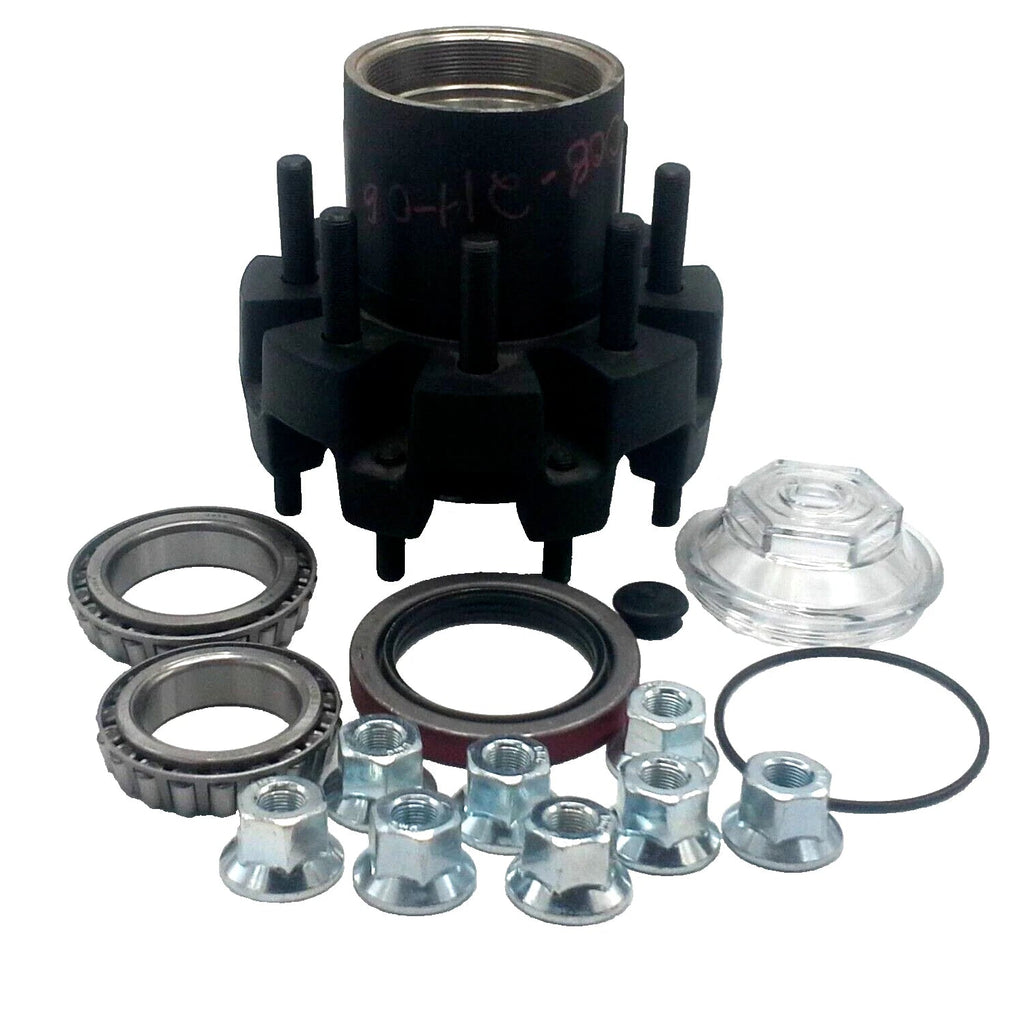

Included Components
| Quantity | Item |
|---|---|

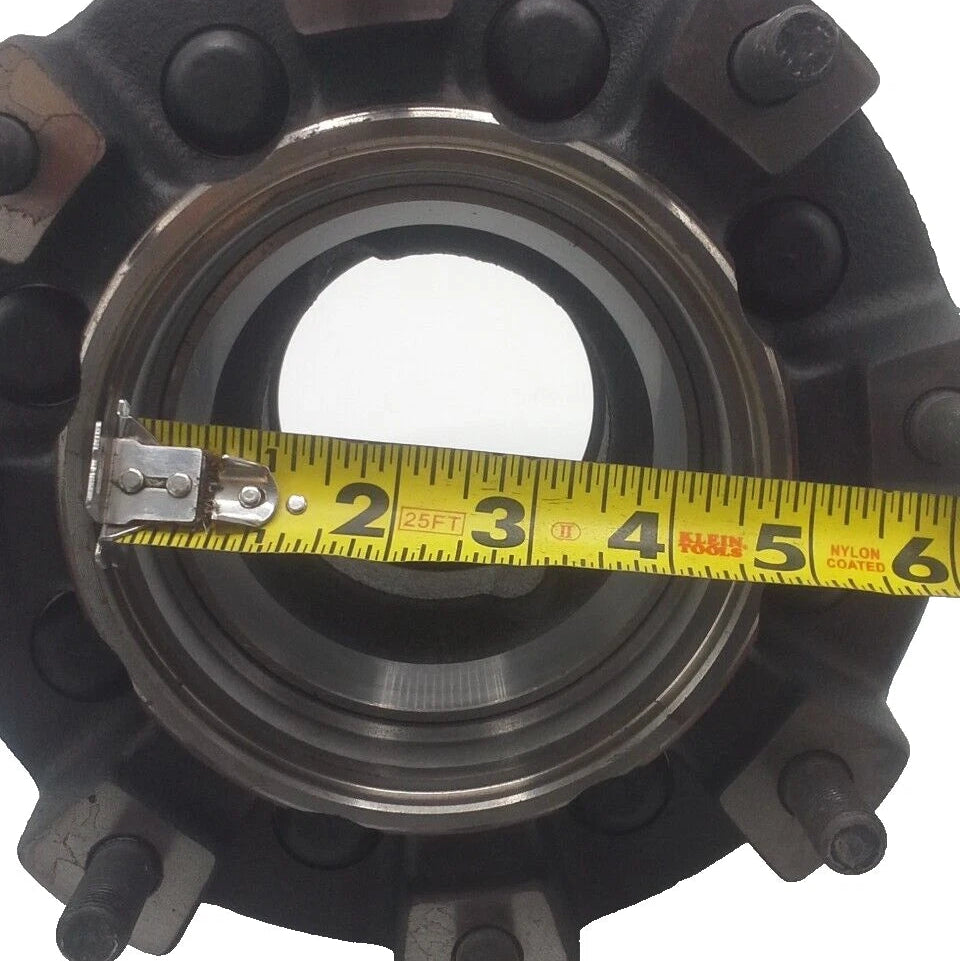

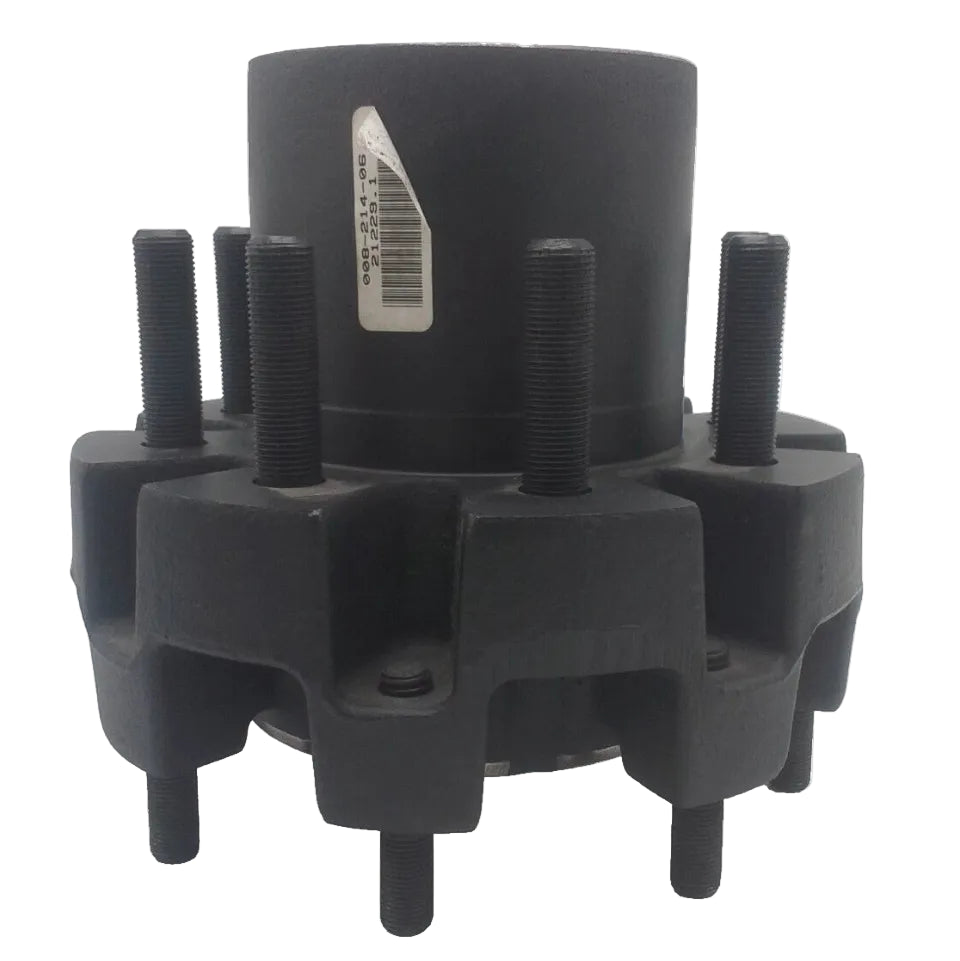

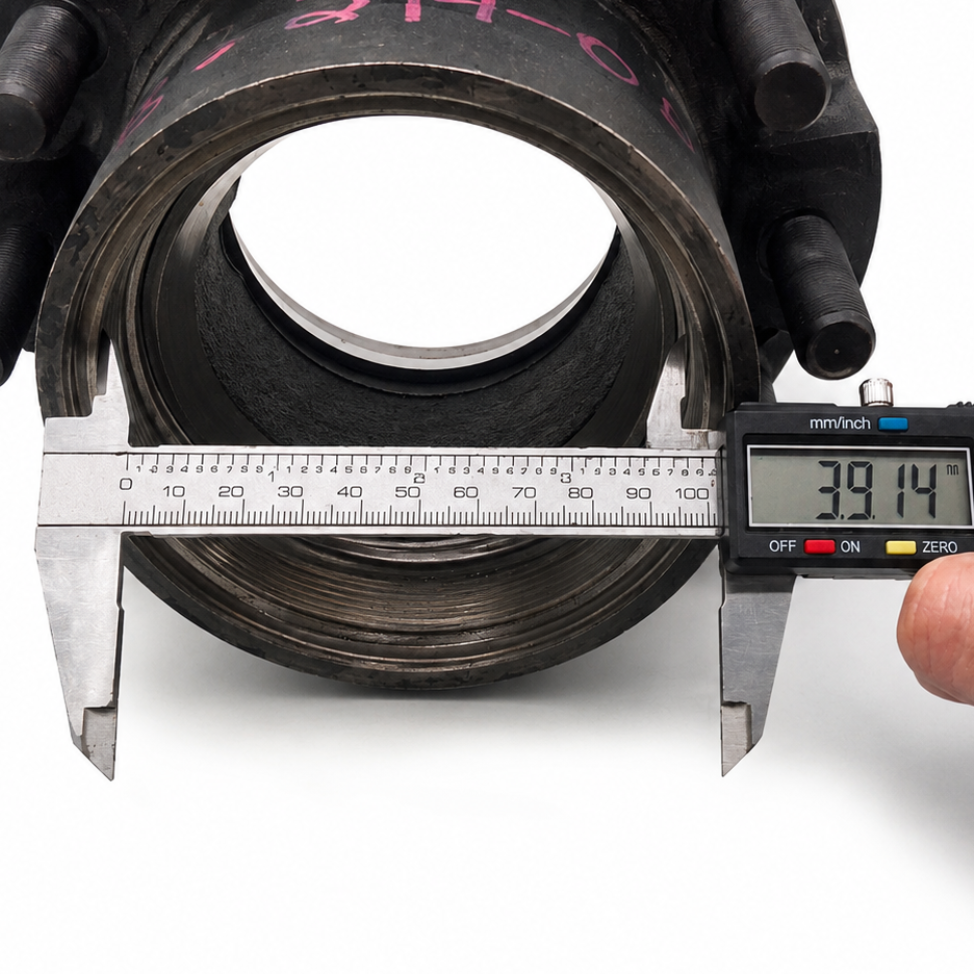

| 1 | 008-214-06 disc brake hub |

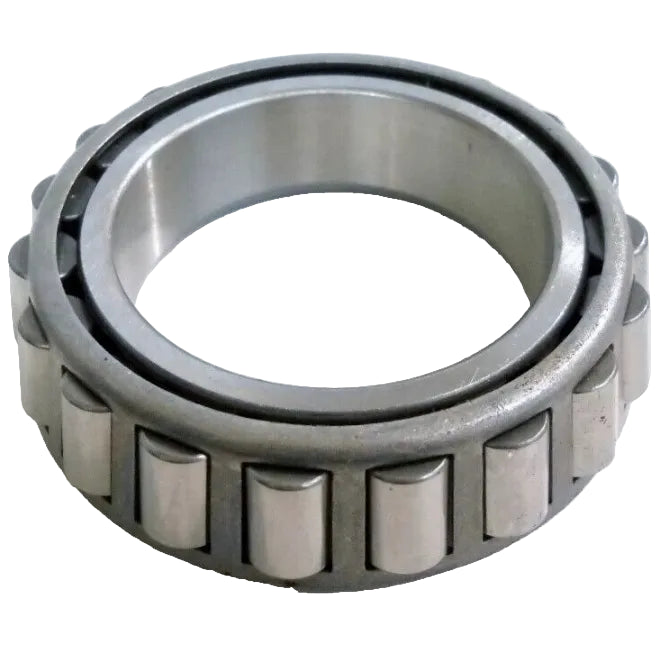

| 1 | 395S inner bearing — 2.625" ID reference |
| 1 | 387A outer bearing — 2.25" ID reference |
| Included where applicable | Bearing races |
| 1 | 10-56 oil seal — 3.12" × 4.506" reference |

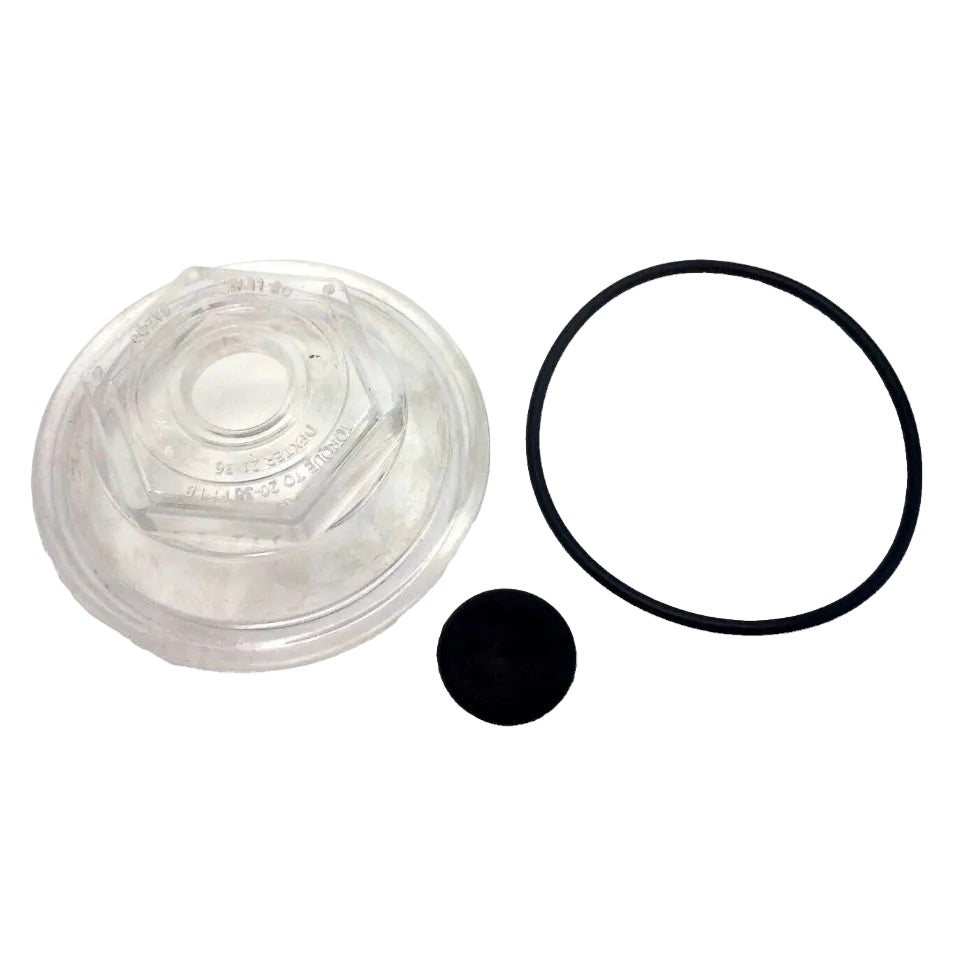

| 1 | 021-036-00 oil cap — 4"-12 thread reference |

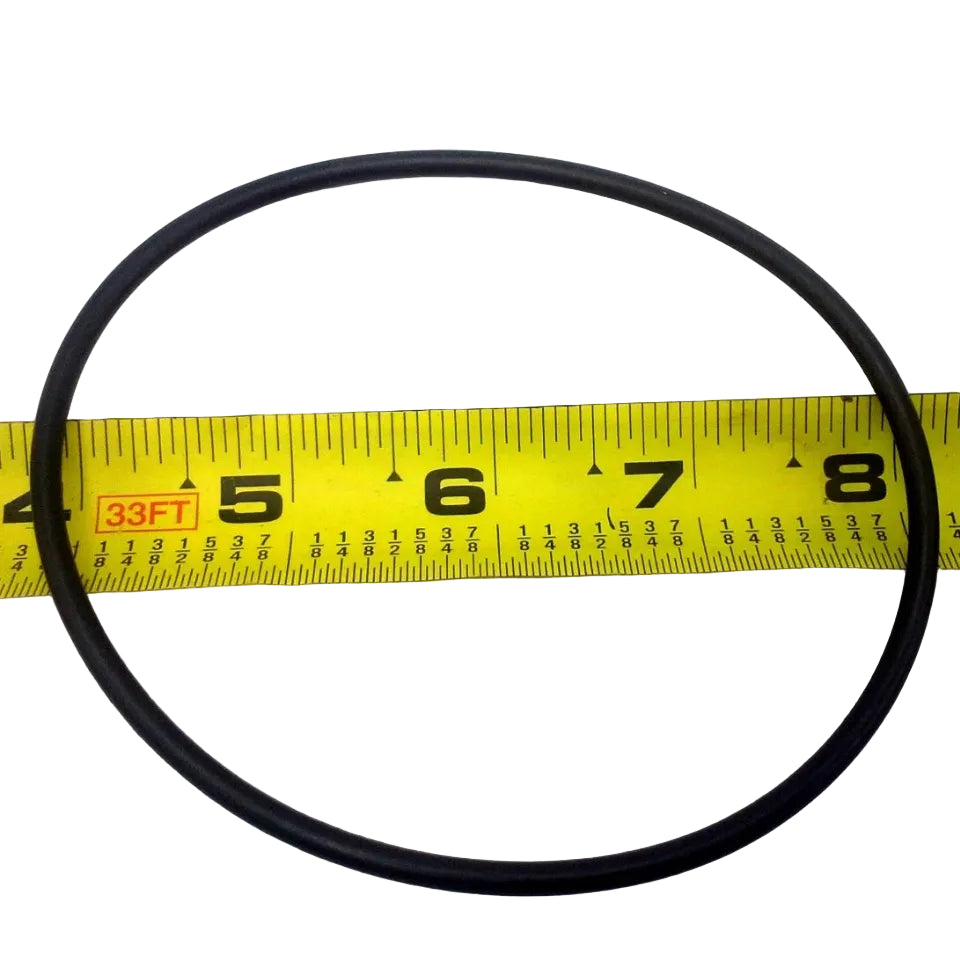

| 1 | 010-050-00 O-ring — 3.734" ID reference |

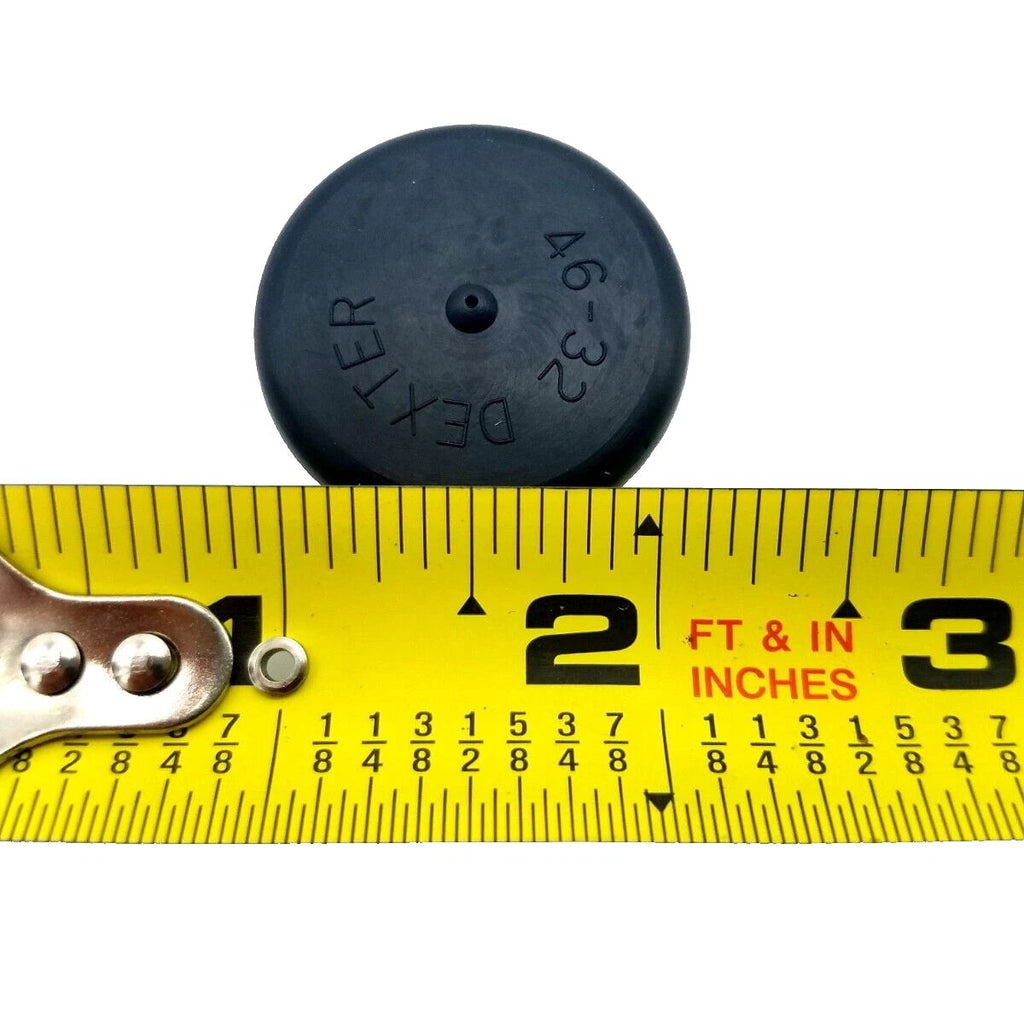

| 1 | 046-032-00 cap insert |
| 8 | 006-058-00 5/8"-18 flanged lug nuts |
| Not Included | Rotor, caliper, brake pads, spindle nut hardware, oil, and full brake assembly unless separately listed |
Important Fitment Note: Verify all measurements and component numbers before installation. Confirm the existing hub reference, 8 on 6.5" bolt pattern, 5/8"-18 stud size, 395S / 387A bearing set, 10-56 oil seal, oil cap style, pilot diameter, and rotor compatibility. Disc brake hubs are not interchangeable with drum-style hub assemblies.
008-214-06-KIT 10K disc brake hub kit 8 on 6.5 trailer hub 4.77 pilot 008-214-06 hub 395S inner bearing 387A outer bearing 10-56 oil seal 021-036-00 oil cap 010-050-00 O-ring 046-032-00 cap insert 006-058-00 5/8-18 flanged lug nuts 070-006 rotor compatible disc brake hub heavy duty trailer axle oil bath hub kit
