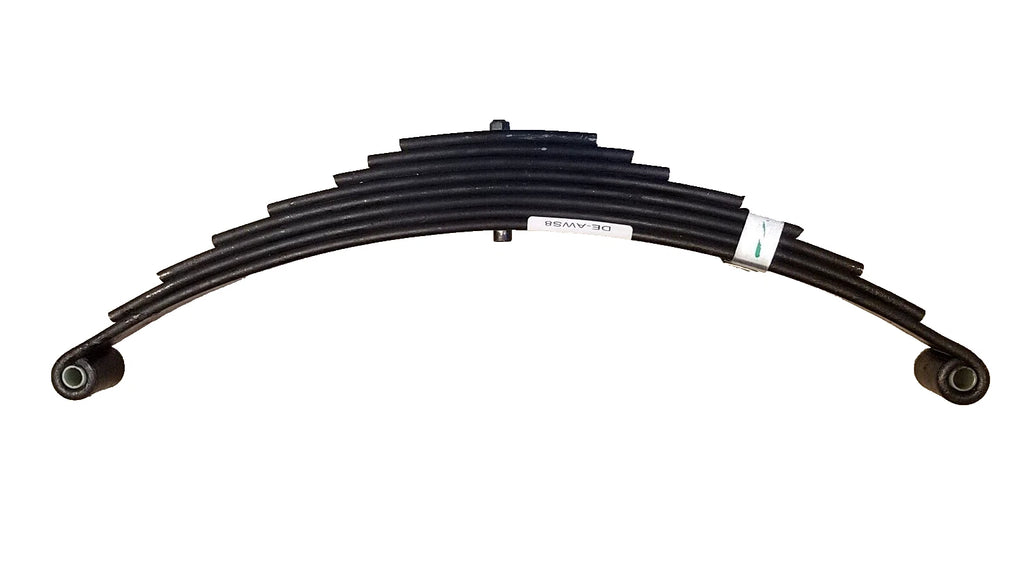

8 Leaf Double Eye Trailer Leaf Spring 26" Eye to Eye - 4,000 lb Capacity
Replacement double-eye trailer leaf spring for suspension repair on utility trailers, equipment trailers, campers, RV trailers, boat trailers, and other compatible trailer applications.
Overview
Repair or replace your trailer suspension with this R&P Carriages 8 leaf double-eye trailer leaf spring, also known as an eye-by-eye trailer spring. The double eye design uses an eye at both ends of the spring and mounts to standard trailer spring hangers and shackles. Built from heat-treated spring steel, this spring is designed to help support trailer load, reduce bounce, and maintain a controlled ride when properly matched to the trailer suspension.
R&P Service Insight
Leaf springs should be replaced by measurement and capacity, not by appearance alone. Always compare the spring to the trailer suspension layout before ordering.

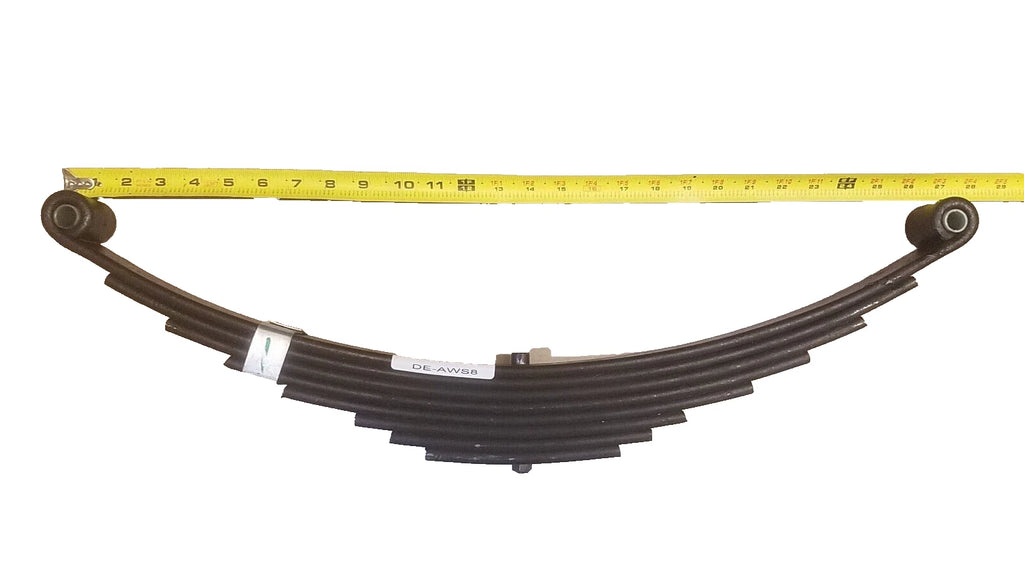

- Length: Measure eye to eye on the unloaded spring whenever possible.

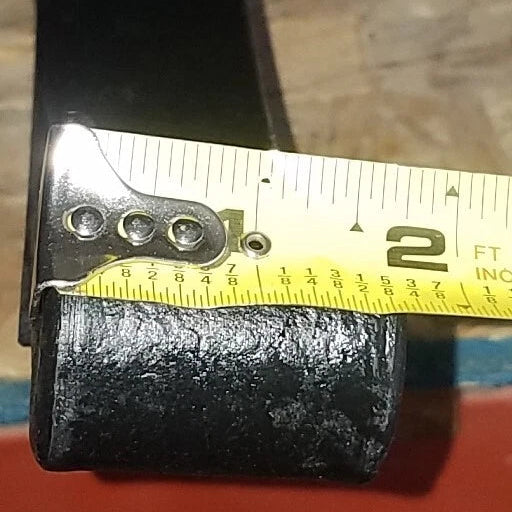

- Width: Confirm the spring is 1.75" wide and matches your hanger and shackle setup.
- Capacity: Match spring rating to the axle and trailer suspension requirements.
R&P Knowledge Hub
Compatibility: Intended for trailers using 1.75" wide double-eye leaf springs with matching length and capacity requirements.
Vehicle / System Fit: Commonly used on utility trailers, campers, RV trailers, boat trailers, and equipment haulers.

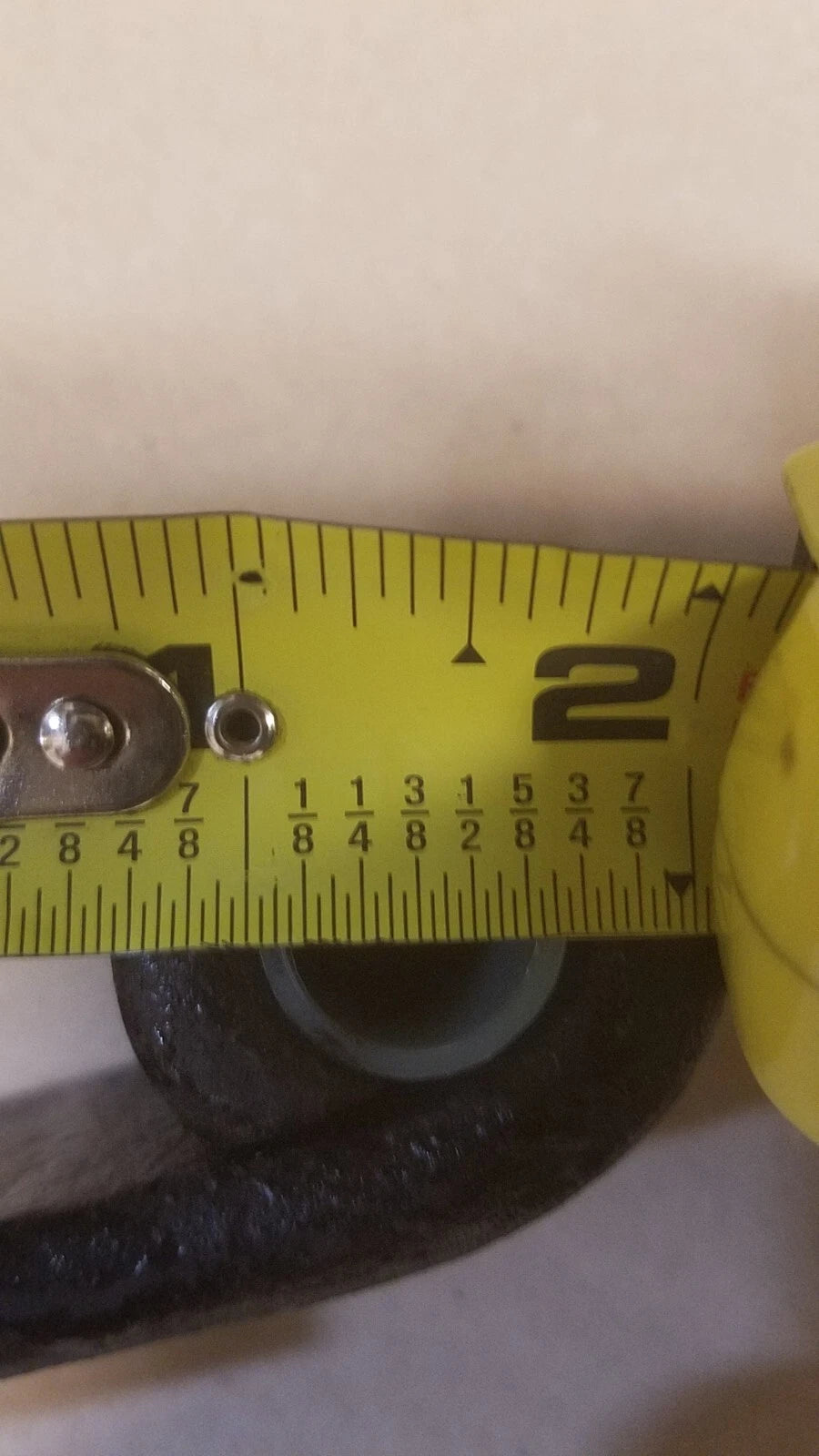

Installation Notes: Installs with standard trailer hangers, shackles, equalizers, and appropriate spring-eye bushings when the suspension dimensions match.
Performance Insight: Correctly matched springs help support load, control ride movement, and reduce excessive bounce or sway.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: This 4,000 lb capacity spring is commonly referenced for trailers using 8,000 lb axle setups when springs are installed as a pair.
What This Listing Includes: This listing is for one 8 leaf double-eye trailer leaf spring.
Before Ordering: Confirm eye-to-eye length, width, leaf count, spring capacity, bushing size, and hanger/shackle arrangement before installation.
R&P Repair Insight
Replacing worn trailer springs can improve ride control and reduce uneven suspension movement, but both sides of the axle should be inspected together. A trailer with one sagging or broken spring may also have worn shackles, bushings, equalizers, or hanger wear.

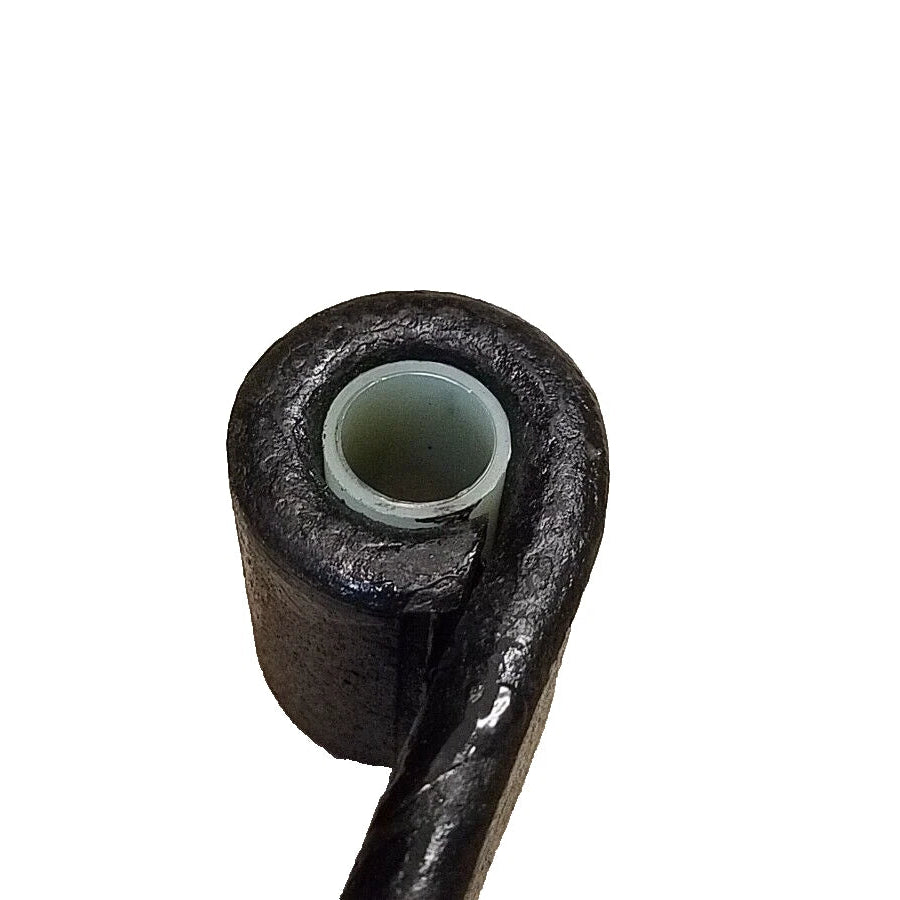

- Check Bushings: Replace worn nylon or brass bushings during suspension service.
- Check Shackles: Inspect shackle straps and bolts for elongation, wear, or loose hardware.
- Check Hangers: Verify hangers and equalizers are not cracked, bent, or excessively worn.
Features
Double Eye Design
Eye at both ends of the spring for use with standard trailer hangers and shackle hardware.
8 Leaf Construction
Multi-leaf spring pack designed to support trailer load and help maintain stable suspension movement.
Heat-Treated Spring Steel
Built for strength, load support, and long-term suspension service in trailer applications.
Common Trailer Fit
Suitable for many trailer suspension repairs when length, width, capacity, and mounting layout match.

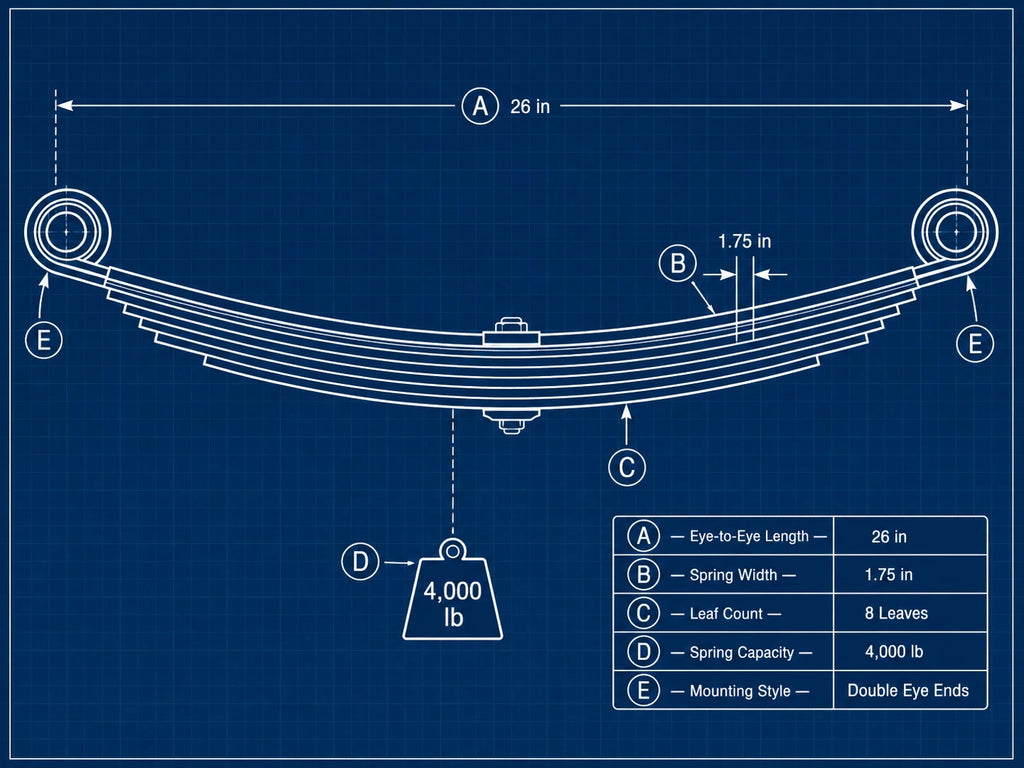

Specifications
| Specification | Detail |
|---|---|
| Part Number | DE-AWS8 |
| Brand | R&P Carriages |
| Product Type | Double Eye Trailer Leaf Spring |
| Quantity Included | 1 Leaf Spring |
| Spring Capacity | 4,000 lb |
| Common Axle Reference | Often used in pairs on 8,000 lb trailer axle setups |

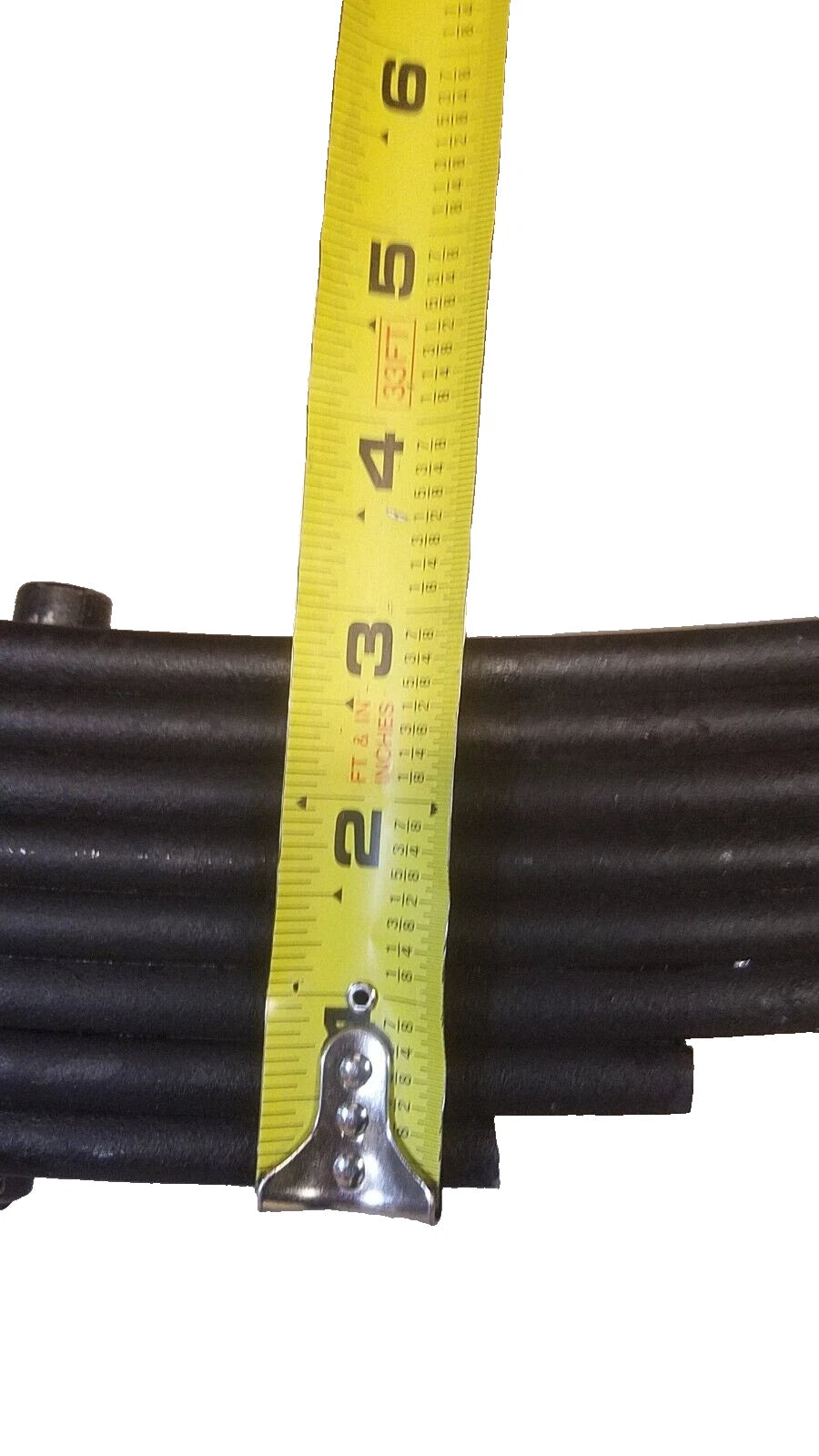

| Leaf Count | 8 Leaf |
| Eye-to-Eye Length | Approx. 26" |
| Spring Width | 1.75" wide |
| Material | Heat-treated spring steel |
Fitment / Application
| Category | Details |
|---|---|
| Trailer Type | Utility, RV, camper, boat, equipment, and light-duty trailer applications |
| Mounting Style | Double eye / eye-by-eye spring |
| Axle Position | May be used with axle-over or axle-under suspension setups when dimensions match |
| Important Fitment Note | Match by eye-to-eye length, spring width, capacity, hanger spacing, and suspension layout before ordering. |
Included Components
| Quantity | Item |
|---|---|
| 1 | 8 Leaf Double Eye Trailer Leaf Spring, 26" Eye to Eye, 1.75" Wide, 4,000 lb Capacity |
