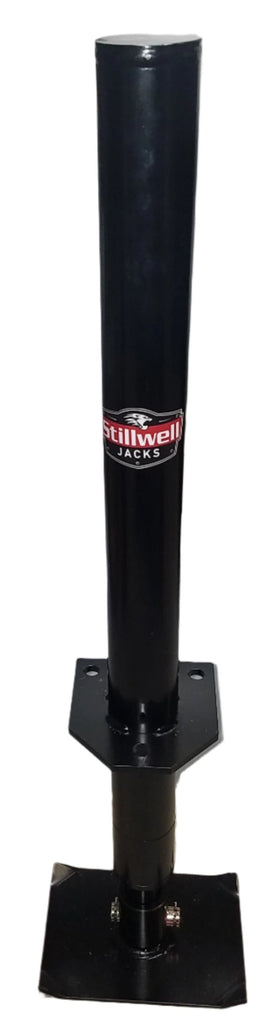

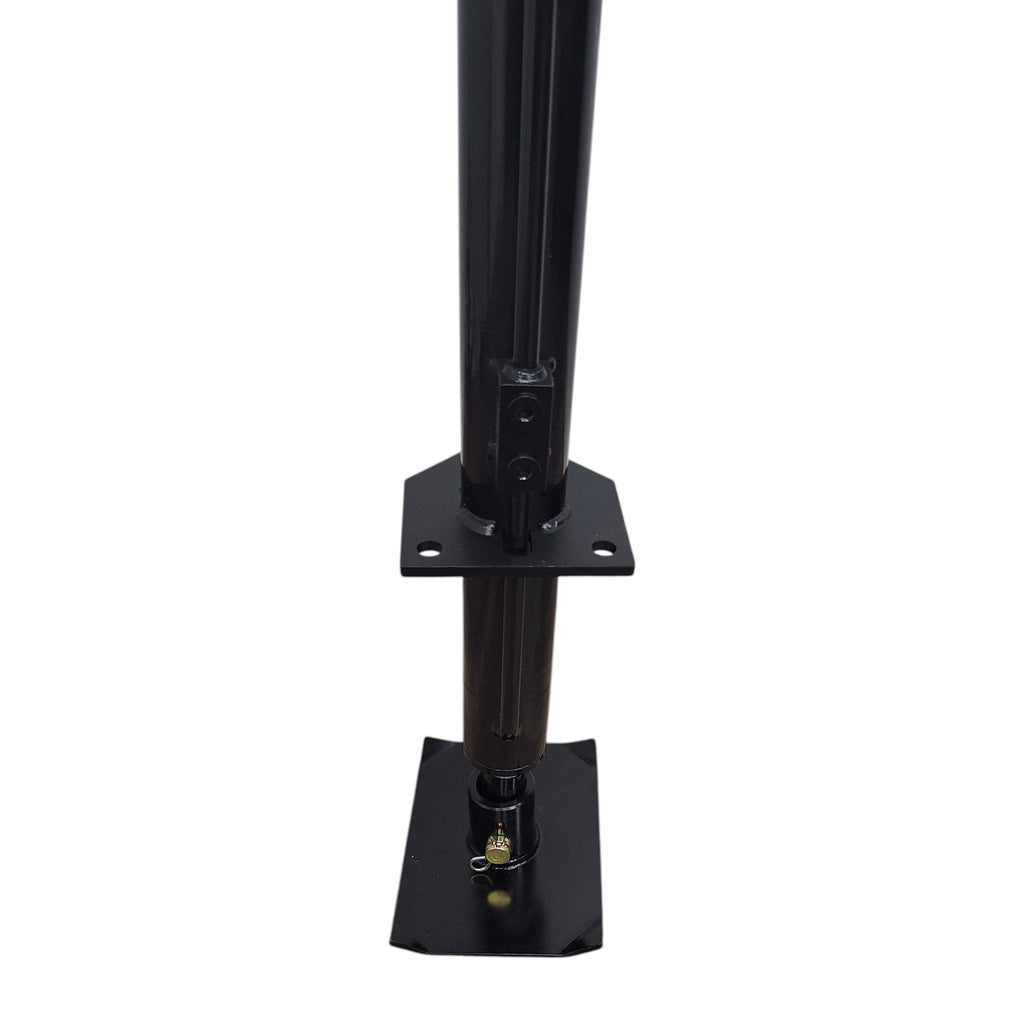

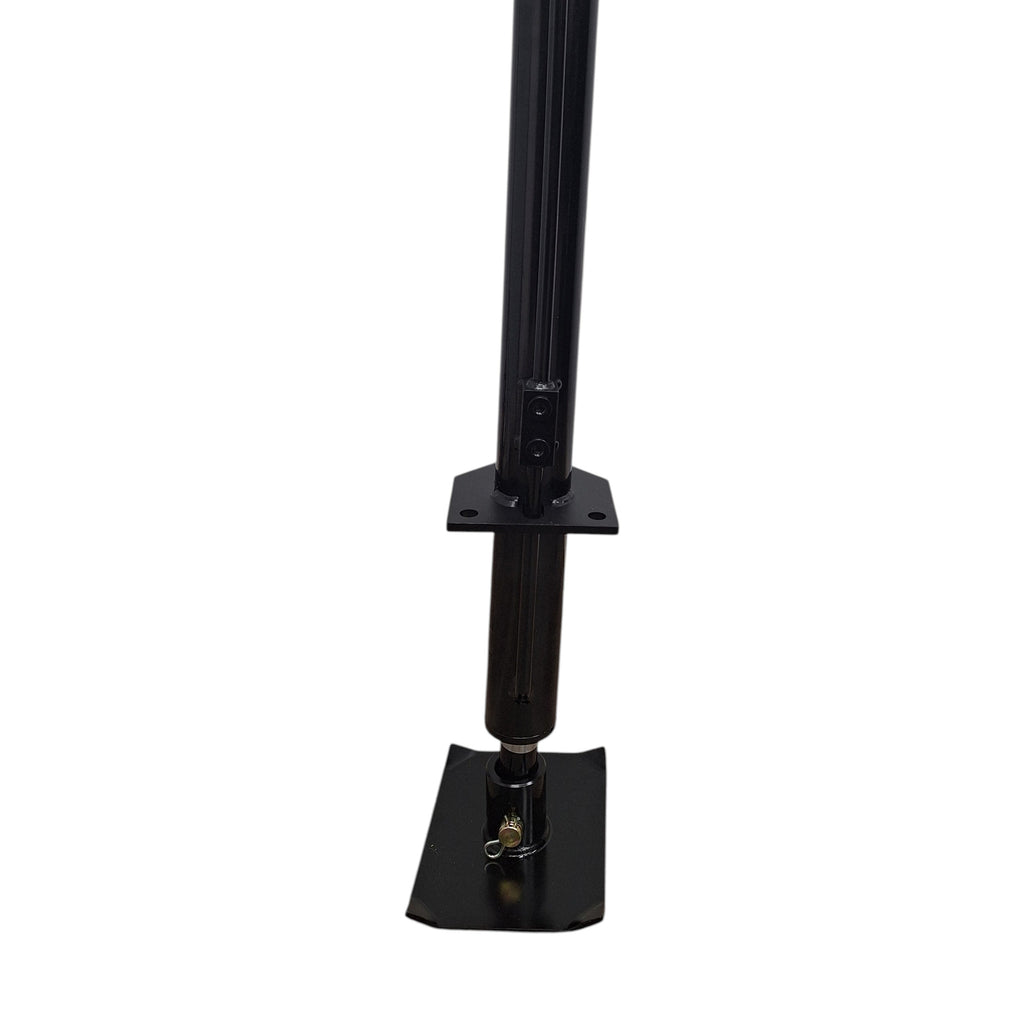

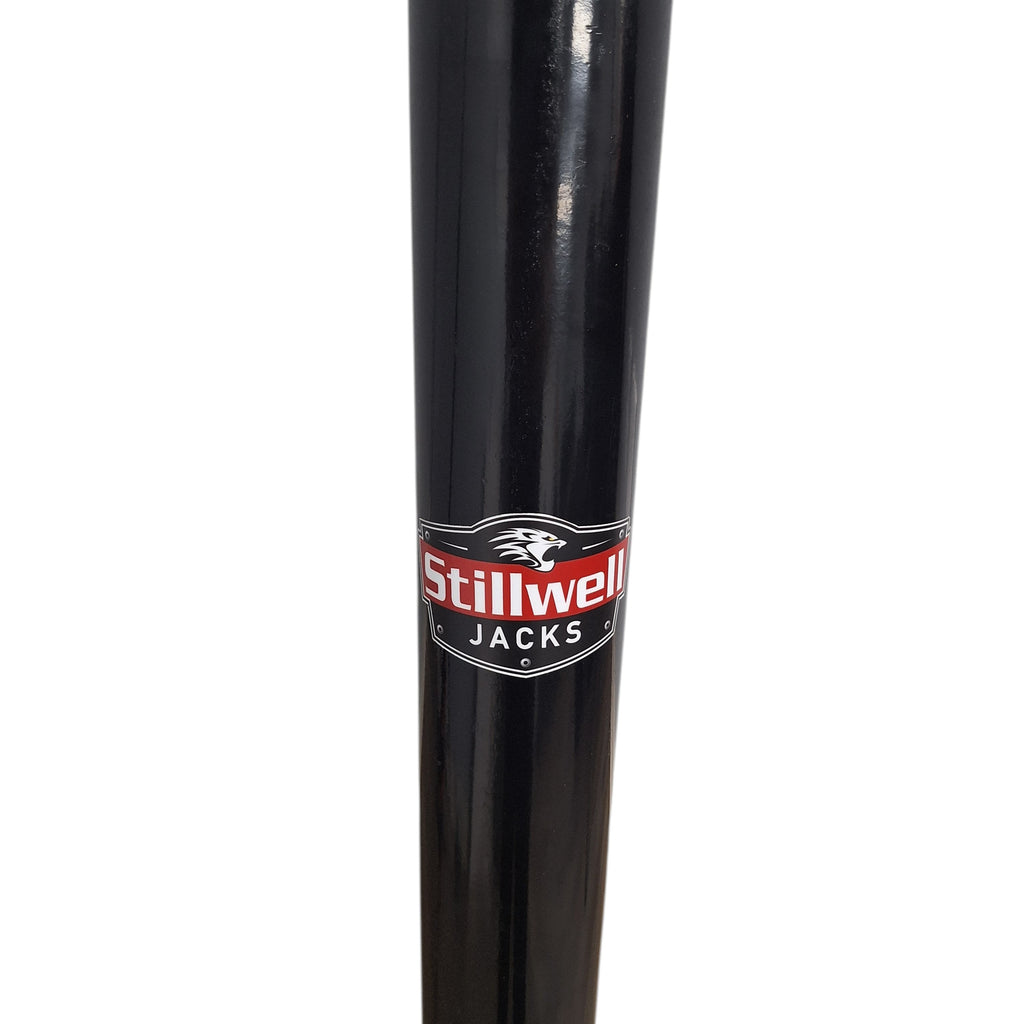

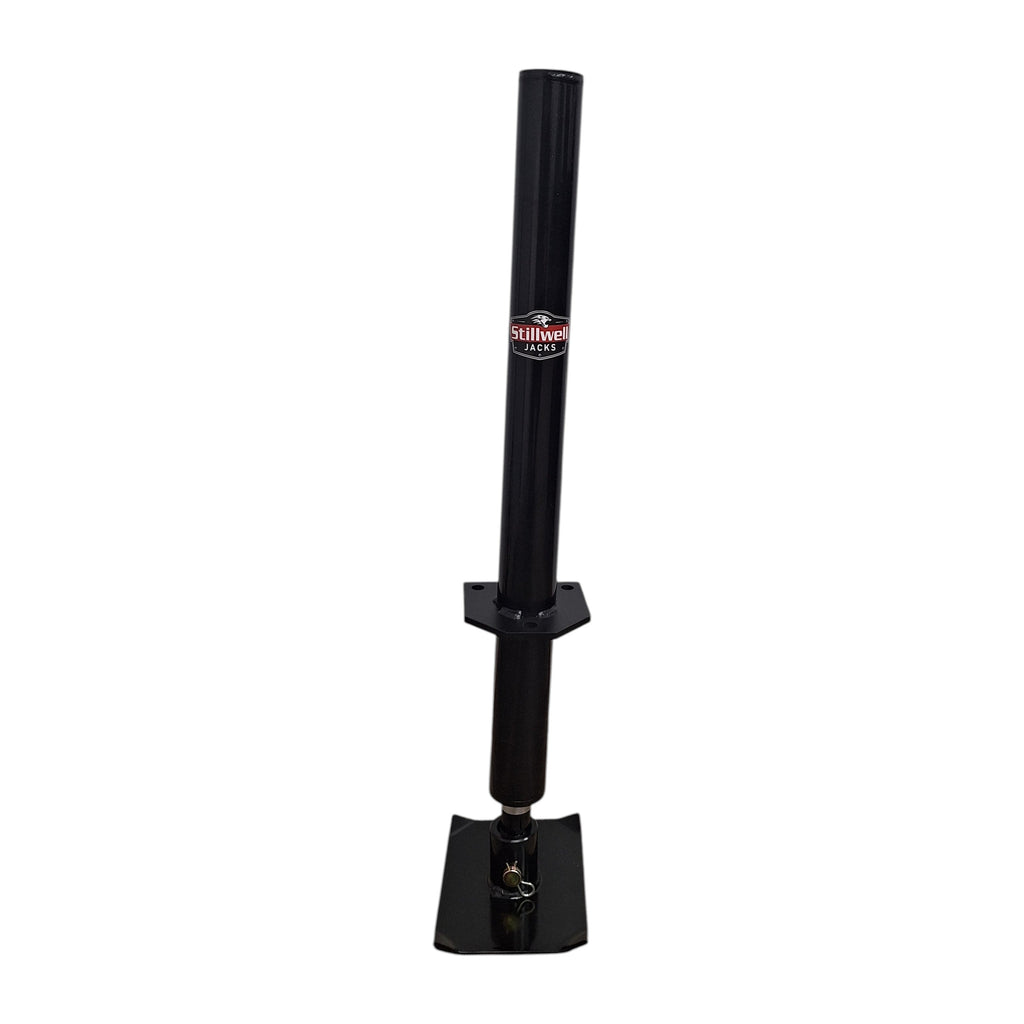

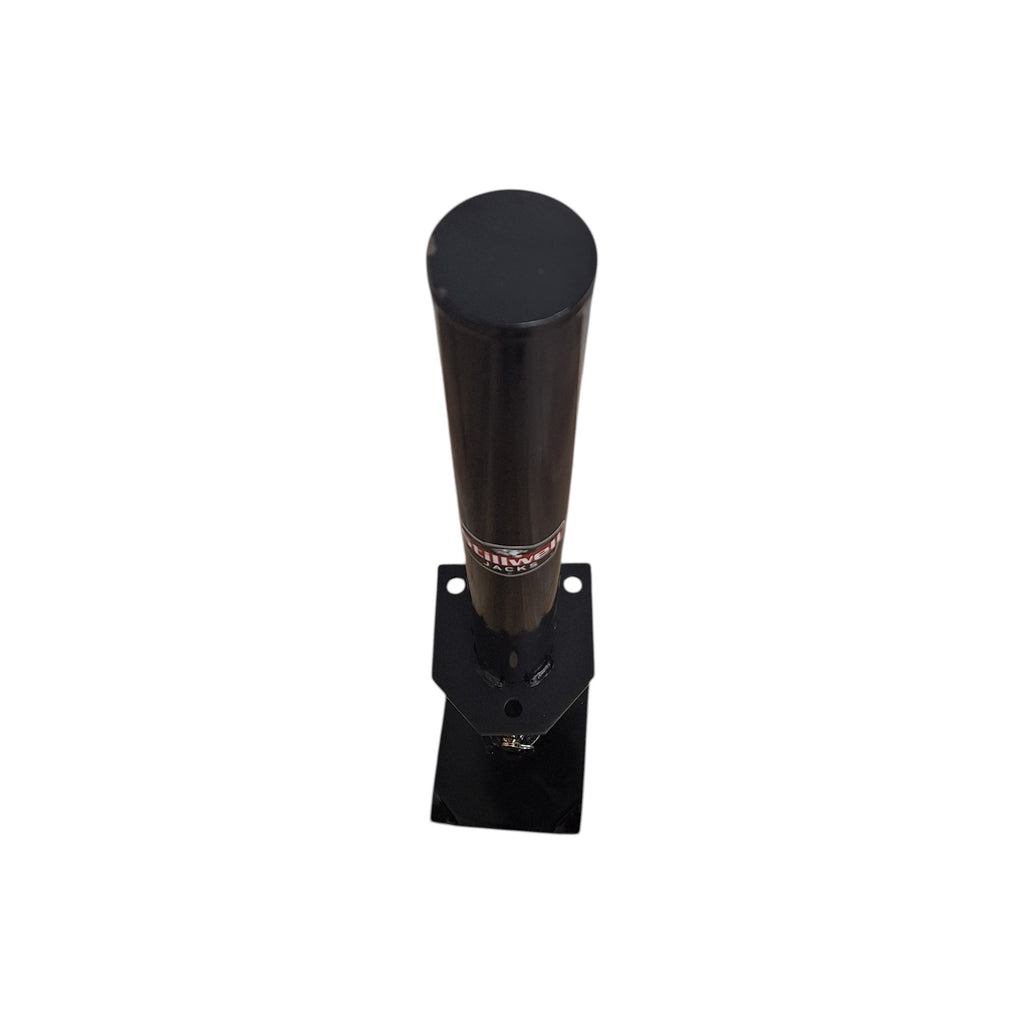

Stillwell Hydraulic Trailer Tongue Jack – 7,000 lb Capacity – 24" Stroke
Hydraulic trailer tongue jack with a long-stroke cylinder and removable steel foot. Designed to connect to a compatible external hydraulic pump system.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| SKU | 1-5191 |
| Brand | Stillwell |
| Product Type | Hydraulic trailer tongue jack |
| Load Capacity | 7,000 lb |
| Stroke Length | 24" |
| Maximum Pressure | 3,200 PSI |
Fitment / Application
| Category | Details |
|---|---|
| Application | Trailer tongue lifting applications |

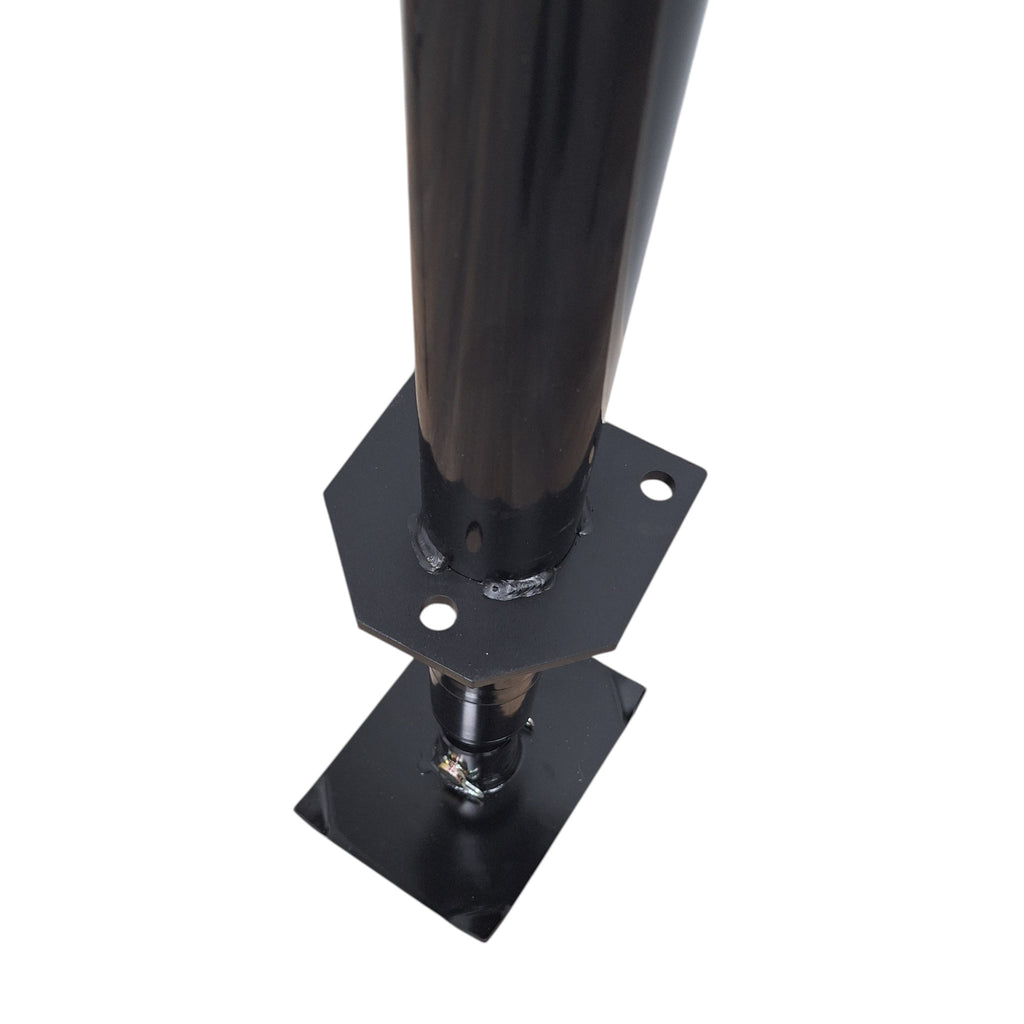

| Mounting Method | Mounts to compatible existing trailer jack mounting holes |
| Hydraulic System | Requires a compatible external hydraulic pump system |
| Fitment Check | Verify mounting-hole pattern, available clearance, required stroke, and hydraulic-system compatibility before ordering. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 7,000 lb Capacity | Provides hydraulic lifting support for compatible trailer tongue applications. |
| 24" Stroke | Provides an extended operating range for lifting and positioning. |
| Removable Foot | Includes an 8" × 6" steel foot for ground contact. |
| External Pump Design | Connects to a compatible external hydraulic system selected for the trailer application. |
Overview
The Stillwell 1-5191 is a hydraulic tongue jack designed for trailer applications requiring a 7,000 lb lifting capacity and 24" cylinder stroke. It mounts to compatible existing trailer jack mounting holes and includes a removable 8" × 6" steel foot. A hydraulic pump is not included and must be supplied separately.
R&P Service Insight
A hydraulic tongue jack must be matched to both the trailer and the hydraulic system operating it. Confirm the physical mounting requirements and hydraulic compatibility before installation.
- Mounting: Compare the trailer’s existing jack mounting holes with the jack before ordering.
- Clearance: Confirm that the trailer has room for the jack throughout its full 24" stroke.
- Hydraulics: Verify that the external pump and system are compatible with the jack’s requirements and 3,200 PSI maximum pressure.
R&P Knowledge Hub
Compatibility: Designed for compatible trailer tongue applications where the mounting arrangement, dimensions, capacity, and hydraulic requirements match.
Operating Range: The jack measures 32" long when retracted and 56" long when fully extended, providing a total stroke of 24".
Hydraulic Requirements: This jack does not contain its own pump. It must be connected to a compatible external hydraulic pump system.

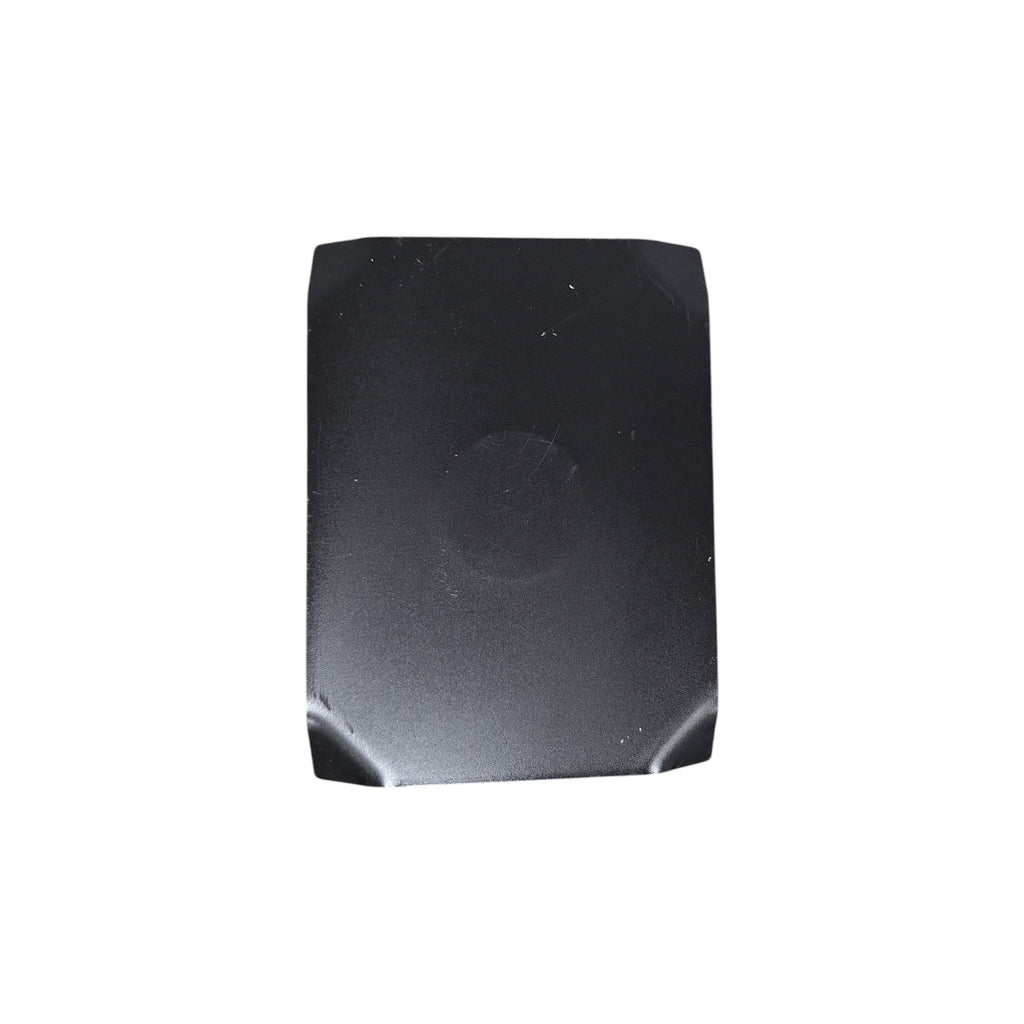

Ground Contact: The included removable 8" × 6" steel foot provides the jack’s ground-contact surface.
Brand & Fitment Note
Selling Brand: Stillwell
Application Reference: Intended for trailer tongue lifting applications with compatible mounting and hydraulic-system requirements.
What This Means: This listing is for one Stillwell hydraulic trailer tongue jack with a removable steel foot. The external hydraulic pump and related hydraulic-system components are not included.
Before Ordering: Verify load requirements, mounting-hole pattern, retracted and extended dimensions, available operating clearance, hydraulic pressure requirements, and pump compatibility.
R&P Repair Insight
Before replacing or adding a hydraulic tongue jack, compare the complete installation—not only the listed load capacity. Mounting geometry, available clearance, hydraulic connections, and system pressure must all be compatible.
- Measure First: Confirm the 32" retracted and 56" extended overall lengths provide the required clearance.
- Check Mount Height: The retracted distance from the mounting point to the foot is 12".
- Confirm Pump Availability: This jack cannot operate independently because the hydraulic pump is not included.
Complete Specifications
| Specification | Detail |
|---|---|
| SKU | 1-5191 |
| Brand | Stillwell |
| Product Type | Hydraulic trailer tongue jack |
| Load Capacity | 7,000 lb |
| Stroke Length | 24" |
| Retracted Overall Length | 32" |
| Extended Overall Length | 56" |
| Retracted Mount-to-Foot Distance | 12" |
| Foot Size | 8" × 6" |
| Foot Type | Removable steel foot |
| Cylinder Bore | 2" |
| Rod Diameter | 1.25" |
| Maximum Pressure | 3,200 PSI |
| Hydraulic Pump Included | No |
Features
7,000 lb Load Capacity
Designed to provide hydraulic lifting support for compatible trailer tongue applications.
Long-Stroke Hydraulic Cylinder
The 24" stroke extends the jack from 32" retracted to 56" overall when fully extended.

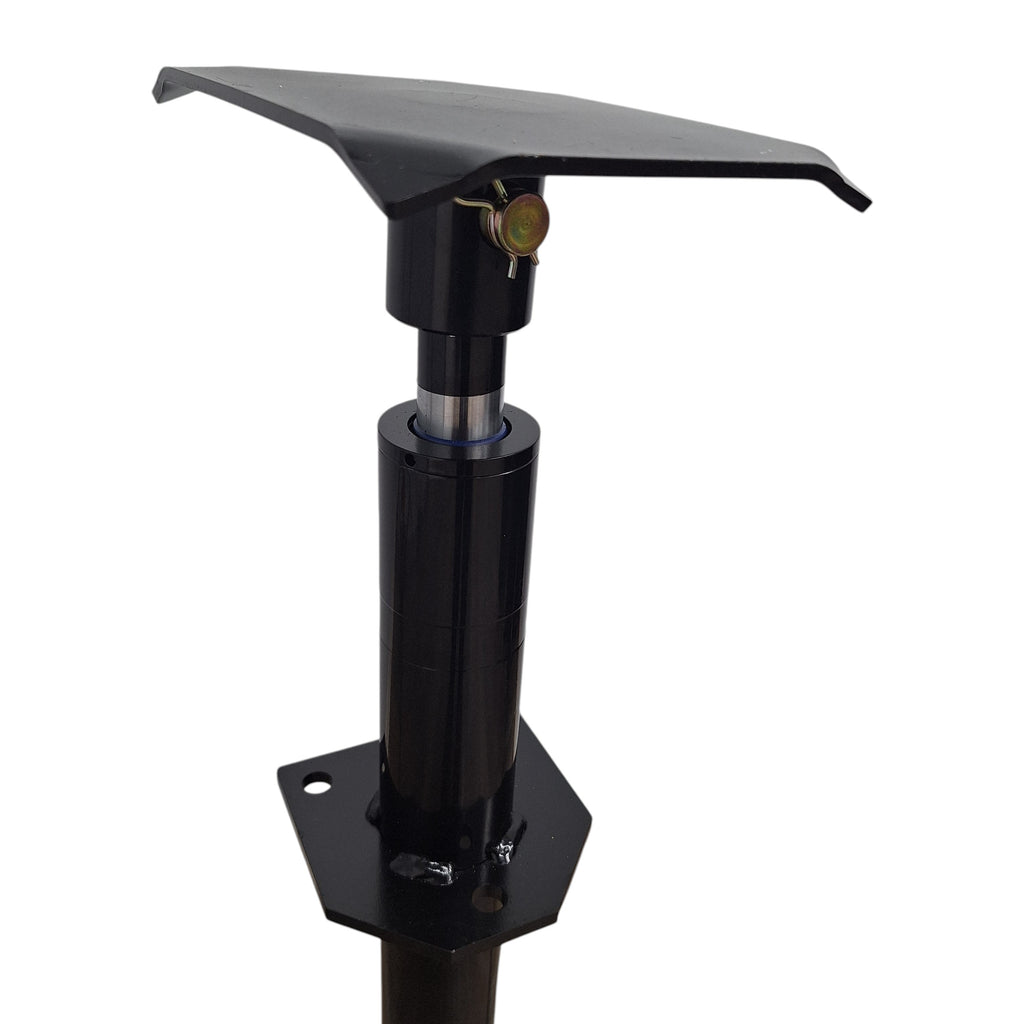

Removable Steel Foot
Includes an 8" × 6" removable steel foot for ground contact.
External Hydraulic Operation
Designed to connect to a compatible external hydraulic pump system selected for the trailer application.
Included Components
| Quantity | Included Component |
|---|---|
| 1 | Stillwell hydraulic trailer tongue jack, 7,000 lb capacity with 24" stroke |
| 1 | Removable 8" × 6" steel foot |
| Not Included | External hydraulic pump and hydraulic-system components |
