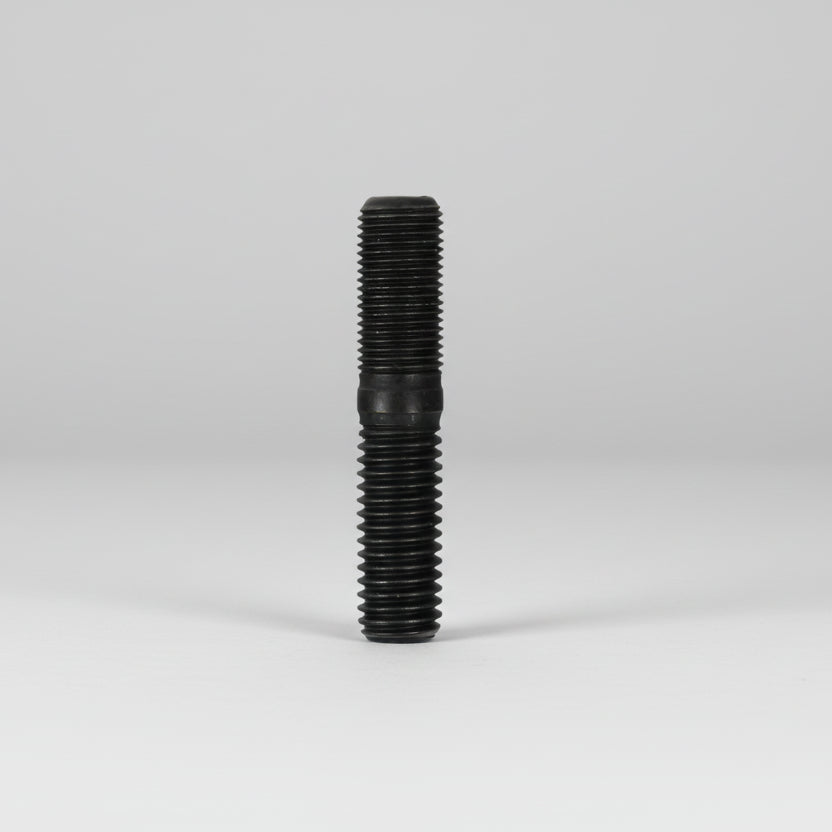

Wheel Stud – Screw-In – 1/2"-13 x 1/2"-20 – 2.53" Length – Grade 8
Part Number: 025-014-00
Heavy-duty screw-in wheel stud with 1/2"-13 coarse thread base and 1/2"-20 fine thread lug end. Overall length is 2.53". Manufactured to Grade 8 strength specifications.
Commonly used as a wheel stud on trailer hubs and as a rotor mount stud for 10K and 12K disc brake hub assemblies.
Listing is for ONE stud.
R&P Knowledge Hub
Screw-in studs thread directly into the hub or rotor mounting flange using the coarse 1/2"-13 base thread. The fine 1/2"-20 thread section accepts standard 1/2"-20 lug nuts.
Grade 8 hardware provides high tensile strength suitable for heavy-duty trailer applications including 10K and 12K disc brake hubs. Always verify thread pitch and overall length before installation.
Features
- 1/2"-13 coarse thread base
- 1/2"-20 fine thread lug end
- 2.53" overall length
- Grade 8 strength rating
- Screw-in design
Specifications
| Specification | Detail |
| Base Thread | 1/2"-13 |
| Lug Thread | 1/2"-20 |
| Overall Length | 2.53" |
| Grade | Grade 8 |
| Application | Wheel or Rotor Mount Stud |
Verify thread size and length before installation.
