At a Glance
- SKU: DLHP
PRODUCT INFORMATION
Product Details
Trailer & Storage Protection / Maximum Security

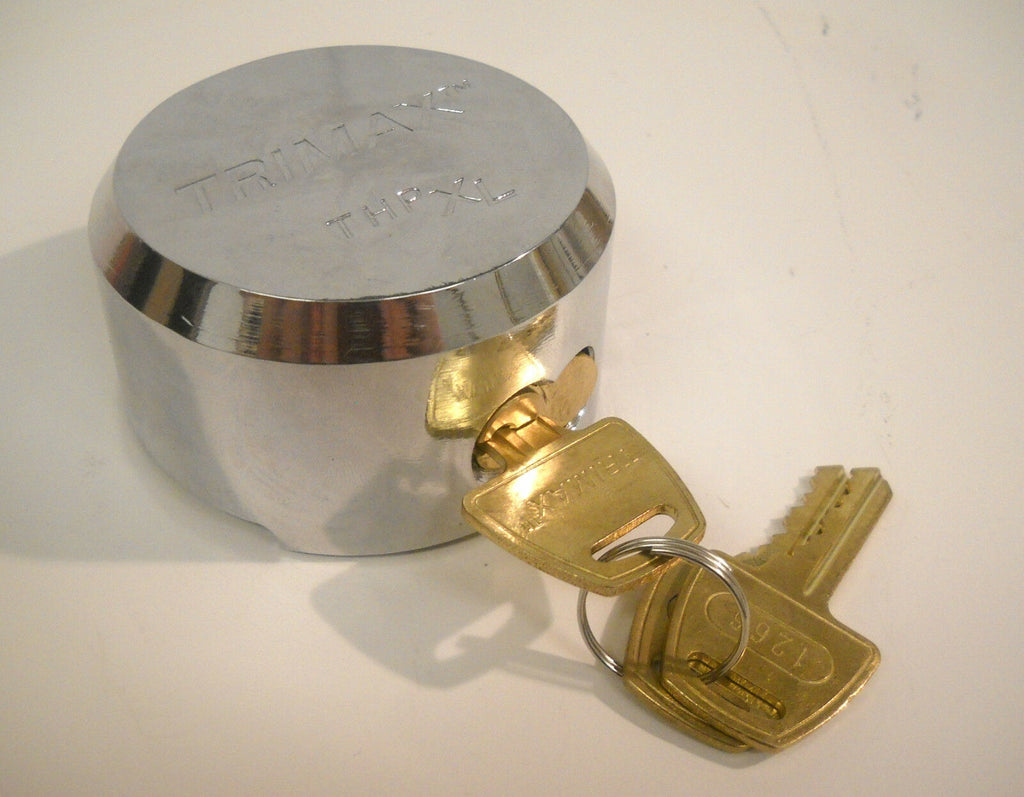

Trimax Maximum Security Hidden Shackle "Hockey Puck" Trailer Lock - Steel Body
A professional-grade hidden shackle lock designed to eliminate the most common point of failure: the exposed shackle. Virtually impossible to cut, saw, or pry when used with a compatible hasp.
Part Number: DLHP 3/8" Hidden Shackle Hardened Chrome-Plated Steel
Overview
The Trimax DLHP features a unique "Hockey Puck" style that encases the shackle within a solid block of hardened chrome-plated steel. By tucking the shackle inside the lock body, there is no gap for bolt cutters to grip, providing a level of security that standard padlocks cannot match. Its "no-spring" design ensures reliable operation in freezing or corrosive environments.
R&P Service Insight
This is the "gold standard" for enclosed trailer security. If you are hauling high-value equipment or tools, a standard padlock is a target; this hidden shackle design forces thieves to look for an easier mark.

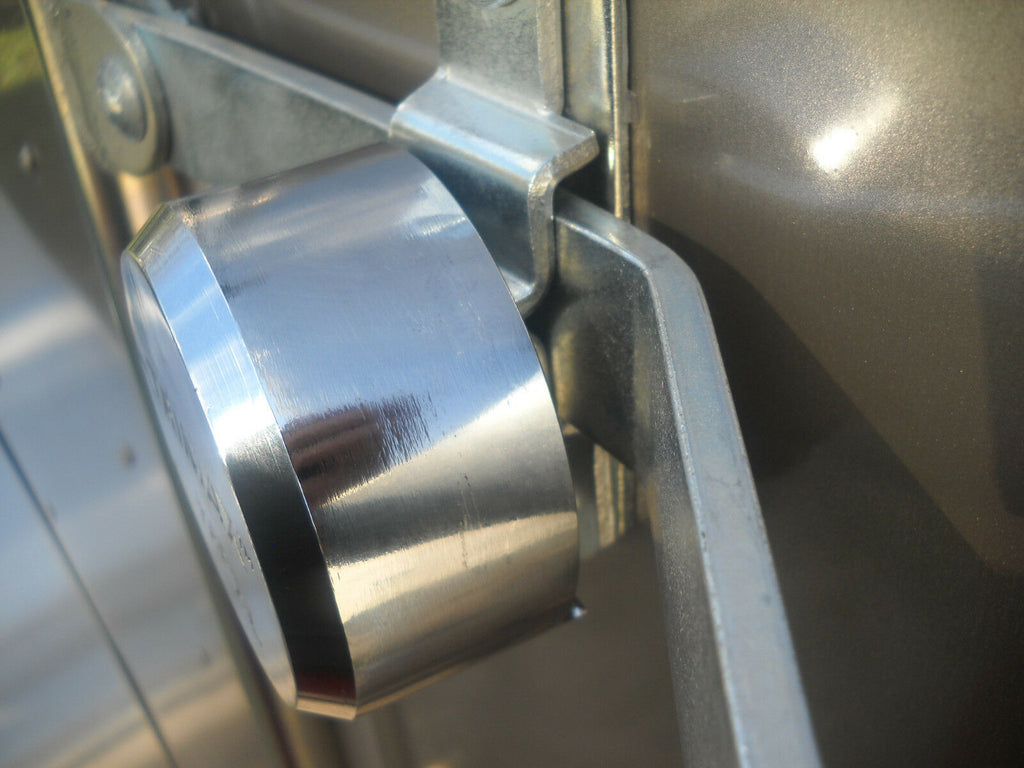

- Anti-Theft: Completely shrouds the hasp to prevent prying or sawing.
- Precision Fit: Designed to work seamlessly with hockey-puck style hasps.
- Durable Build: Weighs in at over 2 lbs of solid, hardened metal.
R&P Knowledge Hub
Compatibility: Designed for enclosed trailers, storage units, and commercial gates using hidden shackle hasps.
Vehicle / System Fit: Enclosed Cargo Trailers, Job Site Storage Boxes, Commercial Gates.
Key System: High-security 6-pin cylinder provides superior pick resistance and is re-keyable by a professional locksmith.

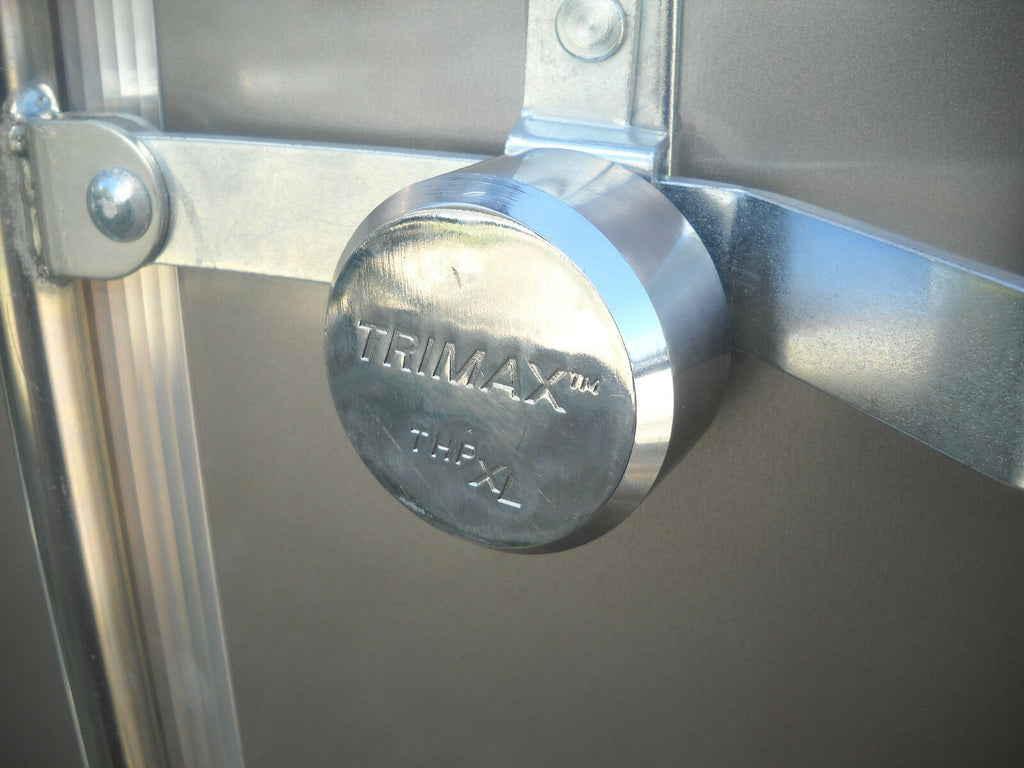

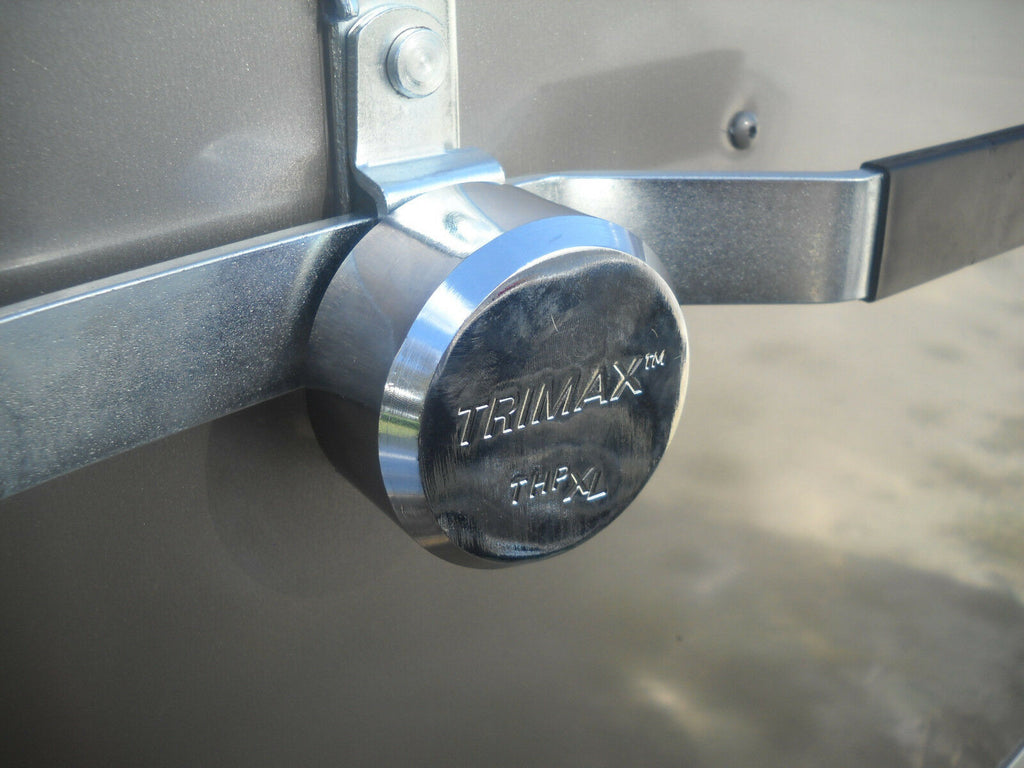

Performance Insight: For maximum security, pair this with a Trimax THSP2C or similar shroud hasp to ensure the entire locking mechanism is protected from all angles.
Brand & Fitment Note
Selling Brand: Trimax
Application Reference: This lock is designed for specific "hockey puck" style hasps and is compatible with commercial storage and trailer applications where the internal dimensions match.
What This Means: This listing is for a genuine Trimax DLHP high-security lock, an industry leader in trailer and site protection.
Before Ordering: Verify hasp clearance (1-3/4" wide x 1/2" tall) to ensure the lock body can seat properly over your specific mounting hardware.
R&P Maintenance Insight
While the DLHP is incredibly tough, proper maintenance ensures it lasts a lifetime, especially in harsh road environments or coastal areas.
- Lubrication: Use a dry graphite lubricant once a year in the keyway. Avoid "wet" oils that can attract grit and road grime.
- Body Care: If the chrome plating is chipped, a small dab of clear coat or rust-inhibitor will prevent surface oxidation.
- Hasp Alignment: Ensure your trailer hasp is aligned so the shackle slides through without force to avoid cylinder wear.
Features
Solid Steel Construction
Machined from a solid block of hardened steel. Highly resistant to drilling, hammering, and physical attacks.

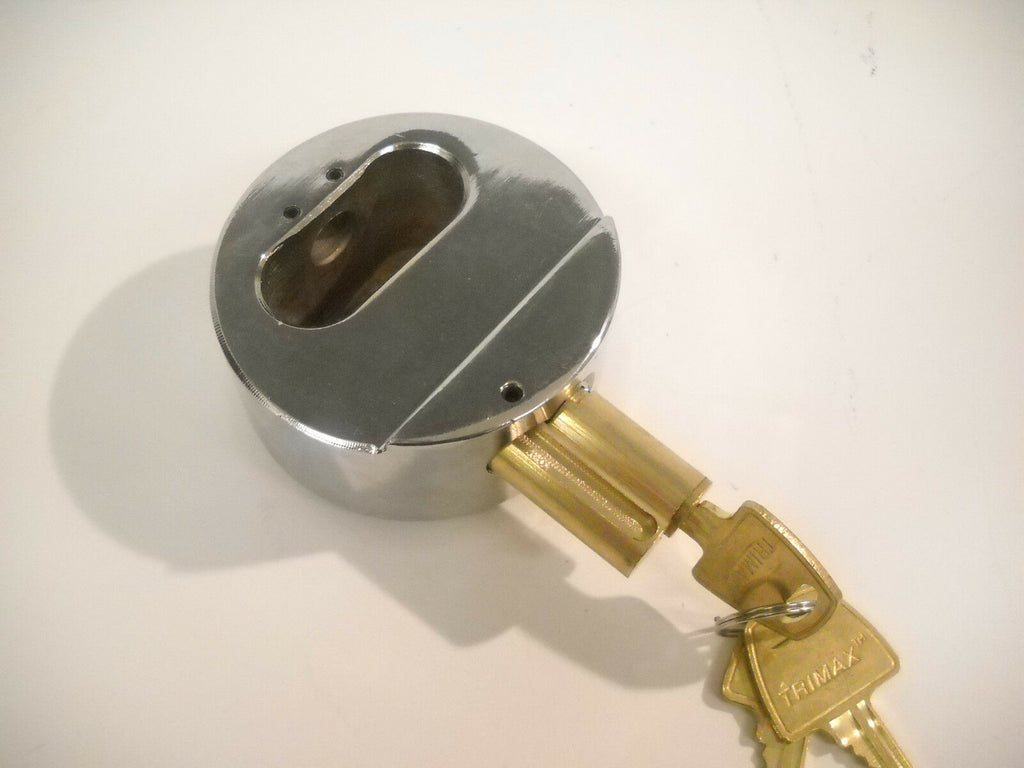

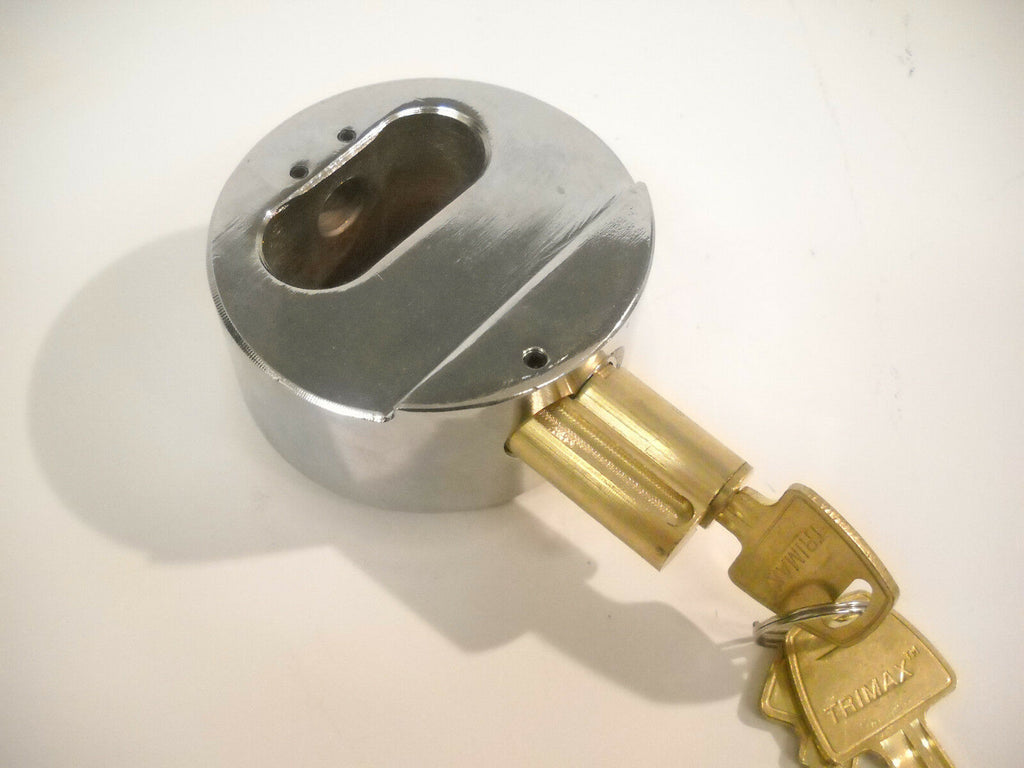

Hidden 3/8" Shackle
Internal shackle design provides zero clearance for bolt cutters or saws to access the locking pin.
Weather-Ready Design
The manual "no-spring" tumbler system ensures the lock won't jam or freeze in extreme weather conditions.
High Security Cylinder

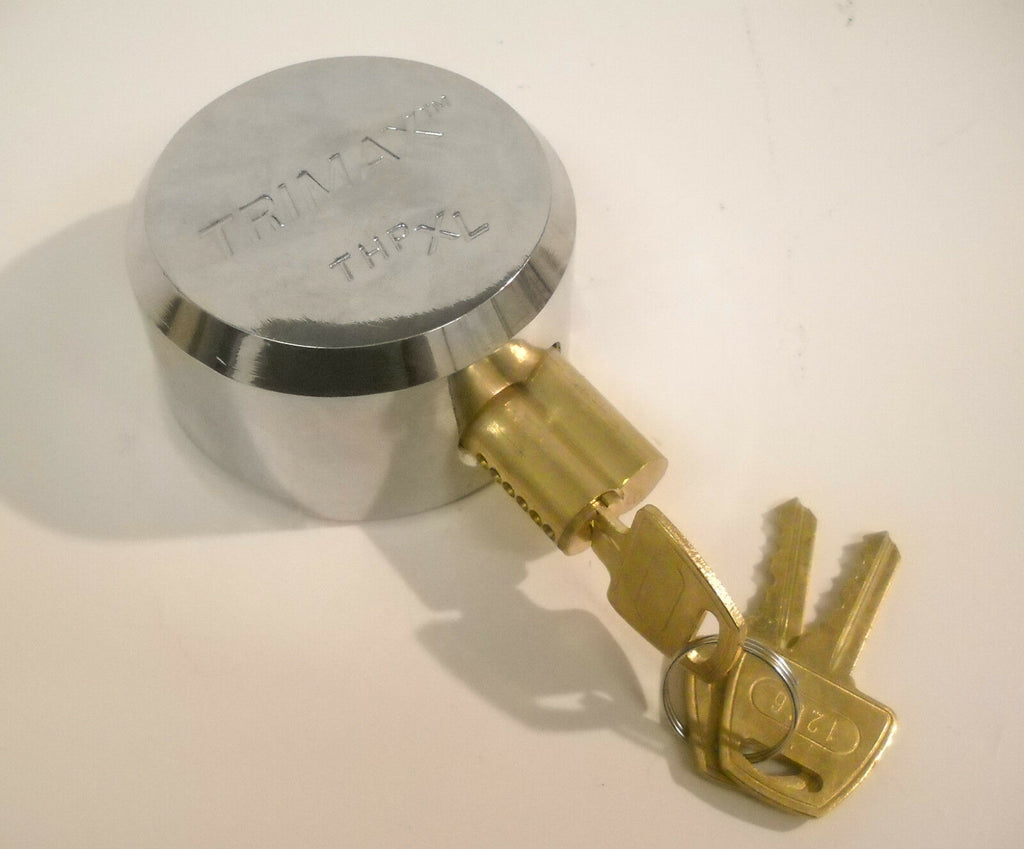

Equipped with a pick-resistant 6-pin brass cylinder that is fully re-keyable if needed.
Specifications
| Specification | Detail |
|---|---|
| Part Number | DLHP |
| Brand | Trimax |
| Lock Type | Hidden Shackle / Hockey Puck |
| Material | Hardened Chrome-Plated Steel |
| Internal Pins | 6-Pin Brass Cylinder |
| Weight | Approx. 2.3 lbs |
| Total Diameter | 2-7/8" (73 mm) |
| Total Thickness | 1-1/2" (38 mm) |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Enclosed Trailer / Storage Unit |
| Primary Fit | Hockey Puck Style Hasps |
| Shackle Diameter | 3/8" (9.5 mm) |
| Internal Clearance | 1-3/4" x 1/2" |
| Notes | Does not hang like a standard padlock. Designed to shroud the hasp completely. |
Included Components
| Quantity | Item |
|---|---|

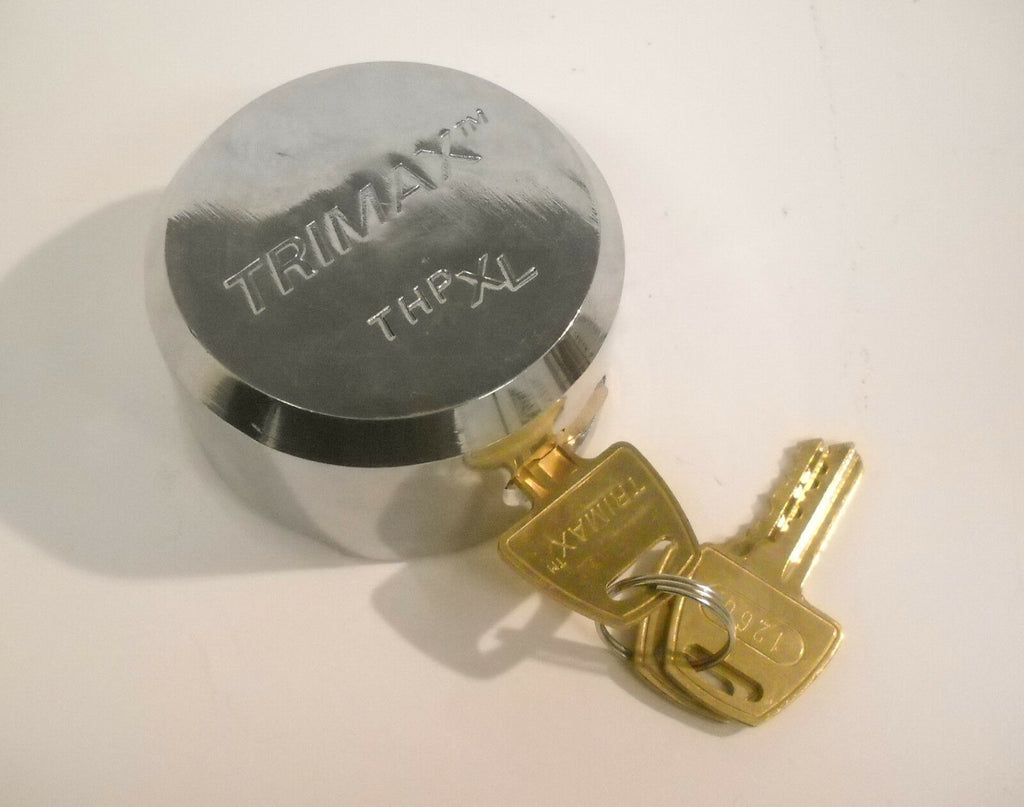

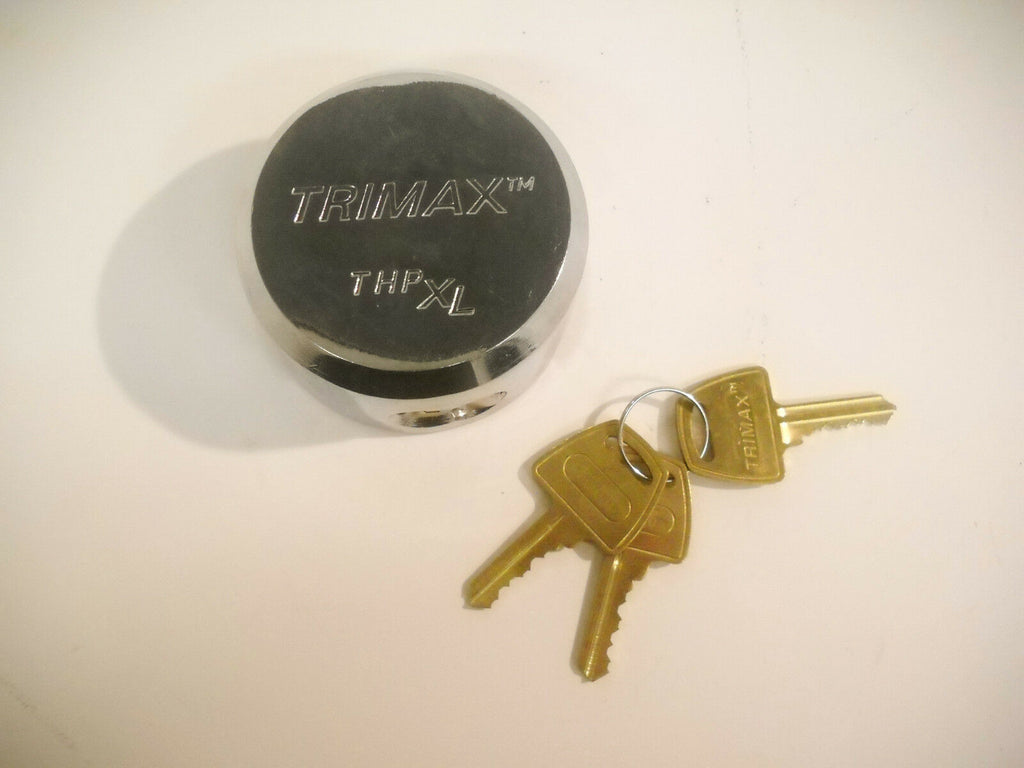

| 1 | Trimax DLHP Solid Steel Hockey Puck Lock |
| 2 | High-Security Match Keys |
Verify hasp clearance (1-3/4" wide x 1/2" tall) and ensure your hasp is a "hockey puck" style before ordering. Standard loop hasps may not allow the lock to sit flush or engage the shackle correctly.
Trimax DLHP Hockey Puck Lock, Hidden Shackle Trailer Lock, Enclosed Trailer Security, Bolt-Cutter Proof Lock, Hardened Steel Puck Lock, 6-pin rekeyable lock, commercial gate lock.
