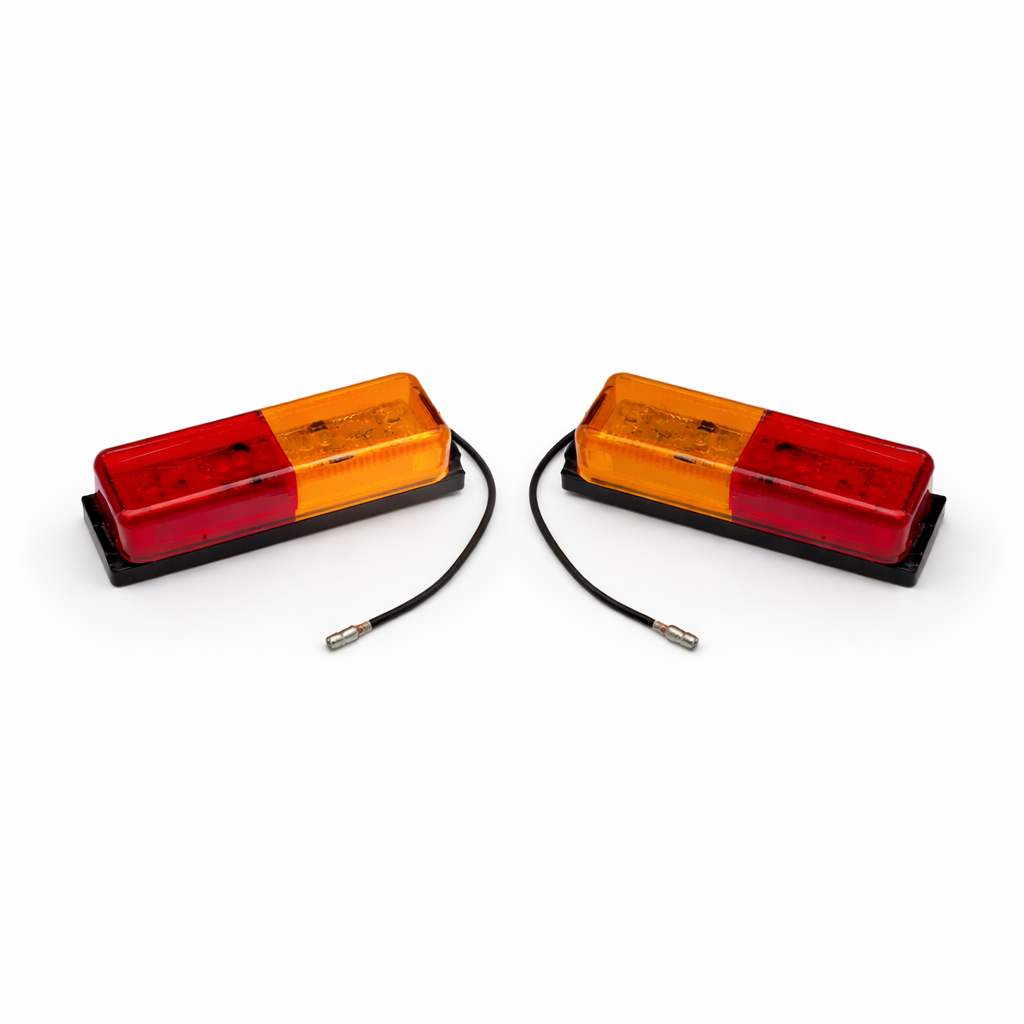

2-Pack LED Fender Mount Clearance Marker Lights with Pigtails & Brackets - Red / Amber Trailer Lights
This listing is for two LED fender mount clearance marker lights. Each light combines rear-facing red and forward-facing amber visibility in a compact trailer-ready housing with pigtail and bracket included.
Overview
If you need compact fender-mounted trailer lighting with both red and amber visibility, this 2-pack gives you two LED clearance marker lights ready for service or replacement use. Each light measures 3-7/8" long by 1-1/4" tall by 7/8" deep, uses a single-wire connection, and grounds through a mounting screw.
R&P Service Insight
Fender mount clearance lights are often replaced because of cracked housings, damaged leads, corrosion at the ground point, or weak output from older incandescent units. A bi-color LED light helps simplify visibility needs in one compact assembly.
- Ground Path: Since ground is accomplished through a mounting screw, clean metal-to-metal contact matters for reliable light performance.
- Compact Footprint: The slim body makes this style useful where fender space is limited.
- Two-Light Listing: This lot is for two lights, which can help when replacing both sides or refreshing a matched pair.
R&P Knowledge Hub
Compatibility: Designed as a fender mount clearance / marker light style for trailer applications requiring red and amber directional visibility.
Vehicle / System Fit: Best suited for trailers using compact fender-mounted side marker / clearance lighting.
Installation Notes: Verify mounting footprint, overall light size, wire routing, and that your mounting surface can provide a proper screw-ground connection before ordering.
Performance Insight: Each light uses 6 LEDs total — 3 red and 3 amber — to provide a dual-color lighting function in a small, service-friendly package.
R&P Repair Insight
The biggest confusion point with this style is usually not lens color — it is grounding and fitment. Because this light uses one wire and grounds through the mounting screw, buyers should confirm that the mounting area is clean and suitable for ground continuity. Also confirm overall dimensions against the light being replaced.
- Check Size: Verify the replacement area matches the listed 3-7/8" x 1-1/4" x 7/8" dimensions.
- Check Wiring Style: This is a one-wire light, not a two-wire isolated-ground design.
- Check Ground Condition: Rust, paint, or debris at the mounting point can interrupt the screw-ground path.
Features
Two-Light Listing
This package includes two LED fender mount clearance marker lights for matched replacement or paired installation.
Bi-Color LED Layout
Each light contains 6 LEDs total with 3 red LEDs and 3 amber LEDs for combined marker / clearance visibility.
Compact Fender Mount Size
The slim profile is sized at 3-7/8" x 1-1/4" x 7/8" for trailer applications where space is limited.
Single-Wire Connection
Uses one wire for power, with ground completed through a mounting screw at the installation point.
Specifications
| Specification | Detail |
|---|---|
| Part Number | MCL-67ARB-LOTOF2 |
| Product Type | LED fender mount clearance marker light set |
| Application | Trailer clearance / marker lighting |
| Material / Finish | Not specified in source listing |
| Key Measurement | 3-7/8" x 1-1/4" x 7/8" |
| Fitment | Fender mount trailer light application |
| LED Count | 6 LEDs per light (3 red, 3 amber) |
| Wire Style | 1 wire; ground through mounting screw |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer lighting system |
| Primary Fit | Fender-mounted trailer clearance / marker light replacement |
| Secondary Fit | Applications needing a compact red / amber side marker style light |
| Notes | Verify dimensions, mounting method, and one-wire screw-ground setup before ordering. This listing is for two lights. |
Included Components
| Quantity | Item |
|---|---|
| 2 | LED fender mount clearance marker lights |
| 2 | Pigtails |
| 2 | Brackets |
| Included with lights | Single-wire connection design |
| Important | Ground is accomplished through a mounting screw |
