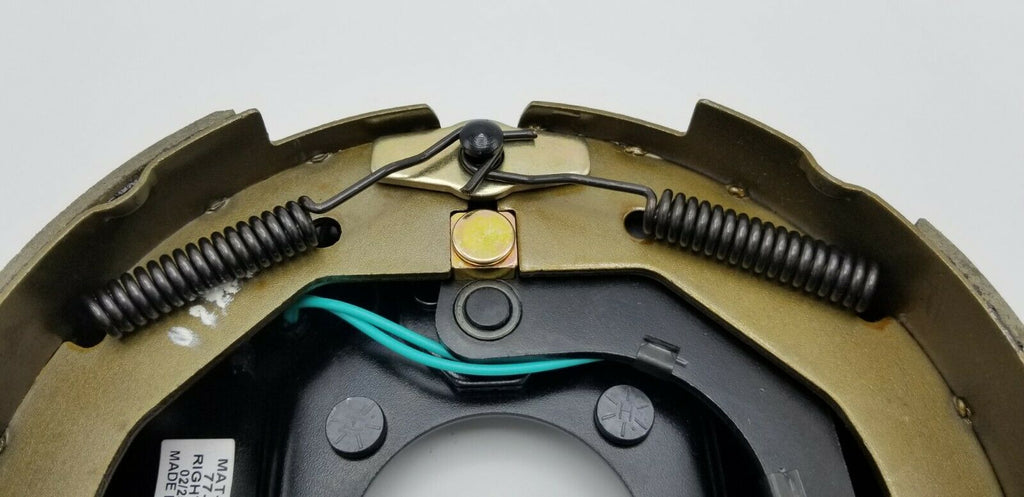

Pair of Electric Trailer Brake Backing Plates – 10" x 2-1/4" – 3,500 lb Axles
Part Number: 10RVEB-1P

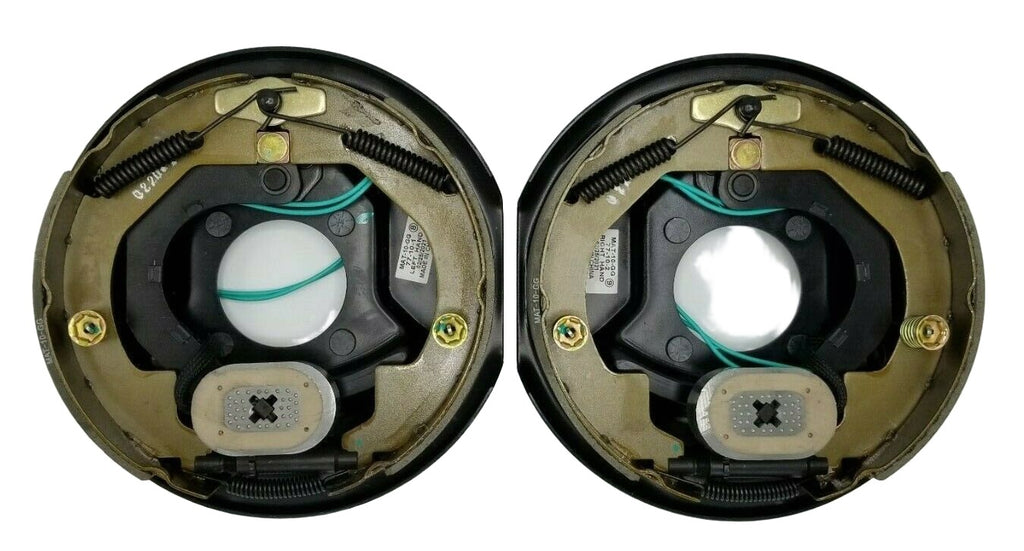

This listing includes two (2) complete electric trailer brake backing plate assemblies for standard 3,500 lb trailer axles. Designed for 10" diameter × 2-1/4" wide brake drums.
Pre-assembled backing plates allow replacement by removing the existing 4 mounting bolts and installing the new assemblies.
R&P Knowledge Hub
These assemblies are designed for standard 3,500 lb axles using 10" × 2-1/4" electric drum brakes. Commonly compatible with axles manufactured by Dexter, Lippert, AL-KO, AXIS, Rockwell, and similar brands.
Some 3,500 lb AL-KO axles use 10" × 1-3/4" brakes. Always verify brake diameter, shoe width, and mounting flange bolt pattern before ordering.
Features
- Complete left-hand and right-hand brake assemblies

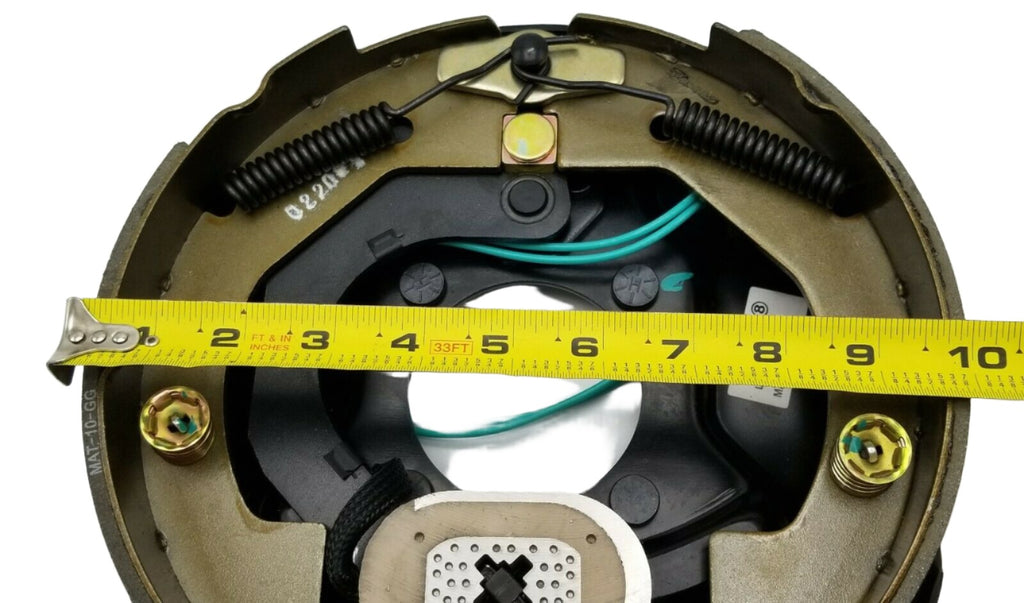

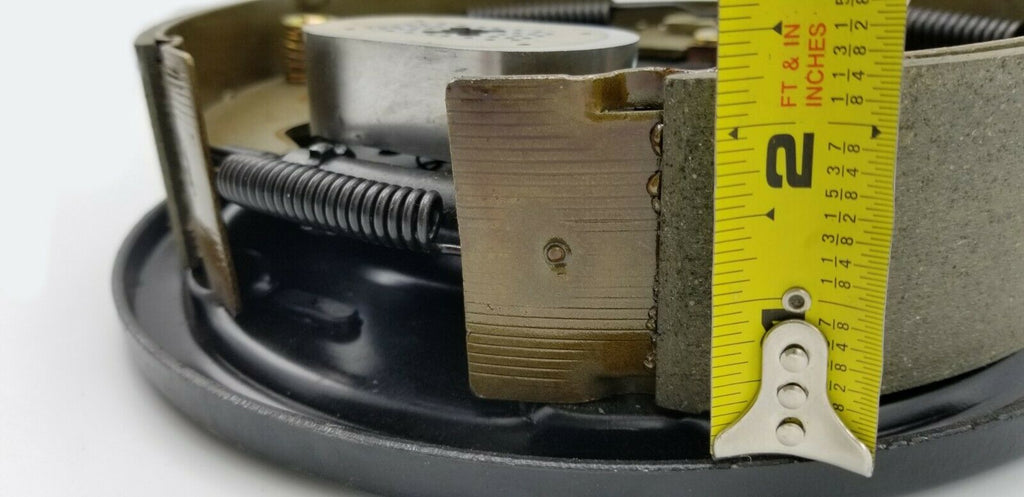

- 10" diameter × 2-1/4" shoe width

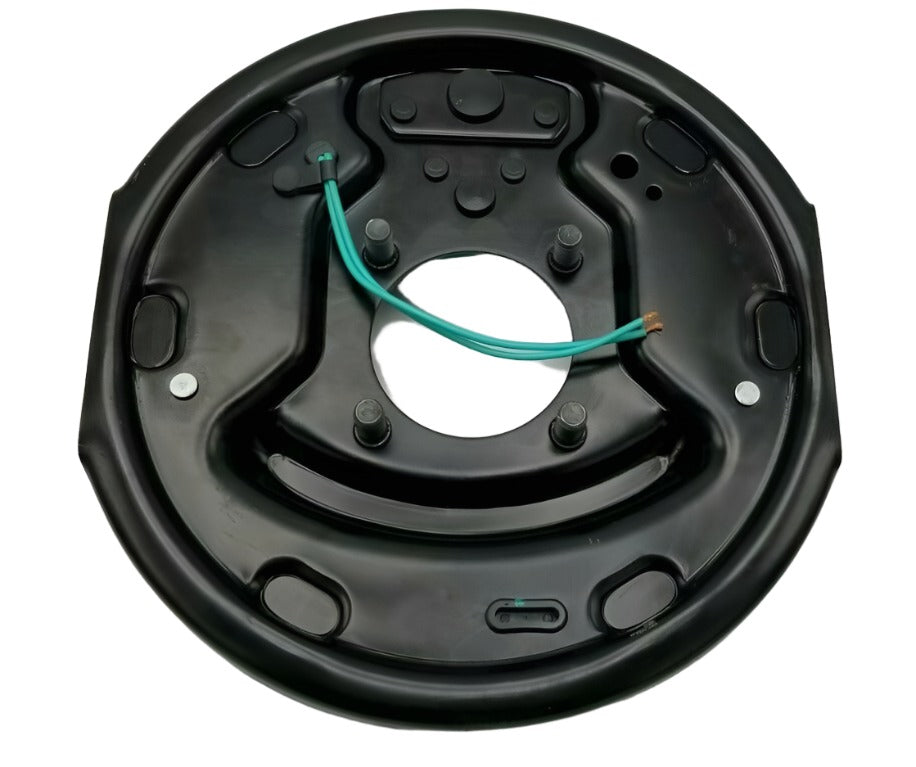

- 4-bolt mounting configuration
- Green wire magnet configuration
- Installation hardware included (bolts, nuts, washers)

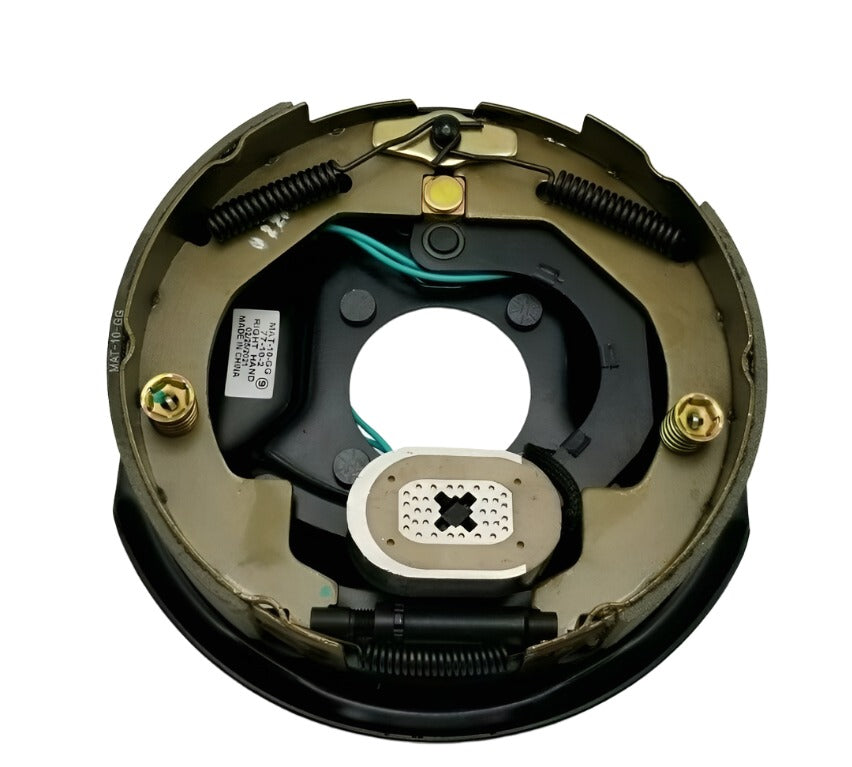

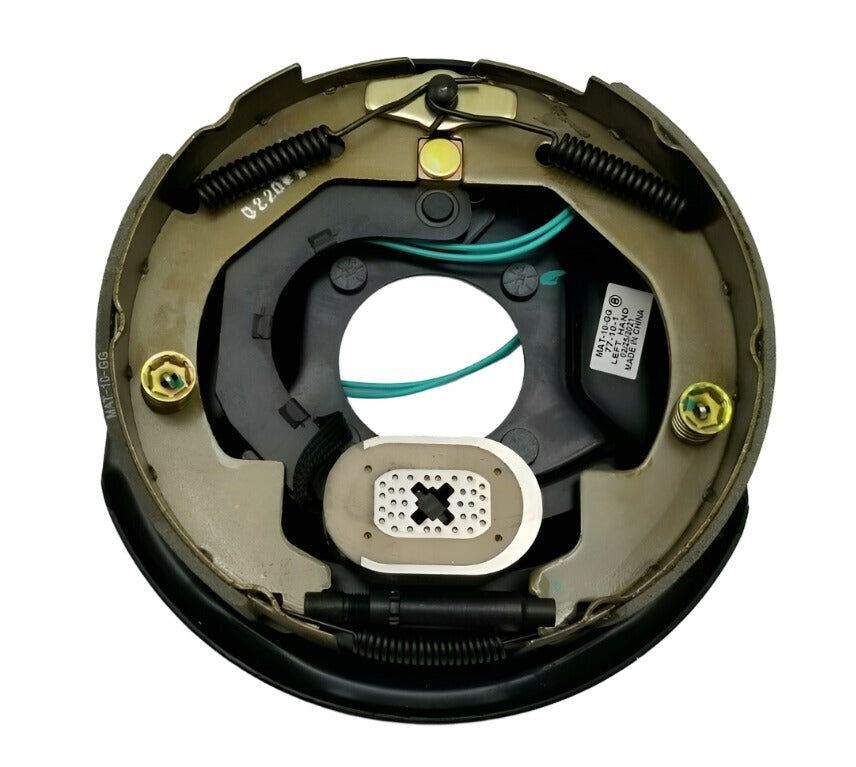

- Pre-assembled backing plates
Specifications
| Specification | Detail |
| Quantity | Left Hand (1) and Right Hand (1) |
| Brake Size | 10" × 2-1/4" |
| Axle Rating | 3,500 lb |

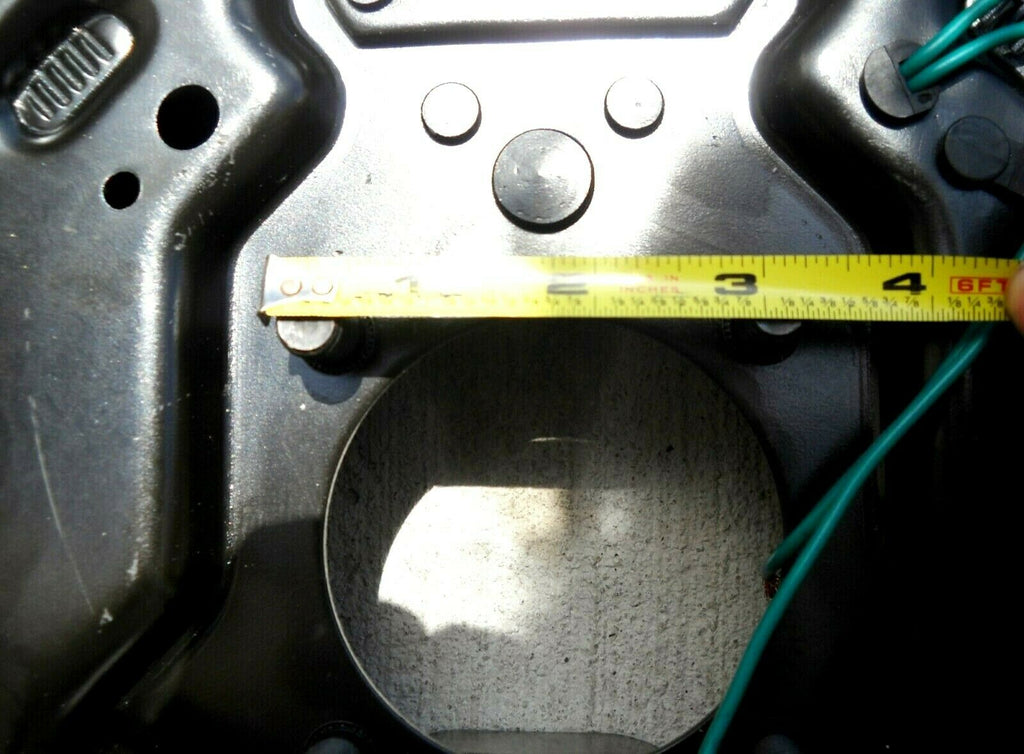

| Mounting Pattern | 4 Bolt Flange – 2-7/8" Spacing |
| Magnet Type | Green Wire Electric Brake Magnet |
| Hardware Included | Mounting Bolts, Nuts, and Washers |
Verify brake size, shoe width, and mounting flange configuration before installation.
