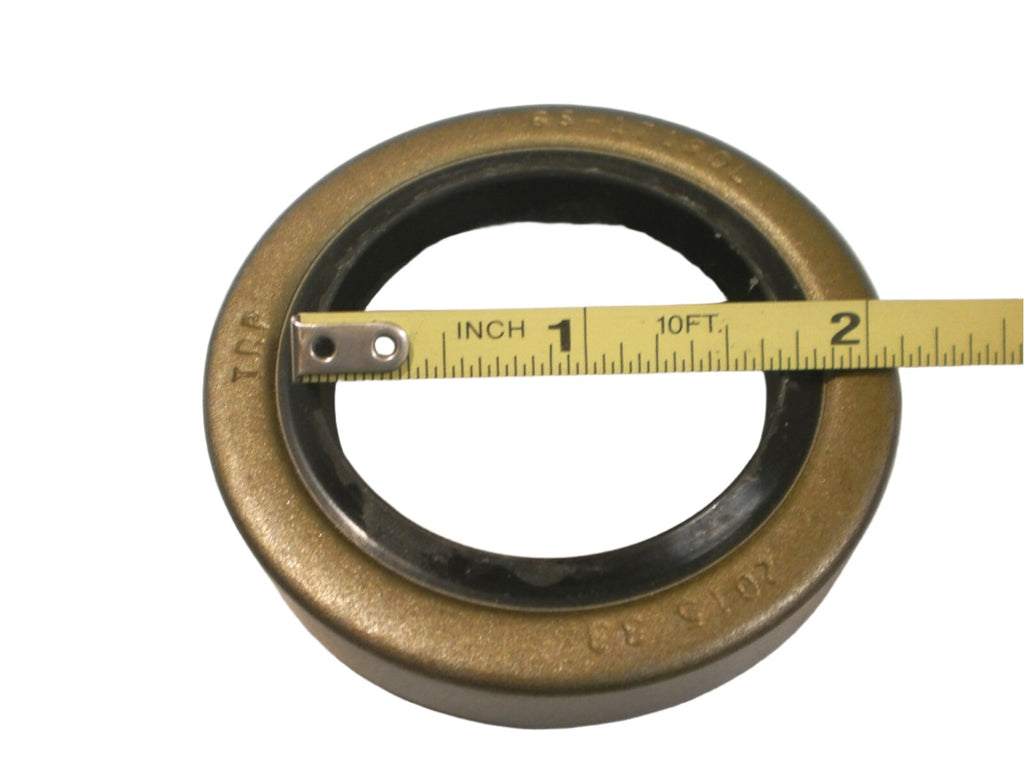

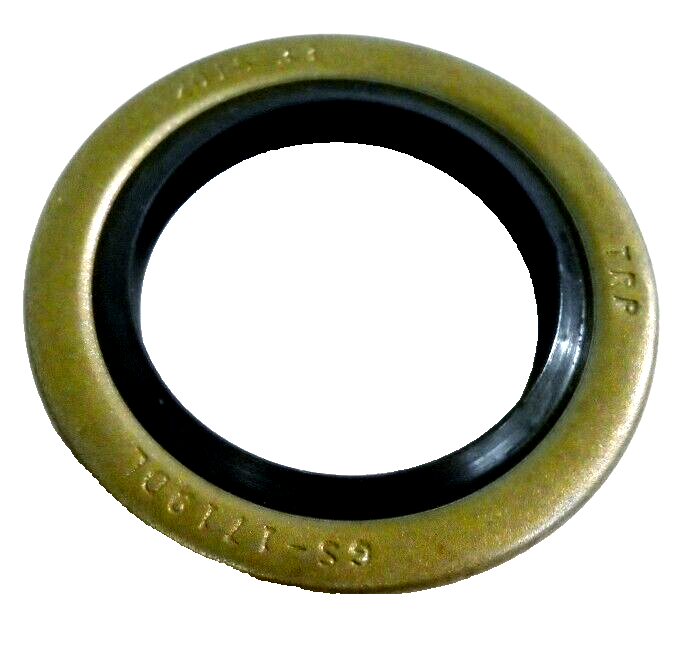

Trailer Axle Grease Seal – 1.719" ID x 2.565" OD – Fits 3500 lb Axles
Part Number: 10-19
Grease seal designed for common 3500 lb trailer axle hubs. Fits hubs using the L68149 inner bearing and helps retain grease inside the hub while preventing dirt and moisture contamination.
R&P Knowledge Hub
Grease seals are sized by the spindle seal surface (inner diameter) and hub bore (outer diameter). Seal 10-19 is one of the most common seals used on 3500 lb trailer axles.
Features
- Common replacement grease seal for 3500 lb trailer axles
- Fits hubs using L68149 inner bearing
- Helps retain grease and protect bearings from contamination
- Direct replacement trailer hub grease seal
Specifications
| Specification | Detail |
| Inner Diameter | 1.719" |
| Outer Diameter | 2.565" |
| Seal Width | 0.500" |
| Typical Application | 3500 lb Trailer Axles |
Verify seal dimensions before installation.

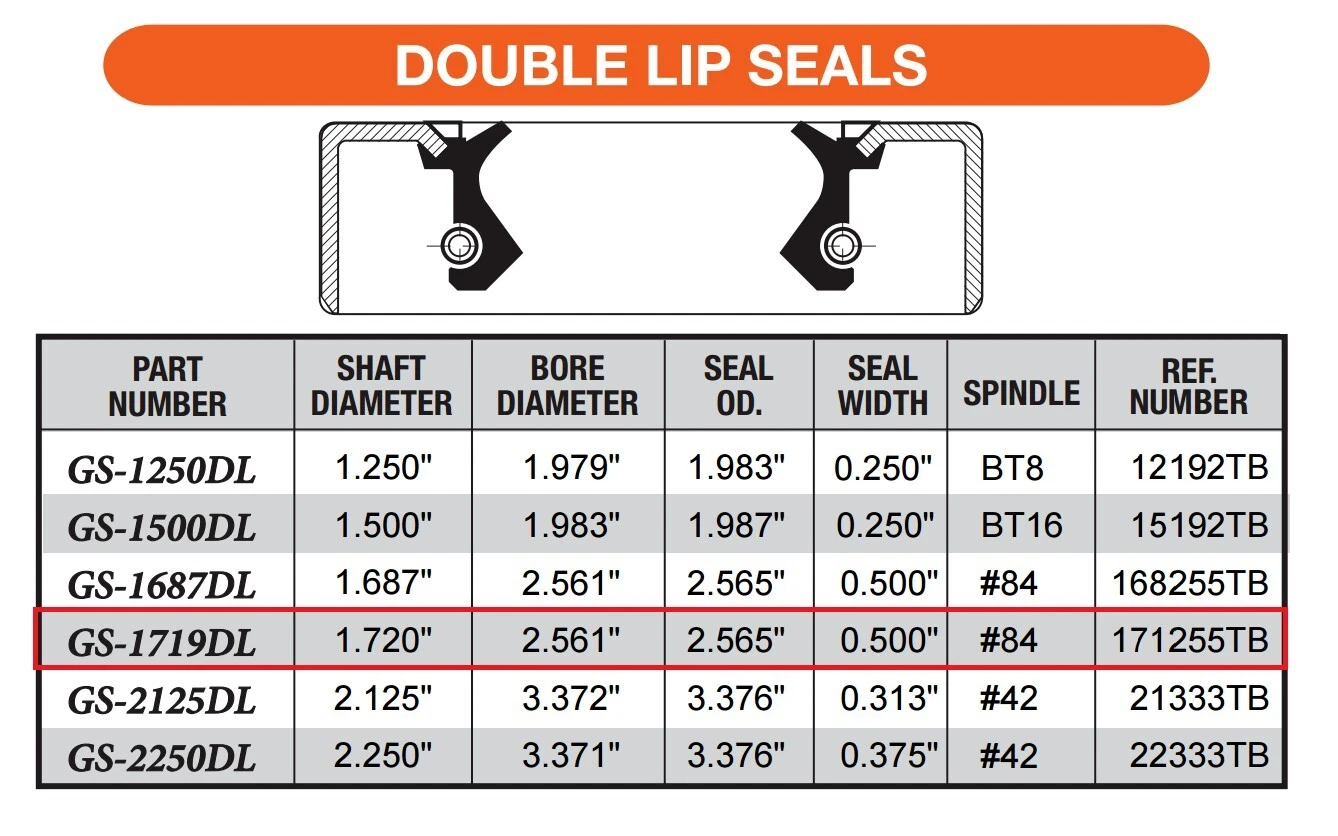

Double Lip Grease Seal Size Reference
Common Double Lip Seal Sizes
| Part Number | Shaft Diameter | Bore Diameter | Seal OD | Seal Width | Spindle | Reference Number |
| GS-1250DL | 1.250" | 1.979" | 1.983" | 0.250" | BT8 | 12192TB |
| GS-1500DL | 1.500" | 1.983" | 1.987" | 0.250" | BT16 | 15192TB |
| GS-1687DL | 1.687" | 2.561" | 2.565" | 0.500" | #84 | 168255TB |
| GS-1719DL | 1.720" | 2.561" | 2.565" | 0.500" | #84 | 171255TB |
