At a Glance
- >Designed for most 3,500 lb trailer axles using a #84 spindle
- >Standard 5 on 4.5" bolt pattern

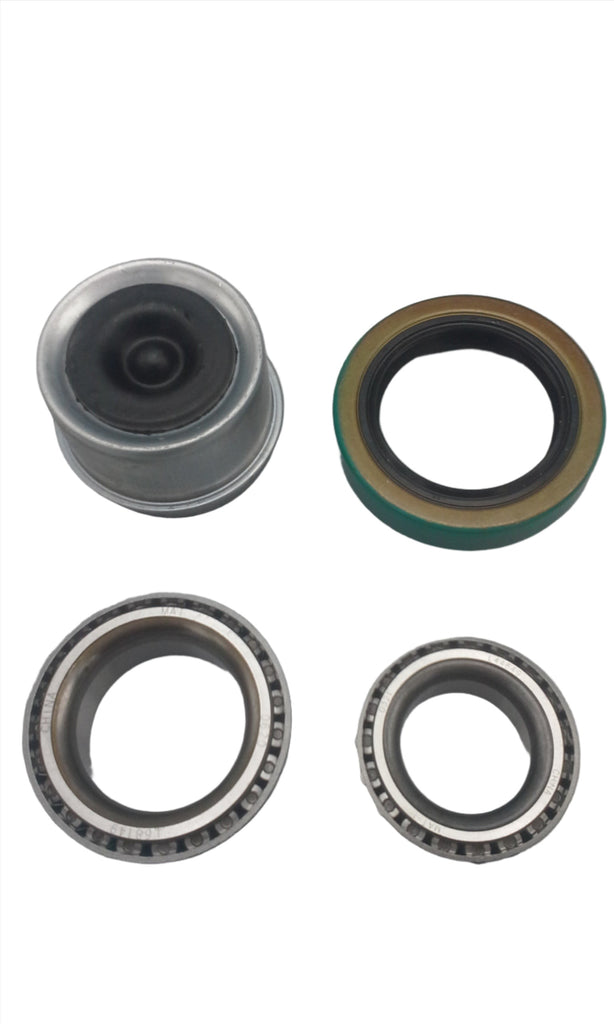

- >Includes bearings, races, seal, dust cap, and lug nuts
- >Races pre-installed for easier assembly
- Brand: R & P Carriages
- SKU: SH2RV545-KIT
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Bearings | Match inner and outer bearing numbers. |
|---|---|
| Seal | Match the seal number or dimensions. |
| Bolt Pattern | Verify the complete lug pattern. |
| Brake Size | Confirm when applicable. |
Product Details

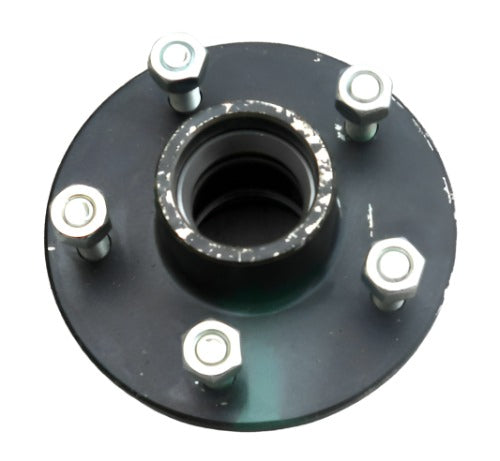

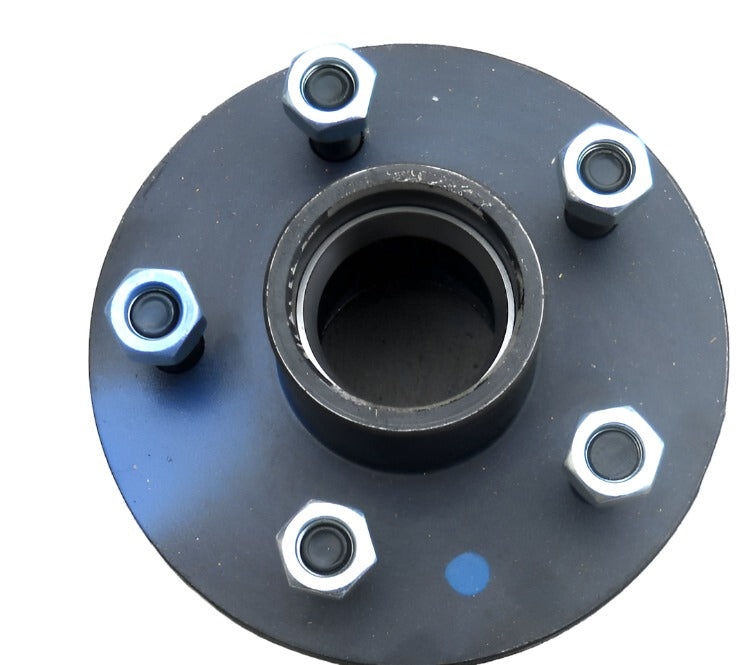

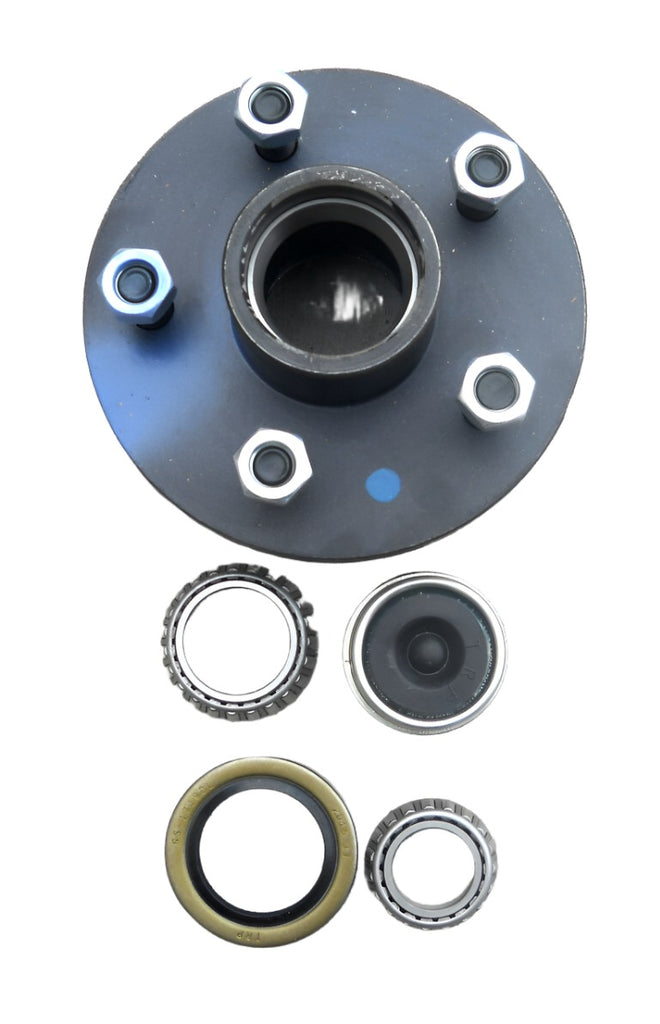

ONE – 3500# Trailer Idler Hub (5 x 4.5 Bolt Pattern)
Part Number: SH2RV545-KIT

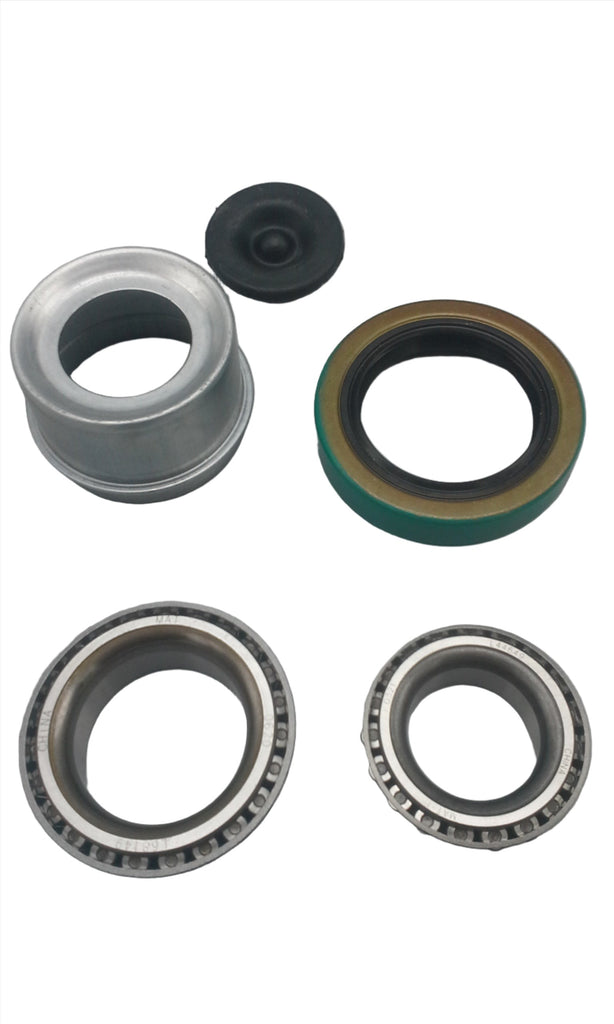

This idler hub kit is built for standard 3,500 lb trailer axles using the commonly found #84 spindle. The hub includes pre-installed bearing races, matching bearings, grease seal, dust cap, and lug nuts — everything required except the spindle hardware, which can typically be reused from your existing hub.
Features
- Designed for most 3,500 lb trailer axles using a #84 spindle
- Standard 5 on 4.5" bolt pattern
- Includes bearings, races, seal, dust cap, and lug nuts
- Races pre-installed for easier assembly
Specifications
| Specification | Detail |
|---|---|
| Axle Capacity | 3,500 lb (typical) |

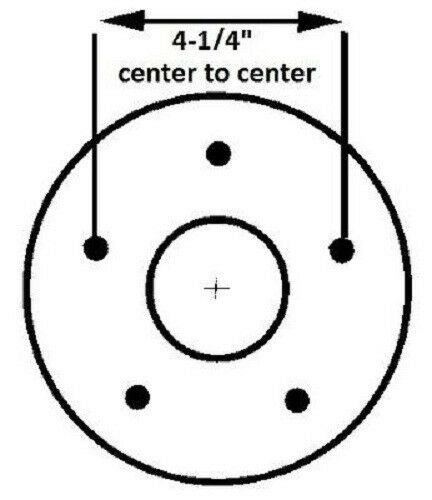

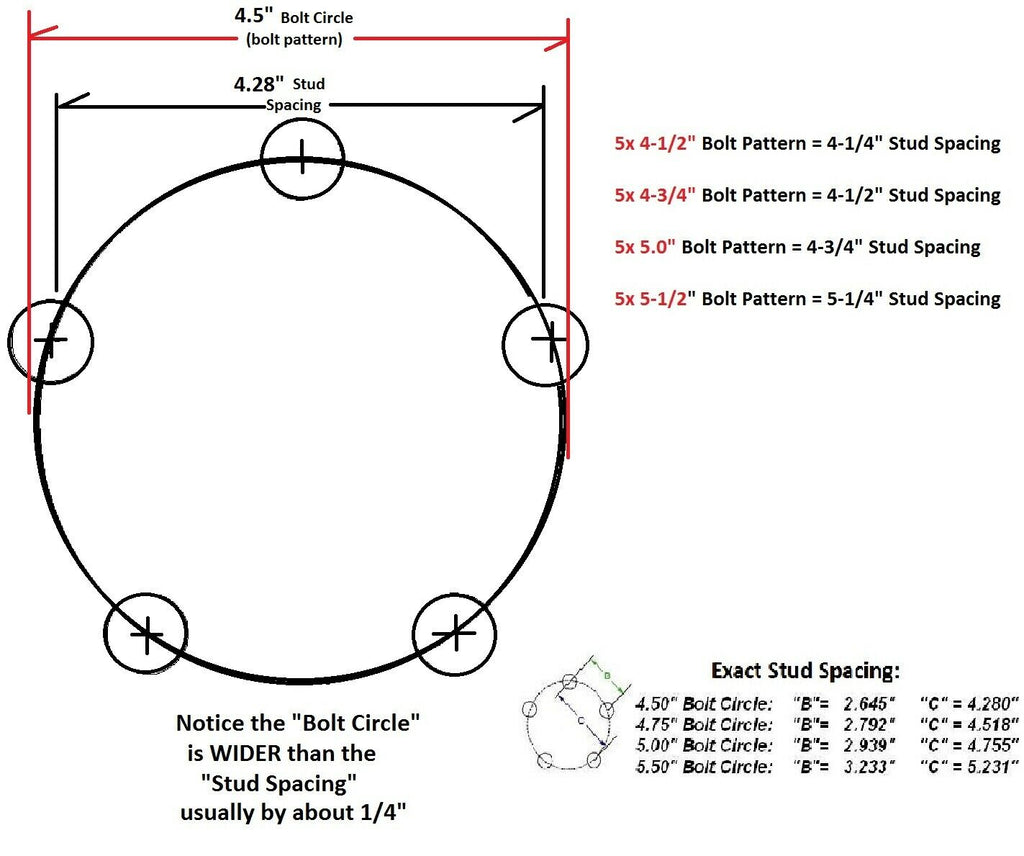

| Bolt Pattern | 5 on 4.5" |

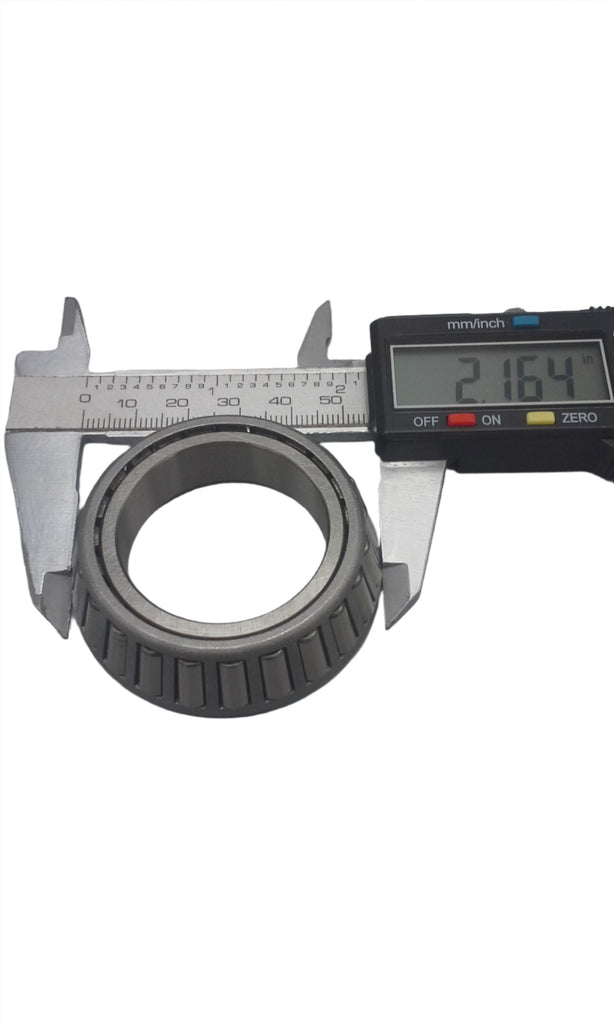

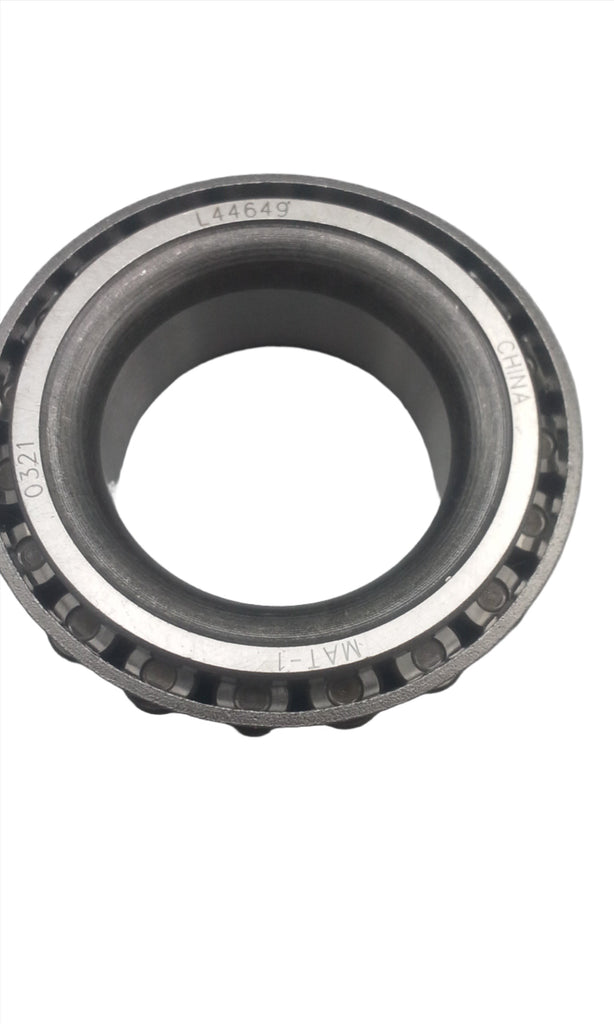

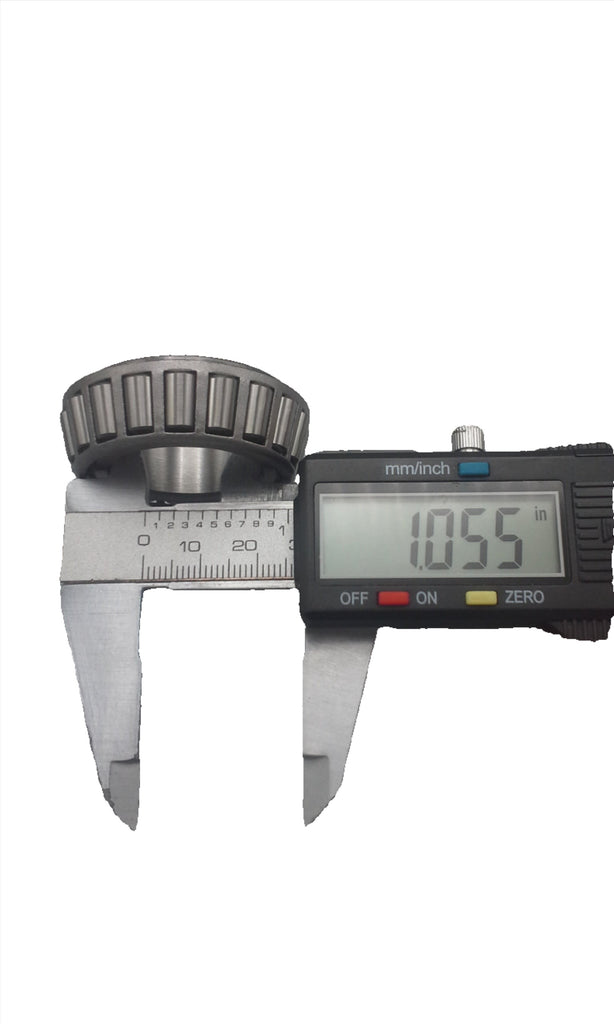

| Outer Bearing | L44649 |
| Outer Race | L44610 (installed) |

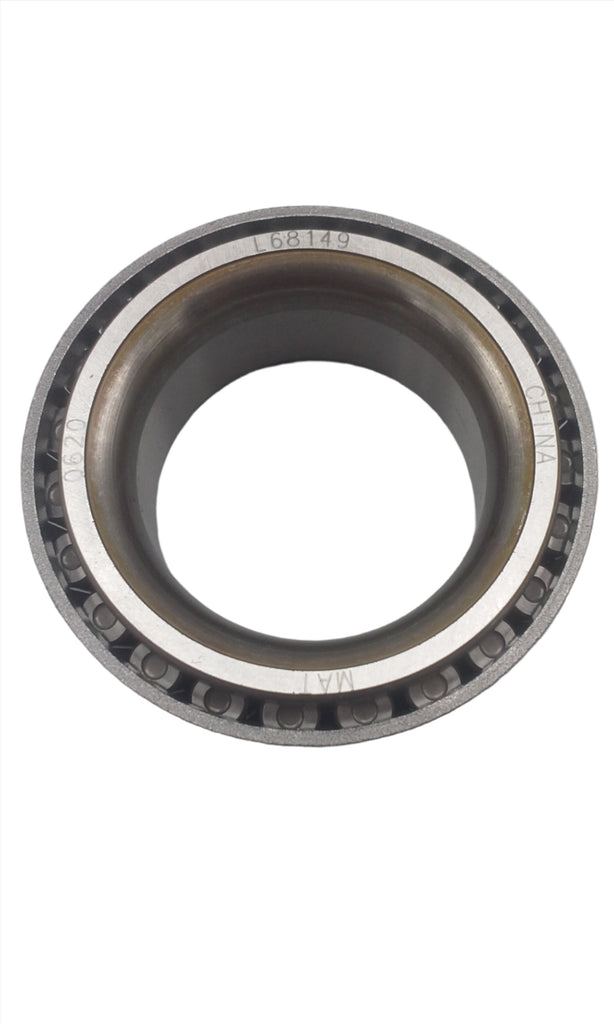

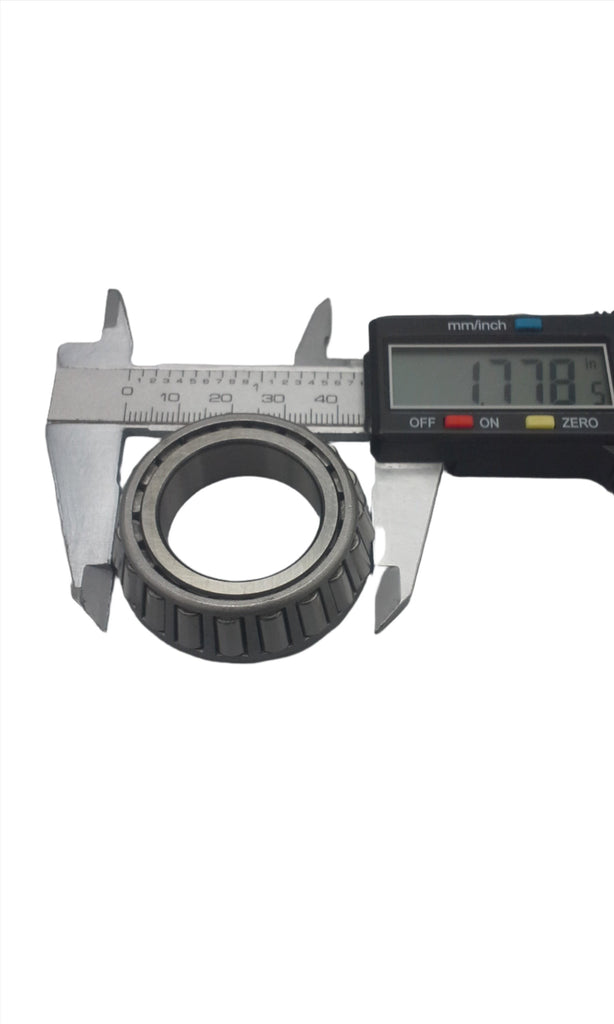

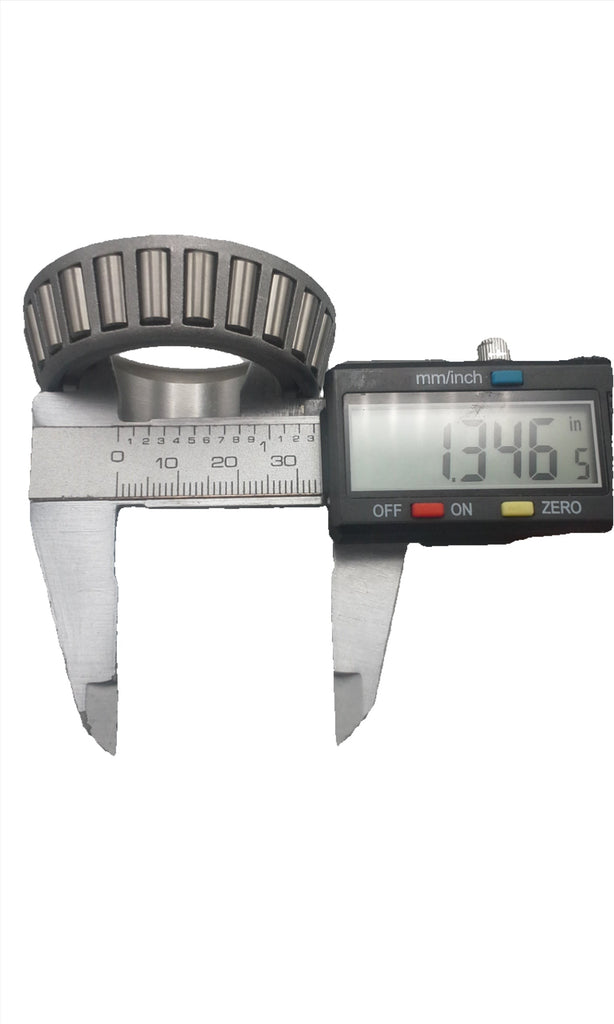

| Inner Bearing | L68149 |
| Inner Race | L68111 (installed) |

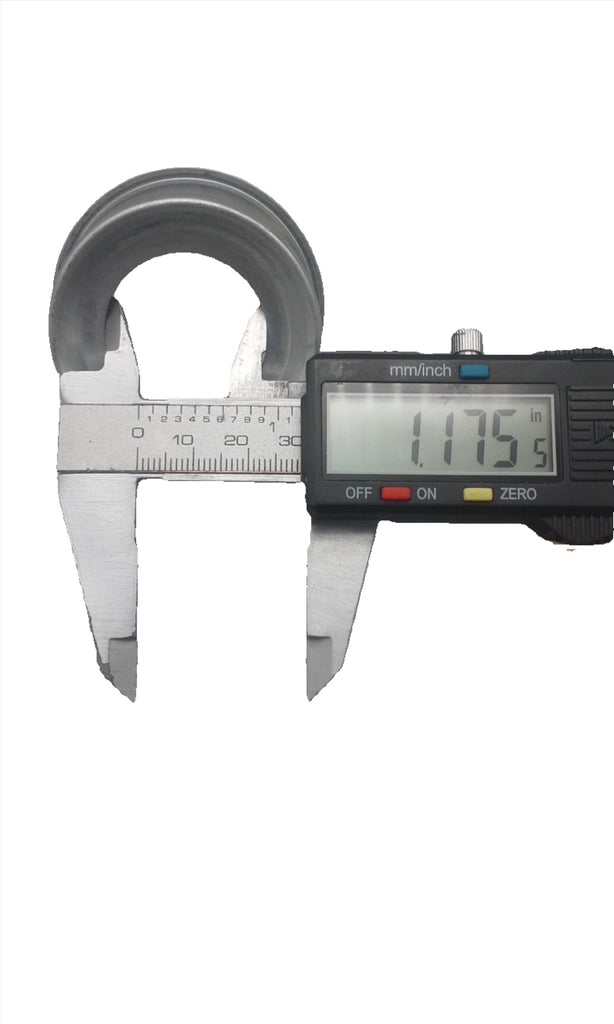

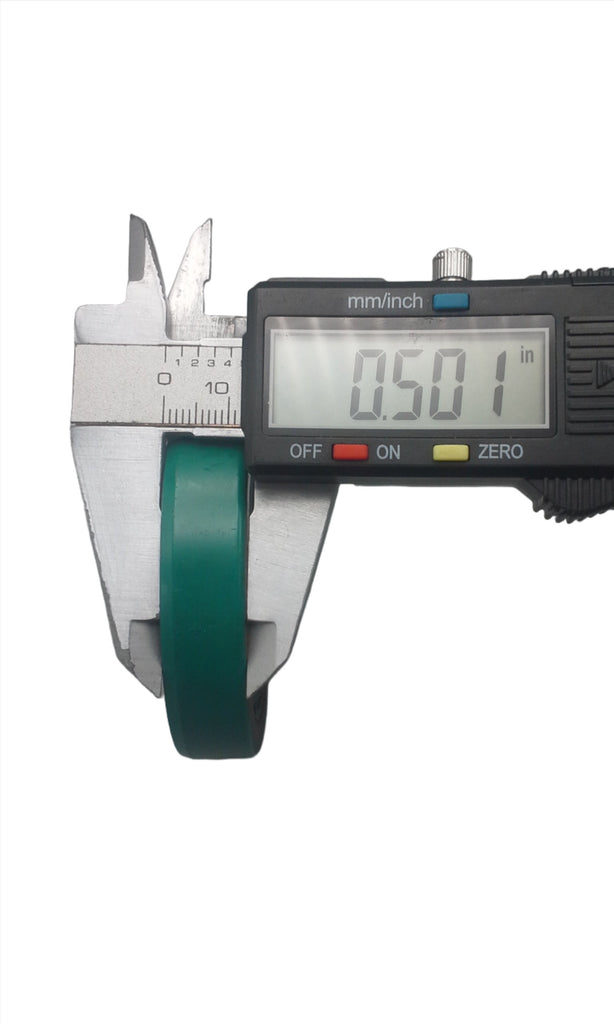

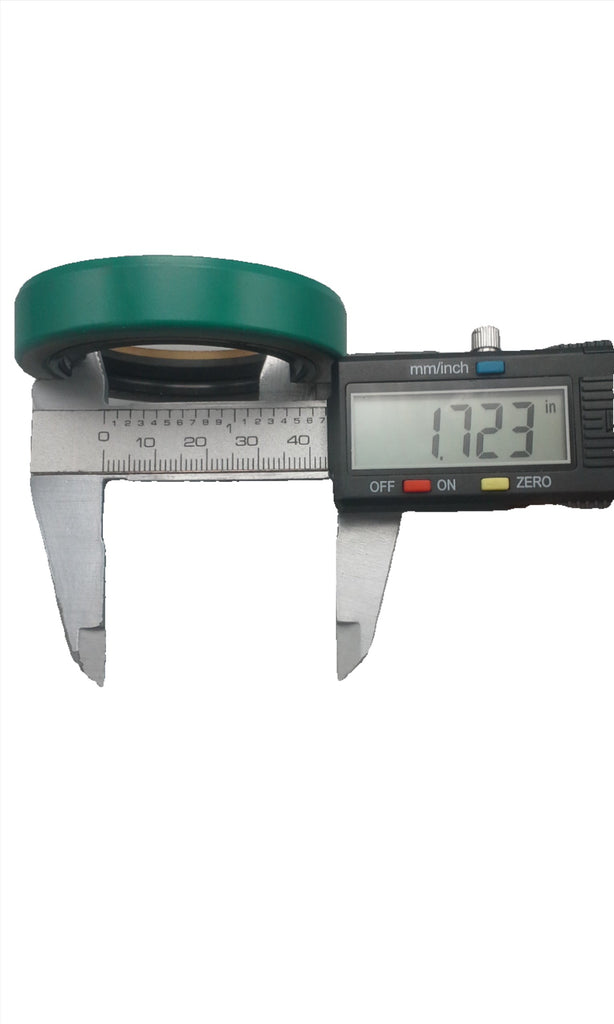

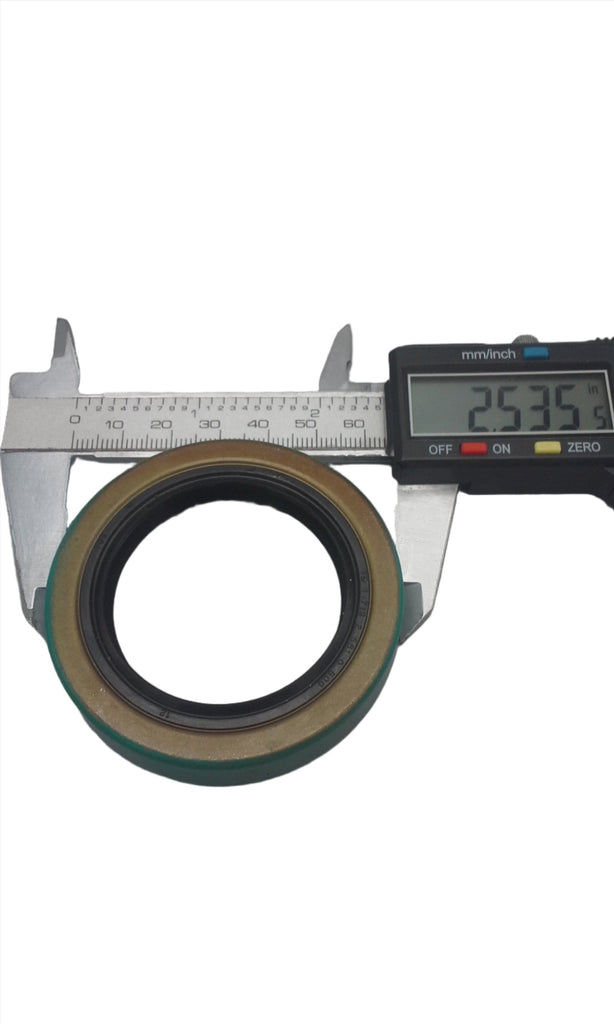

| Grease Seal | 10-19 (1.71") |

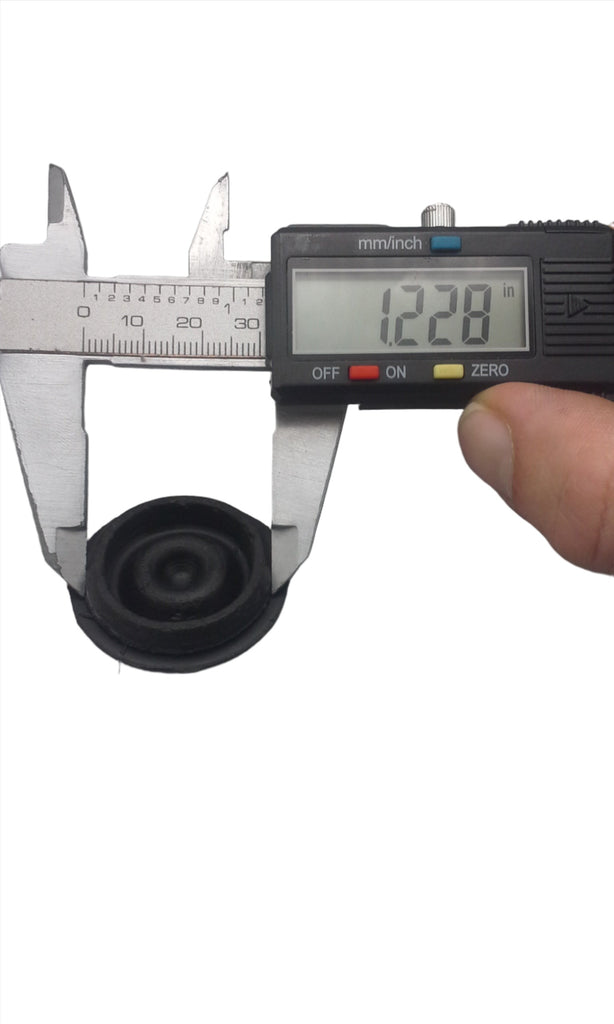

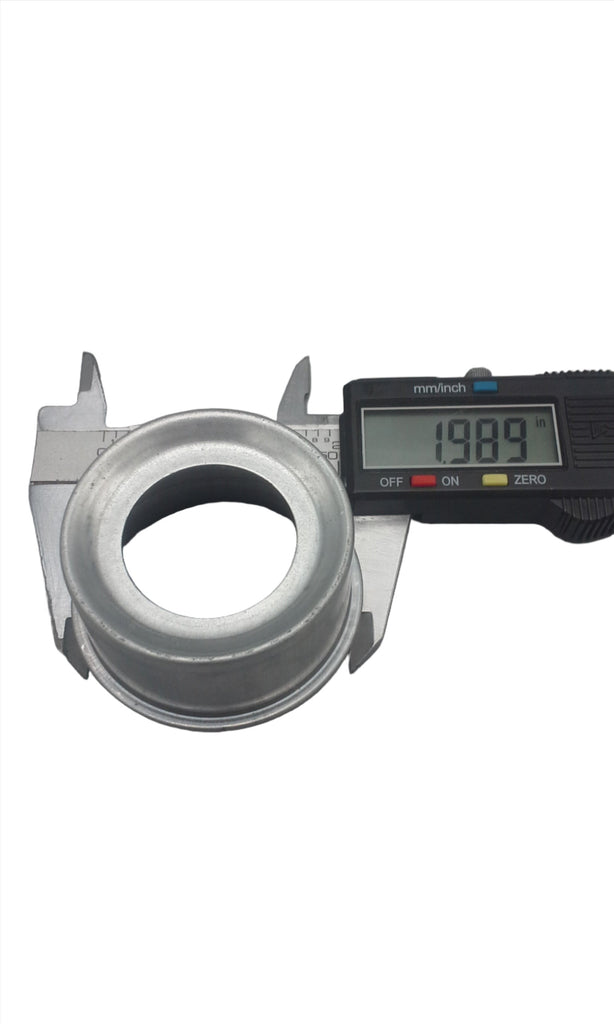

| Dust Cap | 1.98" with rubber plug |
| Included Hardware | Five 1/2"-20 lug nuts |
Additional Information
This hub is commonly used on many utility, cargo, landscape, and general-purpose trailers equipped with 3,500 lb axles. Check your existing spindle dimensions to confirm compatibility. Hub appearance may vary depending on supplier inventory.
