At a Glance
- >(1) U-Bolt
- >(2) UBN-10C Coned Top Nuts
- Brand: R & P Carriages
- SKU: 11-77-KIT
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
Product Details
5/8" × 5" × 8-7/8" U-Bolt Kit – Fits 10K GD Dexter Axles
Part Number: 11-77-KIT
Heavy-duty U-bolt and nut kit designed for select 10,000 lb General Duty (GD) Dexter trailer axles.This kit includes one U-bolt and two matching coned top nuts.
Commonly used to secure the axle tube to the leaf spring pack and spring seat assembly.
R&P Knowledge Hub
U-bolts clamp the axle tube to the suspension system and maintain proper axle alignment under load.Correct inside width, overall length, and thread size are critical for safe installation.
Always verify axle tube diameter, required U-bolt width, and thread specification before installation.

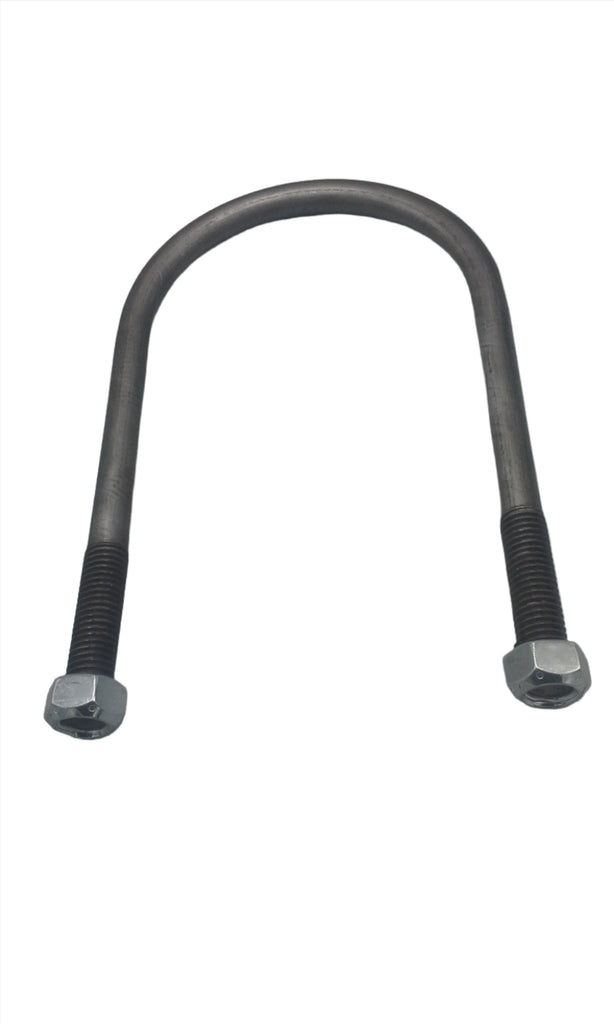

Kit Includes
- (1) U-Bolt
- (2) UBN-10C Coned Top Nuts
Specifications
| Specification | Detail |
| Axle Application | 10,000 lb GD Dexter |

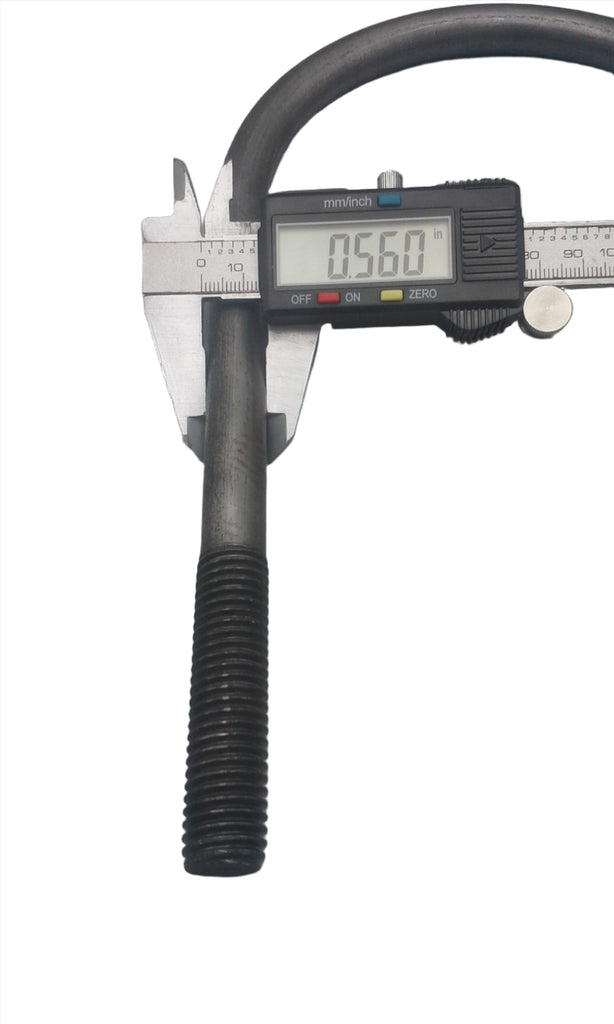

| Diameter | 5/8" |

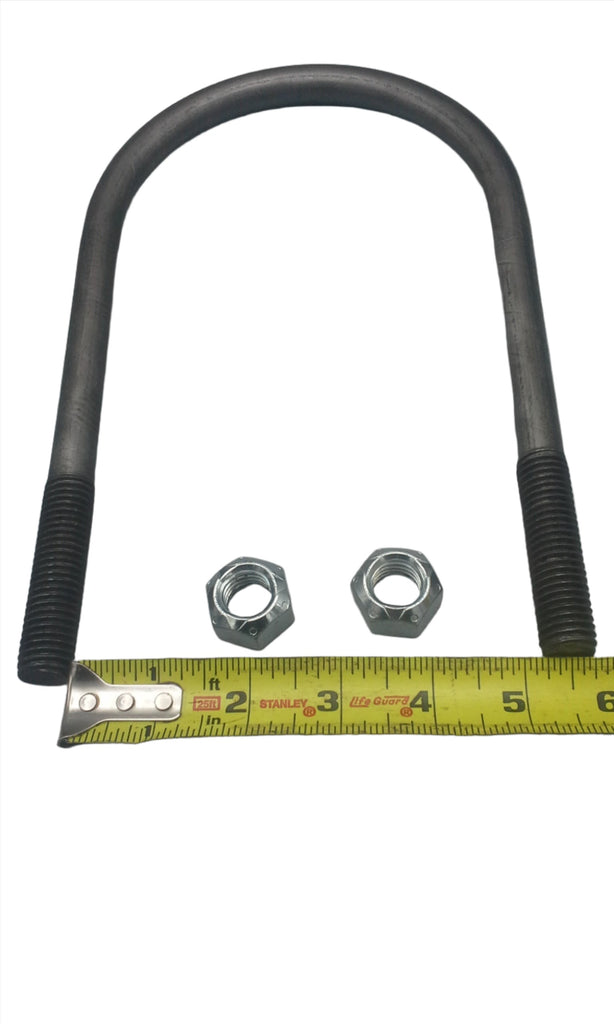

| Inside Width | 5" |

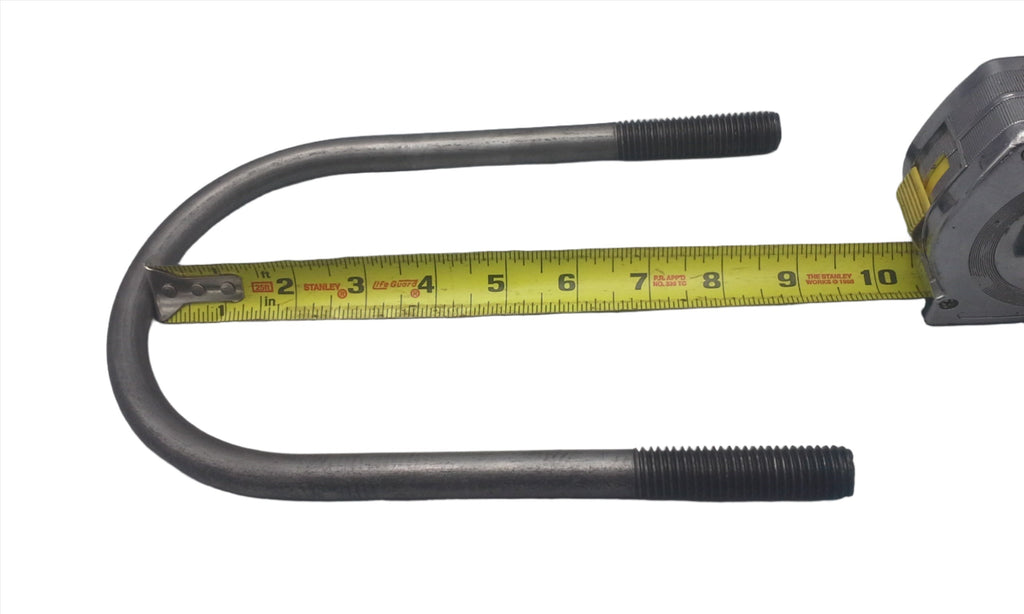

| Overall Length | 8-7/8" |
| Thread Size | 5/8"-11 |
| Threaded Length | 2-1/2" |
| Nut Type | Coned Top (UBN-10C) |
Verify axle tube diameter and thread specification before installation.
