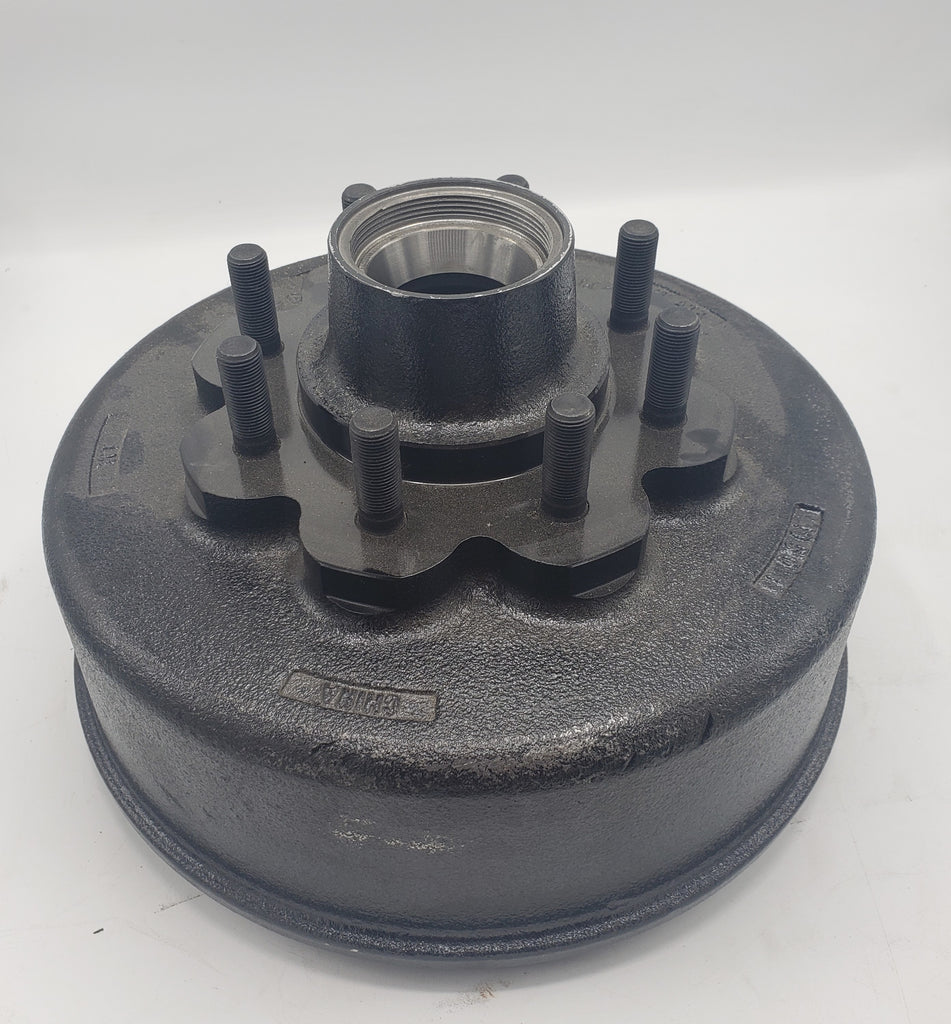

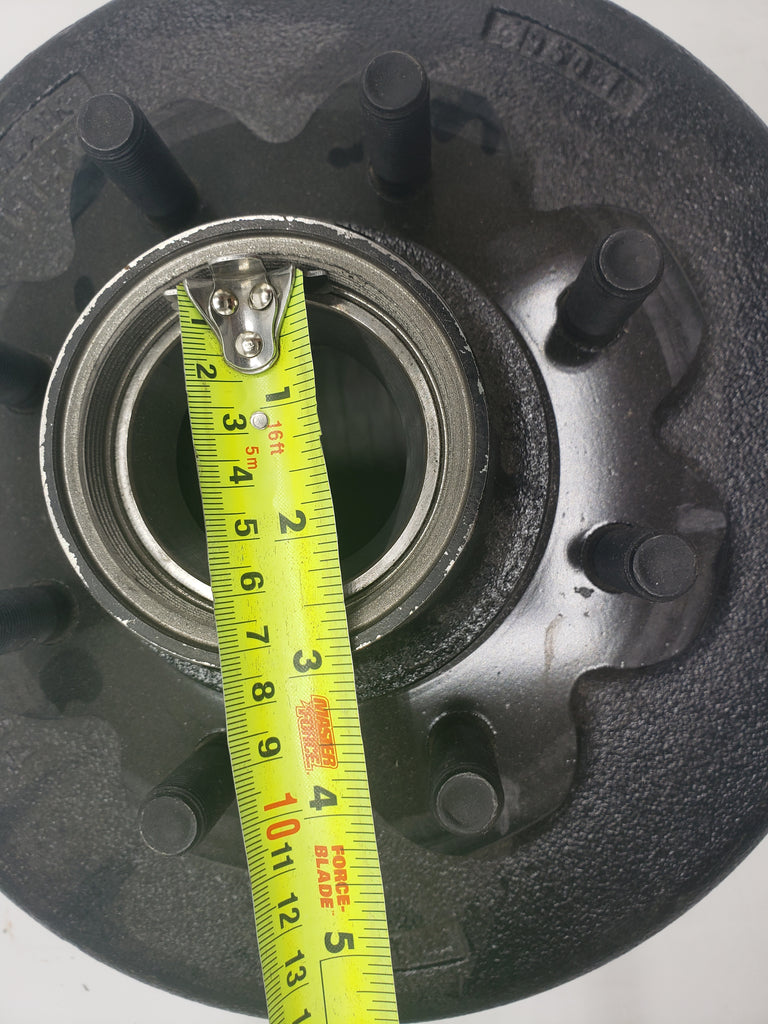

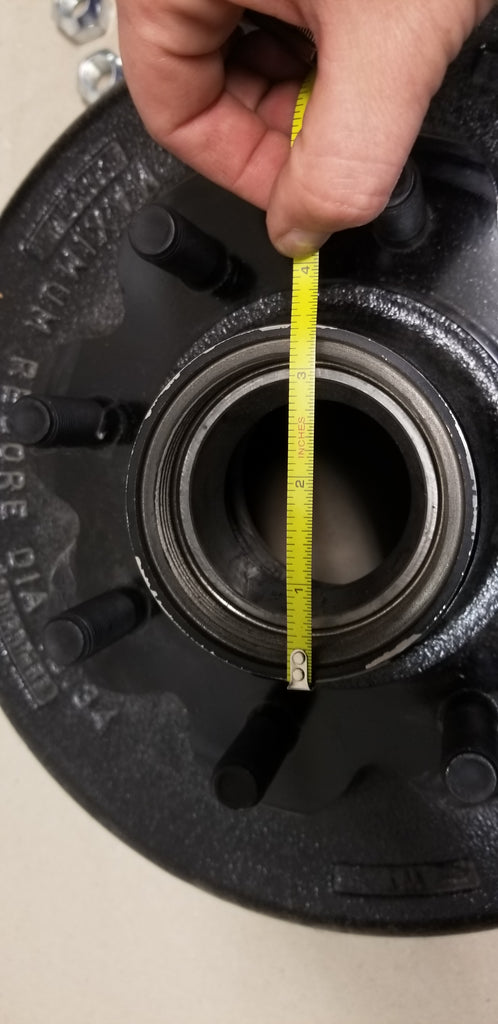

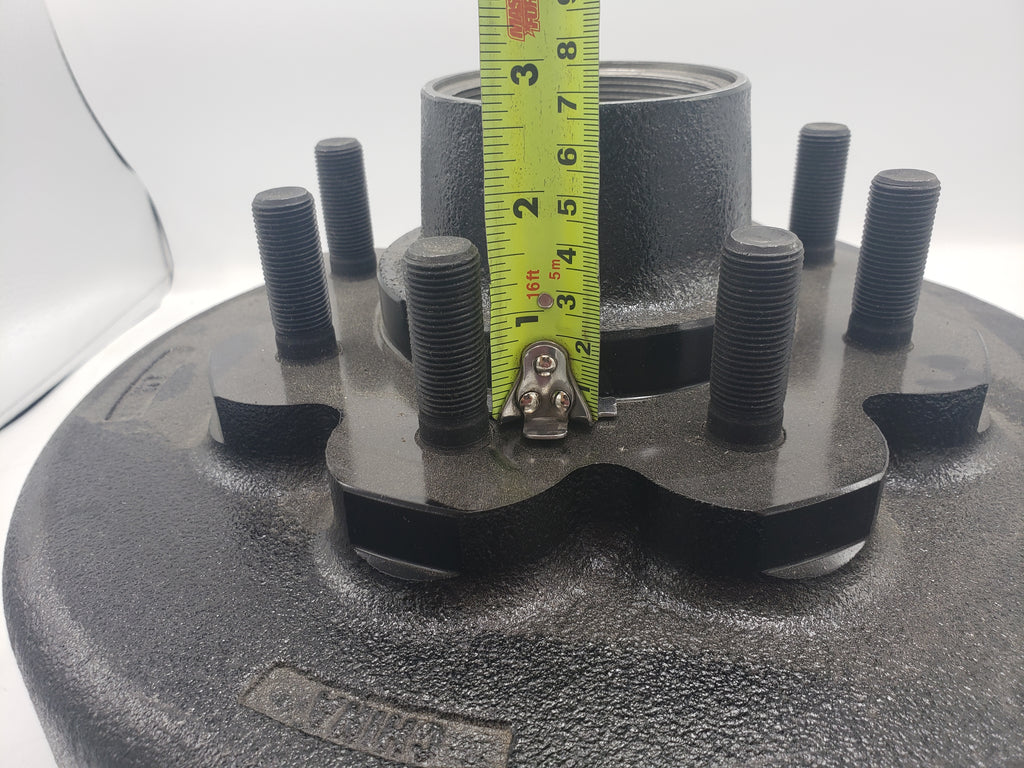

Trailer Hub Brake Drum 8K Axle 12-1/4"x3-3/8" 5/8 stud Oil/grease 8000# Lippert 674862 (99-86580-46-KIT)

MAT

Regular price $205.99

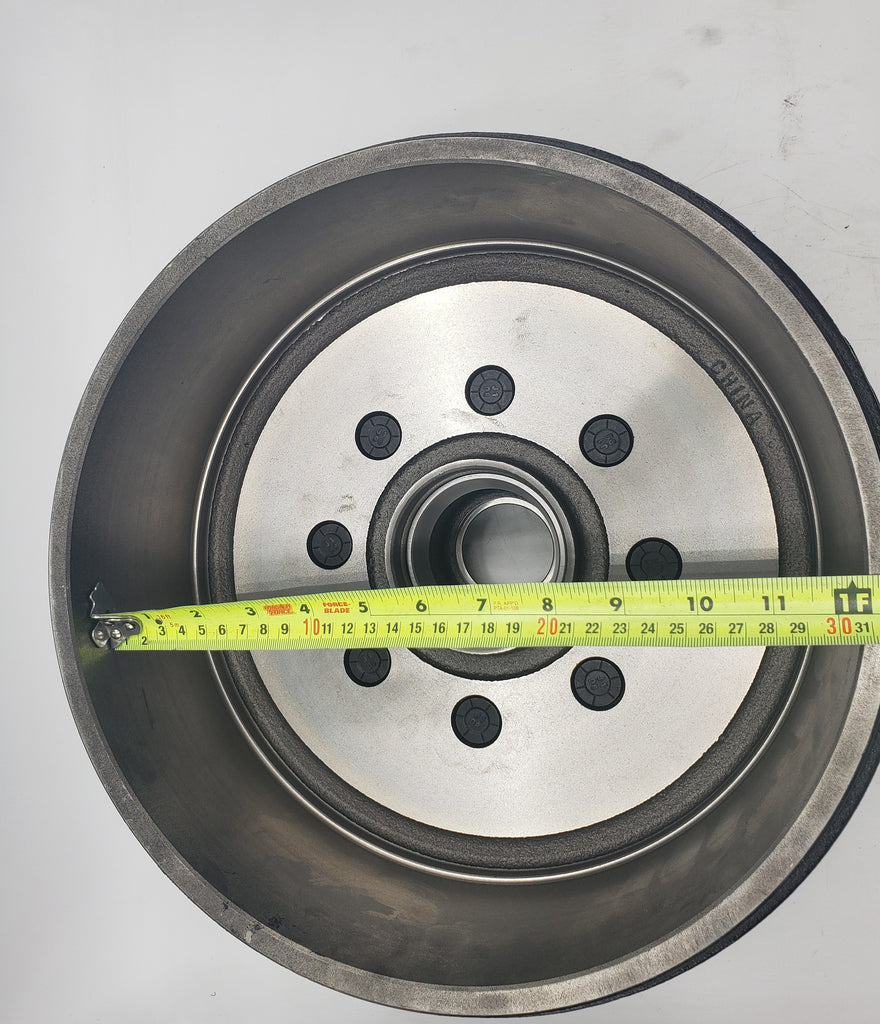

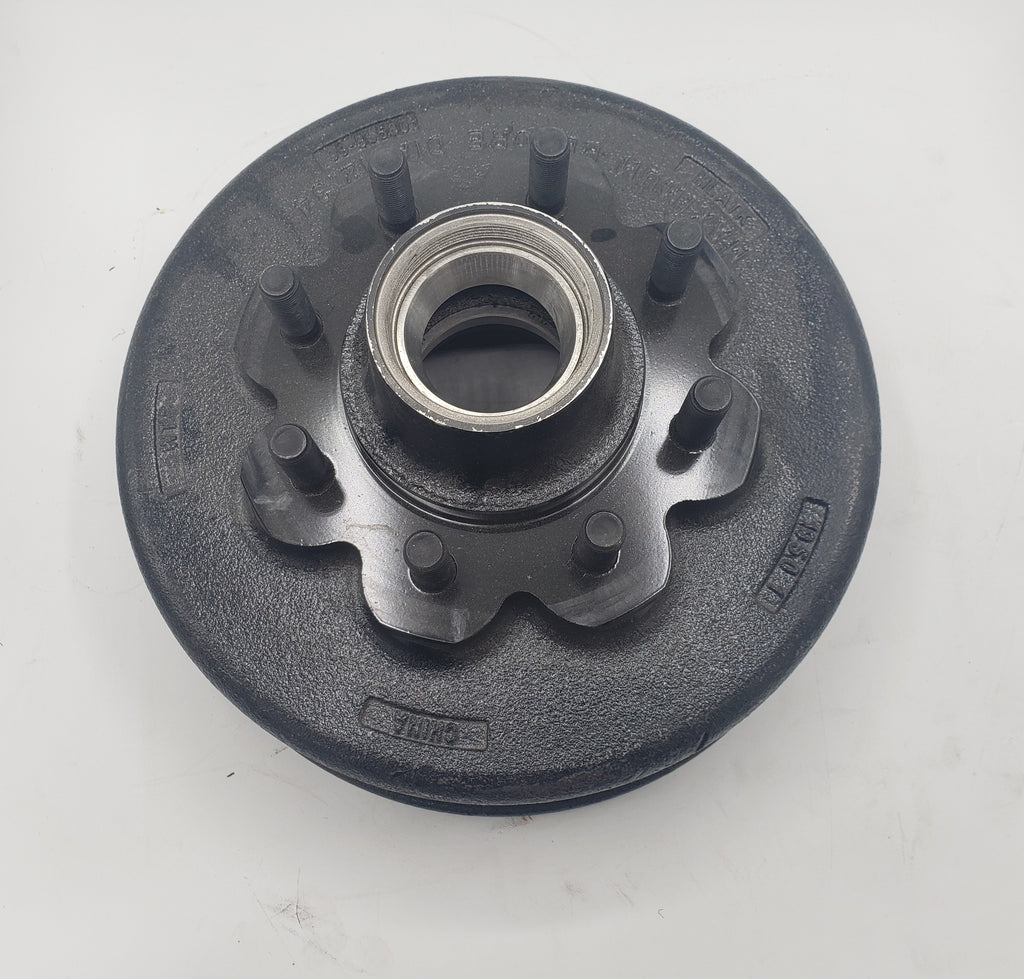

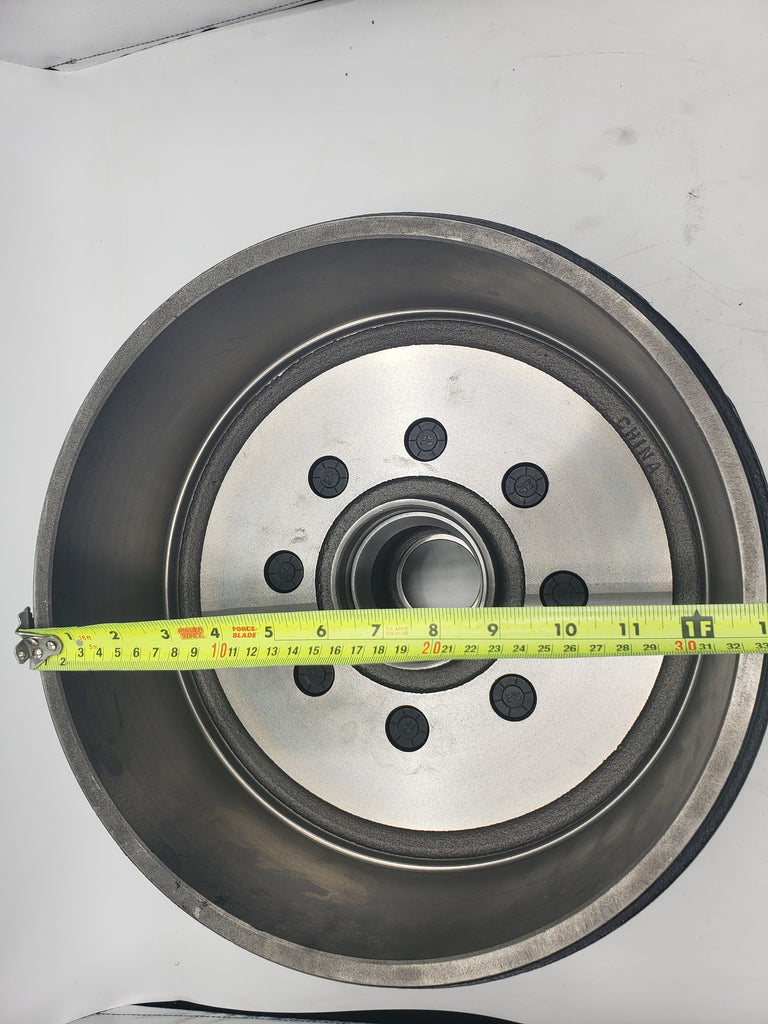

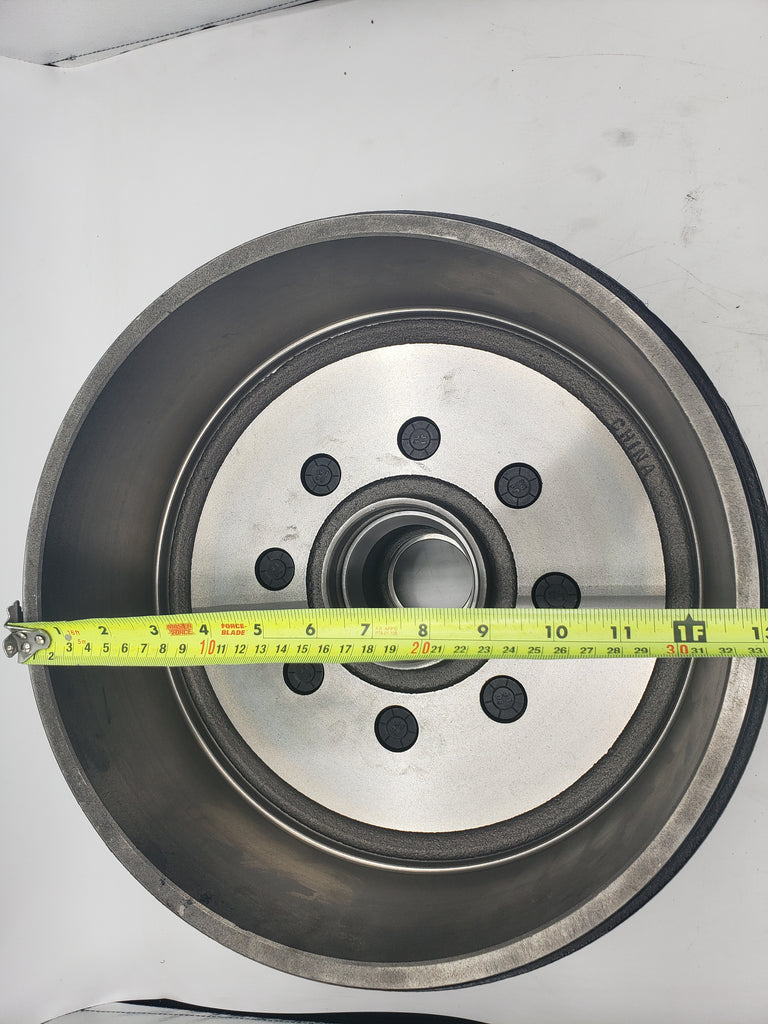

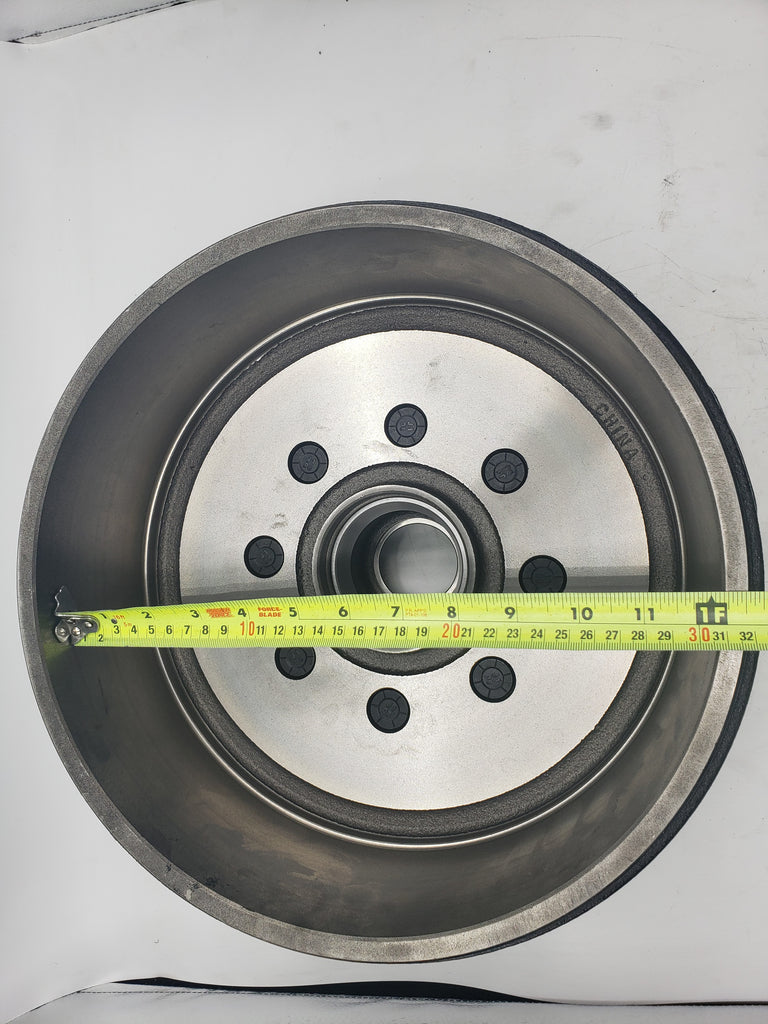

Trailer Hub Drum 8K Axles 12 1/4" x 3-3/8"
Fits Dexter 8-285 (008-285-11)
Lippert LCI 674862

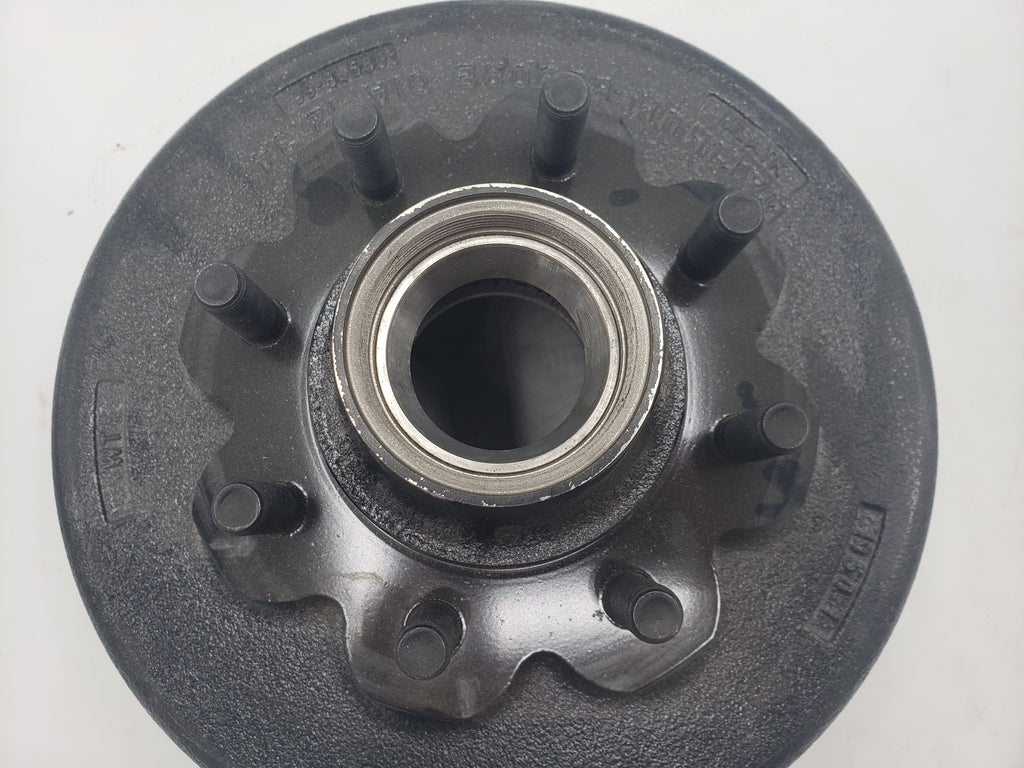

5/8" studs, 8 on 6-1/2
Oil Bath/Greaseable
Fits Lippert (LCI) & Dexter HD 8000# axles

Part Number: 674862 (99-86580-46-KIT)

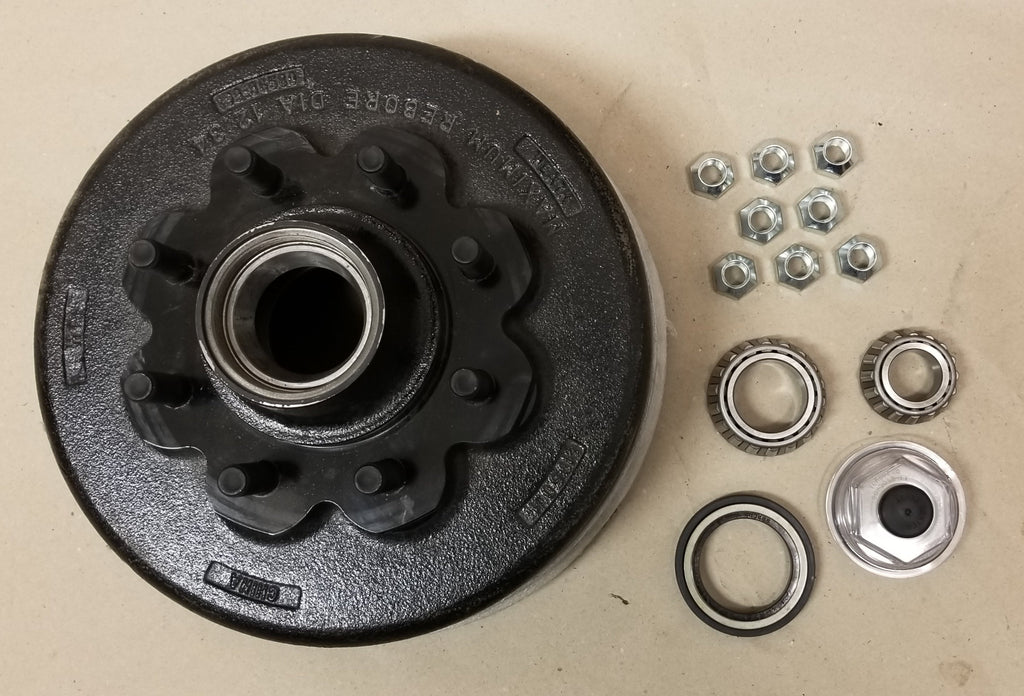

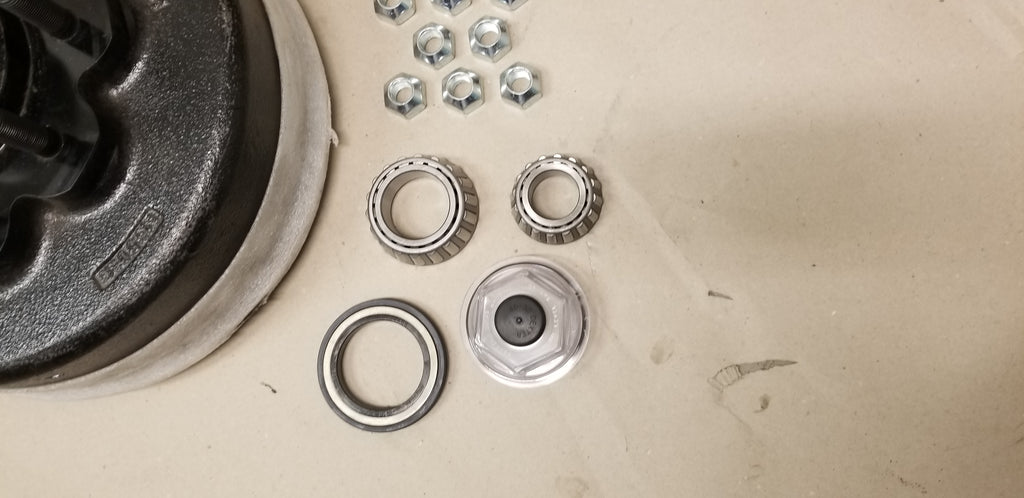

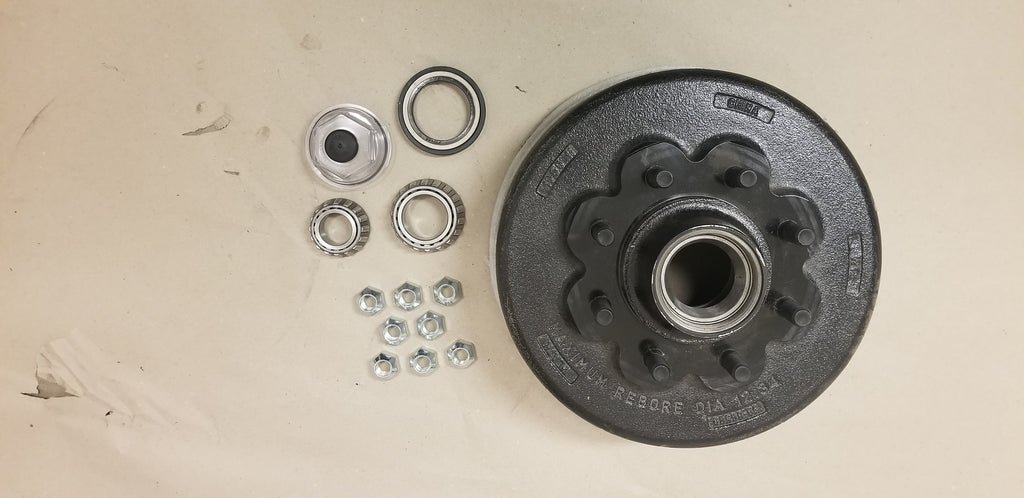

This kit contains:

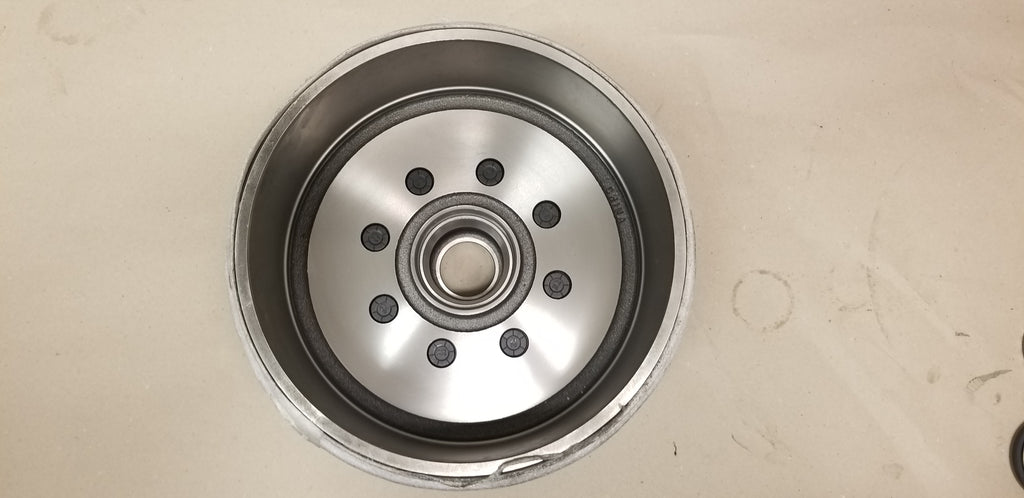

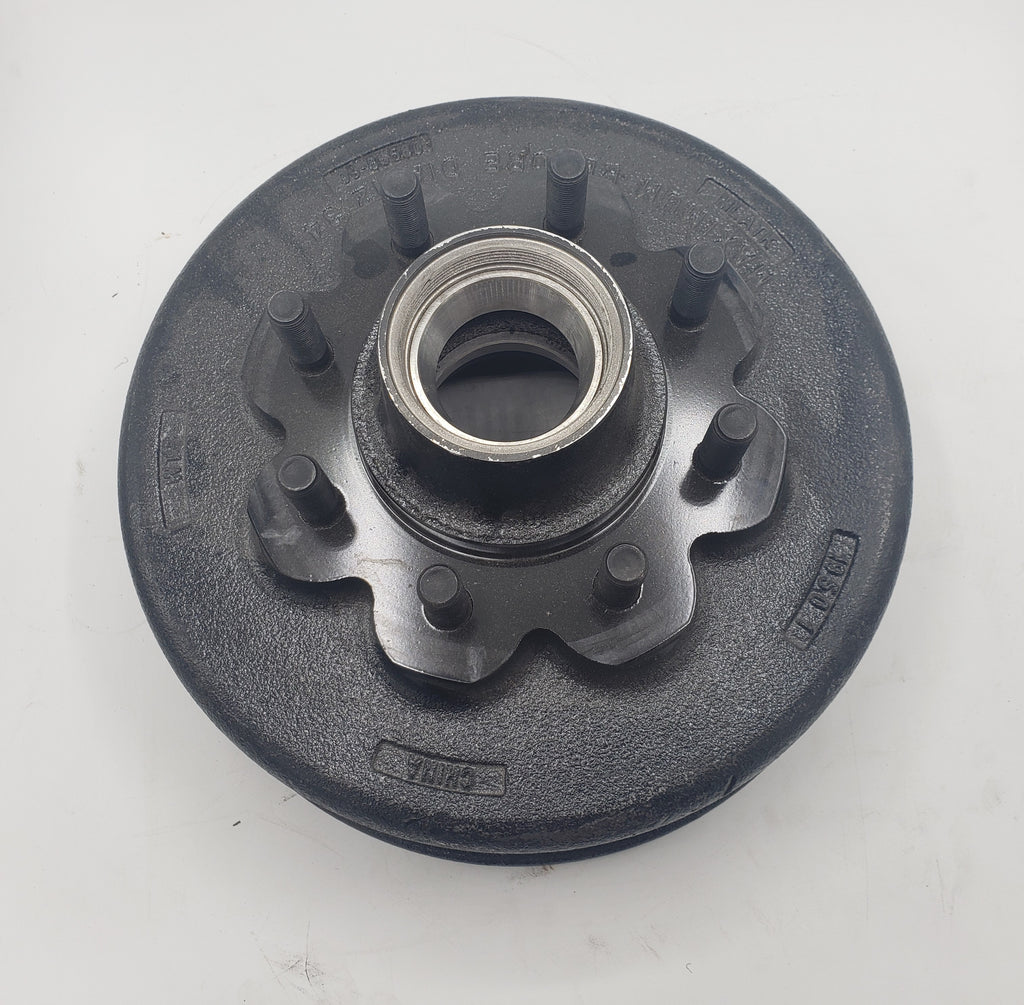

99-86580-46 Hub Drum x1

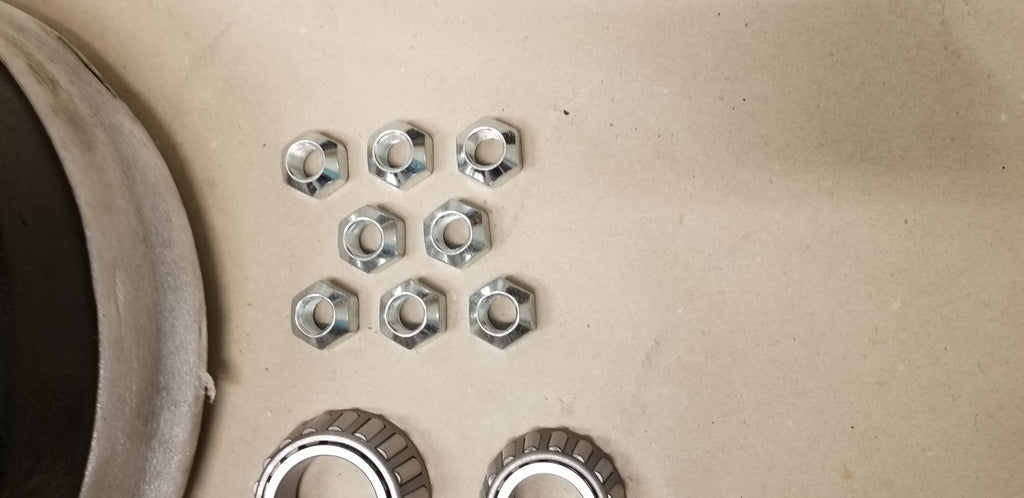

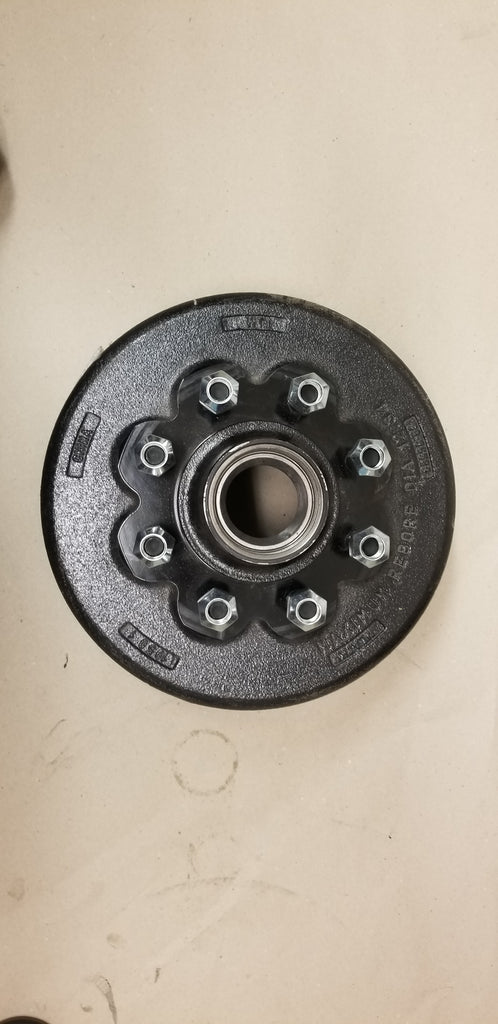

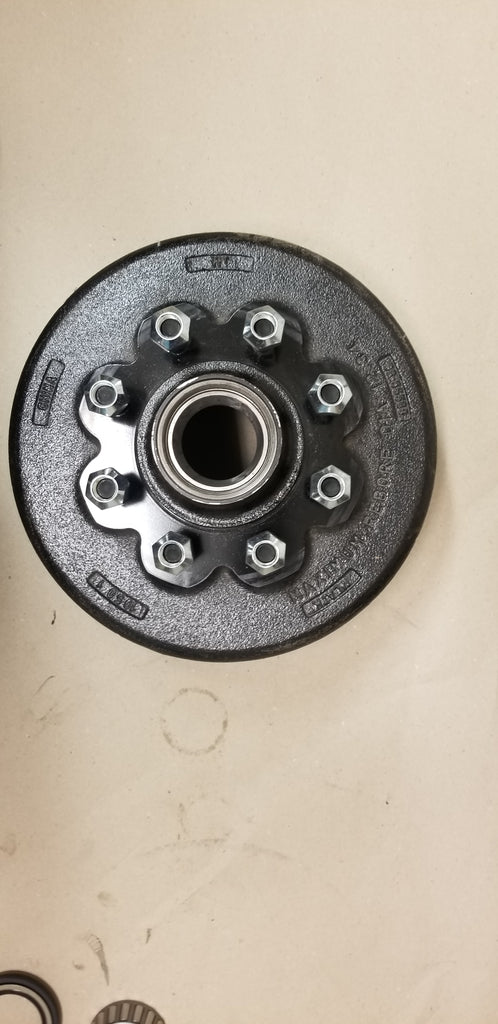

5/8" Cone Lug Nuts x8

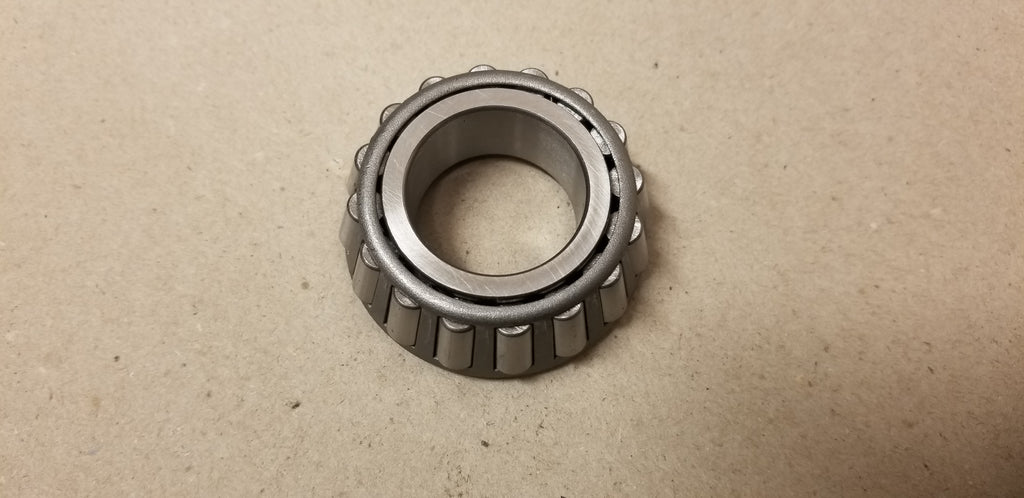

25580 Bearing x1

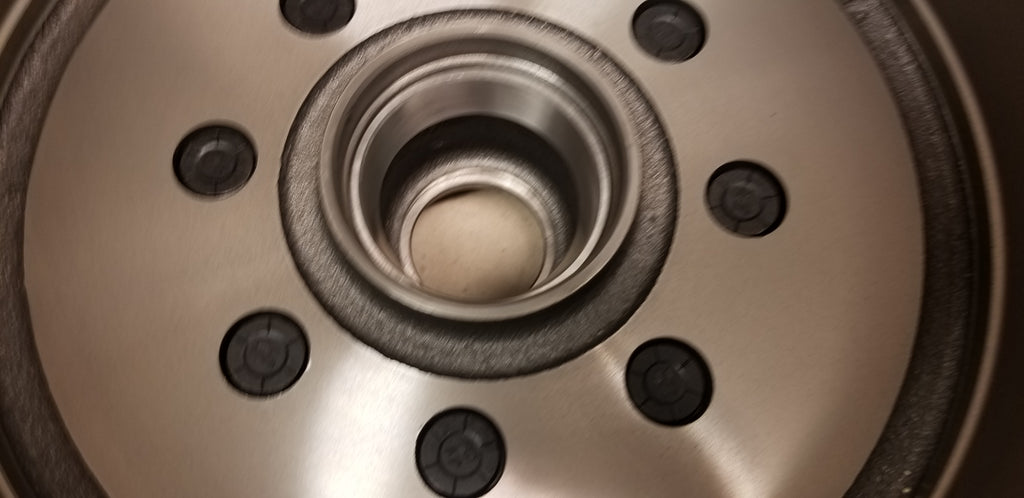

25520 Race x1 (Pressed into Drum)

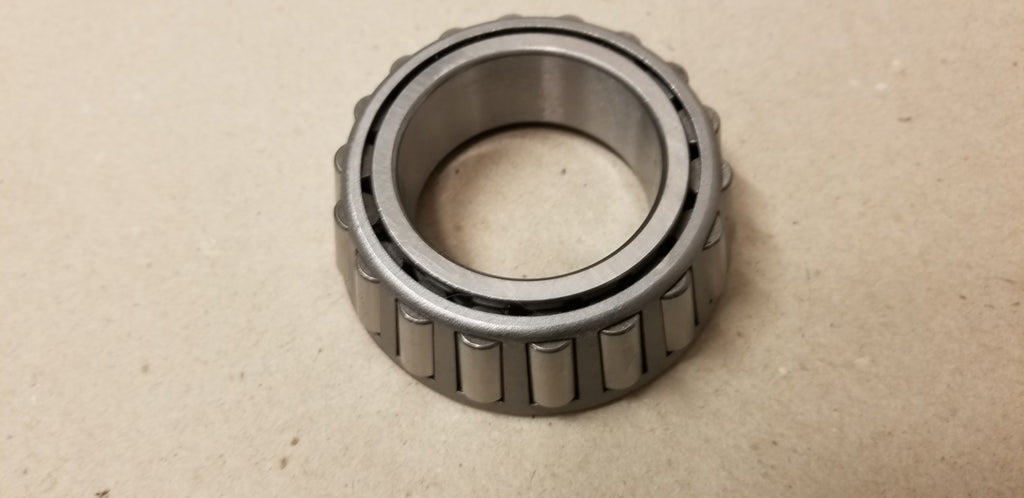

2475 Bearing x1

2420 Race x1 (Pressed into Drum)

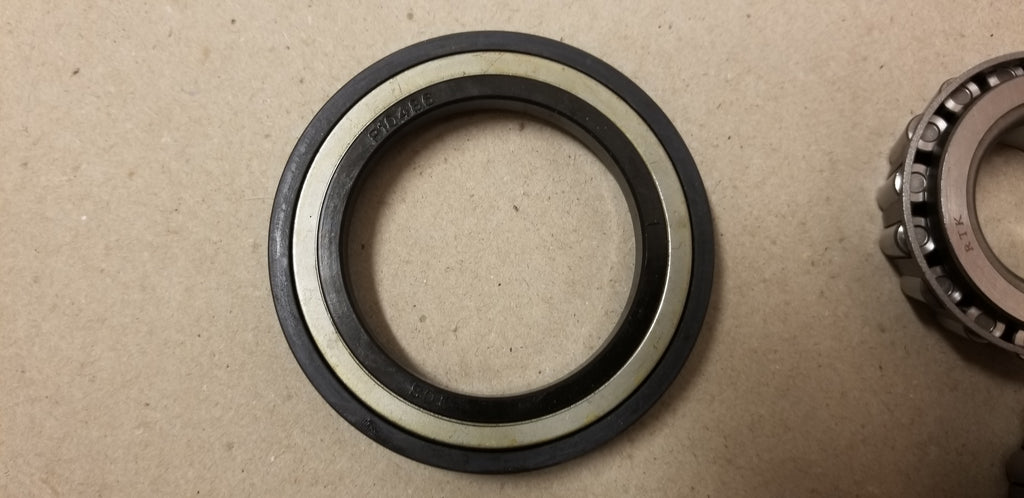

10-225-15 Oil Seal x1

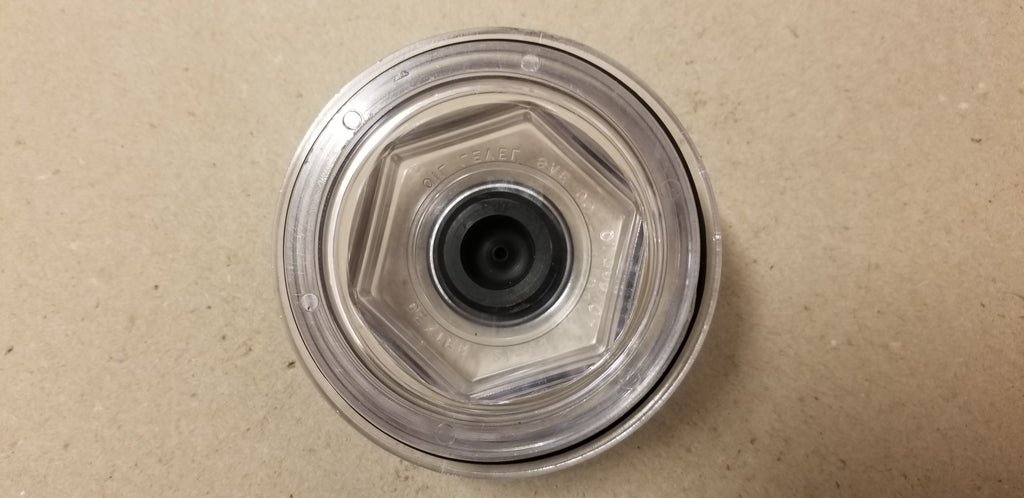

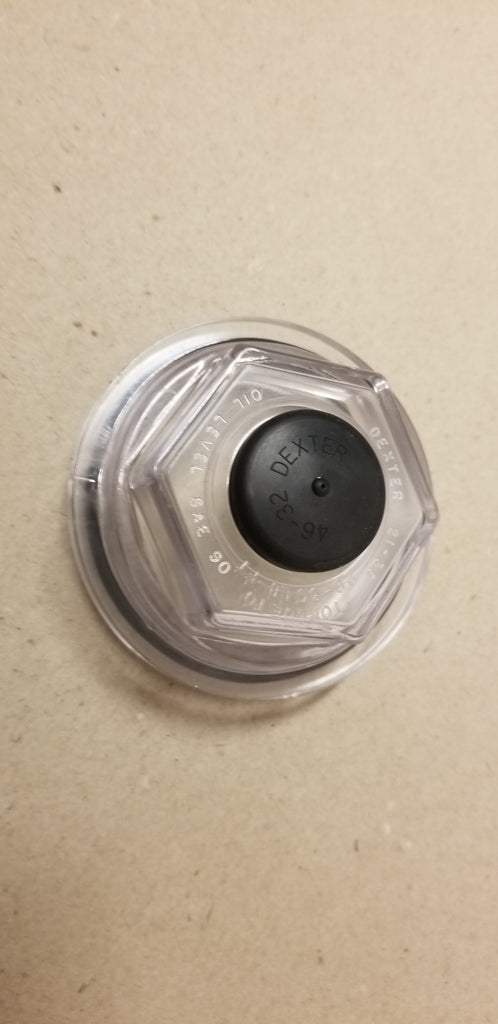

21-35 Oil Cap x1

046-032-00 Oil Plug x1

010-045-00 O-Ring x1

Additional Information:

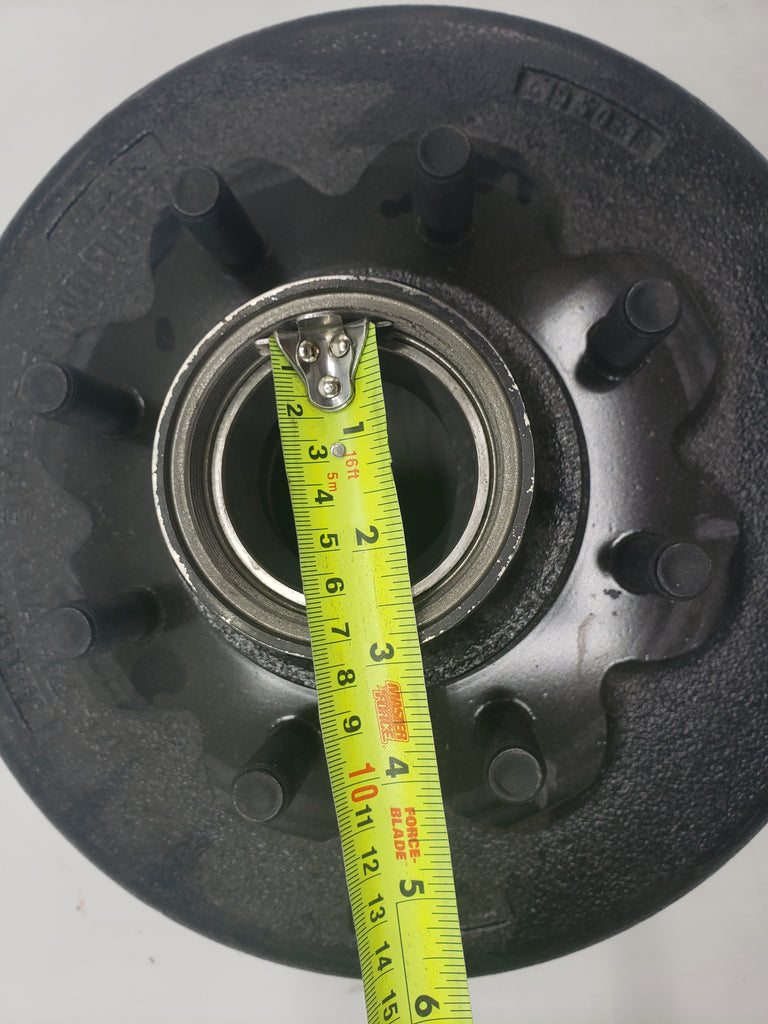

Pilot: 4.75"

Application: 8,000-LB E-Z Lube

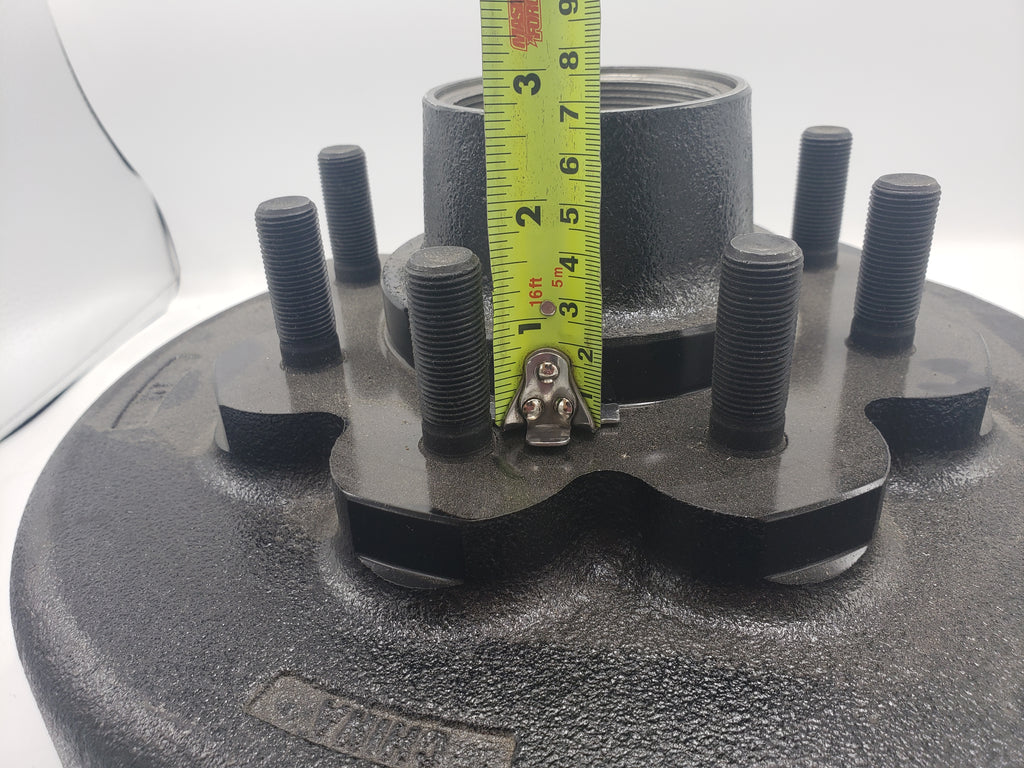

Stud Size: 5/8"

No of Studs: 8

Bolt Circle: 6.50"

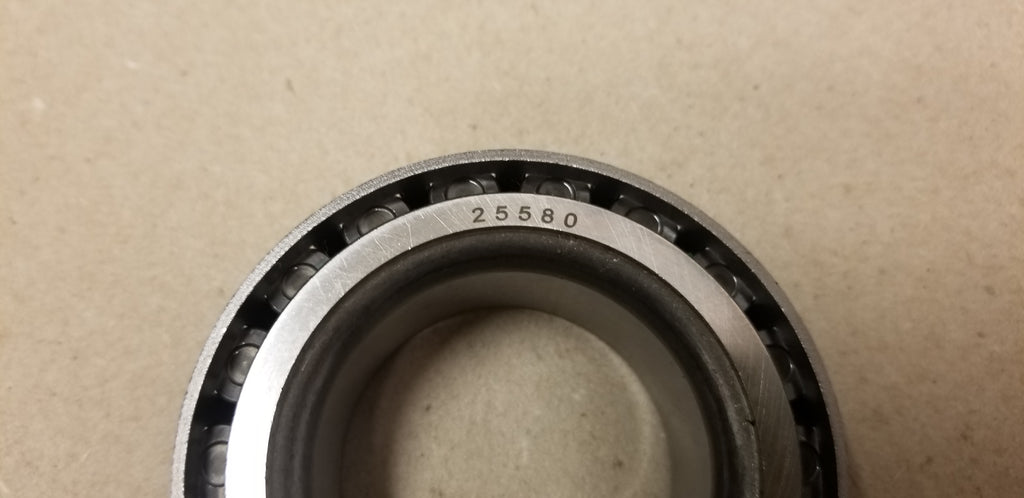

Inner Bearing Cone: 25580 (Included)

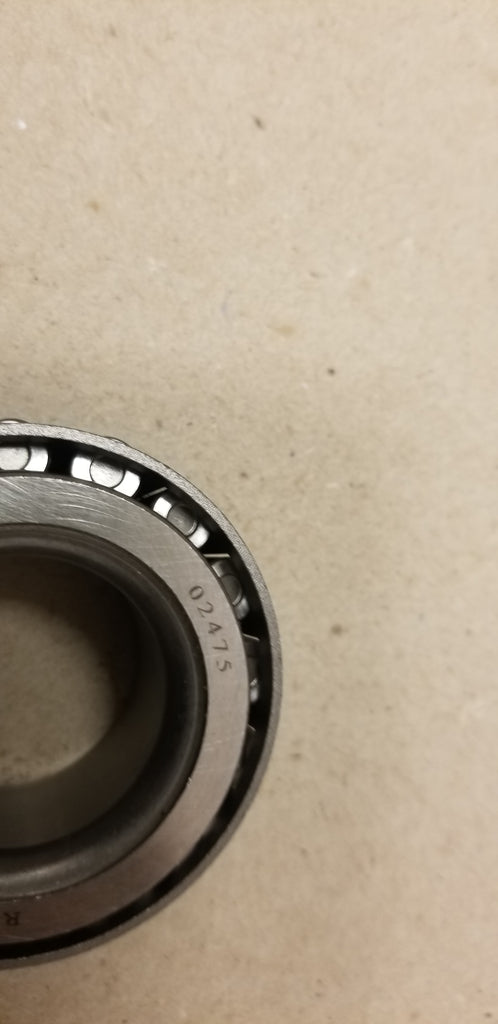

Outer Bearing Cone: 02475 (Included)

Oil Seal: 10-225-15 (Included)

Grease Seals: 10-36 (NOT INCLUDED)

Oil Cap: 21-35 (Included)

Oil Plug: 046-032-00 (Included)

O-Ring: 010-045-00 (Included)

Please note, as with most automotive parts, this item fits most MOST standard 8000# axles from Dexter and LCI, but, obviously not every 8000# axles ever made was the same.

Both LCI (Lippert) and Dexter make some rare variations of their 8K axles, like the "Narrow brake" 8000# axles (D80N Dexter of LCI80H LCI), so, before you buy, make sure it fits.
