7 way Round Pin Truck to 7 blade Trailer Plug Adapter (R77F)

Brophy

Sale price $29.99 Regular price $32.99

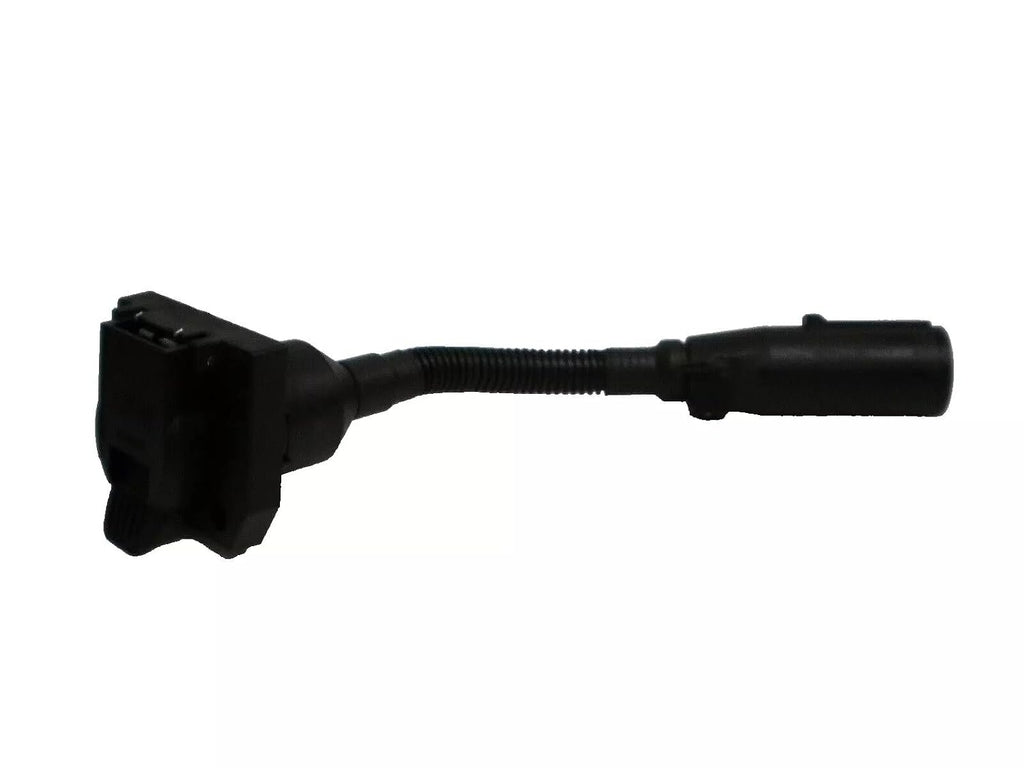

7 Way Round Pin Truck End to 7 Way Round Blade Trailer End Adapter

Part Number - R77F

You are looking at a special trailer plug adapter I sell which will allow you to pull a trailer with the 7 way blade plug, even though your truck has the 7 way pin plug commonly found on semis
This plug consists of a female 7 way blade connector that the trailer plug can plug into, and the 7 way pin plug can plug into the back of your tow vehicle.
Again the 7 way pin end fits your truck, and the 7 way blade end fits the trailer
The plug consists of a female 7 way blade connector that the trailer plug can plug into, and a 7 way pin plug can plug into the back of your tow vehicle.

This Adapter Should Work for You IF:

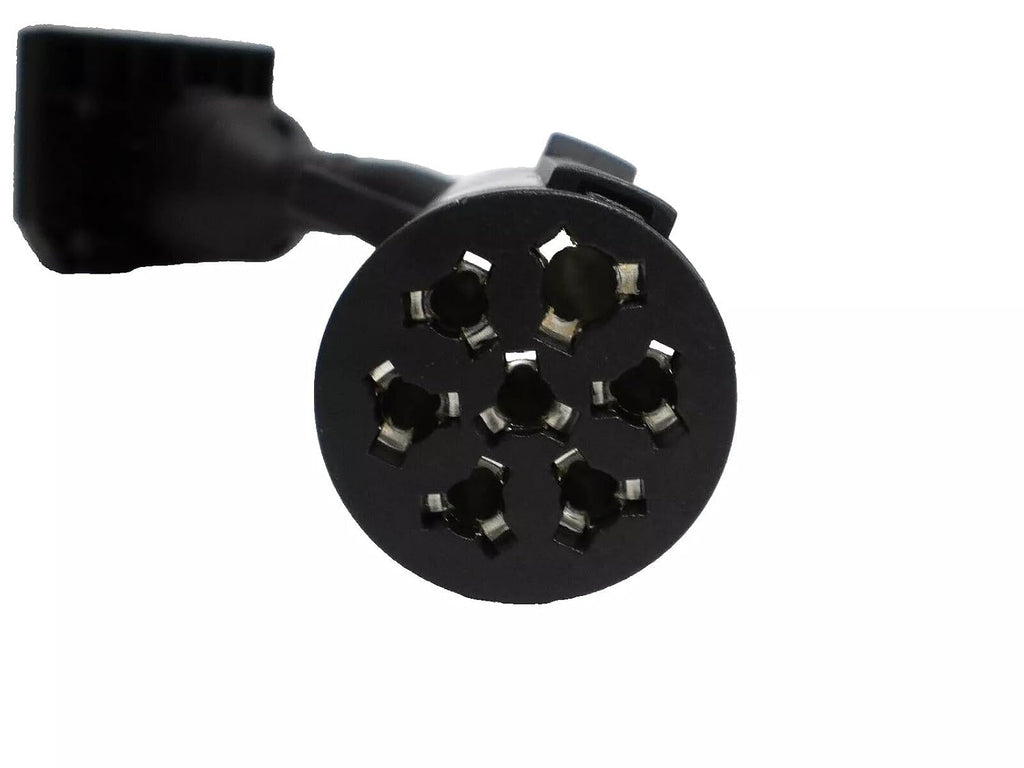

Your Towing Vehicle Plug Looks Similar This

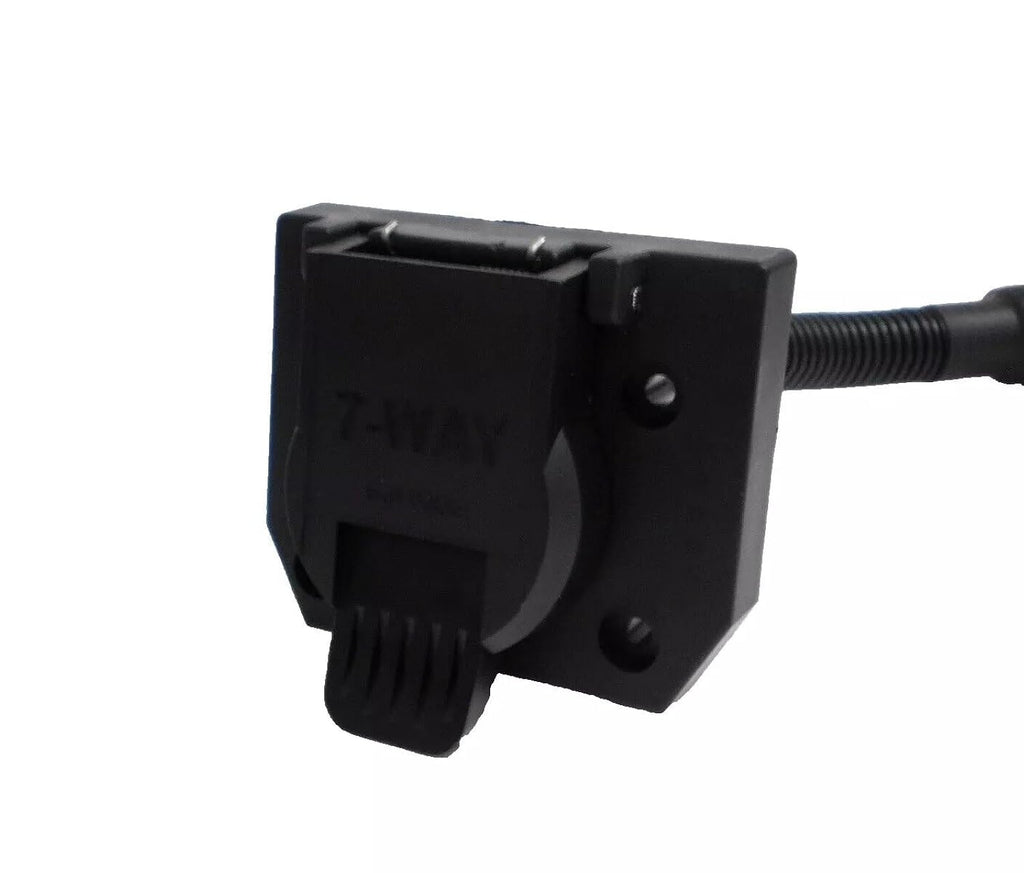

Your Trailer Plug Looks Like This

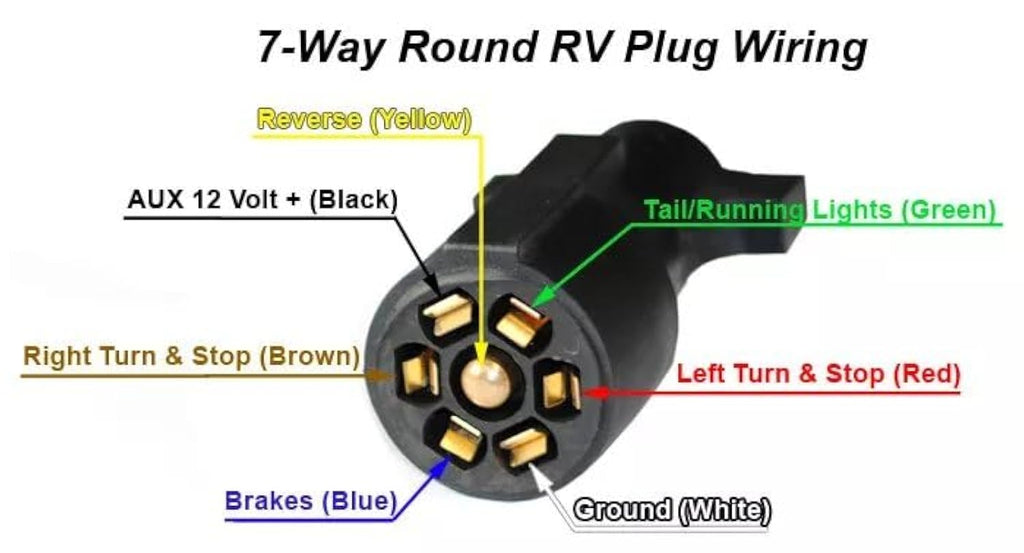

Wiring Code
Molded Connector
Function
Usual Trailer Wire
White Wire Ground White Wire
Red Wire Left Turn and Brake Yellow Wire
Brown Wire Right Turn and Brake Green Wire
Green Wire Tail Lights Brown Wire
Blue Wire Brake Power Blue Wire
Black Wire 12 volt (hot lead) Black Wire
Yellow Wire Aux. -
