Part#: RN TC67-003
Do it right the first time!

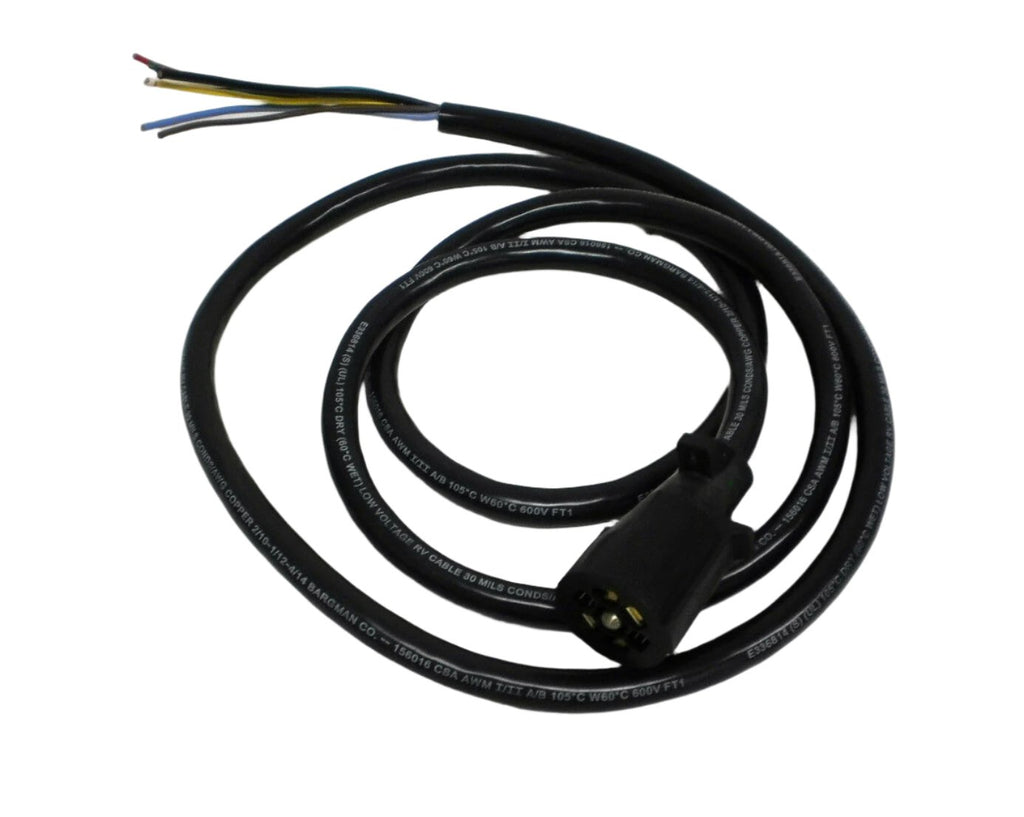

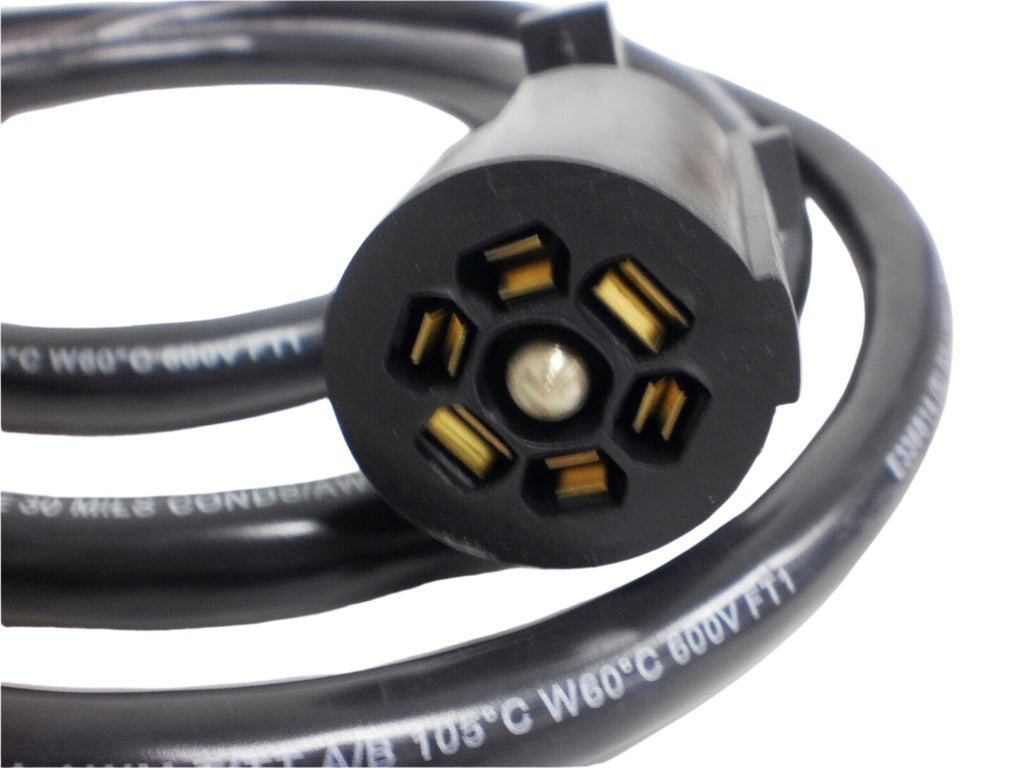

NEW Bargman Brand 7 way trailer connector. This is the TOP QUALITY Commercial type one piece molded plug with 8 foot double jacketed cord and seven large gauge colored wires. Unlike cheaper plugs that only make contact on one side (sometime resulting in a loose connection) this plug has copper spade connectors that grip both sides of the spade connector for a sure connection every time! (see pictures)

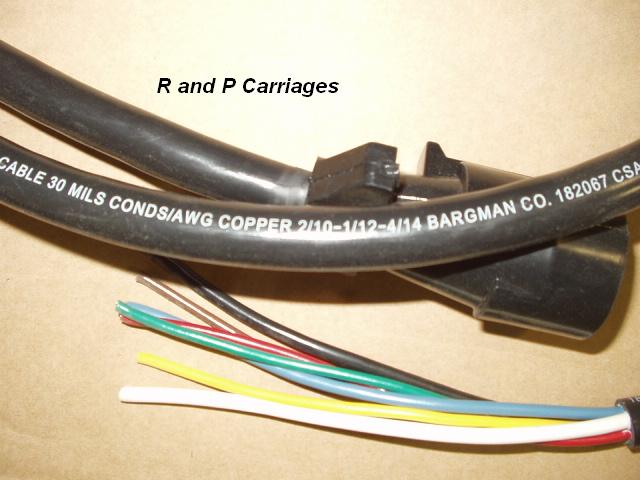

Wires sizes are:
TWO- 10 gauge 30 amp wires
ONE- 12 gauge 20 amp wire
FOUR- 14 Gauge 15 amp wires
All eight feet long!
Use this to upgrade your current old style plug to the newer 7 way plug, or to replace your current plug that has turned all green and yucky (just look in there and see!)
Please contact us if you have wire questions, we un a full service trailer repair shop, so we re-wire trailers daily! And remember, you can not depend on wire colors alone, you should test your particular trailer wire system. we offer phone assistance, but can not be responsible for improper wiring done by the customer..
Trailer Connector RV Style 7-Way Blade with molded lead.
- Pre-wired 7-Way Trailer Connector
- length is including connector
- Wire gauges:
- 14 gauge - red, brown, green, and yellow
- 12 gauge - Blue
- 10 gauge - White and Black
| Wiring Code | ||
|---|---|---|
|
Molded Connector |
Function |
Usual Trailer Wire |
| White Wire | Ground | White Wire |
| Red Wire | Left Turn and Brake | Yellow Wire |
| Brown Wire | Right Turn and Brake | Green Wire |
| Green Wire | Tail Lights | Brown Wire |
| Blue Wire | Brake Power | Blue Wire |
| Black Wire | 12 volt (hot lead) | Black Wire |
| Yellow Wire | Aux. | - |
