6 Way Round Truck End to 4 Way Flat Trailer End Adapter
You are looking at a special trailer plug adapter I sell which will allow you to pull a trailer with the 4 way Flat plug, even though your truck has the 6way round plug commonly found on some tow vehicles

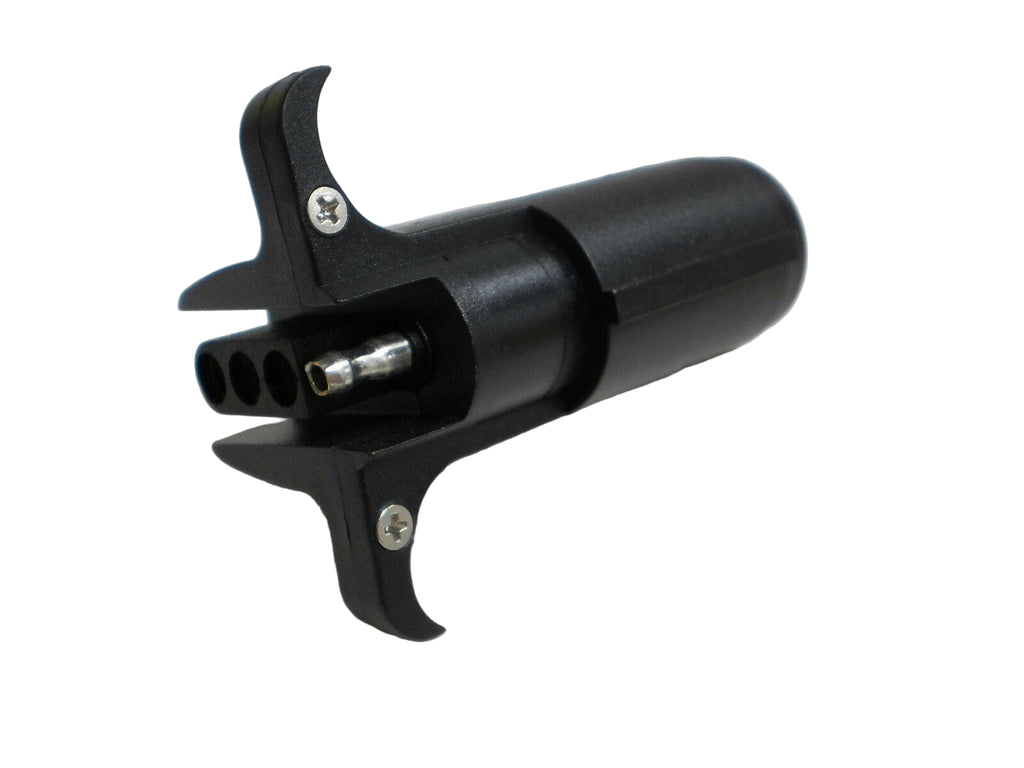

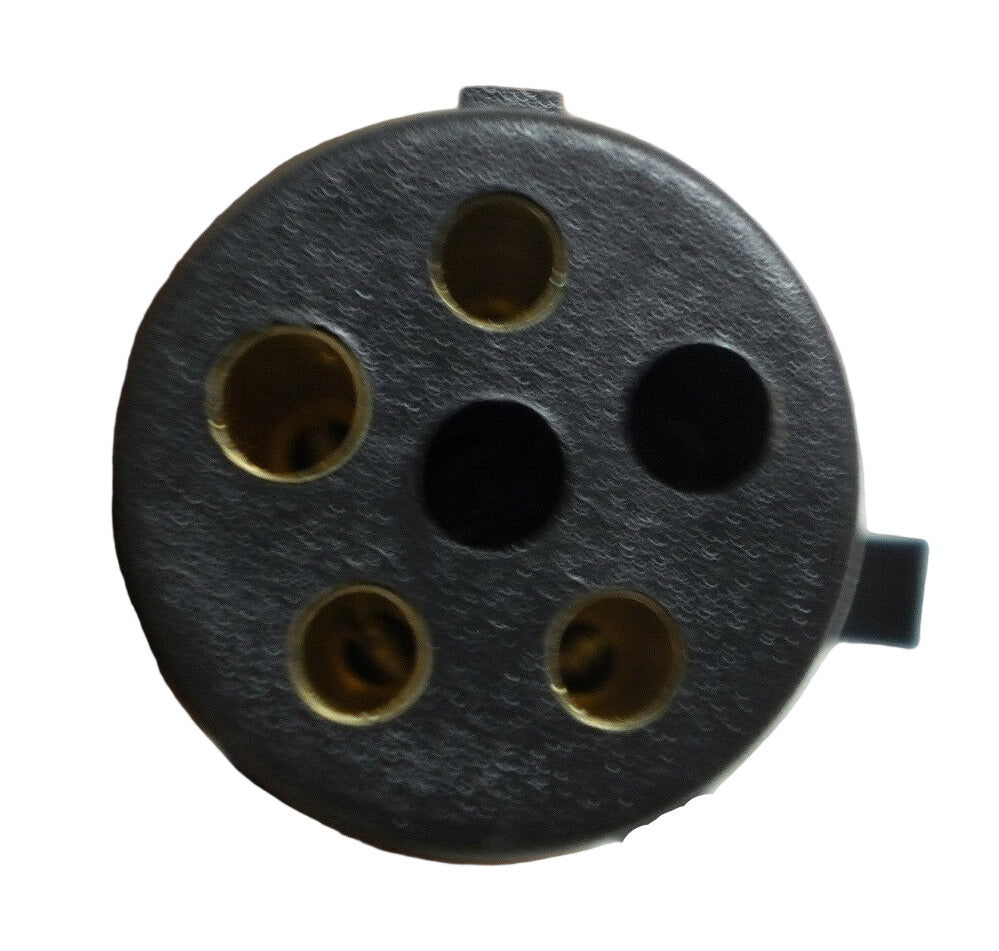

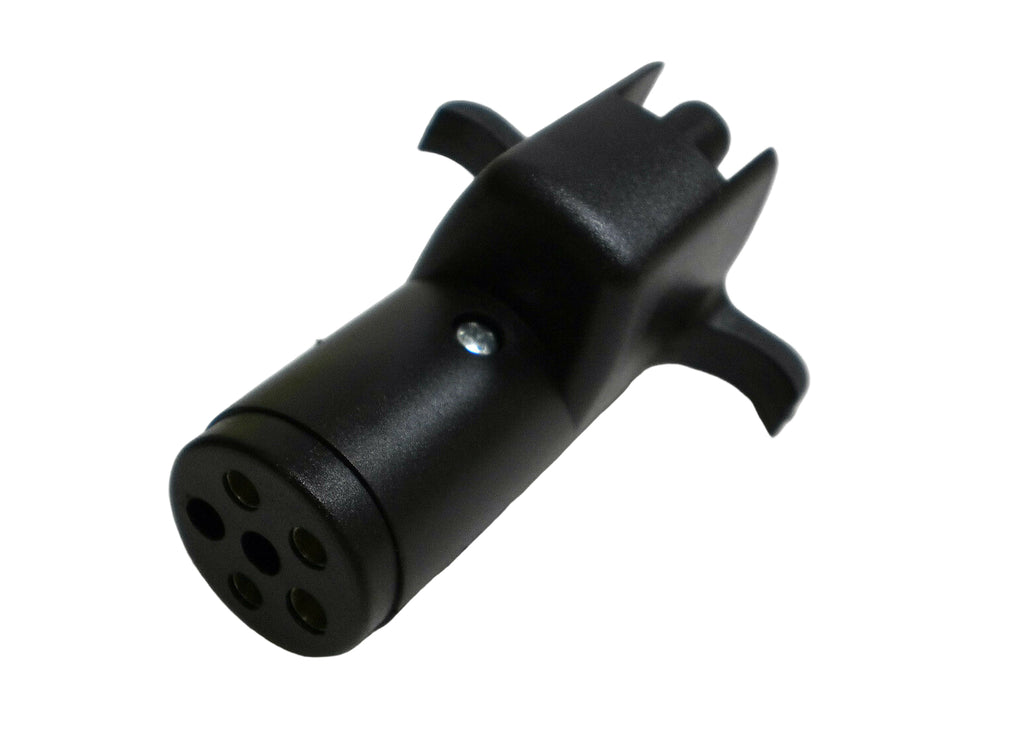

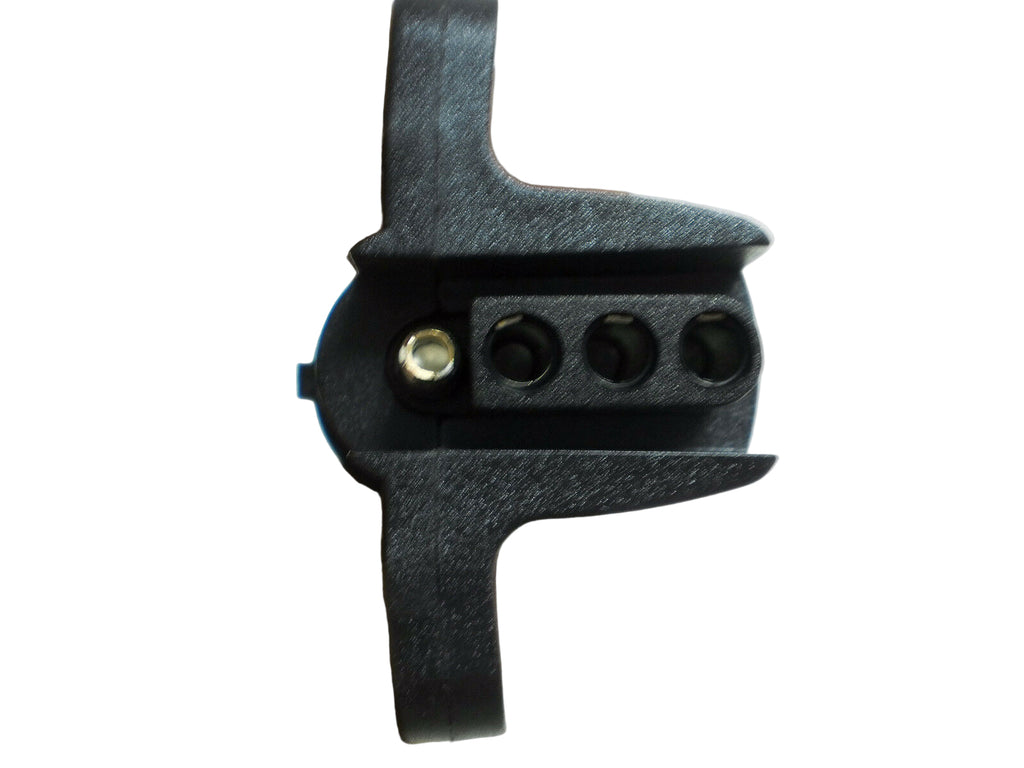

This plug consist of a female 4 way flat connector that the trailer plug can plug into, and 6 way round plug to plug into the back of your tow vehicle.
Again, the 6 way round end fits your truck, and the 4 way flat end fits the trailer.
This Adapter Should Work for You IF:
Your Towing Vehicle Plug Looks Similar This |
Your Trailer Plug Looks Like This |
|
|
Wiring Code | ||
---|---|---|
Molded Connector |
Function |
Usual Trailer Wire |
White Wire | Ground | White Wire |
Red Wire | Left Turn and Brake | Yellow Wire |
Brown Wire | Right Turn and Brake | Green Wire |
Green Wire | Tail Lights | Brown Wire |
Blue Wire | Brake Power | Blue Wire |
Black Wire | 12 volt (hot lead) | Black Wire |
Yellow Wire | Aux. | - |
Need a different adapter? Trailer or Camper Parts?
