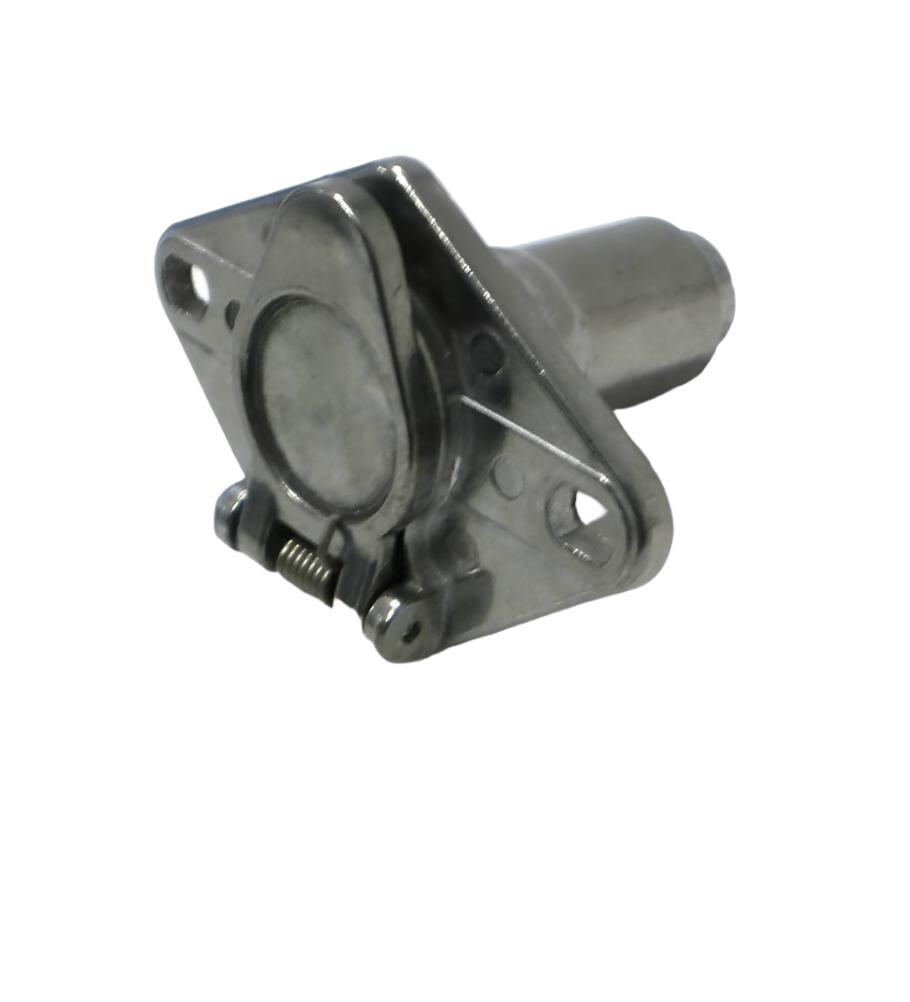

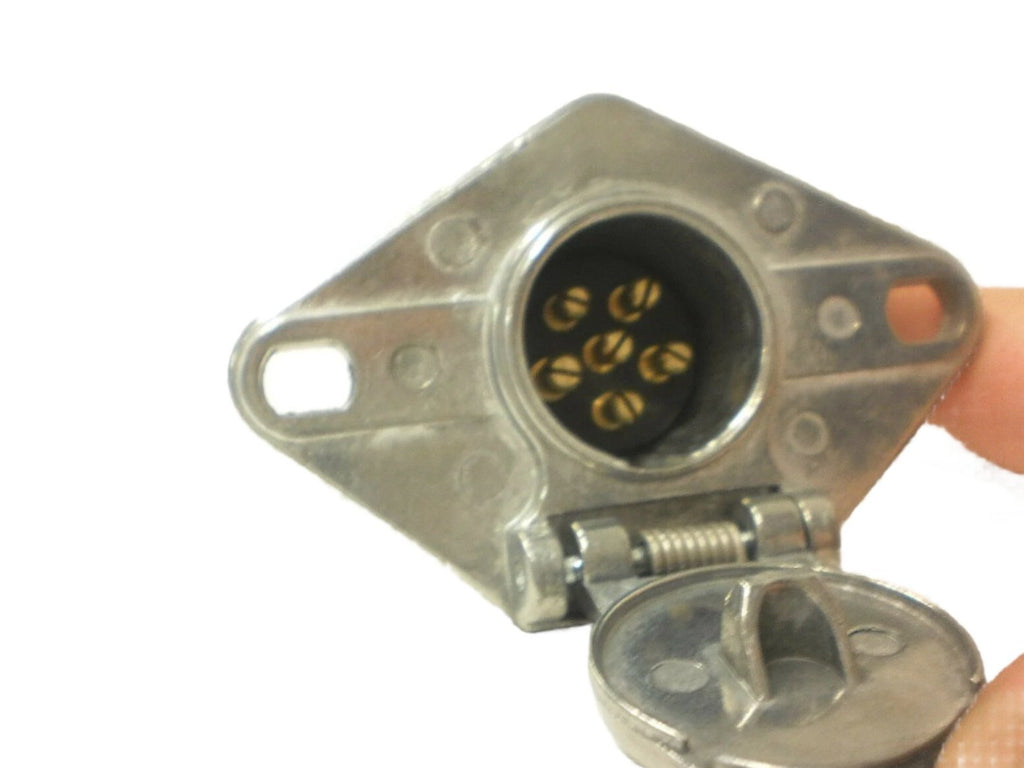

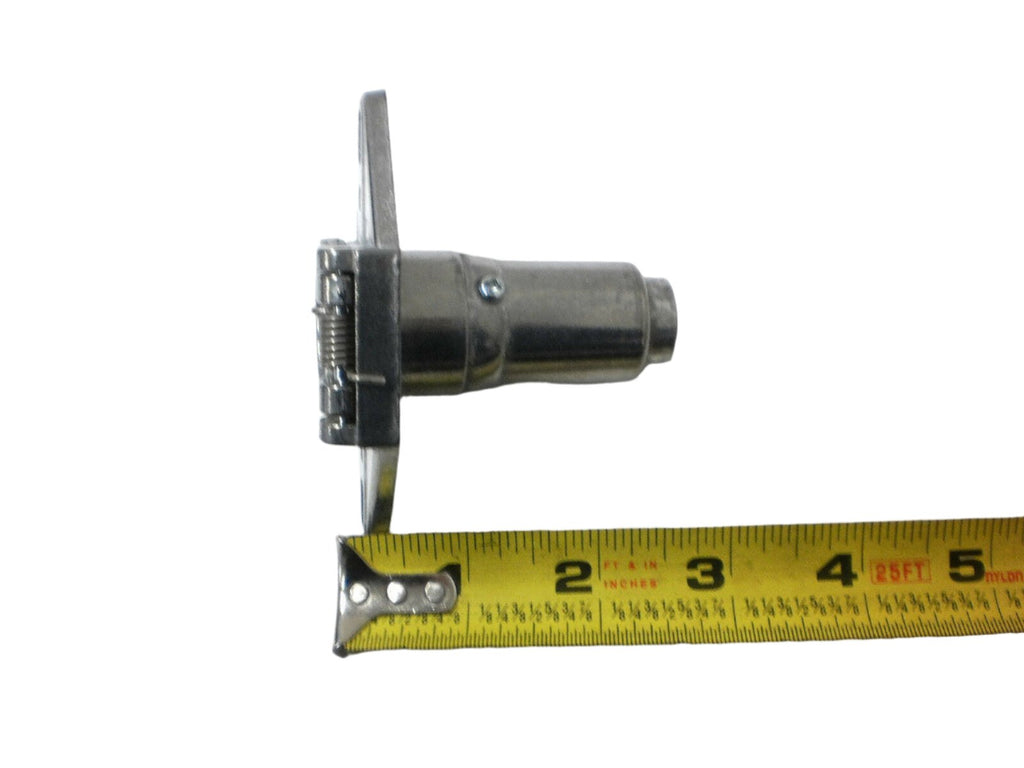

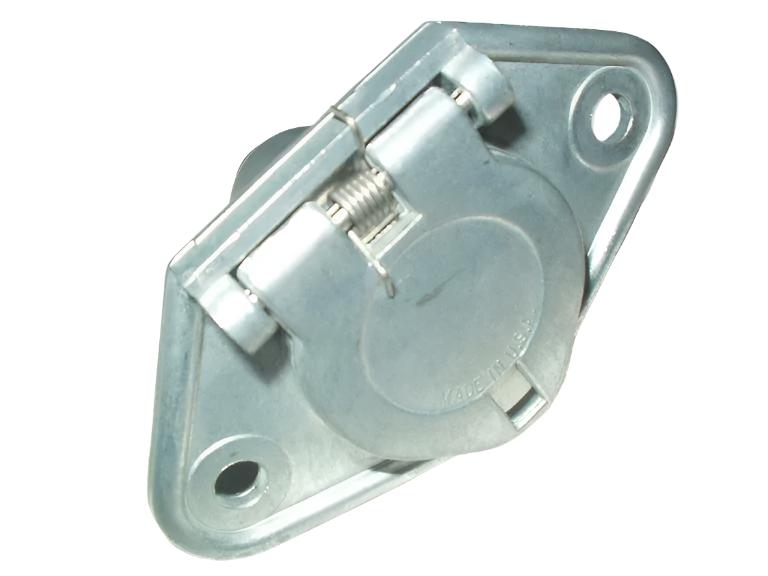

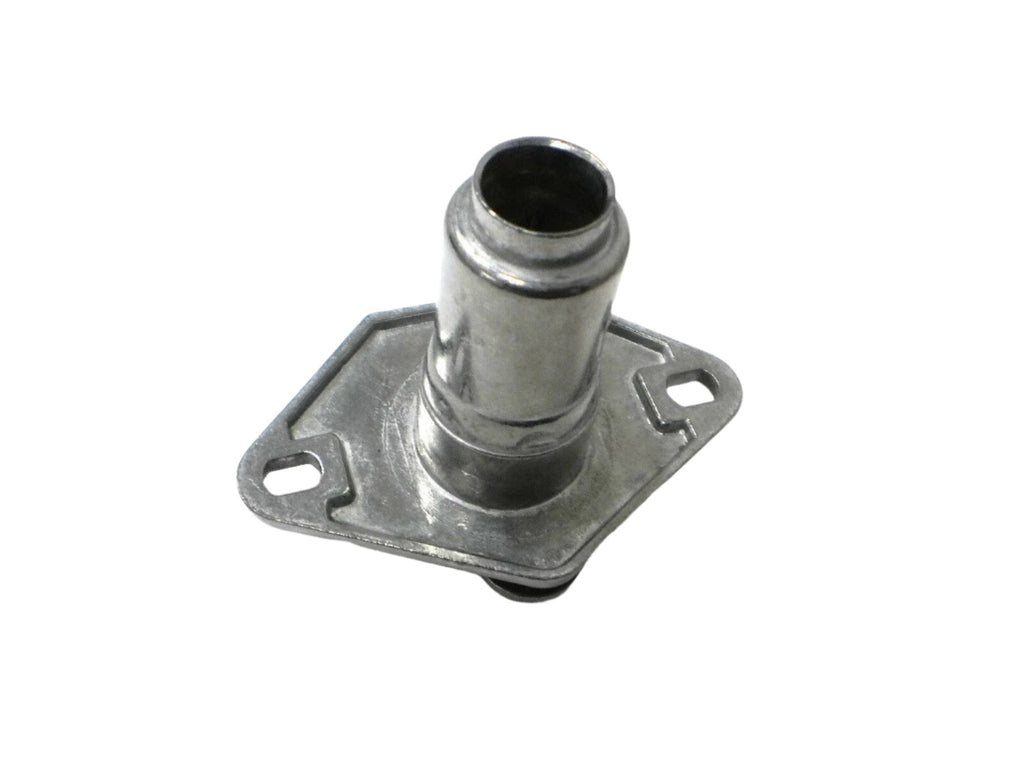

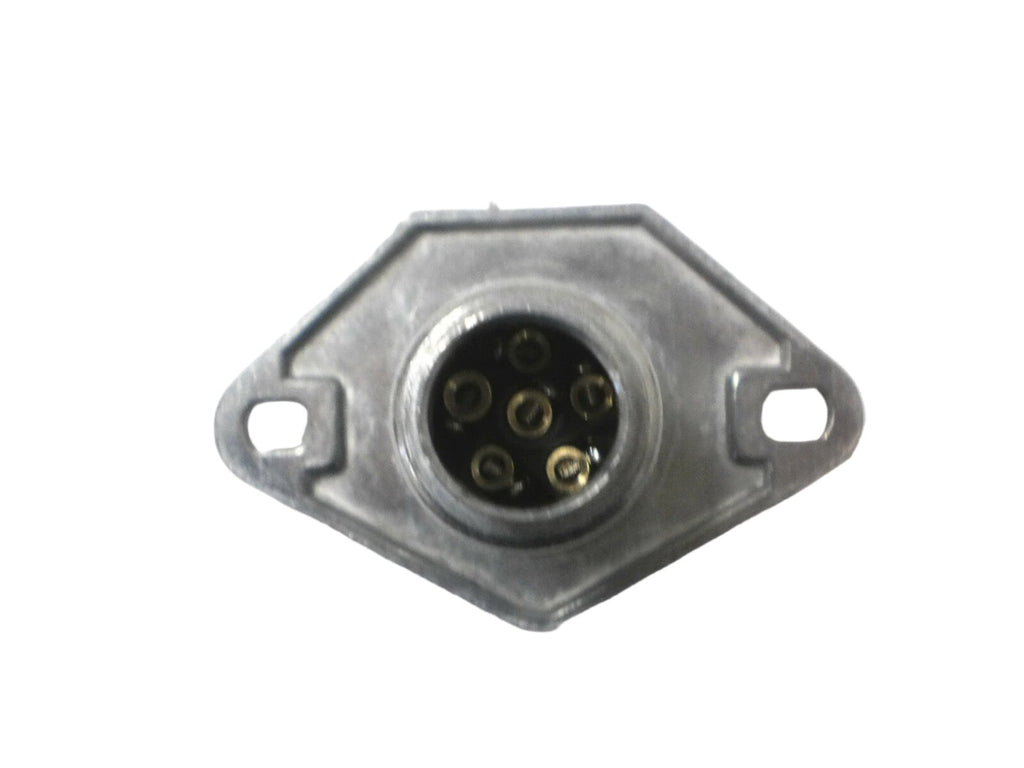

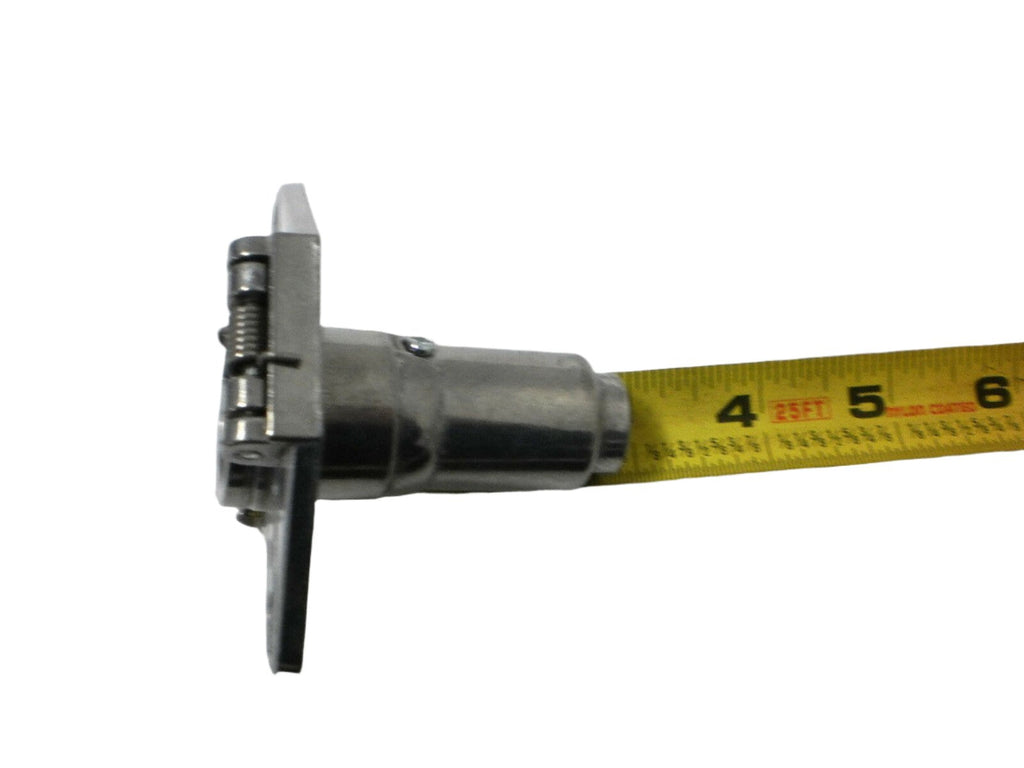

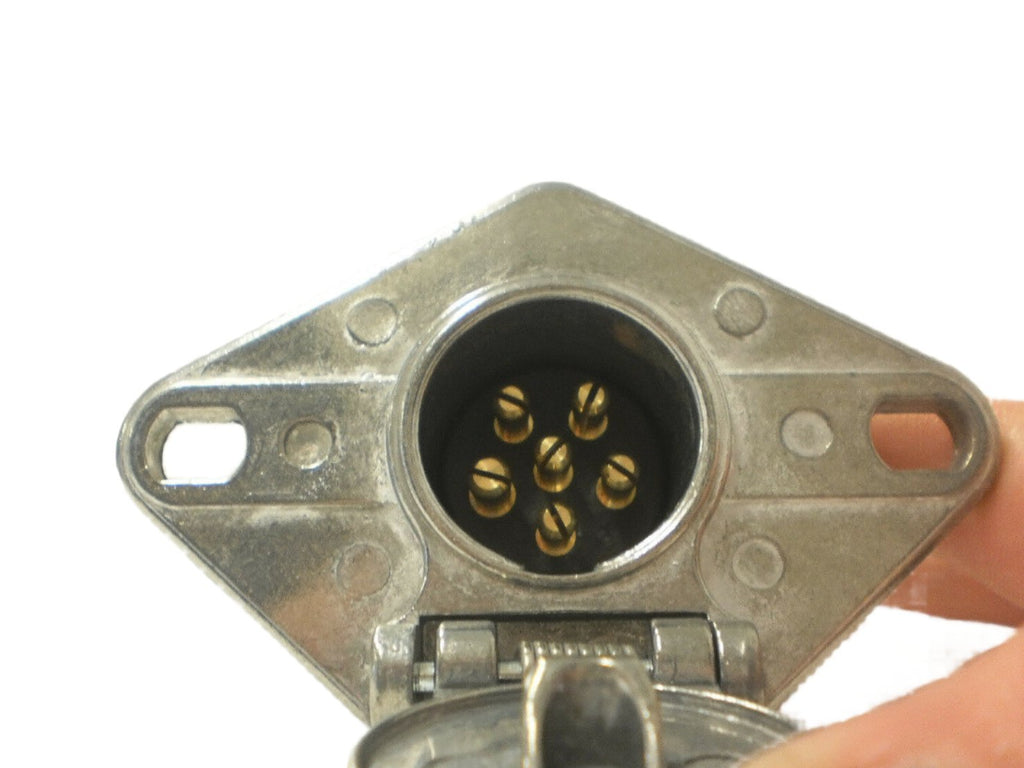

Brophy R6CD 6-Way Round-Pin Female Truck-Side Plug with Metal Casing
A 6-way round-pin female connector for the truck side of compatible trailer wiring systems. Designed to receive a matching 6-way round-pin male trailer plug.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | R6CD |
| Brand | Brophy |
| Product Type | Female truck-side trailer connector |
| Connector Style | 6-way round pin |
| Voltage Capacity | 12–24 volts |
| Mounting-Hole Spacing | 2-7/8 inches center to center |
| Stated Wire Capacity | Up to 1-5/8 inches |
| Casing | Metal |
| Quantity Included | 1 female truck-side plug |
Fitment / Application
| Category | Details |
|---|---|
| System | Truck-to-trailer electrical connection |
| Primary Fit | Designed to receive a compatible 6-way round-pin male trailer plug |
| Mounting Style | Fits brackets using mounting holes spaced 2-7/8 inches center to center |
| Electrical Range | 12–24-volt applications |
| Fitment Check | Verify the connector pattern, plug gender, wiring arrangement and mounting-hole spacing before ordering. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 6-Way Round-Pin Design | Matches compatible male trailer plugs using the same connector configuration. |
| Truck-Side Female Connector | Provides the receiving connection on the tow-vehicle side of the wiring system. |
| Marked Terminals | Connection markings identify where each cable is intended to attach during assembly. |
| Standard Bracket Fit | Uses 2-7/8-inch center-to-center mounting-hole spacing for compatible brackets. |
Overview
The Brophy R6CD is a 6-way round-pin female truck-side plug with a metal casing. It is designed to receive a matching 6-way round-pin male trailer plug and supports 12–24-volt electrical applications. Markings at the wiring connections help identify where each cable attaches during assembly.
R&P Service Insight
Round trailer connectors may look similar while using different pin arrangements, mounting patterns or plug genders. Compare the existing connector carefully before replacement.
- Confirm Plug Gender: This listing is for the female connector installed on the truck side.
- Measure the Bracket: The mounting holes are spaced 2-7/8 inches center to center.
- Check the Pin Pattern: The mating trailer plug must use a compatible 6-way round-pin configuration.
R&P Knowledge Hub
Compatibility: Designed for use with a compatible 6-way round-pin male trailer plug. Connector shape alone does not confirm the internal wiring arrangement.
Vehicle / System Fit: Used as the female truck-side connection in compatible 12–24-volt truck-and-trailer electrical systems.
Installation Notes: Disconnect electrical power before installation. Follow the terminal markings and verify every circuit against the tow vehicle and trailer wiring before applying power.
Performance Insight: Correct pin assignment is essential because differently wired connectors can place power, lighting, brake or auxiliary functions on different terminals.
Brand & Fitment Note
Selling Brand: Brophy
Part Number: R6CD
Application Reference: This component is intended for compatible 6-way round-pin truck-and-trailer electrical systems.
Before Ordering: Verify that you need a female truck-side connector, along with the 6-way round-pin pattern, 12–24-volt capacity and 2-7/8-inch mounting-hole spacing.
R&P Repair Insight
When replacing a trailer connector, record the existing wire locations before disconnecting the old unit. Do not rely on wire color alone, since trailer and tow-vehicle wiring may have been repaired or modified previously.
- Map Each Circuit: Identify the function of every wire before transferring it to the marked terminals.
- Inspect the Wiring: Check for damaged insulation, corrosion or loose wire ends before assembly.
- Test Before Towing: Confirm all connected trailer functions after installation and before road use.
Features
6-Way Round-Pin Connection
Designed to mate with a compatible 6-way round-pin male trailer plug.
Female Truck-Side Design
Installs on the tow-vehicle side to provide the receiving connector for the trailer plug.
12–24 Volt Capacity
Specified for compatible trailer electrical applications operating within the stated voltage range.
Marked Wiring Connections
Terminal markings help identify cable placement during connector assembly.
Metal Casing
Features the metal-casing construction identified for Brophy part number R6CD.
Standard Mounting Pattern
Fits compatible brackets with mounting holes spaced 2-7/8 inches center to center.
Included Components
| Quantity | Item |
|---|---|
| 1 | Brophy R6CD 6-way round-pin female truck-side plug with metal casing |
| Not Included | Male trailer-side plug, mounting bracket, wiring and installation hardware |
