72" Super Low Profile LED Light Bar – 108 LEDs – Trailer Interior Lighting
Part Number: L23-0166

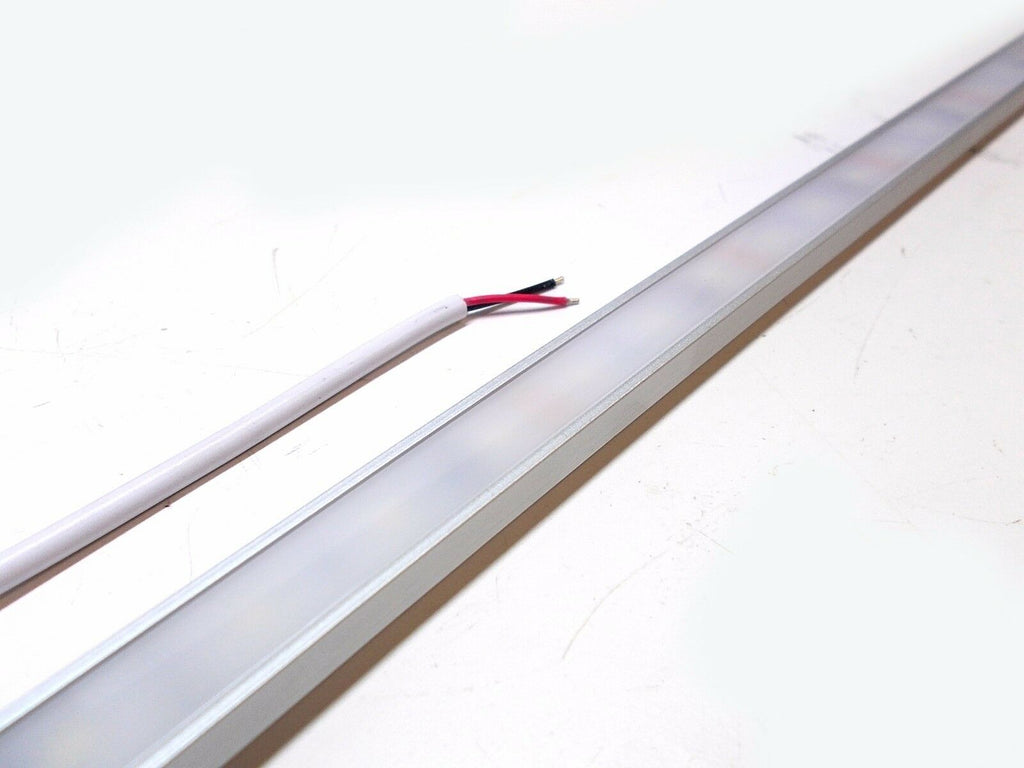

Ultra-low profile 72" LED light bar designed for enclosed trailers, cargo trailers, service trucks, and mobile work areas. The slim aluminum housing measures only 1/4" deep while producing wide daylight-white illumination.
Voltage Safety Notice
Manufacturer Electrical Warning
This LED light bar is designed for use with 12-volt DC electrical systems commonly used in trailers and utility vehicles.
- Use only with 12V DC trailer wiring systems.
- Connecting to higher voltage power sources may damage the unit.
- Always verify system voltage before installation.
R&P Knowledge Hub

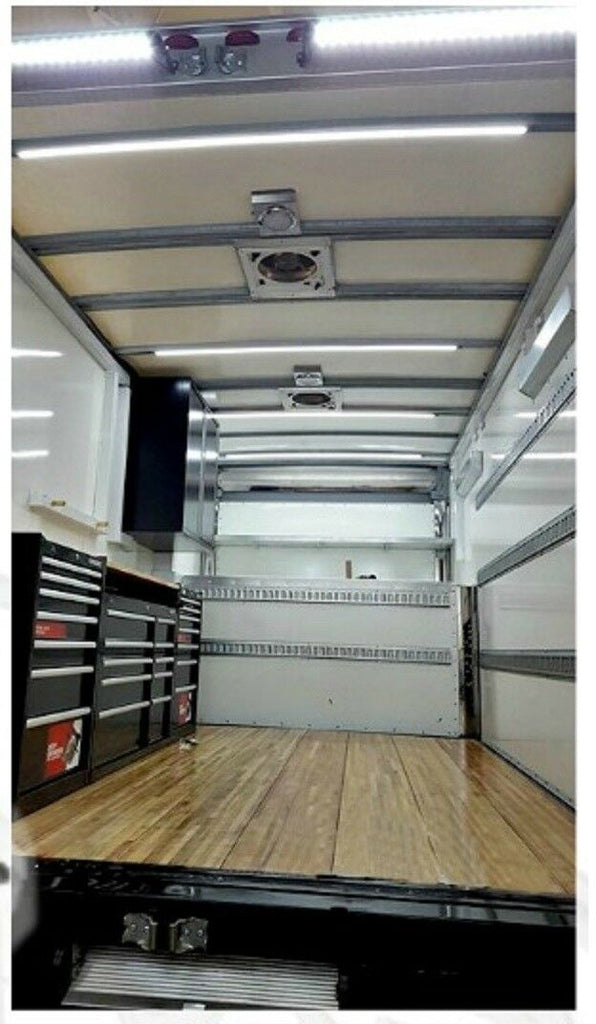

Low-profile LED light bars are commonly installed inside enclosed trailers where wide lighting coverage is needed without reducing interior headroom. LED lighting provides strong illumination while maintaining low electrical draw.
Features
- 108 high-output LED diodes

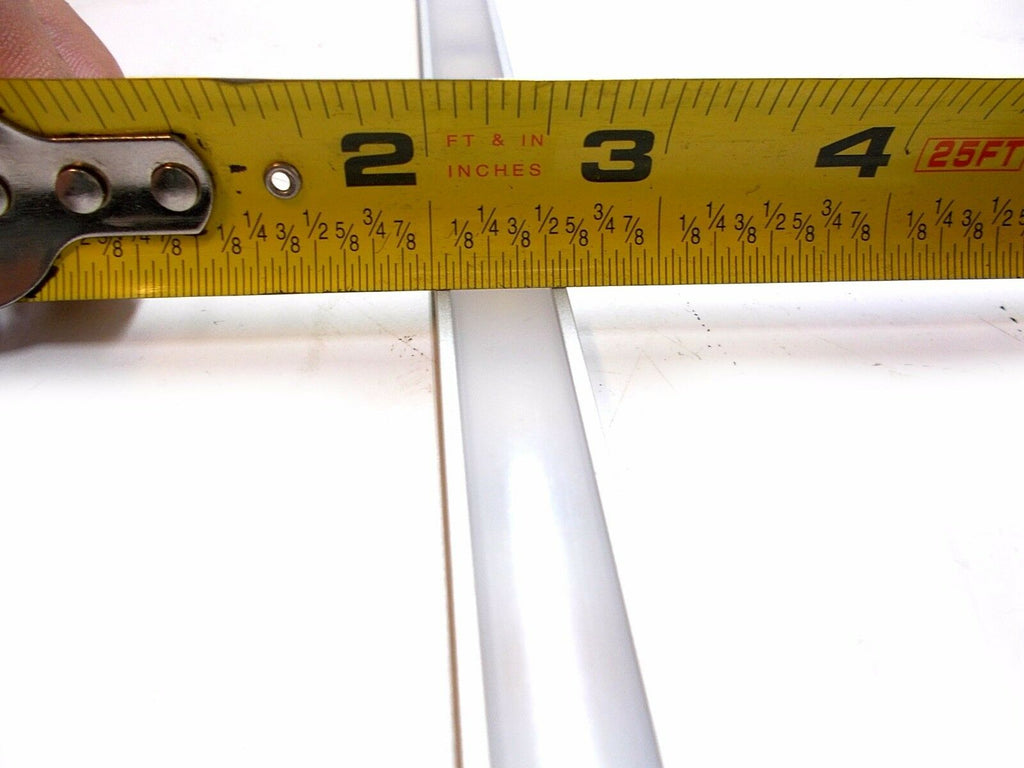

- Ultra-low profile aluminum housing – 1/4" depth
- 1200 lumen daylight-white illumination
- Includes mounting channel brackets and adhesive backing
Specifications
| Specification | Detail |
| Voltage | 12 VDC ±2V |
| Power Draw | 1.5 Amps (18W) |
| Light Output | 1200 Lumens |
| Overall Length | 72-3/4" |
Verify specifications before installation.
|
|
|
|
