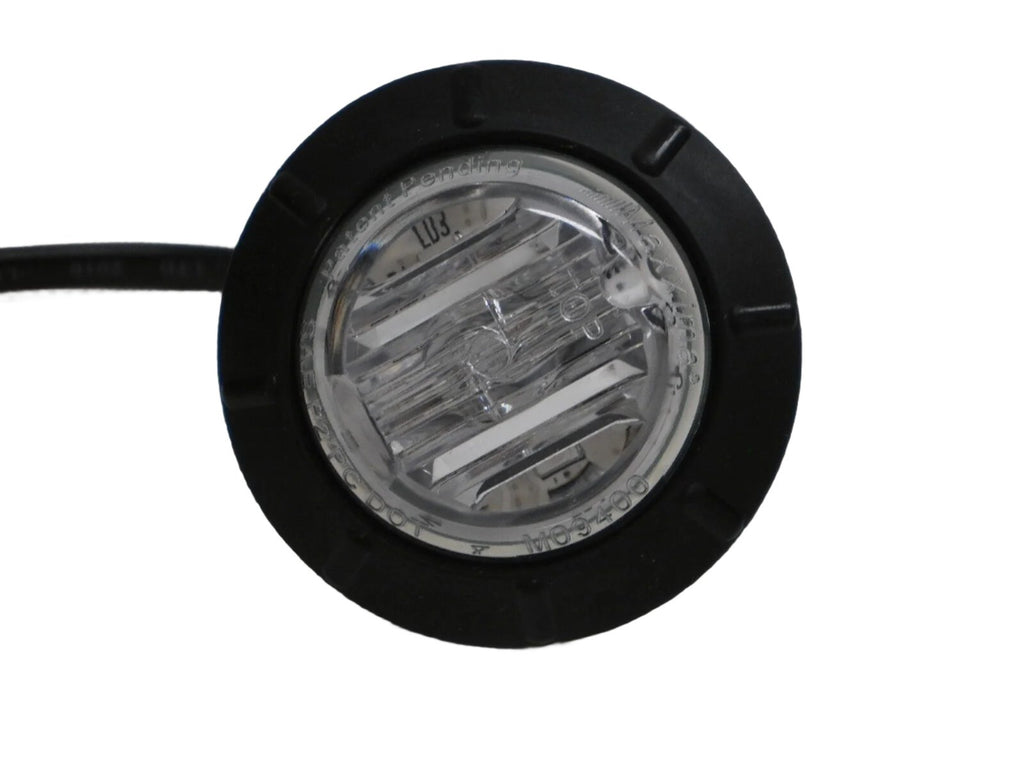

Maxxima M09400 1-1/4" LED Mini Clearance / Marker Light – Amber Clear Lens
Part Number: M09400YCL | Quantity: 1 Light
Compact Maxxima M09400 series 1-1/4" P2PC combination mini-clearance and auxiliary LED light. Designed for trailers and commercial vehicles requiring a small, sealed marker light with reliable output and quick grommet-mount installation.
Features
| Feature | Description |
|---|---|
| LED Count | 6 LEDs |
| Lens / Color | Amber LED with clear lens |
| Design | Low-profile, space-saving mini marker light |
| Construction | Fully resin-sealed, one-piece housing |

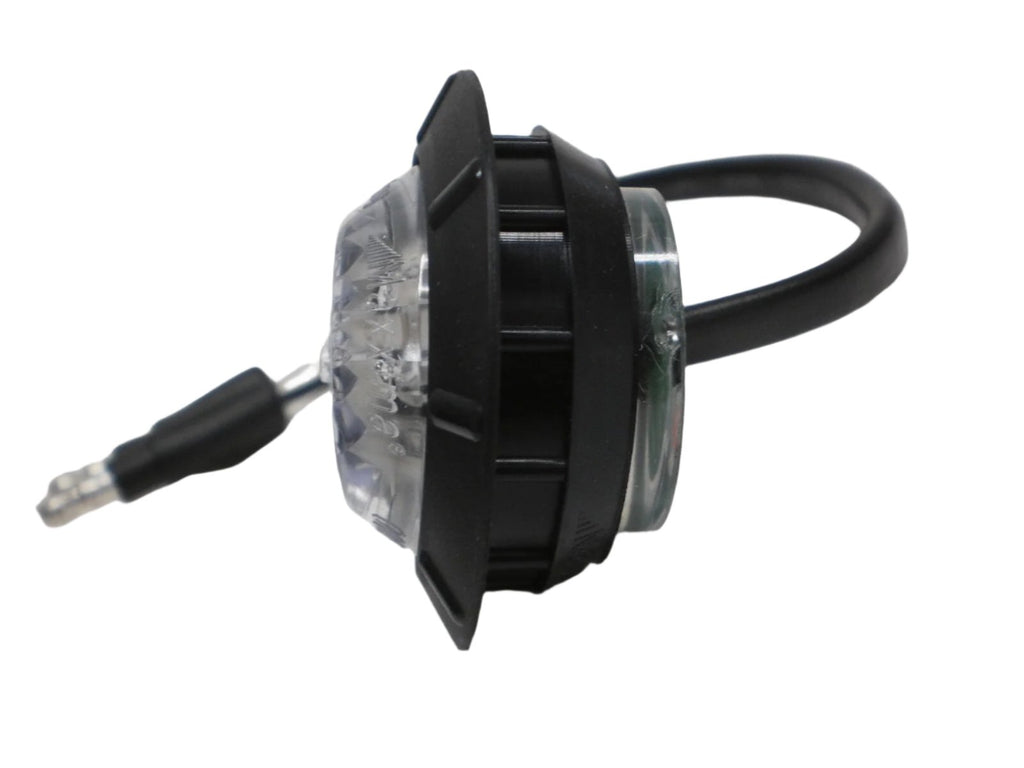

| Mounting | Integrated rubber grommet included |
| Warranty | 5-year manufacturer warranty |
Specifications
| Specification | Detail |
|---|---|
| Light Diameter | 1-1/4" |
| Grommet Outside Diameter | Approx. 1-3/4" |
| Required Mounting Hole | 1.375" (1-3/8") |
| Required Mounting Depth | Approx. 3/4" behind panel |
| Overall Thickness | Approx. 1" |
| Voltage | 12.8 VDC |
| Max Amp Draw | 80 mA |

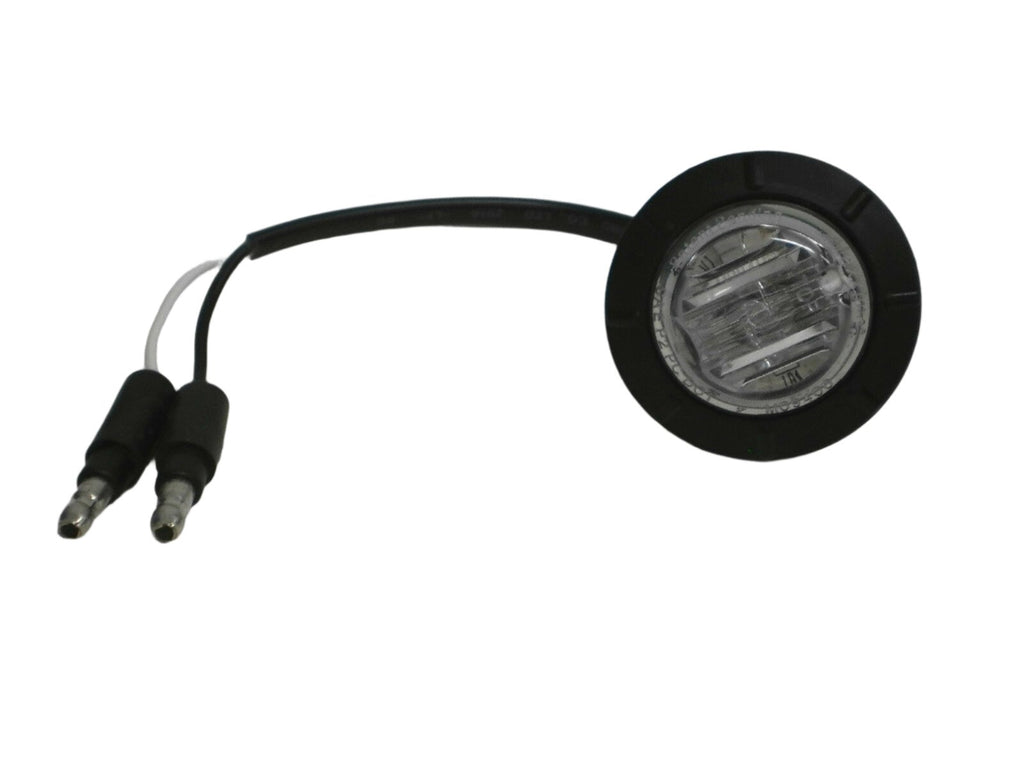

| Connector Type | (2) .180 male bullet connectors |
| Lens Material | Polycarbonate |
Additional Images
Commonly used on utility trailers, equipment trailers, flatbeds, and commercial vehicles for clearance or auxiliary lighting. Optional stainless steel grommet covers are available separately.
Confirm mounting hole size, depth clearance, and wiring connections prior to installation.
