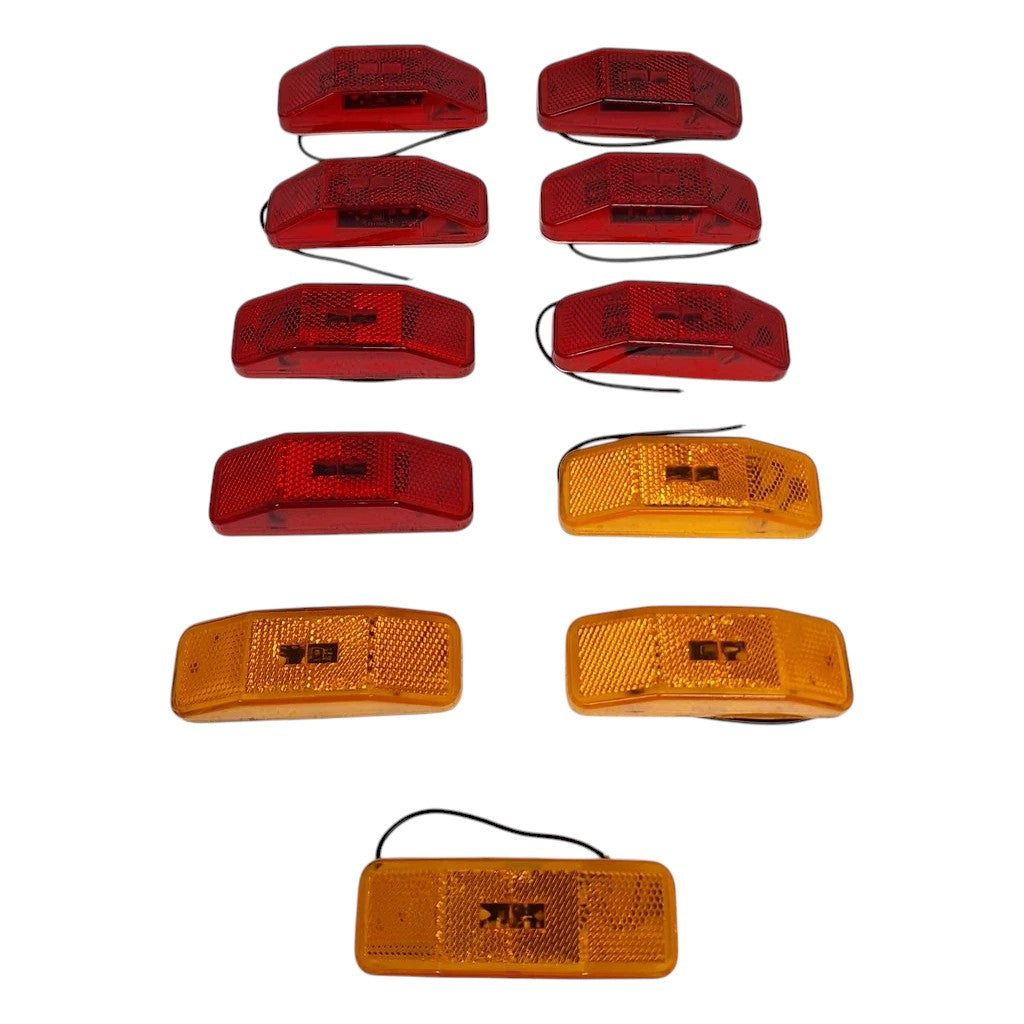

LED Marker Light Set – 7 Red & 4 Amber – Bargman 99 Style Replacement

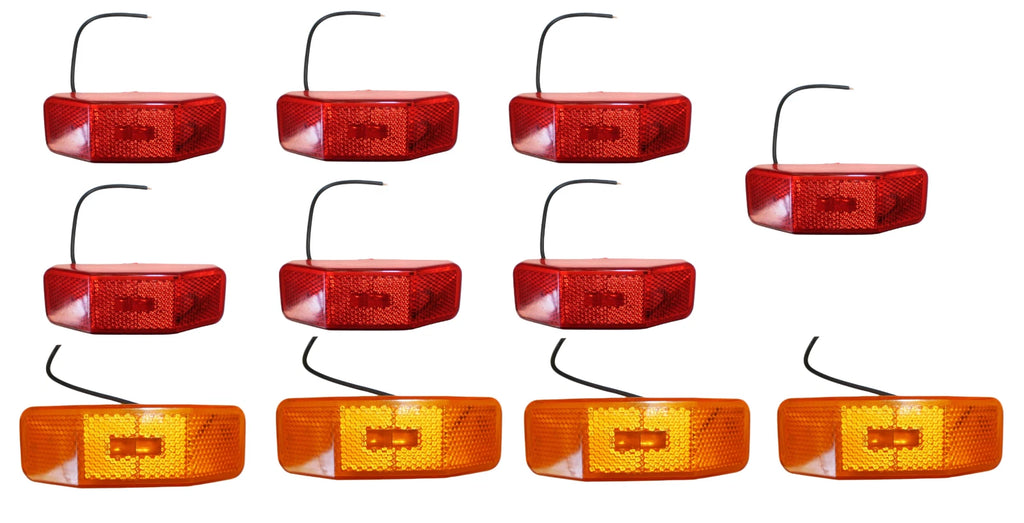

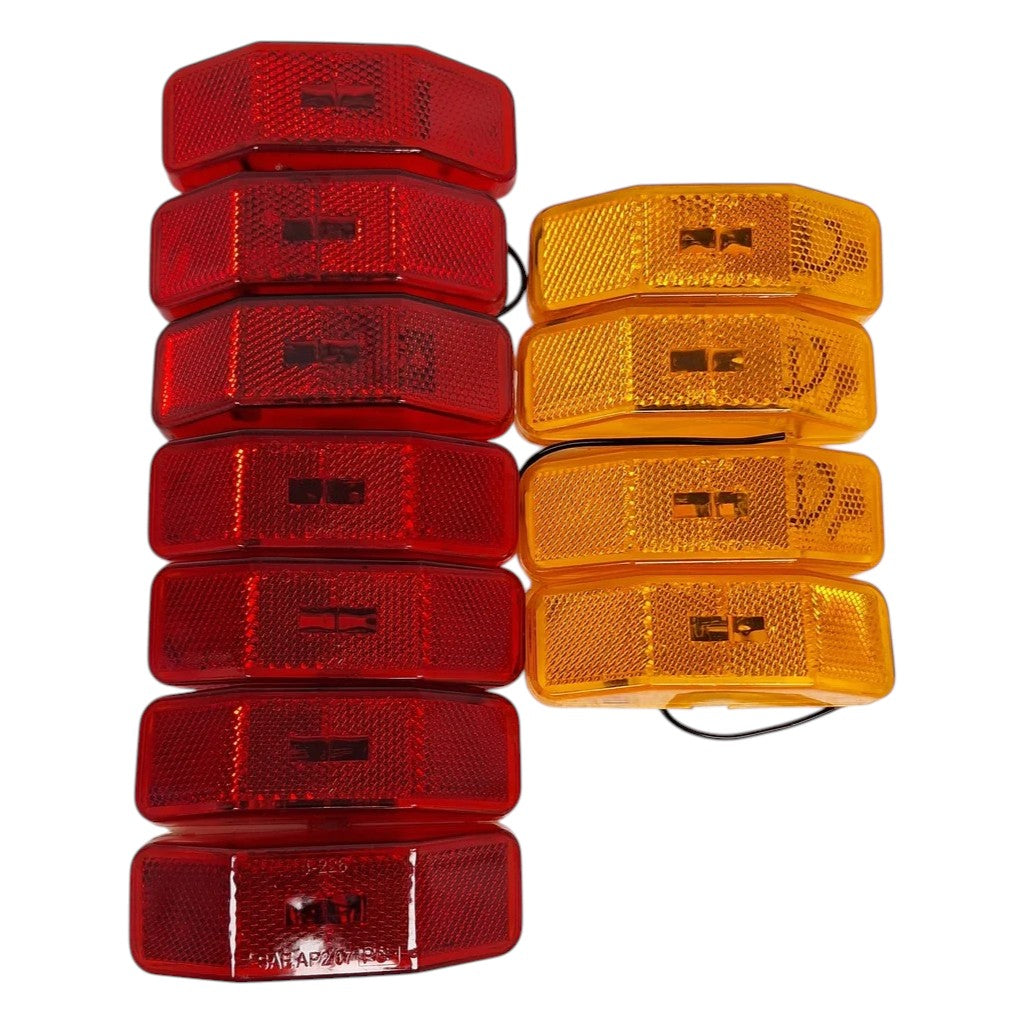

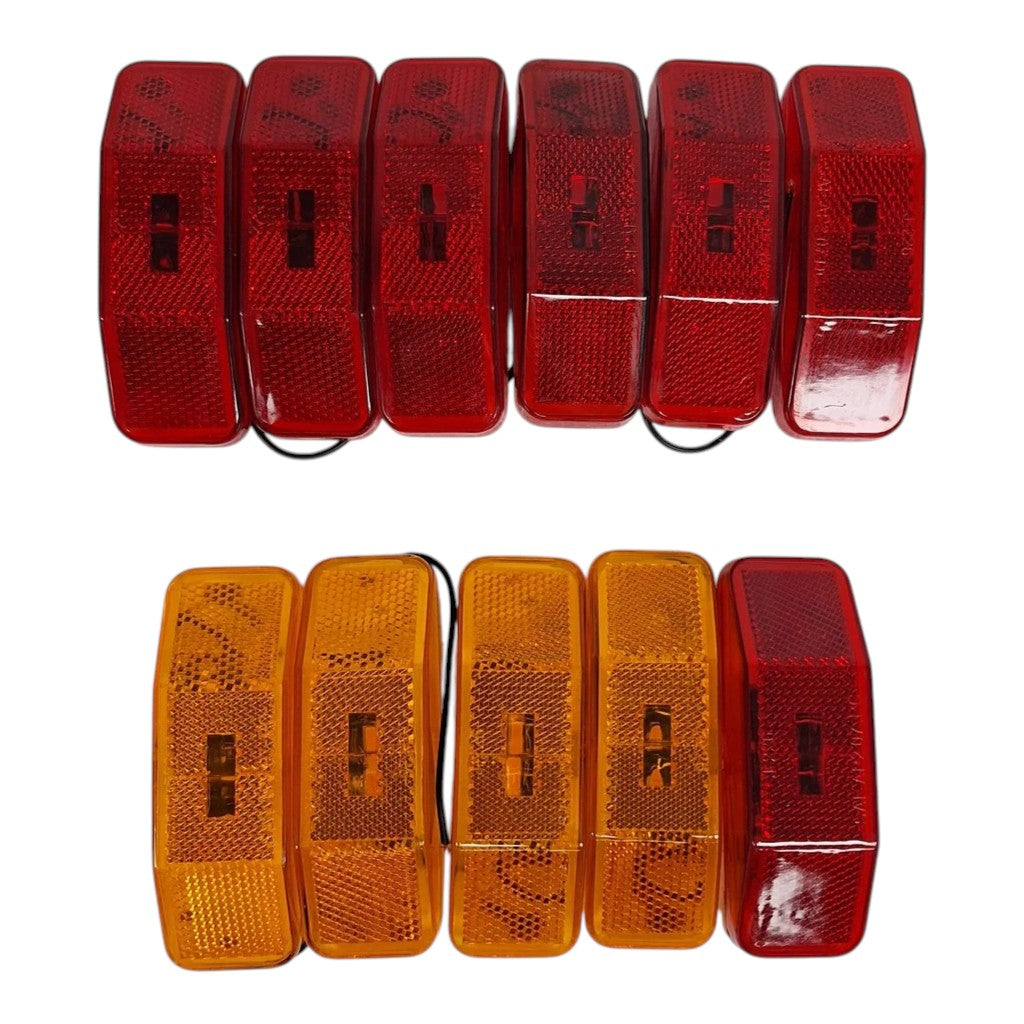

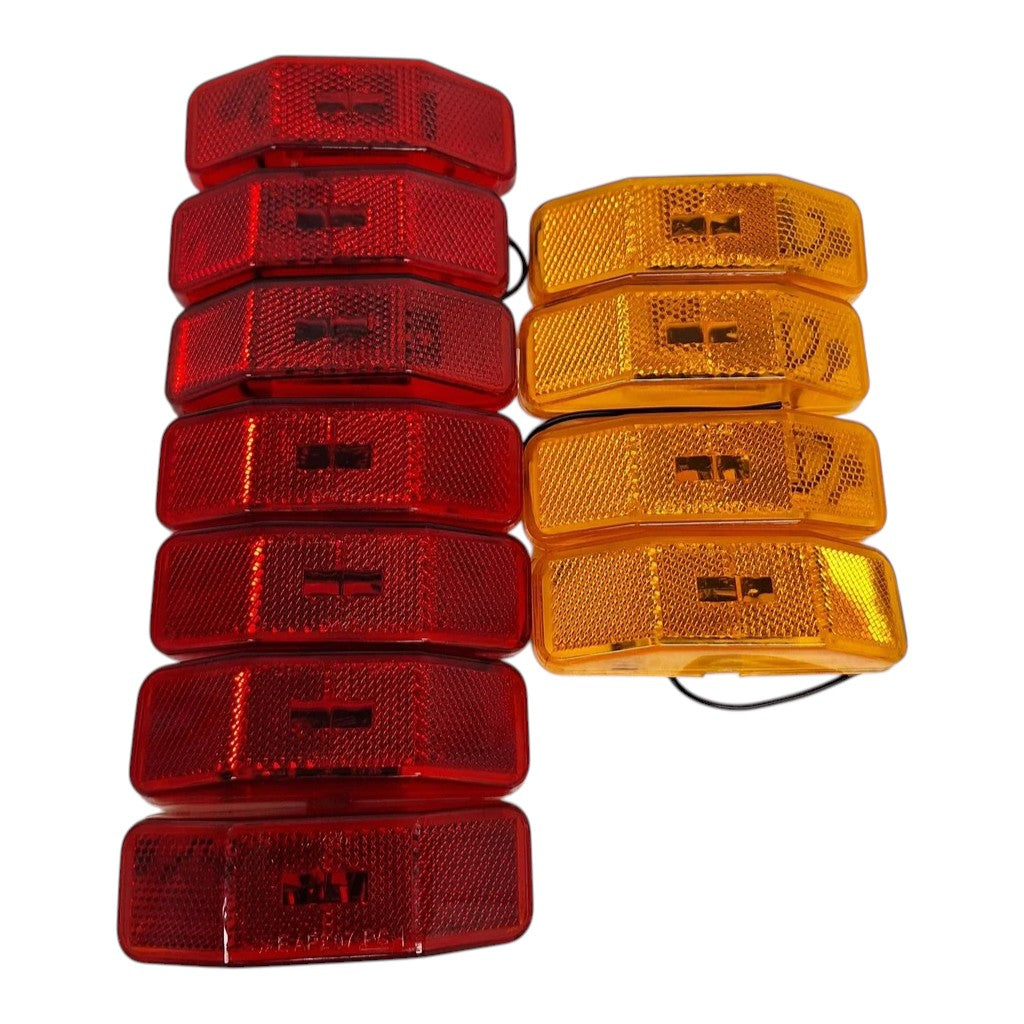

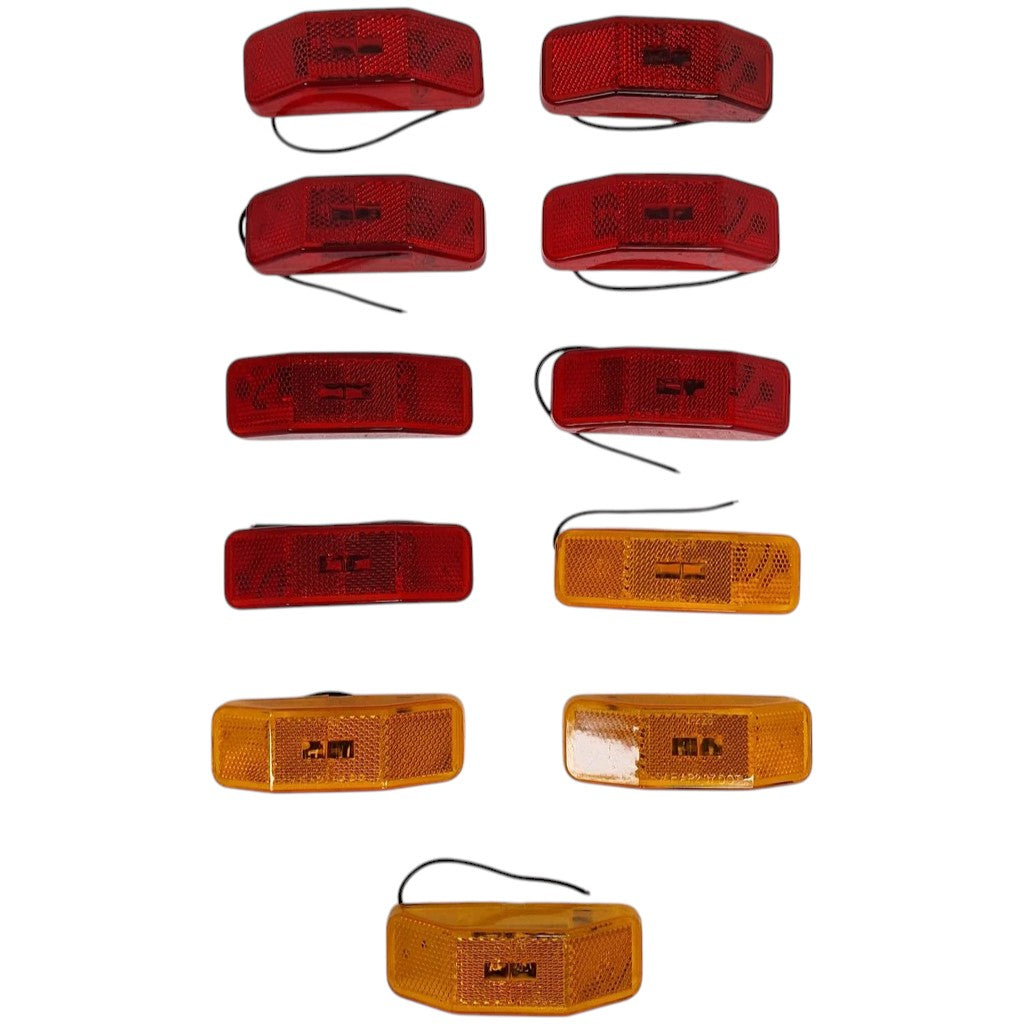

Complete set of 11 LED marker lights designed as a direct replacement for Bargman 99–style trailer marker and clearance lights. Ideal for utility trailers, enclosed trailers, RVs, and equipment haulers.
Features
| Feature | Detail |
| Light Type | LED Marker / Clearance Light |
| Style | Bargman 99 Replacement Style |
| Quantity | 7 Red + 4 Amber (11 Total) |
| LED Count | 2 LEDs Per Light |
| Housing Design | Compact Rectangular |
Specifications
| Specification | Detail |
| Overall Dimensions | 4" Length × 1-1/4" Width |
| Mounting | Two Mounting Holes |
| Mounting Hole Spacing | 3" Center to Center |
| Wiring | Single Power Lead + Ground Ring Terminal |
R&P Knowledge Hub
These LED marker lights use a single power wire and ground through the
attached ring terminal. On steel trailers, the mounting screw typically
provides grounding through the frame.
On fiberglass or aluminum trailers, a dedicated ground wire must be run from the ring terminal to the trailer frame or white ground wire in the harness. Poor grounding is the most common cause of flickering or non-functioning LED lights.
On fiberglass or aluminum trailers, a dedicated ground wire must be run from the ring terminal to the trailer frame or white ground wire in the harness. Poor grounding is the most common cause of flickering or non-functioning LED lights.
Installation Notes
| Connection | Instruction |
| Power Wire | Connect to trailer marker / clearance light circuit. |
| Ground – Steel Frame | Mount to clean, bare metal surface for proper grounding. |
| Ground – Non-Steel Frame | Run separate ground wire to trailer frame or harness ground. |
Important: Verify dimensions, mounting hole spacing, and wiring configuration before installation.
