At a Glance
- SKU: 2374143E-XLC-KIT
PRODUCT INFORMATION
Product Details
Adjustable Pintle Lunette Ring Kit
Wallace Forge Adjustable Trailer Pintle Lunette Ring with 5-Position Channel – 2.5" ID, 30,000 lb GTW
Heavy-duty adjustable pintle ring kit for trailer and equipment towing applications using a pintle hook connection. Includes a forged 2.5 inch ID lunette ring, 5-position formed steel channel, and Grade 8 mounting kit.
Part Number: 2374143E-XLC-KIT 2.5 in ID Ring 30,000 lb GTW / 2,000 lb VL
Key Measurements & Specs
| Specification | Detail |
|---|---|
| R&P SKU | 2374143E-XLC-KIT |
| Brand | Wallace Forge |
| Product Type | Adjustable forged pintle lunette ring kit with channel |
| Ring Inner Diameter | 2.5 in |
| Ring Section / Thickness | 1-3/8 in |
| Channel Style | 5-position formed steel channel |
| Channel Length | 12-1/2 in |
| Gross Trailer Weight Rating | 30,000 lbs |
| Maximum Vertical Load | 2,000 lbs |
| Finish | Not specified by verified source data |
| Quantity Included | 1 complete kit |
Fitment / Application
| Category | Details |
|---|---|
| System Type | Pintle hook towing systems |
| Primary Application | Heavy-duty trailer and equipment towing where an adjustable lunette eye is required |
| Ring Size | 2.5 in inner diameter pintle eye |
| Adjustment Style | Height-adjustable channel mount with 2 in adjustment increments |
| Fitment Method | Verify pintle hook compatibility, channel mounting dimensions, trailer tongue structure, and required capacity before ordering |
| Important Note | Do not select by weight rating alone. Match ring size, channel style, mounting location, and towing requirements before installation. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Forged Lunette Eye | Heavy-duty forged construction for pintle hook trailer applications |
| 5-Position Channel | Allows adjustable coupler height for matching tow vehicle and trailer setup |
| 30,000 lb GTW Rating | Built for severe-duty towing applications within the verified rating limits |
| Grade 8 Mounting Kit | Includes rated mounting hardware for securing the forged eye to the channel |
Overview
The 2374143E-XLC-KIT is a heavy-duty adjustable pintle lunette ring kit built around a Wallace Forge forged 2.5 inch ID tow ring and a 5-position formed steel mounting channel. It is intended for trailer and equipment towing applications where a pintle hook connection is required instead of a ball coupler and where adjustable coupler height is needed for proper tow setup.
R&P Service Insight
Adjustable pintle ring kits are commonly selected when trailer tongue height must be matched to different tow vehicles or working conditions. Confirm the full system rating before installation; the pintle hook, trailer structure, welds, mounting hardware, and lunette ring must all be suitable for the intended load.
- Capacity Check: This kit is rated at 30,000 lbs gross trailer weight with a 2,000 lb maximum vertical load.
- Height Setup: The 5-position channel allows vertical adjustment in 2 inch increments.
- Mounting Check: The channel and trailer tongue must be properly installed and structurally suitable for pintle towing.
R&P Knowledge Hub
Compatibility: Designed for compatible pintle hook towing systems using a 2.5 inch ID lunette eye. Verify the pintle hook throat, trailer tongue setup, channel mounting style, and capacity requirements before ordering.
Vehicle / System Fit: Commonly used on heavy-duty trailers, equipment trailers, utility trailers, and commercial-style towing setups requiring an adjustable pintle ring connection.
Installation Notes: Do not weld the forged ring. Manufacturer guidance allows welding only on the channel where appropriate for the trailer design. Do not over-torque mounting nuts in an attempt to remove normal play from the adjustable assembly.
Performance Insight: The forged eye, formed steel channel, and Grade 8 mounting kit are intended to create a serviceable adjustable pintle connection while preserving height flexibility.
Brand & Fitment Note
Selling Brand: Wallace Forge / R&P Carriages kit SKU
Application Reference: Pintle hook and lunette ring references describe the towing connection type only. They do not guarantee fitment with every trailer, channel, or pintle hook.
What This Means: This listing is for an adjustable forged pintle lunette ring kit with channel, not a vehicle-specific coupler assembly unless measurements and mounting requirements match your application.
Before Ordering: Verify ring ID, channel length, mounting style, load rating, trailer tongue construction, pintle hook compatibility, and included components before installation.
R&P Repair Insight
When replacing or upgrading a pintle ring assembly, compare the existing ring size, channel style, mounting height, and trailer tongue design. A higher-rated ring does not automatically upgrade the full trailer system unless every connected component is rated and installed for that load.
- Check Ring Size: Confirm your tow setup requires a 2.5 inch ID lunette eye.
- Check Channel Fit: Confirm the 5-position, 12-1/2 inch channel works with your mounting area and height requirement.
- Check Torque & Hardware: Use the included Grade 8 mounting kit as intended and avoid over-tightening to remove normal adjustable-ring movement.
Features

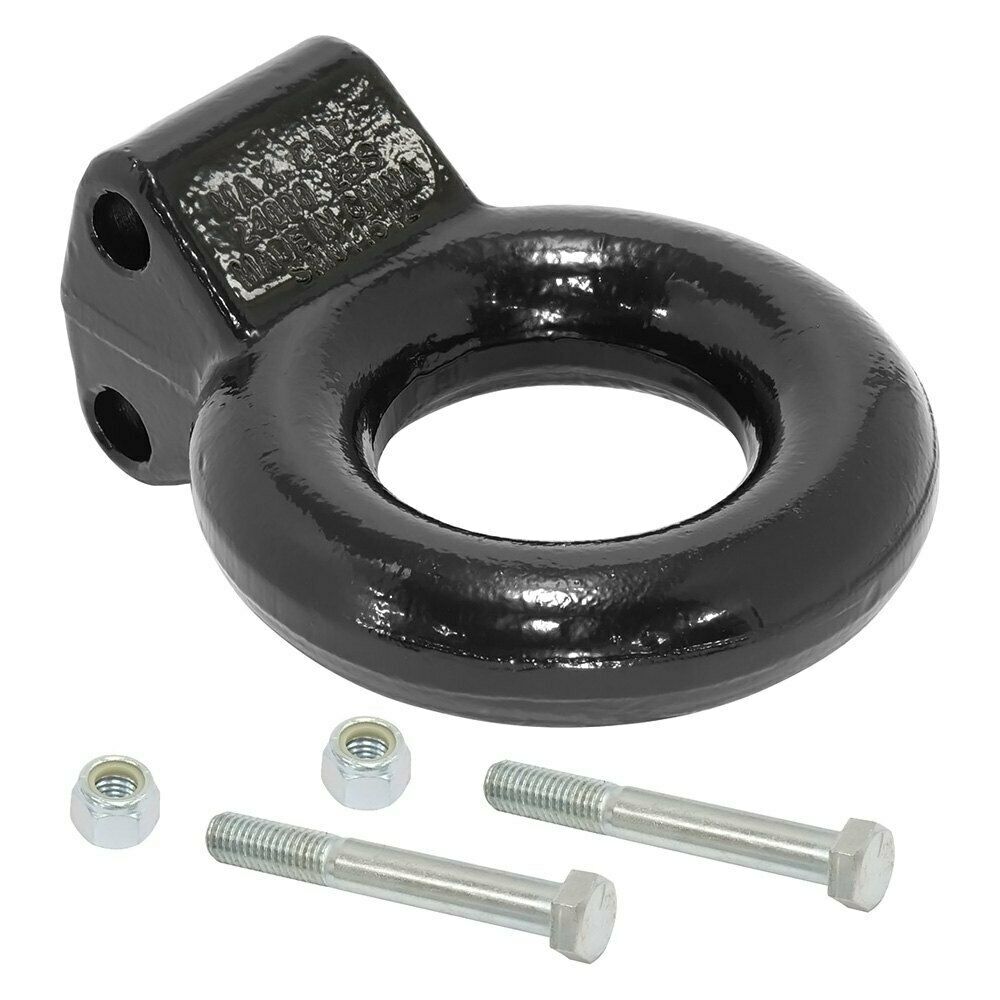

Forged 2.5 in ID Lunette Ring
Forged pintle eye design with a 2.5 inch inner diameter for compatible pintle hook towing systems.

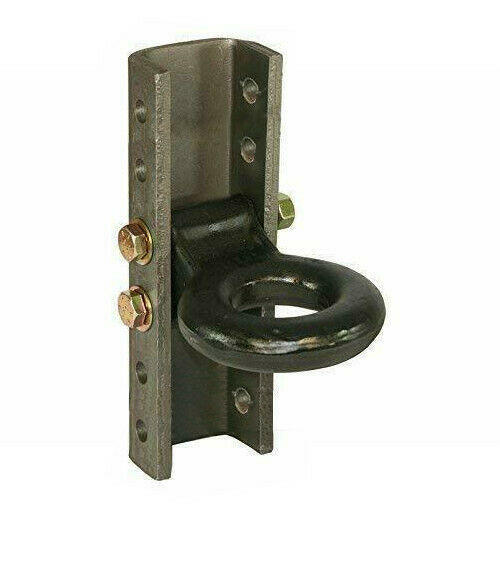

5-Position Adjustable Channel
Formed steel channel provides multiple mounting positions for setting coupler height to the tow vehicle and trailer combination.
30,000 lb GTW Rating
Verified 30,000 lb gross trailer weight rating with a 2,000 lb maximum vertical load rating.
Grade 8 Mounting Kit Included
Includes the mounting kit needed to secure the adjustable forged eye to the channel.
Included Components
| Quantity | Item |
|---|---|
| 1 | Wallace Forge forged adjustable lunette ring / pintle eye, 2.5 in ID, 1-3/8 in ring section |
| 1 | 5-position formed steel channel, 12-1/2 in channel length |
| 1 | Grade 8 mounting kit |
Important Fitment Note: Verify all measurements, trailer tongue construction, channel mounting requirements, pintle hook compatibility, load rating, and installation method before use. Do not weld the forged ring. Only weld the channel where appropriate for the trailer design and installation procedure. Do not over-torque the mounting hardware to remove normal play from the adjustable assembly.
2374143E-XLC-KIT, Wallace Forge adjustable pintle ring, 2.5 inch ID lunette ring, forged pintle eye with channel, 5 position pintle channel kit, 30K pintle ring kit, 30000 lb adjustable lunette eye, trailer pintle coupler, heavy duty pintle ring, forged tow ring with channel, Grade 8 mounting kit, adjustable trailer lunette ring
