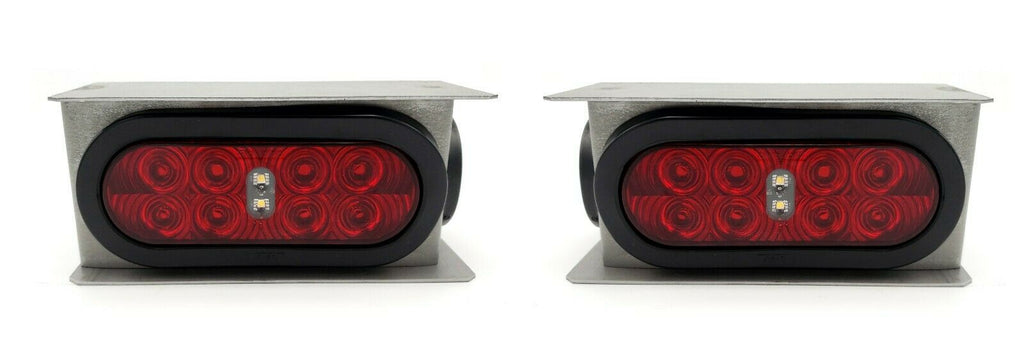

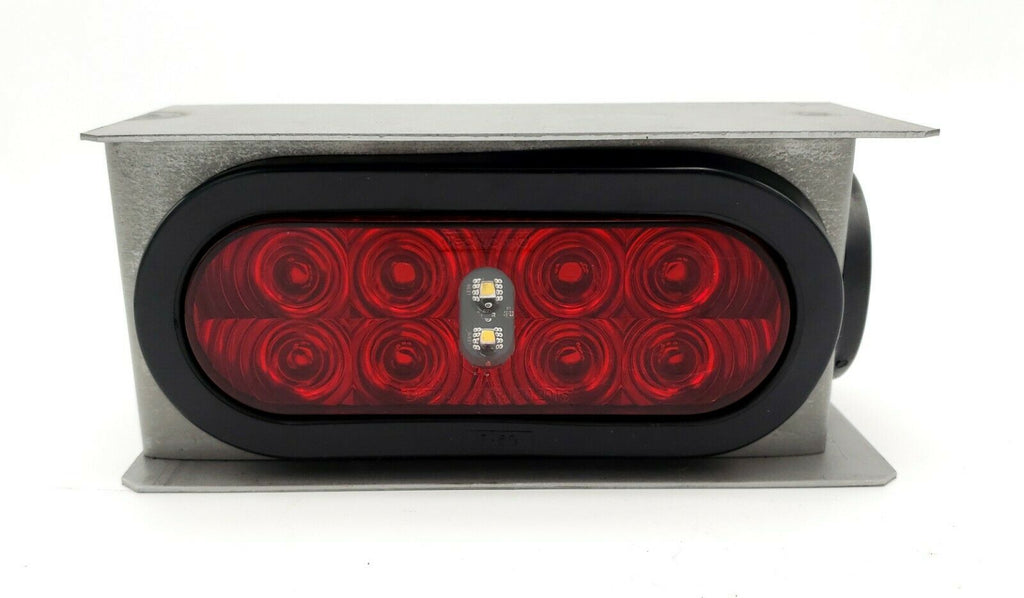

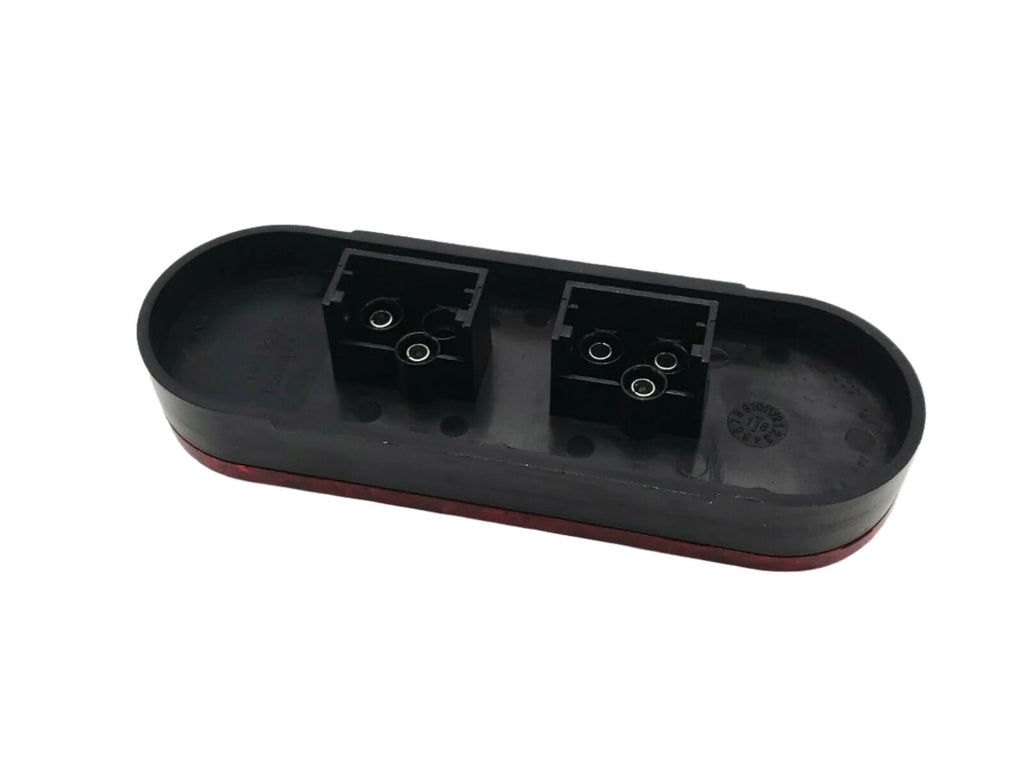

6" Oval Red LED Stop Turn Tail & Backup Steel Light Box Kit Trailer Truck Marker
Part Number - LBK6-RBK
Features:
- Save time and money with our new combination Stop/Tail/Turn and Reverse Light
- Fits all standard 6 oval applications
- 360 optics allow lights to be mounted at any angle
- Available in grommet, surface, or flange mount
- High intensity function only draws 0.14A at 12VDC

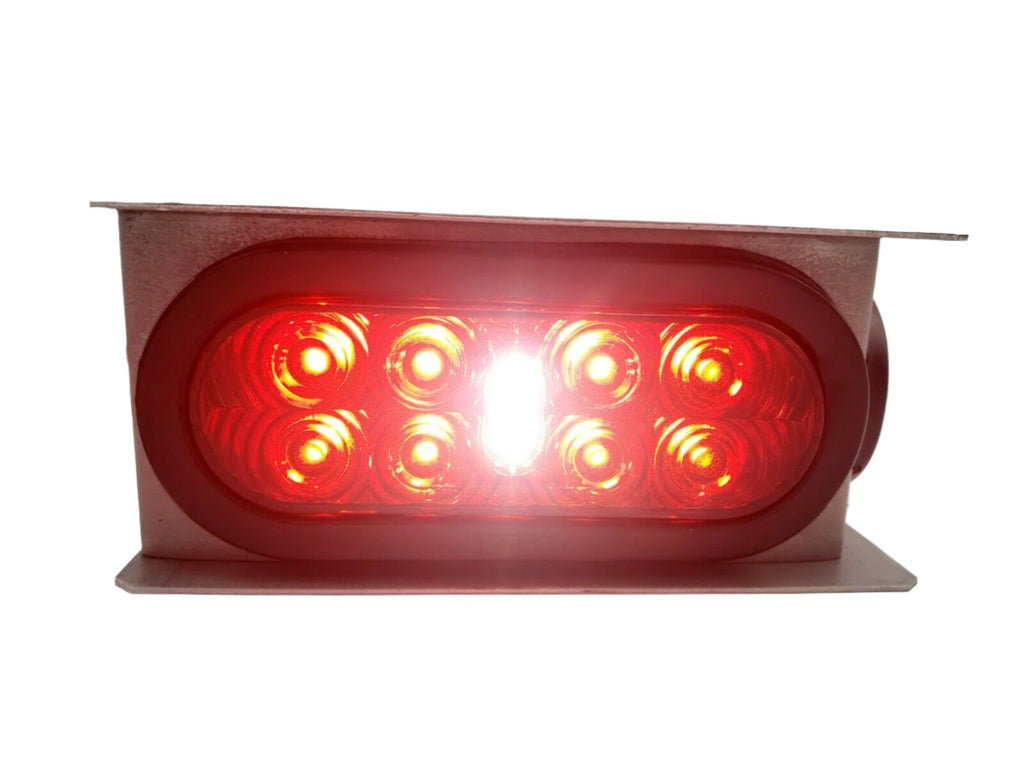

- Reverse function uses an additional 0.30A
- Meets all FMVSS 108 requirements for wide and narrow vehicles
- Lifetime Warranty
Specifications:
- LEDs: 8
- Voltage: 9 - 14V DC
- LEDs: 8
- Voltage: 9 - 14V DC
- Current: 0.11A-0.13A Red (brake) AND 0.24A-0.30A White

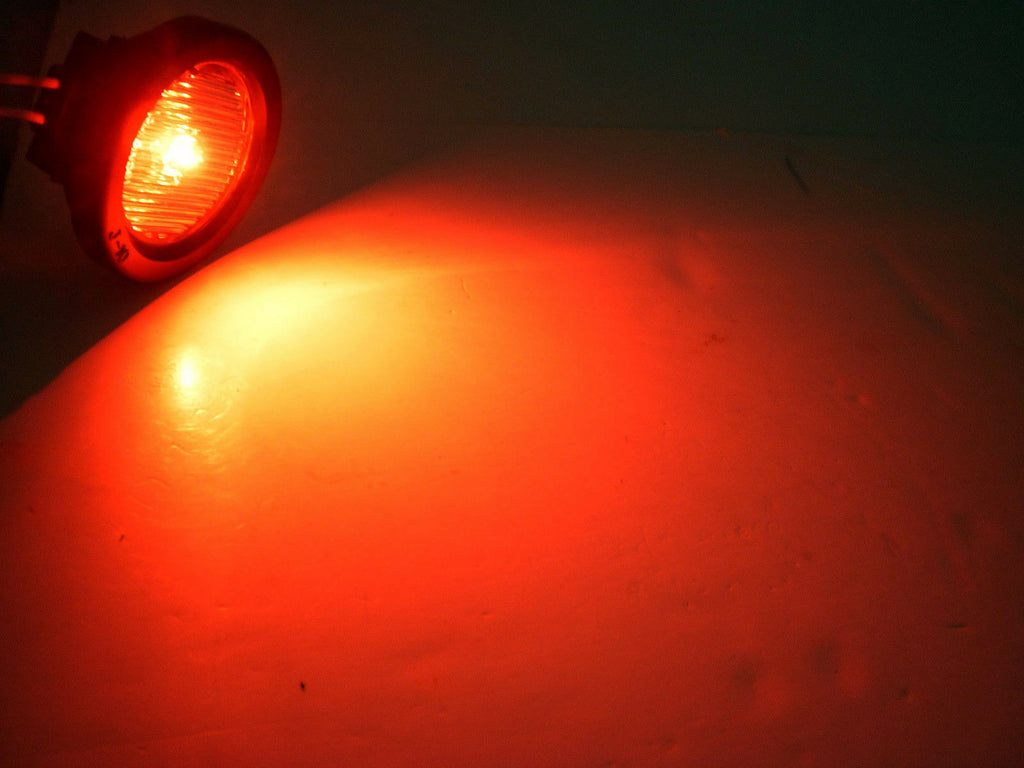

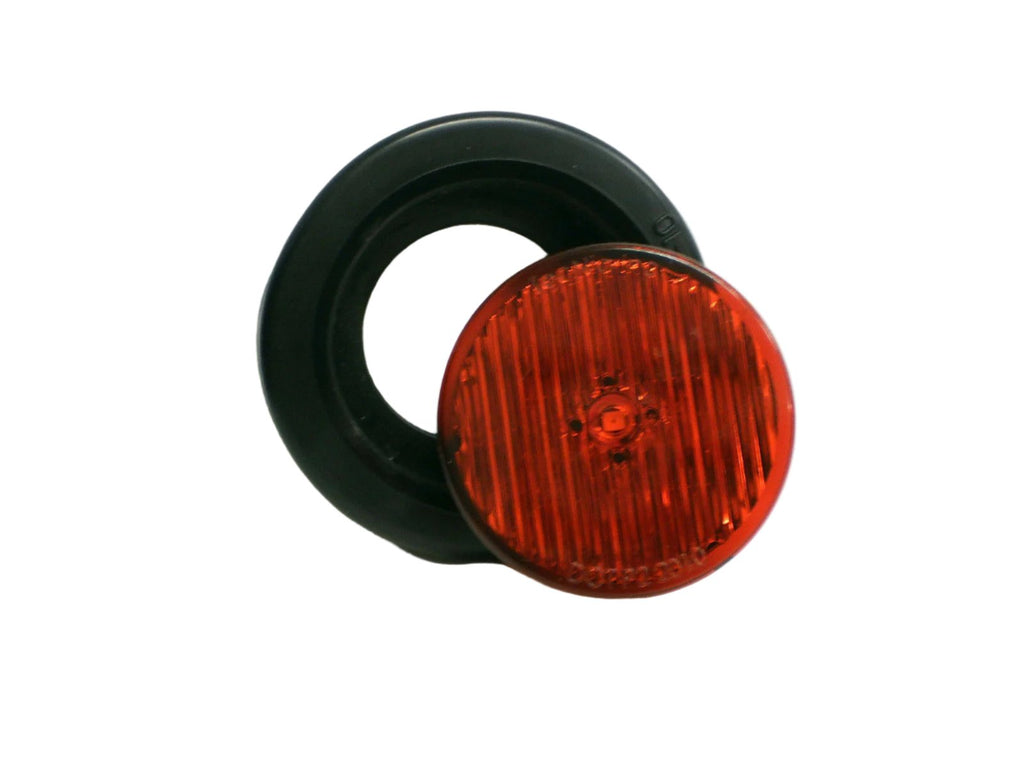

S30 Marker Light
- Operates on 12VDC @0.06A
- Exceeds FMVSS 108 standards
- 100,000 hours of life
- Shock and vibration proof watertight sealed body
- using globally sourced parts lifetime warranty
- Body mounts in standard hole
- Circular lens output reduces mounting errors
- Standard non-polarized connector
- Low profile design reduces damage
- P2 rated sidemarker clearance lamp for heavy duty trucks, semi-trailers, cargo trailers, boat trailers work vehicles and any overland vehicle requiring quality DOT rated lighting.
- 1 LED
Free Shipping (USA only)
We combine shipping, so other lights will ship for free also!
Click on any Picture Below for a Larger Image:
 |
|
 |
|
|
|
|
Examples below of retrofit installations on older trailers:
BOAT TRAILER NOT INCLUDED
Simple installation done on a old Utiltiy trailer that had the cheap Lights:
We just drilled two small holes in the back to line up with the original holes, and bolted on the new lights
Now we have a step to step up on the trailer!
Set of New 14 Gauge Steel Light boxes
WITH LED LIGHTS!
WITH LED LIGHTS!
This kit includes:

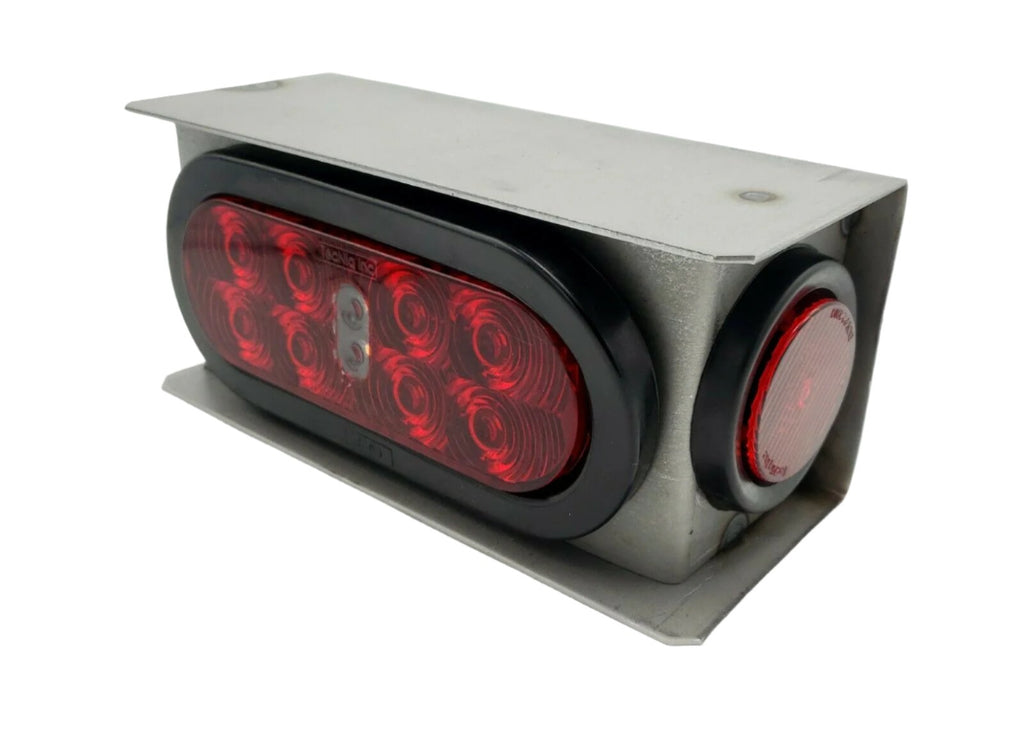

2 - Welded 14 Gauge Light Mount Boxes (one left, one right)

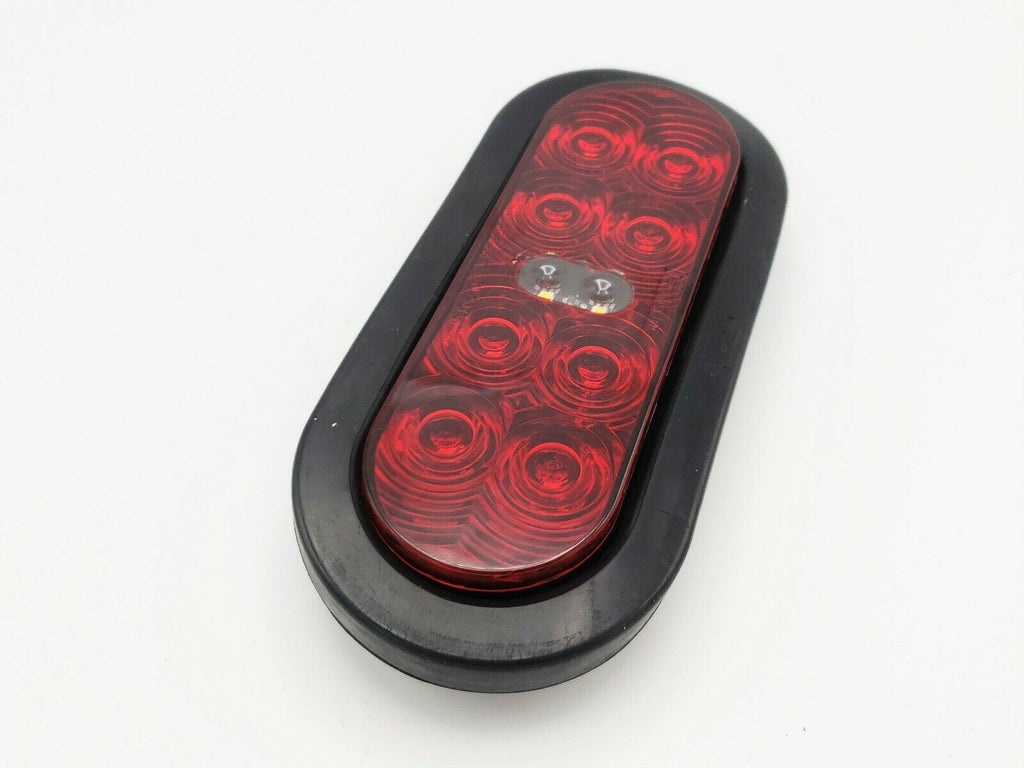

2 - 6" Oval TecNiq Red AND White LED Stop Turn Tail Backup Lights
2 - 6" Light Mounted Rubber Grommets
2 - 3 Wire Seal Light Plug Pigtails

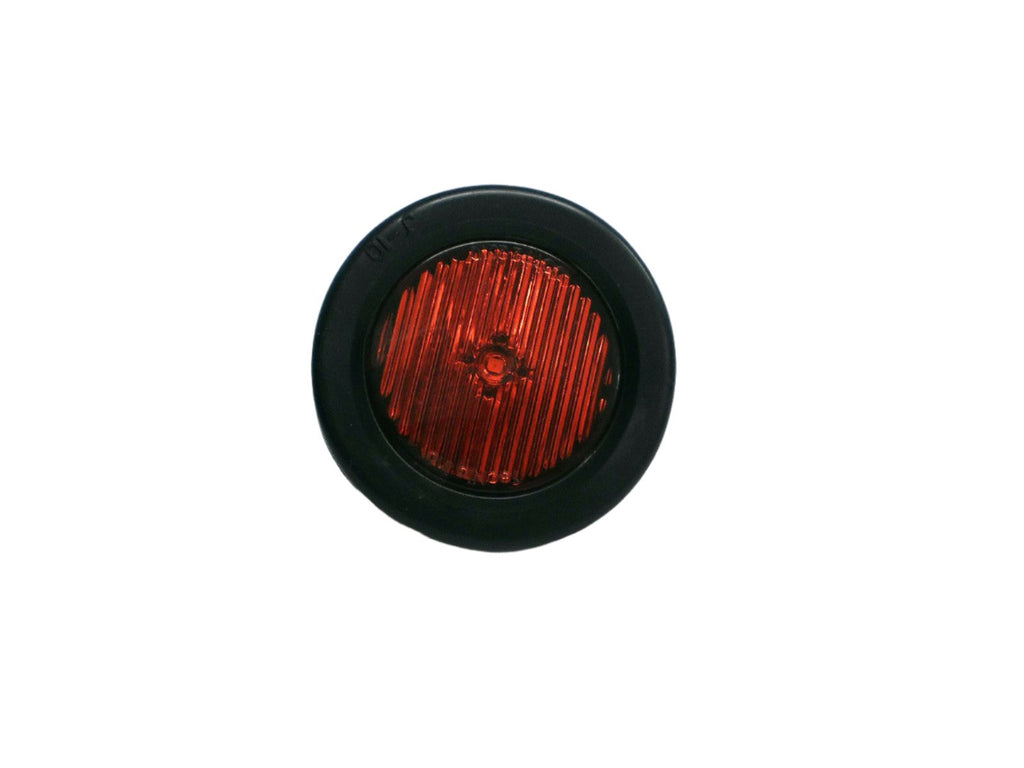

2 - 2" Round TecNiq Red LED lights
2 - 2" Round Rubber Grommets
2 - 2 Wire Sealed Light Plug Pigtails
Light Box Specifications
- The Light Box enclosures are custom made for us to use on our trailers. They are heavy 14 Gauge Steel,
2 - Welded 14 Gauge Light Mount Boxes (one left, one right)
2 - 6" Oval TecNiq Red AND White LED Stop Turn Tail Backup Lights
2 - 6" Light Mounted Rubber Grommets
2 - 3 Wire Seal Light Plug Pigtails
2 - 2" Round TecNiq Red LED lights
2 - 2" Round Rubber Grommets
2 - 2 Wire Sealed Light Plug Pigtails
Light Box Specifications
- The Light Box enclosures are custom made for us to use on our trailers. They are heavy 14 Gauge Steel,
- Steel is formed to act as a full enclosures for the lights, with a 3/4" "lip" around the outside of the lights to protect them from impact or damage! (the number one cause of light failure on a trailer!)

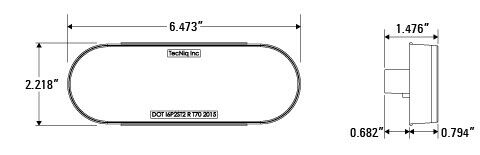

- The holes in the lights are STANDARD 6" oval grommet mount lights, and 2" round grommet mount side marker lights, The LED lights are Standard size 6" oval and 2" round lights. Long Life LED, VERY BRIGHT!
- Can be mounted to the side, top or bottom of your trailer.
- Measure just under 4"x4"x9" Hole size is 2.25" tall and 6.75" long, and 2.25" round.
- Hole that wires come through is .75"
