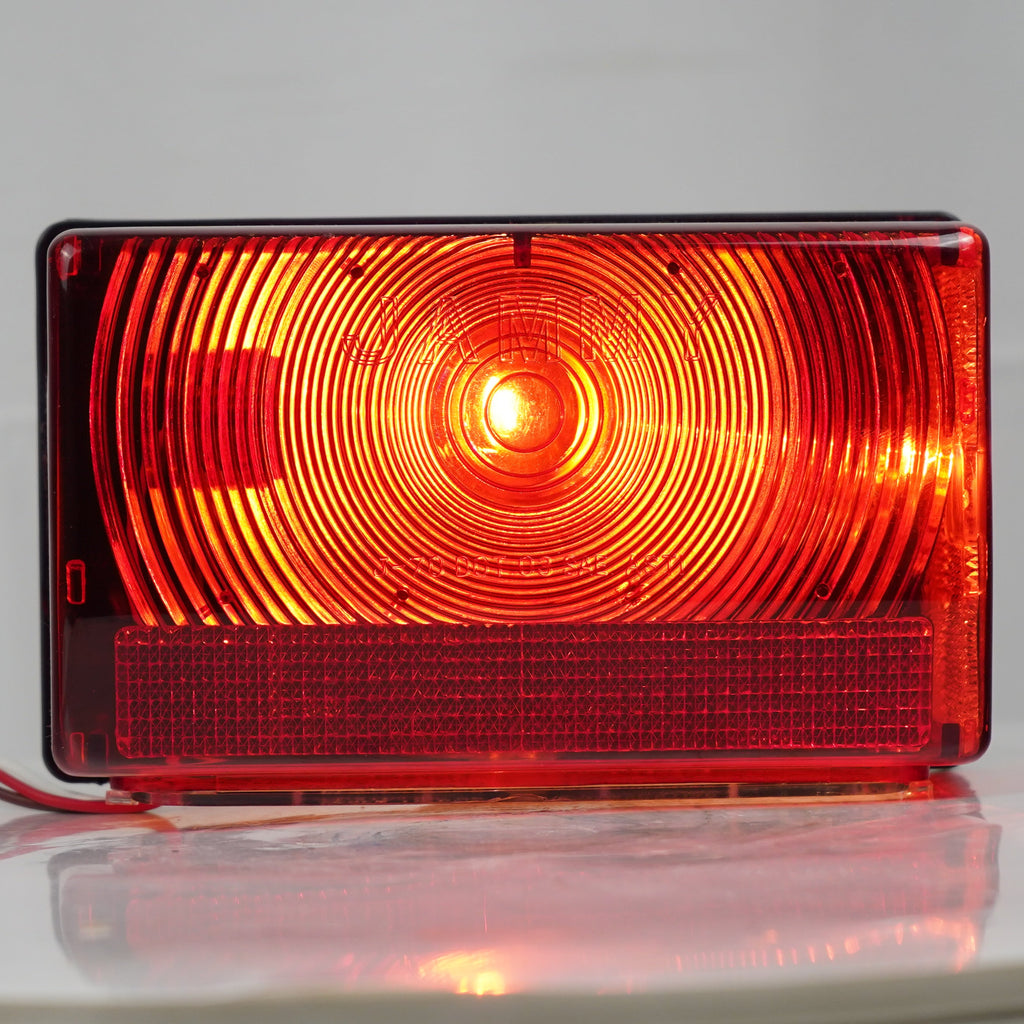

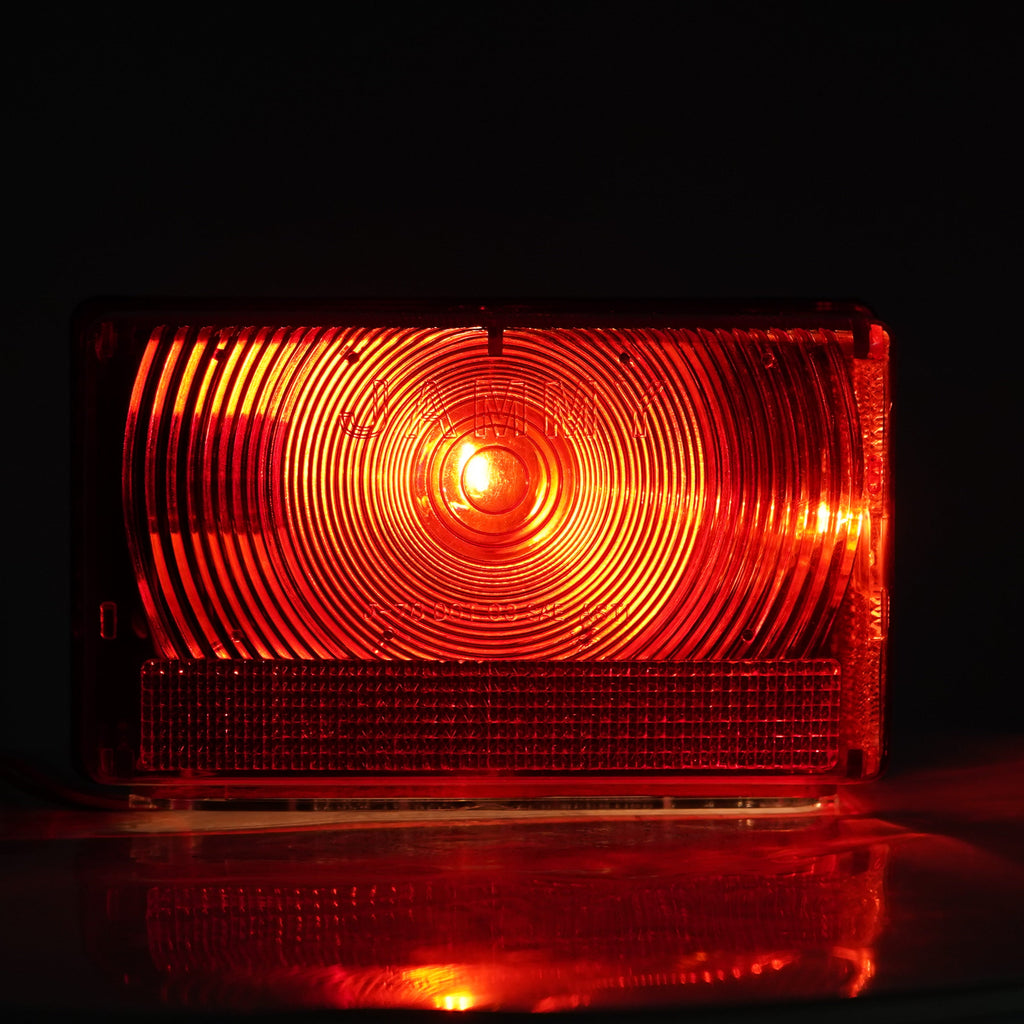

Jammy Red Rectangular Trailer Light - Right Side
Red rectangular stop, turn, and tail trailer light for the right / passenger / curb side of trailers, campers, RVs, boat trailers, and utility trailers. Classic Jammy J-70 box-style design with removable mounting studs and three-wire trailer lighting connection.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | J-70 |
| Brand / Style | Jammy J-70 box-style trailer light |
| Product Type | Stop / turn / tail trailer light |
| Dimensions | 6-1/8" L x 3-5/8" H x 2-1/4" D |
| Mounting Stud Spacing | 2" center to center |
| Quantity Included | 1 right / curb side trailer light |
Fitment / Application
| Category | Details |
|---|---|
| Common Use | Trailers, campers, RVs, utility trailers, and boat trailers using rectangular box-style rear lamps |
| Side / Orientation | Right / passenger / curb side |
| Fitment Method | Match lamp dimensions, mounting stud spacing, wire function, and trailer side before ordering |
| Important Note | Housing is similar to J-70-L; side is determined by wiring connection and application |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Stop / Turn / Tail Functions | Combines rear signal and running light functions in one lamp |
| Right Side Wiring | Green wire is used for right turn / stop circuit |
| 2" Stud Mount | Fits applications using two mounting studs on 2" centers |
| Sealed Red Lens Housing | Durable trailer-light construction for exterior trailer use |
Overview

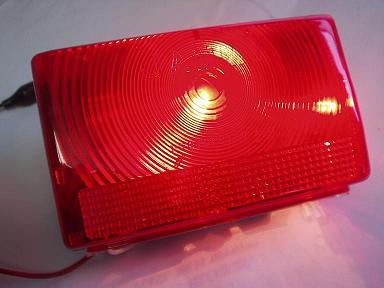

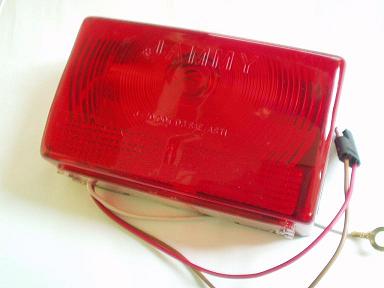

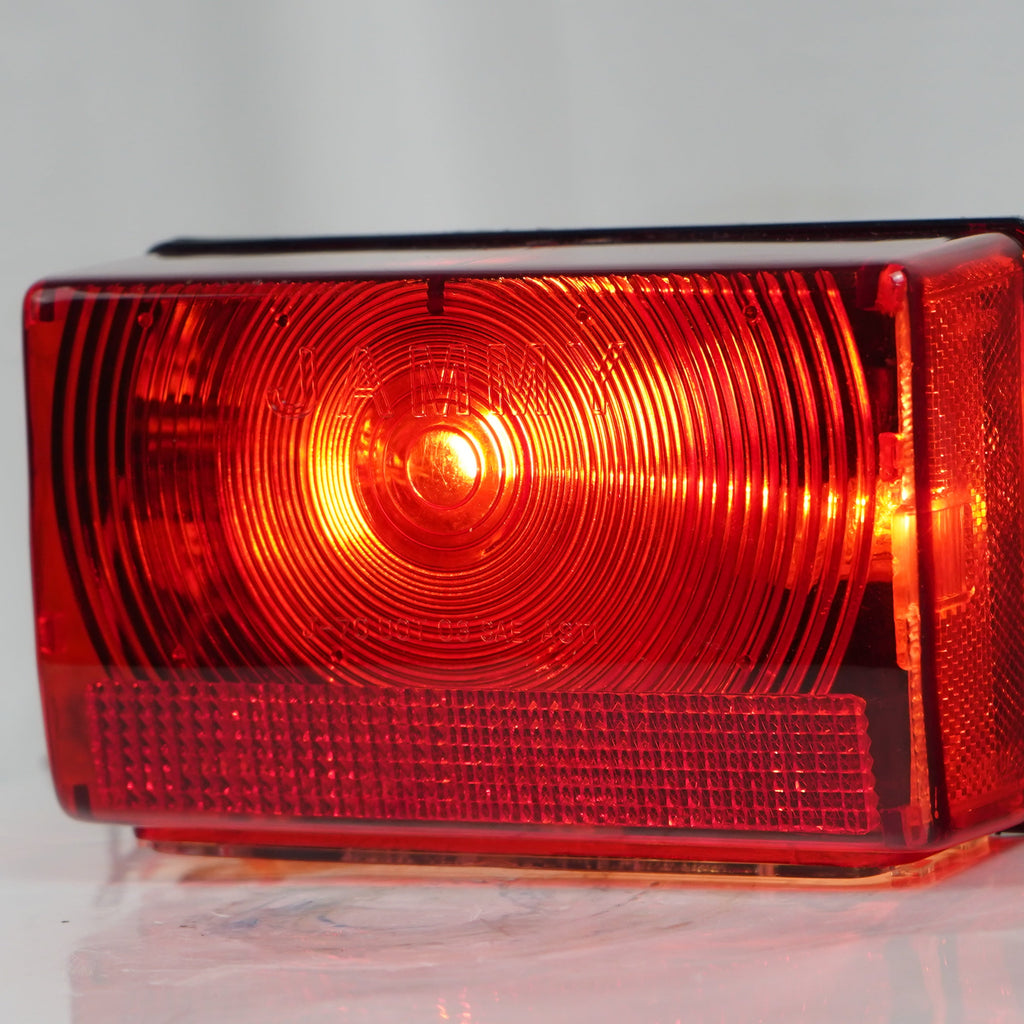

The Jammy J-70 is a right / curb side rectangular trailer lamp used for stop, turn, and tail light functions on 12V trailer lighting systems. This light is commonly used on trailers and RV-style applications that use a classic red box lamp with two removable mounting studs on 2" centers.
R&P Service Insight
Before replacing a rear trailer light, match the lamp side, mounting pattern, and wire functions to the existing light. A left and right lamp may look nearly identical, but the turn / stop wire color and side assignment matter during installation.
- Side Check: This listing is for the right / passenger / curb side lamp.
- Mounting Check: Confirm the two mounting studs match the 2" center-to-center spacing.

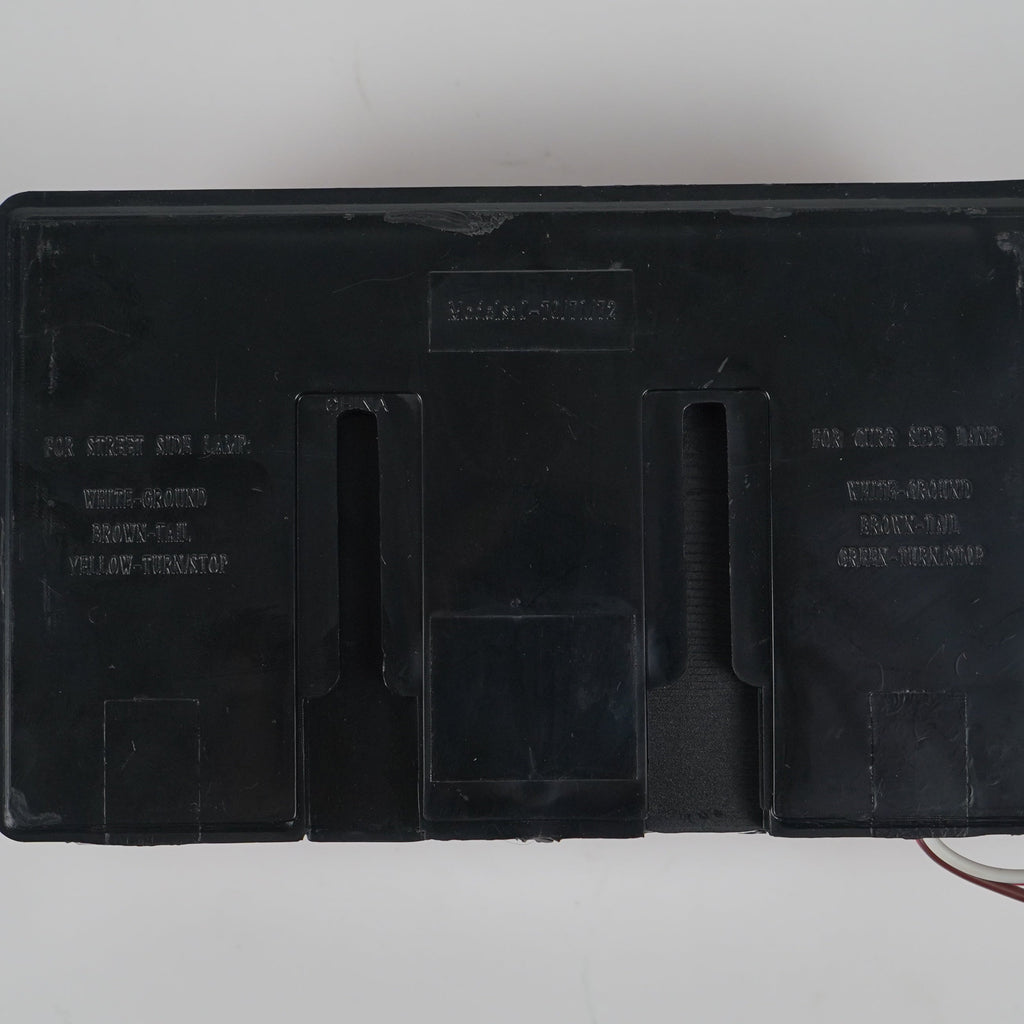

- Wiring Check: Green is right turn / stop, brown is tail / running lights, and white is ground.
R&P Knowledge Hub
Compatibility: Fits trailer applications where the lamp dimensions, stud spacing, wire functions, and right-side orientation match the original light.
Vehicle / System Fit: Designed for 12V trailer lighting systems requiring a right-side stop, turn, and tail lamp.
Installation Notes: Disconnect power before installation, confirm each wire function, and test stop, turn, tail, and ground circuits before road use.
Performance Insight: Correct right-side wiring is important because the stop / turn circuit must match the trailer’s passenger-side signal circuit.
Brand & Fitment Note
Selling Brand / Style: Jammy J-70 box-style trailer light
Application Reference: Trailer, camper, RV, boat trailer, and utility trailer references describe common use only. Fitment should be verified by measurement and wiring function.
What This Means: This listing is for one J-70 right / curb side stop, turn, and tail trailer light.
Before Ordering: Verify lamp size, mounting stud spacing, trailer side, wire colors, and connector or wiring method before installation.
R&P Repair Insight
Rear trailer light issues are often caused by poor grounds, corroded terminals, broken wires, or incorrect left/right wiring. Replacing the lamp is only one part of the repair; test the circuit before assuming the light itself is the only failure point.

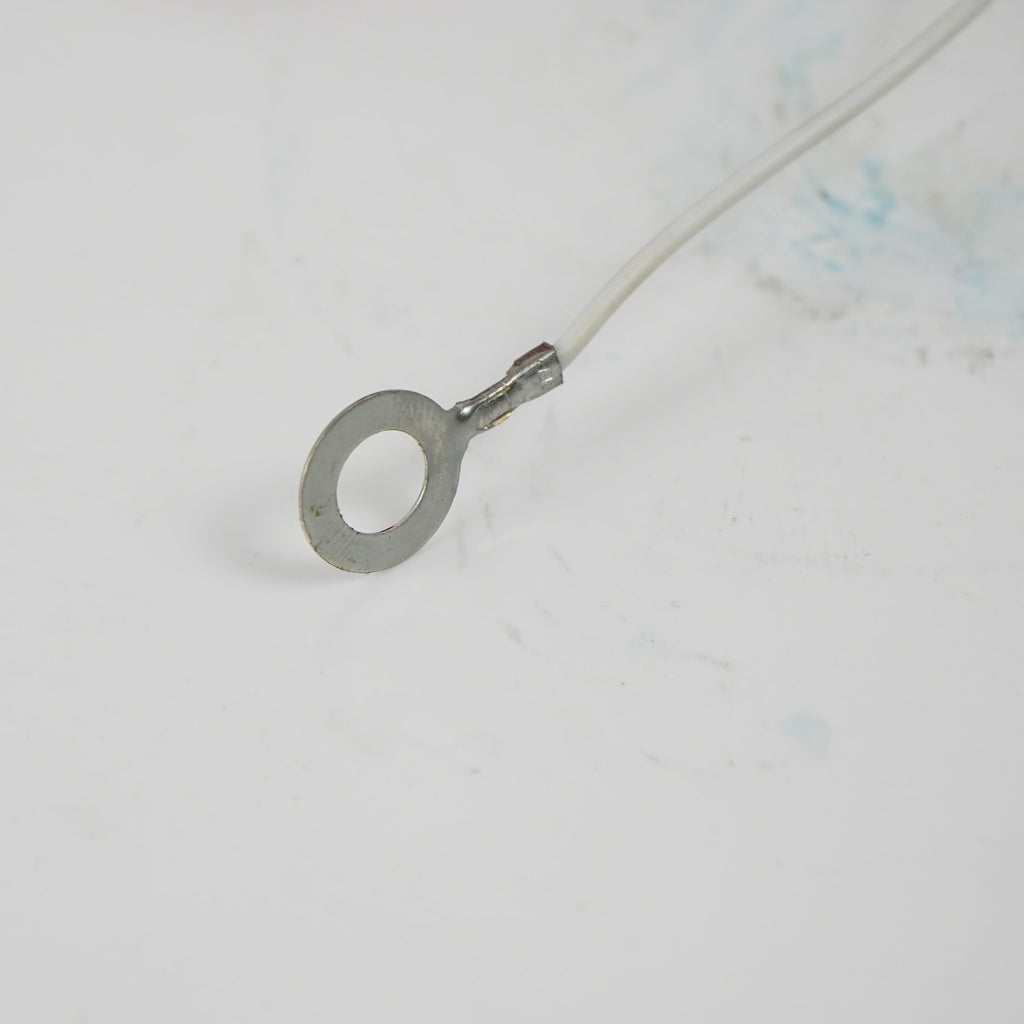

- Ground Circuit: Make sure the white ground wire has a clean connection to the trailer ground circuit.
- Running Light Circuit: Brown should power the tail / marker light circuit.
- Turn / Stop Circuit: Green should power the right turn and stop function on the curb side.
Features
Right / Curb Side Trailer Lamp
Built for the passenger side of the trailer where the green right turn / stop circuit is used.
Stop, Turn & Tail Functions
Combines three core rear trailer lighting functions in one rectangular red lamp assembly.
Classic Box-Style Design
Common rectangular style used on many utility trailers, boat trailers, campers, and RV applications.
2" Stud Mounting Pattern

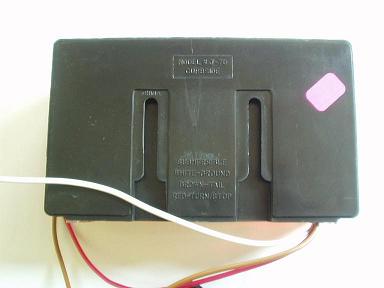

Mounts with two removable studs spaced 2" center to center for compatible trailer brackets.
Specifications
| Specification | Detail |
|---|---|
| Part Number | J-70 |
| Lens Color | Red |
| Voltage | 12V DC |
| Functions | Stop / turn / tail |
| Side | Right / passenger / curb side |
| Dimensions | 6-1/8" L x 3-5/8" H x 2-1/4" D |
| Mounting Stud Spacing | 2" center to center |

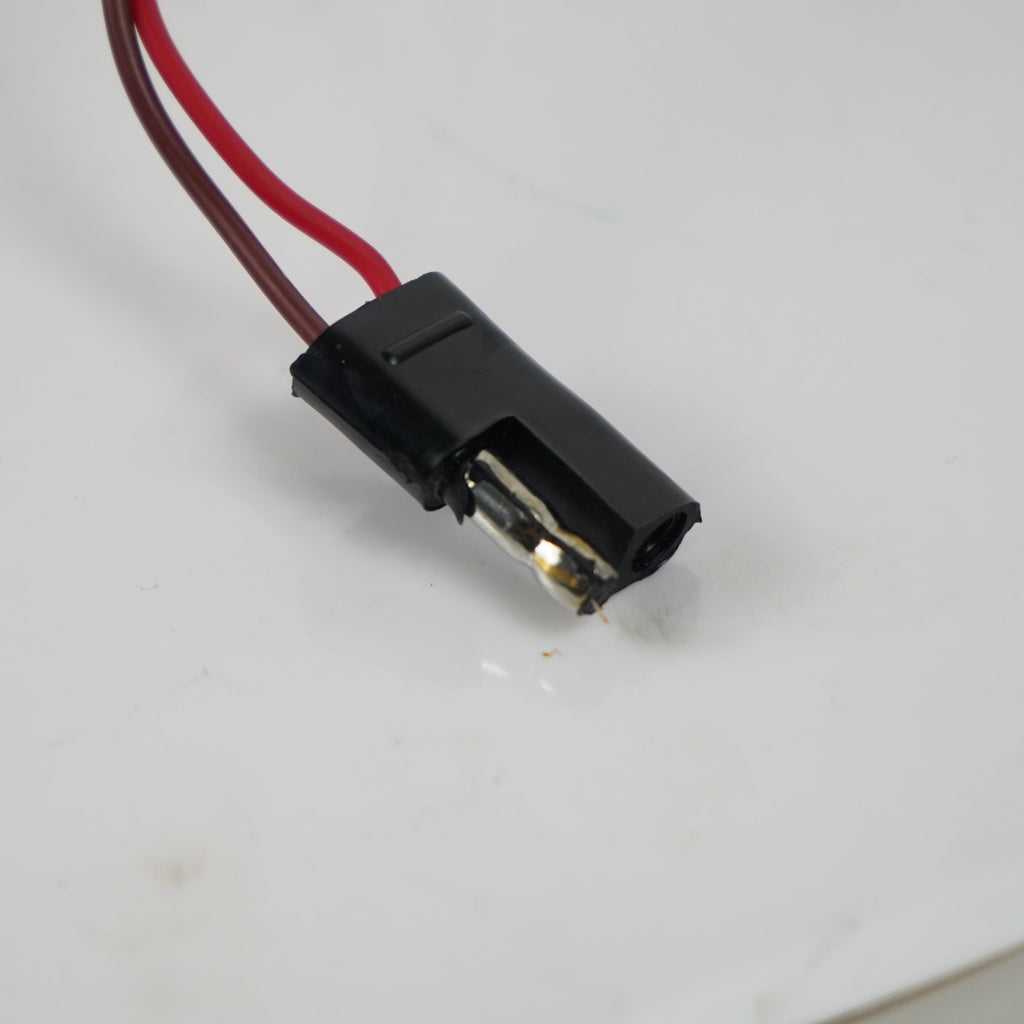

| Wire Functions | Green: right turn / stop; Brown: tail / running lights; White: ground |
Included Components
| Quantity | Item |
|---|---|
| 1 | Jammy J-70 right / curb side stop, turn, and tail trailer light |

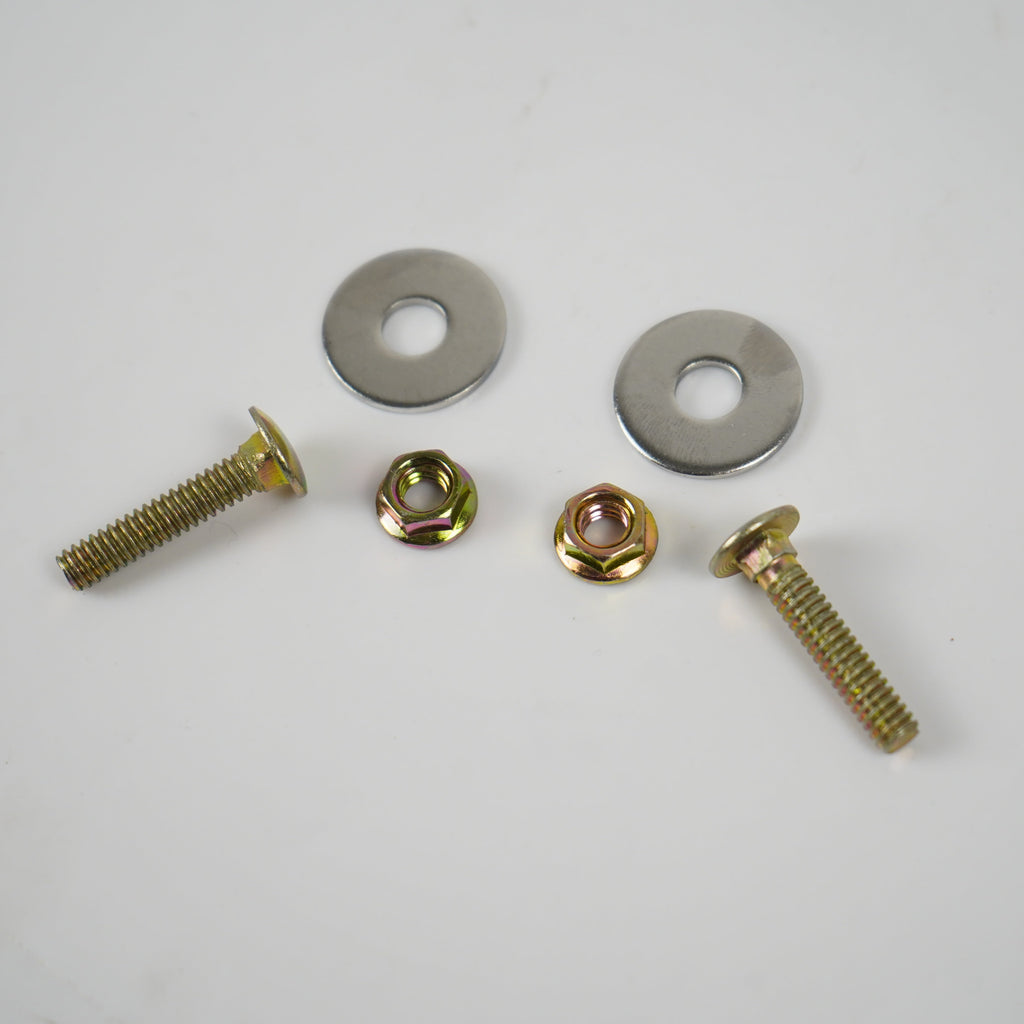

| Included | Two removable mounting studs on 2" centers |
| Not Included | Left / driver side lamp, trailer wiring harness, mounting bracket, and installation hardware not shown |
