Pair (2) Dexter 6,000 lb Idler Hubs
6 on 5.5 Bolt Pattern

Part Number: 008-213-09-KITX2

THIS KIT SERVICES TWO (2) WHEELS

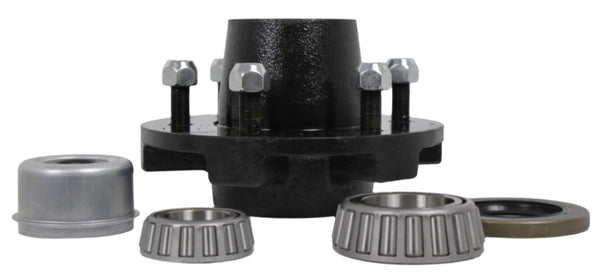

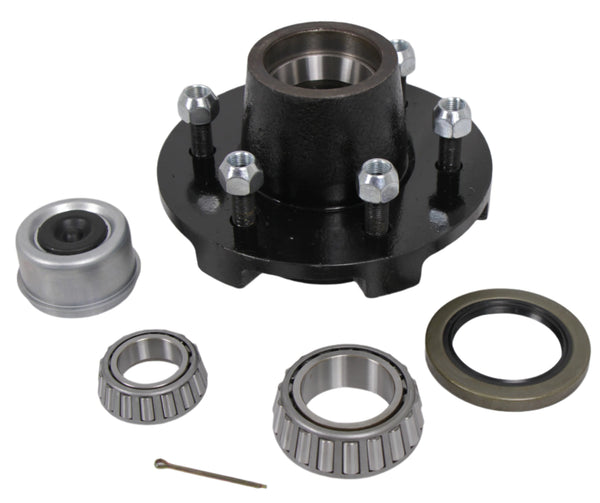

This listing is for a pair of genuine Dexter 6,000 lb idler hubs with a 6 on 5.5" bolt pattern, fully assembled with bearings, seals, and dust caps. These hubs are commonly used on 6K trailer axles where brakes are not installed.

The hubs come cupped and studded with 1/2" wheel studs and include all wear components needed to service both wheel ends.

What’s Included (Complete Two-Wheel Kit)

• (2) Dexter idler hubs — 008-213-09

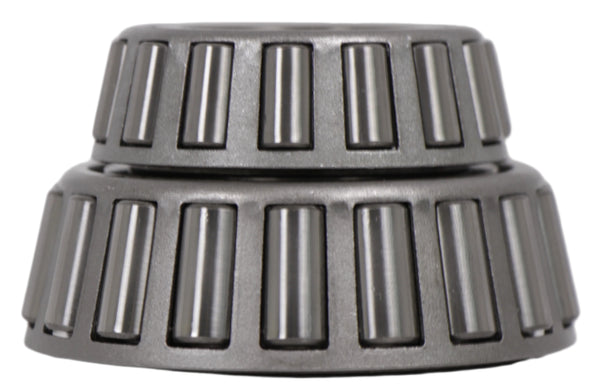

• (2) Inner bearings — 25580 (1.75" ID)
• (2) Outer bearings — 15123 (1.25" ID)

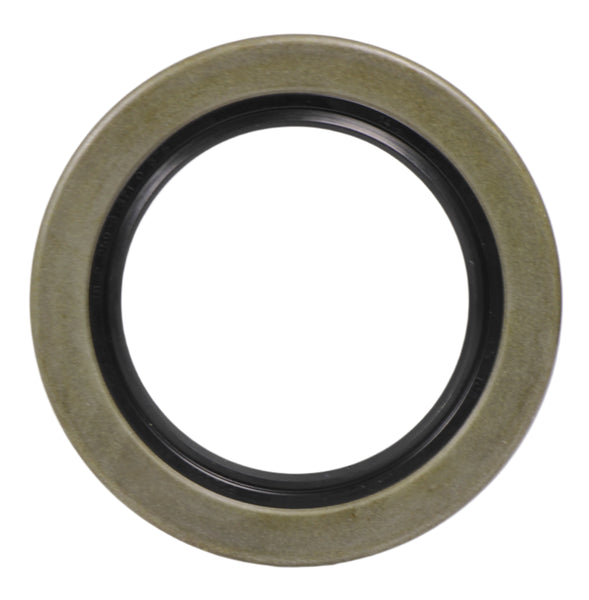

• (2) Grease seals — 10-36 (2.25" × 3.376")
• (2) Grease seals — 10-10 (2.125" × 3.376")

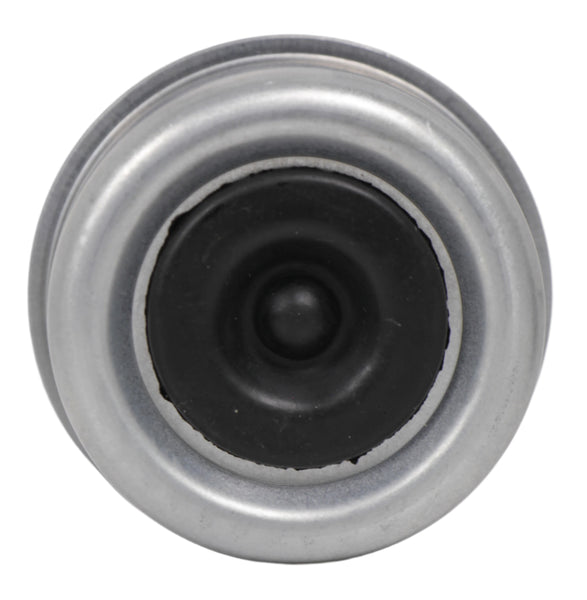

• (2) Dust caps — DC-250 (2.44" OD with rubber insert)

Specifications

Fitment Notes

• Designed for Dexter-style 6,000 lb idler axles
• For non-brake applications only
• Always verify bearing numbers and seal sizes before ordering

If your existing hub uses different bearing or seal combinations, this may not be the correct replacement. Please confirm measurements prior to purchase.
