2000# Brake Spindle Axle Shaft Trailer BT16 Hub Drum Axle Boat RV Camper Flanged (SP-150BT16FZ-KIT)

$54.70
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 72 available 71 remaining after purchase
Selected quantity subtotal $54.70
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: SP-150BT16FZ-KIT
PRODUCT INFORMATION

Product Details

R & P Carriages Logo

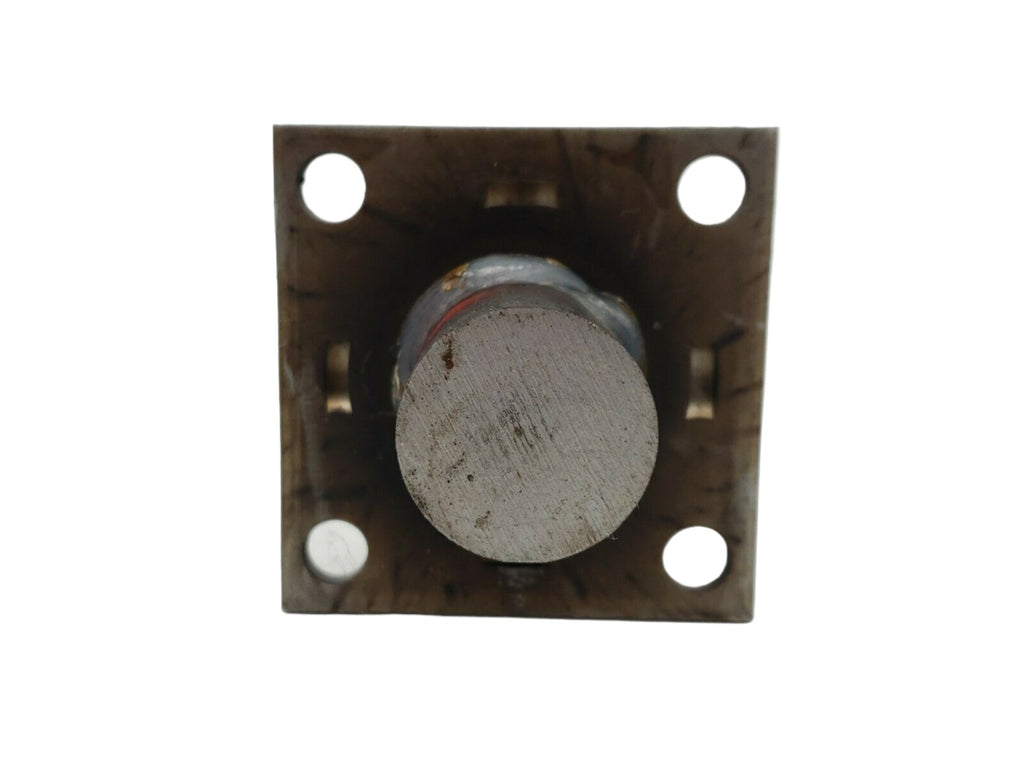

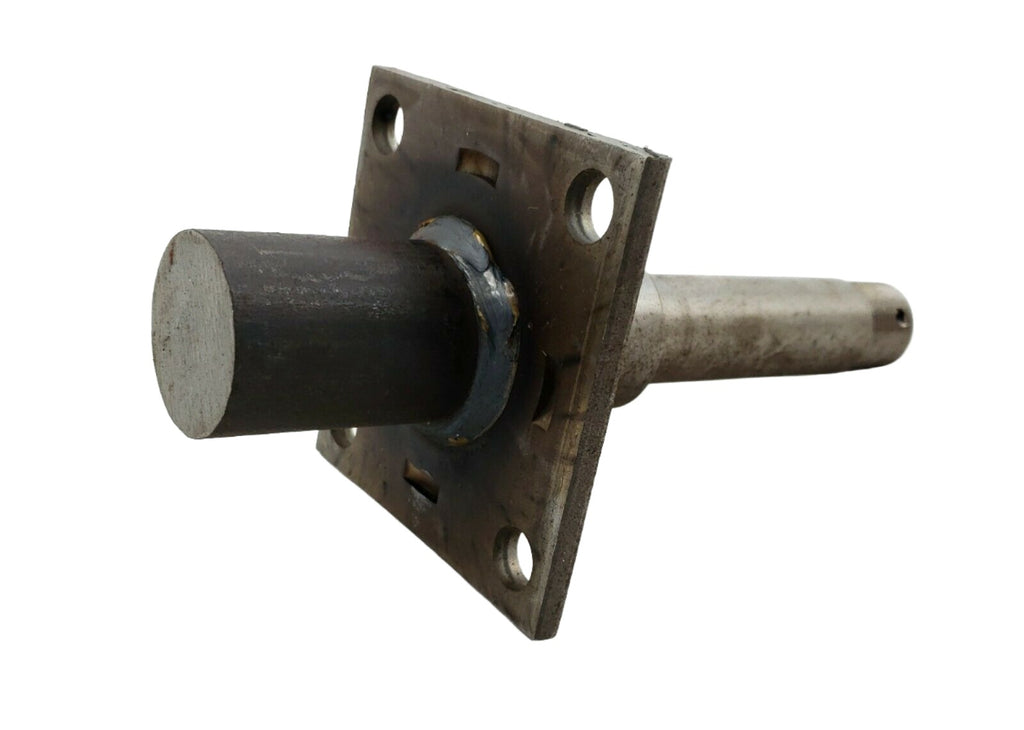

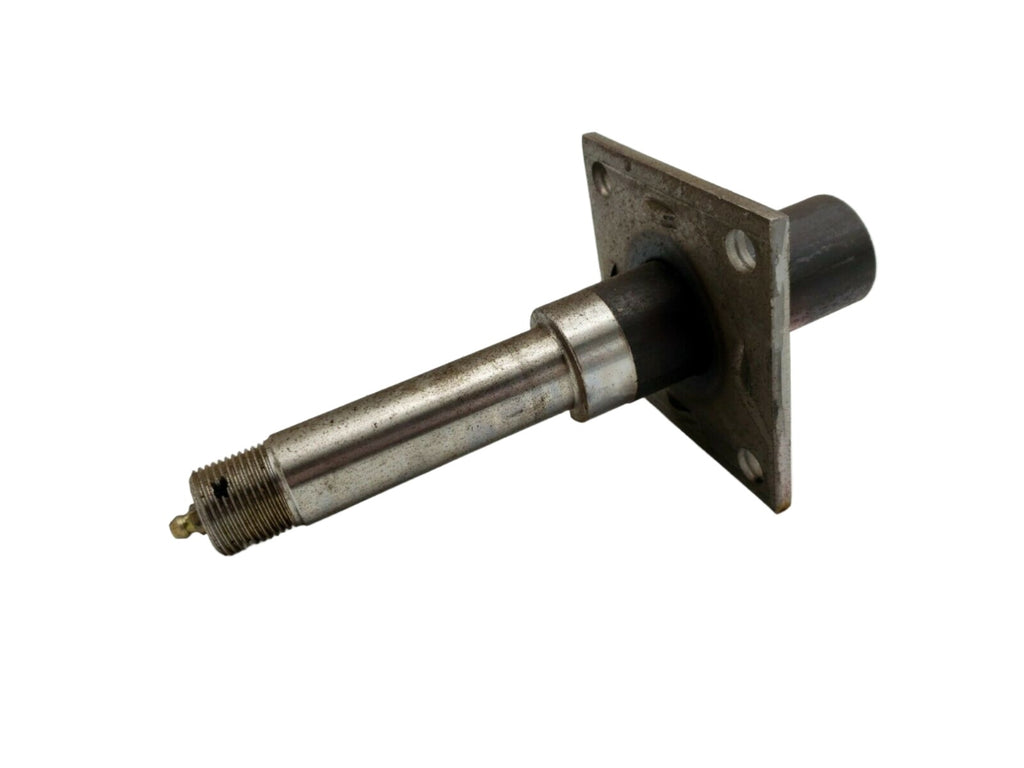

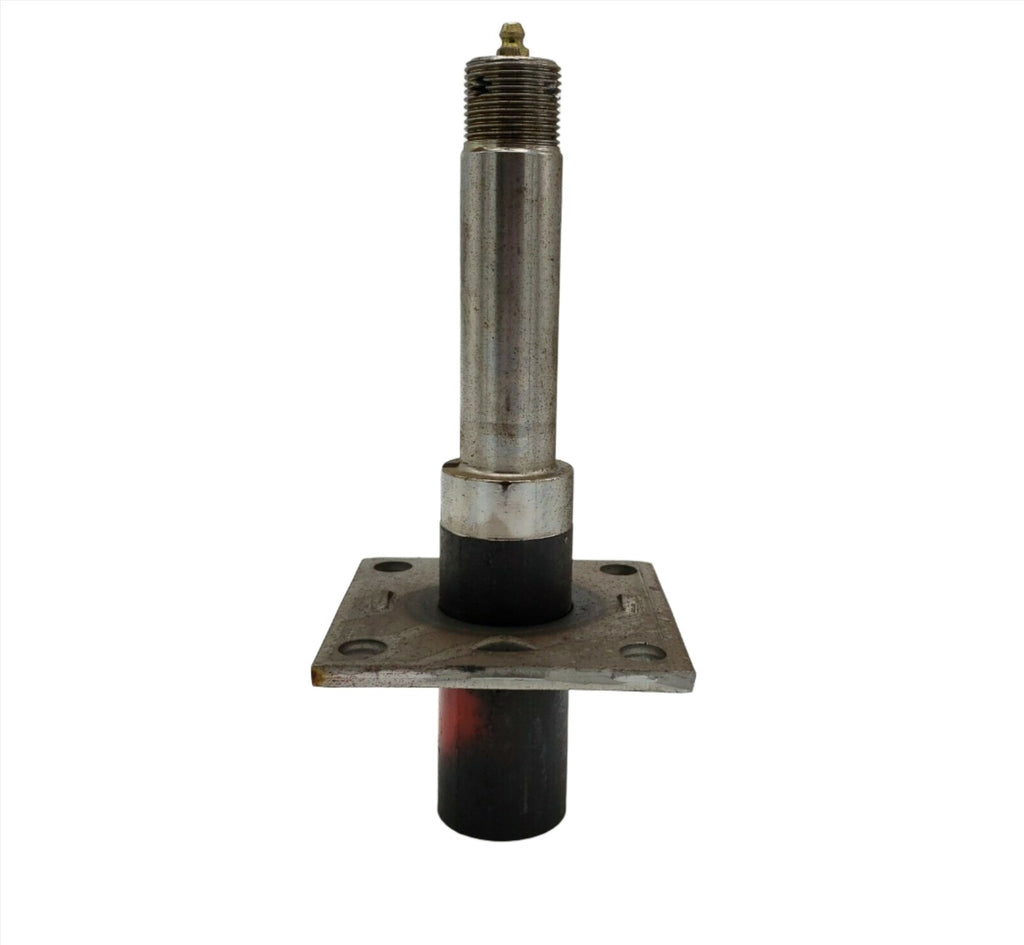

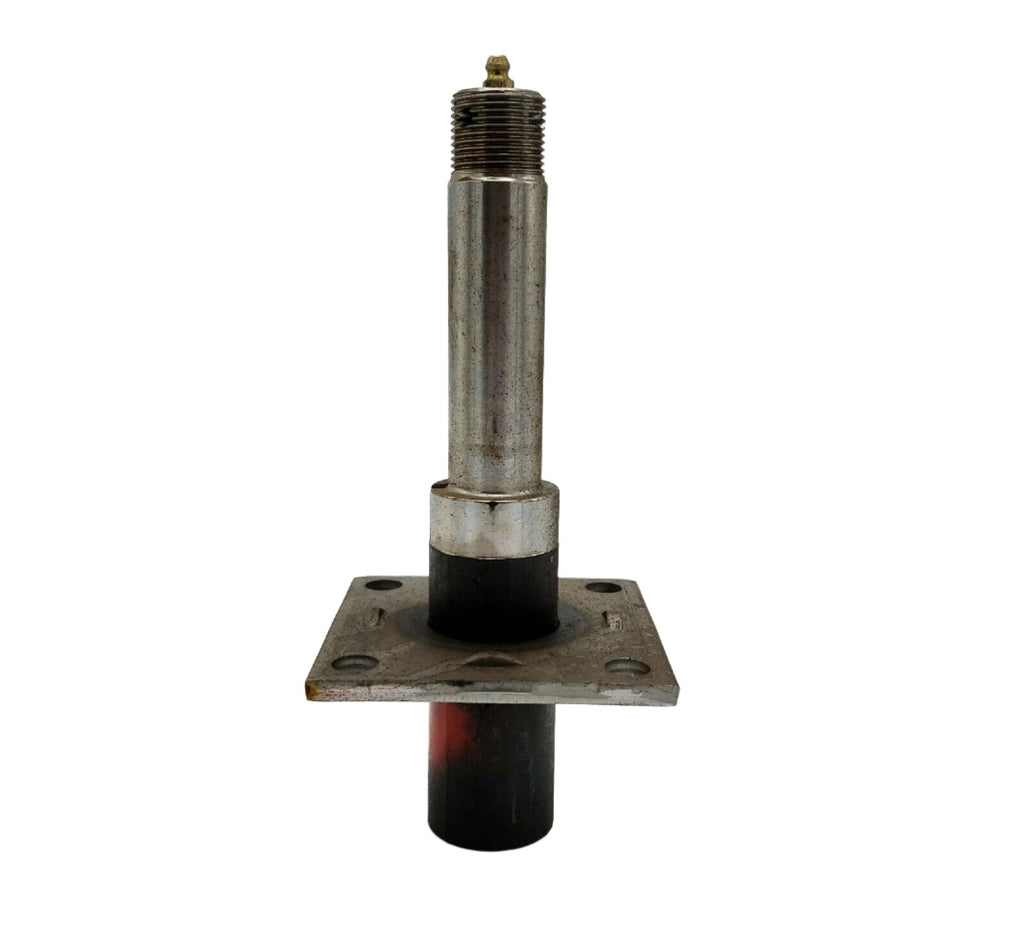

2000 lb Brake Spindle – Flanged & Lubed – Fits BT16 Hub/Drum Assemblies

Part Number: SP-150BT16FZ-KIT

This 2000 lb brake spindle is used on light-duty trailer axles for utility, cargo, boat, and RV applications. The spindle features a machined 4-bolt brake flange, accepts standard L44649 bearings, and uses a 1.50" ID grease seal (Dexter 10-60 / 15192TB). This kit version includes the spindle plus castle nut, washer, and cotter pin.

Features

  • 2000 lb brake spindle with machined 4-bolt brake flange
  • Accepts standard 1-1/16" L44649 inner and outer bearings
  • Uses 1.50" grease seal (Dexter 10-60 / 15192TB)
  • Flanged and pre-lubed spindle shoulder
  • Includes nut, spindle washer, and cotter pin
  • Suitable for hub, idler, and brake drum setups

Specifications

Specification Detail
Spindle Base Diameter 1.50"
Shaft Length 3.37"
Overall Length 8.25"
Bearing Size L44649 (inner & outer)
Seal Size 1.50" ID (Dexter 10-60 / 15192TB)
Brake Flange Standard 4-bolt brake mounting flange
Included Hardware Castle nut (1"), spindle washer (1"), cotter pin

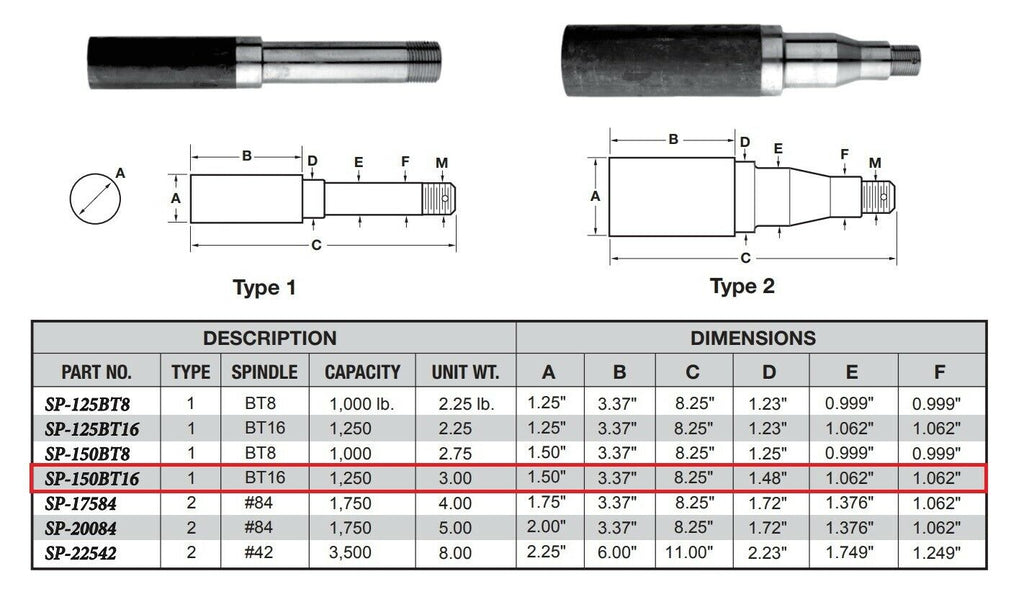

Spindle Diagram

Check all spindle and hub measurements carefully before ordering. This spindle is commonly used on 2000 lb trailer axles but variations exist between manufacturers. Verify brake flange alignment and seal/bearing fit before installation.
