12-1/4 x 3-3/8 LEFT 8K Hydraulic Backing Plate Trailer 4 Bolt 23-402 (77-1208H-1)

$137.20
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 21 available 20 remaining after purchase
Selected quantity subtotal $137.20
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: 77-1208H-1
PRODUCT INFORMATION

Product Details

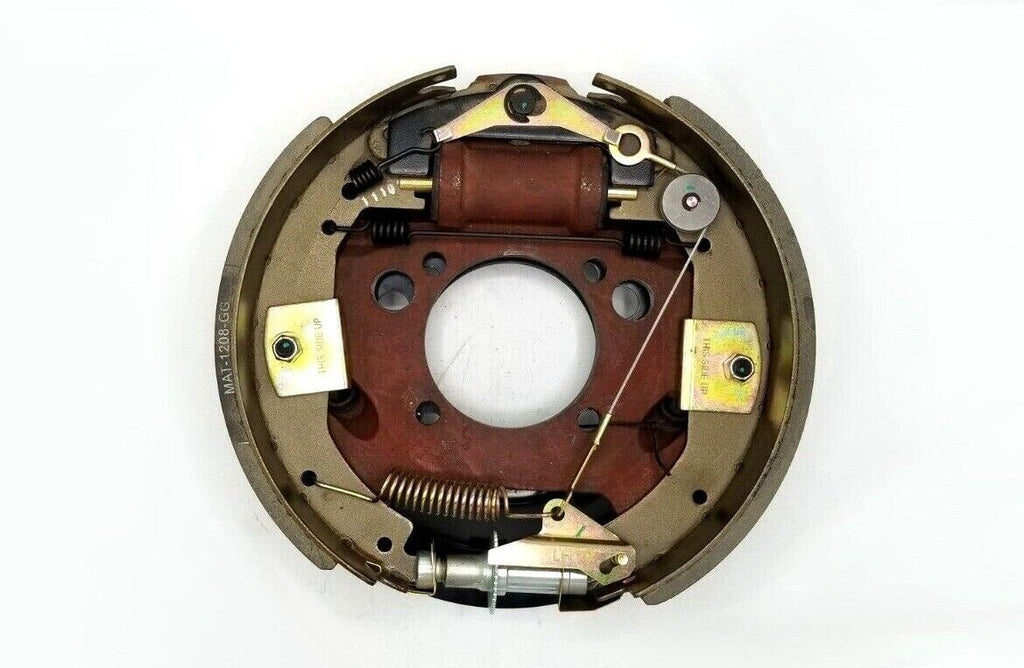

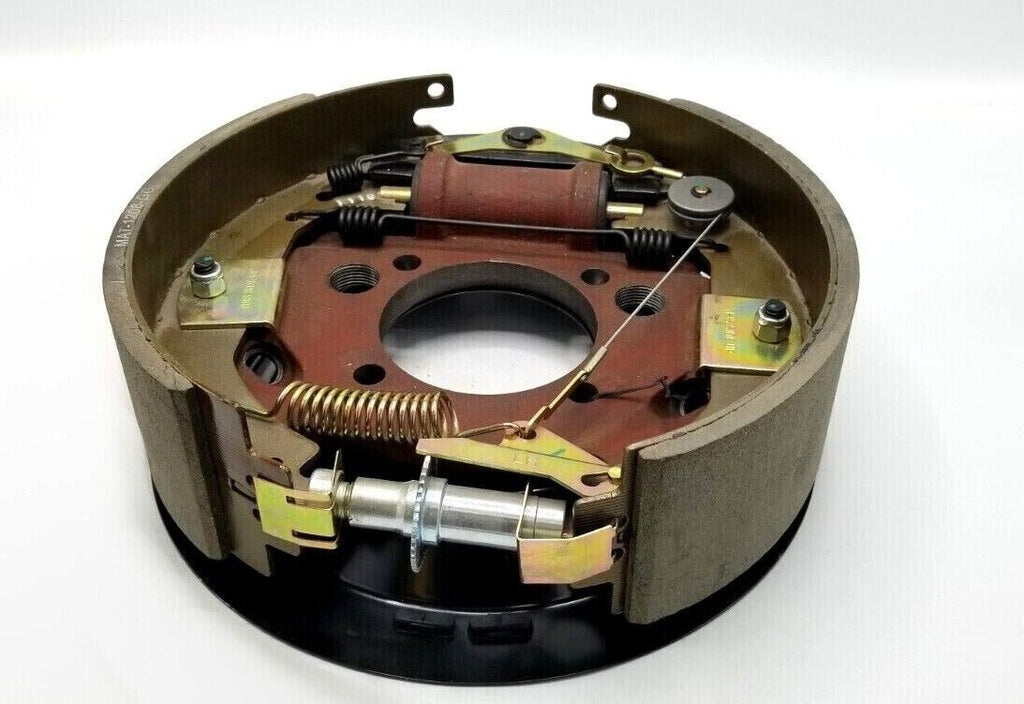

12-1/4" x 3-3/8" Hydraulic Brake Assembly LEFT Hand 8k

Fits Dexter 23-402


Part Number: 77-1208H-1

This Listing Contains:

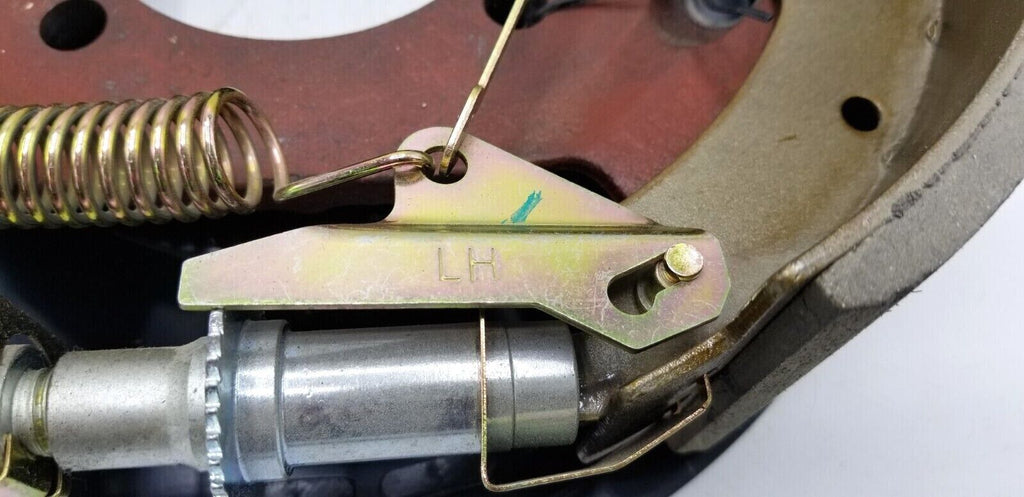

1x Complete Hydraulic Backing Plate LEFT, Drivers Side

Specs:

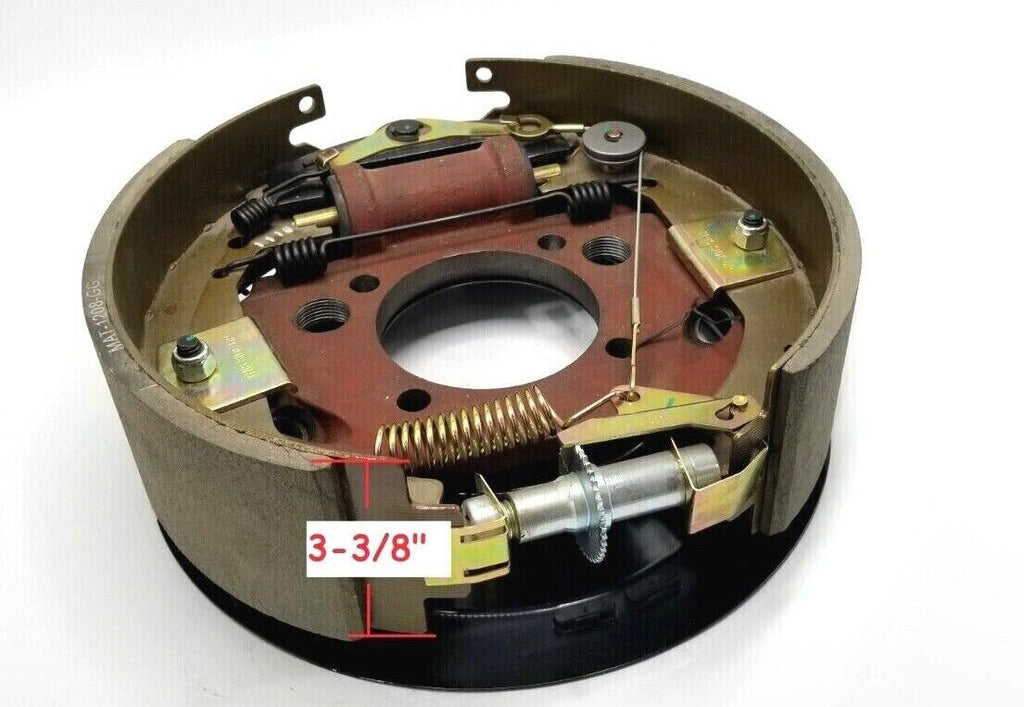

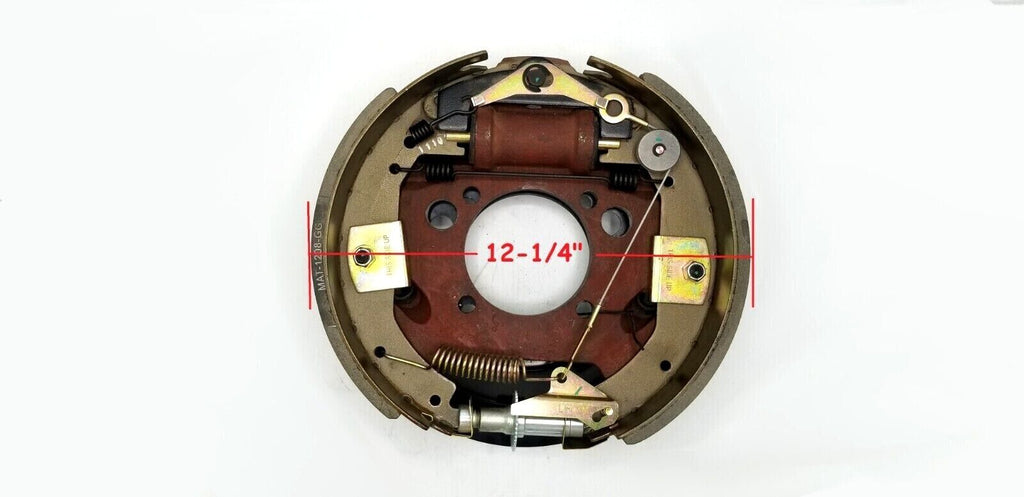

12-1/4" x 3-3/8"
Right Hand Self Adjusting Duo-Servo
 Forward Self Adjusting Application

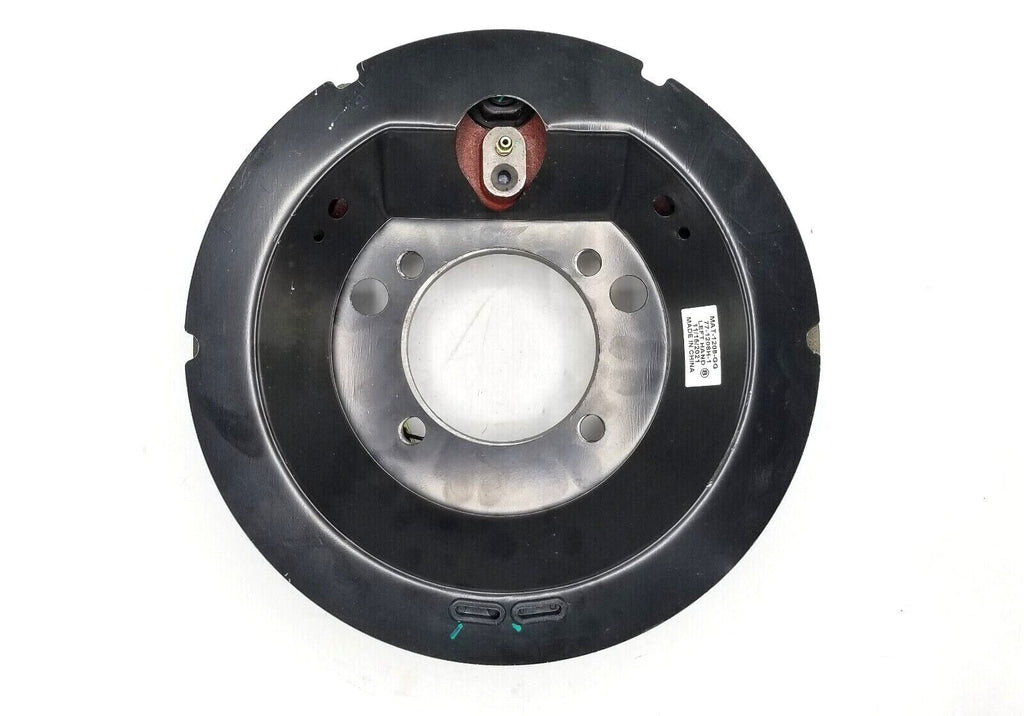

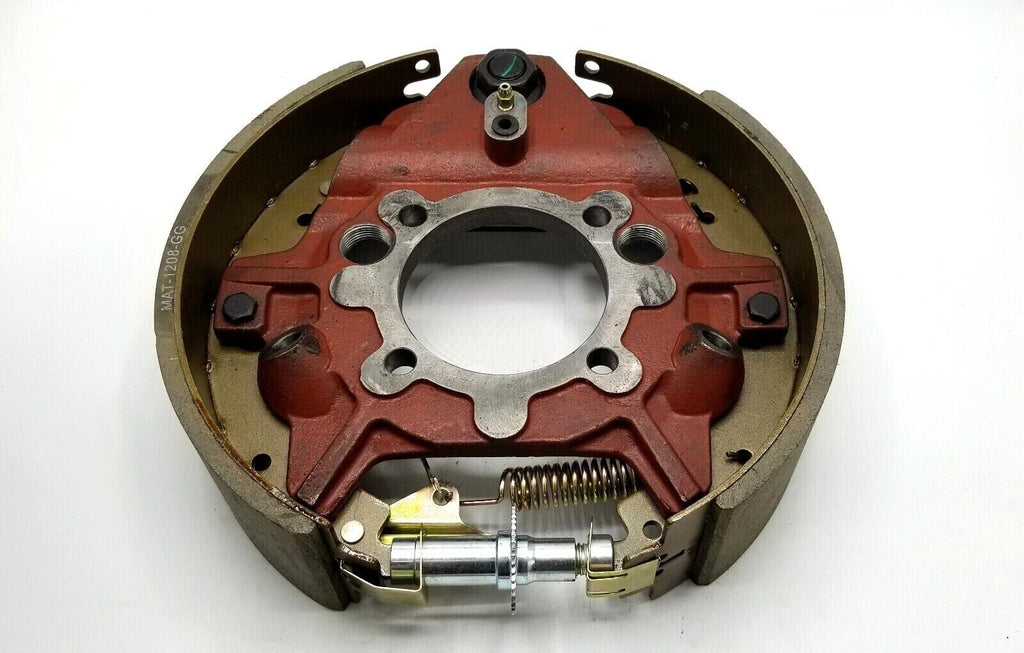

 Mounts to 4-hole Axle Brake Flange (3-5/8" top to bottom, 3-7/16" left to right) *see picture
 This Brake is Rated to a Maximum Capacity of 8,000 lbs


Fits Dexter Part #K23-402-00 / 23-402 / 023-402-00
