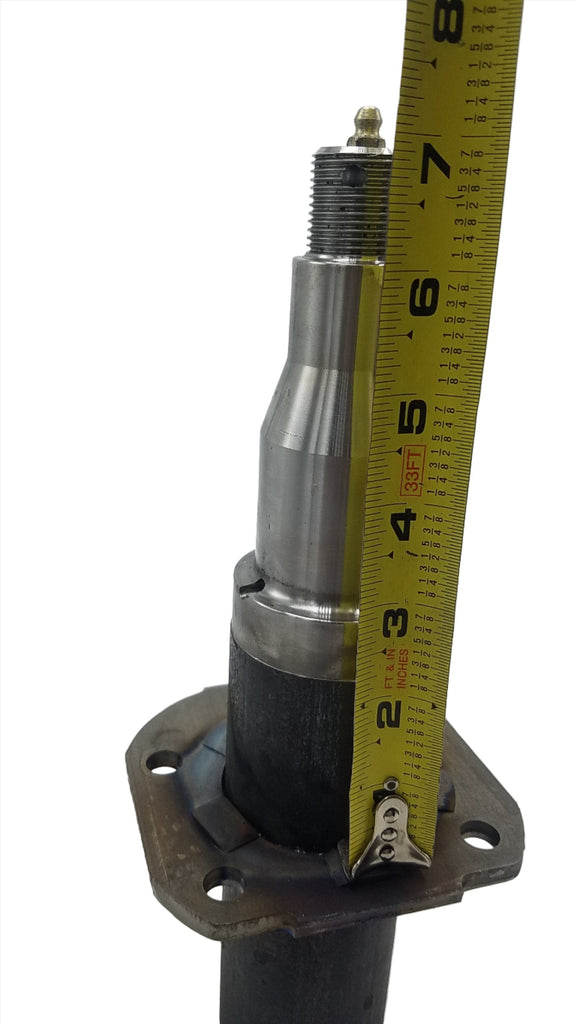

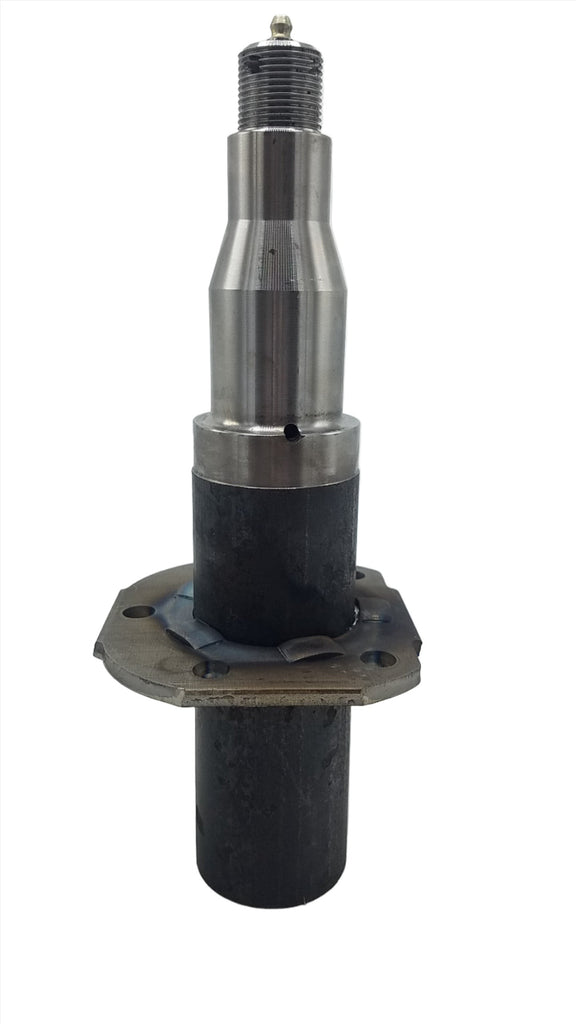

2.25" Round Pre-bolted Flanged Spindle #42 7000# Dexter ALKO Axis Trailer Axle (SP-22542FZ-KIT)

R & P Carriages

$65.98

In Stock

Ask a Pro

#42 Trailer Spindle — 2.25" Flanged • Pre-Bolted • Fits Many 7,000 lb Axles
Part Number: SP-22542FZ-KIT

This #42 weld-on trailer spindle is commonly used on 7,000 lb axles and includes the pre-installed brake flange bolts plus nut, washer, and cotter pin. Suitable for axle builds, repairs, and heavy-duty applications requiring a flanged 2.25" spindle. Bearings, races, and seals are not included.

Features

Fits many 7,000 lb trailer axles
2.25" weld end diameter

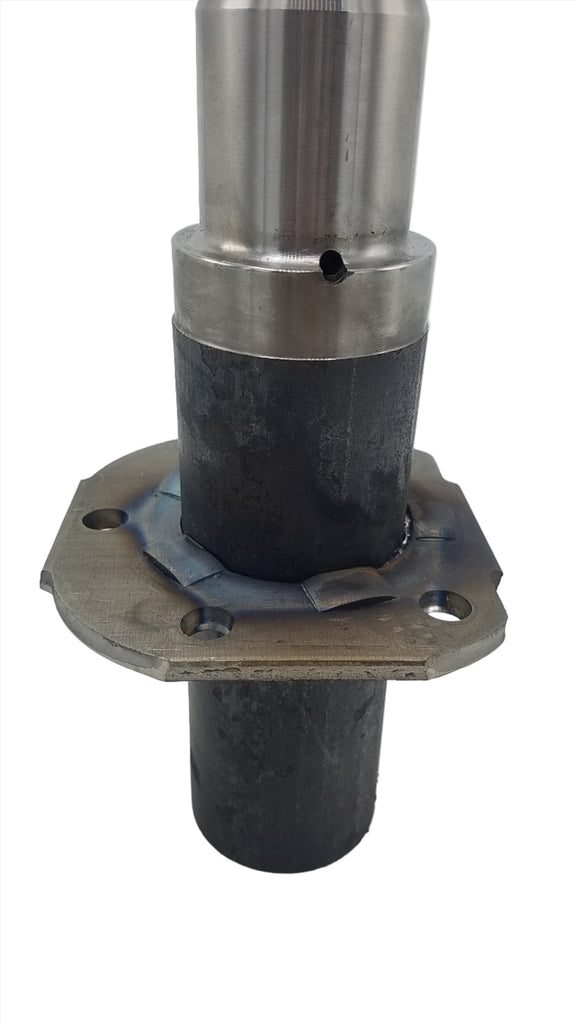

Pre-bolted brake flange (5-bolt pattern)

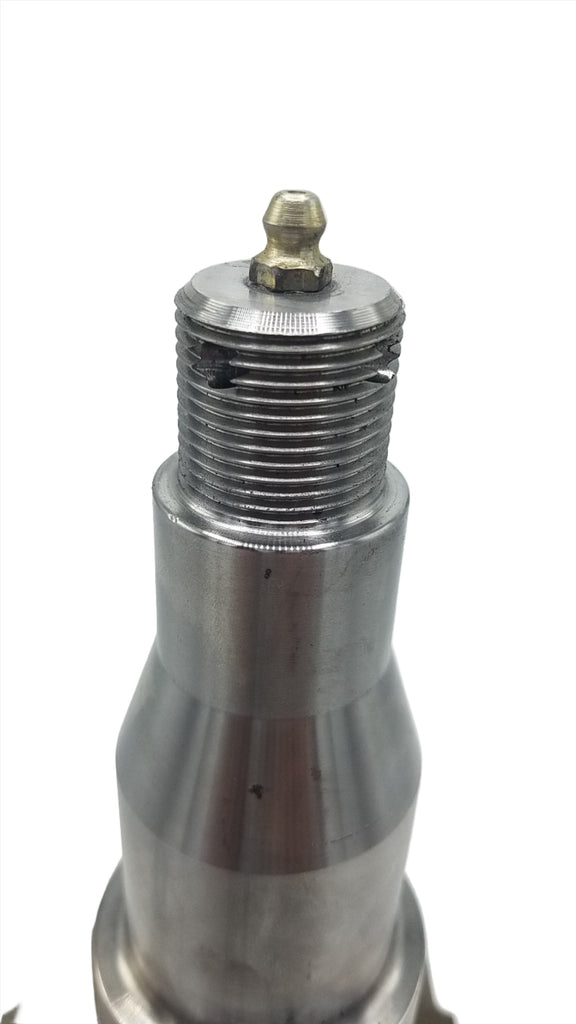

Standard 1" spindle threads
Flanged spindle design for brake backing plates

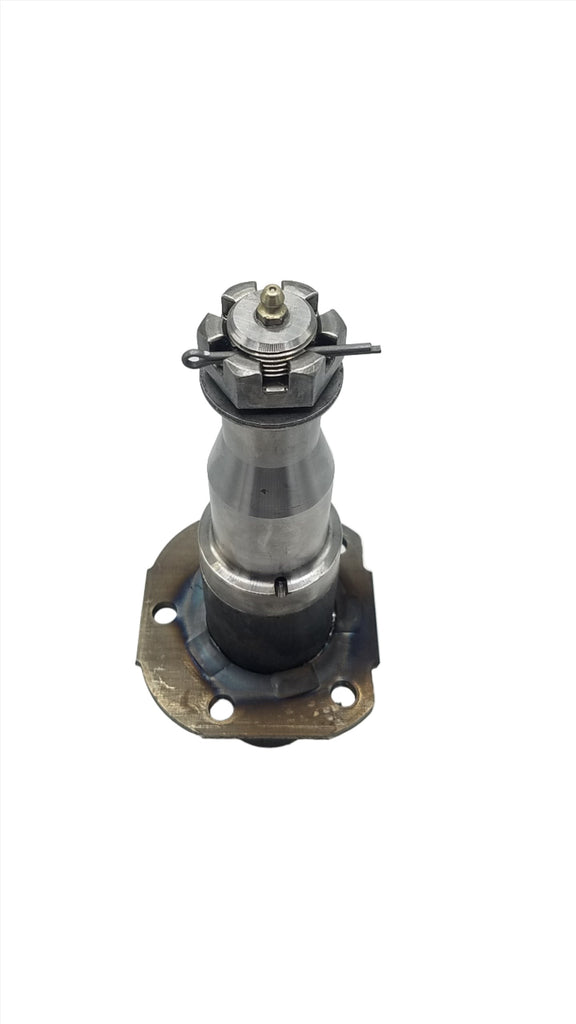

Includes washer, castle nut, and cotter pin

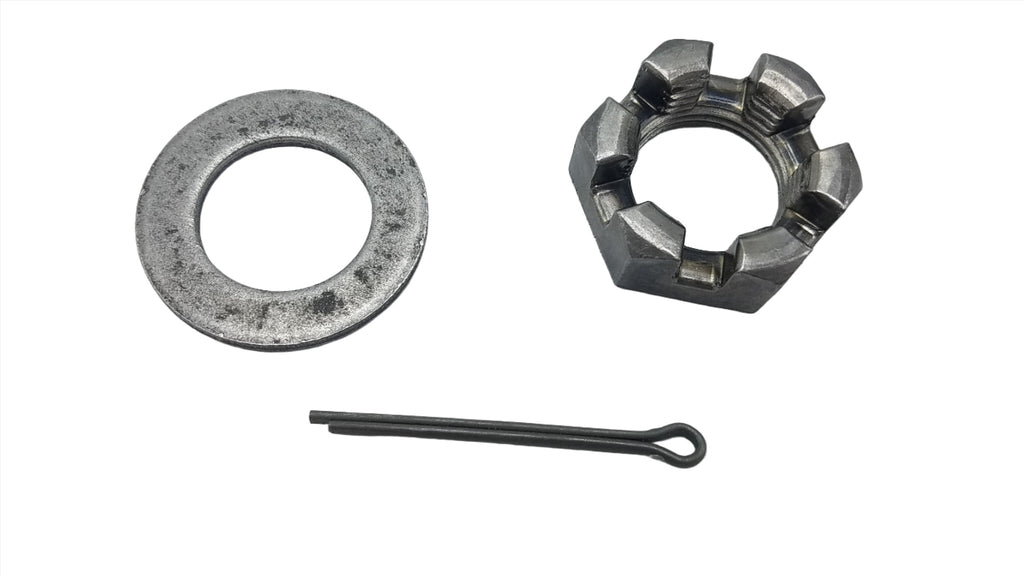

What’s Included

1 × 2.25" Non-Lubed Spindle (for 7K axles)
1 × Round Washer (SW1000)
1 × Castle Nut (006-001-00)
1 × Cotter Pin (165649)

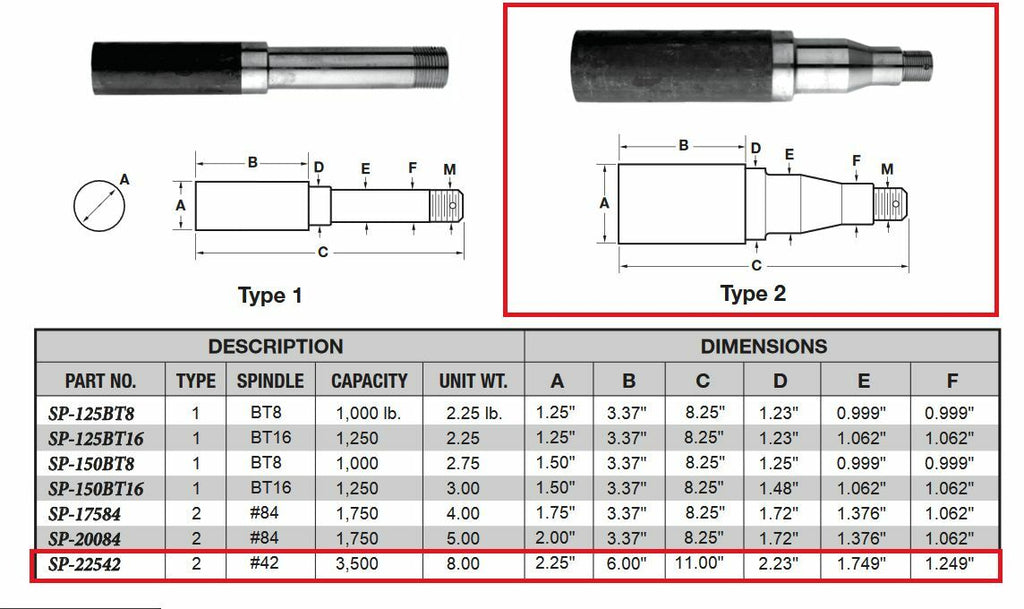

Specifications

Part Number	SP-22542FZ-KIT
Axle Rating	Common on 7,000 lb axles

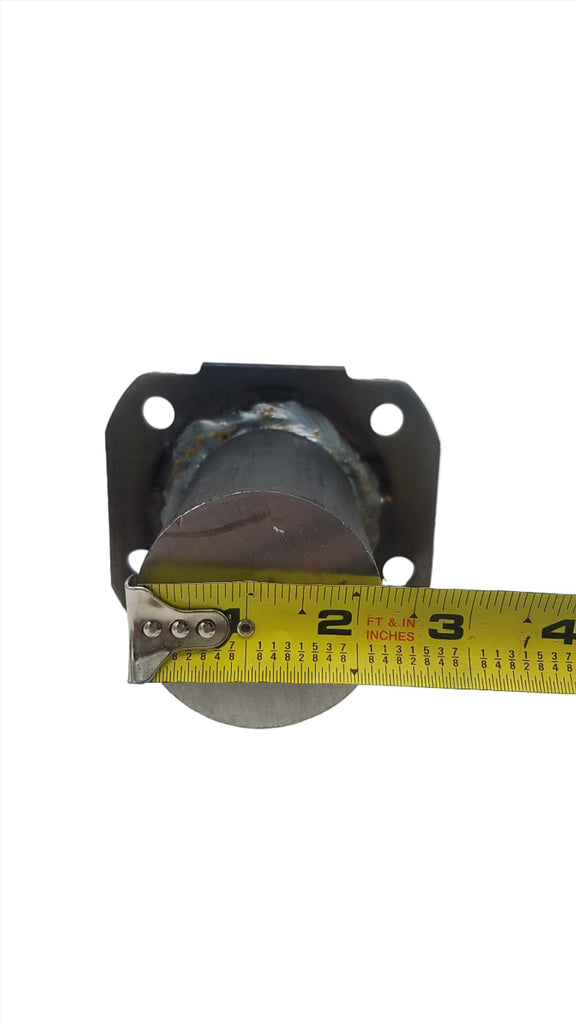

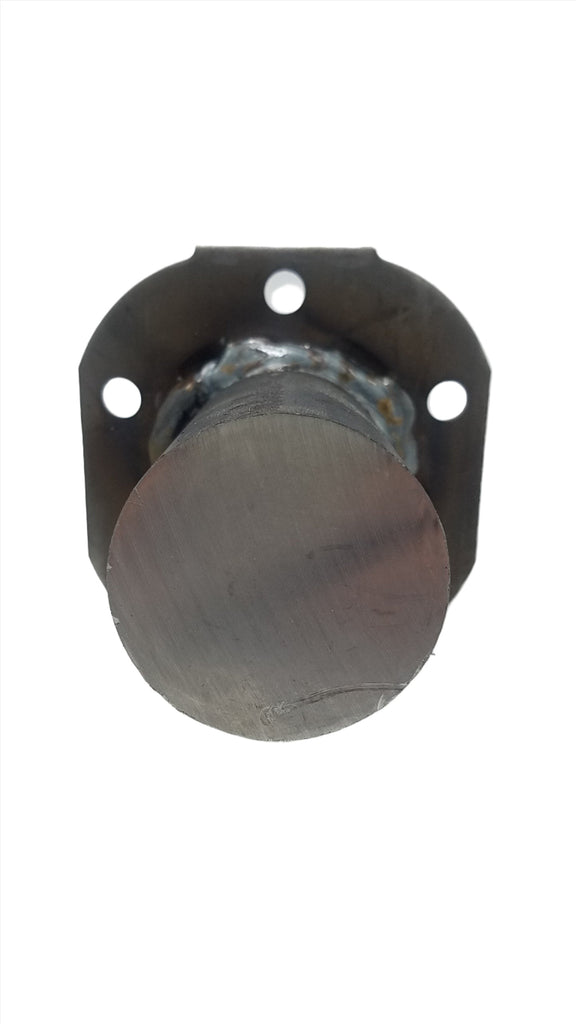

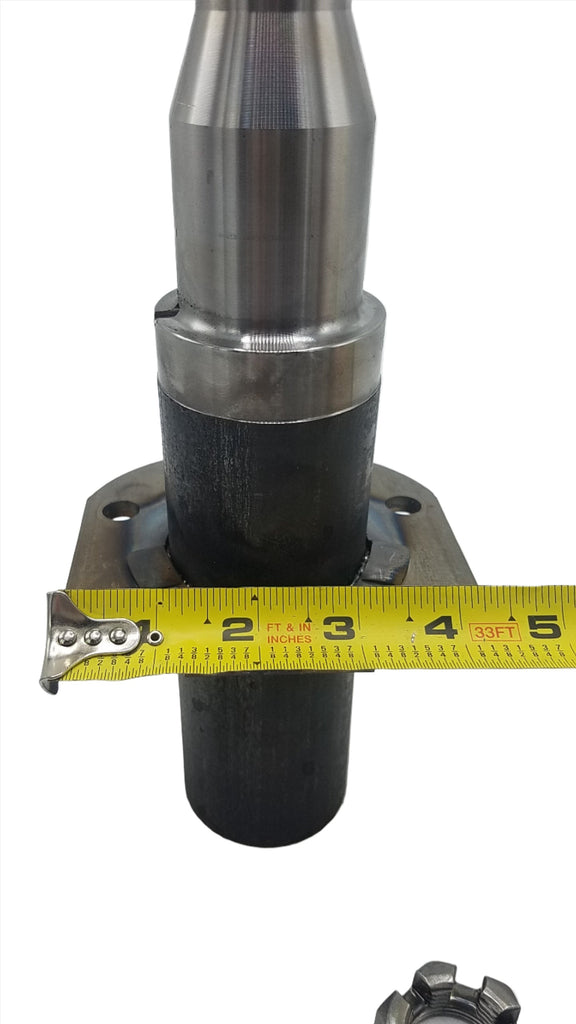

Weld End Diameter	2.25"
Outer Bearing	14125A (1.25") — not included
Inner Bearing	25580 (1.75") — not included
Seal Size	2.25" ID (10-36 style) — not included
Thread Size	1"
Brake Flange Pattern	5-bolt (pre-installed bolts require 3/8" nuts)
Bolt Spacing	Approx. 2-1/8" between each bolt

Additional Notes

This spindle is designed for grease-lubricated hubs only and is not suitable for oil-bath hub systems. Verify seal and bearing sizes before installation.

Fitment Notes

Typically used on Dexter-style 7K axles and similar AL-KO or Axis configurations. Always confirm measurements on your existing axle or hub system before ordering.
