2 PAIR 12-1/4 x 3-3/8 Hydraulic 8K Backing Plate Trailer 4 Bolt 23-402-403 (77-1208H-2P)

$483.60
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 10 available 9 remaining after purchase
Selected quantity subtotal $483.60
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: 77-1208H-2P
PRODUCT INFORMATION

Product Details

R & P Carriages

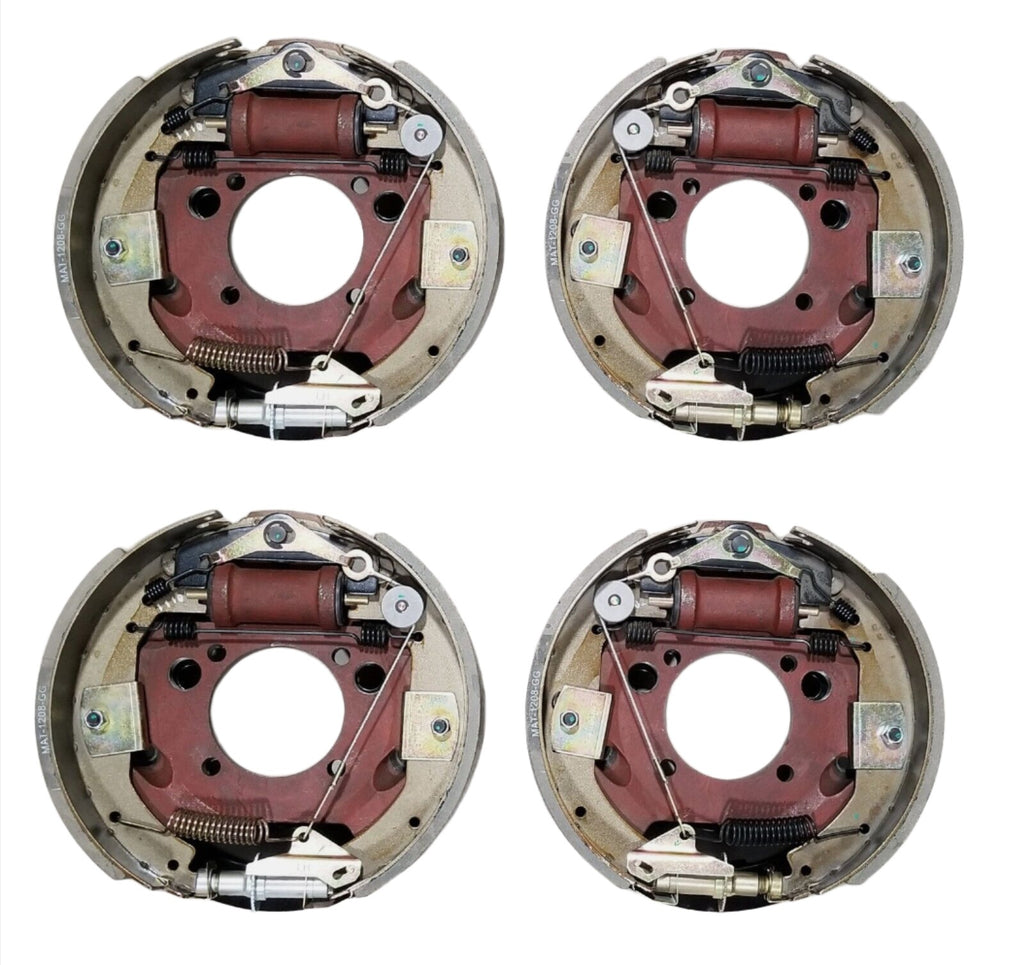

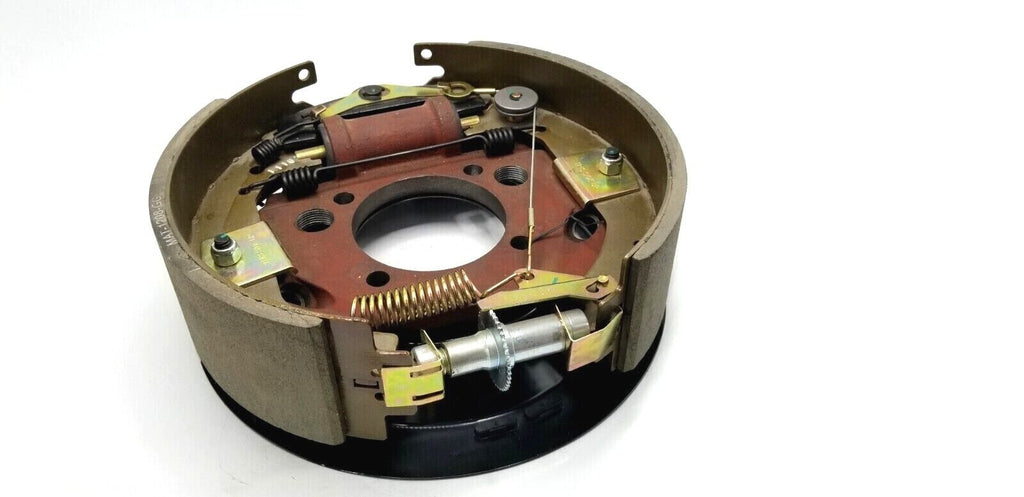

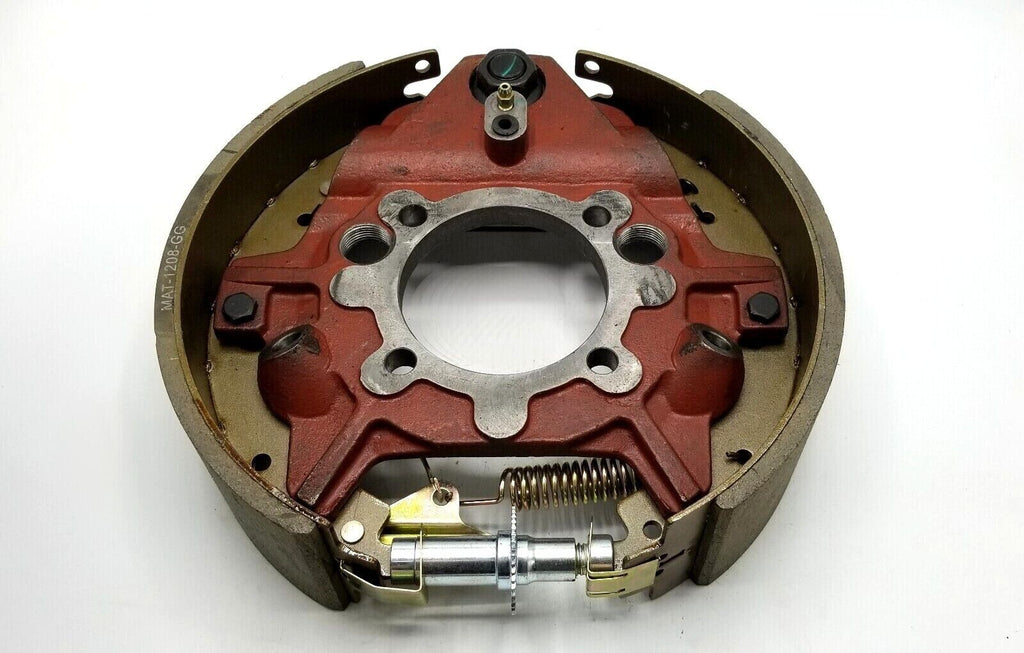

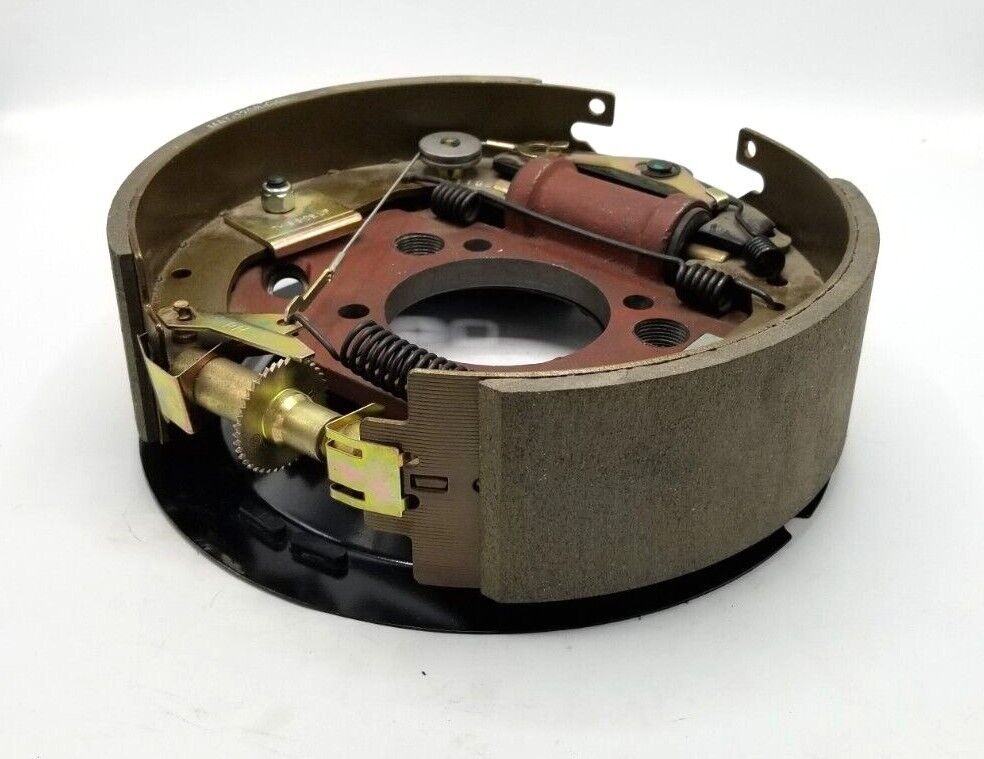

2 Pair – 12-1/4" x 3-3/8" Hydraulic Brake Assemblies – 8K – 2 Left & 2 Right

Part Number: 77-1208H-2P   |   Fits Dexter 23-402-403

Complete set of four hydraulic brake backing plates for 8,000 lb axle applications. This listing includes two left-hand (driver side) and two right-hand (passenger side) 12-1/4" x 3-3/8" hydraulic brake assemblies.

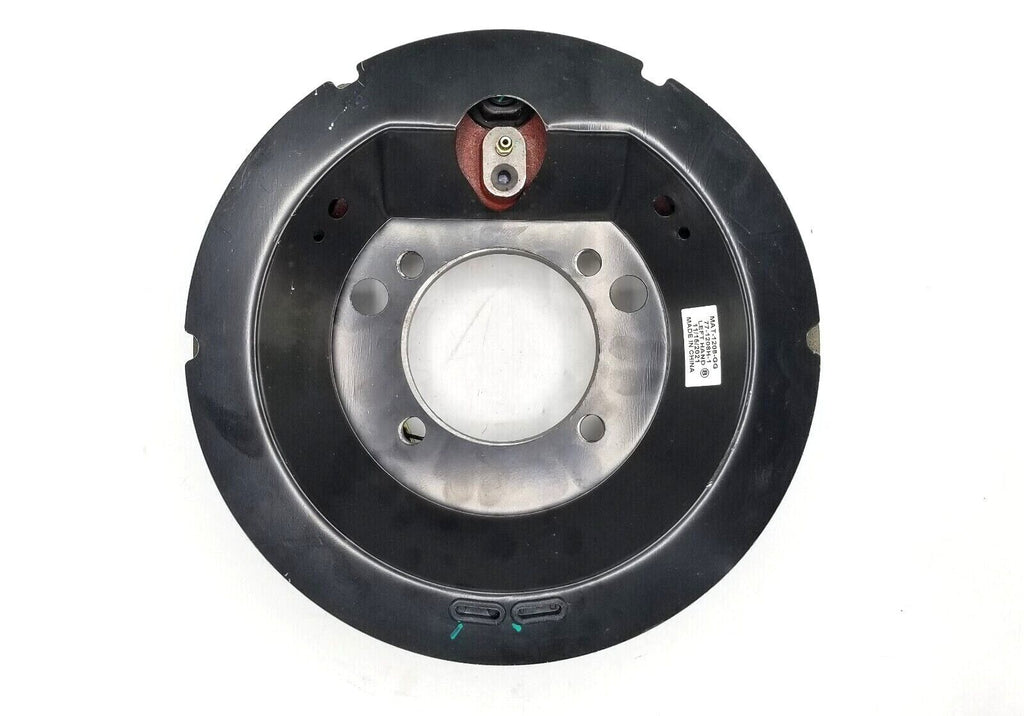

Designed for forward self-adjusting duo-servo operation and mounting to a standard 4-bolt axle brake flange.

R&P Knowledge Hub

12-1/4" x 3-3/8" hydraulic brakes are commonly used on 8K axle configurations and are not interchangeable with 12-1/4" x 4" heavy-duty systems. Shoe width and backing plate design must match the drum size exactly.

Duo-servo brake assemblies apply braking force in both forward and reverse directions. Self-adjusting mechanisms maintain proper shoe clearance as the linings wear, reducing manual maintenance intervals.

Features

  • Includes (2) Left-Hand and (2) Right-Hand assemblies
  • 12-1/4" x 3-3/8" hydraulic drum brake size
  • Forward self-adjusting duo-servo design
  • Mounts to 4-bolt axle brake flange
  • Rated for up to 8,000 lb axle capacity
  • Compatible with Dexter 23-402 and 23-403 series

Specifications

Specification Detail

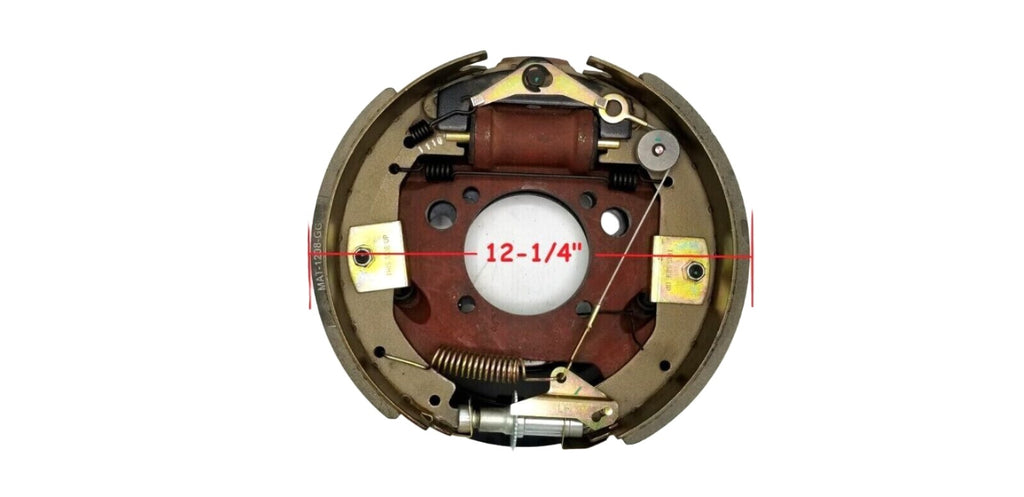

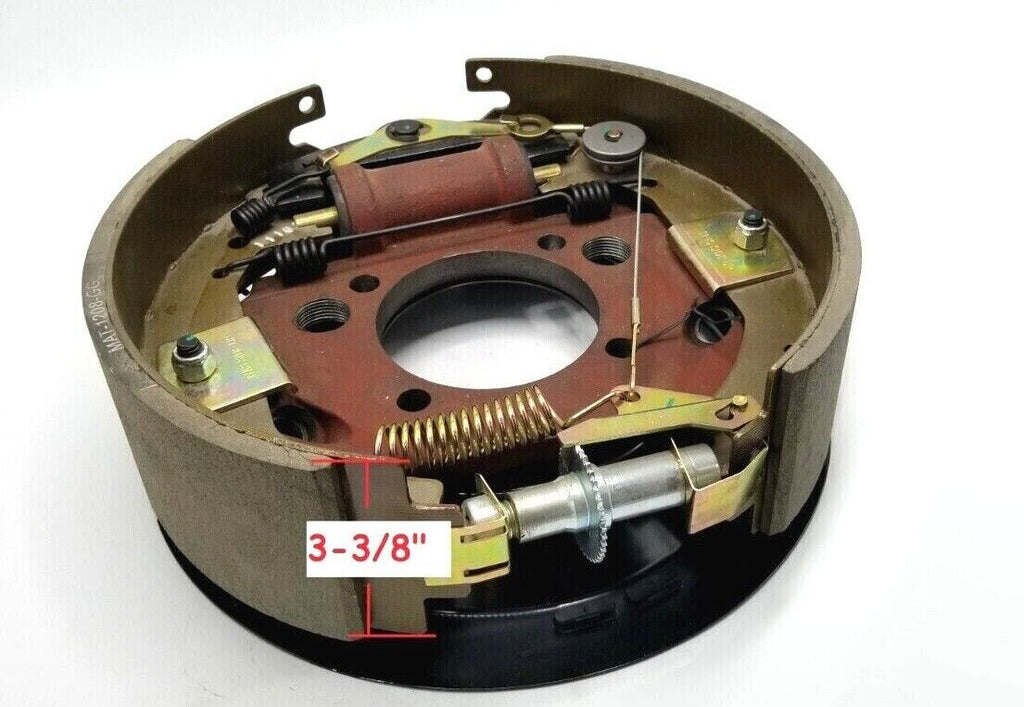

Brake Size 12-1/4" x 3-3/8"
Brake Type Hydraulic Duo-Servo – Self Adjusting
Mounting Pattern 4-Bolt Flange

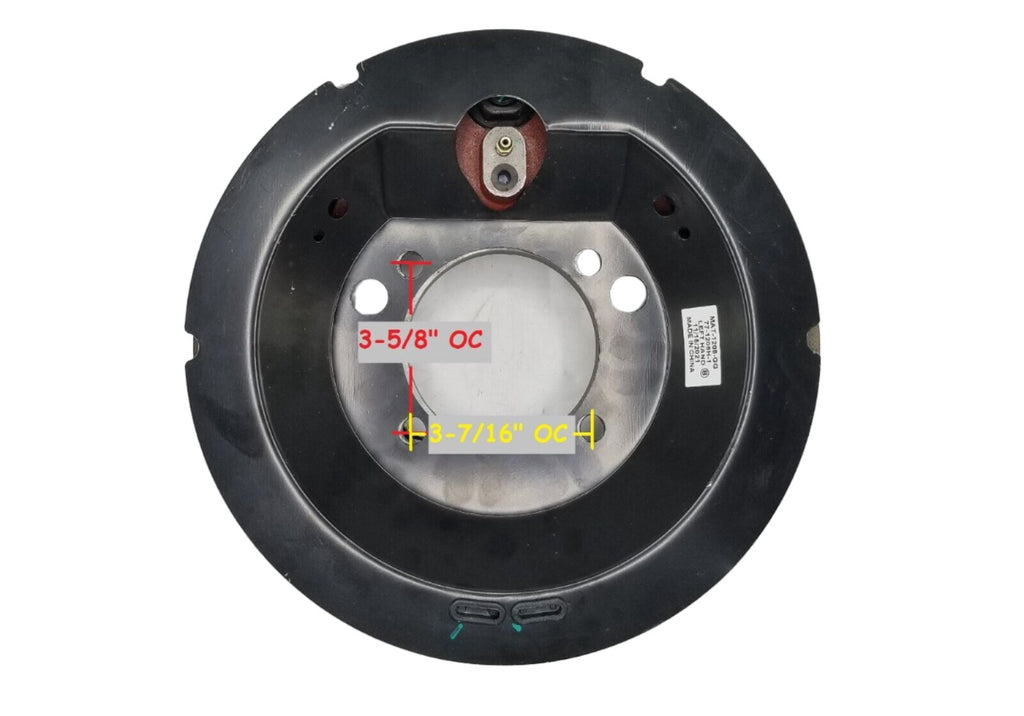

Flange Dimensions 3-5/8" (Top to Bottom) × 3-7/16" (Left to Right)
Axle Capacity Rating Up to 8,000 lb
Dexter Compatibility 23-402 / 23-403 Series
Configuration 2 Left-Hand & 2 Right-Hand Assemblies

Verify specifications before installation.

77-1208H-2P 12.25 x 3.375 hydraulic brake assemblies 8k 23-402 23-403 4 bolt duo servo
