R & P Carriages

2- Trailer Axle Square Spindle 3500 1-3/8 + 1-1/16 I.D. Bearing Dexter ALKO Axis (SP-20484-SQ-KITX2)

$105.09
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 39 available 38 remaining after purchase
Selected quantity subtotal $105.09
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: SP-20484-SQ-KITX2
PRODUCT INFORMATION

Product Details

R & P Carriages

Pair of 3500 lb Square Spindles with Hardware • Fits Dexter, AL-KO, Axis

Part Number: SP-20484-SQ-KITX2

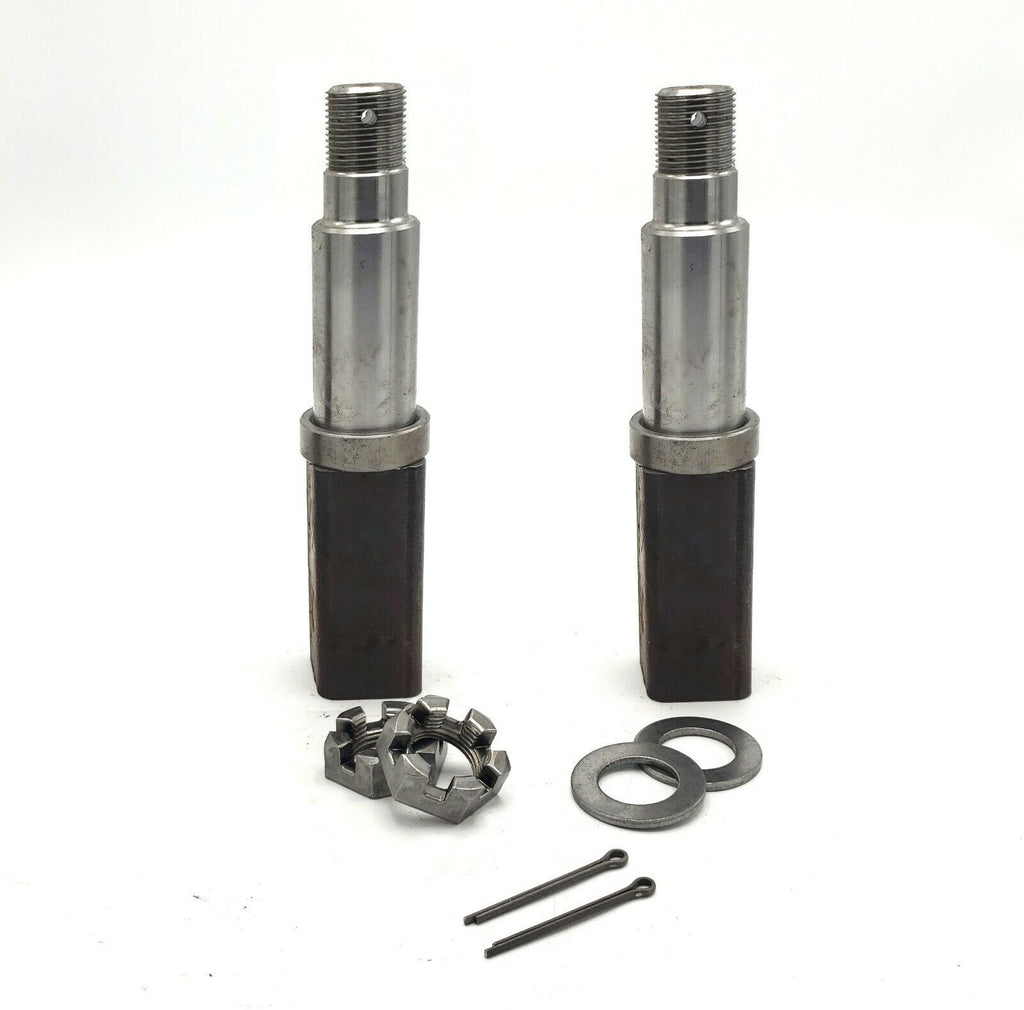

This kit includes two 3500 lb square spindles with matching hardware. These are commonly used on Dexter, AL-KO, Axis, and many other 3,500 lb trailer axles. Each spindle includes the correct castle nut, round washer, and cotter pin.

Kit Includes (for each spindle)

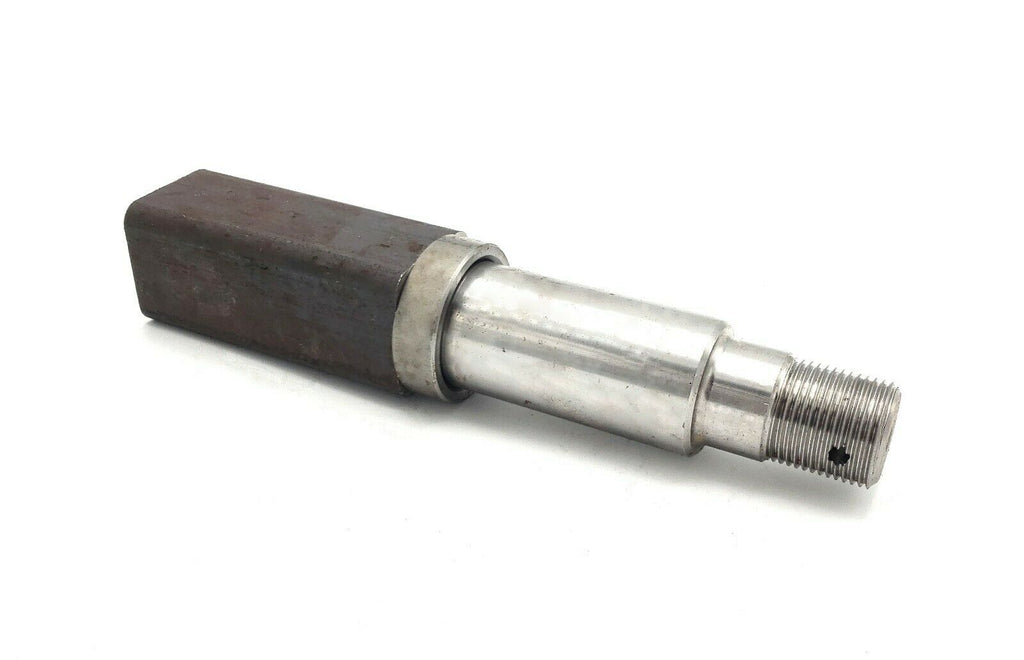

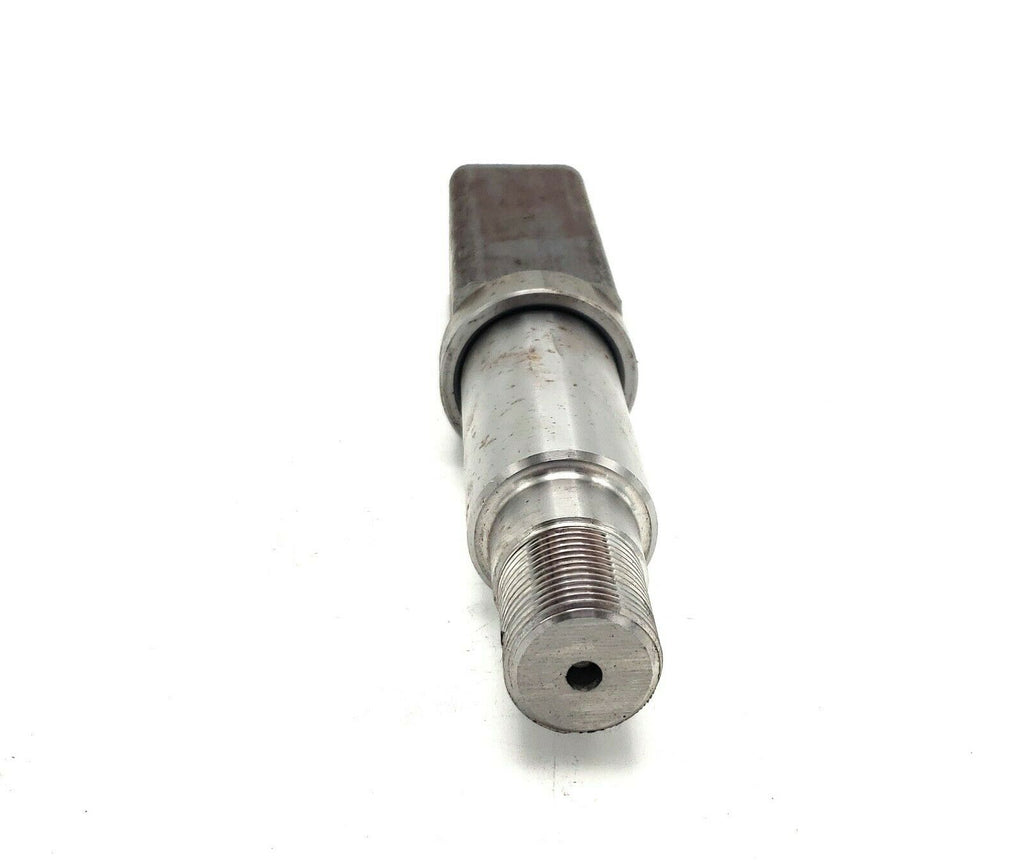

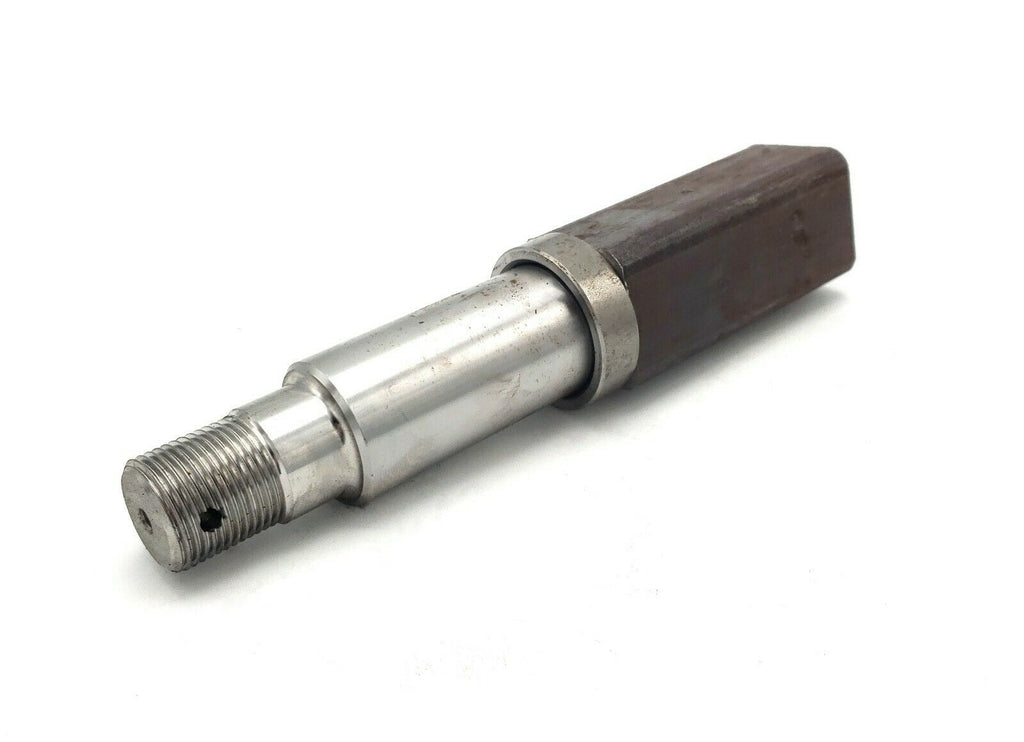

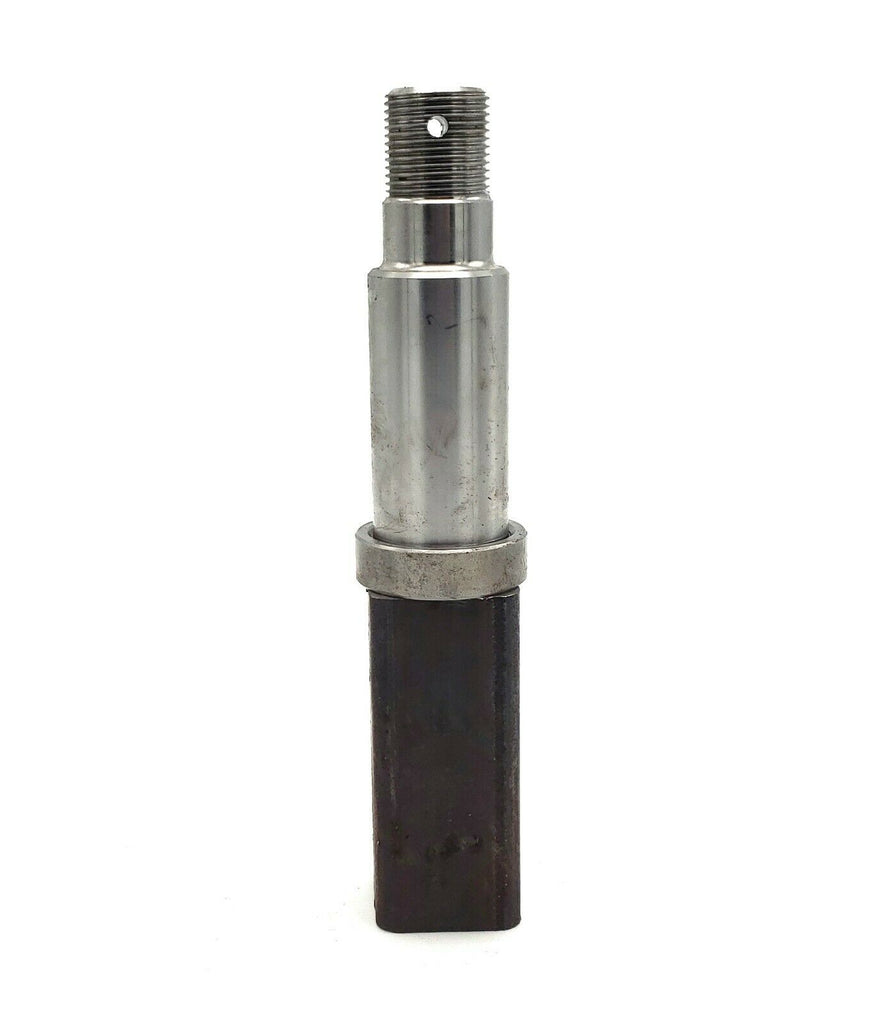

  • SP-20484-SQ — 1.50" square-end spindle body, 3.53" long
  • 165649 — 1/8" × 1-3/4" cotter pin
  • FA-SN100 — 1" spindle castle nut
  • SW1000 — 1" round spindle washer

Specifications

Specification Details
Axle Rating 3500 lb
Spindle Style Square-end 1.50"
Spindle Length (Square Section) 3.53"
Inner Bearing L68149 (1-3/8" I.D.) — not included
Outer Bearing L44649 (1-1/16" I.D.) — not included
Seal 10-19 (1.719" I.D.) — not included
Square Spindle Technical Diagram

Reference diagram for spindle dimensions (for general identification only).

Fitment Notes

These spindles are commonly used on 3,500 lb axles from Dexter, AL-KO, Axis, Rockwell, and many other OEMs. Always verify your bearing sizes and spindle measurements before ordering.
