Center Equalizer Spring Hanger for 2" Slipper Springs (H-4.5-SQ4)

$19.99
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 36 available 35 remaining after purchase
Selected quantity subtotal $19.99
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: H-4.5-SQ4
PRODUCT INFORMATION

Product Details

R & P Carriages - Need a Trailer Part
Trailer Suspension / Slipper Spring Hangers

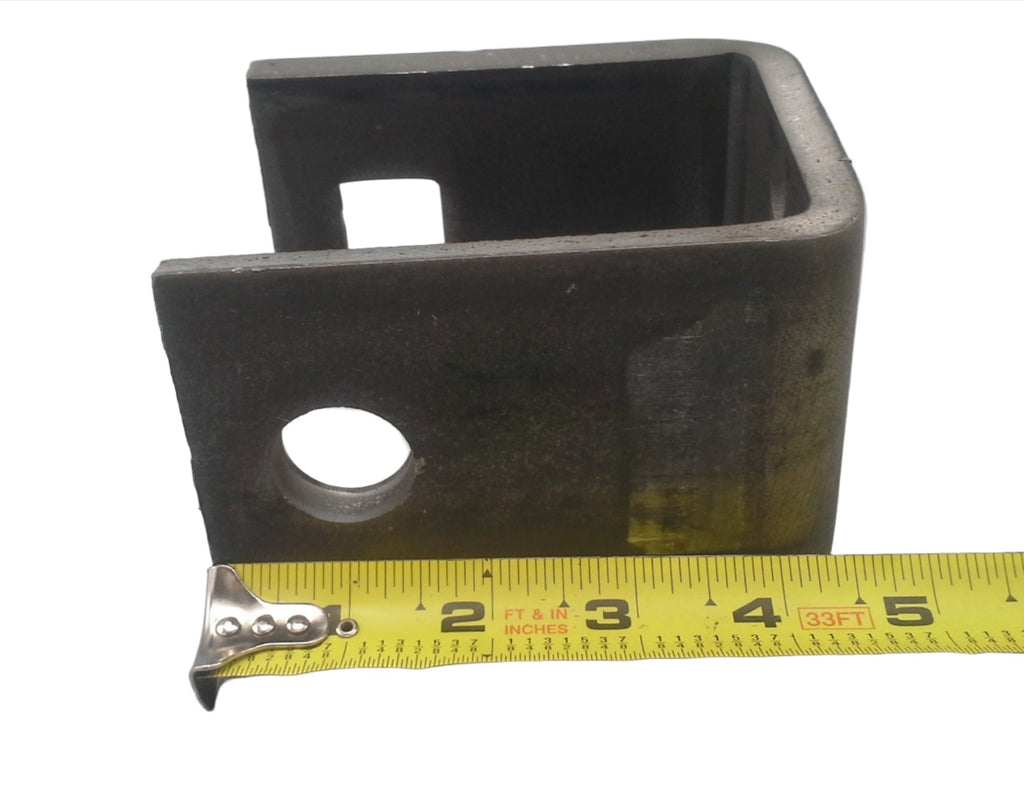

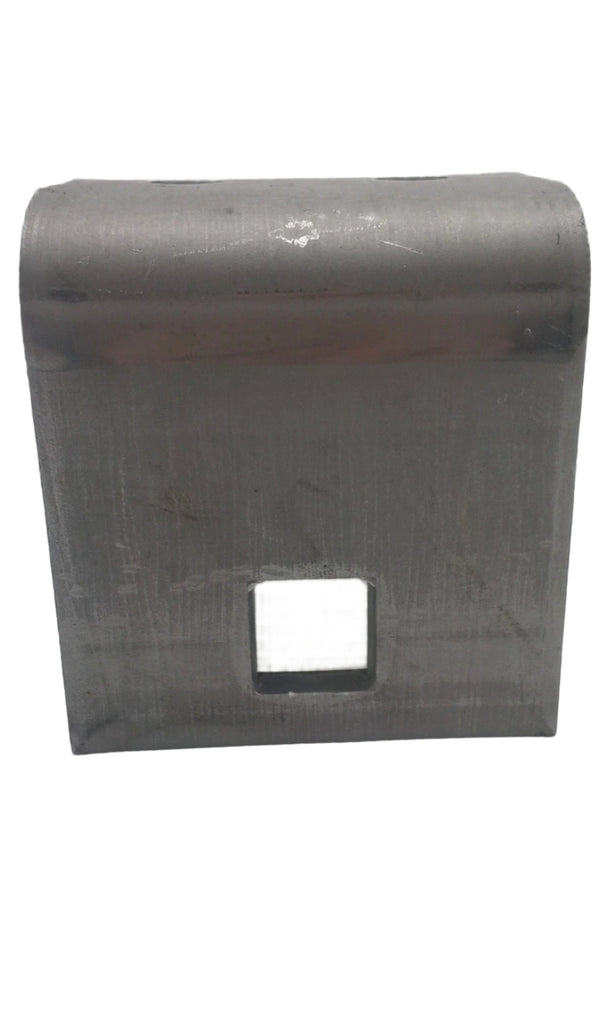

Center Equalizer Spring Hanger for 2" Slipper Springs - H-4.5-SQ4

Part # H-4.5-SQ4

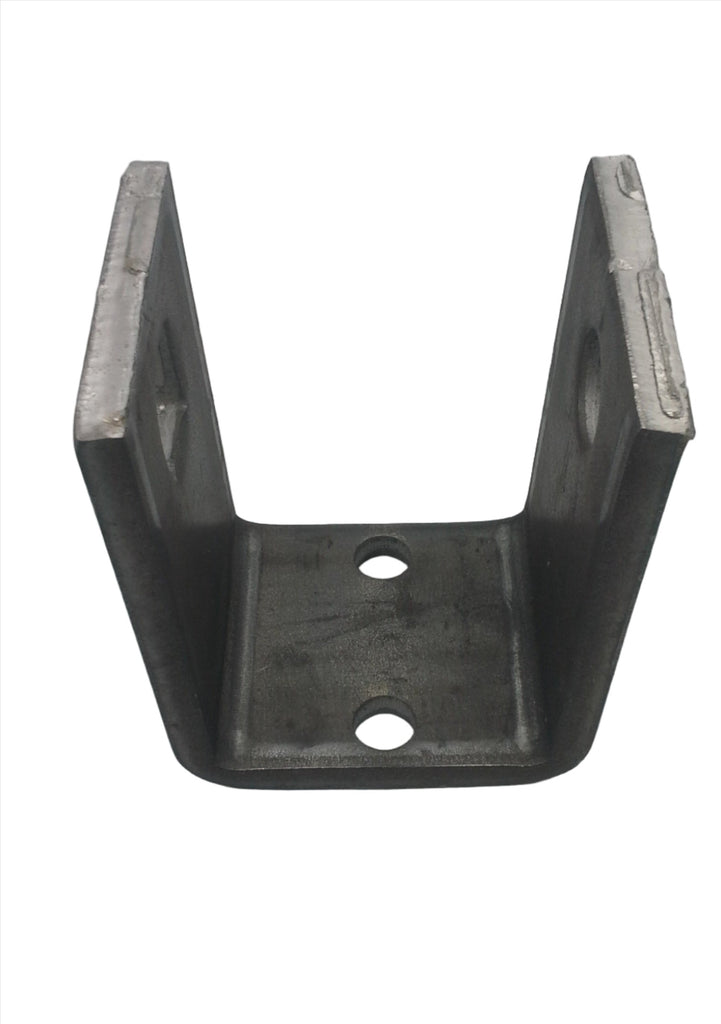

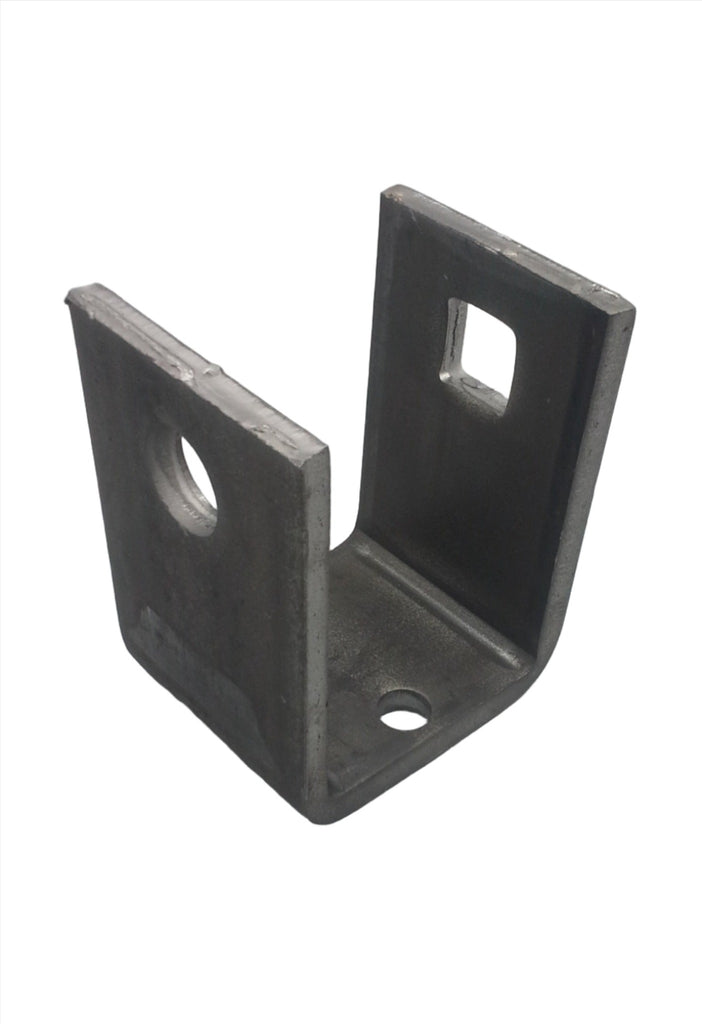

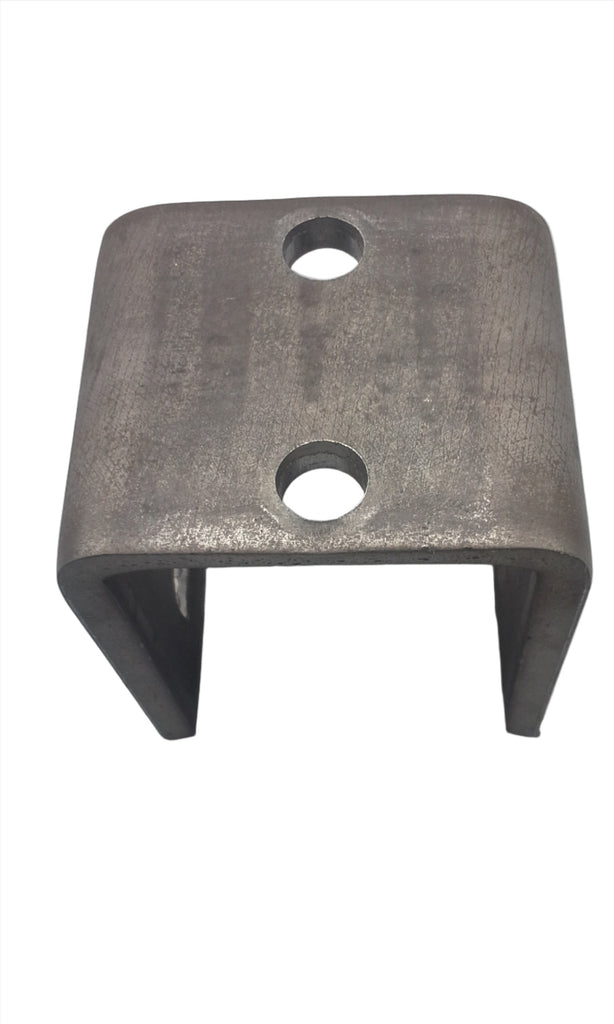

Heavy-duty steel center equalizer hanger for tandem-axle trailer suspensions using 2-inch-wide slipper leaf springs. Designed to support the center equalizer pivot in slipper spring suspension systems, with a square-hole mounting configuration for compatible greaseable equalizer pivot hardware.

Affordable Pricing
Quality Products
Fast Shipping
Shipping Options Available
Parts Expertise
Trailer Suspension Specialists

What's In The Box

(1) H-4.5-SQ4 steel center equalizer spring hanger for 2-inch-wide slipper spring suspension systems. Sold individually as a replacement hanger. Equalizer, pivot bolt, nut, cotter pin, springs, and additional suspension components are sold separately.

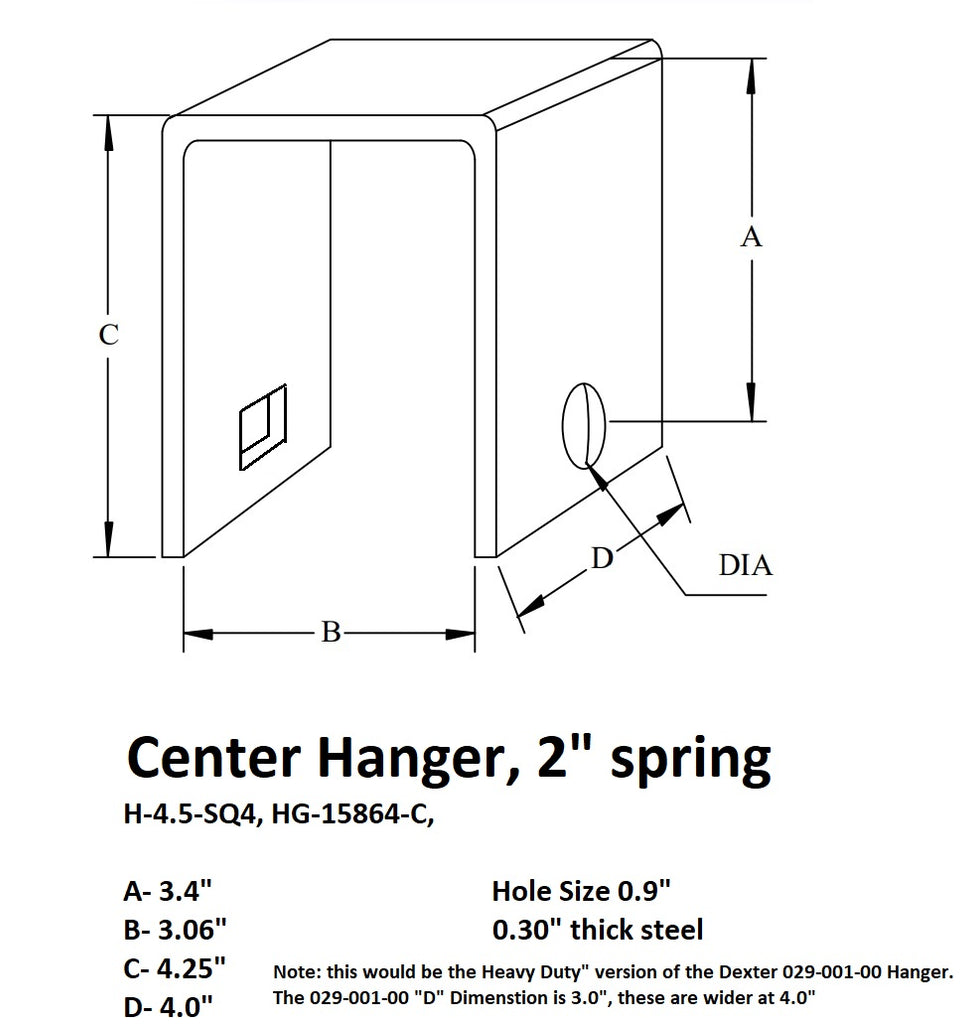

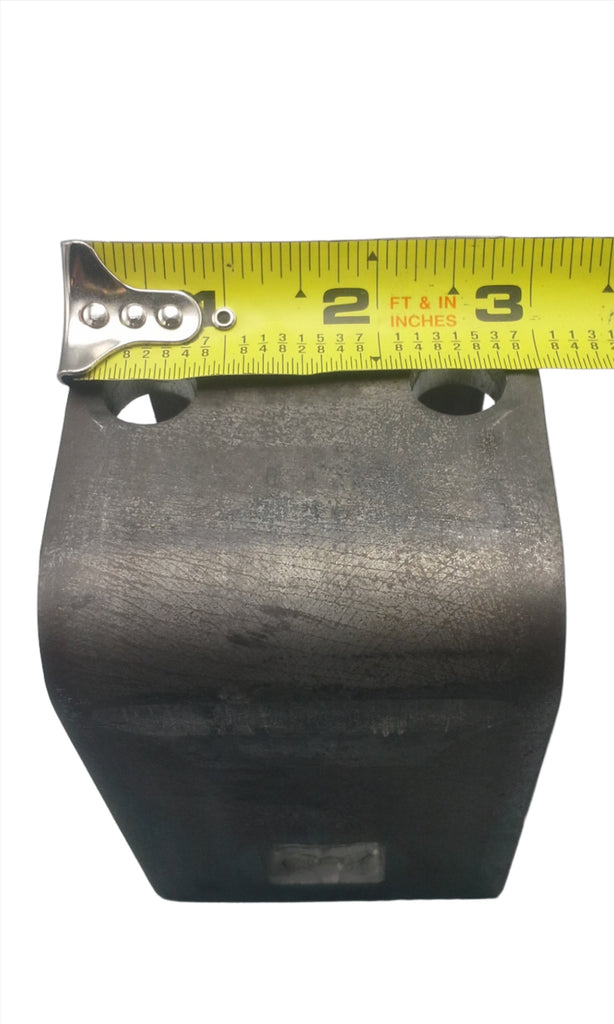

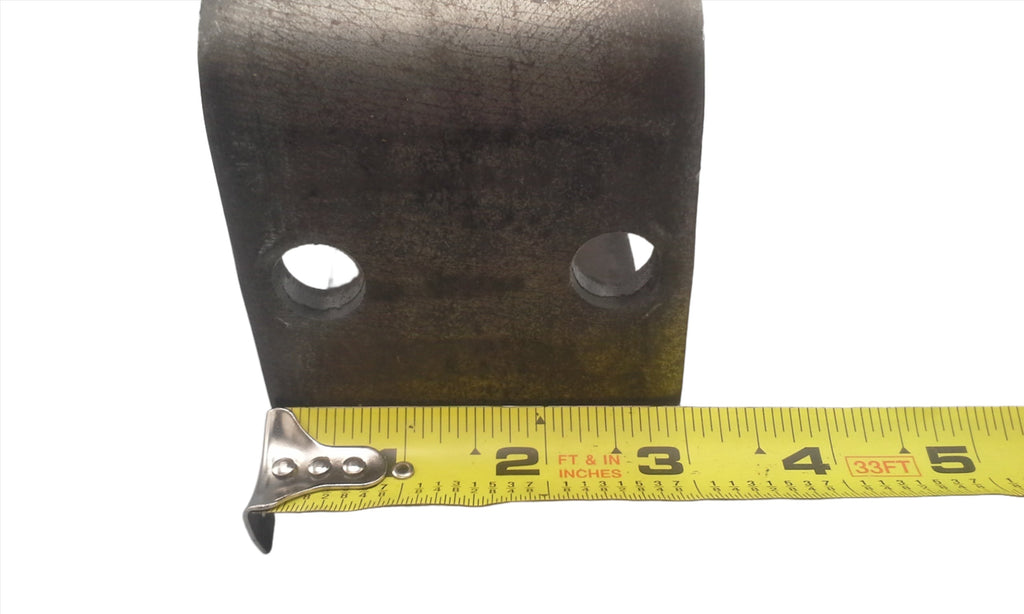

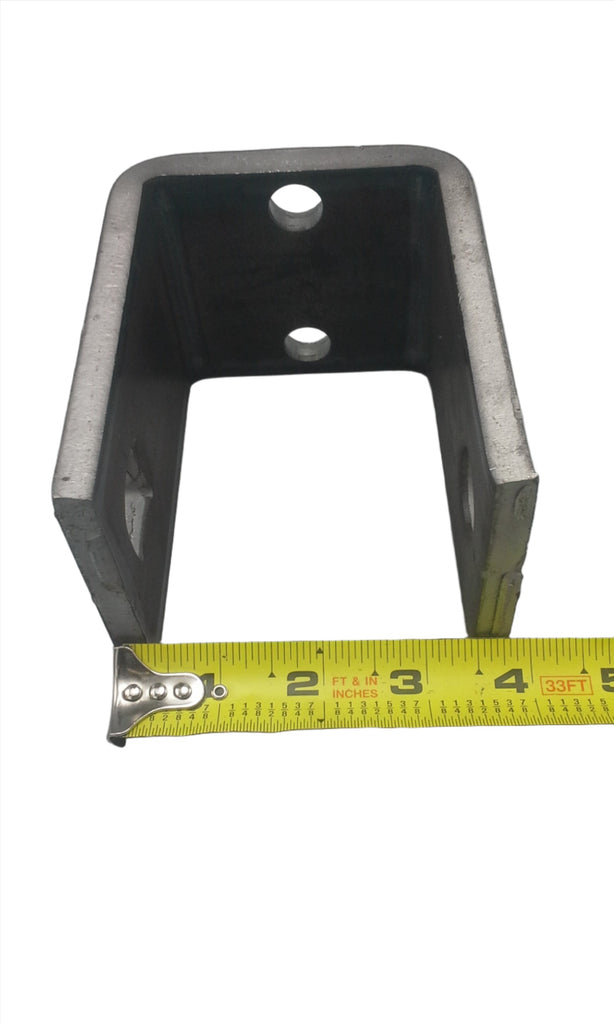

Specifications

Part Number H-4.5-SQ4 / H4.5-SQ4
Component Center Equalizer Hanger
Suspension Type Slipper Leaf Spring
Spring Width 2 inches
Hanger Position Center / Equalizer Pivot
Bolt-Center Height 3.31 inches
Overall Height 4.31 inches

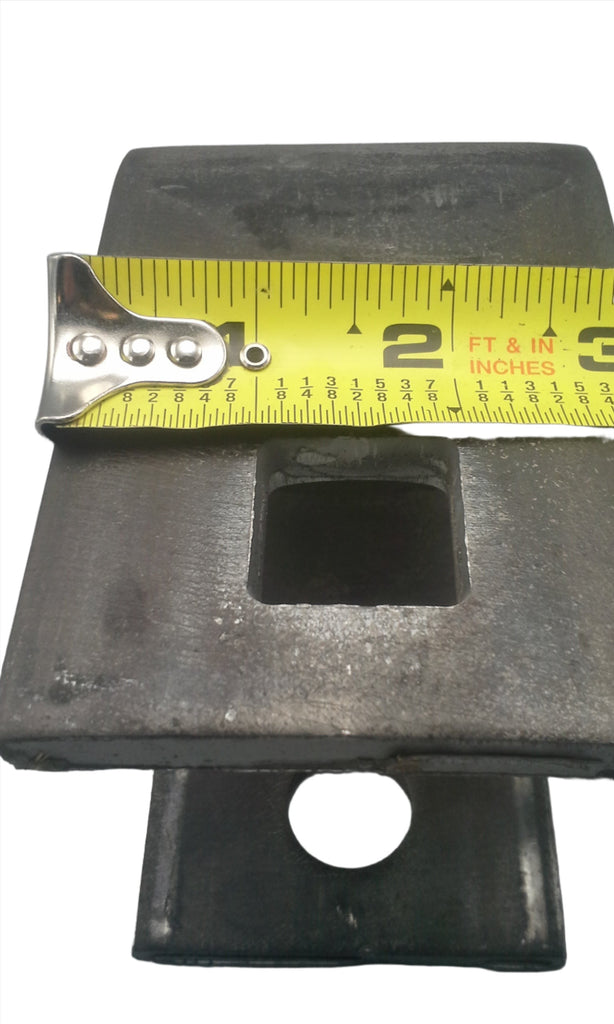

Mounting Hole Approx. 0.90-inch Square Hole
Pivot Bolt 7/8-inch Greaseable Equalizer Bolt
Construction Weld-On Steel Hanger
Quantity One Hanger

Equalizer Applications

Center hanger for tandem-axle slipper spring suspension assemblies using compatible equalizer pivot hardware.

EQ-11 Slipper Spring Equalizer Application
EQ-12 12-Inch Slipper Spring Equalizer

Related Pivot Hardware & Suspension Components

The center equalizer pivots on a 7/8-inch greaseable bolt assembly. R&P Carriages carries the associated pivot hardware and suspension components for slipper spring repairs.

Part Number Description
GEB-78 7/8" greaseable center equalizer bolt, 4-11/16" under-head length.
CN-78 7/8" castle nut for the GEB-78 pivot bolt assembly.
GEB-78-KIT 7/8" wet equalizer bolt and castle nut kit.
165649 1/8" x 1-3/4" cotter pin for suspension hardware assemblies.
EQ-12 12" slipper spring equalizer for compatible 2" spring suspension systems.
91635B 9/16"-18 x 3-1/2" suspension bolt used at other mounting locations in the corresponding hanger kit.
SB-LN-9 9/16"-18 suspension locknut for corresponding 9/16" bolt locations.

Features

✓ Center hanger construction for tandem-axle slipper spring equalizer suspension.
✓ Designed for suspension systems using 2-inch-wide slipper springs.
✓ Square-hole pivot mounting configuration.
✓ Accepts compatible 7/8-inch equalizer pivot hardware.
✓ Supports greaseable center equalizer pivot assemblies using GEB-78 hardware.
✓ Weld-on steel construction for trailer frame suspension mounting.
✓ Individual replacement hanger for suspension repair and fabrication.
R&P Knowledge Hub
How the center hanger works: On a tandem-axle slipper spring suspension, the center equalizer pivots inside the center hanger. As the trailer moves over uneven surfaces, the equalizer rotates to transfer movement between the front and rear springs.

Serviceable pivot hardware: A GEB-78 greaseable bolt provides the center pivot for compatible EQ-12 assemblies. The grease fitting allows lubrication during routine suspension maintenance.

Related hardware: The GEB-78-KIT combines a 7/8-inch greaseable bolt with a CN-78 castle nut. Cotter pins and other suspension fasteners are available as separate service components.

Replacement service: Center hangers, equalizers and pivot bolts are common service points when rebuilding tandem-axle slipper spring suspension systems.
