Set of 4 Tall Center Equalizers – 6" Wide – For 1-3/4" Springs – 9/16" Bolts
Part Number: EQ-310-4

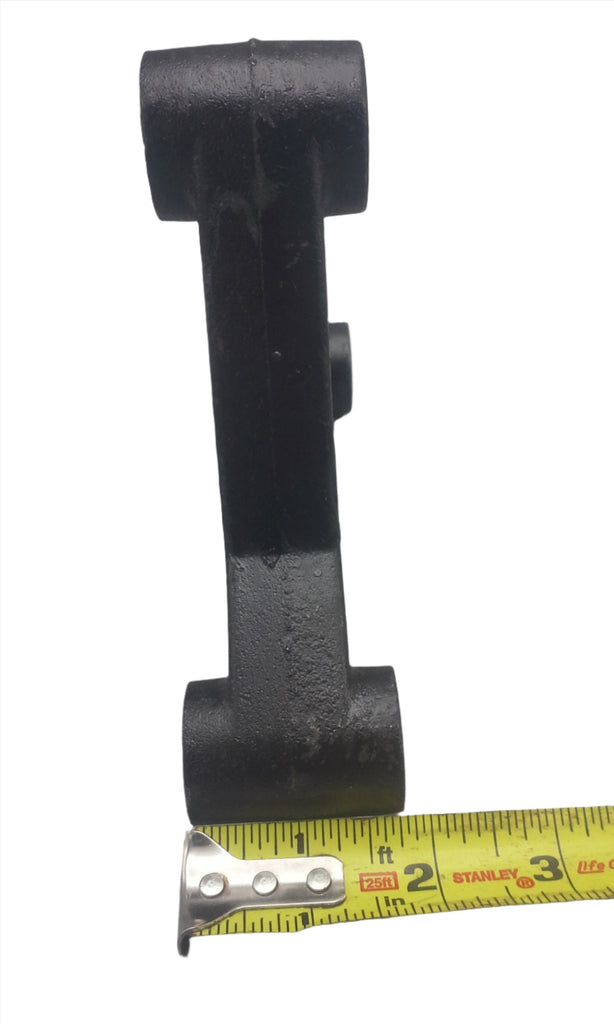

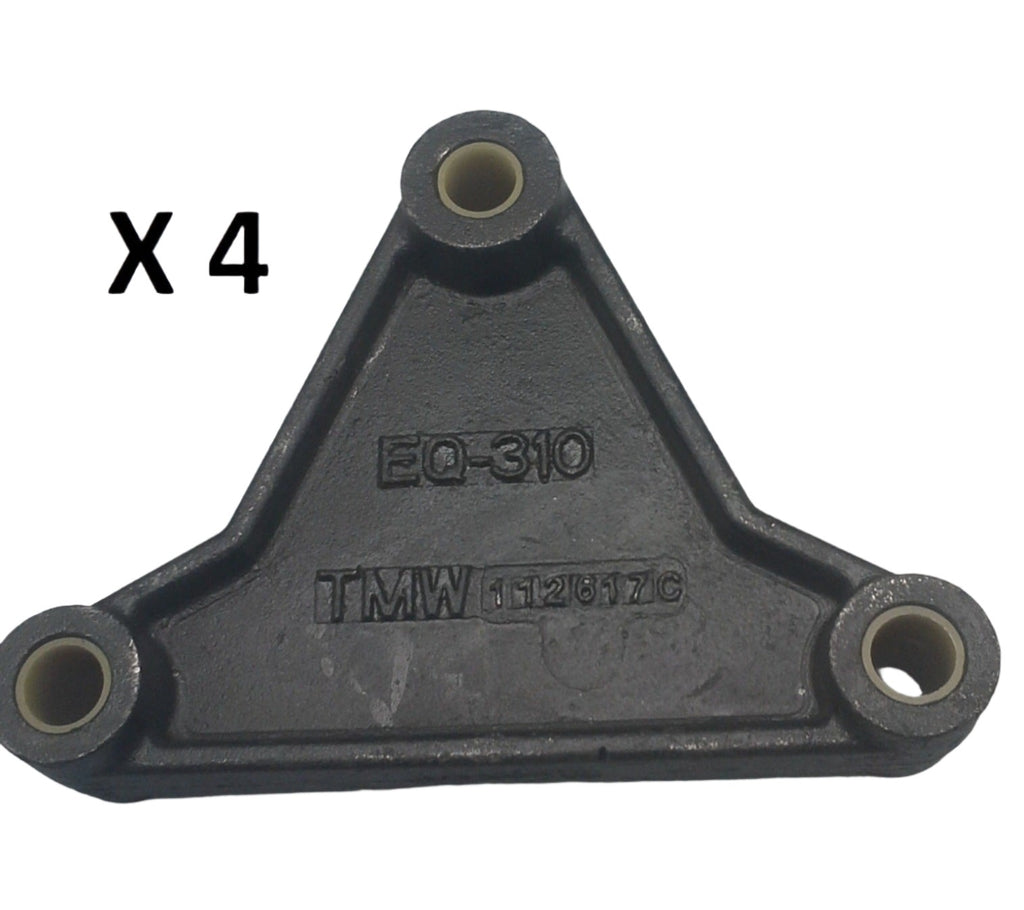

Set of four tall center triangular leaf spring equalizers designed for tandem axle trailer suspensions using 1-3/4" wide double eye or slipper style leaf springs. Constructed of ductile iron with nylon bushings installed, these equalizers help distribute load evenly between axles.
Features
| Feature | Details |
|---|---|

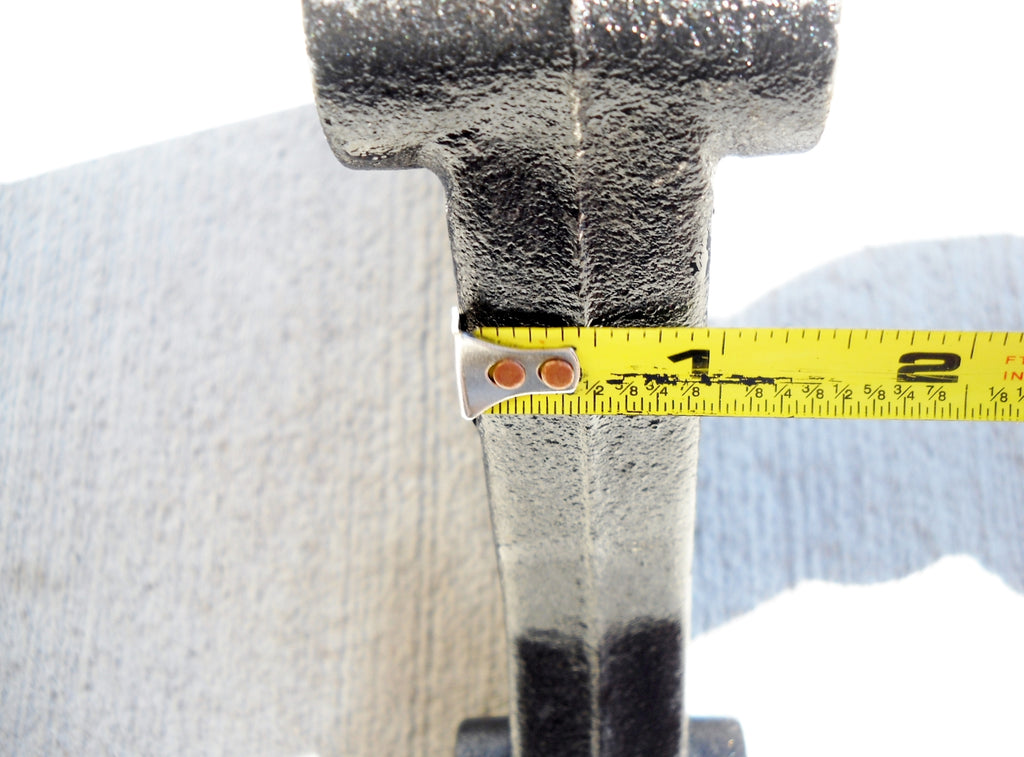

| Spring Compatibility | 1-3/4" Wide Double Eye or Slipper Springs |

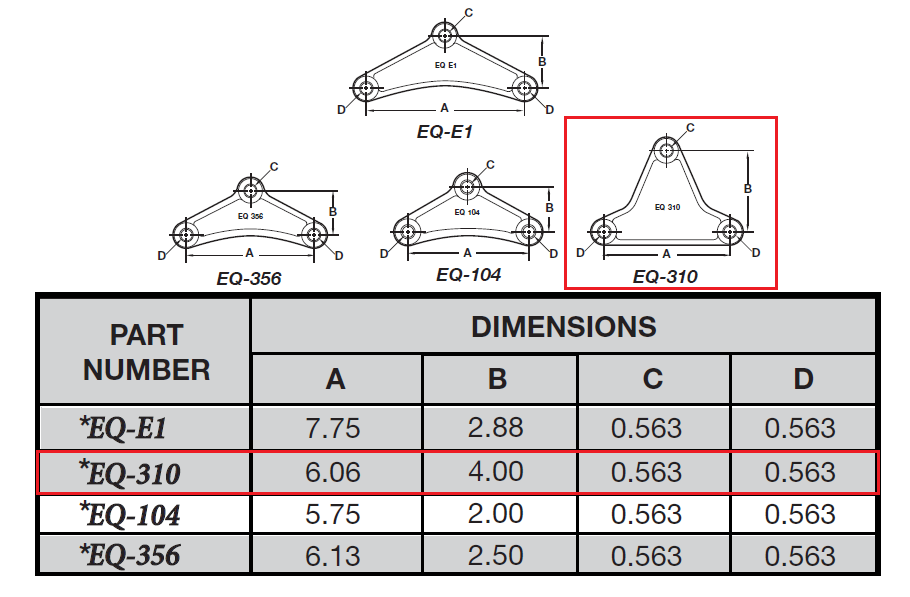

| Bottom Hole Center Spacing | 6.06" |
| Diagonal Measurement | 5-1/8" (Bottom Hole Center to Top Hole Center) |
| Vertical Height | 4" (Lower Hole Centerline to Upper Hole Centerline) |
| Bolt Hole Size | 9/16" with Nylon Bushings Installed |
| Material | Ductile Iron |
| Finish | Black Painted |

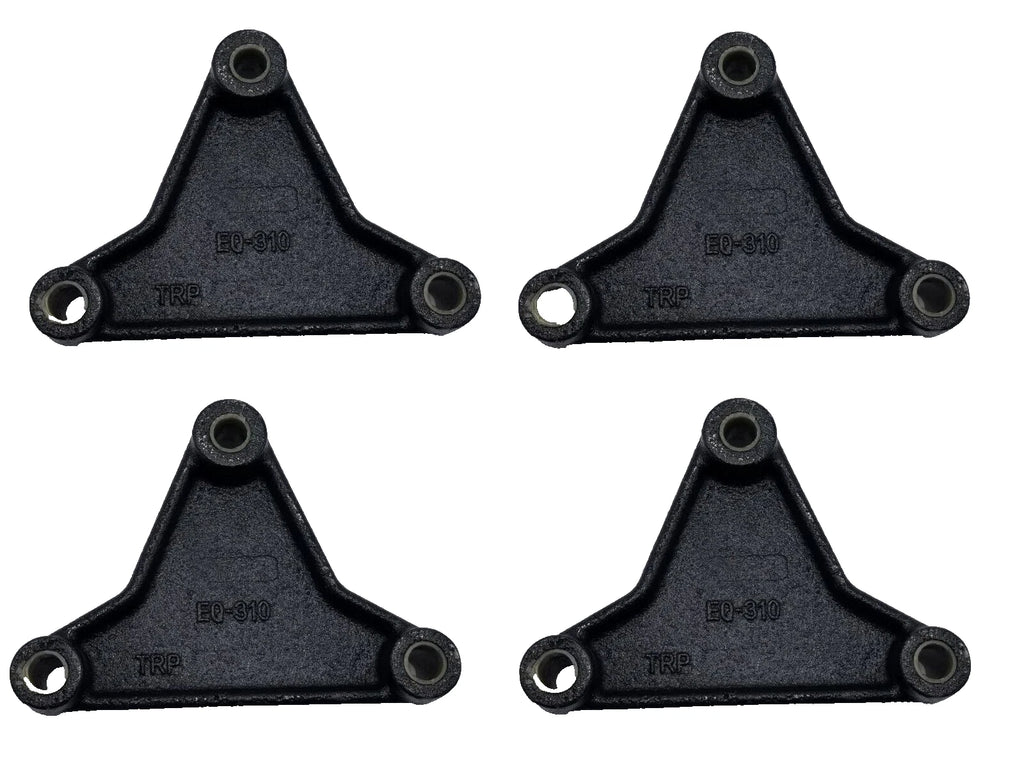

| Quantity | Set of 4 Equalizers |
R&P Knowledge Hub
Equalizers connect the rear of the front spring to the front of the rear spring on tandem axle trailers, allowing load to transfer between axles as the suspension cycles. Taller equalizers change suspension geometry and can slightly increase frame-to-axle clearance. When replacing equalizers, verify spring width, bolt diameter, and center-to-center measurements to maintain proper axle alignment.
Specifications
| Specification | Value |
|---|---|
| Equalizer Style | Triangular Tall Center |
| Spring Width | 1-3/4" |
| Bottom Hole Spacing | 6.06" |
| Bolt Hole Diameter | 9/16" |
| Material | Ductile Iron |
| Finish | Black Painted |
| Quantity | 4 Pieces |
Verify specifications before installation.
