R & P Carriages

5 x 5.5" Replacement Idler Hub Spindle Kit Stub End unit Trailer Axle 3500# #84 (STUB-84-555-H)

$66.09
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 59 available 58 remaining after purchase
Selected quantity subtotal $66.09
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: STUB-84-555-H
PRODUCT INFORMATION

Product Details

R&P Carriages Logo

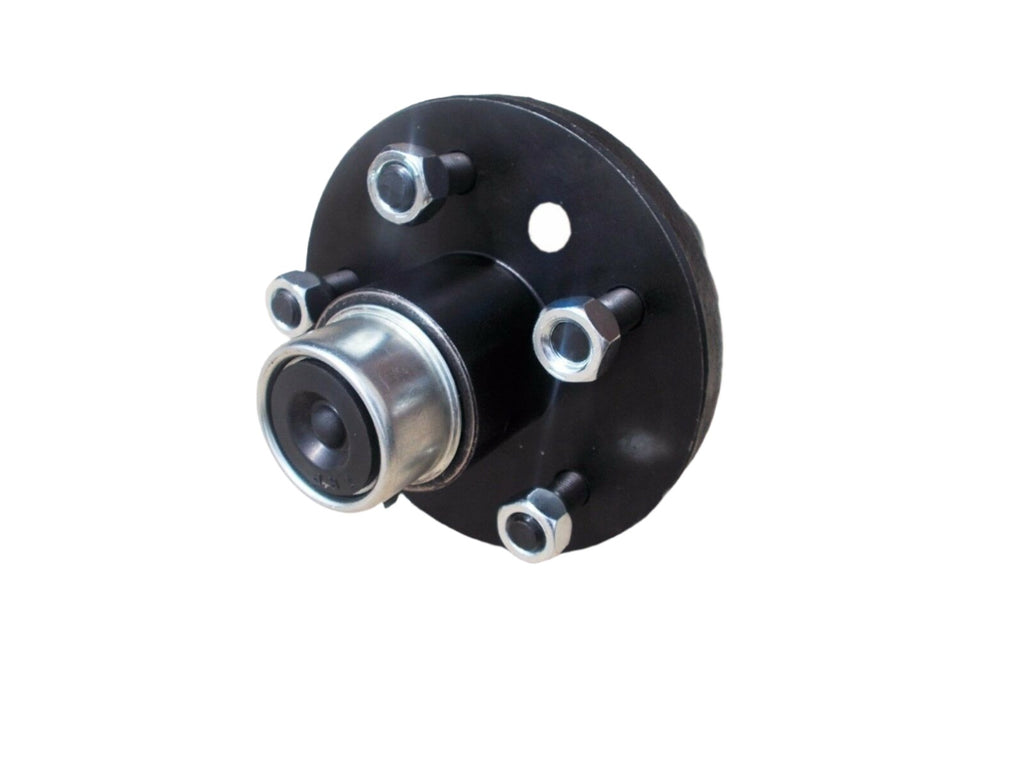

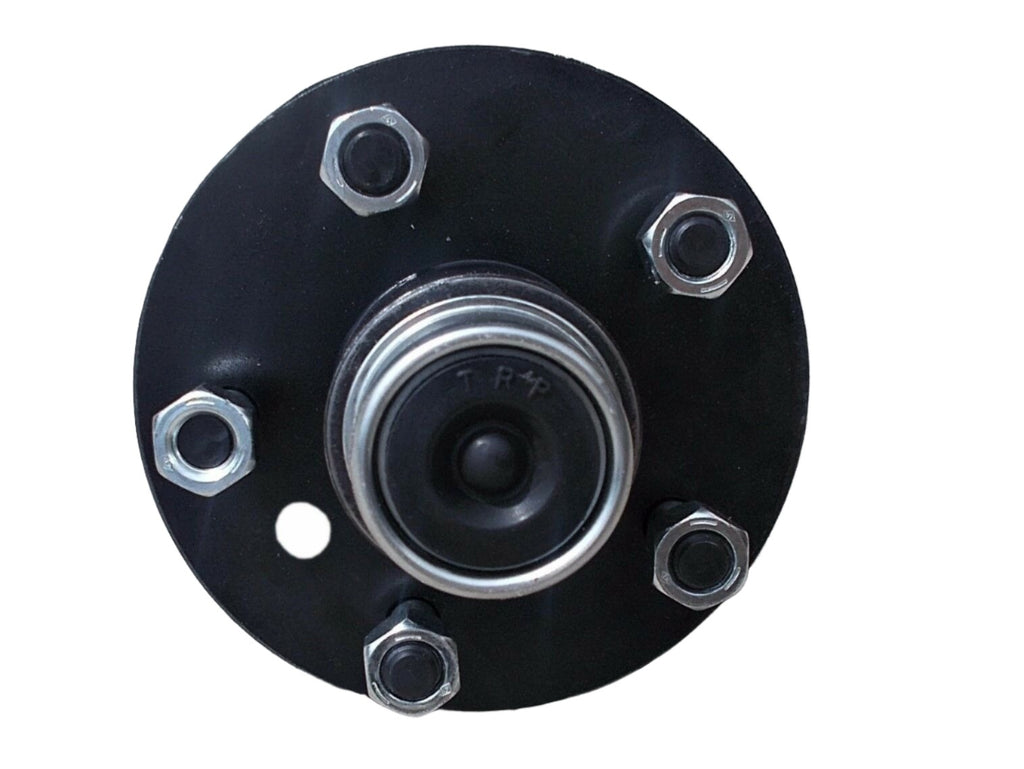

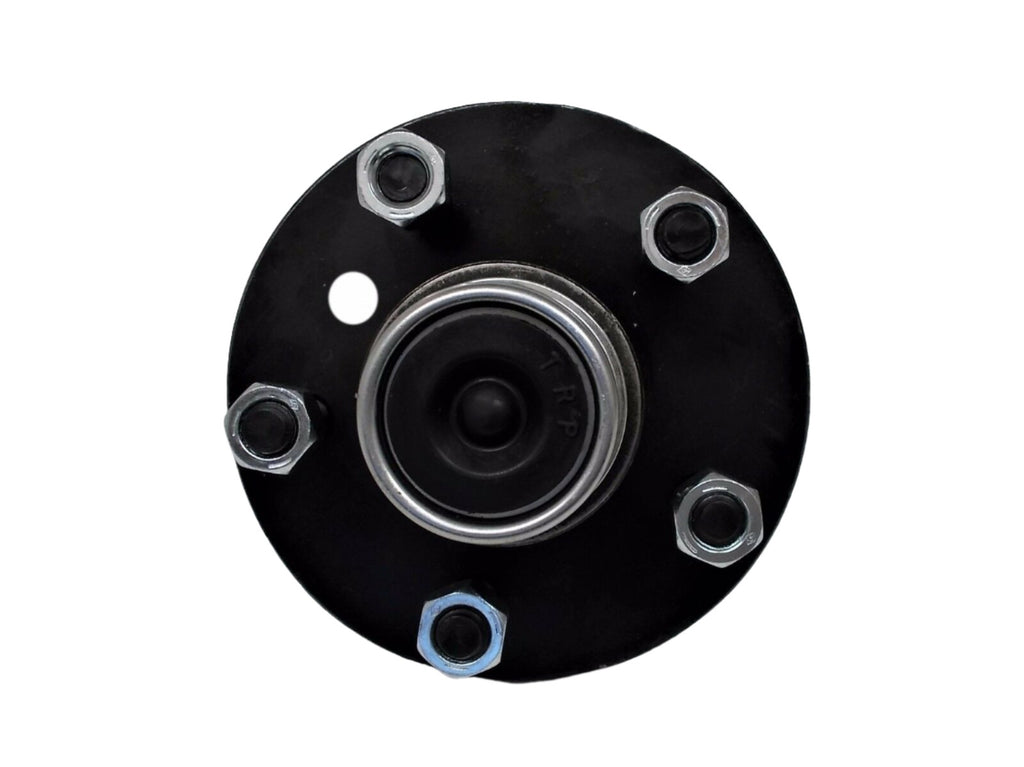

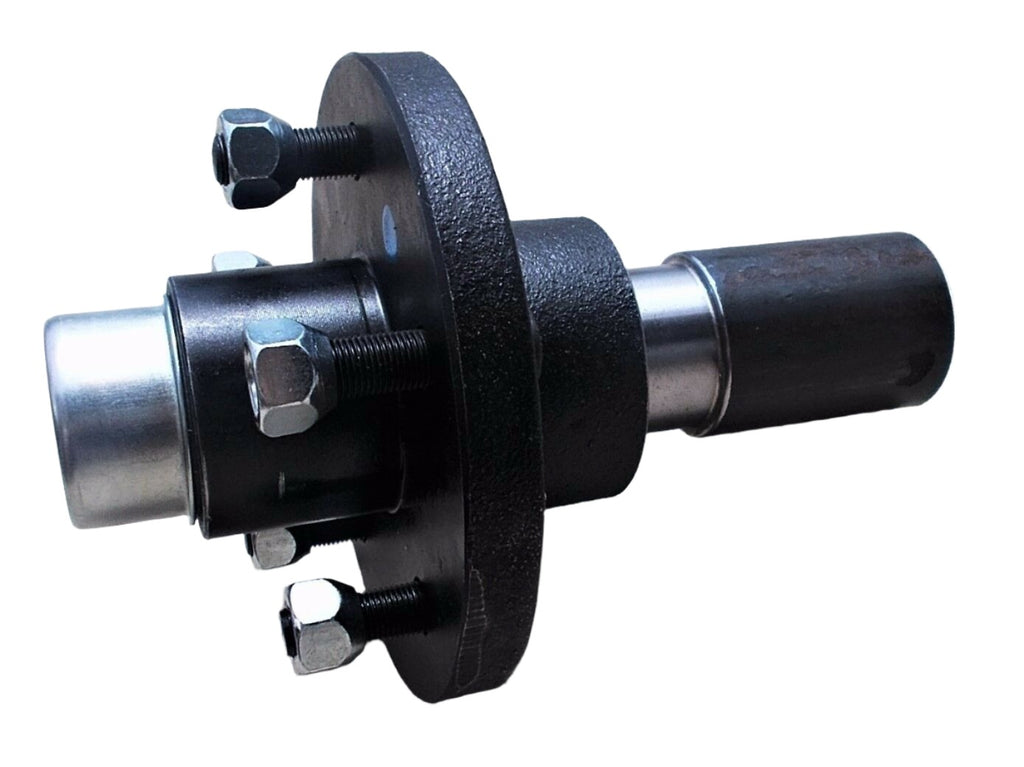

Stub Axle End Kit – 3,500 lb Trailer Axle – 5 on 5.5 Idler Hub – #84 Spindle

Part Number: STUB-84-555-H

Complete stub axle replacement kit designed for 3,500 lb trailer axles using a standard #84 spindle configuration.Includes a 5 on 5.5 bolt pattern idler hub and matching spindle components for replacing one damaged axle end.Commonly used on light-duty utility, equipment, and enclosed trailers with 3,500 lb straight axles.

Kit Includes

  • 1 × 3,500 lb Idler Hub – 5 on 5.5 Bolt Pattern
  • 5 × Lug Nuts
  • 1 × 1.98" Dust Cap
  • 1 × L44649 Outer Bearing
  • 1 × L68149 Inner Bearing
  • 1 × 10-19 Grease Seal
  • 1 × SP-20084NWC Spindle
  • 1 × 1" Axle Nut
  • 1 × 1" Spindle Washer
R&P Knowledge Hub
A stub axle kit is used when a spindle becomes damaged due to bearing failure, overheating, or impact. The original spindle end is removed and the replacement stub is welded to the axle tube to restore proper bearing support. The #84 spindle uses an L68149 inner bearing and L44649 outer bearing, common in 3,500 lb axle assemblies. Before ordering, confirm bearing numbers, seal size, bolt pattern, and axle tube diameter to ensure correct fitment.
5 on 5.5 Bolt Pattern Measurement Diagram
Bolt Pattern Measurement
Stud Pattern 5 on 5.5"
Stud Spacing 5-1/4"

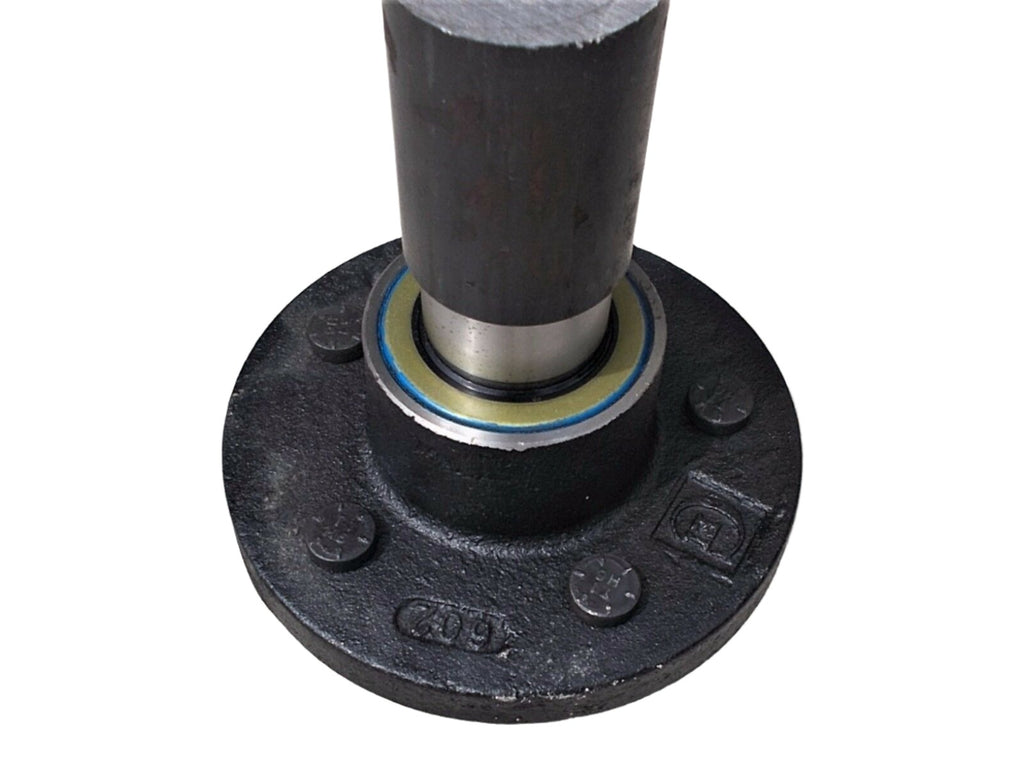

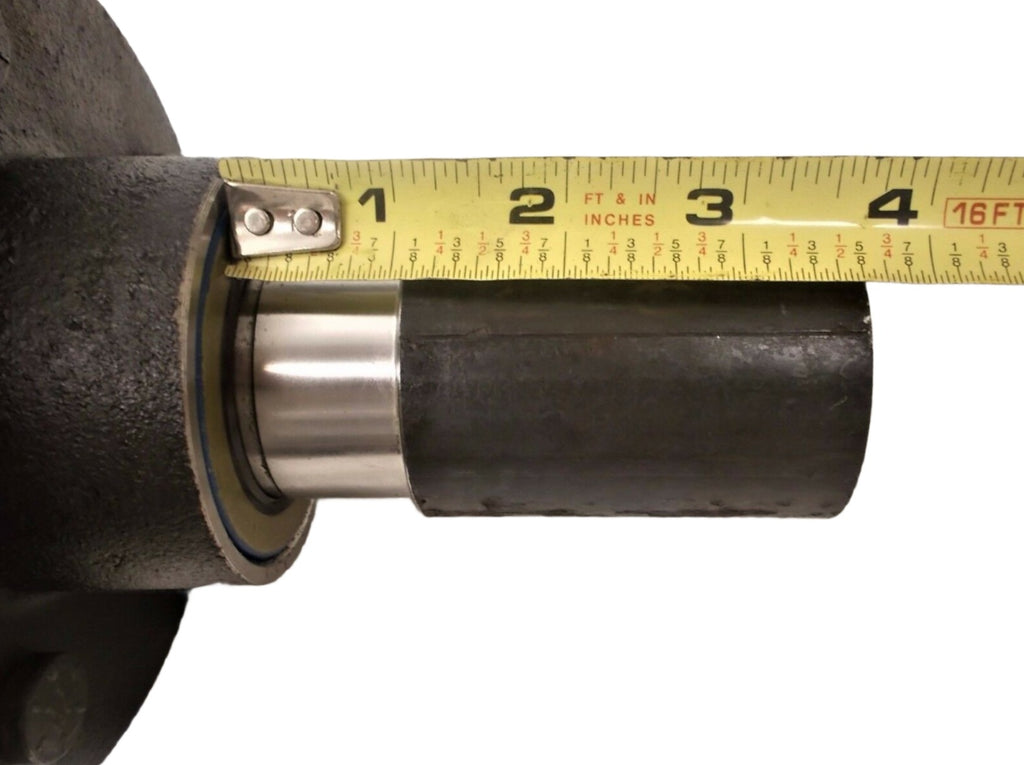

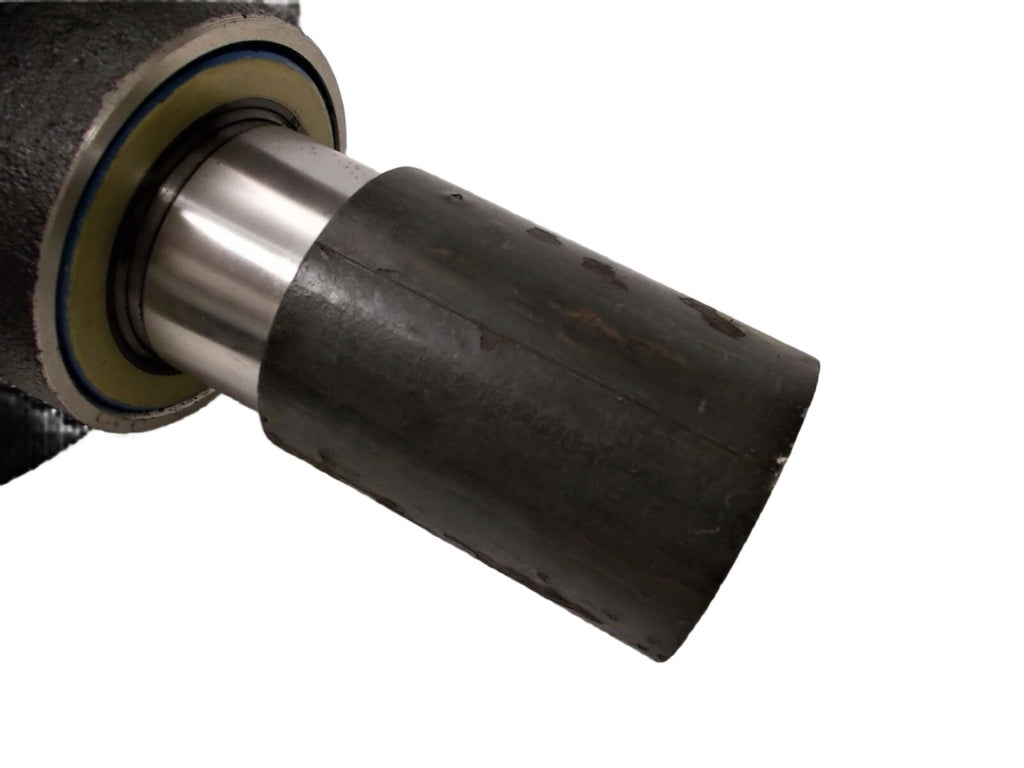

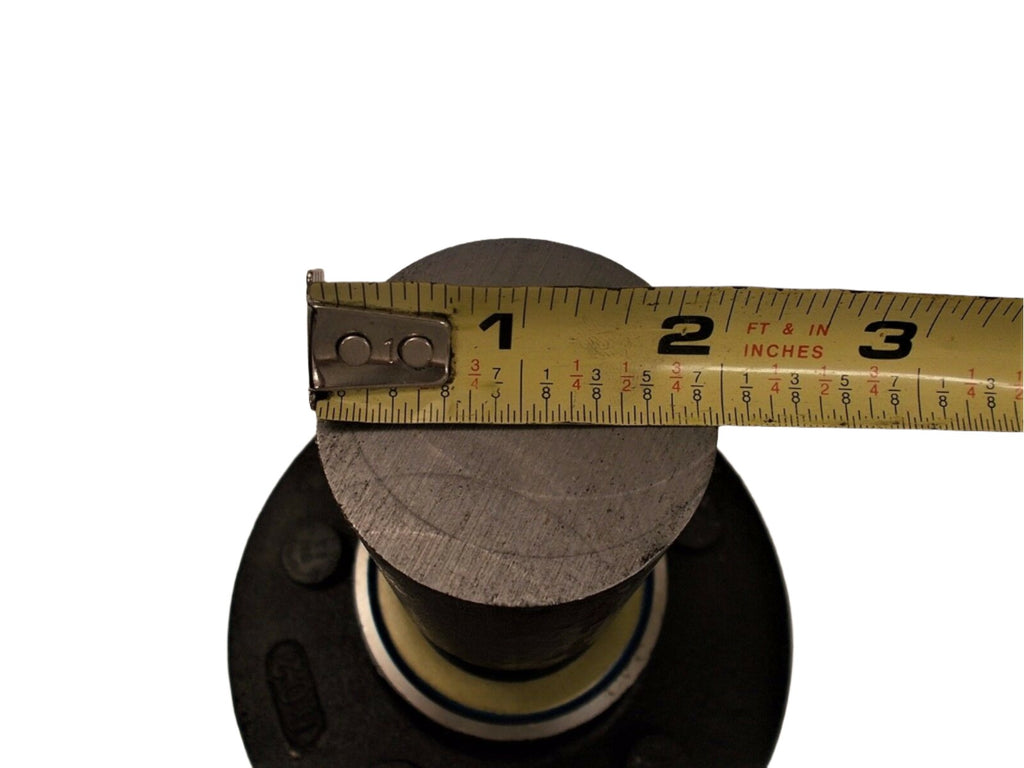

Spindle Size Reference Diagram

Specifications

Specification Detail
Axle Rating 3,500 lb
Spindle Type #84
Outer Bearing L44649
Inner Bearing L68149
Seal 10-19

Verify specifications before installation.
