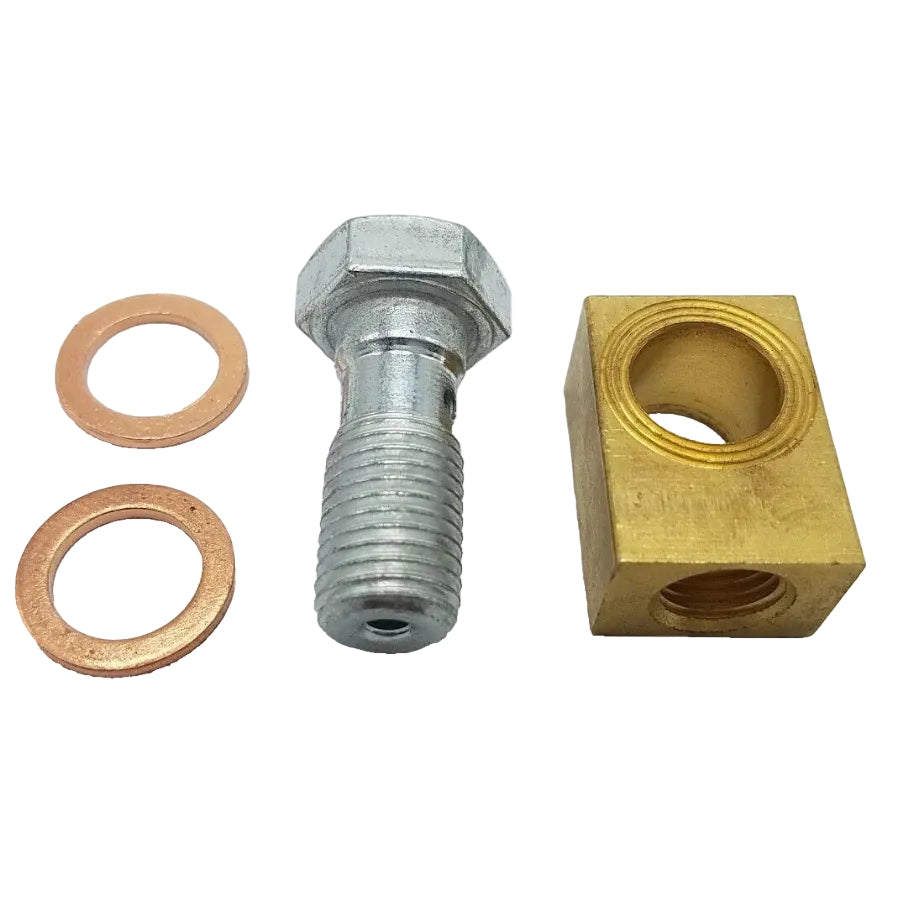

Banjo Bolt, Brass Block & 2 Copper Washers — 7/16-20 Brake Caliper Trailer Kit
Complete hydraulic brake caliper banjo connection kit with one 7/16-20 x 1" banjo bolt, one brass banjo fitting block, and two copper sealing washers for compatible trailer disc brake caliper applications.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 32275U+32307U+2x32230U |
| Product Type | Hydraulic brake caliper banjo connection kit |
| Banjo Bolt | 32307U — 7/16-20 x 1" |
| Washer Part Number | 32230U copper washers |
| Fitting Block | 32275U brass banjo fitting block |
| Quantity Included | 4-piece kit: 1 bolt, 1 block, 2 washers |
Fitment / Application
| Category | Details |
|---|---|
| System | Hydraulic trailer disc brake caliper connection |
| Primary Fit | Compatible calipers using a 7/16-20 banjo bolt connection |
| Application Reference | Commonly used with Dexter / UFP-style trailer disc brake caliper setups where the fitting style and measurements match |
| Fitment Method | Match thread size, banjo fitting style, washer size, brake line connection, and caliper requirements before ordering |
| Important Note | Verify fitment before installation; brake hydraulic parts must seal correctly and should be installed by a qualified technician when needed |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Complete Connection Kit | Includes the banjo bolt, brass block fitting, and copper washers needed for one caliper-side banjo connection |
| 7/16-20 Thread | Matches compatible trailer disc brake caliper banjo bolt applications using this thread size |
| Copper Sealing Washers | Helps create the compressed seal required at the hydraulic banjo fitting connection |
| Service-Friendly Kit | Useful when replacing missing, worn, damaged, or leaking banjo connection hardware |
Overview

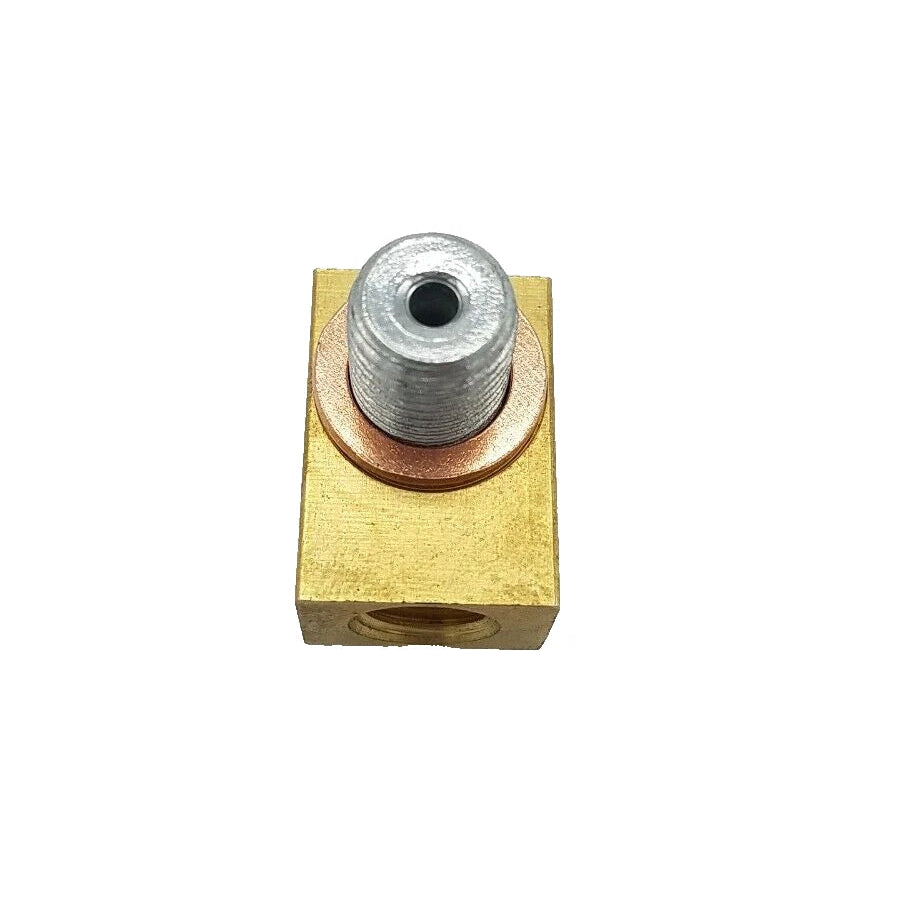

This banjo bolt kit is built for compatible trailer hydraulic disc brake caliper connections using a 7/16-20 banjo bolt setup. The kit includes one 32307U banjo bolt, two 32230U copper sealing washers, and one 32275U brass banjo fitting block, giving you the core hardware needed for a caliper-side hydraulic brake line connection where these components match the original setup.
R&P Service Insight
Banjo connections depend on the correct bolt thread, correct fitting style, and properly compressed sealing washers. Reusing old copper washers can increase the chance of seepage or a weak seal.
- Confirm Thread Size: Match the 7/16-20 bolt thread to the caliper before installation.
- Use Fresh Washers: Copper washers are intended to crush and seal at the fitting faces.
- Check for Leaks: After installation and bleeding, inspect the connection carefully under brake pressure.
R&P Knowledge Hub
Compatibility: This kit is intended for compatible trailer disc brake caliper applications that use the 32307U 7/16-20 x 1" banjo bolt, 32275U brass fitting block, and 32230U copper washers.
Vehicle / System Fit: Used at the hydraulic brake line to disc brake caliper connection on matching trailer brake systems.
Installation Notes: Confirm the brake line fitting, caliper banjo port, bolt thread, and washer placement before tightening. Brake systems should be bled and checked for leaks after service.
Performance Insight: The banjo bolt routes brake fluid through the fitting while the copper washers create the sealing surfaces on each side of the banjo block.
Brand & Fitment Note
Selling Brand: R&P Carriages curated hydraulic brake hardware kit using the listed component part numbers.
Application Reference: Dexter and UFP references are used for fitment guidance only where the brake caliper setup, thread size, and fitting style match.
What This Means: This listing is for a complete banjo connection hardware kit, not a guaranteed OEM-branded assembly unless specifically stated on packaging or order documentation.
Before Ordering: Verify bolt thread, bolt length, washer size, fitting style, brake line connection, caliper type, and included components before installation.
R&P Repair Insight
If a caliper banjo connection is seeping fluid, inspect the bolt, block, washers, and caliper sealing surfaces. A damaged sealing surface, incorrect washer placement, or mismatched bolt can prevent a safe hydraulic seal.

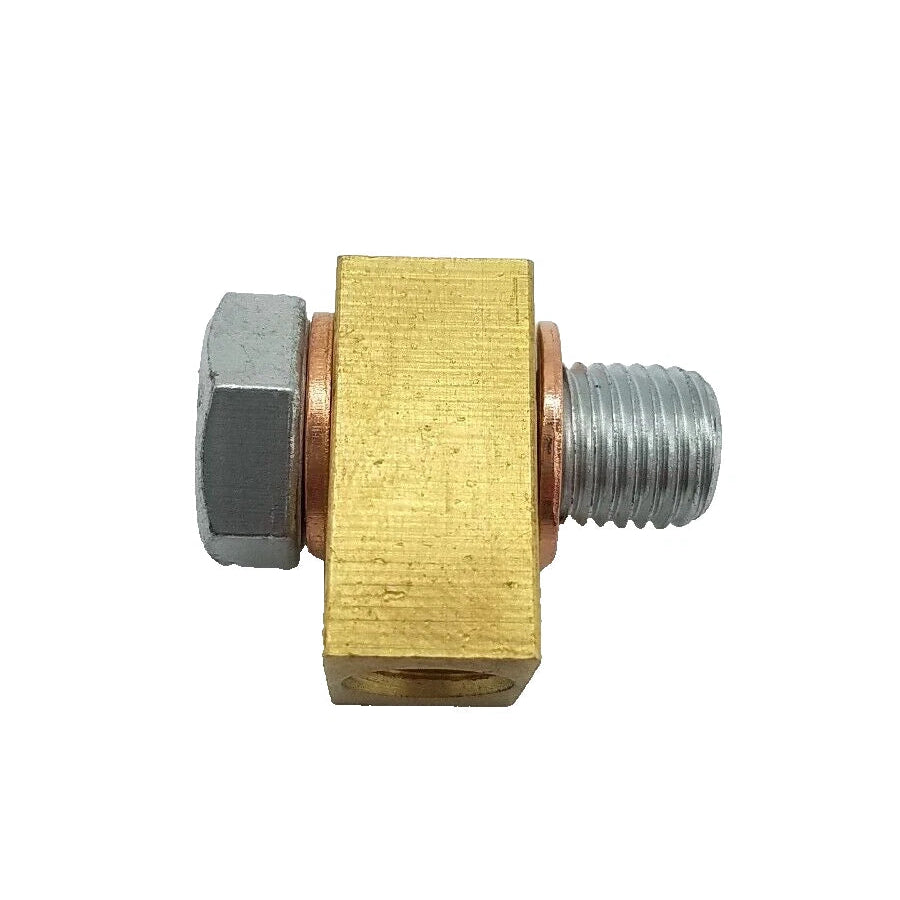

- Washer Placement: A copper washer is typically used on each side of the banjo fitting block.
- Surface Check: Clean and inspect the caliper face and banjo fitting face before assembly.
- System Check: Bleed the hydraulic brake system and verify proper brake operation after service.
Features
Complete 4-Piece Kit
Includes one banjo bolt, one brass banjo fitting block, and two copper washers for one compatible caliper connection.

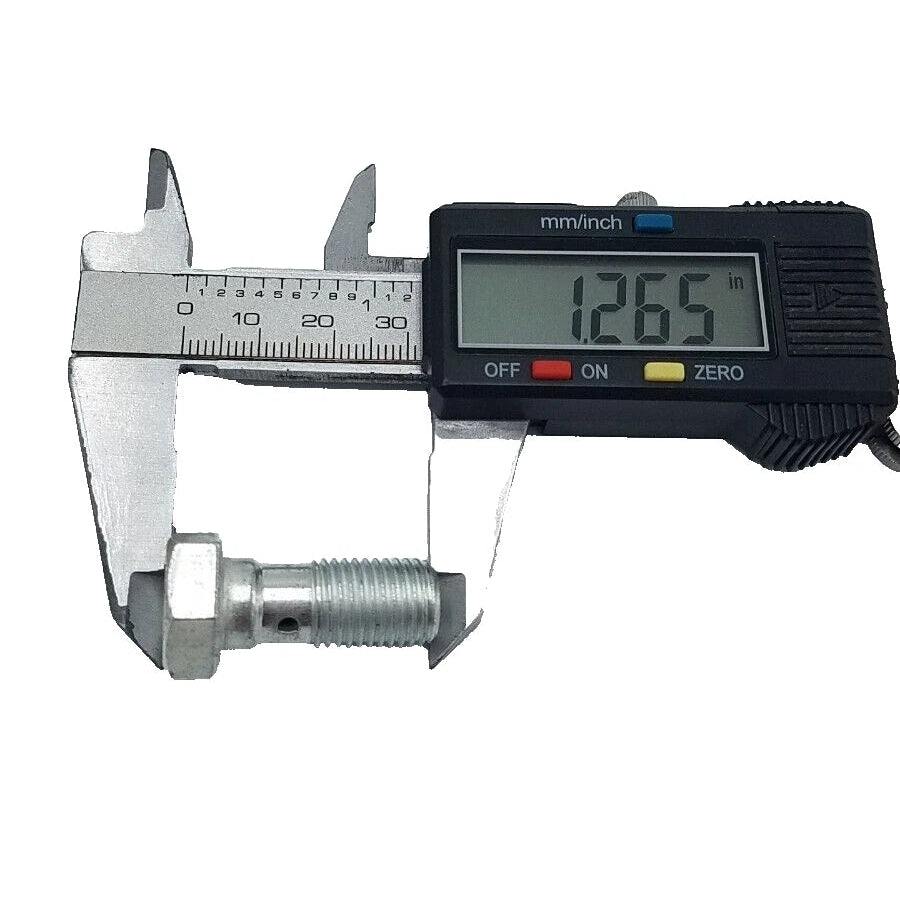

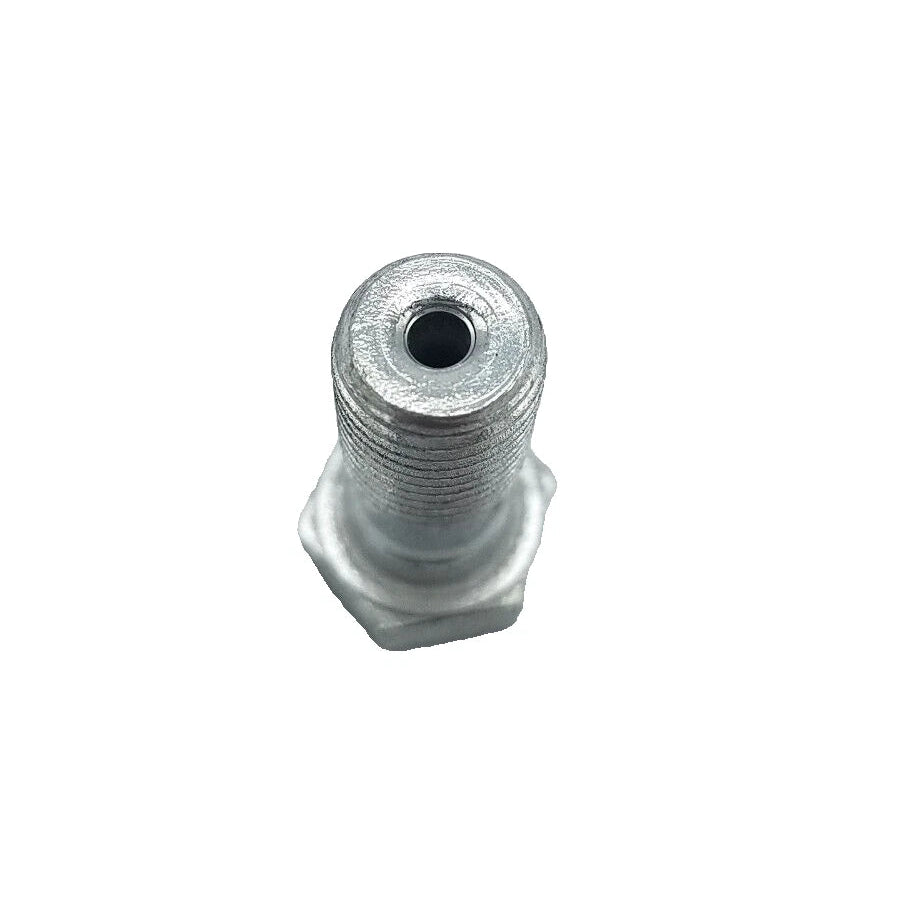

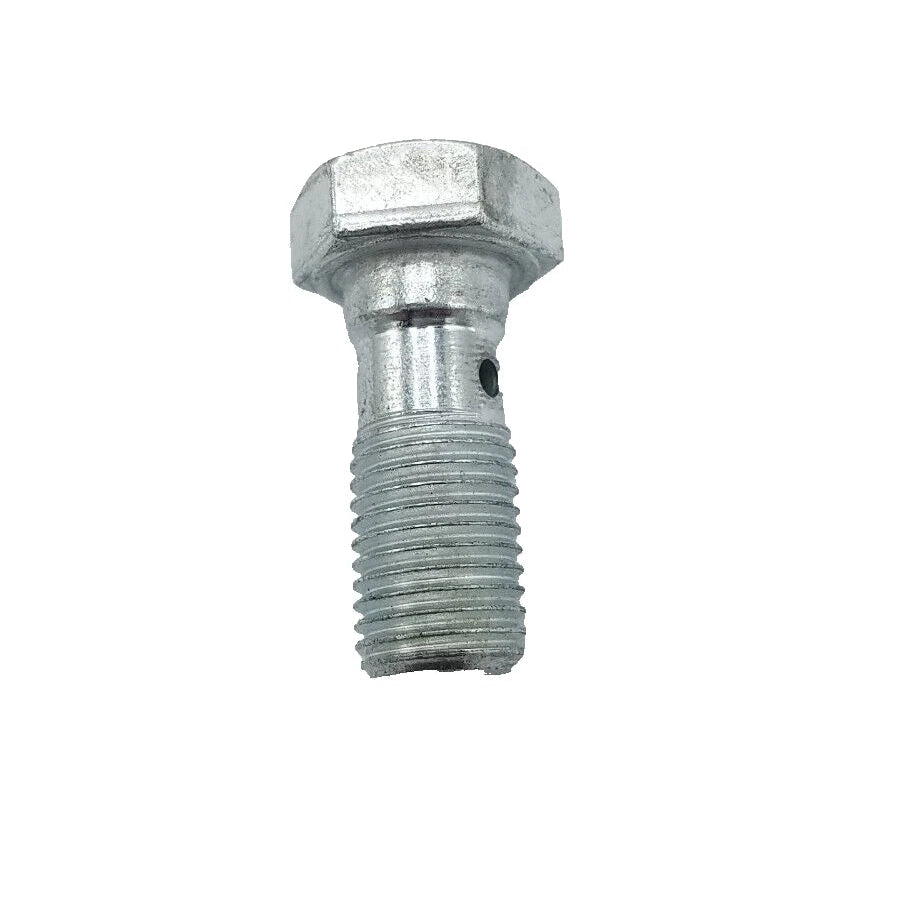

7/16-20 Banjo Bolt
Uses the 32307U 7/16-20 x 1" banjo bolt for matching trailer disc brake caliper applications.

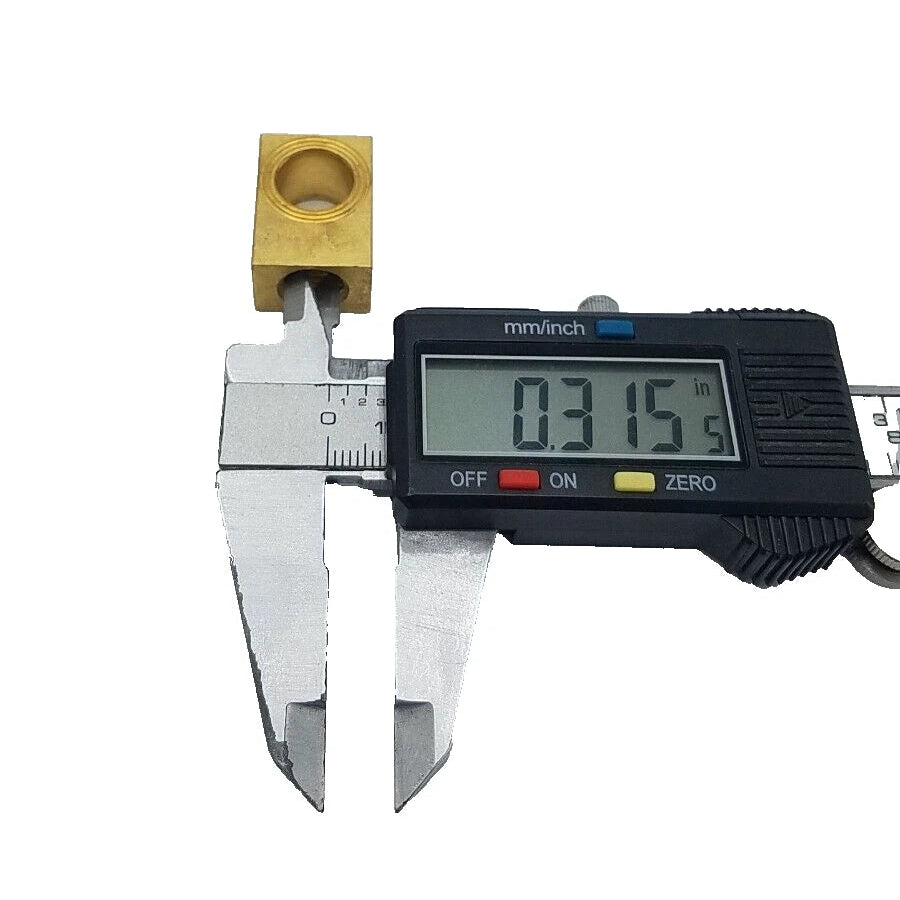

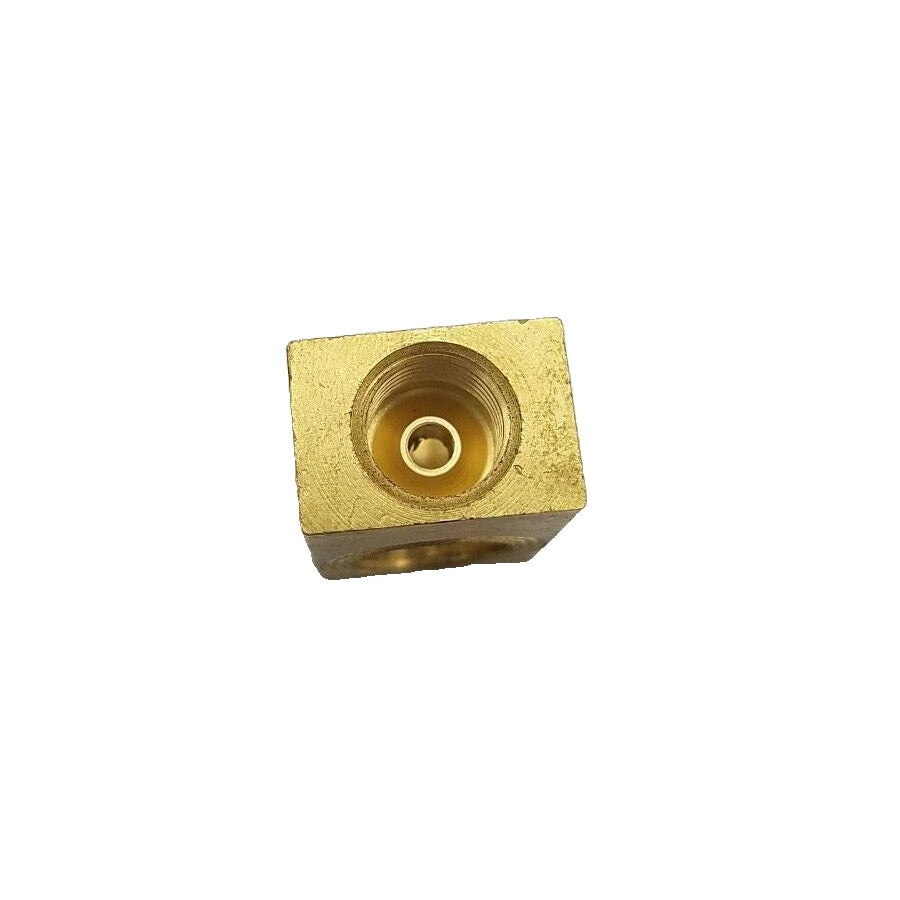

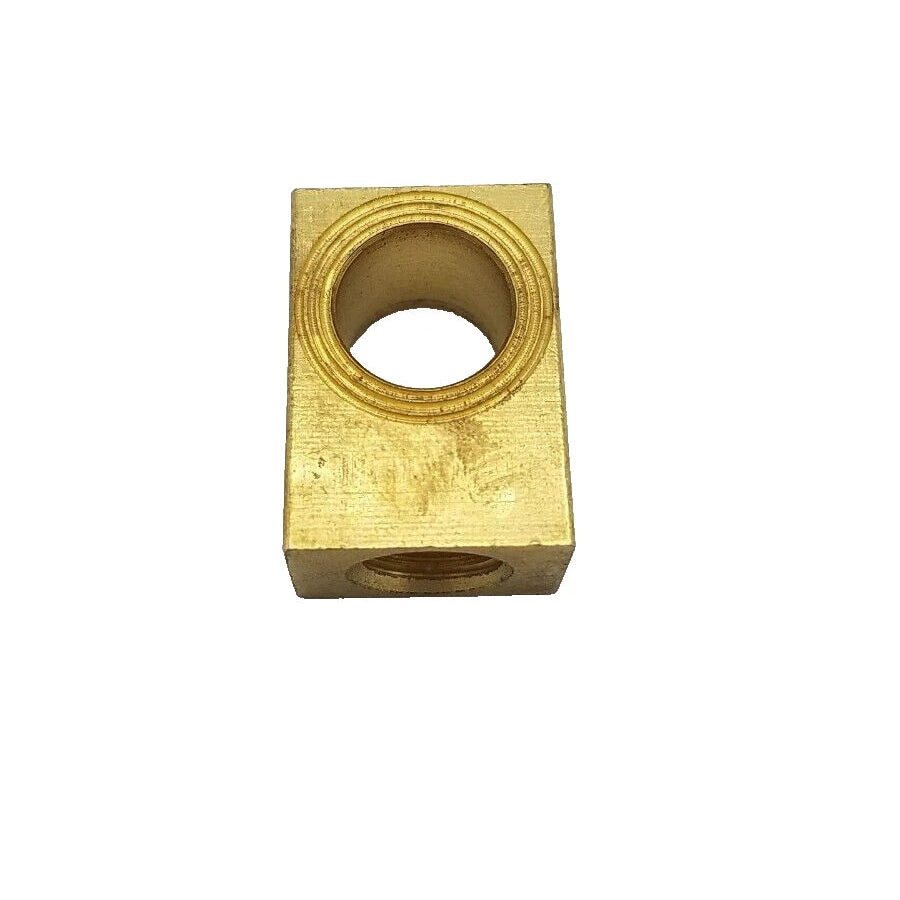

Brass Fitting Block
Includes the 32275U brass banjo fitting block used to connect the hydraulic brake line at the caliper.

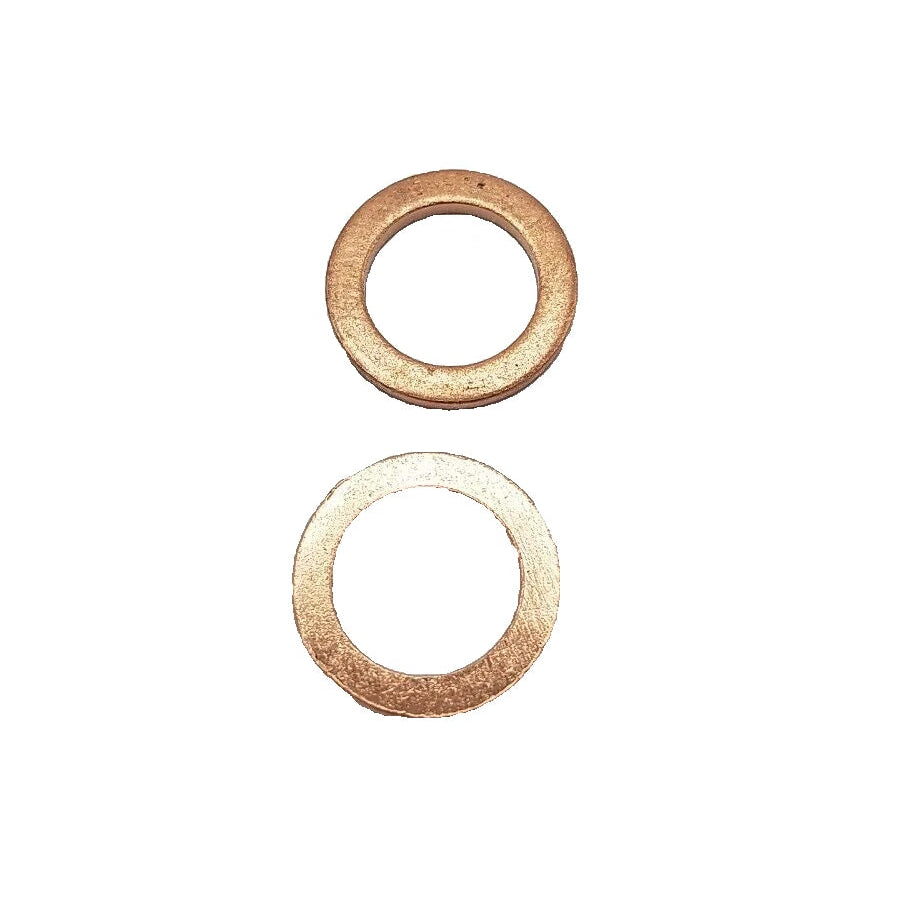

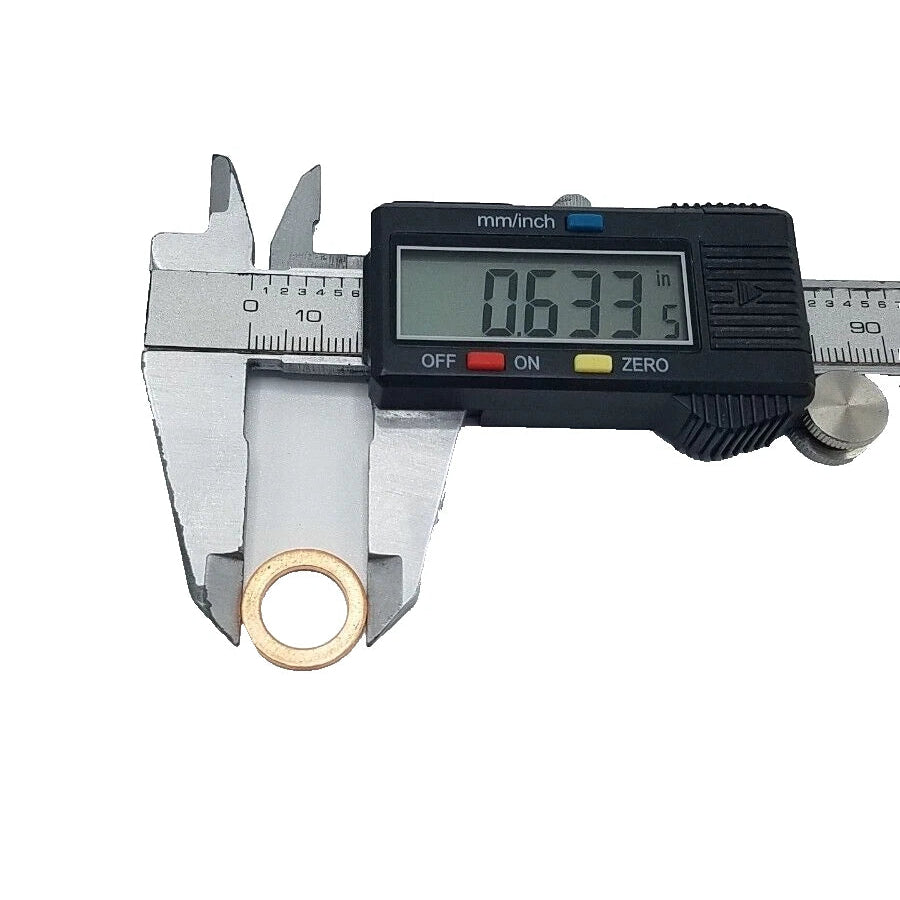

Copper Sealing Washers
Includes two 32230U copper washers to help seal the banjo fitting connection during brake service.
Included Components
| Quantity | Item | Part Number |
|---|---|---|
| 1 | Banjo bolt, 7/16-20 x 1" | 32307U |
| 2 | Copper sealing washers | 32230U |
| 1 | Brass banjo fitting block | 32275U |
```
