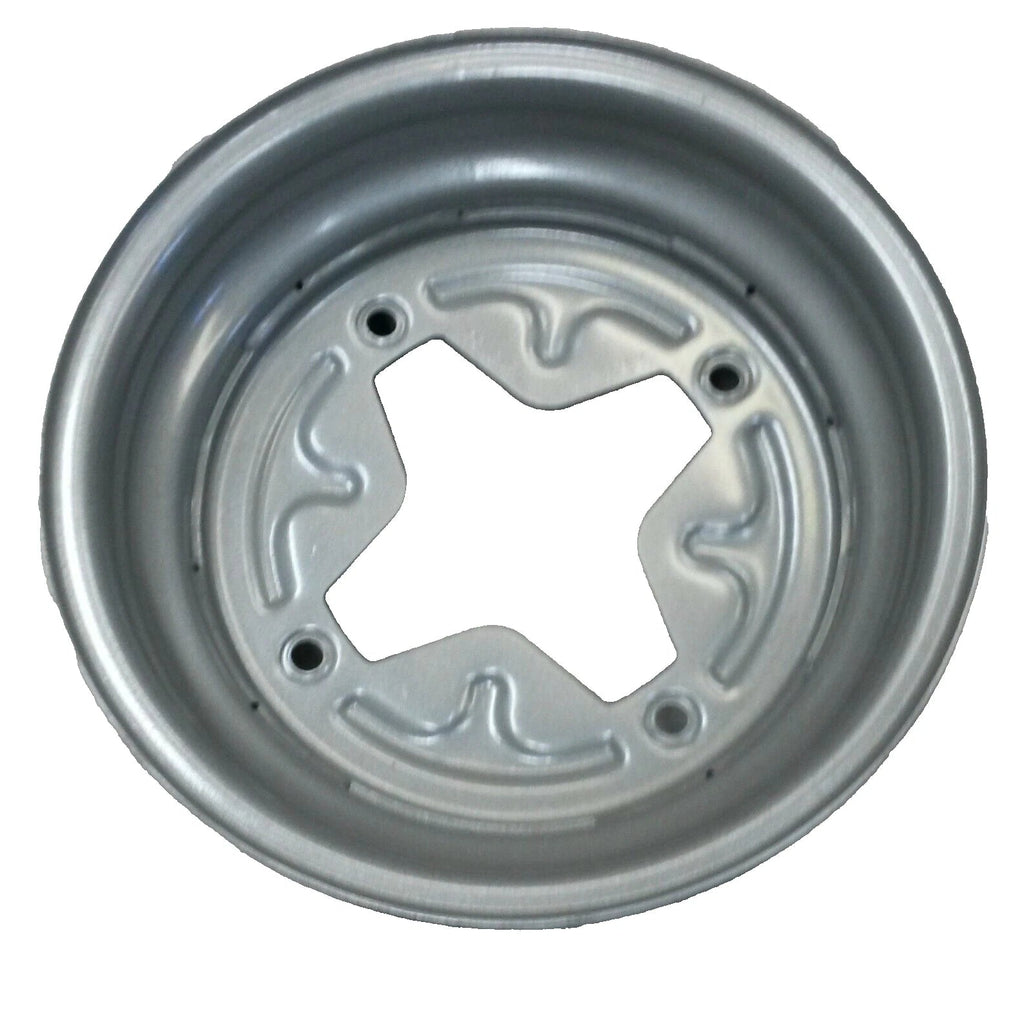

Dexstar 14" X 5.5" Vintage Style Rim 4 x 4, -9 Silver Trailer Wheel
Silver vintage-style Dexstar steel trailer wheel for trailers using the 4 on 9.44" bolt pattern. Built for matching vintage trailer hub applications where wheel size, bolt pattern, offset, center opening, and load rating all match.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 20312 |
| Brand | Dexstar |
| Product Type | Vintage-style steel trailer wheel |

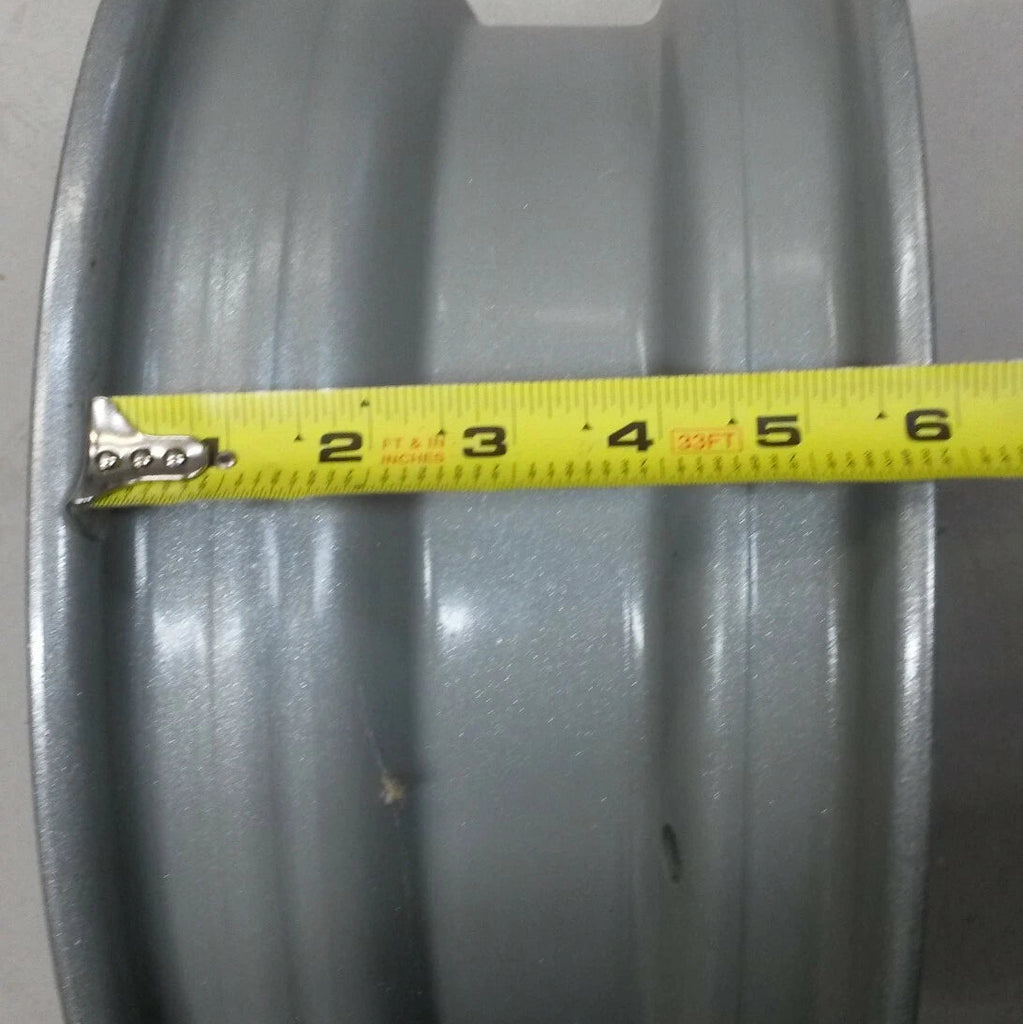

| Wheel Size | 14" x 5.5" |

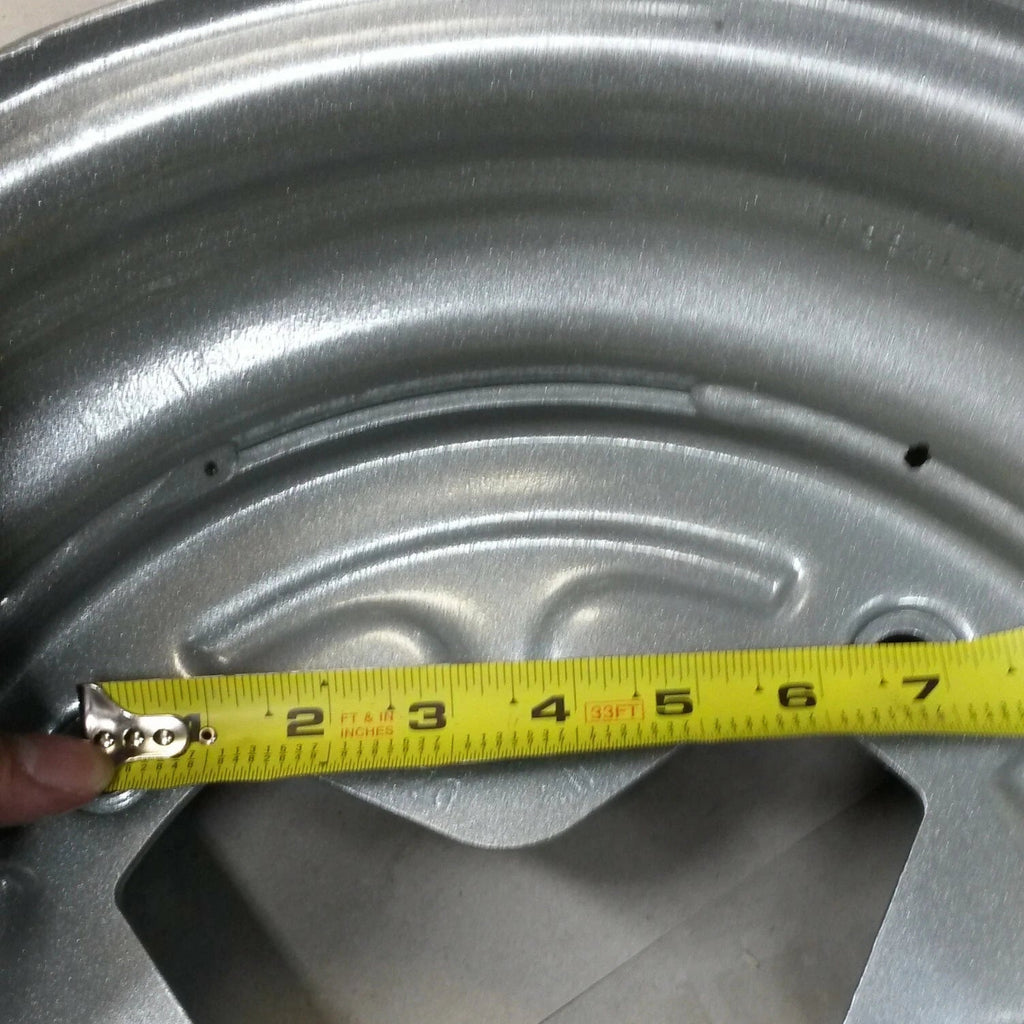

| Bolt Pattern | 4 on 9.44" |

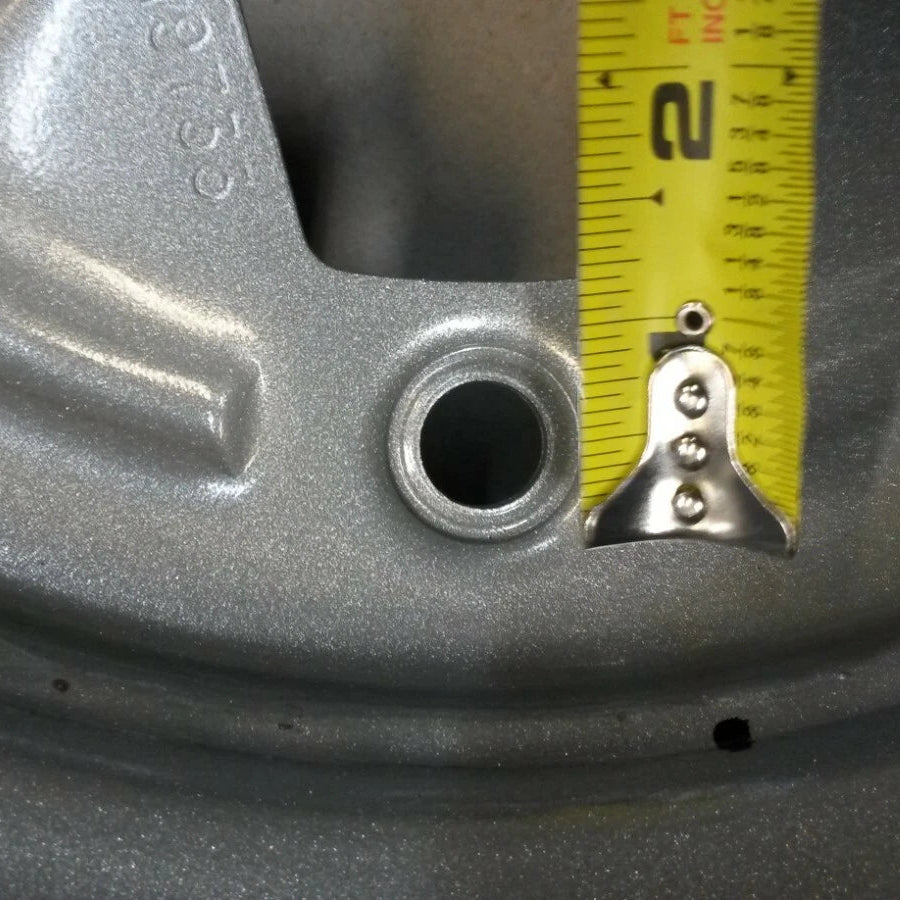

| Center Hole | Approximately 2.62" — verify before ordering |
| Offset / Inset | +0.50" positive offset / inset |
| Load Rating | 1,860 lb at 50 PSI |
| Material / Finish | Steel / silver powder coat style finish |
| Quantity Included | One wheel only |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / Trailer / System | Trailer wheel applications using the vintage 4 on 9.44" bolt pattern |
| Primary Fit | Verify before ordering against the existing wheel and hub measurements |
| Fitment Method | Match wheel diameter, width, bolt pattern, center hole, offset, load rating, and tire size |
| Clearance Check | Positive offset / inset moves the tire closer toward the trailer frame; confirm tire-to-frame and tire-to-fender clearance |
| Important Note | This is not a universal 14" trailer wheel. The 4 on 9.44" pattern must match the trailer hub. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Vintage 4-Lug Pattern | Supports older trailer applications that use the uncommon 4 on 9.44" wheel pattern |
| Steel Construction | Durable trailer wheel construction for service replacement use |
| Silver Finish | Clean vintage-style appearance for matching compatible trailer setups |
| Made in USA | Dexstar steel trailer wheel manufactured in the United States |
| DOT Specification | Dexstar states its wheels meet DOT specifications |
Overview
The Dexstar 20312 is a 14" x 5.5" vintage-style steel trailer wheel for trailers using a 4 on 9.44" bolt pattern. It is rated for 1,860 lb at 50 PSI and uses a +0.50" positive offset / inset design. This wheel is intended for replacement use only where the existing trailer hub, tire size, clearance, and load requirements match the listed specifications.
R&P Service Insight
The 4 on 9.44" pattern is a specialty vintage trailer wheel pattern. Fitment should be confirmed by measurement, not by wheel diameter alone.
- Bolt Pattern: Confirm the trailer hub uses 4 on 9.44" before ordering.
- Offset: The +0.50" inset moves the tire closer toward the trailer frame compared with a zero-offset wheel.
- Load Match: Wheel capacity must meet or exceed the load requirement for the trailer and tire combination.
R&P Knowledge Hub
Compatibility: Compatible only with trailers using the matching 14" wheel size, 4 on 9.44" bolt pattern, center opening, and offset requirements.
Vehicle / System Fit: Commonly used as a vintage-style replacement trailer wheel where the existing hub and wheel specifications match.
Installation Notes: Verify bolt pattern, center hole, lug seat compatibility, tire size, valve stem needs, and torque requirements before installation.
Performance Insight: Offset changes wheel placement on the trailer. A +0.50" inset positions the tire closer toward the trailer frame, so clearance should be checked carefully before use.
Brand & Fitment Note
Selling Brand: Dexstar
Application Reference: Vintage 4 on 9.44" trailer wheel applications where all wheel measurements match.
What This Means: This listing is for one Dexstar 20312 trailer wheel. Tire, lug nuts, valve stem, center cap, hub hardware, and mounting hardware are not included unless separately stated.
Before Ordering: Verify the existing wheel size, bolt pattern, center hole, offset, load rating, tire compatibility, and trailer clearance before installation.
R&P Repair Insight
When replacing a vintage trailer wheel, the most common ordering mistake is matching only the diameter while missing the bolt pattern or offset. Use the existing wheel and hub as the final fitment reference.
- Check the Pattern: Confirm the hub is 4 on 9.44", not a standard 4 on 4" or 5 on 4.5" trailer hub pattern.
- Check the Clearance: Because this wheel has positive inset, confirm the mounted tire will not contact the frame, suspension, or fender.
- Check the Tire Rating: The tire, wheel, and axle ratings should be reviewed together so the trailer is not limited by an under-rated component.
Features
14" x 5.5" Vintage Wheel Size
Designed for compatible trailer applications needing a 14" diameter by 5.5" wide vintage-style steel wheel.
4 on 9.44" Bolt Pattern
Built for the specialty vintage 4-lug trailer hub pattern. This pattern must be verified before ordering.
+0.50" Positive Offset
Inset wheel design positions the mounted tire closer toward the trailer frame, so clearance should be checked carefully.
1,860 lb Load Rating
Rated for 1,860 lb at 50 PSI when used with a compatible tire, hub, and trailer application.
Steel Construction
Steel trailer wheel construction with a silver powder coat style finish for durable service replacement use.
Made in USA
Dexstar steel trailer wheel manufactured in the United States for trailer, RV, utility, and related towable applications.
Included Components
| Quantity | Item |
|---|---|
| 1 | Dexstar 20312 14" x 5.5" vintage-style silver steel trailer wheel |
| Not Included | Tire, valve stem, lug nuts, center cap, hub, bearings, and mounting hardware |
```
