Greaseable Tri Axle Trailer Spring Suspension Rebuild Kit Triple EQ-105 Wet Bolt (SRK-3A-WB-105)

Need a Trailer Part

Regular price $127.99

Tri-Axle Trailer Axle Suspension Rebuild Kit with Wet Bolts
and EQ-105 Tri Axle Equalizer
Part Number: SRK-3A-WB-105

This is a kit to change all the "wear parts" on a standard TRIPLE axle trailer (4,000 # GVW up to 14,000# GVW) .
This is for standard "Eye to Eye " Springs, not "slipper" springs (bolt on one end of spring only),
For standard 1 3/4" wide springs.

This Kit includes GREASABLE WET BOLTS.
Tired of replacing the suspension bolts on your trailer?
With these wet bolts, you could add THOUSANDS of miles on to your trailer.

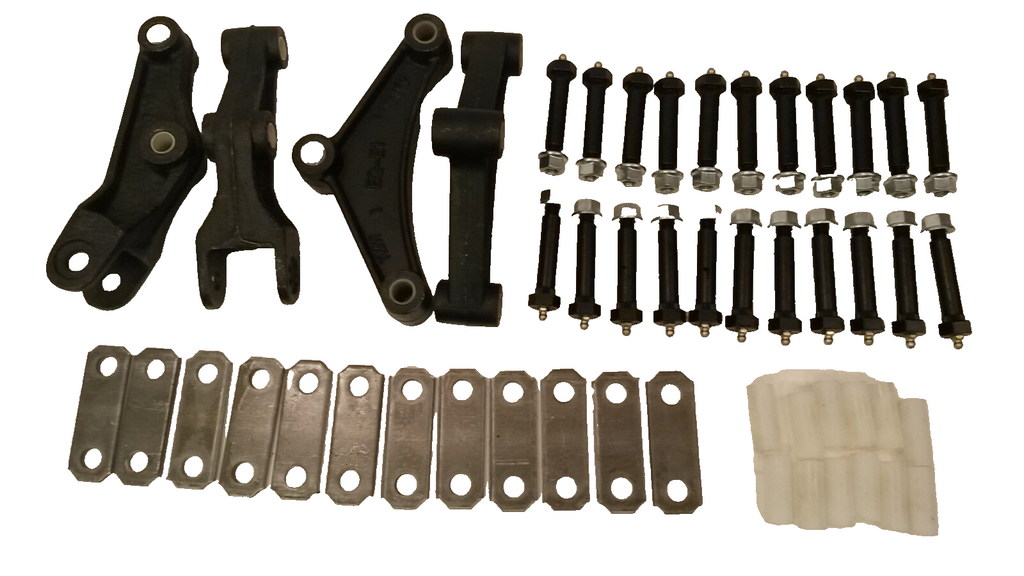

Kit consist of:

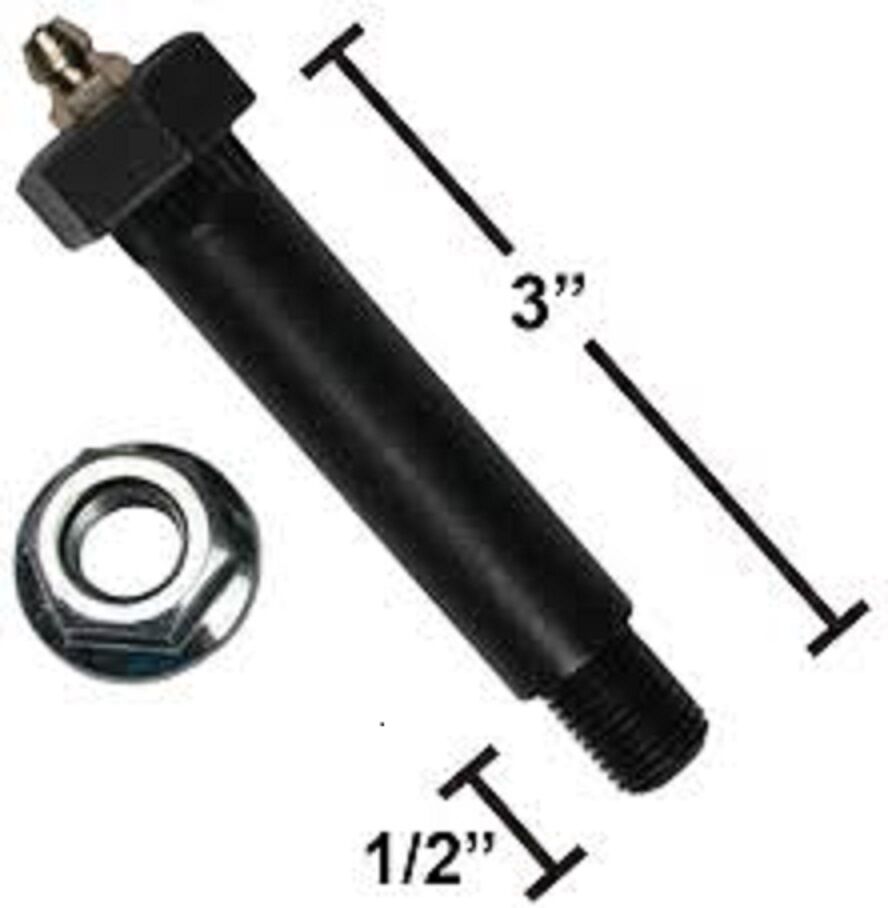

22 - 9/16" x 3" Hardened Shouldered "Wet Bolts"
    Part Number: FA-7-187
22- 7/16" locking flange nuts
    Part Number: FA-6-92Z

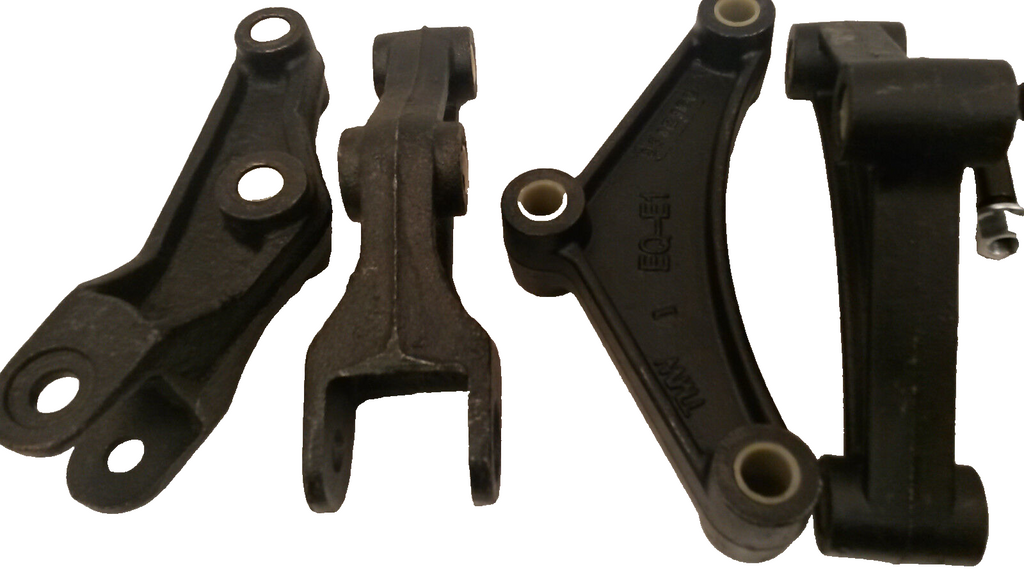

2- Front spring pivot equalizers, 7 -3/4" bolt to bolt wide
    Part Number: EQ-E1
2- Rear spring pivot equalizers, 7 -1/4" bolt to bolt wide.
    Part Number: EQ-105.
22 (12 are already installed in the equalizers)- New Nylon Spring Bushings
    Part Number: 8137

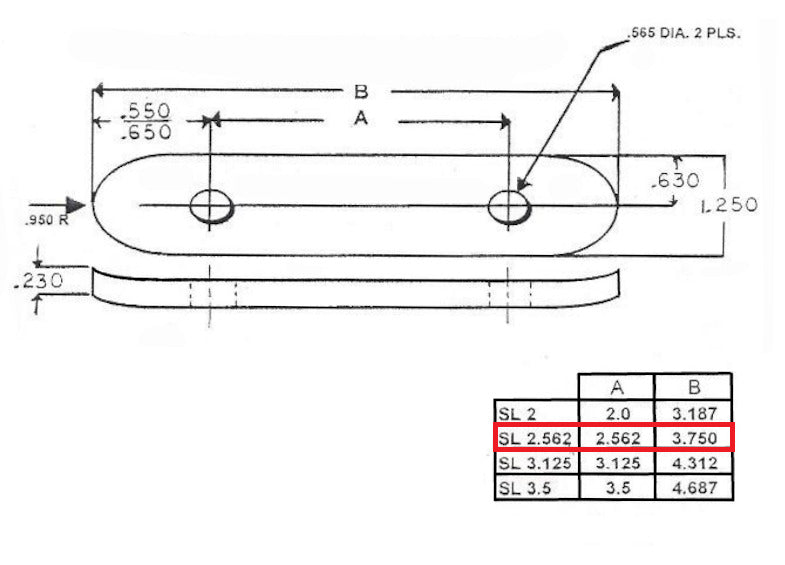

12 - New Spring Shackle Straps 2.6"
    Part Number: SL-2.562

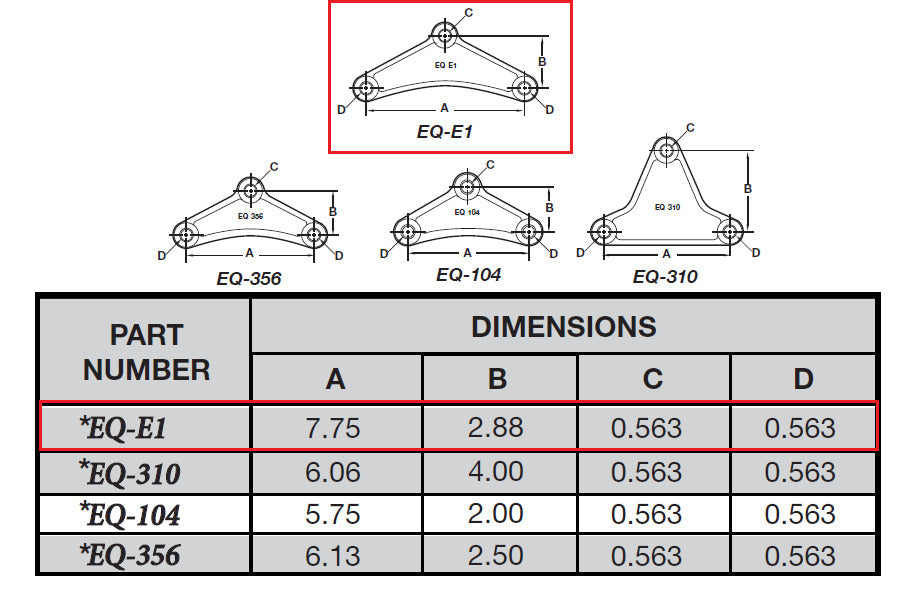

Front equalizer, Hole Center to Hole Center from Top Hole to either side hole is 4.75"

Hole Center to Hole Center from Side Holes is 7.75

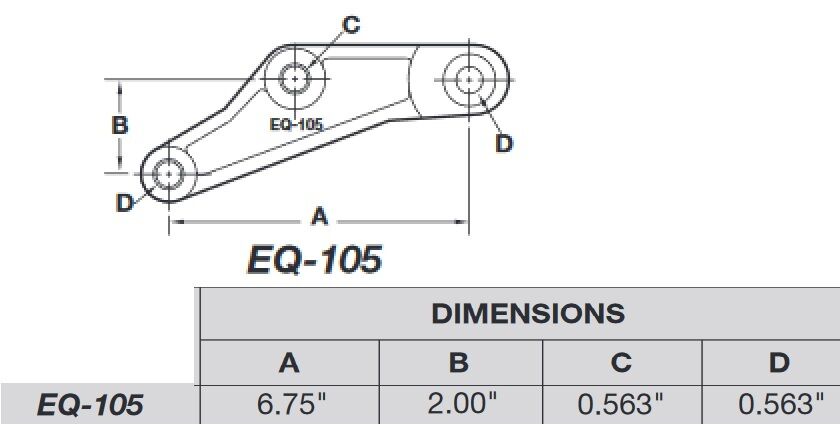

Rear Equalizer, about 7.0" front hole to back hole, 1.9" wide on rear part

Greaseable Tri Axle Trailer Spring Suspension Rebuild Kit Triple EQ-105 Wet Bolt (SRK-3A-WB-105)
