Hub Rotor 3,500 LB Trailer Axle Disc Brake Replacement or Conversion Kit (77-3.5KI-RTR-102-KIT)

$196.90
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 5 available 4 remaining after purchase
Selected quantity subtotal $196.90
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: 77-3.5KI-RTR-102-KIT
PRODUCT INFORMATION

Product Details

Replacement or Conversion Disc Brake Kit for 3,500 LB Trailer Axles



Part Number:77-3.5KI-RTR-102-KIT

This listing is for One Wheel

Images are NOT to scale, for reference only

Fits Dexter and Lippert Axles

5 X 4-1/2" Lug Pattern

10" Diameter

Uses 13" thru 15" Rims



This Kit Includes

1 X (77-3.5KI-RTR-102) Disc Brake Hub Rotor

1 X (77-3.5KI-DBB) Disc Brake Mounting Bracket

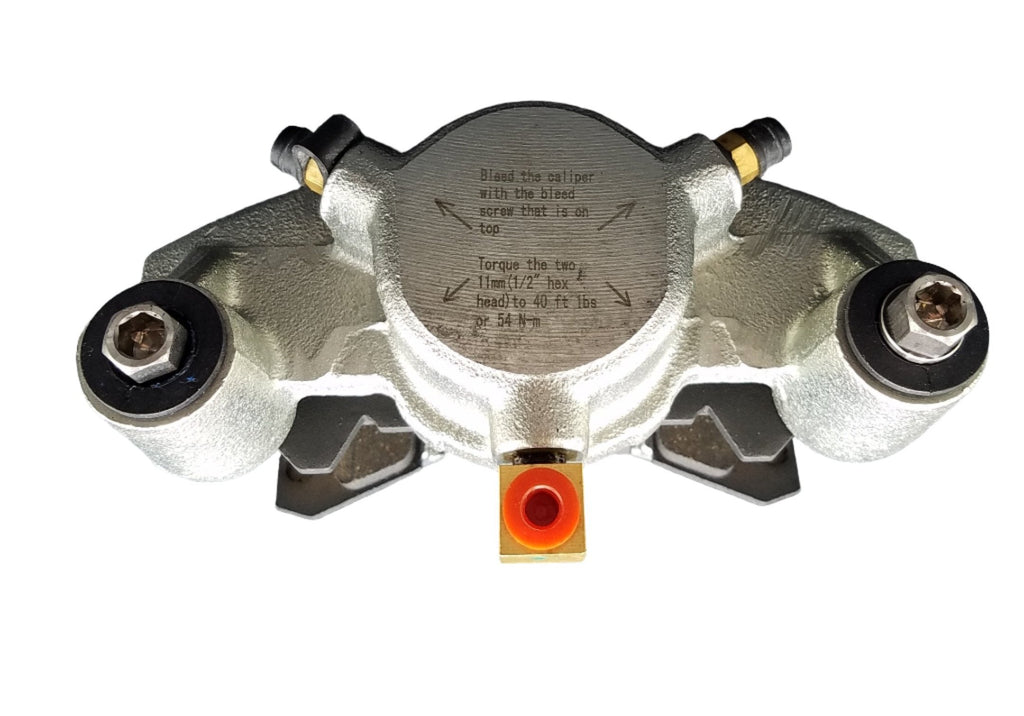

1 X (77-3-6K) 3.5K-6K Trailer Axle Disc Brake Caliper

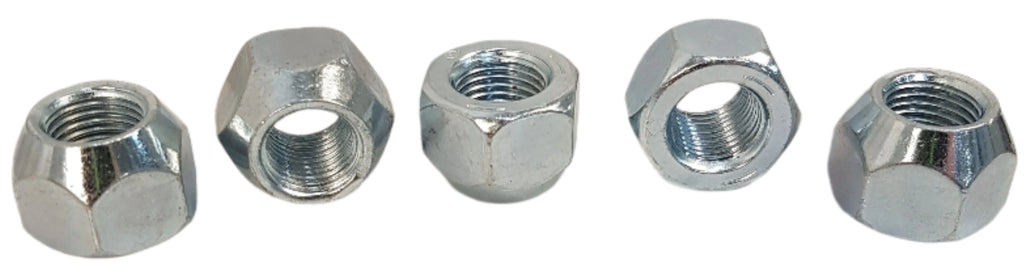

5 X (X1023R) 1/2-20 X 13/16" Lug Nuts

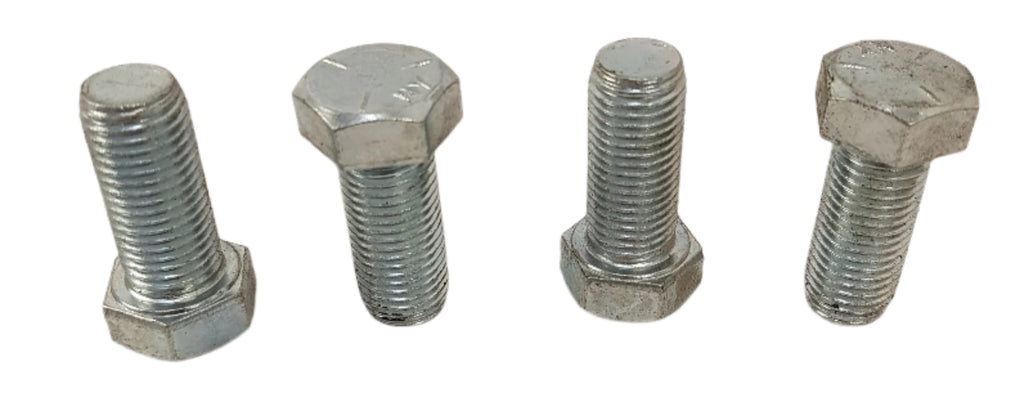

4 X (7-75) 7/16" Mounting Bolts

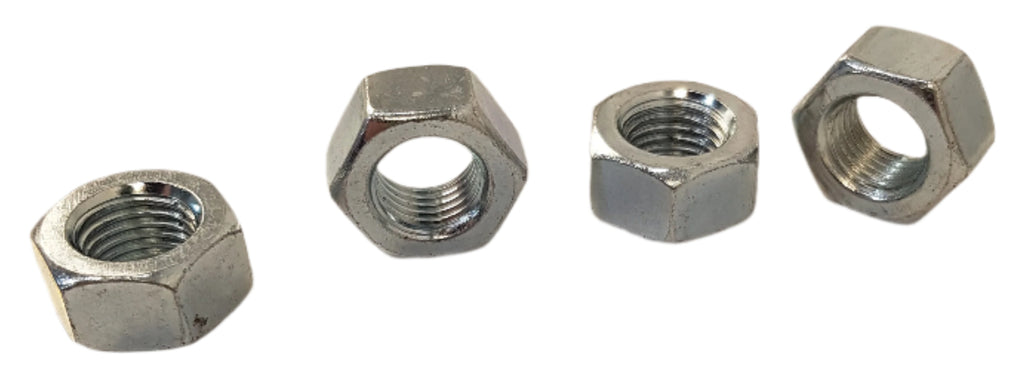

4 X (6-17) 7/16"-20 Nuts

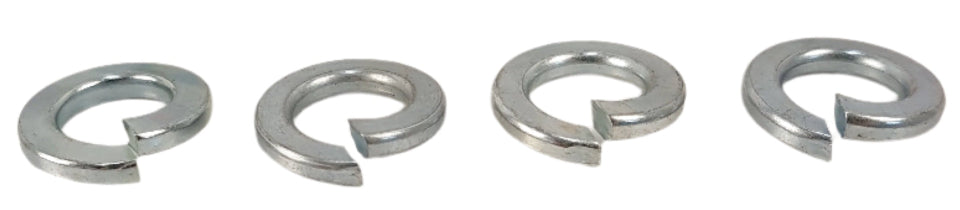

4 X (5-8) 7/16" Split Lock Washer

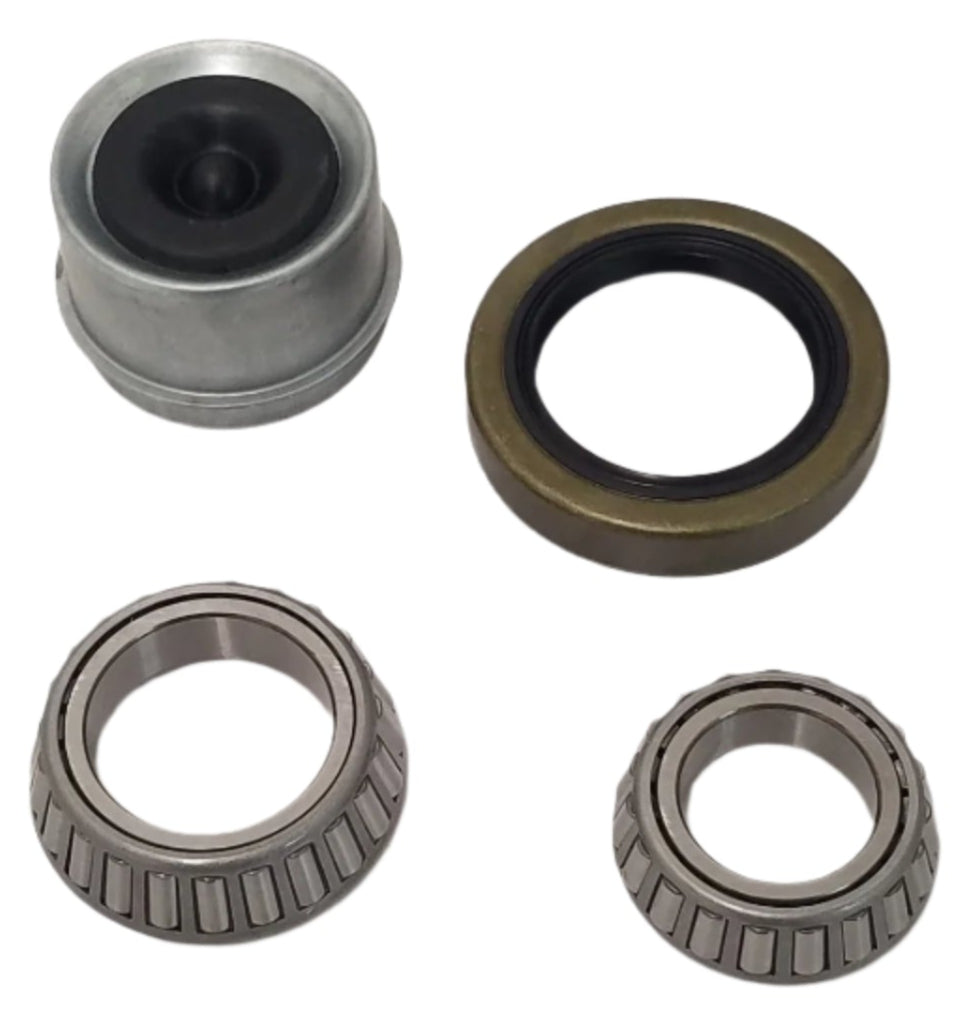

1 X (HD-3500-KIT) Hub/Drum Bearing Kit

HD-3500-Kit Includes:

1 X (L44649) 1.0625" ID Bearing

1 X (L68149)  1.378" ID Bearing

1 X (10-19)  1.719 X 2.56"  Grease Seal

1 X (DC-200L)  1.98" Grease Dust Cap


This kit can be used to replace Kodiak disc brakes or convert drum brakes to disc.
