2 Pair Hydraulic Backing Plate 12-1/4 x 4 Aftermarket Brake for 23-439 10KHD 9-27 (77-A023-2P)

$575.10
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 3 available 2 remaining after purchase
Selected quantity subtotal $575.10
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: 77-A023-2P
PRODUCT INFORMATION

Product Details

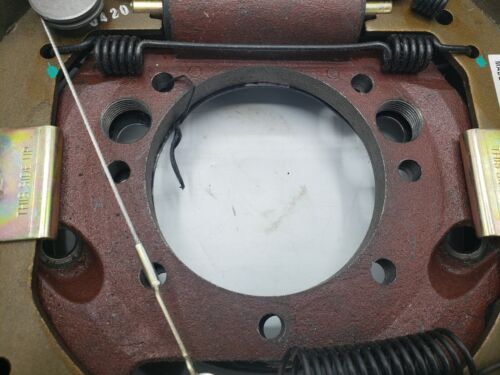

2 Pair Hydraulic Backing Plate 12-1/4 x 4 Aftermarket Brake for 23-439 10KHD 9-27

Part Number - 77-A023-2P

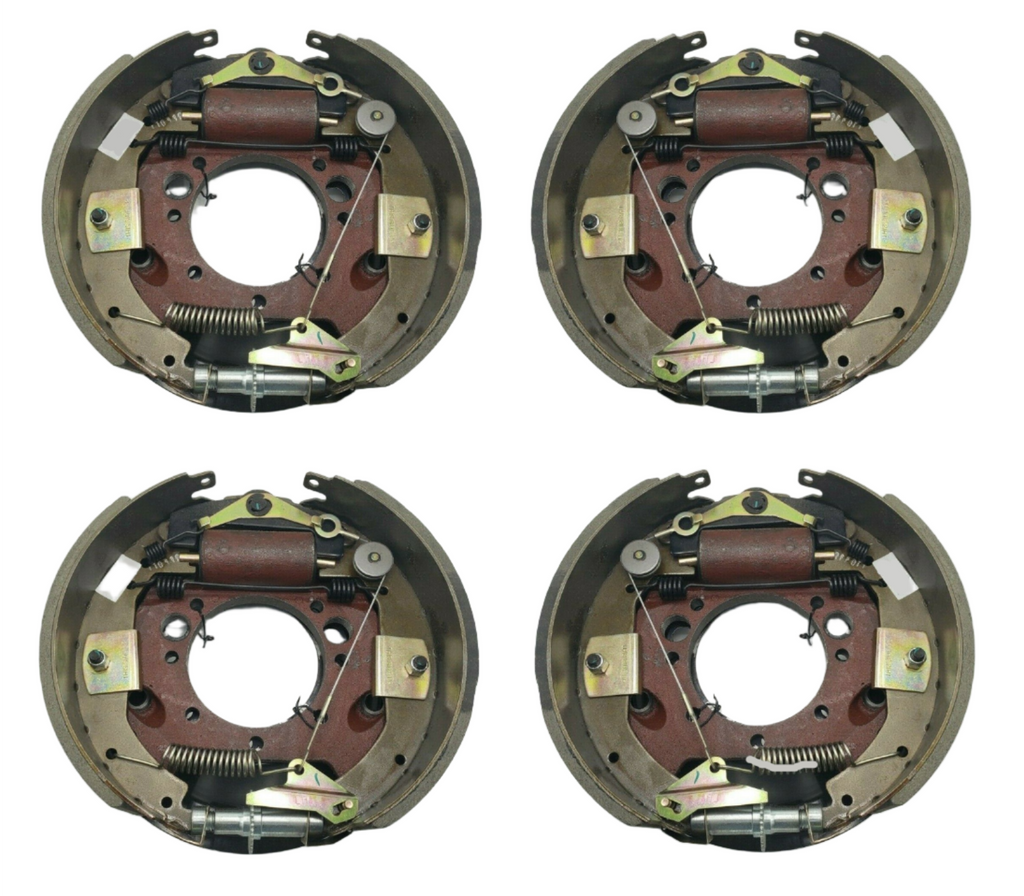

This kit contains:

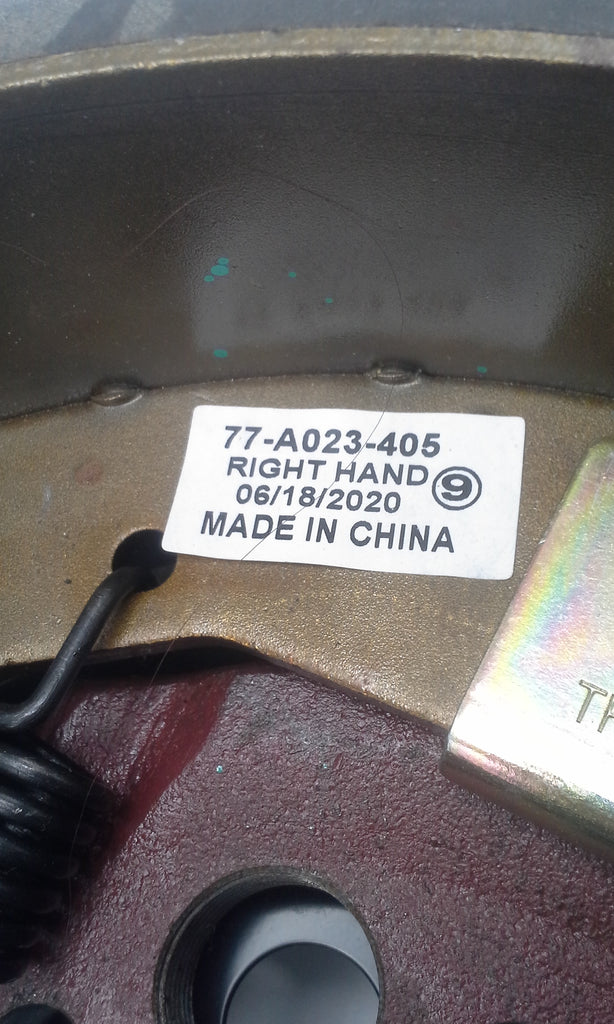

2x Right Hand Hydraulic Brake 12-1/4 x 4

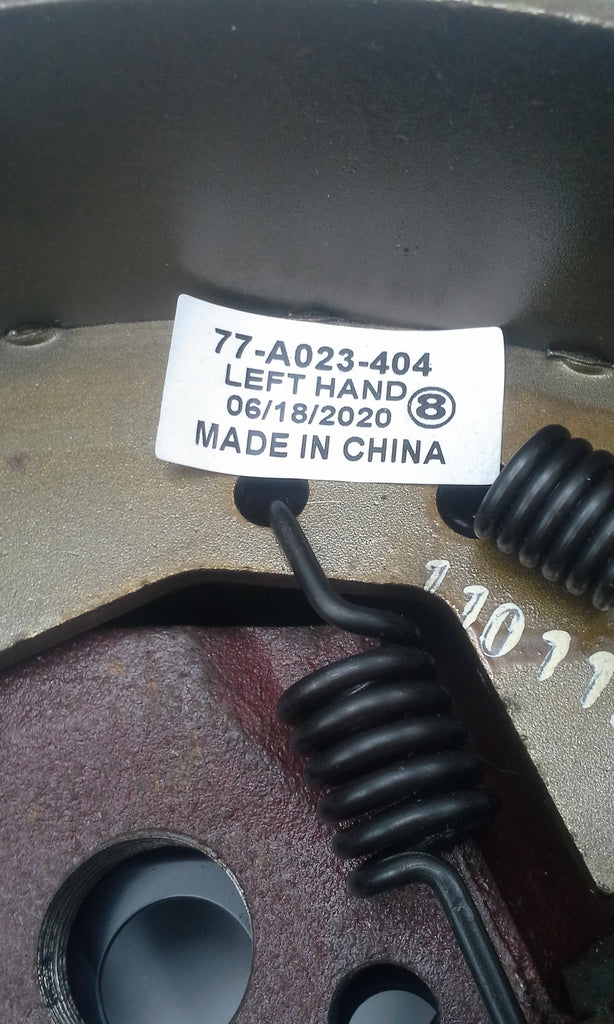

2x Left Hand Hydraulic Brake 12-1/4 x 4

This is a direct replacement for the Dexter 023-405-00 and 023-404-00

Hydraulic Backing Plate Fits Drum number 9-27

It fits 10,000 pound Heavy Duty Axles
MOUNTING BOLTS AND HARDWARE ARE NOT INCLUDED
THIS LISTING IS FOR TWO PAIRS (2X DRIVER SIDE 2X PASSENGER SIDE)

Features :
Hydraulic Drum Brakes are designed for use with surge-Type Trailer Brake Actuator
Self adjusting brakes automatically adjust to deliver optimum performance and brake power
There is no need for manual brake adjustments
Proper adjustment leads to less wear and tear to your tow vehicle
Very LOW MAINTENANCE
Dual-plunger design that provides the same amount of braking when in drive or in reverse
Fits 16" or larger wheels

Specs:
Axle rating: 10,000 lbs
Wheel Size: 16" or Larger

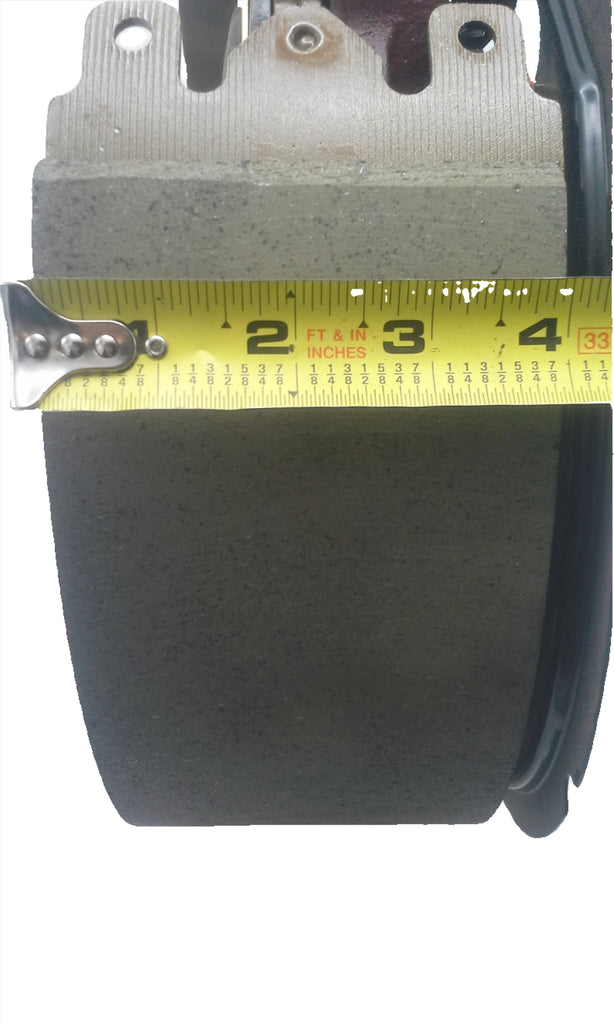

Dimensions: 12-1/4" Diameter x 4" wide
Mounting Flange bolt pattern: 7 Bolt
