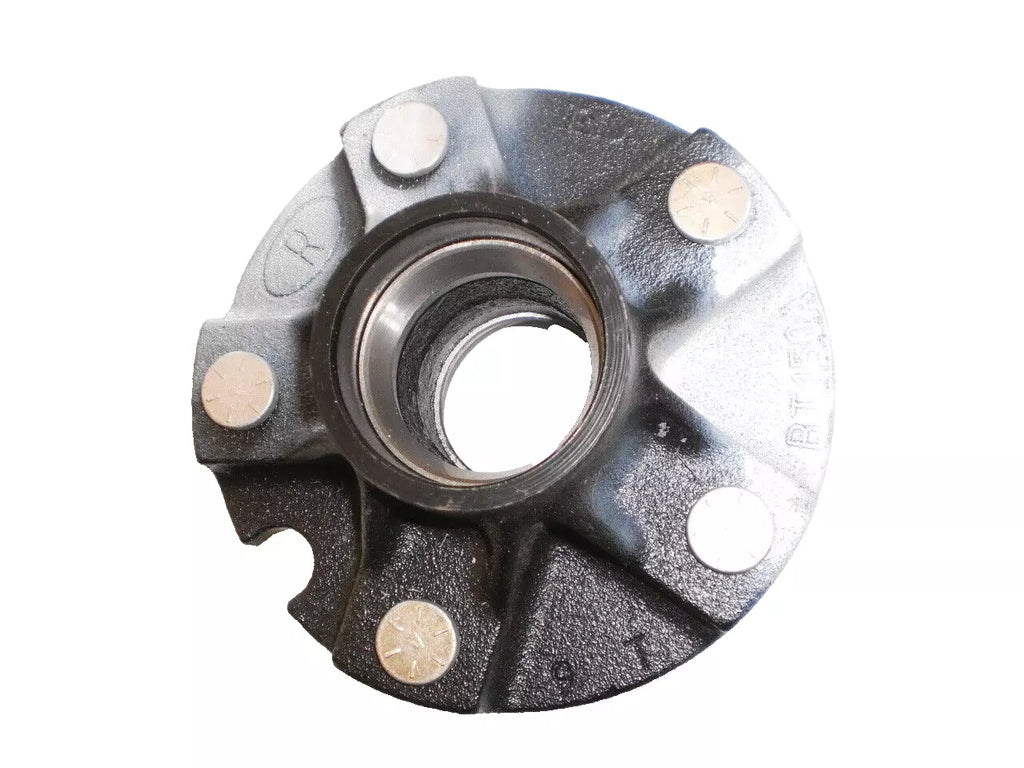

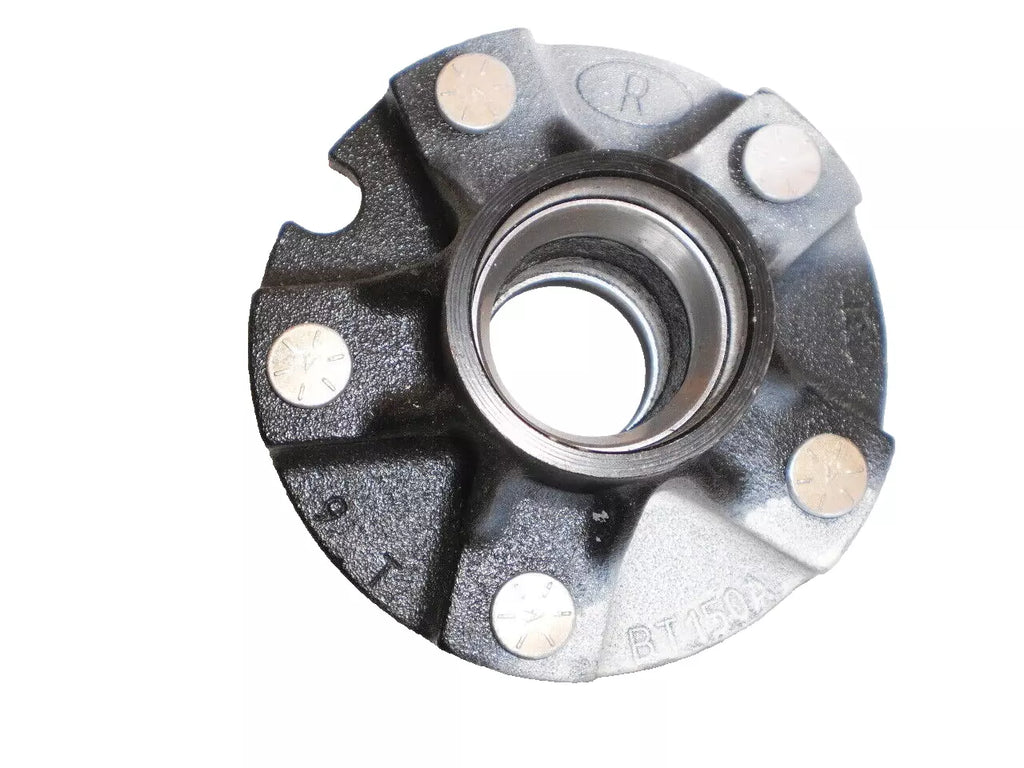

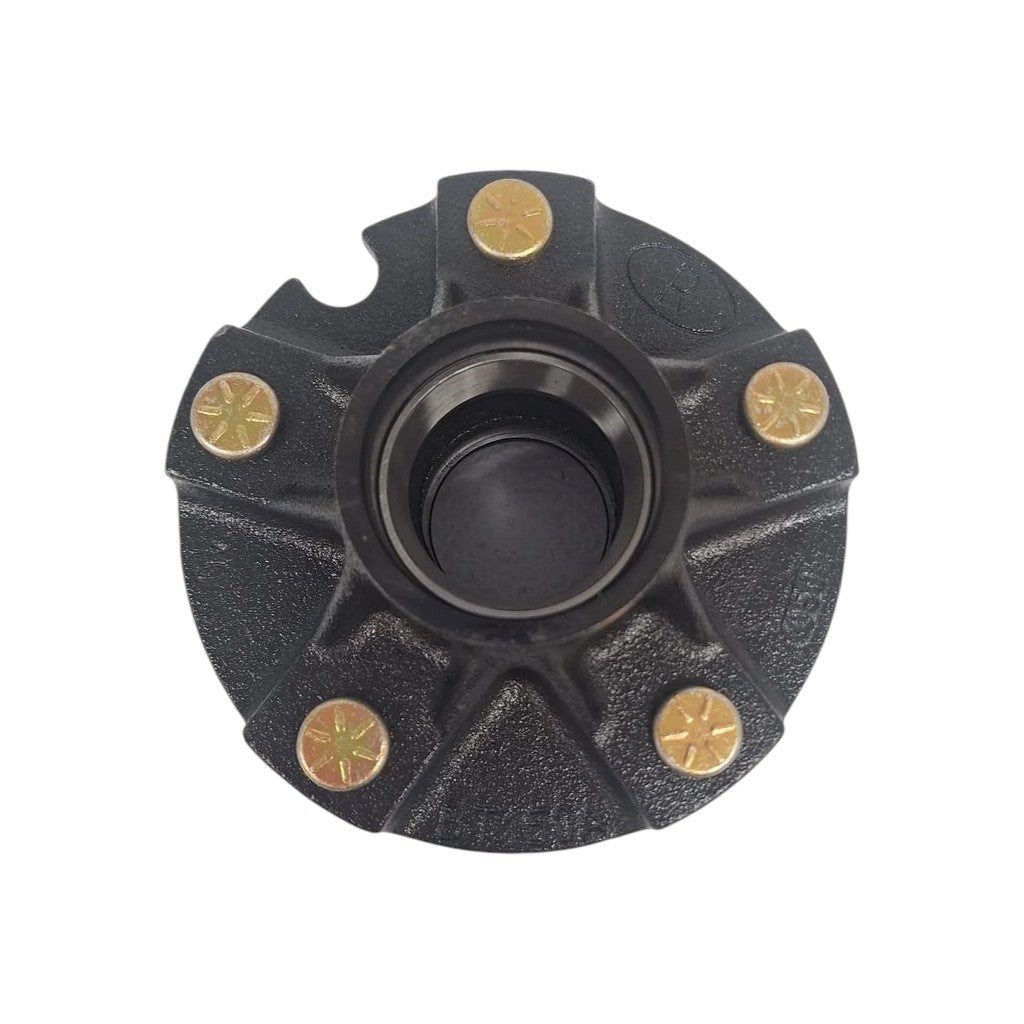

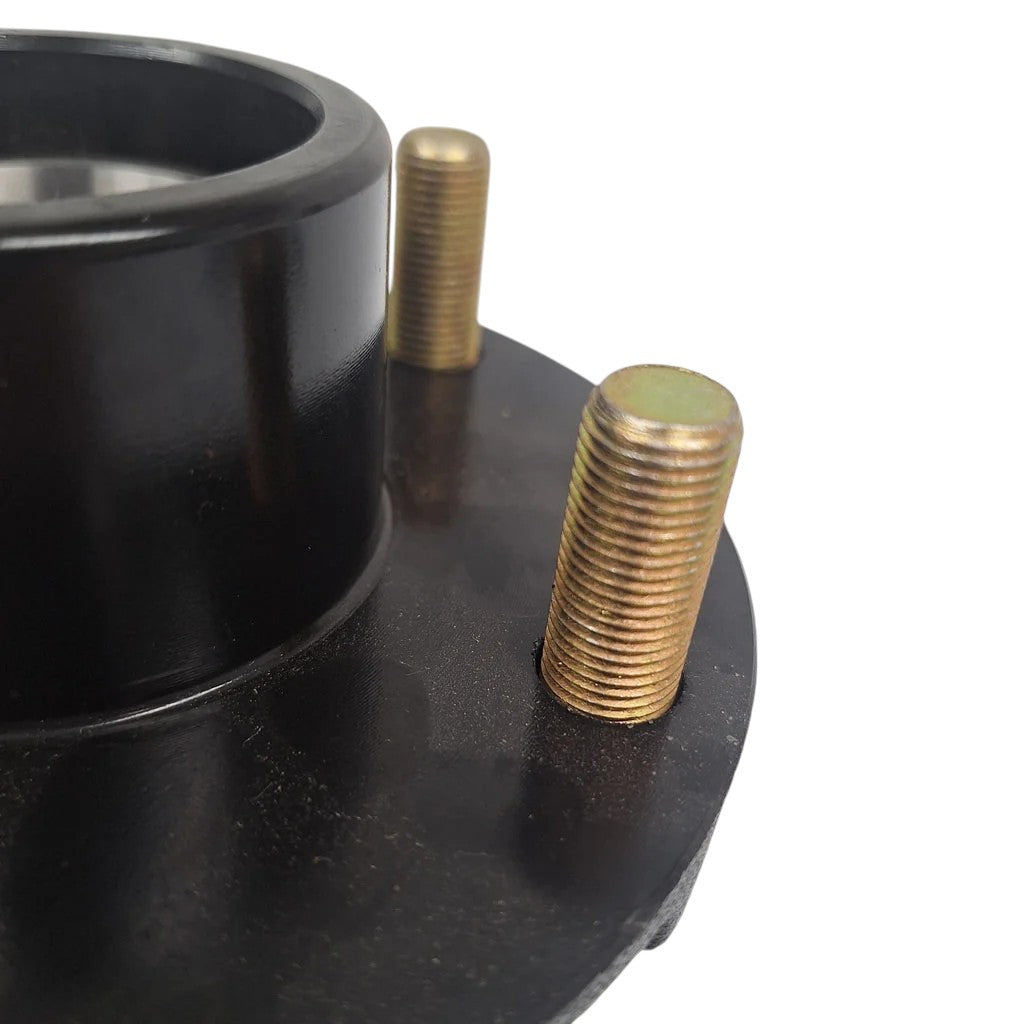

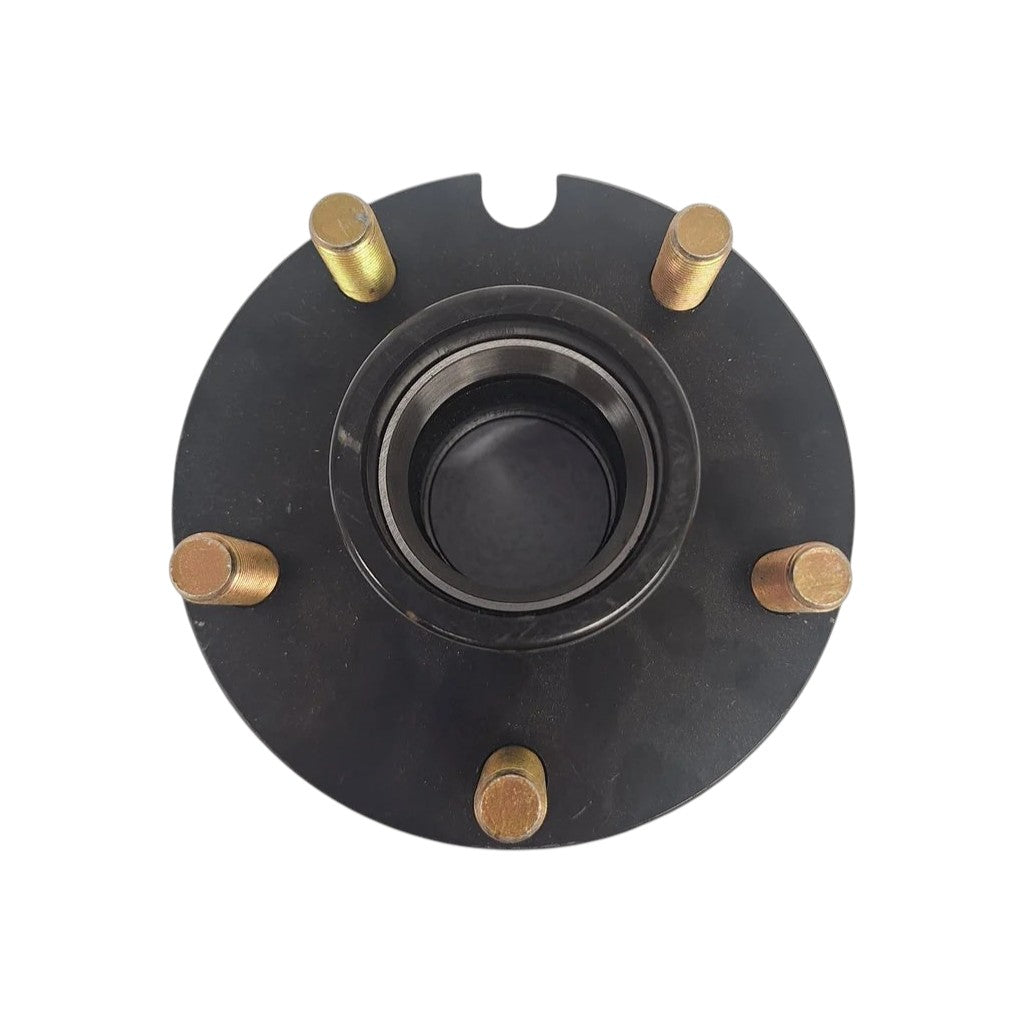

Short Idler Hub – 5 on 4.5" Bolt Pattern (2,000 lb Axles)
Part Number: BT150A

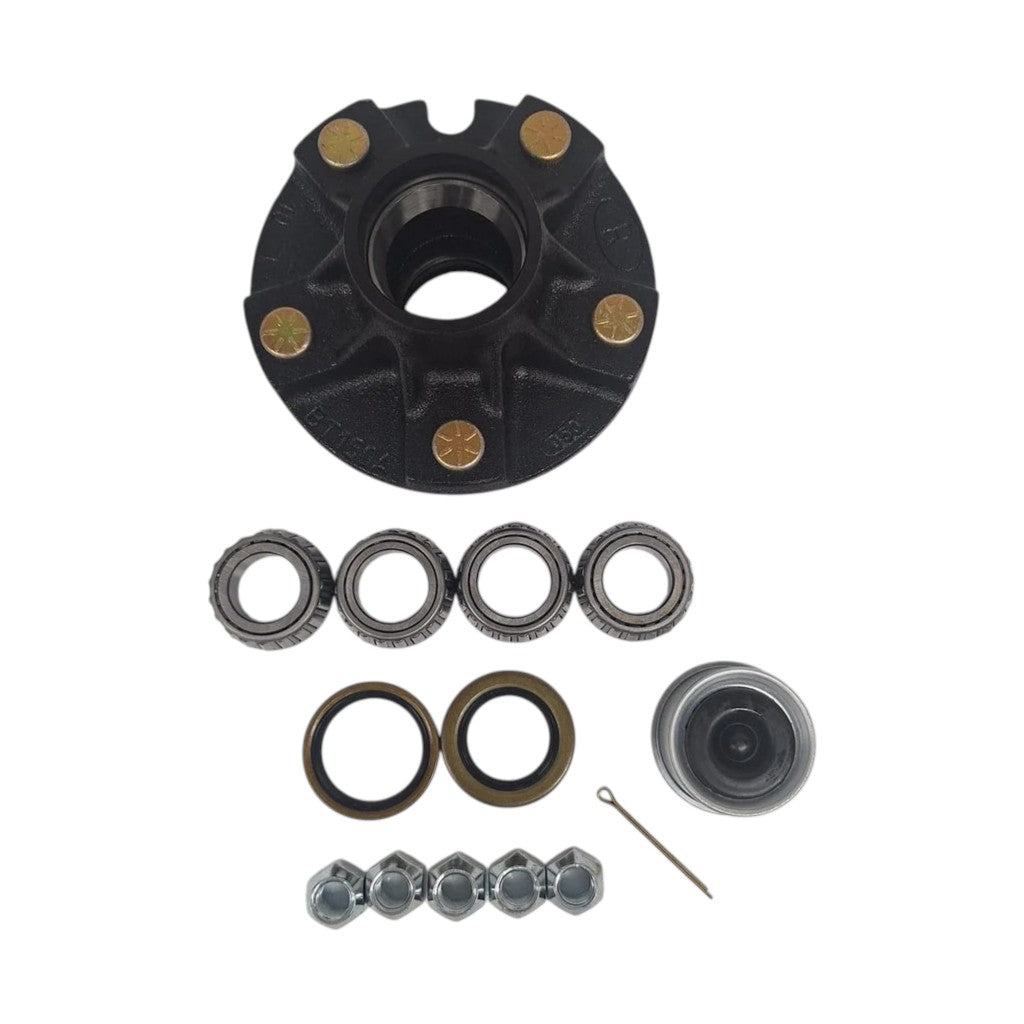

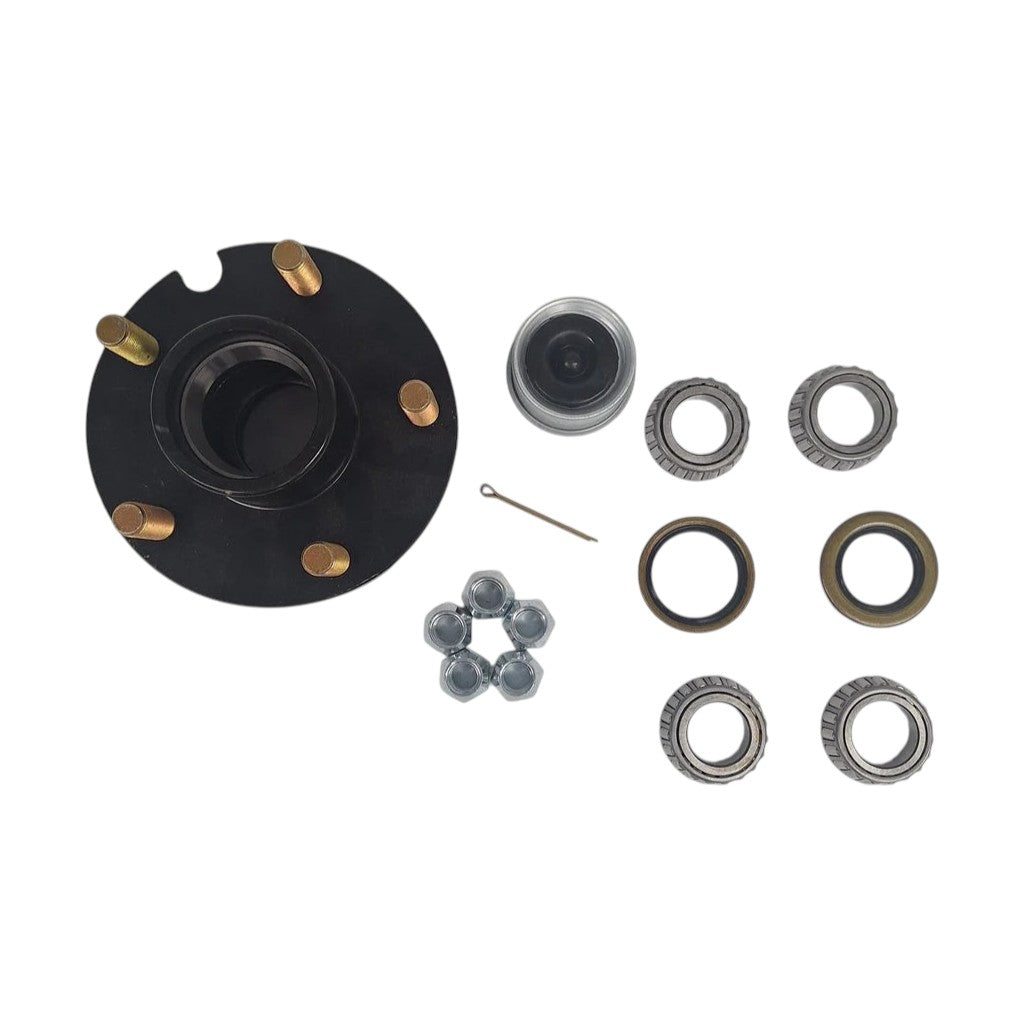

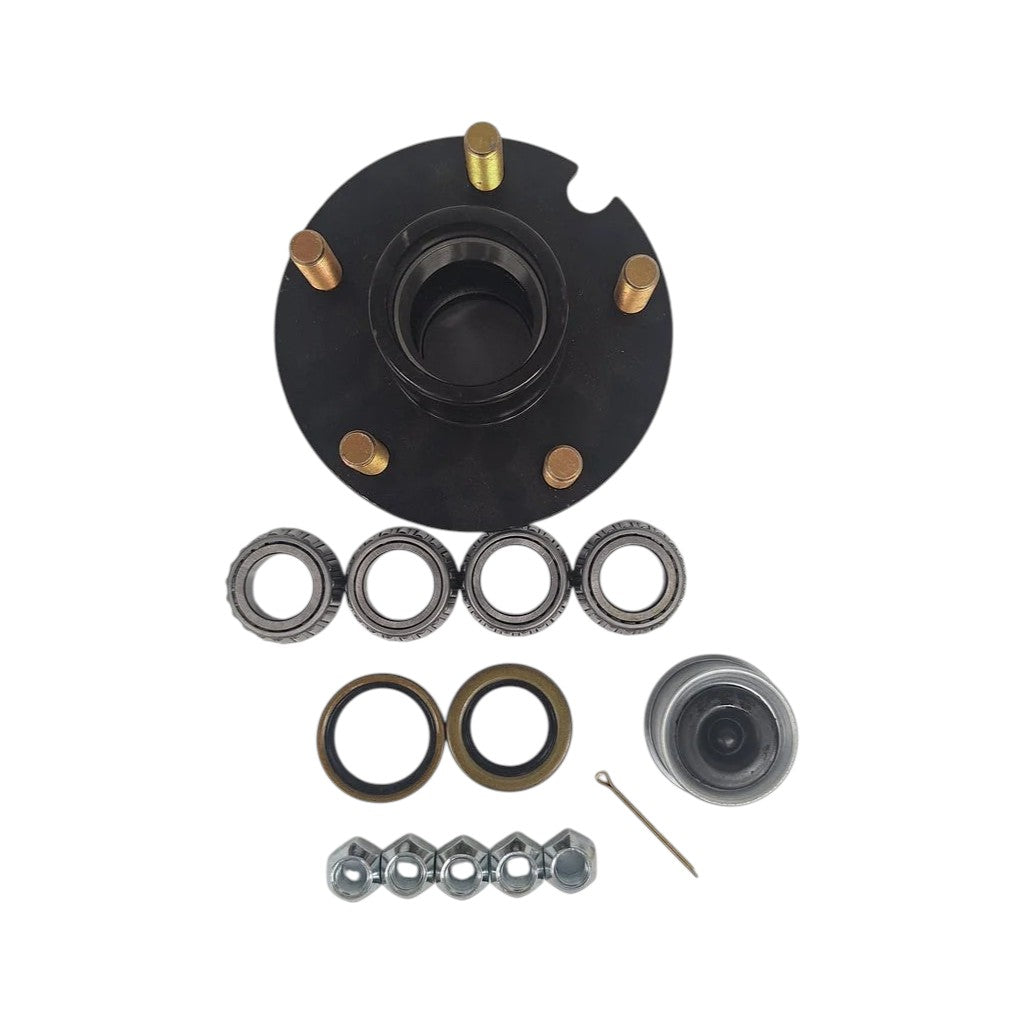

This is a short-style idler hub used on select light-duty trailer axles rated around 2,000 lb. It is not the standard-length hub used on most trailer axles. This hub is supplied with two bearing sizes and two seal sizes to accommodate common spindle variations found on short spindle axles.
Features
- Short-length idler hub for light-duty trailer axles
- 5 on 4.5 inch wheel bolt pattern

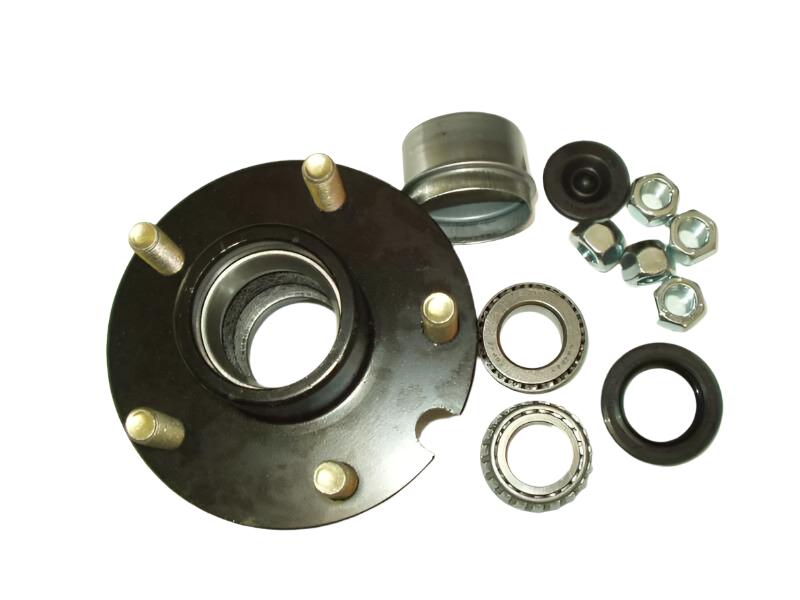

- Bearings and races pre-installed
- Includes dust cap and matching lug nuts
Specifications
| Specification | Detail |
|---|---|
| Axle Rating | Approximately 2,000 lb |

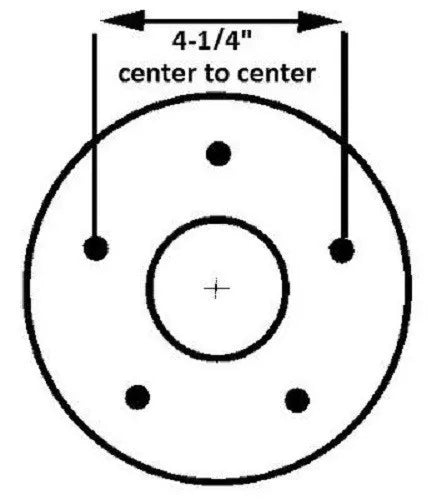

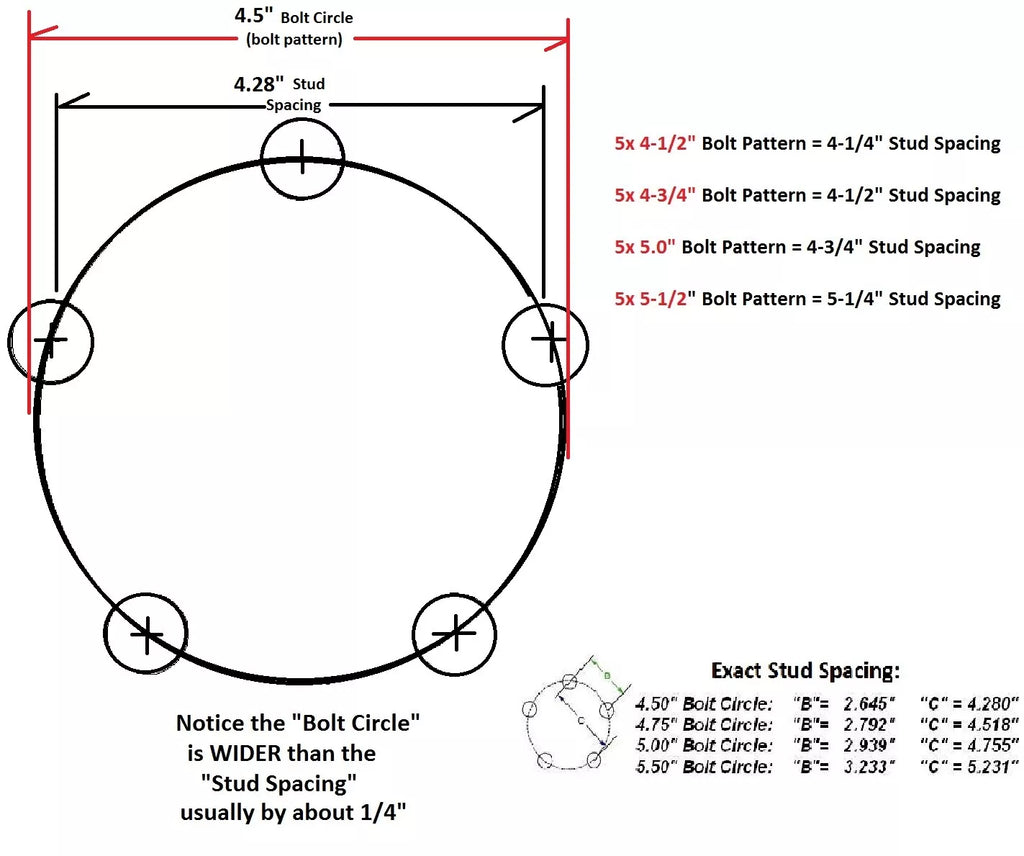

| Bolt Pattern | 5 on 4.5 inches |
| Hub Style | Short hub (non-standard length) |

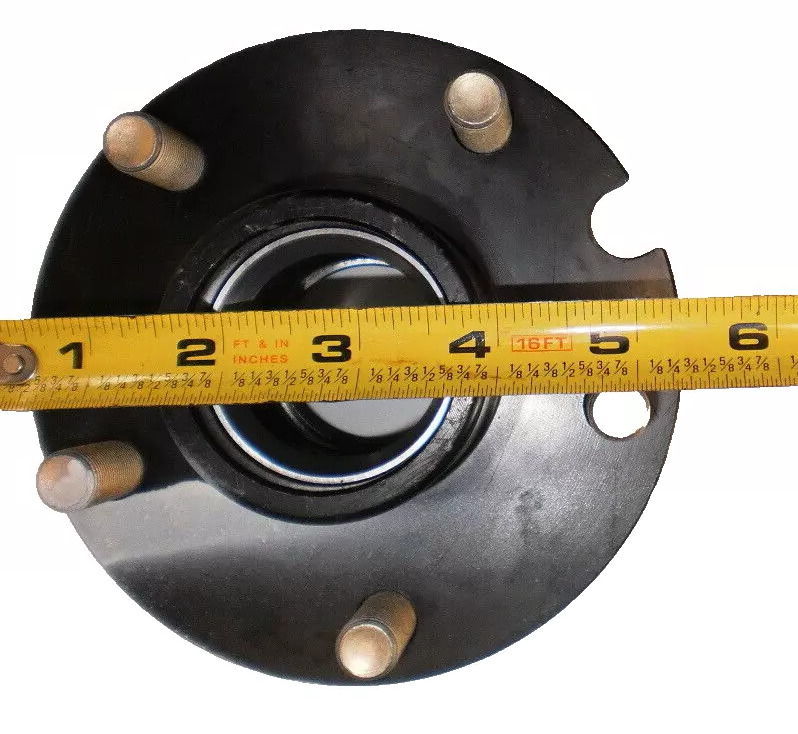

| Overall Hub Width | Approximately 3-5/8 inches |
| Bearing Spacing | Approximately 2-1/2 inches (bearing to bearing) |

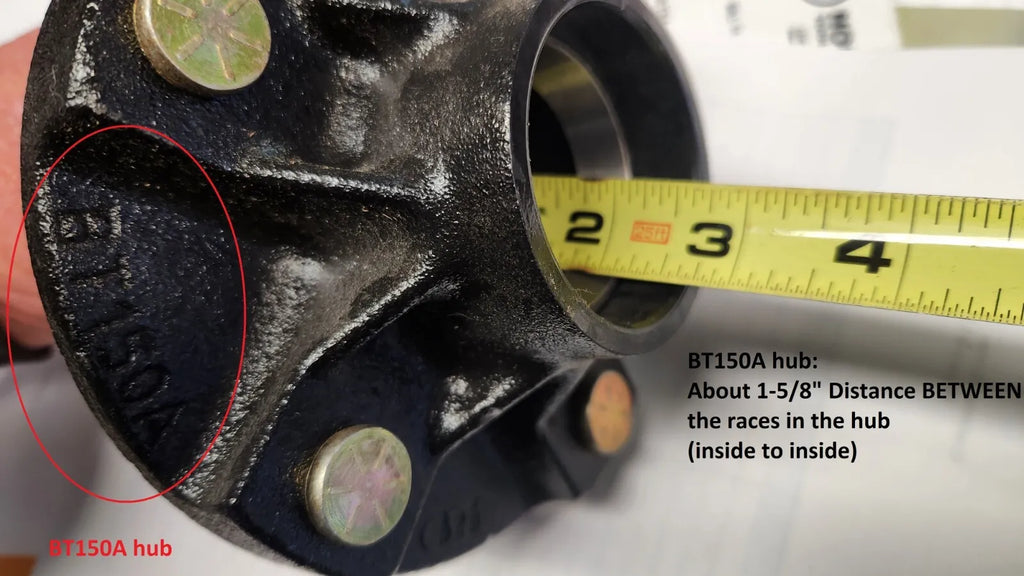

| Race-to-Race Width | Approximately 2 inches |
| Inner Bearing Options | L44643 (1.00" ID) or L44649 (1.06" ID) |
| Outer Bearing | Same as inner bearing (matching set) |
| Seal Options Included | 1.25" ID and 1.50" ID |
| Included Hardware | Dust cap and 5 lug nuts |
| Hub Quantity | Sold individually (1 hub) |
This is a short-style hub and is not interchangeable with standard-length 2,000 lb idler hubs. Measure hub width and bearing spacing before ordering. Only install the bearing and seal combination that matches your spindle.
