Replacement Axle Stub 2000# 5x4.5 Hub with 1.5" Flanged Round Spindle (BYOAK-545BT16FZ-KIT)

$72.75
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 6 available 5 remaining after purchase
Selected quantity subtotal $72.75
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: BYOAK-545BT16FZ-KIT
PRODUCT INFORMATION

Product Details

R & P Carriages

Stub Axle Replacement Kit — 2000 lb
5×4.5 Idler Hub • 1.5" Flanged Round Spindle

Part Number: BYOAK-545BT16FZ-KIT


This 2000 lb stub axle kit includes a 1.5" round flanged spindle, a 5×4.5 idler hub, and all essential hardware for installation. Ideal for light-duty utility trailers, small cargo trailers, and custom axle builds requiring a bolt-on or weld-on spindle solution.

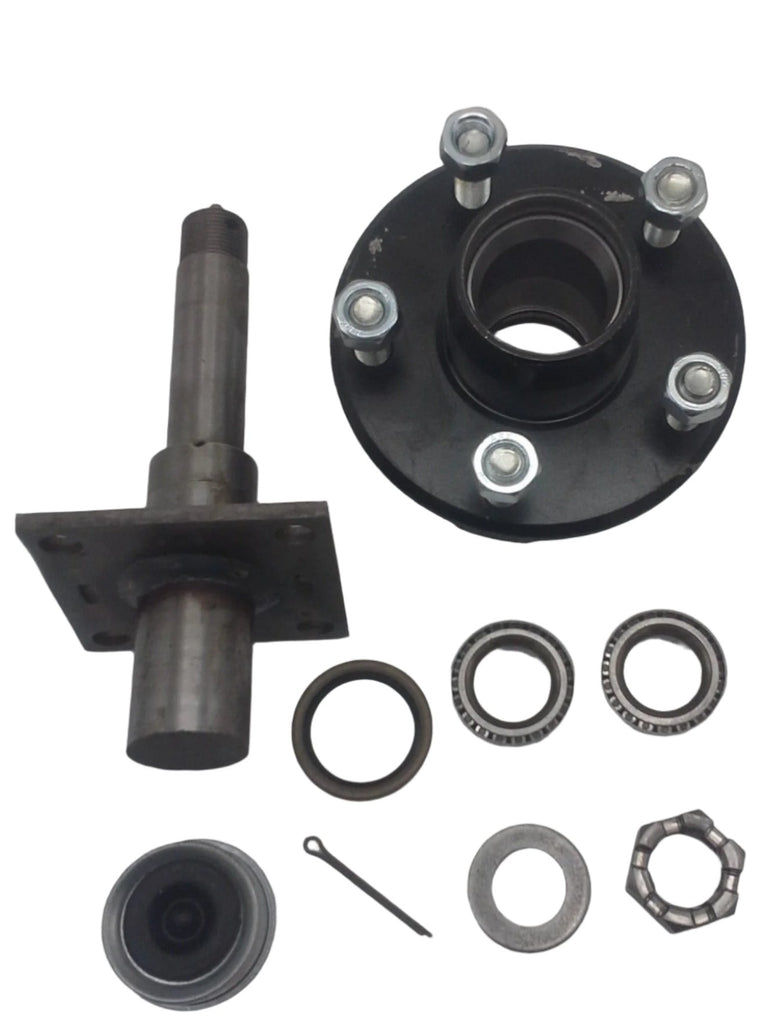

Included in Kit

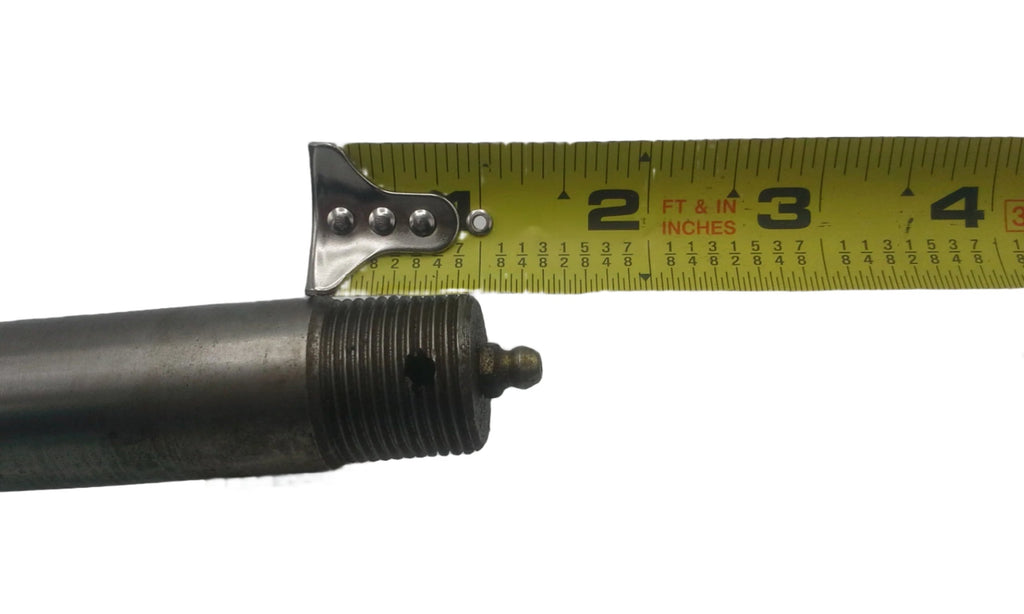

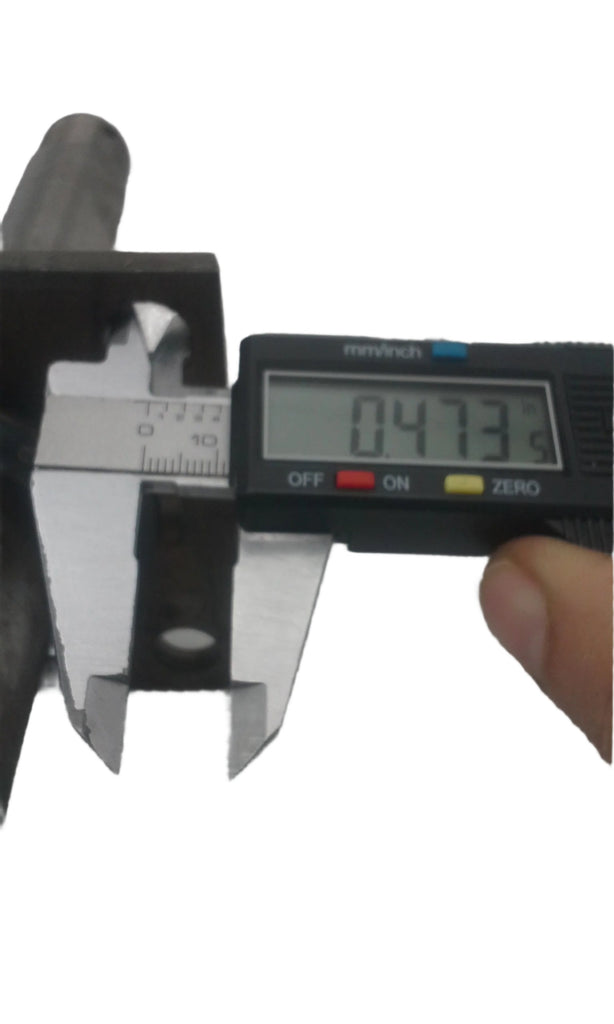

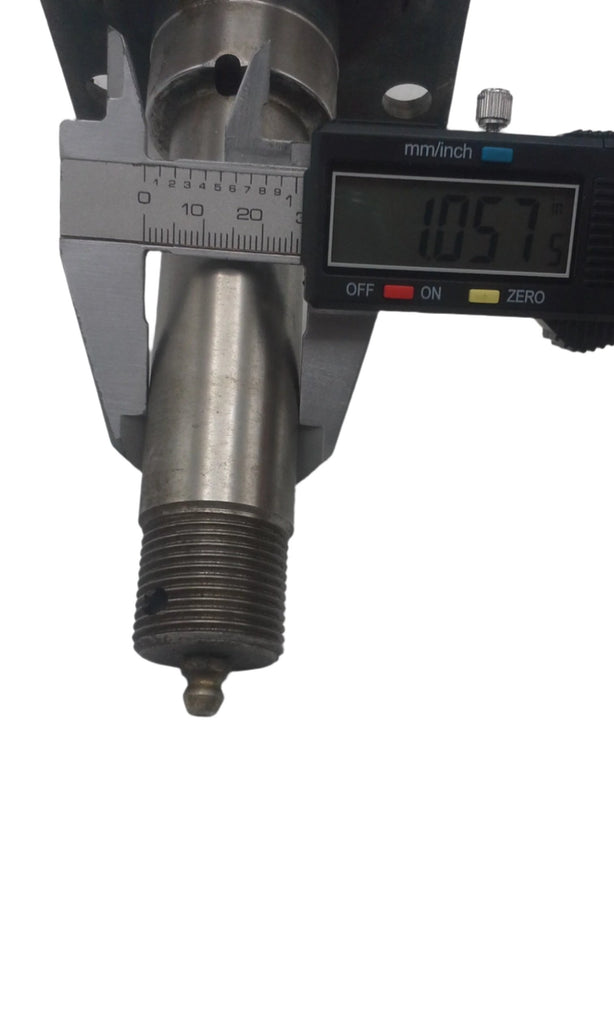

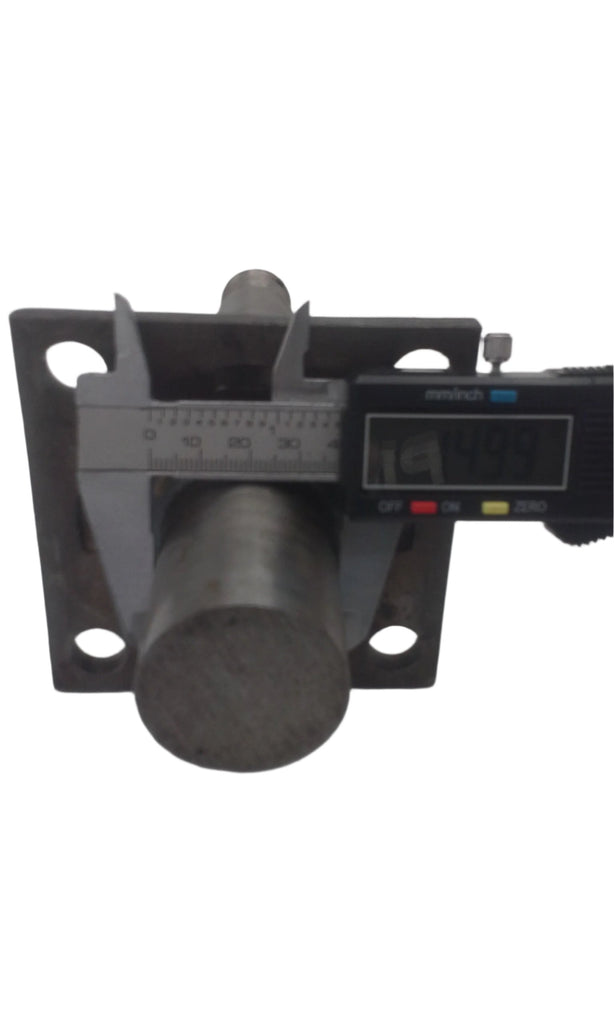

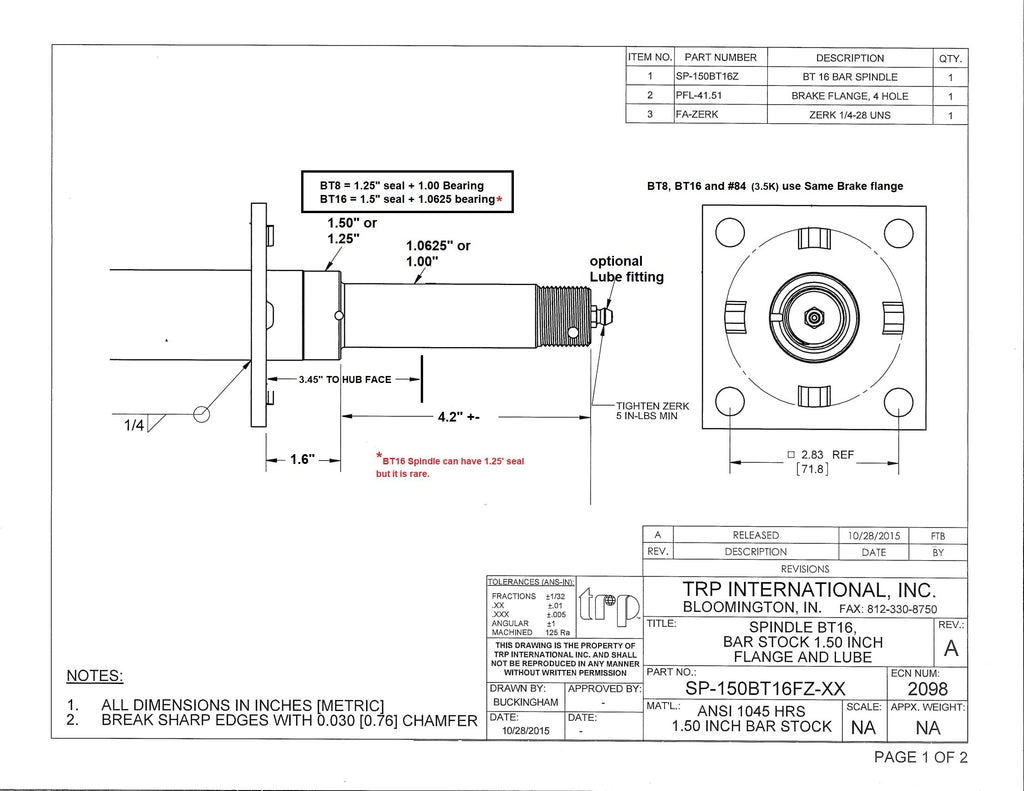

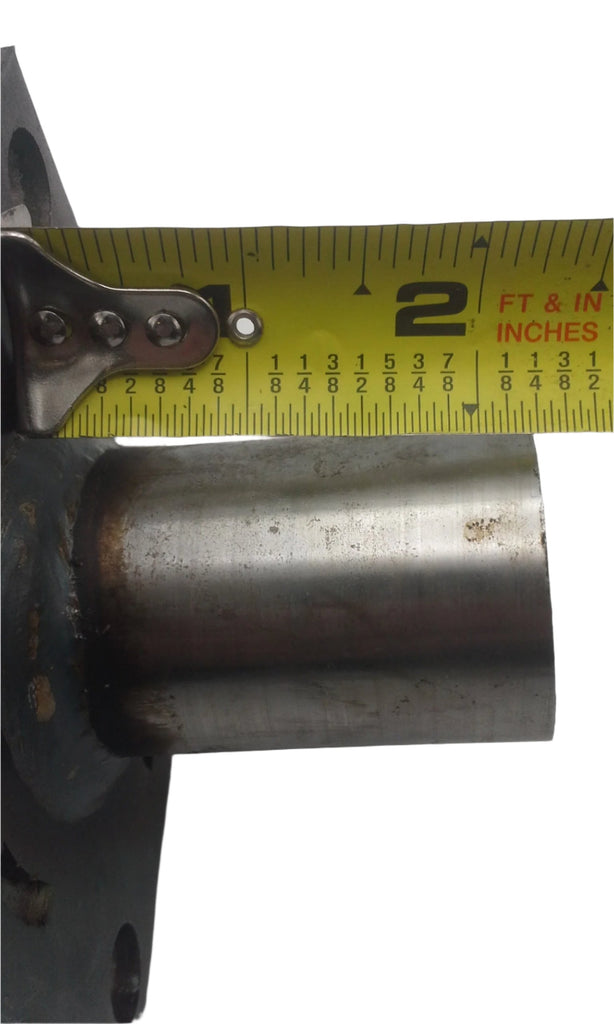

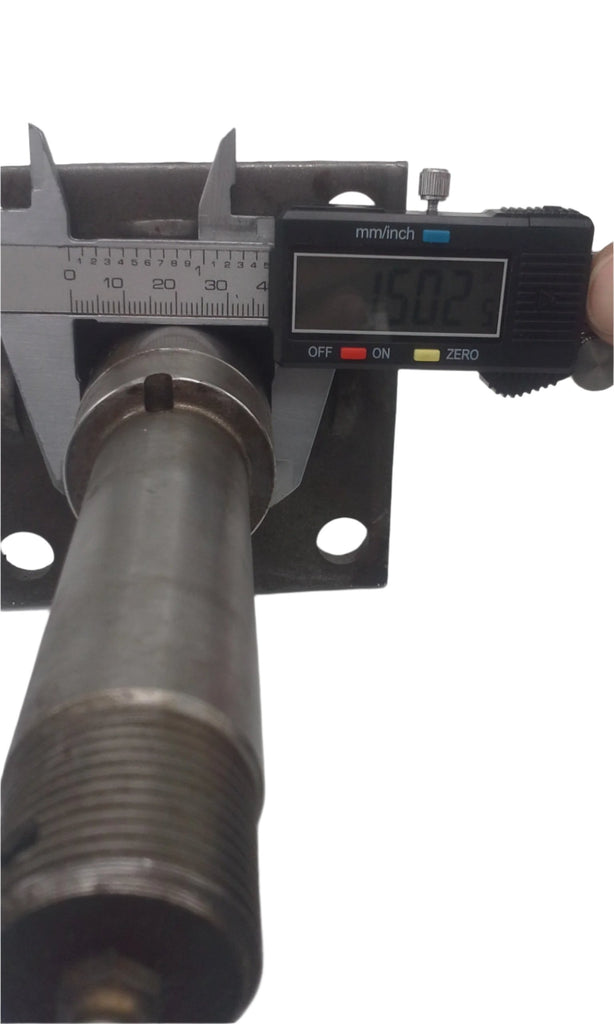

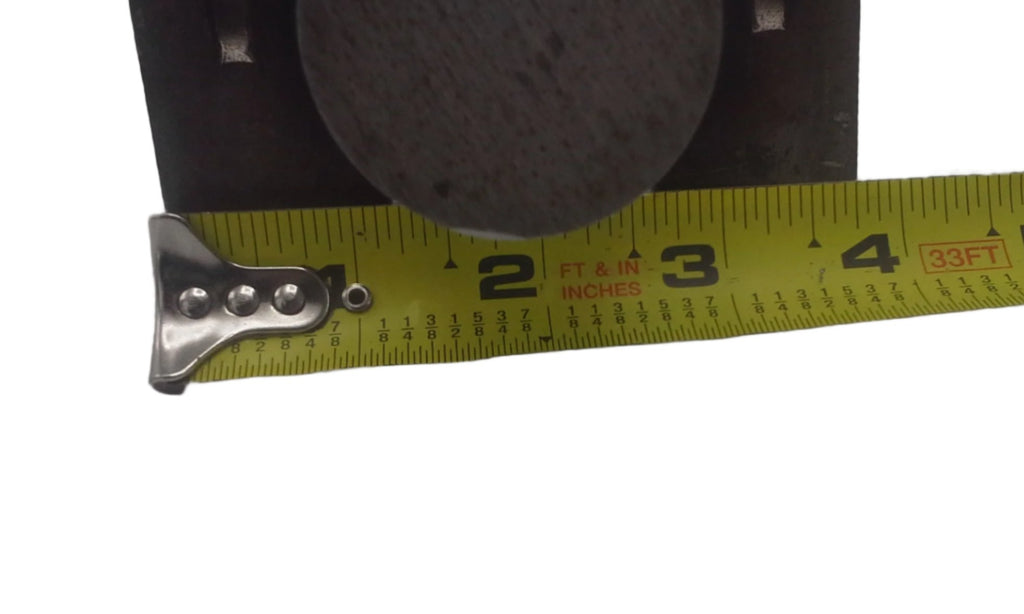

  • (1) 1.5" Round Flanged Spindle — SP150BT16FZ

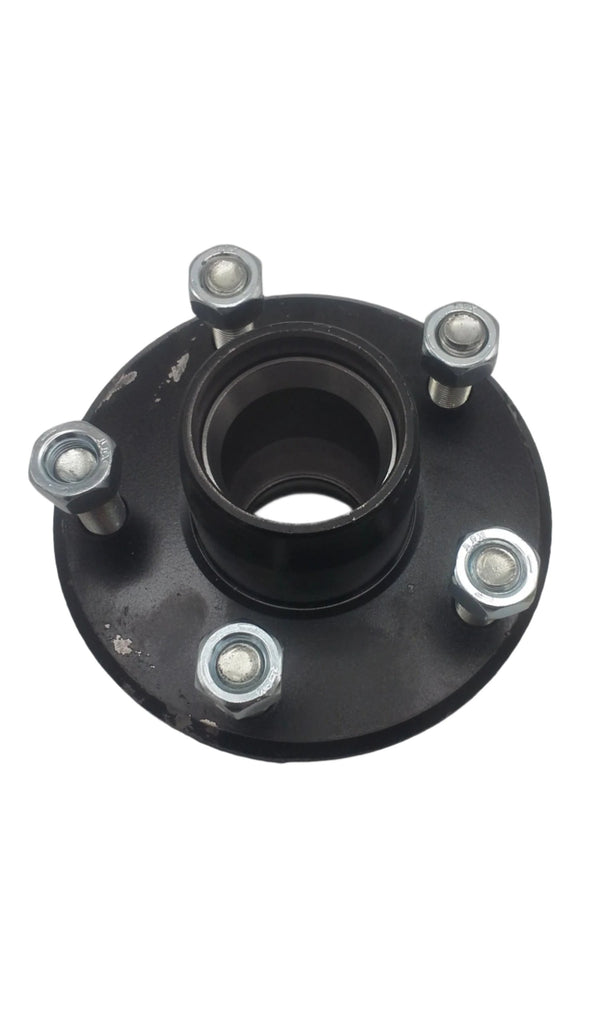

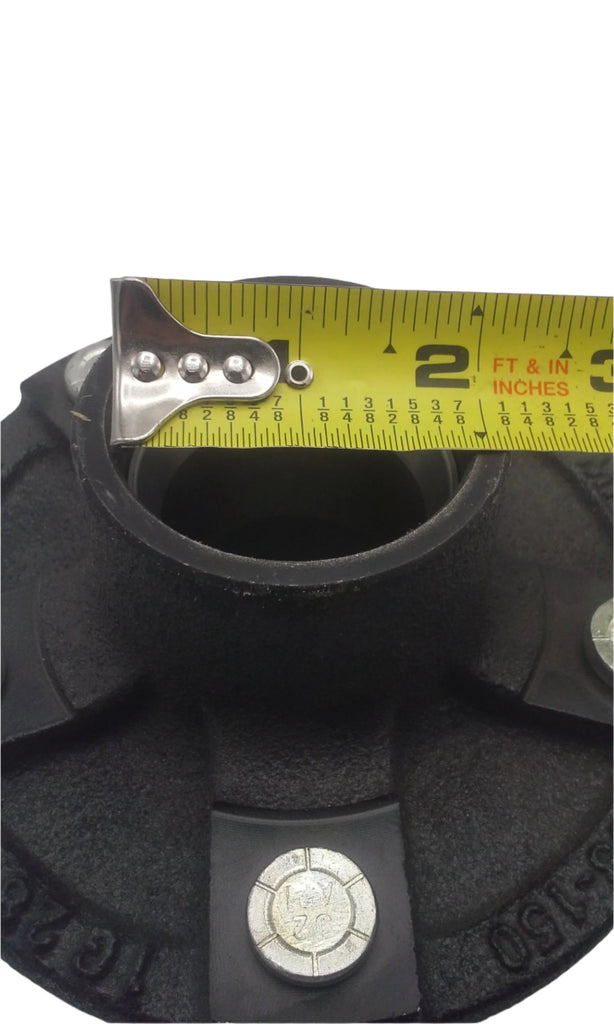

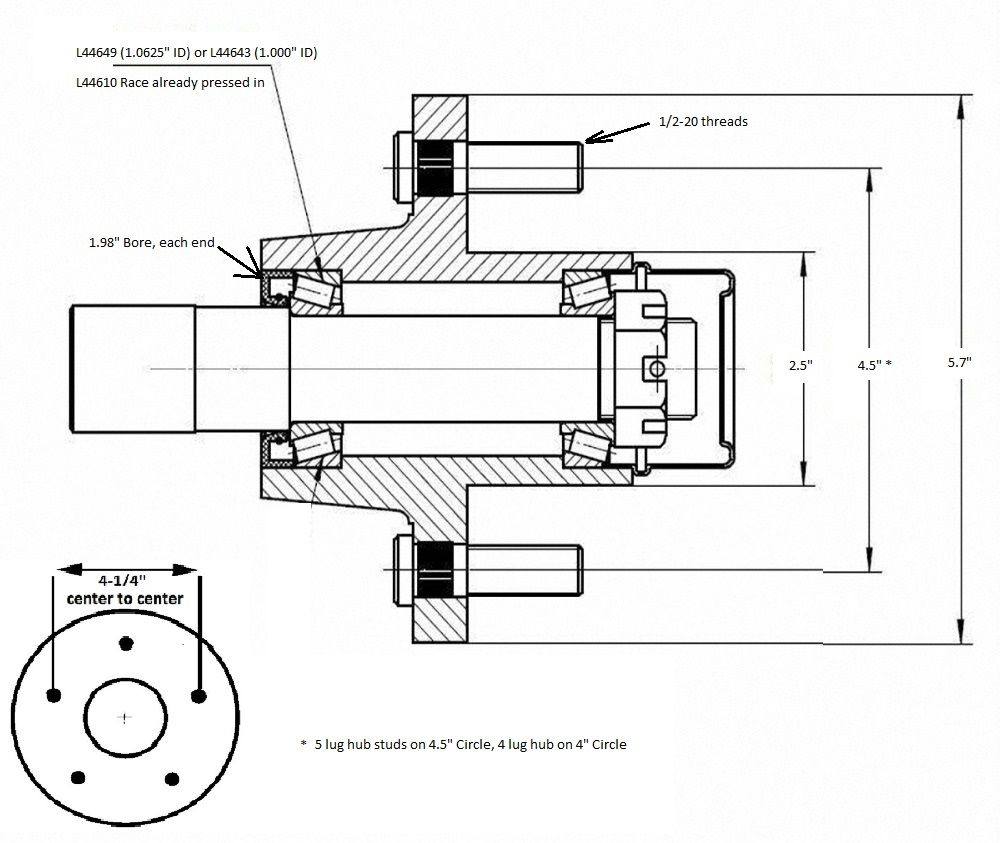

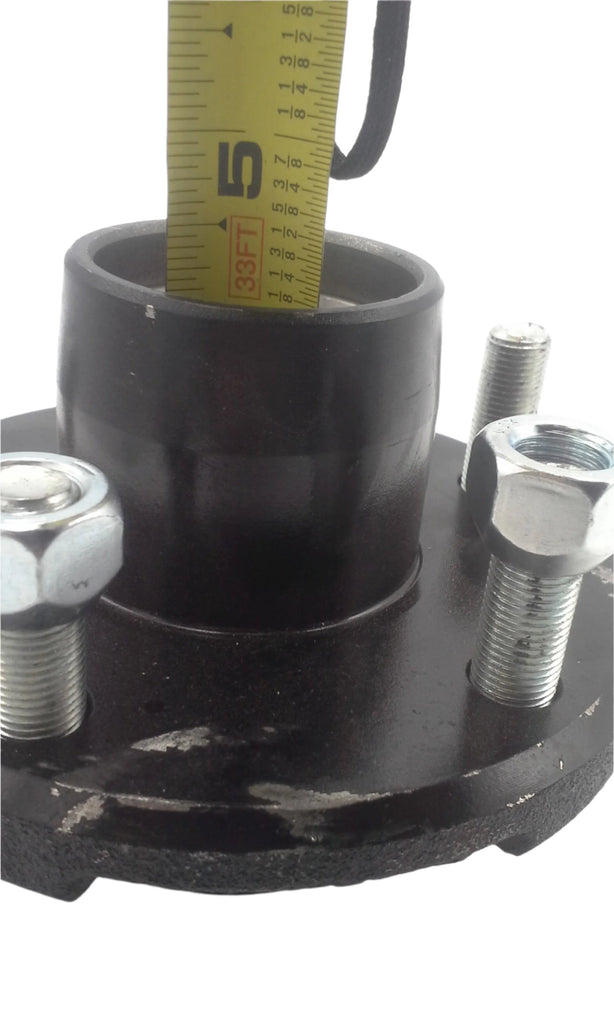

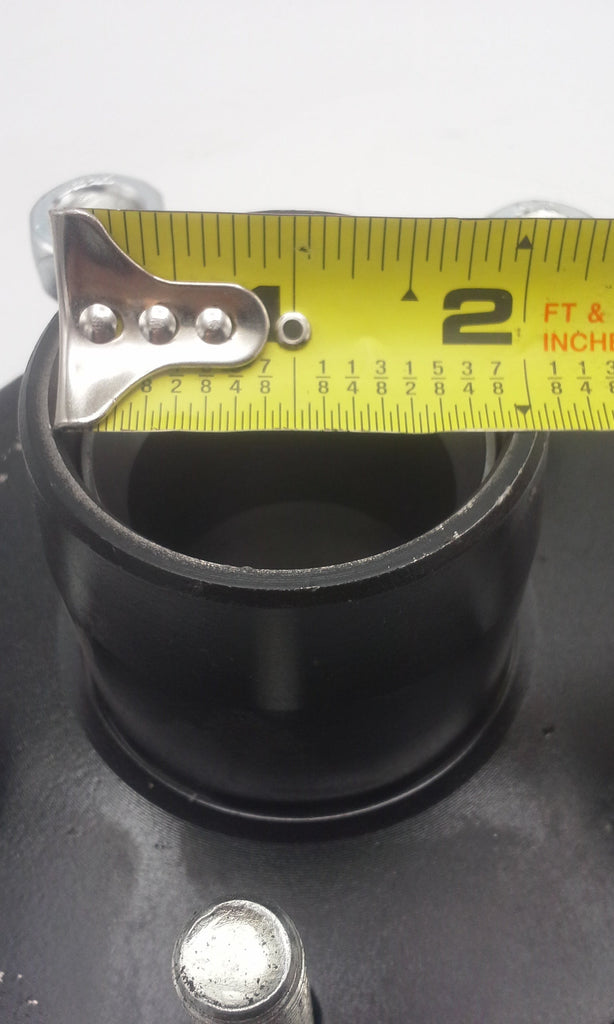

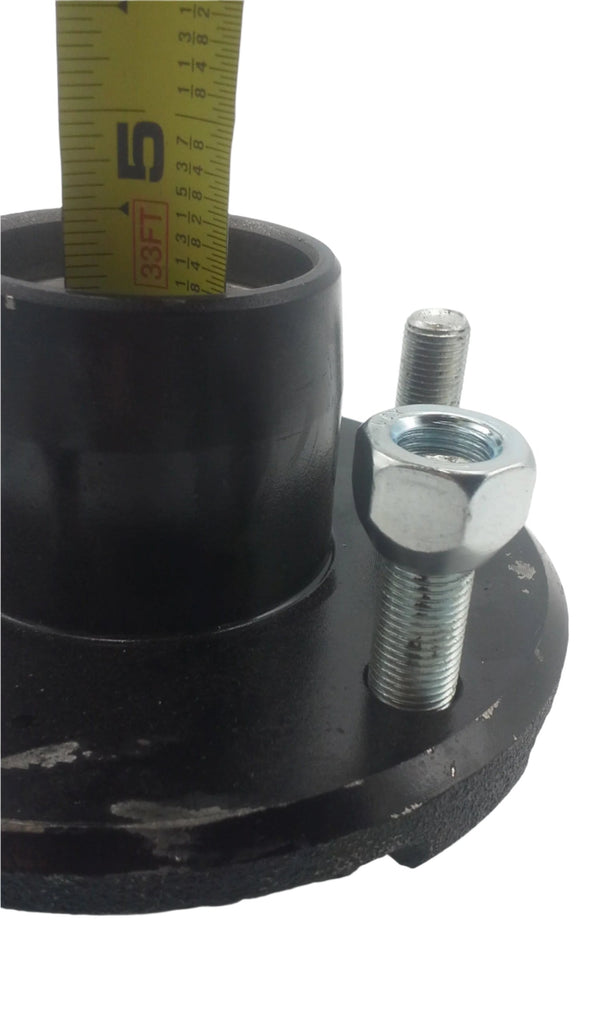

  • (1) 5×4.5 Hub, 2000 lb — 88545-1 (includes lug nuts)

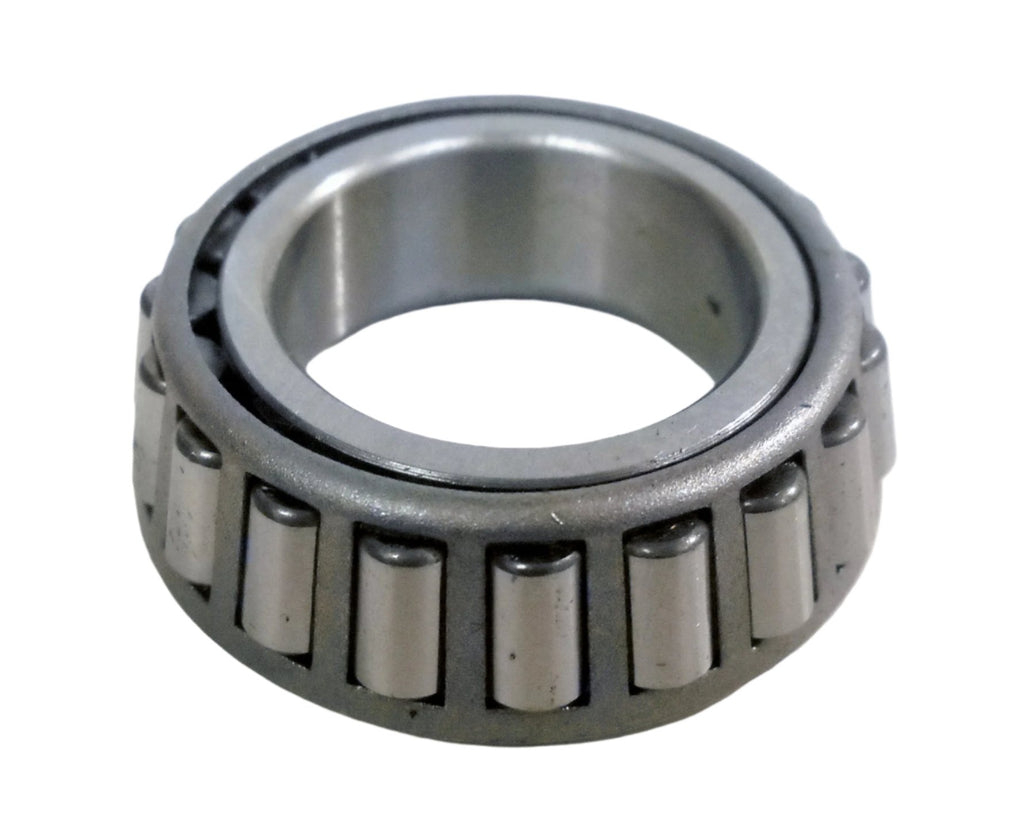

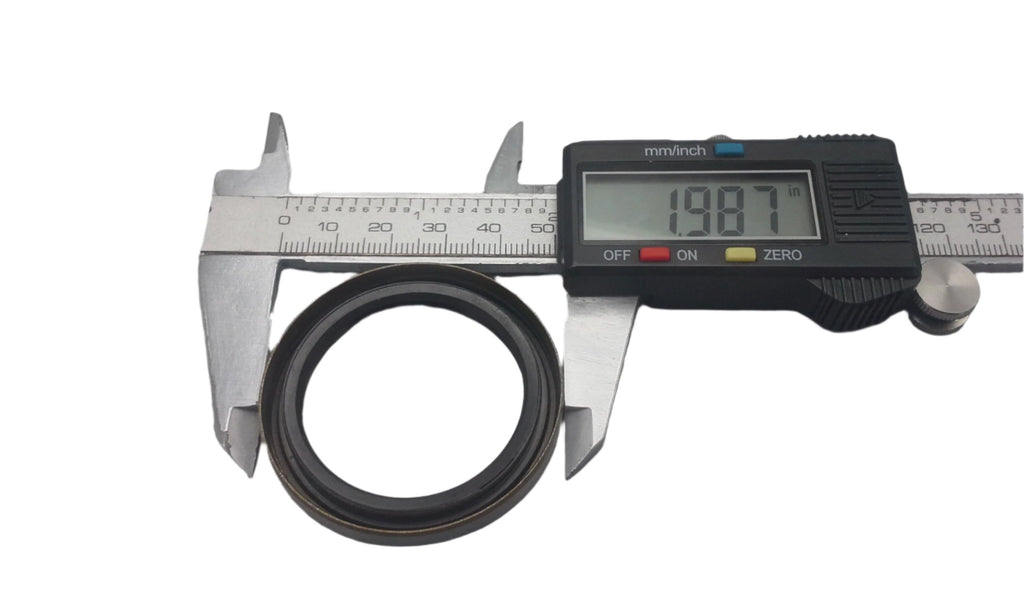

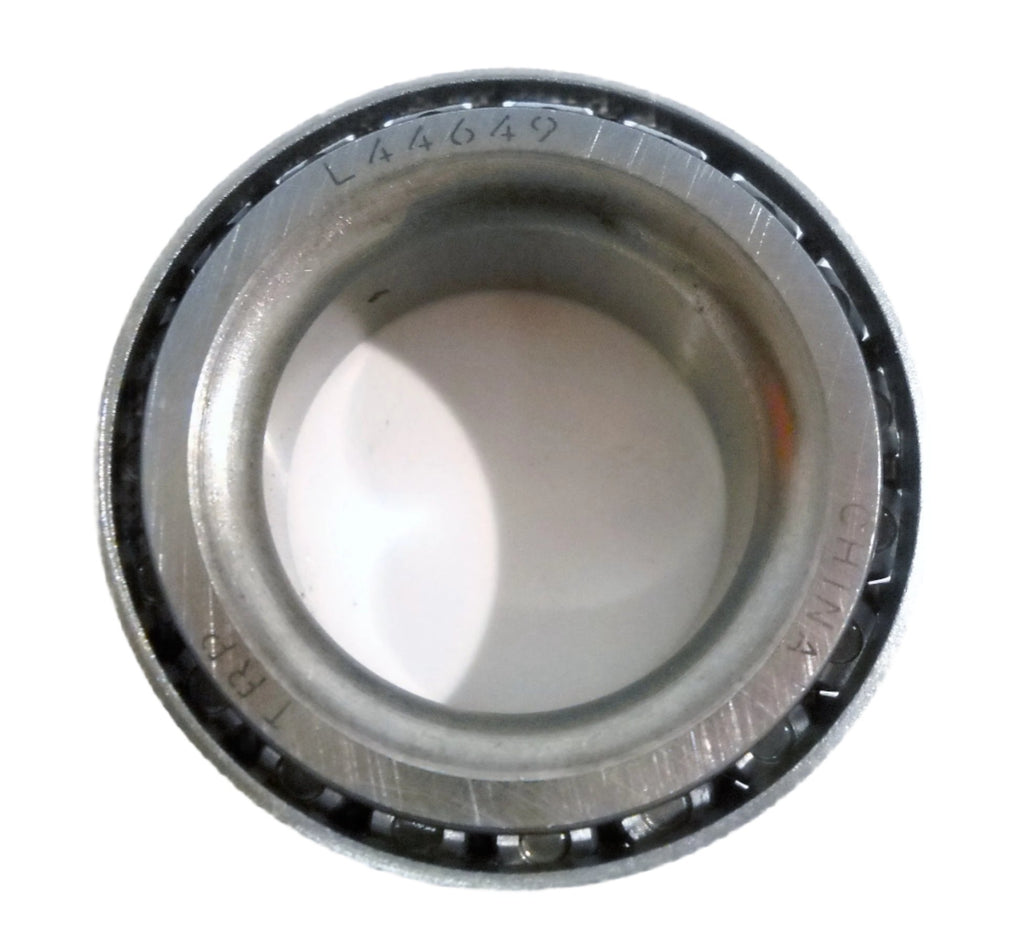

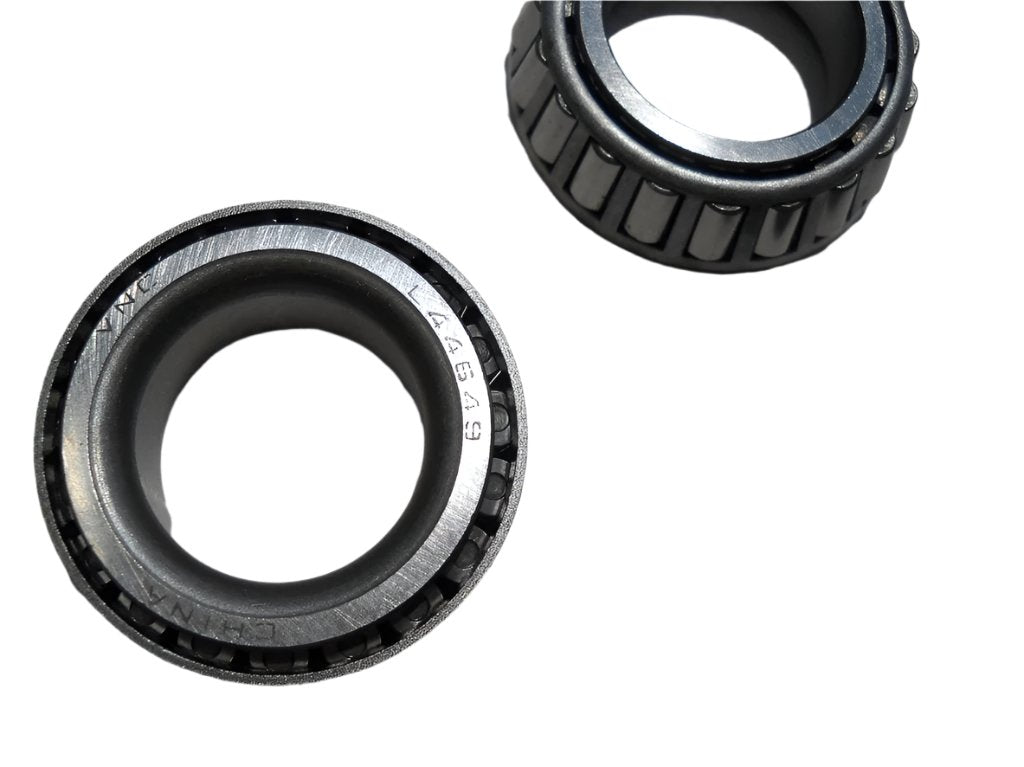

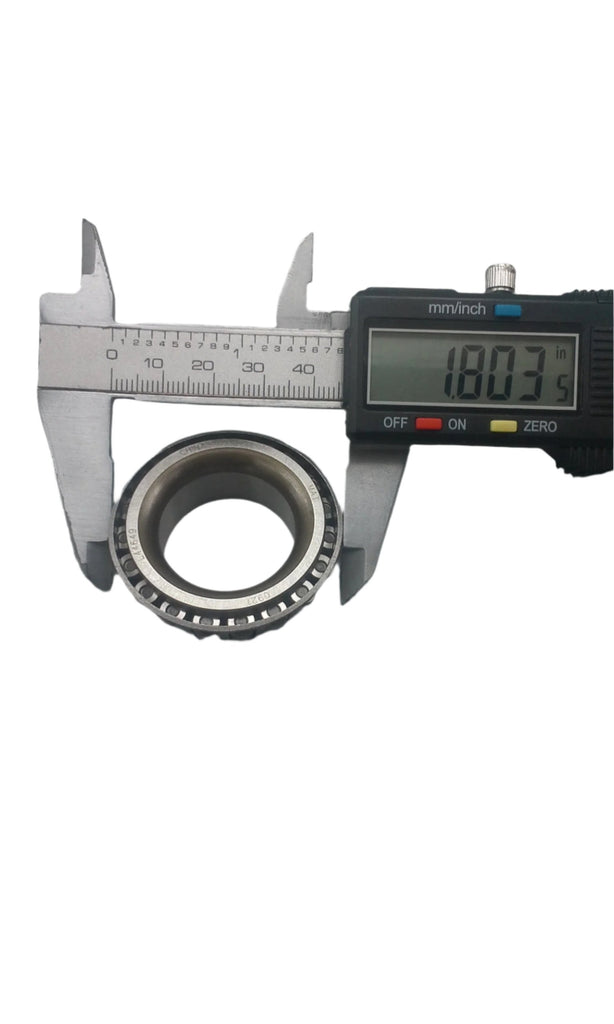

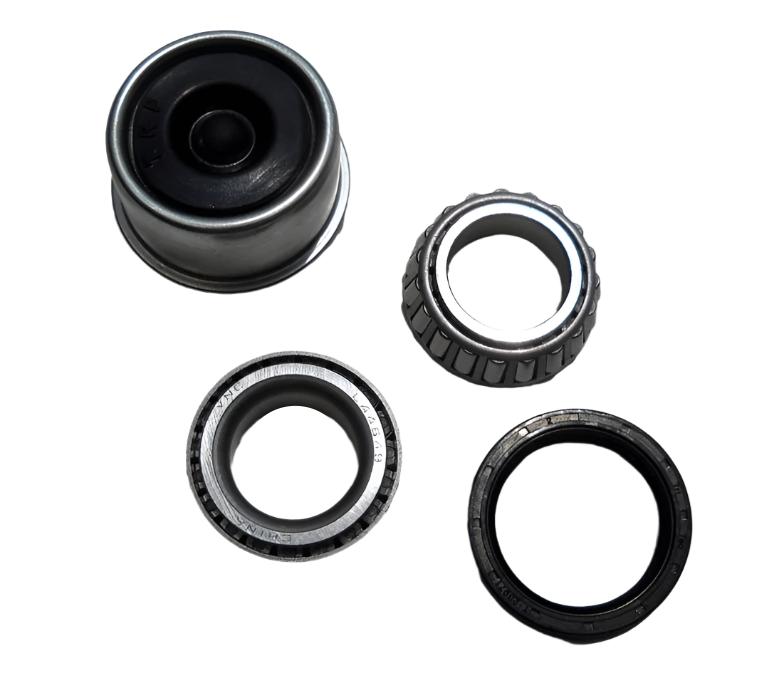

  • (1) Bearing Kit — BYOAK-116-KIT

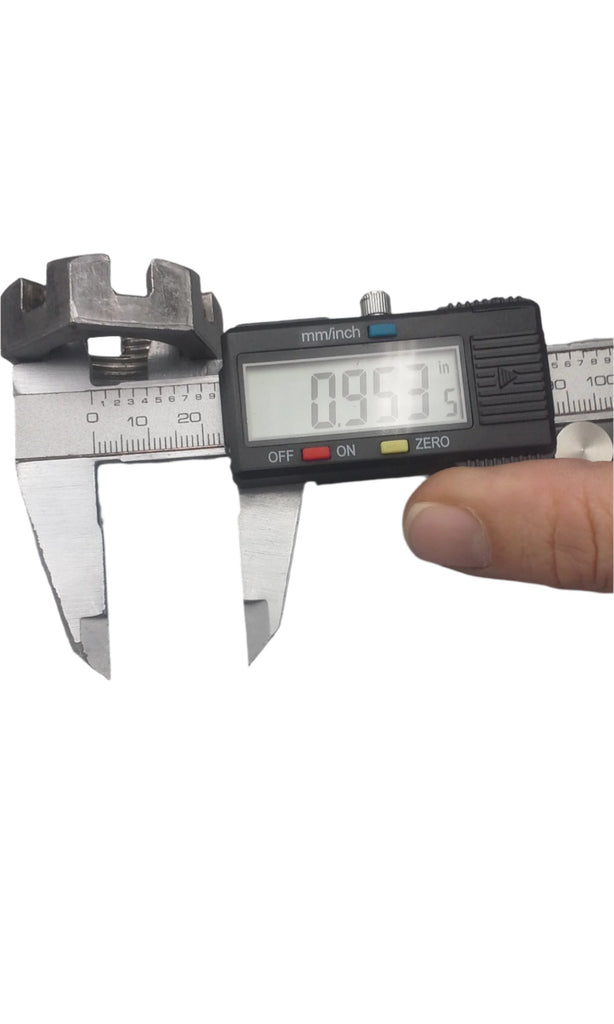

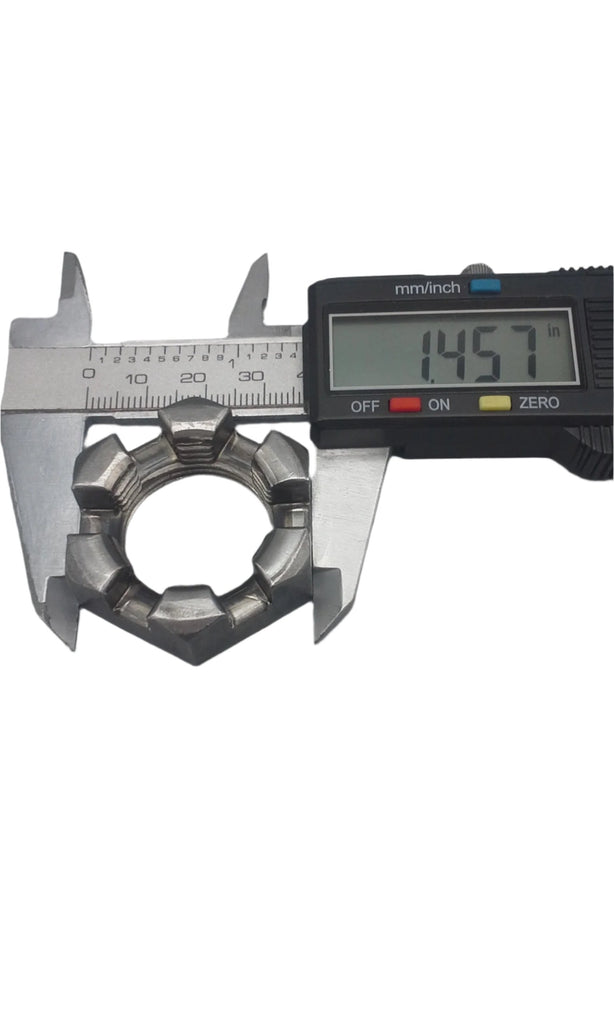

  • (1) Spindle Castle Nut — FA-SN100

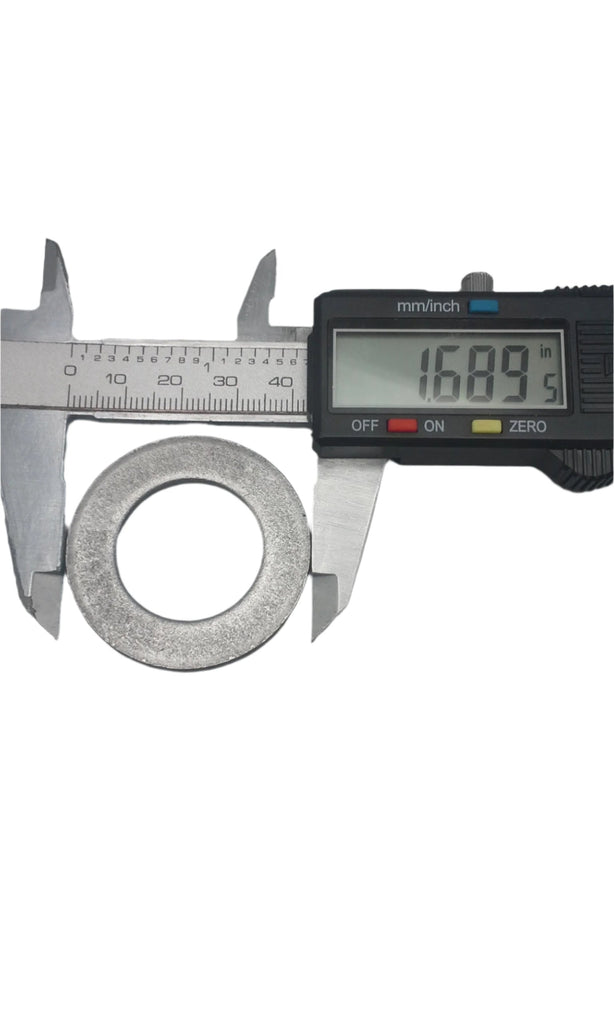

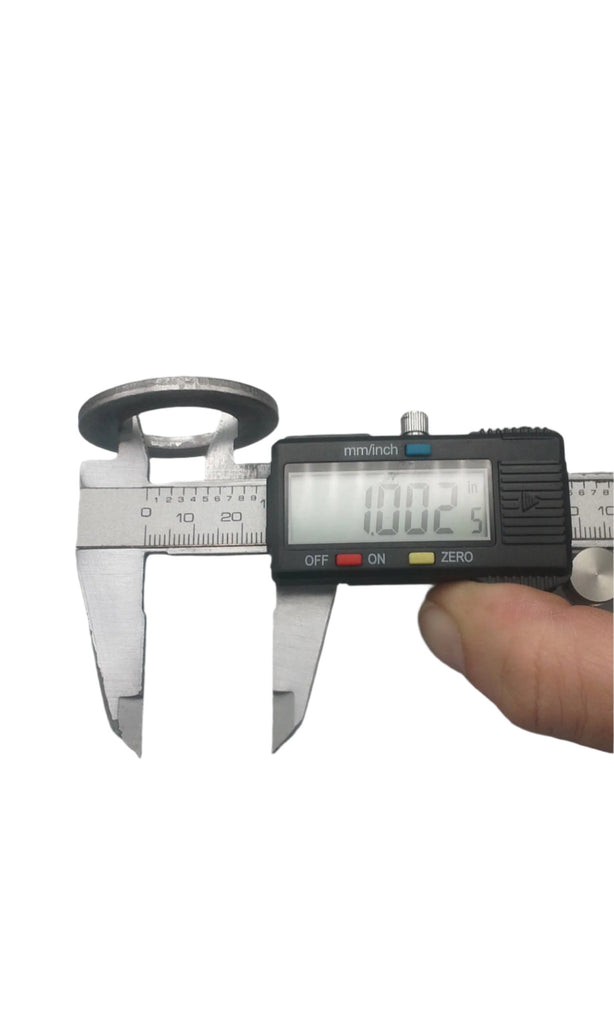

  • (1) Round Washer — SW1000

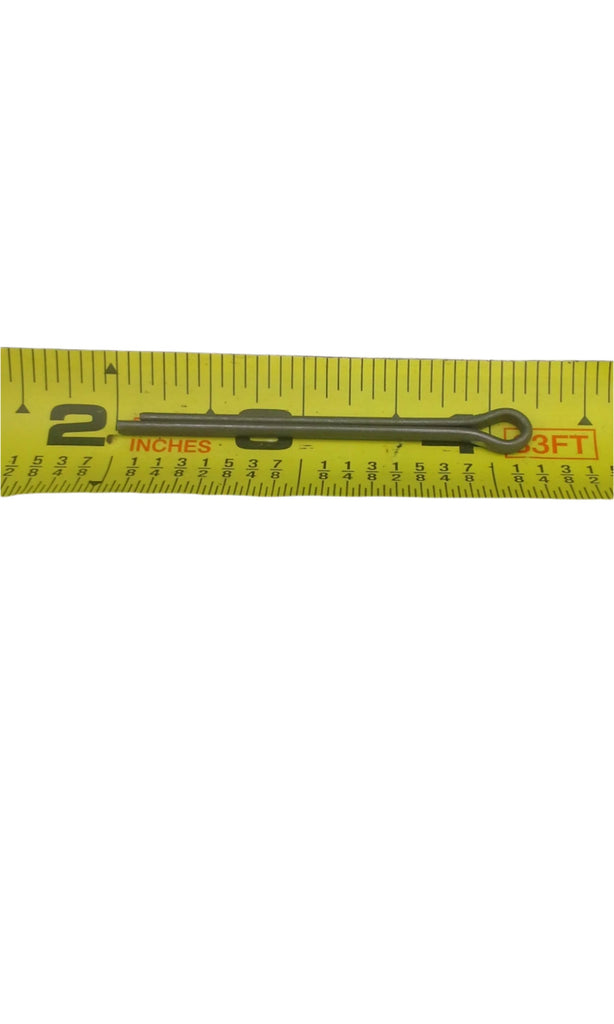

  • (1) Cotter Pin — 165649

Specifications

Axle Capacity 2000 lb
Hub Bolt Pattern 5×4.5"
Spindle Type 1.5" Round Flanged
Hub Style Idler Hub (no brakes)
Included Bearings As supplied in BYOAK-116-KIT
Part Number BYOAK-545BT16FZ-KIT

Notes

Welding should be performed by a qualified professional. Always confirm hub and bearing compatibility before assembly.
