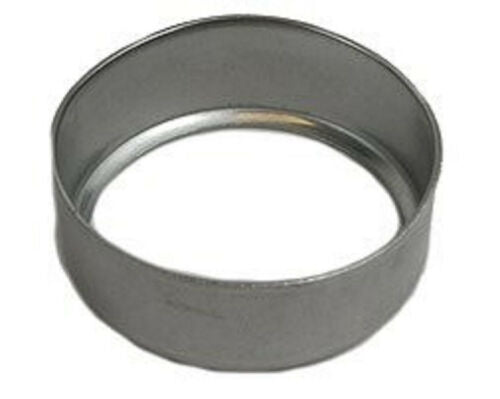

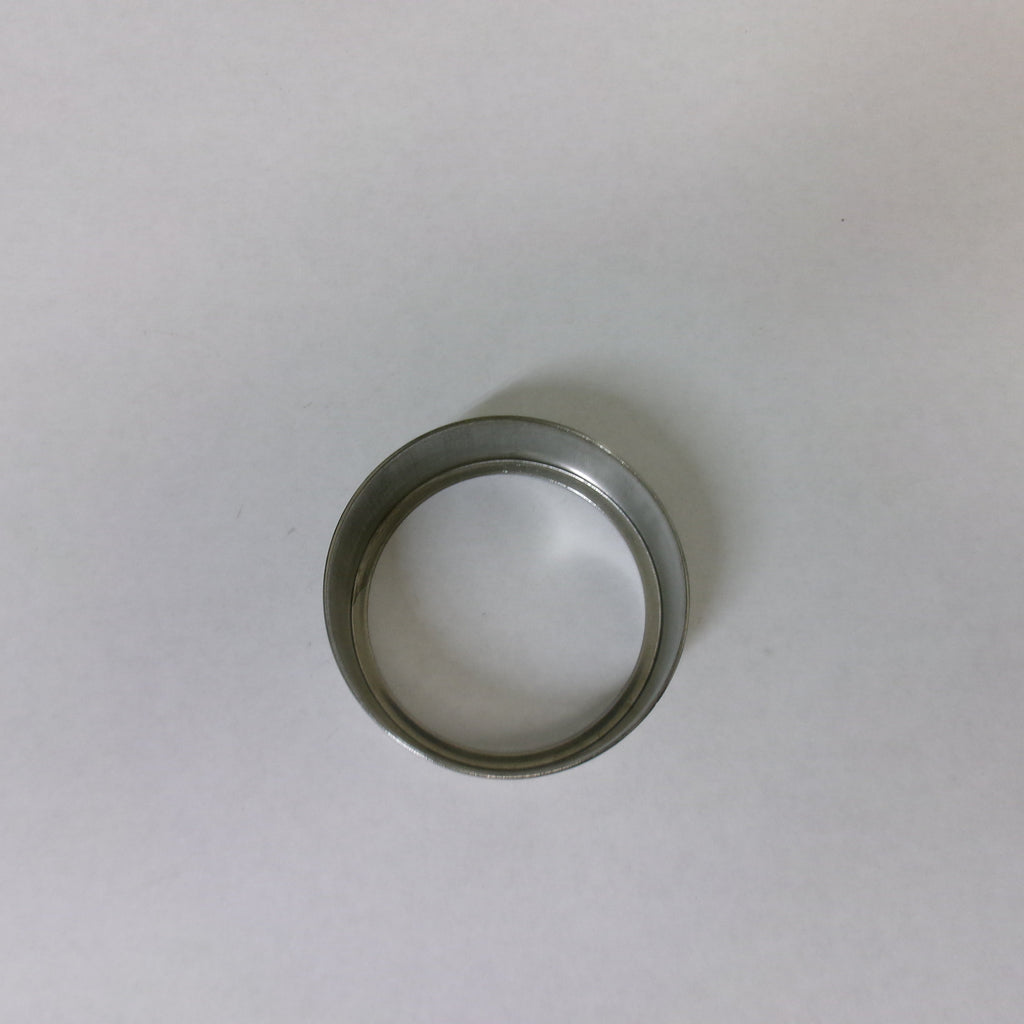

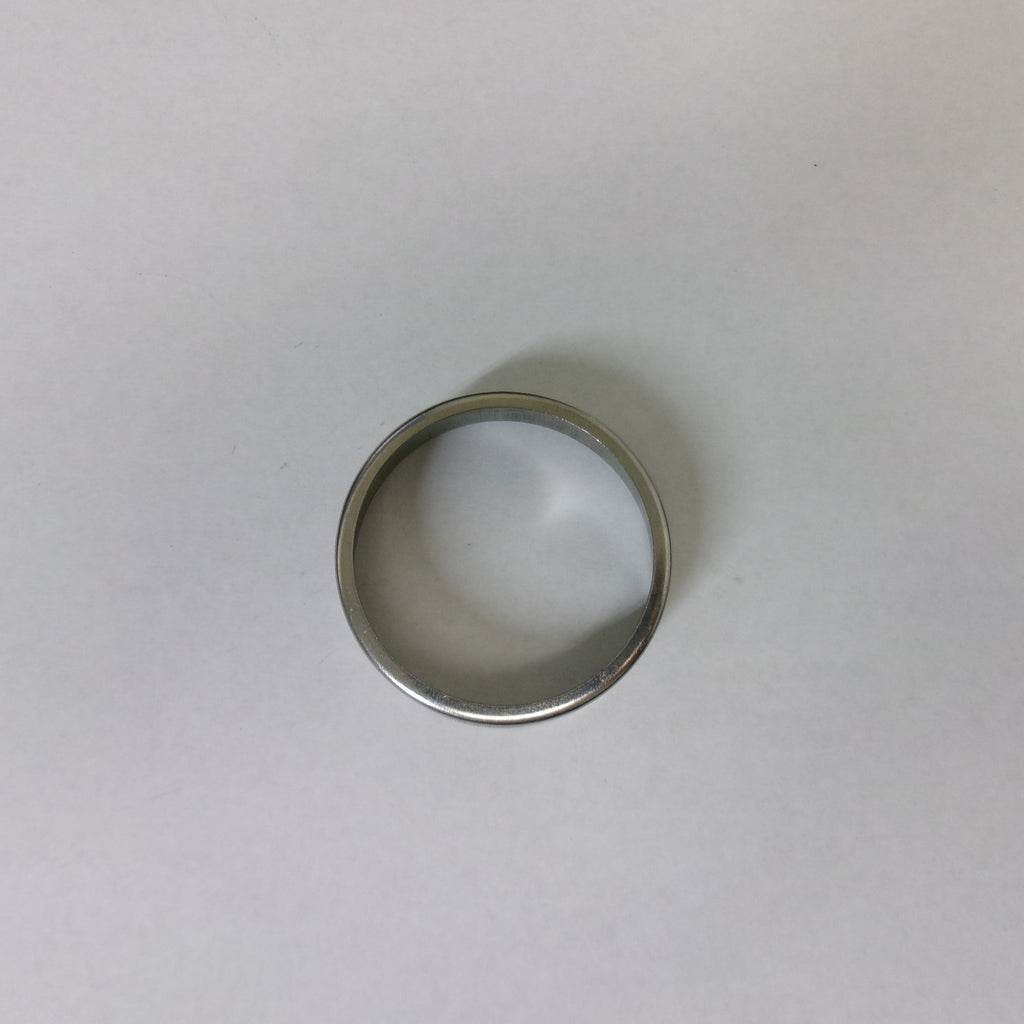

3500 lb Tie Down Trailer Axle Stainless Wear Sleeve Ring 1.72" O.D. 1.67" I.D. Fits TD17443 O-Ring
Replacement stainless wear sleeve for trailer axle spindles that were originally equipped with a replaceable seal wear sleeve. Commonly used on Tie Down-style 3,500 lb axle applications where the dimensions and spindle setup match.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | TD17293 |
| Product Type | Trailer axle spindle wear sleeve / seal wear ring |

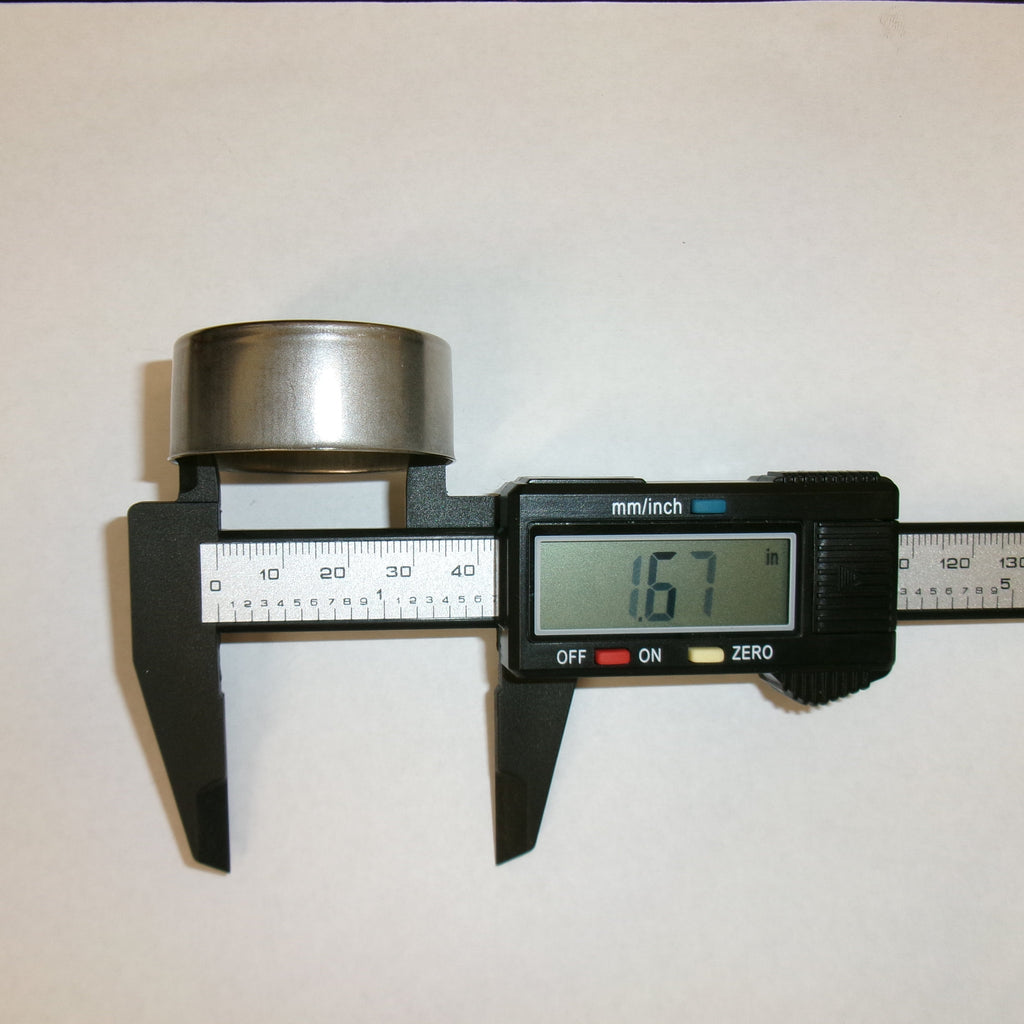

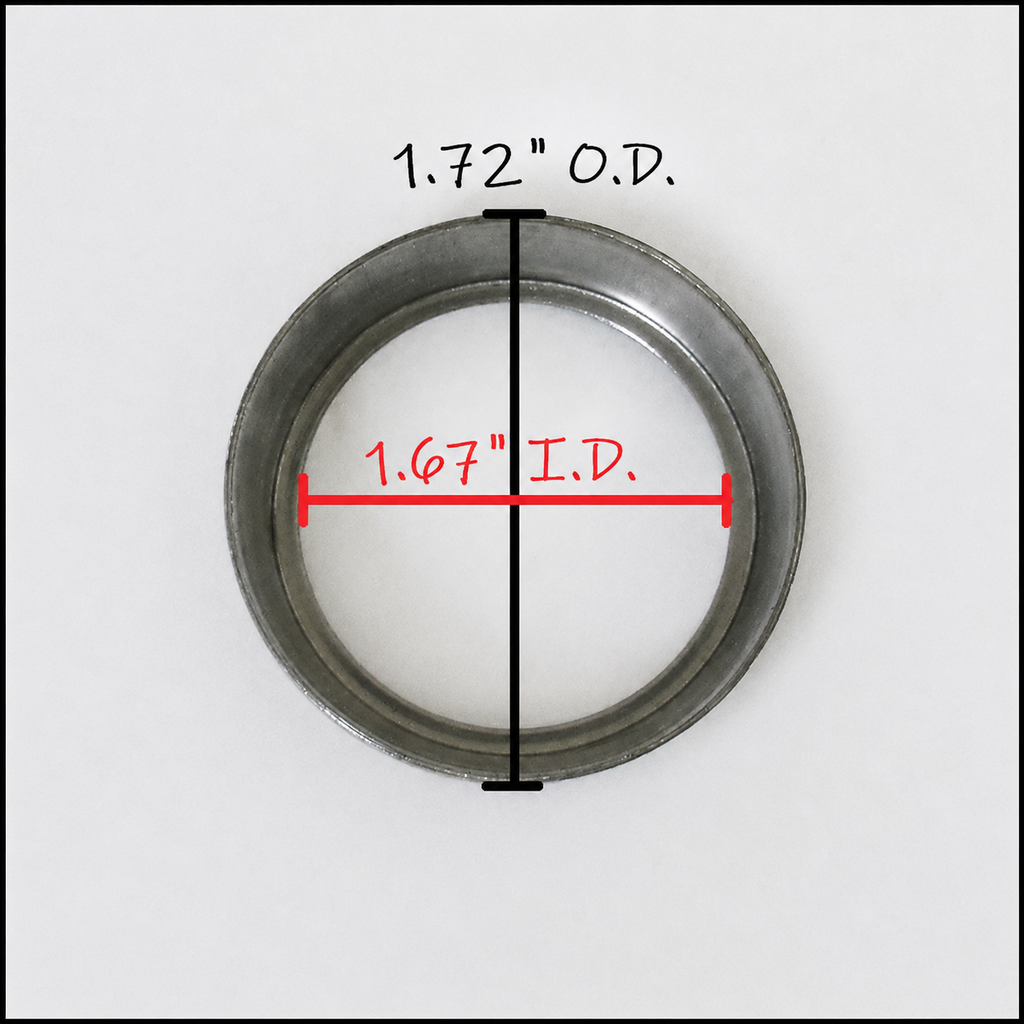

| Inside Diameter | Approx. 1.67 in |

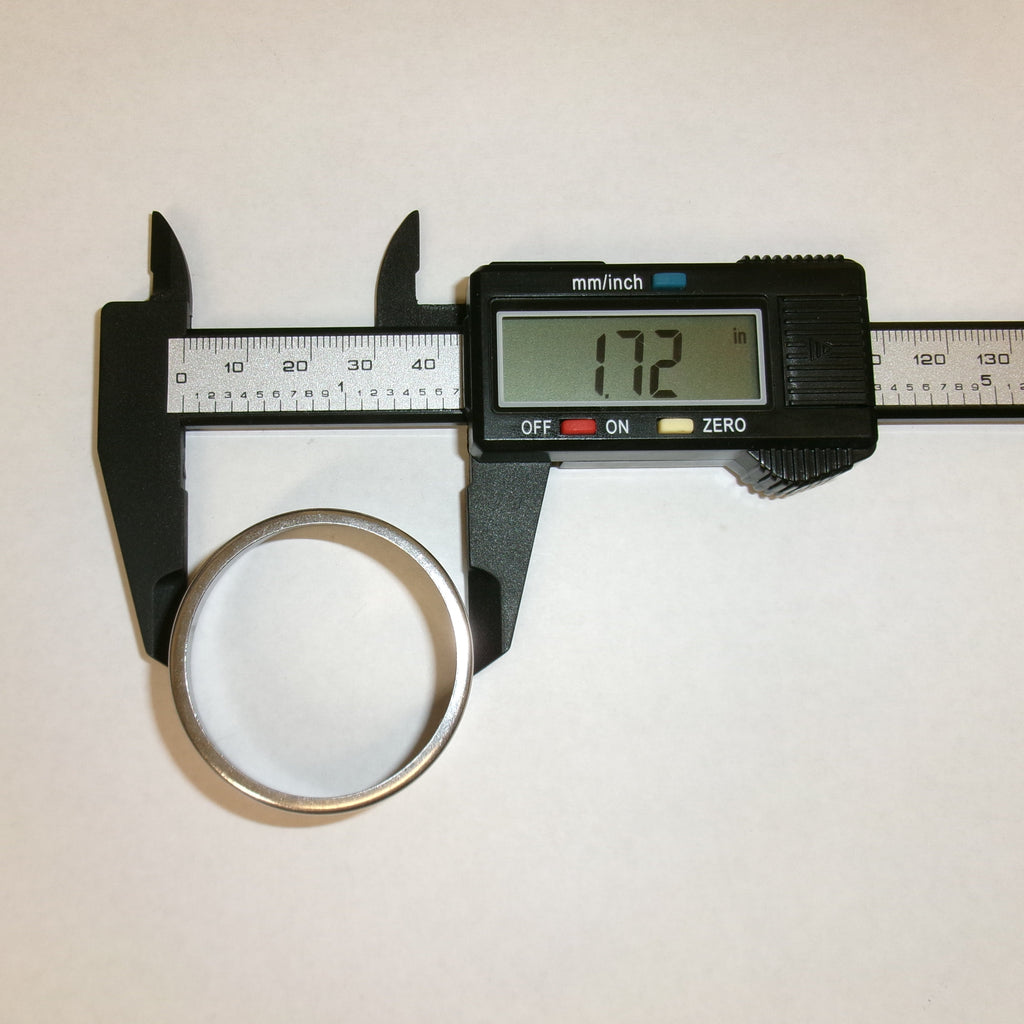

| Outside Diameter | Approx. 1.72 in |

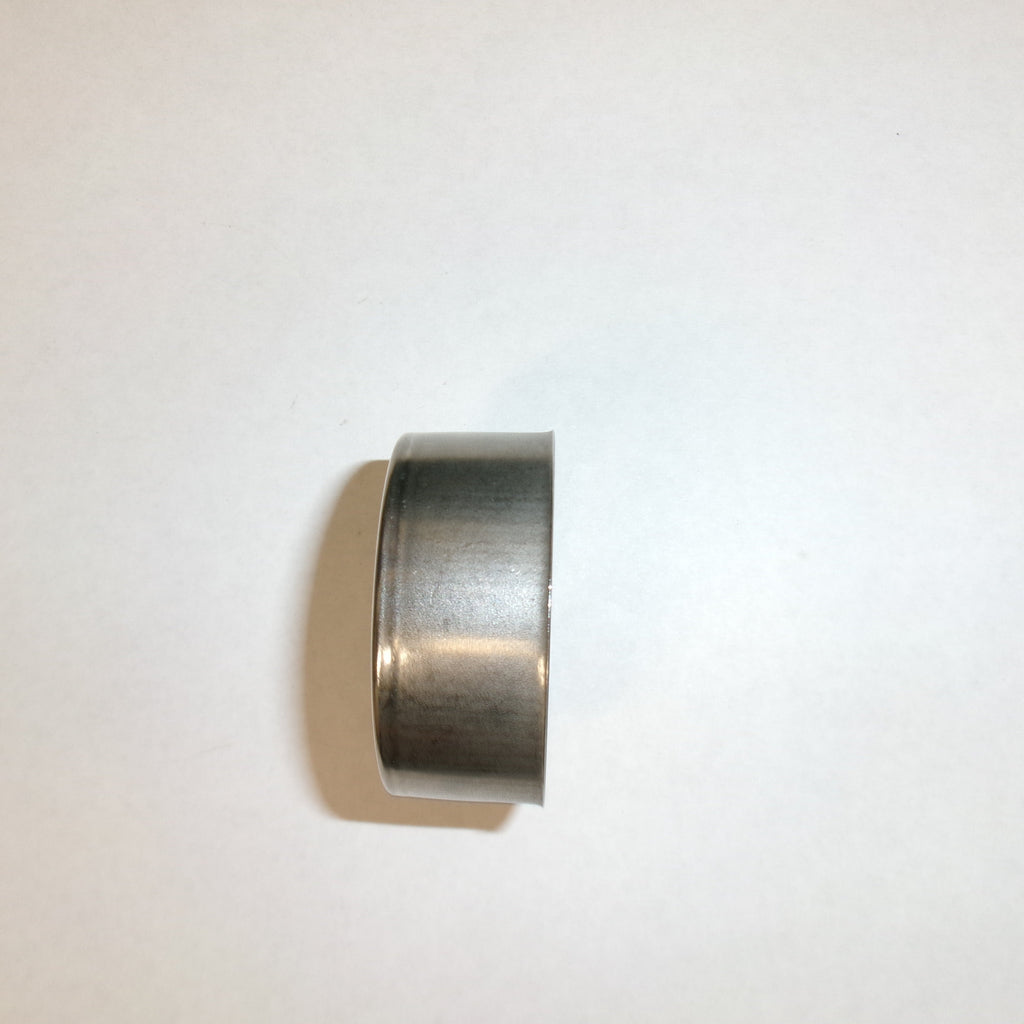

| Depth / Width | Approx. 0.72 in |
| Material | Stainless steel |
| Quantity Included | 1 wear sleeve |
Fitment / Application
| Category | Details |
|---|---|
| Primary Application | Common on 3,500 lb Tie Down-style trailer axles with factory replaceable wear sleeves |
| Seal Surface Use | Provides the surface where the rear hub grease seal rides |
| Hub Reference | Commonly associated with hubs using inner bearing L68149 where the sleeve dimensions match |
| Fitment Method | Verify original sleeve OD, ID, depth, spindle design, and grease seal fit before ordering |
| Important Note | May not fit axles that were not factory equipped with a replaceable wear sleeve |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Replaceable Seal Surface | Restores the surface where the hub seal rides on compatible spindle setups |
| Stainless Steel Construction | Helps resist corrosion in trailer and boat trailer axle environments |
| Tie Down-Style Application | Useful for compatible axles originally designed with removable wear sleeves |
| Measurement-Based Fit | Allows buyers to confirm fit by matching sleeve dimensions before ordering |
Overview
The TD17293 is a replacement stainless axle wear sleeve for compatible Tie Down-style trailer axle spindles that use a removable sleeve at the grease seal contact area. This sleeve is commonly used on 3,500 lb axle applications that were originally built with a replaceable wear sleeve. Match the old sleeve and spindle dimensions before ordering.
R&P Service Insight
Wear sleeves are small parts, but the fit matters. The grease seal depends on the correct sleeve diameter and a smooth sealing surface to help keep grease in the hub and contaminants out.
- Confirm the axle style: This part is for applications originally equipped with a replaceable wear sleeve.
- Measure the old sleeve: Compare inside diameter, outside diameter, and depth before ordering.
- Inspect the seal area: Replace the sleeve when the seal riding surface is grooved, corroded, worn, or damaged.
R&P Knowledge Hub
Compatibility: Designed for compatible Tie Down-style spindle applications where the axle was factory equipped with a replaceable wear sleeve and the measurements match.
Trailer / Axle System Fit: Commonly used on 3,500 lb Tie Down-style trailer axles and hub setups using a sleeve-type seal surface.
Installation Notes: Remove the old sleeve carefully, clean the spindle area, and install the replacement sleeve squarely so the grease seal has an even surface to ride on.
Performance Insight: A worn seal surface can cause grease leakage and premature seal failure. A properly fitted replacement sleeve helps restore the seal riding surface without replacing the entire spindle or axle.
Brand & Fitment Note
Selling Brand / Application Reference: TD17293 wear sleeve for Tie Down-style replaceable sleeve axle applications.
Application Reference: Tie Down and axle rating references are used for compatibility guidance only. Final fit depends on the axle, spindle, original sleeve, hub, and grease seal dimensions.
What This Means: This listing is for one replacement wear sleeve, not a complete hub kit, seal kit, bearing kit, or axle repair kit.
Before Ordering: Verify the original sleeve measurements, spindle design, hub setup, bearing references, and grease seal size before installation.
R&P Repair Insight
Do not order a wear sleeve by axle capacity alone. Several trailer axle setups can use similar bearings or seals while using different sleeve dimensions. The safest match is the old sleeve plus the spindle measurement.
- Check the old sleeve: If your axle never had a removable wear sleeve, this part may not apply.
- Check the grease seal: The seal lip must ride correctly on the sleeve outside diameter.
- Check for spindle damage: Deep spindle damage, heavy corrosion, or out-of-round wear may require more than a sleeve replacement.
Features
Replacement Seal Wear Surface
Provides a replaceable surface for the rear hub grease seal on compatible spindle applications.
Stainless Steel Sleeve
Stainless construction helps resist corrosion in demanding trailer and boat trailer service environments.
Common Tie Down-Style Fit
Commonly used on 3,500 lb Tie Down-style axle applications that came factory-equipped with removable wear sleeves.
Measurement-Verified Ordering
Approximate 1.67" ID, 1.72" OD, and 0.72" depth help buyers compare against the original sleeve before purchase.
Included Components
| Quantity | Item |
|---|---|
| 1 | TD17293 stainless trailer axle wear sleeve / seal wear ring |
| Not Included | Grease seal, bearings, races, hub, spindle, installation tools, and additional hardware |
