Titan Hydraulic Disc Brake Master Cylinder for Model 10 & 20 Actuators (47471D)

$169.04
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 4 available 3 remaining after purchase
Selected quantity subtotal $169.04
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: 47471D
PRODUCT INFORMATION

Product Details

Trailer Braking / Hydraulic Actuators / Master Cylinder

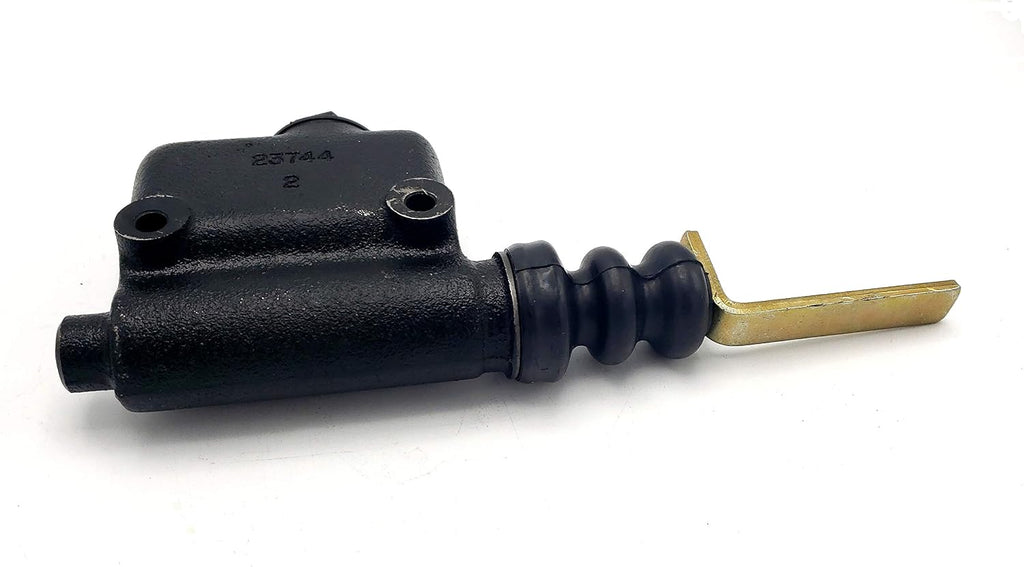

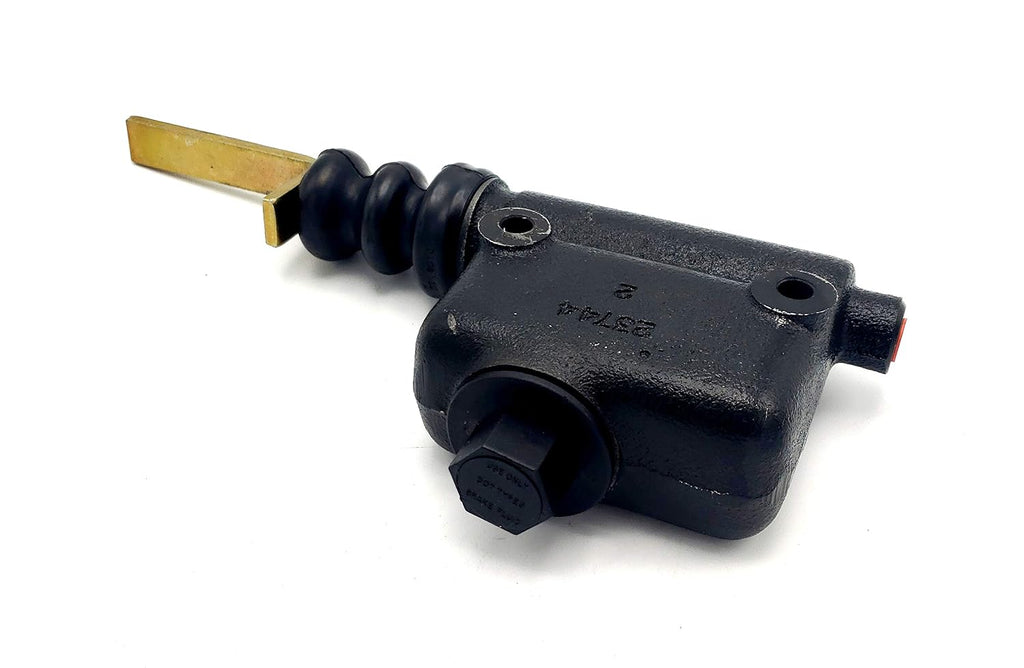

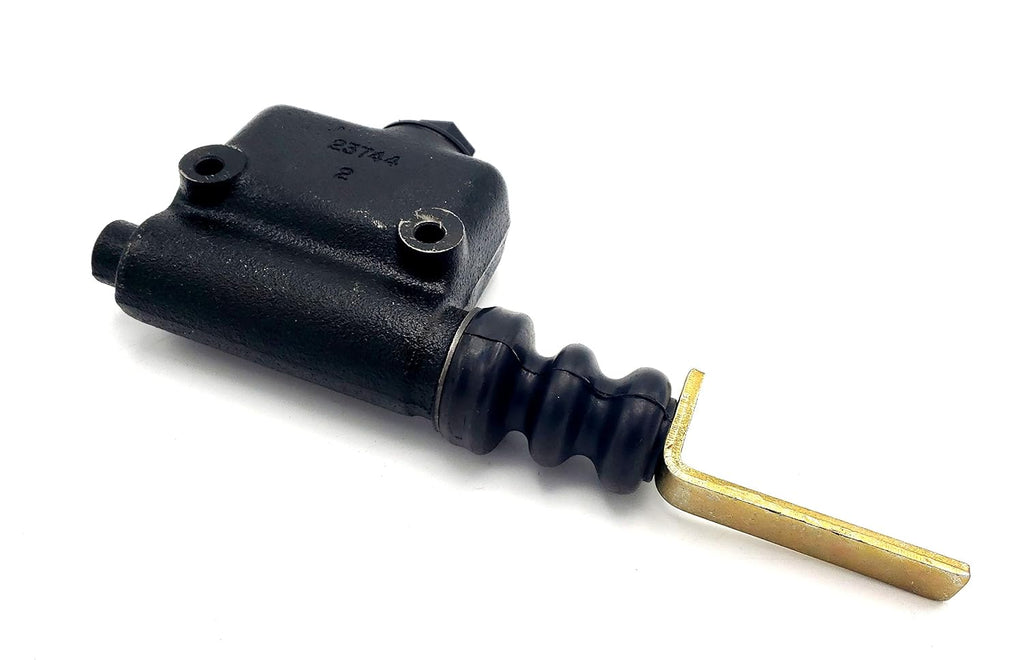

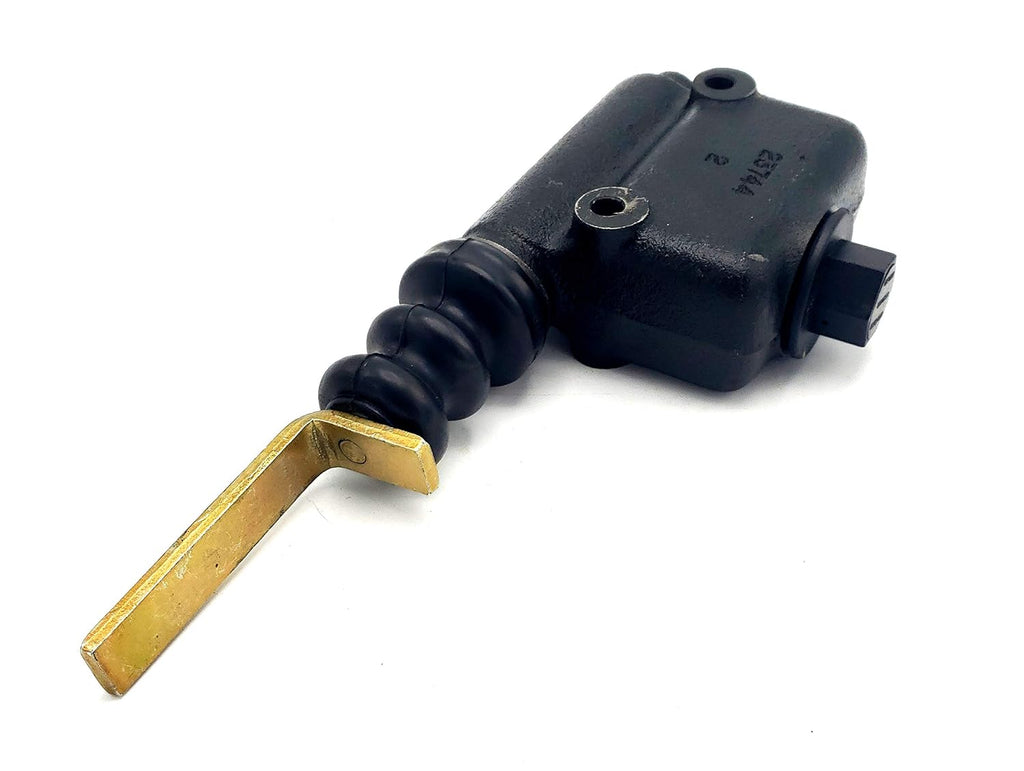

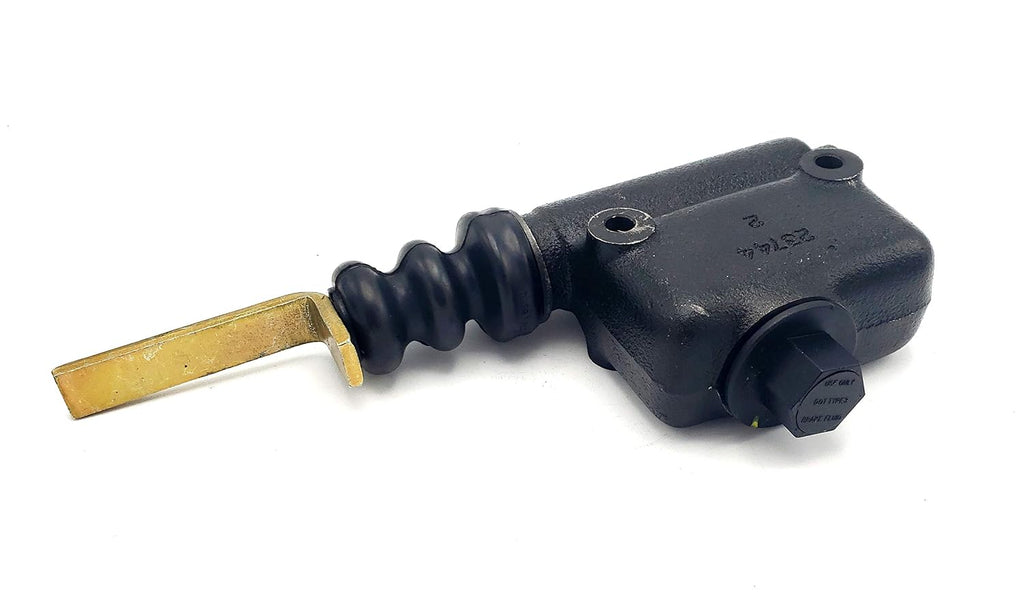

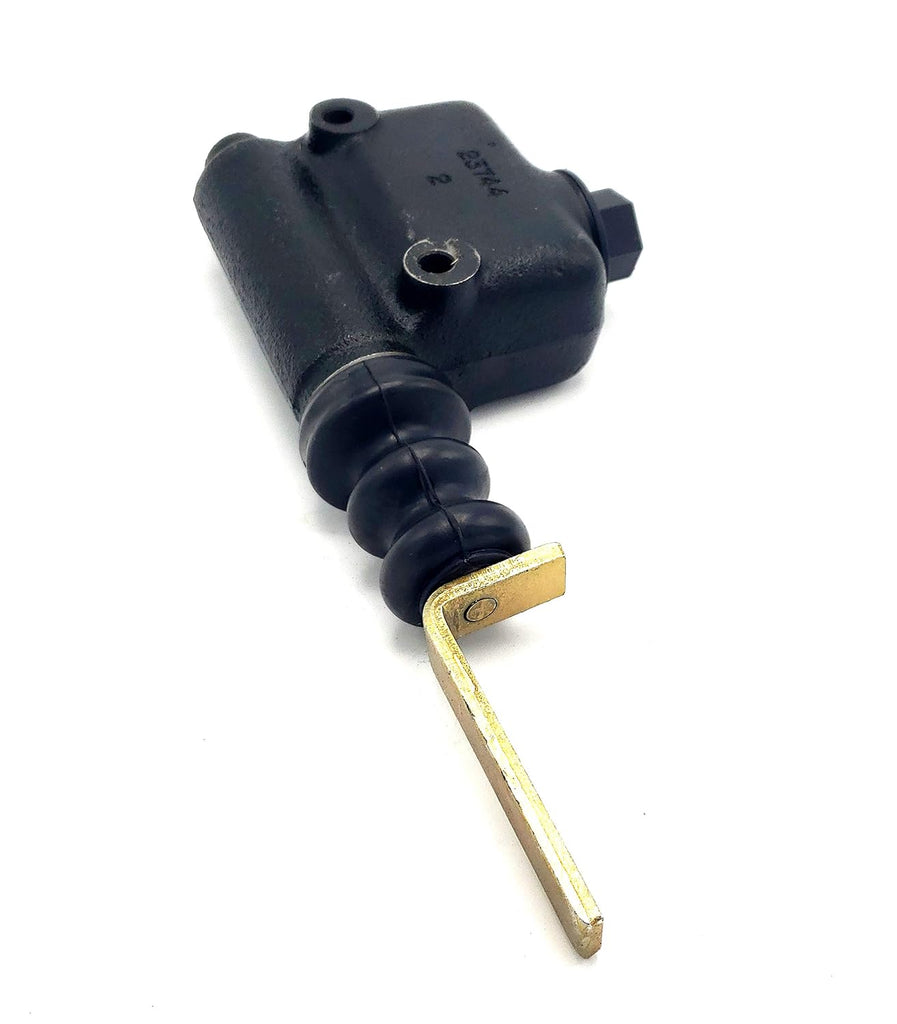

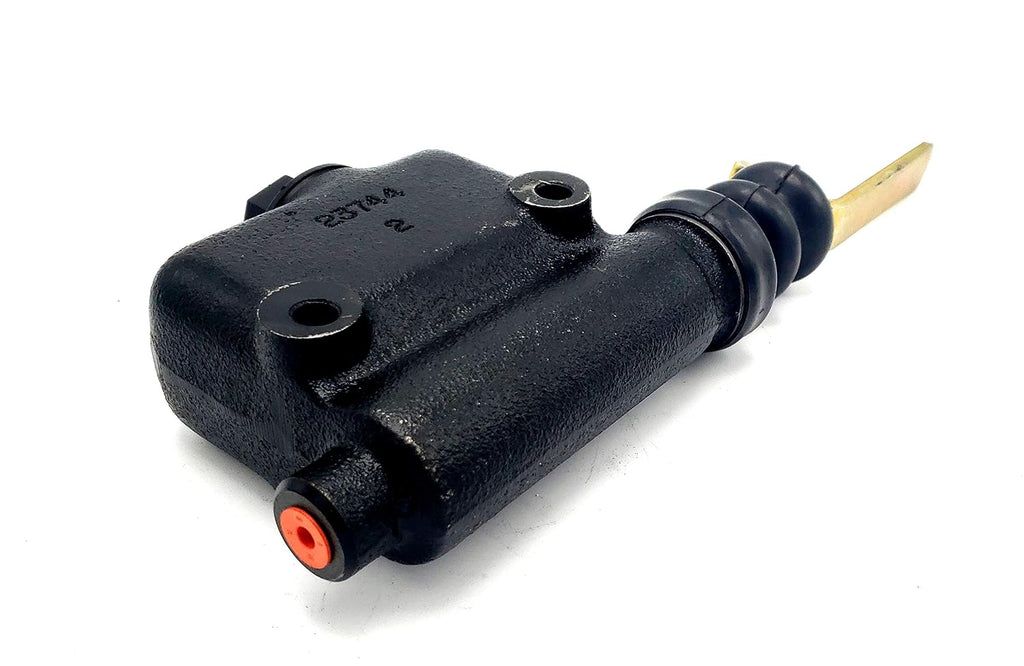

Titan Hydraulic Disc Brake Master Cylinder for Model 10 & 20 Actuators

Restore peak stopping power with this heavy-duty cast iron master cylinder, specifically engineered for Titan Model 10 and 20 hydraulic disc brake systems.

Part Number: 47471D Hydraulic Disc Brakes Cast Iron Construction

Overview

The Titan 47471 is the industry-standard replacement master cylinder for trailers equipped with Model 10 or Model 20 actuators. This high-quality replacement solution is constructed from rugged cast iron to withstand the high-pressure demands of hydraulic disc brakes. It comes ready for installation as a complete assembly, ensuring your hydraulic system remains sealed, efficient, and reliable under heavy loads.

R&P Service Insight

Regular inspection of your master cylinder is vital for trailer safety. A failing cylinder can lead to increased stopping distances or total brake failure.

  • Cast Iron Strength: Resists warping and fatigue under high hydraulic pressures.
  • Direct Swap: Designed as an exact replacement for #19 (Model 10) and #14 (Model 20) schematics.
  • Safety First: Replacing a leaking or corroded unit prevents catastrophic fluid loss.

R&P Knowledge Hub

Compatibility: Specifically designed for Titan/Dexter Model 10 and Model 20 Brake Actuators.

System Fit: Hydraulic Disc Brakes Only (Not compatible with drum brake systems).

Installation Notes: Features a standard 1/8” NPT female thread for the orifice connector to ensure a leak-free line connection.

Performance Insight: The included rubber boot and push rod assembly are critical for protecting internal pistons from road grime and moisture.

R&P Repair Insight

Disc brake master cylinders operate at significantly higher pressures than drum versions. Using the correct "Disc" specific model is essential for proper caliper function.

  • Check Threads: Verify your orifice connector matches the 1/8” NPT female port.
  • Bleed System: Always perform a full system bleed after installation to remove trapped air.
  • Mounting: Consult your specific actuator schematic (#19 or #14) to ensure correct orientation of the push rod.

Features

Heavy-Duty Cast Iron

Provides the structural integrity needed for high-pressure hydraulic disc brake applications.

Complete Assembly

Includes filler cap, push rod, and protective rubber boot for a comprehensive repair.

Universal Titan Fit

Versatile design fits seamlessly into both Model 10 and Model 20 brake actuator couplers.

Standard NPT Port

Equipped with a 1/8” NPT female thread for a secure connection to your trailer brake lines.

Specifications

Specification Detail
Part Number 47471D
Product Type Master Cylinder
Application Disc Brakes Only
Material Cast Iron

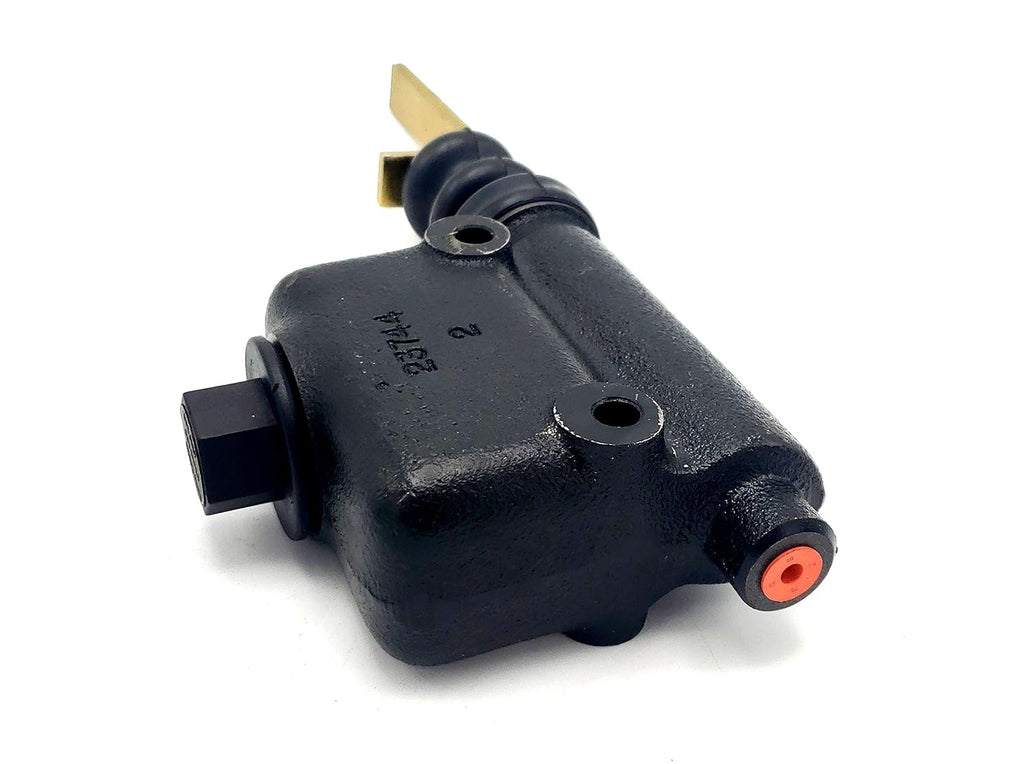

Outlet Thread 1/8” NPT (Female)
Schematic Ref #19 (Mod 10), #14 (Mod 20)

Fitment / Application

Category Details
System Type Hydraulic Surge Actuators
Primary Fit Titan Model 10 Actuators
Secondary Fit Titan Model 20 Actuators
Notes Verify actuator model and brake type (Disc) before purchasing.

Included Components

Quantity Item
1 Titan Cast Iron Master Cylinder (47471)

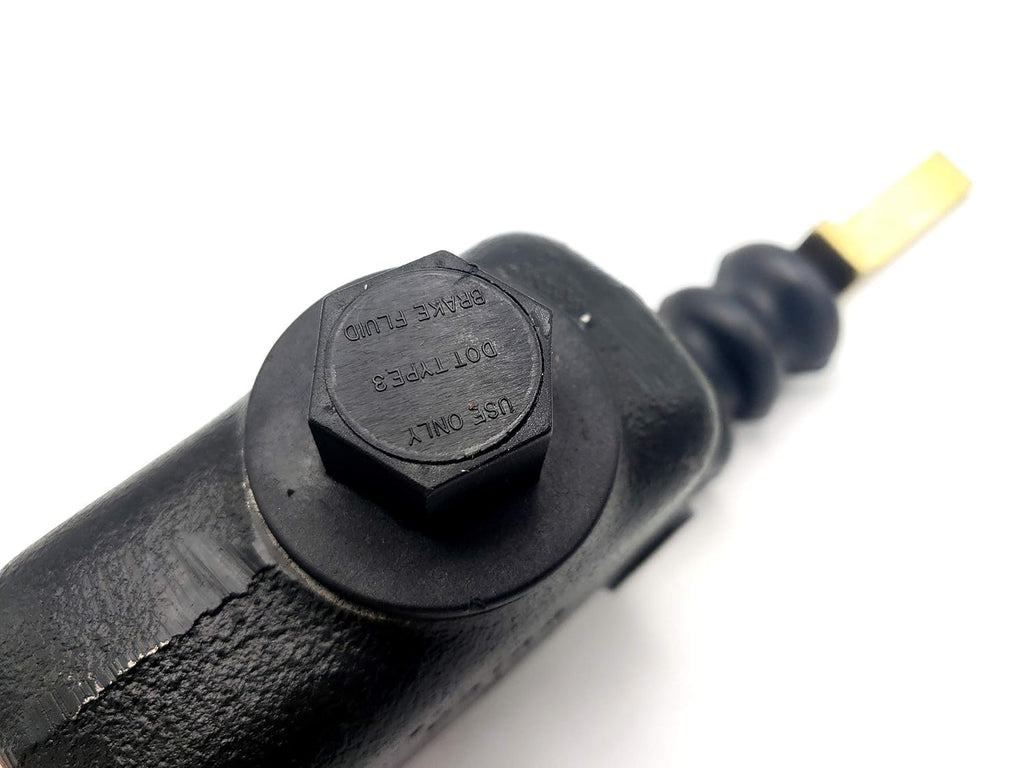

1 Actuator Filler Cap
1 Push Rod Assembly
1 Protective Rubber Boot
Final Verification: Please ensure your actuator uses hydraulic disc brakes. This cylinder will not provide proper pressure for drum brake systems. Verify your schematic reference number (#19 for Model 10 or #14 for Model 20) prior to installation.
